Field Notice: FN - 72120 - CUCM, SME, and IM&P: QuoVadis Root CA 2 Decommission Might Affect Incoming Calls to Cisco Jabber/WebEx (Android and iOS) - Workaround Provided

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Revision History

Revision	Publish Date	Comments
2.0	24-Feb-22	Updated the Problem Description, Background, Problem Symptom, and Workaround/Solution Sections
1.0	29-Oct-21	Initial Release

Products Affected

Affected OS Type	Affected Software Product	Affected Release	Affected Release Number	Comments
NON-IOS	Unified Communications Manager / Cisco Unity Connection Updates	UCM	11.5(1), 11.5(1)SU1, 11.5(1)SU10, 11.5(1)SU2, 11.5(1)SU3, 11.5(1)SU3a, 11.5(1)SU3b, 11.5(1)SU4, 11.5(1)SU5, 11.5(1)SU6, 11.5(1)SU7, 11.5(1)SU8, 11.5(1)SU9, 11.5(2), 12.0(1), 12.0(2), 12.5(1)
NON-IOS	Unified Communications Manager Updates	UCM	12.0(1)SU1, 12.0(1)SU2, 12.0(1)SU3, 12.0(1)SU4, 12.0(1)SU5, 12.5(1), 12.5(1)SU1, 12.5(1)SU2, 12.5(1)SU3, 12.5(1)SU4, 12.5(1)SU5, 14(1) Beta
NON-IOS	Unified Communications Manager Updates	14	14, 14SU1
NON-IOS	Unified Presence Server (CUP) Updates	11.5(1)	11.5(1), 11.5(1)SU1, 11.5(1)SU10, 11.5(1)SU2, 11.5(1)SU3, 11.5(1)SU3a, 11.5(1)SU4, 11.5(1)SU5, 11.5(1)SU5a, 11.5(1)SU6, 11.5(1)SU7, 11.5(1)SU8, 11.5(1)SU9
NON-IOS	Unified Presence Server (CUP) Updates	12.5(1)	12.5(1), 12.5(1)SU1, 12.5(1)SU2, 12.5(1)SU3, 12.5(1)SU4, 12.5(1)SU5	Includes Cisco Unified Communications IM & Presence Release 12.0
NON-IOS	Unified Presence Server (CUP) Updates	14	14, 14SU1

Defect Information

Defect ID	Headline
CSCwa88279	Incoming Calls to Cisco Jabber and WebEx (Android and iOS) Will Fail while in background mode

Problem Description

For affected versions of Cisco Unified Communications Manager (CUCM), Cisco Session Management Edition (SME), and Cisco Unified Communications Manager IM & Presence (IM&P), some Secure Sockets Layer (SSL) certificates issued from the QuoVadis root certificate authority (CA) trust chain before March 31, 2021 cannot be renewed from this CA. Once those certificates expire on devices or are removed from the Cisco cloud servers, functions such as Push Notification will fail to establish secure connections to Cisco and might not operate properly.

Background

The QuoVadis Root CA 2 Public Key Infrastructure (PKI) used by CUCM, SME, and IM&P software to issue SSL certificates is subject to an industry-wide issue that affects revocation abilities. Due to this issue, no new QuoVadis Root CA 2 certificates will be issued or renewed by Cisco after March 31, 2021. This affects certificate renewals on devices, Cisco cloud servers, and third-party services.

Certificates issued before the QuoVadis Root CA 2 was decommissioned will continue to be valid. However, the certificates on the Cisco cloud server have been updated to IdenTrust. This might cause functions such as Push Notification to fail to establish secure connections to Cisco cloud servers.

This table shows a summary of the QuoVadis Root CA 2 certificate change dates for affected Cisco services.

Cisco Cloud Server	QuoVadis Certificate Expiration Date	Affected Services
tools.cisco.com	November 7, 2021	Tomcat

Problem Symptom

Expiration of the QuoVadis Root CA 2 certificates affects Push Notifications with the associated symptoms.

• For CUCM, SME, and IM&P versions 14, 12.5 (SU5 and earlier), or 11.5 (SU10 and earlier) and have Cisco Jabber (Android or Apple iOS) or WebEx (Android or Apple iOS); customers will not receive incoming calls or message notifications once the client moves to background mode due to unsuccessful Push Notifications.
• For CUCM, SME, and IM&P versions 14, 12.5 (SU5 and earlier), or 11.5 (SU10 and earlier); customers will not be able to enable the Push Notification service and will receive this error message:

  "Push Notification/Activation Code Onboarding Settings cannot be configured as a valid certificate is not present in trust store. Either upload the certificates manually or check the check box to have Cisco manage the Cisco Cloud Service CA Certificates. For HTTPS proxy make sure the valid certificates are present for tomcat and tomcat trust store."

Workaround/Solution

Cisco has migrated from the QuoVadis Root CA 2 to the IdenTrust Commercial Root CA 1 for SSL certificates. Cisco recommends to add the new IdenTrust Commercial Root CA 1 certificate to CUCM, SME, or IM&P.

Manual Certificate Update

1. Copy and paste this IdenTrust Commercial Root CA 1 Certificate into a text file on your computer.  Do not include “-----BEGIN CERTIFICATE-----” and “-----END CERTIFICATE-----“.

   -----BEGIN CERTIFICATE-----
   MIIFYDCCA0igAwIBAgIQCgFCgAAAAUUjyES1AAAAAjANBgkqhkiG9w0BAQsFADBK
   MQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MScwJQYDVQQDEx5JZGVu
   VHJ1c3QgQ29tbWVyY2lhbCBSb290IENBIDEwHhcNMTQwMTE2MTgxMjIzWhcNMzQw
   MTE2MTgxMjIzWjBKMQswCQYDVQQGEwJVUzESMBAGA1UEChMJSWRlblRydXN0MScw
   JQYDVQQDEx5JZGVuVHJ1c3QgQ29tbWVyY2lhbCBSb290IENBIDEwggIiMA0GCSqG
   SIb3DQEBAQUAA4ICDwAwggIKAoICAQCnUBneP5k91DNG8W9RYYKyqU+PZ4ldhNlT
   3Qwo2dfw/66VQ3KZ+bVdfIrBQuExUHTRgQ18zZshq0PirK1ehm7zCYofWjK9ouuU
   +ehcCuz/mNKvcbO0U59Oh++SvL3sTzIwiEsXXlfEU8L2ApeN2WIrvyQfYo3fw7gp
   S0l4PJNgiCL8mdo2yMKi1CxUAGc1bnO/AljwpN3lsKImesrgNqUZFvX9t++uP0D1
   bVoE/c40yiTcdCMbXTMTEl3EASX2MN0CXZ/g1Ue9tOsbobtJSdifWwLziuQkkORi
   T0/Br4sOdBeo0XKIanoBScy0RnnGF7HamB4HWfp1IYVl3ZBWzvurpWCdxJ35UrCL
   vYf5jysjCiN2O/cz4ckA82n5S6LgTrx+kzmEB/dEcH7+B1rlsazRGMzyNeVJSQjK
   Vsk9+w8YfYs7wRPCTY/JTw436R+hDmrfYi7LNQZReSzIJTj0+kuniVyc0uMNOYZK
   dHzVWYfCP04MXFL0PfdSgvHqo6z9STQaKPNBiDoT7uje/5kdX7rL6B7yuVBgwDHT
   c+XvvqDtMwt0viAgxGds8AgDelWAf0ZOlqf0Hj7h9tgJ4TNkK2PXMl6f+cB7D3hv
   l7yTmvmcEpB4eoCHFddydJxVdHixuuFucAS6T6C6aMN7/zHwcz09lCqxC0EOoP5N
   iGVreTO01wIDAQABo0IwQDAOBgNVHQ8BAf8EBAMCAQYwDwYDVR0TAQH/BAUwAwEB
   /zAdBgNVHQ4EFgQU7UQZwNPwBovupHu+QucmVMiONnYwDQYJKoZIhvcNAQELBQAD
   ggIBAA2ukDL2pkt8RHYZYR4nKM1eVO8lvOMIkPkp165oCOGUAFjvLi5+U1KMtlwH
   6oi6mYtQlNeCgN9hCQCTrQ0U5s7B8jeUeLBfnLOic7iPBZM4zY0+sLj7wM+x8uwt
   LRvM7Kqas6pgghstO8OEPVeKlh6cdbjTMM1gCIOQ045U8U1mwF10A0Cj7oV+wh93
   nAbowacYXVKV7cndJZ5t+qntozo00Fl72u1Q8zW/7esUTTHHYPTa8Yec4kjixsU3
   +wYQ+nVZZjFHKdp2mhzpgq7vmrlR94gjmmmVYjzlVYA211QC//G5Xc7UI2/YRYRK
   W2XviQzdFKcgyxilJbQN+QHwotL0AMh0jqEqSI5l2xPE4iUXfeu+h1sXIFRRk0pT
   AwvsXcoz7WL9RccvW9xYoIA55vrX/hMUpu09lEpCdNTDd1lzzY9GvlU47/rokTLq
   l1gEIt44w8y8bckzOmoKaT+gyOpyj4xjhiO9bTyWnpXgSUyqorkqG5w2gXjtw+hG
   4iZZRHUe2XWJUc0QhJ1hYMtd+ZciTY6Y5uN/9lu7rs3KSoFrXgvzUeF0K+l+J6fZ
   mUlO+KWA2yUPHGNiiskzZ2s8EIPGrd6ozRaOjfAHN3Gf8qv8QfXBi+wAN10J5U6A
   7/qxXDgGpRtK4dw4LTzcqx+QGtVKnO7RcGzM7vRX+Bi6hG6H
   -----END CERTIFICATE-----



2. Update the certificate based on the product version information in this table.

   Push Notification Cloud Onboarding Status	CUCM, SME, or IM&P Release	Certificate Managed By *	Recommended Action Must Be Performed Prior to November 7, 2021
   Customers who have already onboarded Push Notifications via the cloud.	Release 14, 12.5 (SU5 and earlier), 11.5 (SU10 and earlier)	Cisco	Note: Service restarts must be performed in the exact order as specified. The IdenTrust certificate will be automatically copied to the tomcat-trust store. Verify the IdenTrust certificate is available in the CUCM tomcat- trust. Choose Cisco Unified OS Administration > Security > Certificate Management and search for tomcat-trust certificates: 1.  On CUCM, restart tomcat on the Publisher node. 2.  On CUCM, restart "Cisco Push Notification Service" on all nodes that have the service activated. 3.  On IM&P, restart “Cisco XCP Router” service on all the nodes. 4.  On IM&P, restart “Cisco XCP Config Manager” service on all the nodes.
   		Customer	Note: Service restarts must be performed in the exact order as specified. 1.  Manually upload the IdenTrust Commercial Root CA 1 certificate to the tomcat-trust store. 2.  On CUCM, restart tomcat on the Publisher node.  3.  On CUCM, restart "Cisco Push Notification Service" on all nodes that have the service activated. 4.  On IM&P, restart “Cisco XCP Router” service on all the nodes. 5.  On IM&P, restart “Cisco XCP Config Manager” service on all the nodes.
   Customers who perform Push Notification onboarding via the cloud for the first time.	Release 14,12.5 (SU5 and earlier), 11.5 (SU10 and earlier)	Cisco	Manually upload the IdenTrust Commercial Root CA 1 certificate to the tomcat-trust store. Follow the standard procedure found in the Push Notification Deployment Guide.
   		Customer
   Customers who perform Push Notification onboarding via the cloud for the first time.	Release 14 SU1	Cisco	Follow the standard procedure found in the Push Notification Deployment Guide.
   		Customer

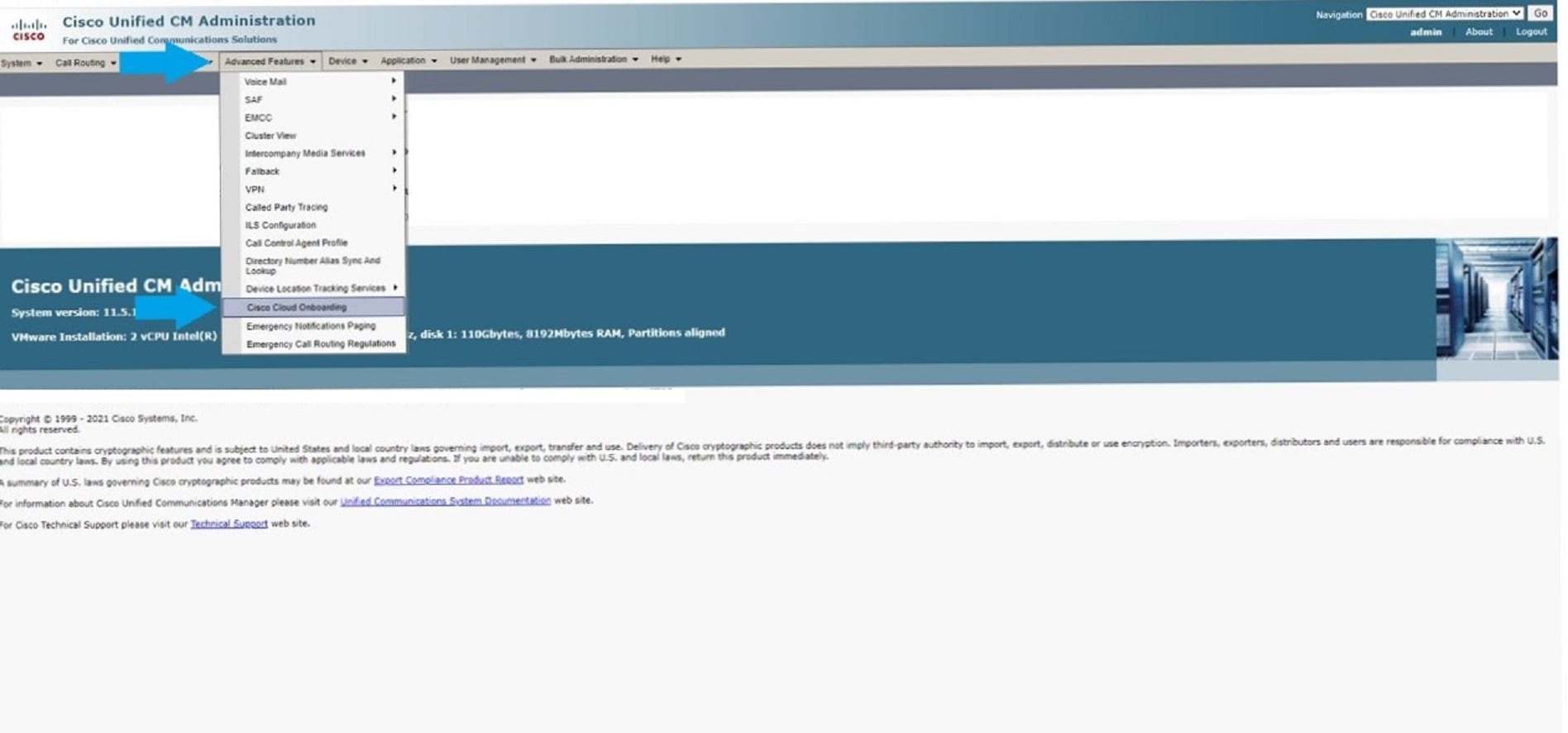

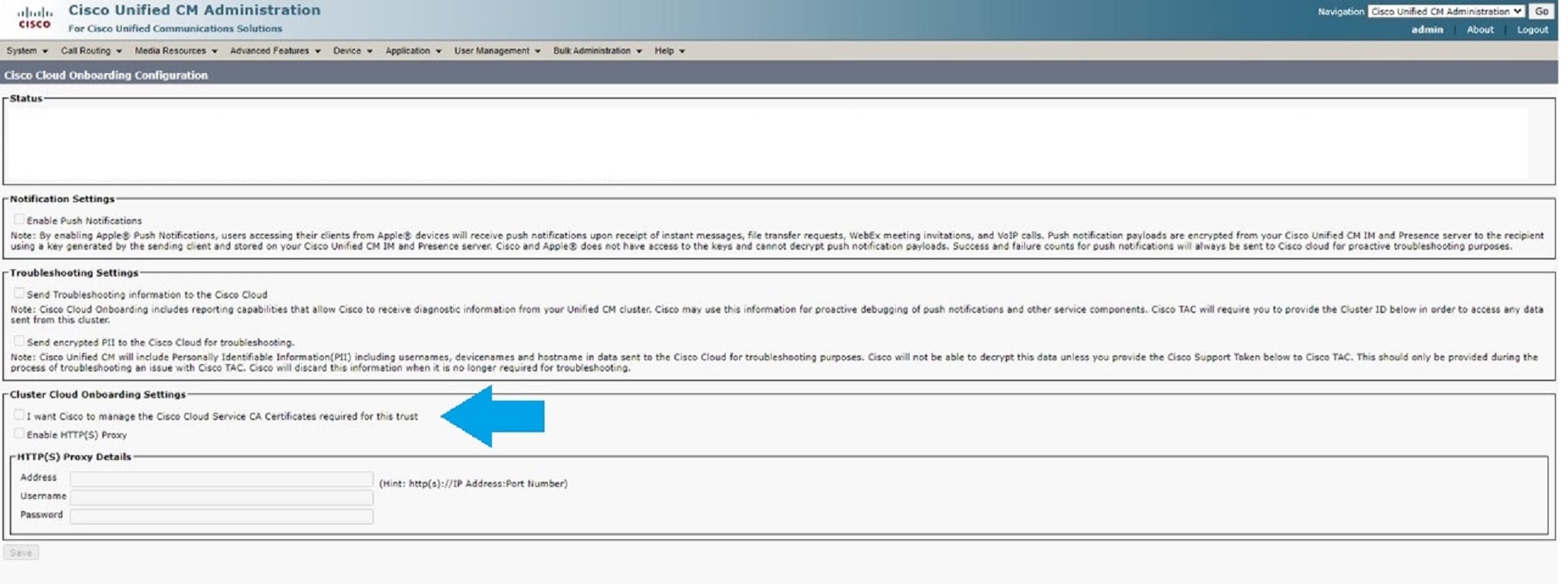

   * In order to verify whether you have opted for Cisco to manage the certificate or for the customer to manage the certificate, log in to Cisco Unified CM Administration UI > Advanced Features > Cisco Cloud Onboarding. In the Cluster Cloud Onboarding Settings section, check the I want Cisco to manage the Cisco Cloud Service CA certifications required for this trust check box.

Note: Multiple CUCM and IM&P services must be restarted for the changes to take effect. It is recommended to perform this during a maintenance window as a restart of these services will impact call services.

For more information on Push Notification Cloud Onboarding, see the Push Notification Deployment Guide.

For the steps to upload a new certificate, see Upload Certificate.





Note: Existing certificates issued from the HydrantID SSL ICA G3 do not need replacement. They are normal certificates issued from the current SSL certificate service and can be used until expiration.

Additional Information

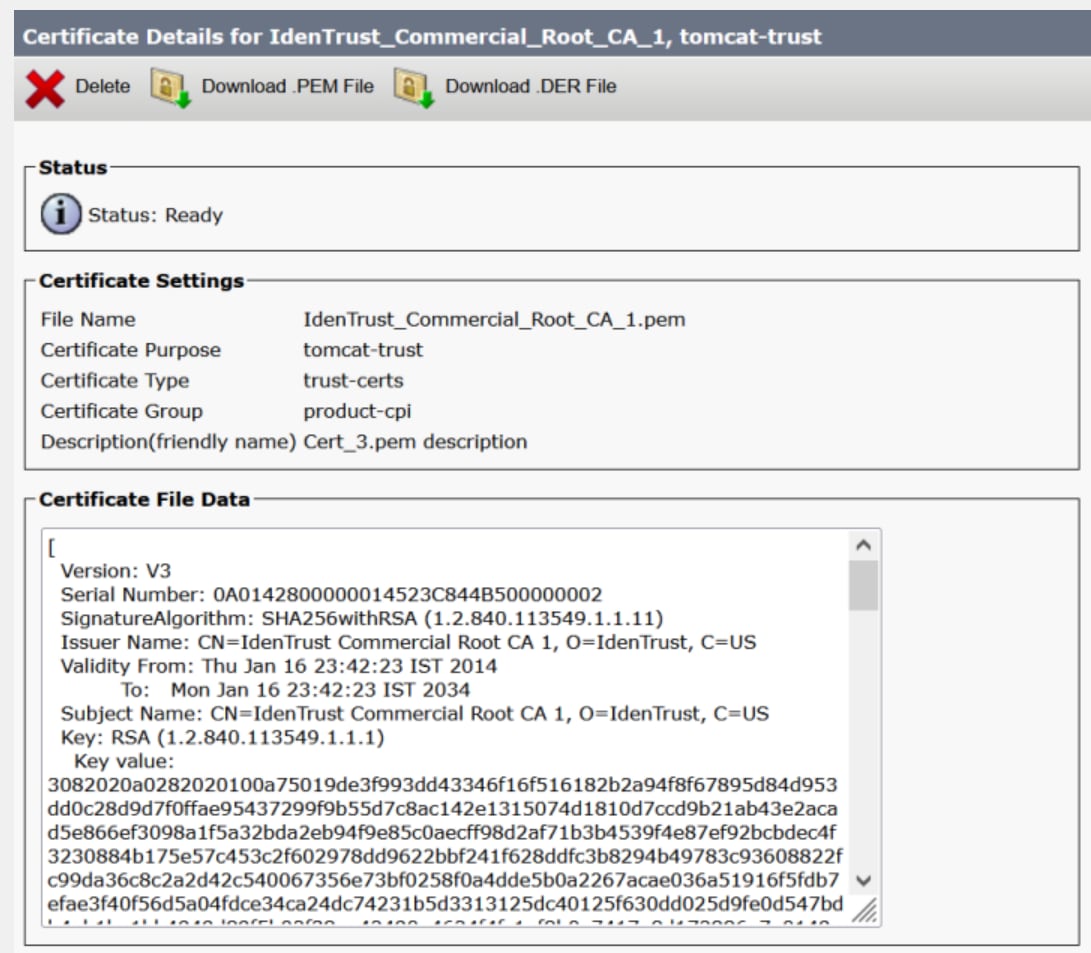

After the certificate is updated, it is recommended to ensure the IdenTrust certificates are reflected properly in the tomcat-trust store.

For More Information

Cisco has created a web page to provide customers and partners with additional information on this issue. Consult the QuoVadis Root CA 2 Decommission page for a full list of products affected, associated Field Notices, and frequently asked questions.

If you require further assistance, or if you have any further questions regarding this field notice, please contact the Cisco Systems Technical Assistance Center (TAC) by one of the following methods:

• Open a service request on Cisco.com
• By email or telephone
