Cisco C9350 Series Smart Switches Ordering Guide
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
This document provides a detailed overview of the ordering process for Cisco® C9350 Series Smart Switches in Cisco Commerce (CCW).
Cisco C9350 Series Smart Switches are designed to offer more flexible operations, assure a more secure experience, and bring exceptional speed and scale to enterprise networks. As the foundation for a future-proofed workplace, these enterprise LAN access smart switches provide scalability, security, and simplified operations as organizations seek to transform their network architectures.
For more detailed information on Cisco C9350 Series Smart Switch products, visit the data sheet.
Things to know
The release of the Cisco C9350 Series Smart Switches brings notable changes to the traditional ordering process. The following is a summary of these changes.
● Unified licensing: A common license with flexible management that unlocks platform features and capabilities. These licenses can be purchased in a Cisco Networking Subscription or Enterprise Agreement.
● Unified support: Reliable product support for both software and hardware included in license.
● Unified hardware: A single SKU for each model, regardless of region or management preference.
For additional information about the Cisco Commerce experience, go to https://apps.cisco.com/ Commerce/home.
2. Cisco C9350 Series Smart Switches
Default accessories shipped with the Cisco C9350 Series Smart Switches
By default, the Cisco C9350 Series Smart Switches ship with the following components:
● Switch unit: The selected Cisco C9350 Series model.
● Default power supply: A power supply unit based on the switch model selected. To upgrade from the default to a higher-wattage option, specify the appropriate SKU during the ordering process.
● RFID module: An RFID module is included by default for asset tracking purposes. Customers must explicitly opt out during the ordering process if they do not wish to receive the RFID module.
The following accessories and components are optional and must be explicitly selected when ordering:
● Secondary power supply: For redundancy or additional power needs, some models allow the selection of up to two additional power supplies. Secondary power supplies do not need to match the default or upgraded primary power supply.
● Power cables: A power cable must be selected for each power supply (default and optional). Specific cable types must be chosen based on regional or operational requirements.
● Stack cables (data stack): Available in 50-cm, 1-m, and 3-m lengths. These cables are used to create a data stack between switches and must be selected during the ordering process.
● StackPower+ cables: Available in 35-cm and 100-cm lengths. These cables enable power sharing between switches and must be selected during the ordering process.
● SSD: An SSD module can be added for enhanced application hosting or storage. The SSD option must be selected during the ordering process.
● Mounting brackets: Mounting brackets for installation are not included by default and must be selected if required.
The following tables outline the product IDs and product descriptions for available models of the Cisco C9350 Series Smart Switches.
Table 1. Switch ordering information
| Product ID |
Description |
Default PSU |
| C9350-48HX |
Cisco C9350 48-port 10G mGig with 90W UPOE+ |
PWR-C2-1600WAC-I |
| C9350-48TX |
Cisco C9350 48-port 10G mGig data-only |
PWR-C2-500WAC-I |
| C9350-48U |
Cisco C9350 48-port 1G with 60W UPOE |
PWR-C2-850WAC-I |
| C9350-24U |
Cisco C9350 24-port 1G with 60W UPOE |
PWR-C2-850WAC-I |
| C9350-48P |
Cisco C9350 48-port 1G with 30W PoE+ |
PWR-C2-850WAC-I |
| C9350-24P |
Cisco C9350 24-port 1G with 30W PoE+ |
PWR-C2-850WAC-I |
| C9350-48T |
Cisco C9350 48-port 1G data-only |
PWR-C2-500WAC-I |
| C9350-24T |
Cisco C9350 24-port 1G data-only |
PWR-C2-500WAC-I |
Table 2. Network module ordering information
| Product ID |
Description |
| C9350-NM-4C |
Cisco C9350 4 x 100G/40G QSPF28 network module |
| C9350-NM-4C= |
Cisco C9350 4 x 100G/40G QSPF28 network module, spare |
| C9350-NM-2C |
Cisco C9350 2 x 100G/40G QSFP28 network module |
| C9350-NM-2C= |
Cisco C9350 2 x 100G/40G QSFP28 network module, spare |
| C9350-NM-8Y |
Cisco C9350 8 x 25G/10G/1G or 4x 50G/25G/10G/1G SFP56 network module |
| C9350-NM-8Y= |
Cisco C9350 8 x 25G/10G/1G or 4x 50G/25G/10G/1G SFP56 network module, spare |
Table 3. Stack cable ordering information
| Product ID |
Description |
| STACK-T1A-50CM |
50cm Type 1A Stacking cable |
| STACK-T1A-50CM= |
50cm Type 1A Stacking cable, spare |
| STACK-T1A-1M |
1m Type 1A Stacking cable |
| STACK-T1A-1M= |
1m Type 1A Stacking cable, spare |
| STACK-T1A-3M= |
3m Type 1A Stacking cable |
| STACK-T1A-3M= |
3m Type 1A Stacking cable, spare |
| CAB-SPWR-35CM |
Stack Power cable 35cm |
| CAB-SPWR-35CM= |
Stack Power cable 35cm, spare |
| CAB-SPWR-100CM |
Stack Power cable 100cm |
| CAB-SPWR-100CM= |
Stack Power cable 100cm, spare |
Table 4. Power supply ordering information
| Product ID |
Description |
| PWR-C2-1600WAC-I |
1600W AC 80+ Titanium Config 2 Port-Inlet Power Supply |
| PWR-C2-1600WAC-I= |
1600W AC 80+ Titanium Config 2 Port-Inlet Power Supply, spare |
| PWR-C2-1600WAC-IUP |
1600W AC 80+ Titanium Config 2 Port-Inlet Power Supply, primary upgrade |
| PWR-C2-1600WAC-I/2 |
1600W AC 80+ platinum Config 2 Power Supply, Port Intake redundant |
| PWR-C2-850WAC-I |
850W AC 80+ Platinum Config 2 Port-Inlet Power Supply |
| PWR-C2-850WAC-I= |
850W AC 80+ Platinum Config 2 Port-Inlet Power Supply, spare |
| PWR-C2-850WAC-IUP |
850W AC 80+ Platinum Config 2 Port-Inlet Power Supply, primary upgrade |
| PWR-C2-850WAC-I/2 |
850W AC 80+ platinum Config 2 Power Supply, Port Intake redundant |
| PWR-C2-500WAC-I |
500W AC 80+ Platinum Config 2 Port-Inlet Power Supply |
| PWR-C2-500WAC-I= |
500W AC 80+ Platinum Config 2 Port-Inlet Power Supply, spare |
| PWR-C2-500WAC-I/2 |
500W AC 80+ platinum Config 2 Power Supply, Port Intake redundant |
The Cisco C9350 Series Smart Switches introduce a new unified licensing structure through the Cisco Networking Subscription. The Cisco Networking Subscription streamlines management of Cisco software, hardware, services, and platforms. This licensing model supports your network investment today and protects it for the future. Additionally, the Cisco Networking Subscription includes unified product support, providing a consistent and reliable customer support experience with hardware and software coverage.
A single, per-device license unlocks access to flexible management options, including Cisco Catalyst™ Center and the Cisco Meraki® dashboard. Users can mix and match how and where they wish to manage their device with flexibility and ease through a streamlined licensing structure.
Table 5. Unified licensing SKUs
| SKU |
Description |
| LIC-CS-AC1-L-E |
Cisco Switching Essentials License Access Tier 1, Large (48 port) |
| LIC-CS-AC1-M-E |
Cisco Switching Essentials License Access Tier 1, Medium (up to 24 port) |
| LIC-CS-AC1-L-A |
Cisco Switching Advantage License Access Tier 1, Large (48 port) |
| LIC-CS-AC1-M-A |
Cisco Switching Advantage License Access Tier 1, Medium (up to 24 port) |
Note: For a new subscription, unified switching licenses require at least 36 months.
Unified support
The Cisco Networking Subscription level includes consistent, reliable unified product support for both software and hardware. This service includes access to Cisco Communities, 24x7 Technical Assistance Center (TAC) support, major software updates, maintenance, minor software releases, digital insights, and e-learning. Return Material Authorization (RMA) Upgrade service for hardware replacement can be added at the device level.
To learn more about what is featured in the unified support offering, please visit the Cisco Networking Subscription data sheet.
The following table provides information about the Cisco C9350 Series product warranty.
Table 6. Limited Lifetime Warranty (LLW) details
| Description |
Cisco Limited Lifetime (LLW) |
| Devices covered |
Applies to Cisco C9350 Series Switches. |
| Warranty duration |
As long as the original customer owns the product. |
| End-of-Life Policy |
In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance. |
| Hardware replacement |
Cisco or its service center will use commercially reasonable efforts to ship a replacement part to the customer’s address of record on the next business day after issuance of a valid RMA request. Actual ship times may vary depending on Customer location. Taxes and duties may apply and will be borne by the recipient of the replacement part. |
| Effective date |
Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco). |
| Cisco.com access |
Warranty allows guest access only to Cisco.com. |
5. How to order a Cisco C9350 Series Smart Switch

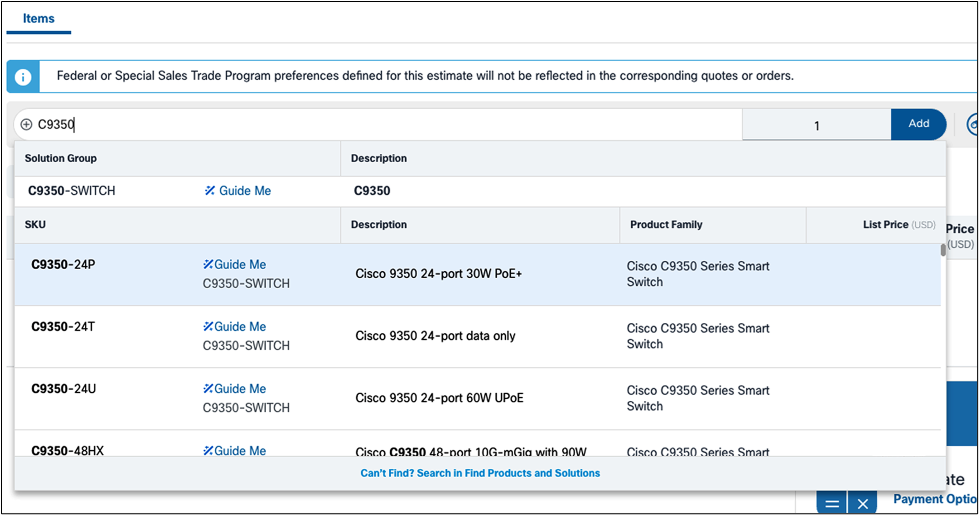

● Step 1: In CCW, search for the desired device series, C9350-SWITCH, which will then take you through a guided buying experience.

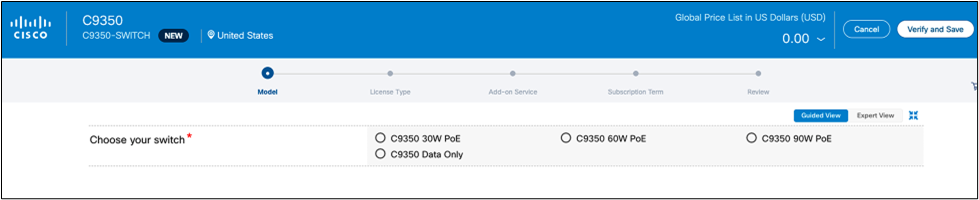

● Step 2: Choose your specific device SKU and the quantity you intended to purchase.

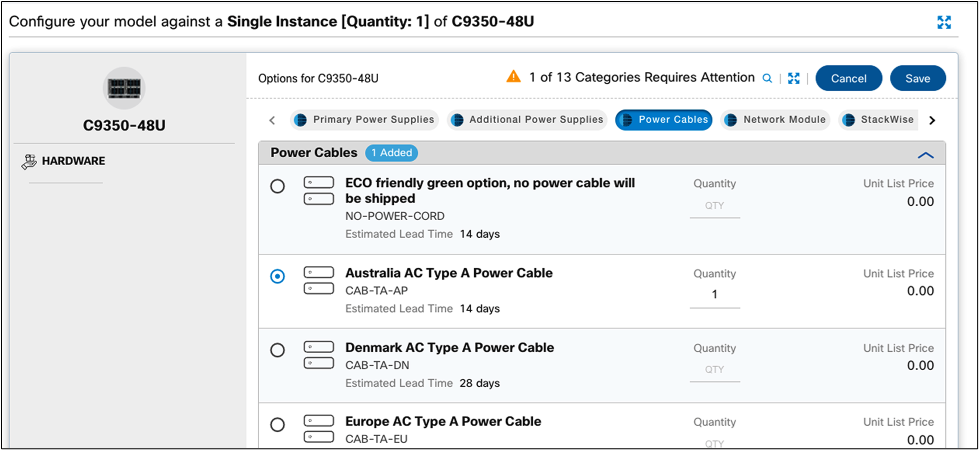

● Step 3: Add additional accessories, network modules, power cables, etc.

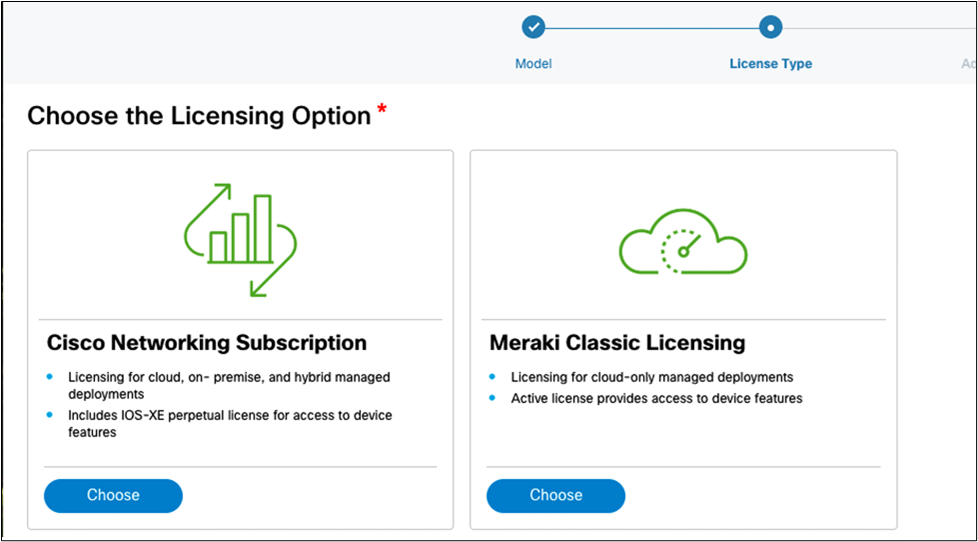

● Step 4: Selecting the licensing option for your devices.

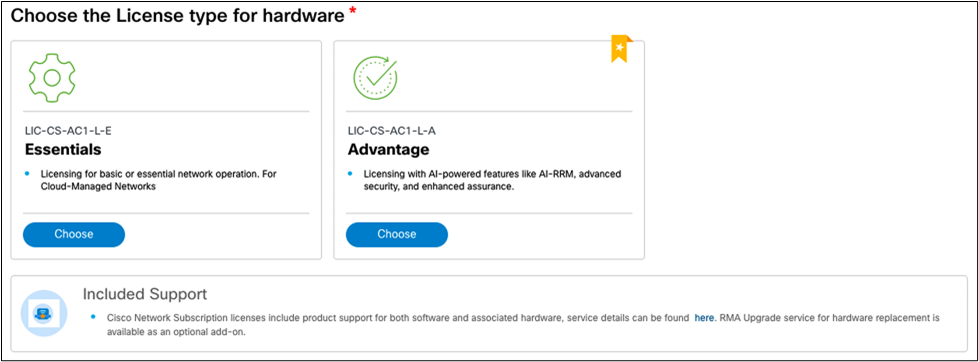

● Step 5: Select between Essentials and Advantage license feature level.

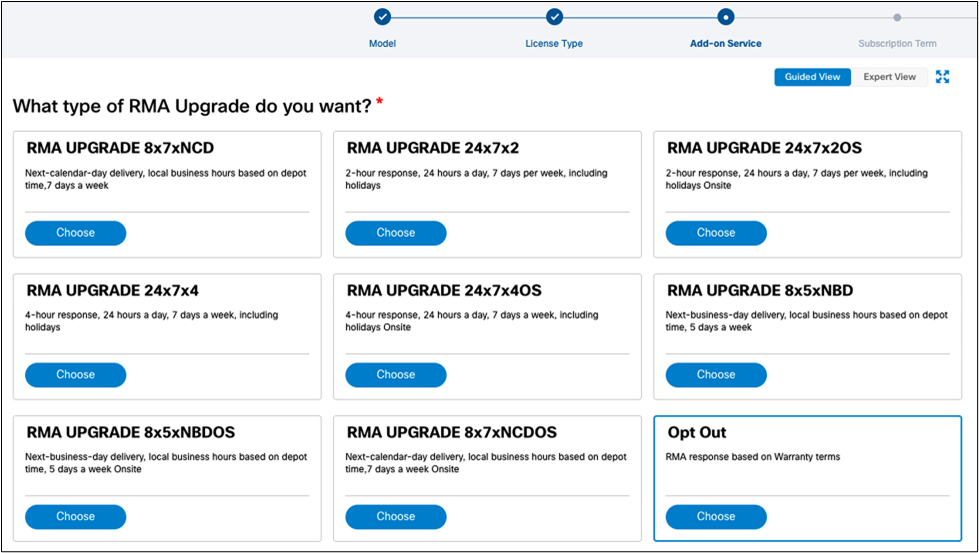

● Step 6: Choose the level of support desired for your devices.

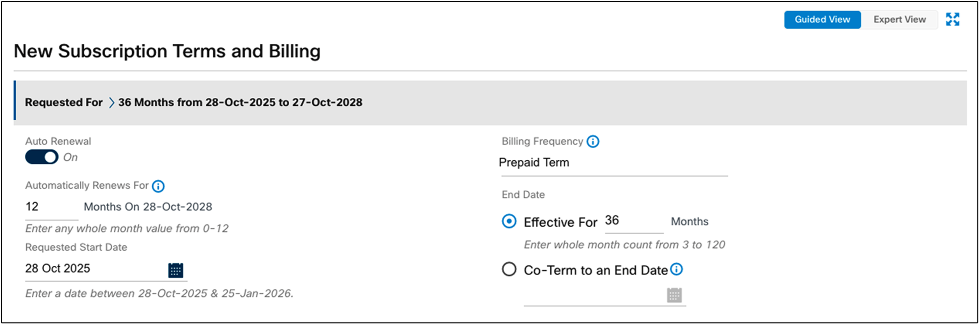

● Step 7: Choose subscription details like renewal and billing frequency, and review order details.
Flexible payment options make it easier than ever to get the Cisco technology you need.
Cisco Capital® delivers leading-edge payment solutions, allowing you to stay focused on what’s most important—your business. We can help you drive business outcomes, accelerate innovation and digital transformation, and adapt to market dynamics faster with flexible payment options tailored to your specific business needs. Reduce the total cost of ownership, conserve capital, and accelerate growth. We help you realize the full benefits of Cisco technology, today and in the future, and pay for it in the way that best suits your business requirements. Whether you are looking for a pay-as-you-consume model or need to bundle Cisco hardware, software, services, subscriptions, and third-party solutions, learn more about how Cisco Capital can help.
