The Cisco® Secure Firewall 200 Series offers next-generation firewall capabilities specifically designed for distributed enterprises and small branch locations. It provides robust, cost-effective security and simplified management within a compact form factor, ensuring secure and optimized connectivity at the network edge. The 200 Series extends Cisco's Hybrid Mesh Firewall architecture to branch edges, providing AI-powered inspection and consistent security policies. It integrates SD-WAN capabilities for enhanced application performance and reliable user access. Additionally, the 200 Series delivers application and user control, efficient segmentation, and advanced security features tailored for cost-sensitive environments. Cisco Secure Firewall 220 is the first model in the 200 series.
Table 1. Key capabilities of the Cisco Secure Firewall 220
| Cisco Secure Firewall 220 with Cisco Firewall Threat Defense Software |
|
| Robust connectivity
● Achieve up to 1.5 Gbps throughput from a fanless desktop firewall when next-generation firewall capabilities are enabled. Enable the high-availability feature for continuous uptime.
● Connect branch offices to the hybrid mesh firewall architecture using the 1G Small Form-factor Pluggable (SFP) port. Network and cryptographic operations are accelerated inline by leveraging the System on a Chip (SoC).
|
Superior visibility
● Leverage the AI-powered Encrypted Visibility Engine (EVE) to gain insights into and control over encrypted traffic, including Transport Layer Security (TLS) 1.3, thereby eliminating the need to decrypt traffic.
● Protect networks against zero-day vulnerabilities with SnortML—a machine learning-based exploit detection technology integrated into the industry-leading Snort 3 intrusion prevention system (IPS).
|
| Simplified management
● Scale effortlessly: Manage up to 1,500 firewalls now, scaling to 2,000, via Security Cloud Control Firewall, Manager optimized for Hybrid Mesh Firewall and MSSP environments. Use prebuilt templates and streamlined migration tools for fast, consistent global deployment without extra overhead.
● Unified management, smarter security: A single intuitive console unifies logging and event viewing. Integrated AIOps converts telemetry into actionable insights and automated policy recommendations, enabling faster resolution, less alert fatigue, and proactive threat response.
|
Seamless integration
● Achieve comprehensive, end-to-end protection through native integration with Cisco Umbrella
®, Cisco Secure Access, and Cisco Endpoint Security.
● Optimize application performance and user experience through seamlessly integrated SD-WAN capabilities, accelerated by Zero-Touch Provisioning (ZTP).
|

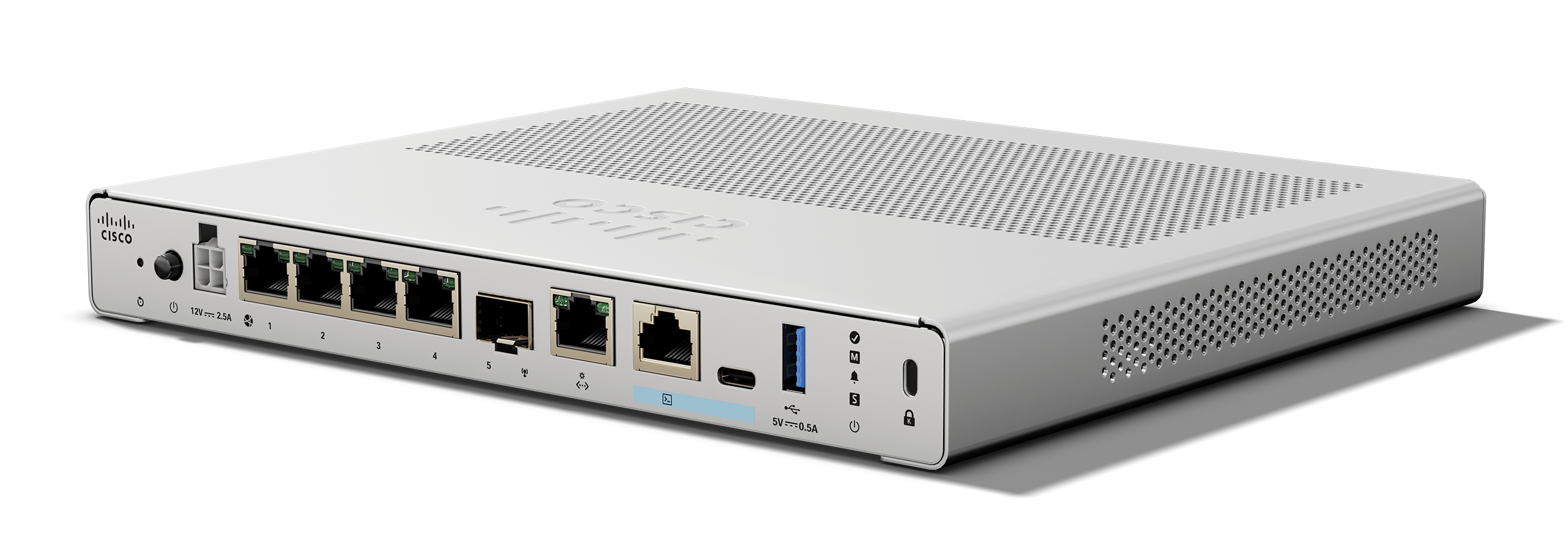

3D view of the Cisco Secure Firewall 220 model

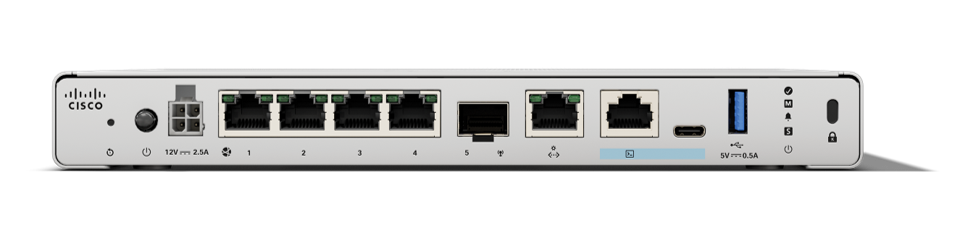

Front panel of the Cisco Secure Firewall 220 model
Back panel of the Cisco Secure Firewall 220 model
The Cisco Secure Firewall 220 supports both Cisco Firewall Threat Defense (FTD) and Cisco Adaptive Security Appliance (ASA) software. While the FTD software offers all the advanced next-generation security capabilities, ASA software delivers higher throughput for stateful inspection.
Table 2. Cisco Secure Firewall 220 performance with Cisco Secure Firepower Threat Defense (FTD) software
| Metric |
220 |
| Throughput: Firewall + Application Visibility and Control (AVC) (1024B) |
1.5 Gbps |
| Throughput: AVC + Intrusion Prevention System (IPS) (1024B) |
1.5 Gbps |
| NGFW Throughput: FW + AVC + IPS (1024B) |
1.5 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) |
1.2 Gbps |
| TLS Decryption[1] |
0.7 Gbps |
| Application Visibility and Control (AVC) |
Standard, supporting more than 8100 applications, as well as geolocations, users, and websites |
Table 3. Cisco Secure Firewall 220 performance with the Cisco Adaptive Security Appliance (ASA) software
| Metric |
220 |
| Stateful inspection firewall throughput (1500 B UDP)[2] |
2 Gbps |
| Stateful inspection firewall throughput (HTTP 1024 Byte) |
2 Gbps |
| IPsec VPN throughput (450B UDP L2L test) |
1.8 Gbps |
Note: Performance will vary depending on features activated, network traffic protocol mix, and packet size characteristics. Performance is subject to change with new software releases. Consult your Cisco representative for detailed sizing guidance.
Table 4. Cisco Secure Firewall 220 scalability with the Cisco Secure Firewall Threat Defense (FTD) software
| Metric |
220 |
| Maximum concurrent sessions, with AVC |
30K |
| Maximum new connections per second, with AVC |
6K |
| Maximum VPN peers |
50 |
| Maximum virtual router instances (VRF) |
5 |
| High availability |
Active/Standby |
| Instances (multi-instance) |
Not supported |
| Clustering |
Not supported |
Table 5. Cisco Secure Firewall 220 scalability with the Cisco Adaptive Security Appliance (ASA) software
| Metric |
220 |
| New connections per second |
80K |
| Concurrent firewall connections |
100K |
| Maximum VPN Peers |
50 |
| High availability |
Active/Standby |
| Security contexts |
Not supported |
| Clustering |
Not supported |
Table 6. Cisco Secure Firewall 220 hardware specifications
| Specification |
220 |
|||
| Form factor |
Compact (Can be placed on desktop. Rackmount and wall mount accessories are also available) |
|||
| Fixed ports |
4x 1000BASE-T 1x1G SFP |
|||
| Management Ethernet |
1000BASE-T port |
|||
| Network modules |
N/A |
|||
| Maximum number of interfaces |
Interface Speed / Type |
Fixed Ports |
Expansion (2 Slots) |
Total Maximum Ports |
| 1000 BASE-T |
4 |
NA |
4 |
|
| 1 Gigabit SFP |
1 |
NA |
1 |
|
| 1000 Base-T, Management |
1 |
NA |
1 |
|
| Console port |
USB Type-C and RJ-45 |
|||
| USB port |
USB 3 Type A port |
|||
| Storage |
64GB |
|||
| Power over Ethernet |
N/A |
|||
| Transceiver support |
Refer to Cisco Secure Firewall (CSF) 200 Hardware Installation Guide |
|||
| Mean Time Between Failures (MTBF) |
700,000 Hours |
|||
| Chassis dimensions (HxWxD) |
1.15” x 9.2” x 7.8” (2.9 x 23.4 x 19.8 cm) |
|||
| Weight |
2.6lb (1.17kg) |
|||
| Cooling |
Passive (fanless) |
|||
| Rack mountable |
Yes |
|||
| Power supply |
||||
| Configuration |
Single AC External 30W power supply |
|||
| AC input voltage |
100–240V AC |
|||
| AC input frequency |
50-60Hz |
|||
| AC current draw, maximum |
1.0A |
|||
| Power consumption, typical |
12.7 Watts |
|||
| Power consumption, maximum |
19 Watts |
|||
| Redundancy |
N/A |
|||
| Operating Range |
||||
| Temperature: operating |
32° to 104°F (0° to 40°C) |
|||
| Humidity: operating |
5% to 85% (noncondensing) |
|||
| Altitude: operating |
up to 10,000 feet (3048 m) |
|||
| Acoustic noise |
0 dBA |
|||
| Non-operating/storage environment |
||||
| Temperature: nonoperating |
-13° to 158°F (-25° to 70°C) |
|||
| Humidity: nonoperating |
5% to 95% (noncondensing) |
|||
| Altitude: nonoperating |
0 to 15,000 ft (4570 m) |
|||
For details on product regulatory compliance in a specific market, consult the Cisco Product Approvals tool.
Table 7. Cisco Secure Firewall 220 Network Equipment-Building System (NEBS), Regulatory, Safety, Environmental and EMC Compliance
| Specification |
Description |
| Regulatory compliance |
Products comply with CE markings per directives 2004/108/EC and 2006/108/EC |
| Safety |
● UL 60950-1
● UL 62368-1
● CAN/CSA-C22.2 No. 62368-1
● EN 62368-1
● IEC 62368-1
● AS/NZS 62368-1
|
| EMC: Emissions |
● 47CFR Part 15 (CFR 47) Class A (FCC Class A)
● AS/NZS CISPR 32 Class A
● CISPR 32 Class A
● EN55032 Class A
● ICES003 Class A
● VCCI Class A
● EN61000-3-2
● EN61000-3-3
● KS C 9832 Class A
● CNS15936 Class A
● EN300386
● QCVN 118:2018
|
| EMC: Immunity |
● EN55035
● CISPR 35
● EN300386
● KS C 9835
● QCVN 18:2022
● EN61000-3-2/-3
● EN61000-4-2/-3/-4/-5/-6/-8/-11
|
Cisco Secure Firewall 200 Series hardware appliances are listed below. For information on licenses, subscriptions, and other options associated with the product, refer to the Network Security Ordering Guide.
Table 8. Cisco Secure Firewall 200 Series Product IDs
| Product ID |
Description |
| CSF220-ASA-K9 |
Cisco Secure Firewall 220 Appliance, ASA |
| CSF220-TD-K9 |
Cisco Secure Firewall 220 Appliance, Threat Defense |
