Cisco Network Convergence System 5500 Series: Fixed Chassis Data Sheet
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Based on the Cisco Global Cloud Index, digitalization is projected to grow global data center and public/private cloud networks traffic more than 25 percent annually, resulting in a threefold increase by 2019. To help network providers meet these challenges, the Cisco® Network Convergence System 5500 Series is built with features such as high port densities, deep packet buffering, and forwarding hardware optimized for these types of deployments.
The Cisco NCS 5500 Series offers four fixed configuration chassis, the NCS 5501 (Figure 1), NCS 5501 SE (Figure 2), NCS 5502 and NCS 5502 SE (Figure 3). These systems provide functionality vital to both the Top of Rack (ToR) and spine or leaf roles common to modern spine-and-leaf architectures. Capabilities such as advanced packet classification, segment routing, ultra-wide ECMP, programmable network management and telemetry are added to the robust and mature features already present in Cisco IOS® XR Software Release 6.0.0.
The Cisco NCS 5501 Chassis
The Cisco NCS-5501-SE Chassis

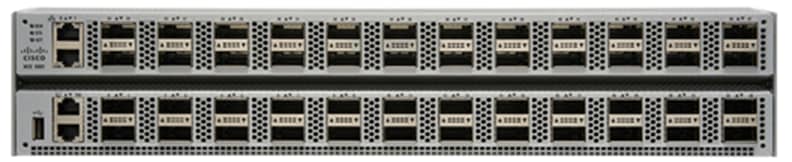

The Cisco NCS-5502 and NCS-5502-SE Chassis
Cisco IOS XR Software overview
The Cisco NCS 5500 Series fixed chassis is powered by industry leading carrier-class 64-bit version of Cisco IOS XR Software designed on operational efficiency, optimized utilization and service agility
(evolved programmable network). Cisco IOS XR Software offers rich features such as iPXE boot, auto provisioning, native support for third-party application hosting, machine-to-machine interface, telemetry, and flexible software package delivery.
For a complete list of supported features, refer to Cisco Feature Navigator.
The Cisco NCS 5500 Series fixed chassis support Cisco IOS XR Software Release 6.1.1 and later.
Tables 1 through 8 list key specifications for the Cisco NCS 5500 Series fixed chassis.
Table 1. Features and Benefits of Cisco NCS 5500 Series Fixed Chassis (Cisco IOS XR Software 6.1.1 Release or Beyond)
| Feature |
Specification |
| Integrated Interface |
1GE/10GE/25GE/40GE/100 Gigabit Ethernet support |
| Industry leading carrier-class Cisco IOS XR Software |
Visibility and telemetry Machine-to-machine interface Application hosting Flexible platform and packaging Modularity Automation |
| Management ports |
Provides easy access to system console |
| External USB port |
Helps simplify image and file management |
| Embedded USB (eUSB) storage |
Flash memory devices for storing software image, configuration, logging, and recovery |
| Power consumption |
Ultra-low power per Gigabit Ethernet |
| Redundancy |
Redundant fan tray Redundant AC or DC power supply |
Table 2. Cisco NCS 5501 Fixed Chassis Specification
| Feature |
Specification |
|
| Chassis PIDs |
NCS-5501 NCS-5501-SE |
|
| Interfaces |
NCS-5501: |
48 ports of 1GE/10GE 6 ports of 40GE/100GE |
| NCS-5501-SE: |
40 ports of 1GE/10GE 4 ports of 40GE/100GE |
|
| Integrated Route Processor |
IOS-XR 64-bit software running on an 8 cores x86 CPU @ 2Ghz |
|
| Management Ports |
3x RJ45, one for console and two for management LAN ports |
|
| Flexible Forwarding Ports NCS-5501-SE |
4x 100 Gigabit Ethernet with QSFP28 optics QSFP+ optics to support 40GE and 4x 10GE breakout options available 40x 10 Gigabit Ethernet with SFP+ or SFP optics to support 1GE speed |
|
| NCS-5501 |
6x 100 Gigabit Ethernet with QSFP28 optics QSFP+ optics to support 40GE and 4x 10GE breakout options available 48x 10 Gigabit Ethernet with SFP+ or SFP optics to support 1GE speed |
|
| Performance |
Up to 800 Gbps of system throughput |
|
| Route Scale |
NCS-5501: Up to 1M FIB entries NCS-5501-SE: Up to 2M FIB entries |
|
| Power and Cooling Features |
2 hot-swappable power supplies providing 1+1 redundancy. Reversible airflow available (power supply PID determines airflow direction) 2 hot-swappable fan trays provide redundant system cooling |
|
| Power Consumption Output power. For input power, divide by 0.91, which represents average supply efficiency. |
NCS-5501 |
Typical: 240W at 25 degrees Celsius Maximum: 370W at 55 degrees Celsius |
| NCS-5501-SE |
Typical: 260W at 25 degrees Celsius Maximum: 420W at 55 degrees Celsius |
|
| Physical Specification |
Height: 1RU 1.72 in (4.37 cm) Width:17.4 in (44.20 cm) Depth: 21.7 in (55.12 cm) NCS5501 Weight: 22.8 lbs (10.34 kgs) NCS5501-SE Weight: 23.5 lbs (10.66 kgs) |
|
Table 3. Cisco NCS 5502 Fixed Chassis Specification
| Feature |
Specification |
|
| Chassis PID |
NCS-5502 NCS-5502-SE |
|
| Flexible Forwarding Ports |
NCS-5502 |
48 ports of 100GE/40GE/10GE via 4x10GE |
| NCS-5502-SE |
48 ports of 100GE/40GE/10GE via 4x10GE |
|
| Integrated Route Processor |
IOS-XR 64-bit software running on a12 cores x86 CPU @ 1.6Ghz |
|
| Management Ports |
3x RJ45, one for console and two management LAN ports |
|
| Flexible Forwarding Ports |
48x 100 Gigabit Ethernet with QSFP28 or QSFP+ optics to support 100GE, 40GE, and 4x 10GE breakout options |
|
| Performance |
Up to 4.8Tbps of system throughput |
|
| Route Scale |
NCS5502: Up to 1M FIB entries NCS5502-SE: Up to 2M FIB entries |
|
| Power and cooling features |
4 hot-swappable power supplies providing N+N redundancy Reversible airflow available (power supply PID determines airflow direction) 3 hot-swappable fan trays provide redundant system cooling |
|
| Power Consumption Output power. For input power, divide by 0.91, which represents average supply efficiency. |
NCS-5502 |
Typical: 1450W at 25 degrees Celsius Maximum: 2000W at 55 degrees Celsius |
| NCS-5502-SE |
Typical: 1850W at 25 degrees Celsius Maximum: 2400W at 55 degrees Celsius |
|
| Physical Specification |
Height: 2RU 3.45 in. (8.73 cm) Width: 17.3 in. (43.94 cm) Depth: 30.0 in. (76.20 cm) NCS5502 Weight: 55.5 lbs (25.174 kgs) NCS5502-SE Weight: 52.5 lbs (23.813 kgs) |
|
Table 4. Software Feature Support on NCS 5500 Fixed Chassis in Cisco IOS XR Software 6.1.1 Release or Beyond
| Description |
Specification |
| Layer 2 |
● Layer 2 switch ports
●
IEEE 802.1Q VLAN encapsulation/Q-in-Q encapsulation
● IEEE 802.1ad
● Cisco Bundle Ethernet technology (up to 32 ports per Ethernet Bundle)
● Link Aggregation Control Protocol (LACP): IEEE 802.3ad
● Jumbo frames on all ports (up to 9216 bytes)
● L2 ingress Access Control List (ACL)
● L2 AC-AC cross-connect
● Ethernet Flow Point (EFP) and VLAN trunks
● Virtual Router Redundancy Protocol (VRRP)
|
| Layer 3 |
● IPv4 and IPv6 unicast
● Layer 3 interfaces: physical and sub-interfaces
● Routing protocols: static, Open Shortest Path First (OSPFv2), OSPFv3, Intermediate System to Intermediate System (ISIS), ISISv6, and Border Gateway Protocol (BGP)
● 32-way Equal-Cost Multipath (ECMP)
● L3 ingress and egress IPv4 ACL and IPv6 ACL
● Bidirectional Forwarding Detection (BFD)
● Cisco Bundle Ethernet technology (up to 32 ports per Ethernet Bundle)
● Link Aggregation Control Protocol (LACP): IEEE 802.3ad
● Jumbo frame support (up to 9216 bytes)
● Hot Standby Router Protocol (HSRP)/Virtual Router Redundancy Protocol (VRRP)
● Layer 3 Virtual Private Network (L3VPN)
|
| MPLS |
● Label switching
● LDP
● MPLS Traffic Engineering
● Ethernet over MPLS (EoMPLS)
|
| Segment Routing (SR) |
● Segment routing–based transport
● ISIS extensions to segment routing
● OSPF extensions to segment routing
● BGP egress peering engineering
● Segment Routing Traffic Engineering (SR-TE)
● Segment Routing Topology Independent Loop Free Alternatives (TI-LFA)
|
| Quality of Service (QoS) |
● Hierarchical QoS
● Ingress classification based on Class of Service (L2), IP differentiated service code point (L3), IP ACL (L3/L4), IP precedence (type of service) (L3)
● DSCP marking
● 8 number of queues for user traffic
● Support for priority queuing
|
| Automation |
● Zero-Touch Provisioning (ZTP), iPXE
● Configuration management
● Network Configuration Protocol (NETCONG/YANG model)
|
| Security |
● Provides comprehensive network security features, including ACLs; control-plane protection; management plane protection; routing authentications; Authentication, Authorization, and Accounting (AAA) and Terminal Access Controller Access-Control System Plus (TACACS+); Secure Shell (SSH) Protocol; SNMPv3; and RPL support
● Layer 2 ingress ACLs
● Layer 3 ingress ACLs
|
| Management |
● MIB, XML, JSON, GPB, and SNMP
● MPLS OAM (label switched path [LSP] ping, LSP traceroute)
● Ethernet OAM
|
Supported transceivers modules
Check the data sheet for Cisco NCS 5500 Series supported transceivers module.
Table 5. Environmental Properties for NCS 5500 Fixed systems
| Property |
Cisco NCS 5500 Series |
| Normal Operating Temperature |
32 to 104°F (0 to 40°C) |
| Non-operating (storage) Temperature |
–40 to 158°F (–40 to 70°C) |
| Operating Humidity |
5% to 95% (noncondensing) Note: Not to exceed 0.024 kg water or dry air |
| Storage (relative) Humidity |
5% to 95% at 40C per NEBS GR-63-Core Note: Not to exceed 0.024 kg water or dry air |
| Altitude |
0 to 10,000 ft (0 to 3000m) |
| Power Inputs |
Worldwide ranging AC (90-265V; 50-60 Hz) Worldwide ranging DC (-40V to -72V) |
| Air Flow |
Front to back Back to front |
Regulatory standards compliance
Table 6. Regulatory Standards Compliance: Safety and EMC
| Specification |
Description |
| Regulatory compliance |
Products complies with CE Markings according to directives 2014/30/EU and 2014/35/EU |
| Network Equipment Building Standards (NEBS) |
Designed to meet GR-63-CORE and GR-1089-CORE |
| Safety |
● UL 60950-1 Second Edition
● CAN/CSA-C22.2 No. 60950-1 Second Edition
● EN 60950-1 Second Edition
● IEC 60950-1 Second Edition
● AS/NZS 60950-1
● GB4943
|
| EMC Standards |
● 47CFR Part 15 (CFR 47) Class A
● AS/NZS CISPR22 Class A
● CISPR22 Class A
● EN55022 Class A
● ICES003 Class A
● VCCI Class A
● EN61000-3-2
● EN61000-3-3
● KN22 Class A
● CNS13438 Class A
|
| EMC Immunity |
● EN55024
● CISPR24
● EN300386
● KN 61000-4 series
|
| RoHS |
The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors. |
Additional information related to NCS5500 regulatory compliance and safety standards.
Table 7. Ordering Information for NCS5501 and NCS-5501-SE
| Part Type |
Part Number |
Description |
| Chassis |
NCS-5501 |
NCS5501 Fixed 48x10G and 6x100G chassis |
| RTU |
NCS-5501-LIC |
NCS 5501 Right To Use License |
| Chassis |
NCS-5501-SE |
NCS5501 - 40x10G and 4x100G Scale Chassis |
| RTU |
NCS-5501SE-LIC |
NCS 5501 Scale Right To Use License |
| SW |
XR-NC55-P-06.01 |
Cisco NCS 5500 IOS XR 6.1 Image |
| XR-NC55-PK9-06.01 |
Cisco NCS 5500 IOS XR 6.1 PK9 Image |
|
| Fan Option |
NCS-1RU-FAN-RV |
NCS 5500 1RU Chassis Fan Tray Port-S Exhaust/Back-to-Front |
| NCS-1RU-FAN-FW |
NCS 5500 1RU Chassis Fan Tray Port-S Intake/Front-to-back |
|
| Power Option |
NCS-1100W-ACRV |
NCS 5500 AC 1100W Power Supply Port-S Exhaust/Back-to-Front |
| NCS-1100W-ACFW |
NCS 5500 AC 1100W Power Supply Port-S Intake/Front-to-back |
|
| NCS-1100W-DCRV |
NCS 5500 DC 1100W Power Supply Port-S Exhaust/Back-to-Front |
|
| NCS-950W-DCFW |
NCS 5500 DC 950W Power Supply Port-S Intake/Front-to-back |
|
| Accessories Option |
NCS-1RU-ACC-KIT |
NCS 5500 Accessory Kit for 1RU Chassis |
| NCS-1RU-NEBS-KIT |
NCS 5500 NEBS Kit for 1RU Chassis – Includes NCS-1RU-ACC-KIT |
Table 8. Ordering Information for Perpetual Software Licenses Available on NCS-5501
| Part Number |
Description |
| NC55P-ADVL3-5501T |
NCS 5500 L3VPN Lic for NCS-5501 |
| NC55P-ADVL3-100T |
NCS 5500 L3VPN Lic for NCS 5500 Base Per 100G Bandwidth |
| NC55P-ADVL2-5501T |
NCS 5500 L2VPN Lic for NCS-5501 |
| NC55P-ADVL2-100T |
NCS 5500 L2VPN Lic for NCS 5500 Base Per 100G Bandwidth |
| NC55P-CRAGR-5501T |
NCS 5500 Core and Aggregation Lic for NCS-5501 |
| NC55P-CRAGR-100T |
NCS 5500 Core and Aggr Lic for NCS 5500 Base Per 100G BW |
| NC55P-PEER-5501T |
NCS 5500 Peering Lic for NCS-5501 |
| NC55P-PEER-100T |
NCS 5500 Peering Lic for NCS 5500 Base Per 100G Bandwidth |
| NC55P-ADVDC-5501T |
NCS 5500 Advance Data Center Lic for NCS-5501 |
| NC55P-ADVDC-100T |
NCS 5500 Adv Data Center Lic for NCS 5500 Base Per 100G BW |
| NC55P-BASIC-LSR |
NCS 5500 Basic MPLS LSR License |
Table 9. Ordering Information for Perpetual Software Licenses Available on NCS-5501-SE
| Part Number |
Description |
| NC55P-ADVL3-5501S |
NCS 5500 L3VPN Lic for NCS-5501-SE |
| NC55P-ADVL3-100S |
NCS 5500 L3VPN Lic for NCS 5500 SE Per 100G Bandwidth |
| NC55P-ADVL2-5501S |
NCS 5500 L2VPN Lic for NCS-5501-SE |
| NC55P-ADVL2-100S |
NCS 5500 L2VPN Lic for NCS 5500 SE Per 100G Bandwidth |
| NC55P-CRAGR-5501S |
NCS 5500 Core and Aggregation Lic for NCS-5501-SE |
| NC55P-CRAGR-100S |
NCS 5500 Core and Aggr Lic for NCS 5500 SE Per 100G BW |
| NC55P-PEER-5501S |
NCS 5500 Peering Lic for NCS-5501-SE |
| NC55P-PEER-100S |
NCS 5500 Peering Lic for NCS 5500 SE Per 100G Bandwidth |
| NC55P-ADVDC-5501S |
NCS 5500 Advance Data Center Lic for NCS-5501-SE |
| NC55P-ADVDC-100S |
NCS 5500 Adv Data Center Lic for NCS 5500 SE Per 100G BW |
| NC55P-BASIC-LSR |
NCS 5500 Basic MPLS LSR License |
| NC55P-TIMING-F |
NCS 5500 Timing and Mobility Lic for Fixed Chassis |
Table 10. Ordering information – Flexible Consumption Model Software Licenses
| Part number |
Product description |
| ESS-100G-RTU-1 |
NCS 5500 Core and Aggregation Essentials SW RTU v1.0 100G |
| ADV-100G-RTU-1 |
NCS 5500 Core and Aggregation Advantage w/o Essentials SW RTU v1.0 100G |
| ADN-100G-RTU-1 |
NCS 5500 Core and Aggregation Advantage w/ Essentials SW RTU v1.0 100G |
| ESS-100G-SIA-3 |
NCS 5500 Core and Aggregation Essentials SIA per 100G 3-5 Year Subscription |
| ADV-100G-SIA-3 |
NCS 5500 Core and Aggregation Advantage w/o Essentials SIA per 100G 3-5 Year Subscription |
| ADN-100G-SIA-3 |
NCS 5500 Core and Aggregation Advantage w/ Essentials SIA per 100G 3-5 Year Subscription |
| ESS-100G-SIA-5 |
NCS 5500 Core and Aggregation Essentials SIA per 100G 5-10 Year Subscription |
| ADV-100G-SIA-5 |
NCS 5500 Core and Aggregation Advantage w/o Essentials SIA per 100G 5-10 Year Subscription |
| ADN-100G-SIA-5 |
NCS 5500 Core and Aggregation Advantage w/ Essentials SIA per 100G 5-10 Year Subscription |
For details on the Cisco Network Convergence System 5500 Series Perpetual Software Licenses, refer to this data sheet and details on the flexible consumption model for the NCS 5500 Series are available in the data sheet for the IOS XR Software flexible consumption model.
Table 11. Ordering Information for Optics Supported on NCS-5501 and NCS-5501-SE Chassis
| Type |
Part Number |
Description |
| 1G |
GLC-TE (1000BASE-T) GLC-SX-MMD GLC-LH-SMD |
1000BASE-T standard, RJ45 copper Note on NCS-5501-SE: GLC-TE (1000BASE-T) SFP module and 1G Auto Negotiation (Clause 37) with 1G optical SFP, is not supported on ports 8 to 15 1000BASE-SX short wavelength; MMF 1000BASE-LX/LH long-wavelength; SMF, 10km |
| 10G |
SFP-10G-SR SFP-10G-SR-S SFP-10G-SR-X SFP-10G-LR SFP-10G-LR-S SFP-10G-LR-X |
Cisco 10GBASE-SR SFP+ Module for MMF Cisco 10GBASE-SR SFP+ Module for MMF S-Class Cisco multirate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range Cisco 10GBASE-LR SFP+ Module for SMF Cisco 10GBASE-LR SFP+ Module for SMF S-Class Cisco multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range |
| 40G |
QSFP-40G-SR4 QSFP-40G-SR4-S QSFP-40G-CSR4 QSFP-40G-SR-BD QSFP-40G-LR4 QSFP-40G-LR4-S WSP-Q40GLR4L QSFP-4x10G-LR-S (40G-PSM4) QSFP-40G-ER4 |
40GBASE-SR4 QSFP+ transceiver module for MMF, 4-lanes, 850-nm wavelength, 12-fiber MPO/MTP connector 40GBASE-SR4 (IEEE 802.3ba Spec.) QSFP+ transceiver module for MMF, 4-lanes, 850-nm wavelength, 12-fiber MPO/MTP connector 40GBASE-CSR4 QSFP+ transceiver module for MMF, 4-lanes, 850-nm wavelength, MPO-12 connector, 300 m reach with OM3 fiber 40G QSFP Bi-Directional transceiver module, Duplex Multi-mode Fiber, LC Duplex connector, 100m reach with OM3 fiber 40GBASE-LR4 QSFP40G transceiver module for SMF, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 10km, Multi-rate Support (40G Ethernet and OTU3) 40GBASE-LR4 QSFP40G transceiver module for SMF, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 10km 40GBASE-LR4 QSFP40G transceiver module for SMF, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 2km 4x10GBASE-LR/40G PSM4 transceiver 40GBASE-LR4 QSFP40G transceiver module for Single Mode Fiber, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 40km |
| 100G |
QSFP-100G-SR4-S QSFP-100G-LR4-S QSFP-100G-CWDM4-S QSFP-100G-PSM4-S QSFP-100G-AOC1M QSFP-100G-AOC2M QSFP-100G-AOC3M QSFP-100G-AOC5M QSFP-100G-AOC7M QSFP-100G-AOC10M QSFP-100G-AOC15M QSFP-100G-AOC20M QSFP-100G-AOC25M QSFP-100G-AOC30M |
100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF 100GBASE QSFP Active Optical Cables 1 meter 100GBASE QSFP Active Optical Cables 2 meter 100GBASE QSFP Active Optical Cables 3 meter 100GBASE QSFP Active Optical Cables 5 meter 100GBASE QSFP Active Optical Cables 7 meter 100GBASE QSFP Active Optical Cables 10 meter 100GBASE QSFP Active Optical Cables 15 meter 100GBASE QSFP Active Optical Cables 20 meter 100GBASE QSFP Active Optical Cables 25 meter 100GBASE QSFP Active Optical Cables 30 meter |
Table 12. Ordering Information for Power Cables Supported on NCS-5501 and NCS-5501-SE Chassis
| Part Number |
Description |
| CAB-250V-10A-BR |
Power Cord - 250V, 10A - Brazil |
| CAB-250V-10A-ID |
AC Power Cord - 250V, 10A, India |
| CAB-250V-10A-IS |
AC Power Cord - 250V, 10A - Israel |
| CAB-C13-C14-2M |
Power Cord Jumper, C13-C14 Connectors, 2 Meter Length |
| PWR-CORD-ROK-A |
Pwr Cord ROK 1.8m BlackYP-22K To YC-12 |
| 15454-M-CBL-R-JPN |
AC power cable - Japan right exit |
| CAB-250V-10A-AR |
AC Power Cord - 250V, 10A - Argentina |
| CAB-250V-10A-CN |
AC Power Cord - 250V, 10A - PRC |
| CAB-9K10A-IT |
Power Cord, 250VAC 10A CEI 23-16/VII Plug, Italy |
| CAB-AC-L620-C13 |
AC Power Cord, NEMA L6-20 - C13, 2M/6.5ft |
| CAB-C13-CBN |
Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors |
| CAB-N5K6A-NA |
Power Cord, 200/240V 6A North America |
| CAB-3P-JPN |
AC Power Cord (Japan), C13, 3 Prong Plug, 2.3M |
| CAB-9K10A-SW |
Power Cord, 250VAC 10A MP232 Plug, SWITZ |
| CAB-9K10A-UK |
Power Cord, 250VAC 10A BS1363 Plug (13 A fuse), UK |
| CAB-ACTW |
AC Power Cord (Taiwan), C13, EL 302, 2.3M |
| CAB-IND-10A |
10A Power cable for India |
| 15454-M-CBL-L-JPN |
AC power cable - Japan left exit |
| CAB-9K10A-EU |
Power Cord, 250VAC 10A CEE 7/7 Plug, EU |
| CAB-9K12A-NA |
Power Cord, 125VAC 13A NEMA 5-15 Plug, North America |
| CAB-C13-C14-JMPR |
Recessed receptacle AC power cord 27in |
| CAB-9K10A-AU |
Power Cord, 250VAC 10A 3112 Plug, Australia |
Table 13. Ordering Information for NCS-5502 and NCS-5502-SE
| Part Type |
Part Number |
Description |
| Chassis |
NCS-5502 |
NCS5502 Fixed 48x100G chassis |
| RTU |
NCS-5502-LIC |
NCS 5502 Right To Use License |
| Chassis |
NCS-5502-SE |
NCS5502 - 48x100G Scale Chassis |
| RTU |
NCS-5502SE-LIC |
NCS 5502 Scale Right To Use License |
| SW |
XR-NC55-P-06.01 |
Cisco NCS 5500 IOS XR 6.1 Image |
| XR-NC55-PK9-06.01 |
Cisco NCS 5500 IOS XR 6.1 PK9 Image |
|
| Fan Option |
NC55-2RU-FAN-RV |
NCS 5500 Fan Tray 2RU Chassis Port-S Exhaust/Back-to-Front |
| NC55-2RU-FAN-FW |
NCS 5500 Fan Tray 2RU Chassis Port-S Intake/Front-to-back |
|
| Power Option |
NC55-2KW-DCRV |
NCS5500 DC 2KW Power Supply Port-S Exhaust/Back-to-Front |
| NC55-2KW-DCFW |
NCS 5500 DC 2KW Power Supply Port-S Intake/Front-to-back |
|
| NC55-2KW-ACRV |
NCS 5500 AC 2KW Power Supply Port-S Exhaust/Back-to-Front |
|
| NC55-2KW-ACFW |
NCS 5500 AC 2KW Power Supply Port-S Intake/Front-to-back |
|
| Accessories |
NCS-2RU-ACC-KIT |
NCS 5500 Accessory Kit for 2RU Chassis |
| Filter Option |
NCS-5502-FLTR-RV |
NCS 5502 Filter Port-side exhaust/Back-to-Front |
| NCS-5502-FLTR-FW |
NCS 5502 Filter Port-Side intake/Front-to-back |
Table 14. Ordering Information for Software Licenses Available on NCS-5502 Chassis
| Part Number |
Description |
| NC55P-ADVL3-5502T |
NCS 5500 L3VPN Lic for NCS-5502 |
| NC55P-ADVL3-100T |
NCS 5500 L3VPN Lic for NCS 5500 Base Per 100G Bandwidth |
| NC55P-ADVL2-5502T |
NCS 5500 L2VPN Lic for NCS-5502 |
| NC55P-ADVL2-100T |
NCS 5500 L2VPN Lic for NCS 5500 Base Per 100G Bandwidth |
| NC55P-CRAGR-5502T |
NCS 5500 Core and Aggregation Lic for NCS-5502 |
| NC55P-CRAGR-100T |
NCS 5500 Core and Aggr Lic for NCS 5500 Base Per 100G BW |
| NC55P-PEER-5502T |
NCS 5500 Peering Lic for NCS-5502 |
| NC55P-PEER-100T |
NCS 5500 Peering Lic for NCS 5500 Base Per 100G Bandwidth |
| NC55P-ADVDC-5502T |
NCS 5500 Advance Data Center Lic for NCS-5502 |
| NC55P-ADVDC-100T |
NCS 5500 Adv Data Center Lic for NCS 5500 Base Per 100G BW |
| NC55P-BASIC-LSR |
NCS 5500 Basic MPLS LSR License |
Table 15. Ordering Information for Software Licenses Available NCS-5502-SE Chassis
| Part Number |
Description |
| NC55P-ADVL3-5502S |
NCS 5500 L3VPN Lic for NCS-5502-SE |
| NC55P-ADVL3-100S |
NCS 5500 L3VPN Lic for NCS 5500 SE Per 100G Bandwidth |
| NC55P-ADVL2-5502S |
NCS 5500 L2VPN Lic for NCS-5502-SE |
| NC55P-ADVL2-100S |
NCS 5500 L2VPN Lic for NCS 5500 SE Per 100G Bandwidth |
| NC55P-CRAGR-5502S |
NCS 5500 Core and Aggregation Lic for NCS-5502-SE |
| NC55P-CRAGR-100S |
NCS 5500 Core and Aggr Lic for NCS 5500 Base Per 100G BW |
| NC55P-PEER-5502S |
NCS 5500 Peering Lic for NCS-5502-SE |
| NC55P-PEER-100S |
NCS 5500 Peering Lic for NCS 5500 SE Per 100G Bandwidth |
| NC55P-ADVDC-5502S |
NCS 5500 Advance Data Center Lic for NCS-5502-SE |
| NC55P-ADVDC-100S |
NCS 5500 Adv Data Center Lic for NCS 5500 SE Per 100G BW |
| NC55P-BASIC-LSR |
NCS 5500 Basic MPLS LSR License |
Table 16. Ordering information – Flexible Consumption Model Software Licenses
| Part number |
Product description |
| ESS-100G-RTU-1 |
NCS 5500 Core and Aggregation Essential SW RTU per 100G |
| ADV-100G-RTU-1 |
NCS 5500 Core and Aggregation Advantage w/o Essentials SW RTU per 100G |
| ADN-100G-RTU-1 |
NCS 5500 Core and Aggregation Advantage w/ Essentials SW RTU per 100G |
| ESS-100G-SIA-3 |
NCS 5500 Core and Aggregation Essential SIA per 100G 3-5 Year Subscription |
| ADV-100G-SIA-3 |
NCS 5500 Core and Aggregation Advantage w/o Essentials SIA per 100G 3-5 Year Subscription |
| ADN-100G-SIA-3 |
NCS 5500 Core and Aggregation Advantage w/ Essentials SIA per 100G 3-5 Year Subscription |
| ESS-100G-SIA-5 |
NCS 5500 Core and Aggregation Essential SIA per 100G 5-10 Year Subscription |
| ADV-100G-SIA-5 |
NCS 5500 Core and Aggregation Advantage w/o Essentials SIA per 100G 5-10 Year Subscription |
| ADN-100G-SIA-5 |
NCS 5500 Core and Aggregation Advantage w/ Essentials SIA per 100G 5-10 Year Subscription |
Table 17. Ordering Information for Optics Supported on NCS-5502 and NCS-5502-SE Chassis
| Type |
Part Number |
Description |
| 100G |
QSFP-100G-SR4-S QSFP-100G-LR4-S QSFP-100G-CWDM4-S QSFP-100G-PSM4-S QSFP-100G-AOC1M QSFP-100G-AOC2M QSFP-100G-AOC3M QSFP-100G-AOC5M QSFP-100G-AOC7M QSFP-100G-AOC10M QSFP-100G-AOC15M QSFP-100G-AOC20M QSFP-100G-AOC25M QSFP-100G-AOC30M |
100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF 100GBASE QSFP Active Optical Cables 1 meter 100GBASE QSFP Active Optical Cables 2 meter 100GBASE QSFP Active Optical Cables 3 meter 100GBASE QSFP Active Optical Cables 5 meter 100GBASE QSFP Active Optical Cables 7 meter 100GBASE QSFP Active Optical Cables 10 meter 100GBASE QSFP Active Optical Cables 15 meter 100GBASE QSFP Active Optical Cables 20 meter 100GBASE QSFP Active Optical Cables 25 meter 100GBASE QSFP Active Optical Cables 30 meter |
| 40G |
QSFP-40G-SR4 QSFP-40G-SR4-S QSFP-40G-CSR4 QSFP-40G-SR-BD QSFP-40G-LR4 QSFP-40G-LR4-S WSP-Q40GLR4L QSFP-4x10G-LR-S QSFP-40G-ER4 |
40GBASE-SR4 QSFP+ transceiver module for MMF, 4-lanes, 850-nm wavelength, 12-fiber MPO/MTP connector 40GBASE-SR4 (IEEE 802.3ba Spec.) QSFP+ transceiver module for MMF, 4-lanes, 850-nm wavelength, 12-fiber MPO/MTP connector 40GBASE-CSR4 QSFP+ transceiver module for MMF, 4-lanes, 850-nm wavelength, 40G QSFP Bi-Directional transceiver module, Duplex Multi-mode Fiber, LC Duplex connector, 100m reach with OM3 fiber 40GBASE-LR4 QSFP40G transceiver module for SMF, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 10km, Multi-rate Support (40G Ethernet and OTU3) 40GBASE-LR4 QSFP40G transceiver module for SMF, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 10km 40GBASE-LR4 QSFP40G transceiver module for SMF, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 2km 4x10GBASE-LR/40G PSM4 transceiver 40GBASE-LR4 QSFP40G transceiver module for Single Mode Fiber, 4 CWDM lanes in 1310nm window Mixed inside module, Duplex LC connector, 40km |
Table 18. Ordering Information for Power Cables Supported on NCS-5502 and NCS-5502-SE Chassis
| Part Number |
Description |
| CAB-250V-10A-BR |
Power Cord - 250V, 10A - Brazil |
| CAB-250V-10A-ID |
AC Power Cord - 250V, 10A, India |
| CAB-250V-10A-IS |
AC Power Cord - 250V, 10A - Israel |
| CAB-C13-C14-2M |
Power Cord Jumper, C13-C14 Connectors, 2 Meter Length |
| PWR-CORD-ROK-A |
Pwr Cord ROK 1.8m BlackYP-22K To YC-12 |
| 15454-M-CBL-R-JPN |
AC power cable - Japan right exit |
| CAB-250V-10A-AR |
AC Power Cord - 250V, 10A - Argentina |
| CAB-250V-10A-CN |
AC Power Cord - 250V, 10A - PRC |
| CAB-9K10A-IT |
Power Cord, 250VAC 10A CEI 23-16/VII Plug, Italy |
| CAB-AC-L620-C13 |
AC Power Cord, NEMA L6-20 - C13, 2M/6.5ft |
| CAB-C13-CBN |
Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors |
| CAB-N5K6A-NA |
Power Cord, 200/240V 6A North America |
| CAB-3P-JPN |
AC Power Cord (Japan), C13, 3 Prong Plug, 2.3M |
| CAB-9K10A-SW |
Power Cord, 250VAC 10A MP232 Plug, SWITZ |
| CAB-9K10A-UK |
Power Cord, 250VAC 10A BS1363 Plug (13 A fuse), UK |
| CAB-ACTW |
AC Power Cord (Taiwan), C13, EL 302, 2.3M |
| CAB-IND-10A |
10A Power cable for India |
| 15454-M-CBL-L-JPN |
AC power cable - Japan left exit |
| CAB-9K10A-EU |
Power Cord, 250VAC 10A CEE 7/7 Plug, EU |
| CAB-9K12A-NA |
Power Cord, 125VAC 13A NEMA 5-15 Plug, North America |
| CAB-C13-C14-JMPR |
Recessed receptacle AC power cord 27in |
| CAB-9K10A-AU |
Power Cord, 250VAC 10A 3112 Plug, Australia |
The Cisco NCS 5500 Series has a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a Return Materials Authorization (RMA).
Cisco offers a wide range of services to help accelerate your success in deploying and optimizing the Cisco NCS 5500 Series. These innovative Cisco Services offerings are delivered through a unique combination of people, processes, tools, and partners, and they are focused on helping you increase operating efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and achieve long-term value. Cisco SMARTnet™ Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources. With this service, you can take advantage of the Cisco Smart Call Home service, which offers proactive diagnostics and real-time alerts on your Cisco NCS 5500 Series. Spanning the entire network lifecycle, Cisco Services offerings help increase investment protection, optimize network operations, support migration operations, and strengthen your IT expertise.
Flexible payment solutions to help you achieve your objectives
Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.
For more information about the Cisco NCS 5500 Series, visit Cisco Network Convergence System 5500 Series.
| New or revised topic |
Described In |
Date |
|
|
|
|
|
|
|
|
|
|
|
|
