Cisco® 10G Passive Optical Network (PON) Optical Network Terminal/Optical Network Unit (ONT/ONU) modules enable existing access networks for both business and residential subscribers with 10G PON capabilities. Featuring a standard SFP+ form factor, Cisco 10G PON ONT/ONU modules can be deployed in gateways, switches, routers, and backhaul infrastructure to provide a 10G PON ONT/ONU endpoint.

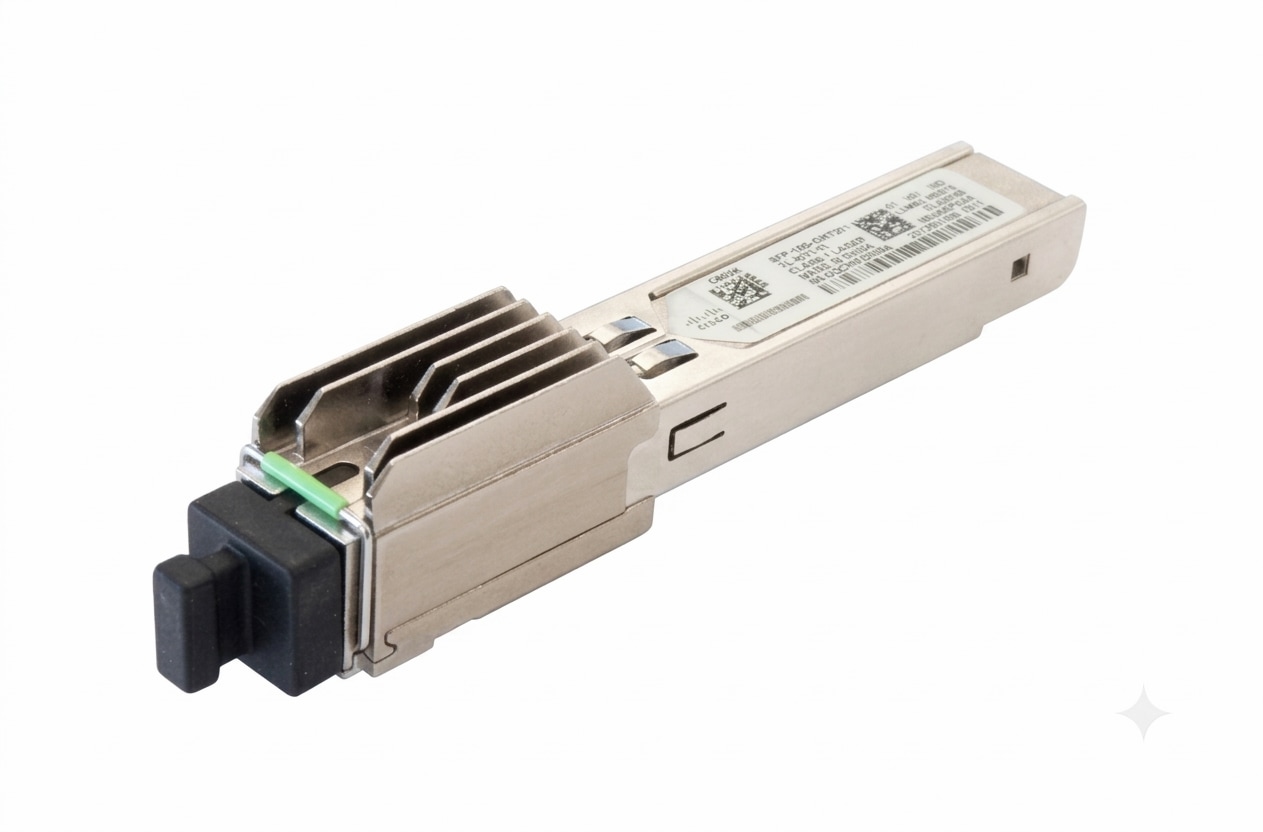

Cisco XGS-PON ONT SFP+ Module
Compliant with ITU-T G.9807.1, the SFP-10G-ONT20-I module ensures high interoperability, cost-efficiency, and alignment with specific customer requirements. By integrating an XGS-PON MAC and a standards-compliant ONU Management and Control Interface (OMCI) stack, it delivers comprehensive XGS-PON functionality, including robust supervision, monitoring, and maintenance.
Cisco XGS-PON ONT SFP+ Module
Tables 1 and 2 list the Cisco PON SFP+ parameters and characteristics.
Cabling characteristics
Table 1. Cabling characteristics
| Product description |
Connector |
Media |
Cable type |
Fiber grade |
Core size |
Maximum |
| XGS-PON ONT SFP+ |
SC/APC |
SMF |
Single fiber |
G.652 |
9 |
20 |
Environmental and operational characteristics
Table 2. Environmental and operational characteristics
| Product Description |
Operating |
Storage |
DOM capable |
Typical power |
Bail-latch color |
| XGS-PON ONT SFP+ |
-40 to 85°C |
-40 to 85°C |
No |
2.1W |
Blue |
● XGS-PON ONT SFP+ module: (H x W x D): 13.75 mm x 15.6 mm x 87.5 mm
Regulatory and standard compliance
XGS-PON ONT SFP+ module
● ITU-T G.9807.1 (Class N1) and G.988 (XGS-PON) Compliant
● CE compliant
● FCC/UL compliant
● FDA compliant
To place an order, visit the Cisco Ordering Home Page. Table 3 lists the ordering information for the Cisco SFP transceivers for POS/SDH and ATM applications.
Table 3. Ordering information
| Product description |
Product number |
| XGS-PON ONT SFP+ Module |
SFP-10G-ONT20-I |
● Standard warranty: 3 years
● Expedited replacement available via a Cisco SMARTnet® Service support contract
