Cisco 100GBASE QSFP-DD 100G ZR Module Data Sheet
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
The Cisco 100G Quad Small Form-Factor Pluggable Double-Density (QSFP-DD) 100G ZR provides customers with a 100 Gigabit Ethernet ZR connectivity option for data centers, high-performance computing networks, enterprise core and distribution layers, and service provider applications. This QSFP-DD 100G module is our 100G transceiver module solution for host equipped with QSF-DD ports that requires to remotize the signal up to 80 km and more.

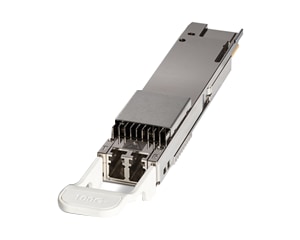

QSFP-DD 100G ZR transceiver
QSFP-DD 100G ZR transceiver
The Cisco QSF-DD 100G ZR supports a 100GBASE-R client interface over an optical link length of up to 80 km over a standard pair of G.652 single-mode fiber with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single coherent wavelength in the C-band spectrum region.
It is also possible to extend beyond 80 km leveraging on external amplification, providing the CD robustness specification are not exceeded.
Cisco environmental sustainability
Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.
Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:
| Sustainability topic |
Reference |
| Information on product material content laws and regulations |
|
| Information on electronic waste laws and regulations, including products, batteries, and packaging |
Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.
The QSFP-DD 100G ZR module supports the following optical specification:
Table 1. Optical Specifications
| Payload Rate |
Line Mode |
Symbol Baud Rate |
Modulation |
Tx Power |
FEC |
TX Wavelength |
| 100G |
100G-100ZR-OFEC-QPSK |
30.07 Gbaud |
16QAM |
-5 dBìm |
OFEC |
193.7 Thz |
Table 2. RX Optical Specifications
| Payload Rate |
Line Mode |
RX Sensitivity High OSNR |
RX OSNR Sensitivity |
CD Robustness |
DGD Robustness |
| 100G |
100G-100ZR-OFEC-QPSK |
-32 dBm |
14 dB (Typ) |
+/-2400 ps/nm |
40 ps |
Cisco QSFP-DD 100G ZR module
| Product ID |
Product Description |
| DP01QSDD-ZF1 |
100GBPS COHERENT QSFP-DD, 100G ZR Fixed Laser |
Product warranty terms and other information applicable to Cisco products are available at www.cisco.com/go/warranty.
