Cisco CallManager 4.0(1) AXL Serviceability API Programming Guide
This document describes the implementation of AXL-Serviceability APIs that are based on version 3.3.0.1 or higher. Cisco CallManager Real-Time information, Performance Counters, and Database information exposure occurs through an AXL-Serviceability Interface that confirms to the World Wide Web Consortium (W3C) standard. The Web Service Description Language (WSDL) files provide interface definitions.
Contents
This document covers the following topics:
•
AXL-Serviceability APIs Ports
•
•
•
•
Introduction
By exposing Cisco CallManager real-time information, performance counter, and database information, customers can write customized applications. AXL-Serviceability APIs, an extensible SOAP-based XML web service, conforms to the SOAP Spec 1.1 [1] and the WSDL Spec 1.1 [2]. AXL-Serviceability APIs represent one server component of the Cisco Serviceability product.
AXL-Serviceability APIs provides RPC-style operations for the clients. Clients of AXL-Serviceability APIs can run in different OS platforms and can communicate with AXL-Serviceability APIs through the standard SOAP protocol. The AXL-Serviceability APIs includes a goal to provide access to the core Cisco Serviceability functionalities through an open and standard transport protocol and data model.
The following list gives the Serviceability services that are exposed via AXL-Serviceability APIs:
•
•
The AXL-Serviceability APIs gets implemented as an ISAPI component of the IIS. AXL-Serviceability APIs as an extensible service allows external implementation of SOAP ports that are to be plugged in through the SOAP port extension dll. This document describes the implementation of AXL-Serviceability APIs that are based on version 3.3.0.1 or higher. The latest implementation of AXL-Serviceability APIs supports only the Perfmon Data Collection functionality and Real-Time information. Cisco plans to add more Serviceability functionalities to the AXL-Serviceability APIs in the near future.
Data Model
AXL-Serviceability APIs are based on SOAP with XML request and response messages. They must conform to the structure of a SOAP Envelope element. Although SOAP is a standard protocol, many of its data model aspects are left open for flexibility reasons. For example, it permits different transport protocols such as SMTP, FTP, or HTTP to carry SOAP messages. The implementation of a SOAP service must specify the bindings of the data model to constitute a concrete wire protocol specification.
WSDL 1.1[2] provides the mechanism to describe the complete SOAP bindings that AXL-Serviceability APIs use.
The following Cisco CallManager server file contains perfmon SOAP requests service definitions:
http://ASTSERVERNAME/soap/AstService.wsdl
The following file contains Cisco CallManager and CTI manager SOAP real-time information requests definitions:
http://ASTSERVERNAME/soap/risport.wsdl
To know what services are available, how to form the request message, and to interpret the response message properly, you must download these files. Basically, the WSDL file has everything that you need to know about AXL-Serviceability APIs. You can get the WSDL file as a static XML page.
ASTSERVERNAME refers to the server on which the AXL-Serviceability APIs is running.
Soap Binding
The binding section of the Serviceability SOAP WSDL files well specifies AXL-Serviceability APIs SOAP binding information. Binding specifications apply to both request and response messages. SOAP Binding covers the following aspects.
Character Encoding
AXL-Serviceability APIs use UTF-8 to encode the data stream in both request and response SOAP messages. The encoding attribute of the XML declaration specifies UTF-8 encoding. AXL-Serviceability APIs also sets "text/xml; charset='utf-8'" as the value of the Content-Type response header field. Internally, AXL-Serviceability APIs processes the data by using UCS-2 Unicode code page.
Binding Style
AXL-Serviceability APIs uses RPC binding style. In SOAP, the word operation refers to method or function. Each AXL-Serviceability APIs operation call gets modeled as a remote procedure call that is encapsulated in SOAP messages. The HTTP request carries the RPC calls while the HTTP response carries the call returns. The call information is modeled as a structure. The member elements of the body entry represent the accessor elements which represent the input parameters. Similar to the request, the response data structure is also modeled as a structure with accessors that correspond to output parameters. Parameters that are both input and output must appear in both the request and response message.
Transport
SOAP allows different transport protocols to carry SOAP messages. AXL-Serviceability APIs use the standard HTTP as its transport. The clients use the POST verb to send request to AXL-Serviceability APIs.
Note
Encoding Rule
AXL-Serviceability APIs follow the recommended data model and serialization/encoding rules as defined in Section 5.1 of SOAP Spec 1.1[1] for both the request and response messages. SOAP simple types are based on the built-in data types that are defined in XML Schema Part 2[4]. AXL-Serviceability APIs define its own data types, which are derived from the built-in types. The schemas element of the AXL-Serviceability APIs WSDL file specifies AXL-Serviceability APIs that are derived data types. AXL-Serviceability APIs use both simple and compound data types, such as arrays and structures. All operations in AXL-Serviceability APIs pass parameters by value.
For performance reasons, AXL-Serviceability APIs do not specify the size of the array elements in the response message. It leaves the size as [], which means that no particular size is specified, but the clients can determine the size by enumerating the actual number of elements that are inside the array. Point 8 of section 5.1 of SOAP Spec 1.1 [1] specifies this.
The following target namespace URL for AXL-Serviceability APIs data types schema applies: http://schemas.cisco.com/ast/soap/
AXL-Serviceability APIs qualifies the first body entry in the response, which represents the call-return, with this target namespace. Similarly, clients of AXL-Serviceability APIs also need to qualify the first body entry in the request, which represents the call, with this namespace.
Request
This section describes the SOAP protocol specifications that are relevant only to the request message. With RPC-style SOAP binding, the request SOAP message contains the operation call information that is encoded as a struct. The call struct appears as the first body entry in the request message. The call struct basically contains the name of the operation and the input parameters. The name of the top-level element gets set to be the operation name. The struct contains accessor element members that represent the input parameters. Operation that takes no parameters will have no members in the struct. The names of the accessor elements get set to be the same as the names of the input parameters. The values of the accessor elements represent the values of the input parameters. The order of the accessor elements must match the order of the input parameters as specified in the signature of the operation.
SOAP Action Header
AXL-Serviceability APIs requires SOAP clients to include the SOAP Action HTTP header field in the request message. The Simple Object Access Protocol (SOAP) 1.1 specification does not place any restrictions on the format of this header. For AXL-Serviceability APIs, the soapAction attribute of the SOAP element, which is defined under the binding section of the Serviceability SOAP API WSDL files, specifies the format of the SOAP Action header. All AXL-Serviceability APIs operations use the following URI format:
http://schemas.cisco.com/ast/soap/action/#PortName#OperationName"
Note
PortName acts as a placeholder that refers to the name of the port. AXL-Serviceability APIs must support the port. OperationName represents a placeholder that refers to the name of the intended operation within the specified port. This name must match the operation name in the request body, which is specified as the name of the first body entry element. The SOAPAction header gets used to indicate the intent of the SOAP request without having to parse the body of the request. A SOAP server can check the value of this header first and determine whether to fail the operation before it proceeds with the XML parsing of the body. This gives some efficiency edge on the server side. This scheme also allows non-SOAP-aware intermediary HTTP servers or proxies to determine the intent of the payload.
Port
A SoapPort basically represents an instantiation of a SoapBinding with a specific network address. Because AXL-Serviceability APIs use HTTP as the transport protocol, the network address in this case specifies an HTTP request URL. SoapPortType, with specific binding rules added to it, provide a basis for the definition of SoapBinding. The service section of the WSDL file defines the request URL for all AXL-Serviceability APIs operations as follows:
http://ASTSERVERNAME/soap/astsvc.dllASTSERVERNAME refers to the server name on which the Serviceability SOAP service is running. Every request for the AXL-Serviceability APIs operations must use this URL. The word SOAP refers to the virtual root on which "astsvc.dll" gets placed.
SOAP Header
As previously explained, the SOAP header provides a general way to add features to SOAP messages in a decentralized fashion with no prior contract between the sender and recipient. AXL-Serviceability APIs do not use this feature, so no Header element is expected in the envelope and gets ignored. If the Header element gets included with the mustUnderstand attribute set to 1, AXL-Serviceability APIs reply with a fault and fault code value that is set to MustUnderstand.
The following example shows AXL-Serviceability APIs SOAP request message with the HTTP header information:
Example
POST /soap/astsvc.dll HTTP/1.1Host: nozomiContent-Type: text/xml; charset=utf-8Content-Length: xxxSOAPAction: "http://schemas.cisco.com/ast/soap/action/#PerfmonPort#PerfmonOpenSession"<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonOpenSession xmlns:q1="http://schemas.cisco.com/ast/soap/" /></soap:Body></soap:Envelope>Response
This section describes the SOAP protocol specifications that are relevant only to the response message.
For a successful operation call, the call-return gets encoded as a structure. The structure appears as the first body entry of the response. The call-return basically contains the output parameters or return values of the call. The name of the structure top-level element has no significance, and Simple Object Access Protocol (SOAP) 1.1 specification does not place any restriction on the name. The structure contains accessor member elements, which represent the output parameters of the call. The names of the accessor elements are the same as the names of the output parameters. The contents of the accessor elements represent the values of the output parameters. The order of the accessor elements must match the order of output parameters as specified in the operation signatures. Operation, which does not return any value, contain no member elements in the call-return struct. AXL-Serviceability APIs use the following naming conventions for its call-return top-level element:
OperationNameResponseOperationName represents a placeholder that refers to the name of the operation that is specified in the corresponding request message. This format is specific only for AXL-Serviceability APIs implementation.
The target namespace that is described in the Encoding Rule section, qualifies the call-return. AXL-Serviceability APIs returns HTTP status 200 when the operation succeeds.
For a failed operation call, AXL-Serviceability APIs includes the SOAP fault element in the response body. Similar to call-return, the fault element also appears as the first body entry. AXL-Serviceability APIs sets HTTP 500 status when sending fault message.
Fault
When AXL-Serviceability APIs process a request and detect that an error occurred, it replies with a SOAP fault element in the response. The fault element appears as the first response body entry. The fault element comprises the following four subelements:
Fault Code
AXL-Serviceability APIs uses the following standard fault code values as defined in Section 4.4.1 of the Simple Object Access Protocol (SOAP) 1.1 specification.
VersionMismatch
This fault code gets set when the namespace URL of the request envelope does not match http://schemas.xmlsoap.org/soap/envelope/.
MustUnderstand
This fault code gets set when the clients include the Header element in the envelope along with the mustUnderstand attribute set to 1. AXL-Serviceability APIs do not use the Header element. See the SOAP Header section for details.
Client
This fault code gets set when AXL-Serviceability APIs encounters errors that are related to the clients.
Server
This fault code gets set when AXL-Serviceability APIs encounter errors that are related to the service itself.
The faultcode value gets qualified with http://schemas.xmlsoap.org/soap/envelope/ namespace. This subelement always exists in the fault element as the Simple Object Access Protocol (SOAP) 1.1 specification specifies. This represents a general classification of errors.
FaultString
AXL-Serviceability APIs set a short error description in the faultstring element that is intended for human reading. Similar to faultcode, this subelement remains always present as required by the Simple Object Access Protocol (SOAP) 1.1 specification requires. The string value of the FaultString is specific only to the AXL-Serviceability APIs.
FaultActor
AXL-Serviceability APIs does not set this subelement. Note that a proxy or intermediary server must include this subelement if it generates a fault message.
Detail
If AXL-Serviceability APIs parse and process the request body and determine that an error occurs afterwards, it includes the detailed error information in the detail subelement.
If AXL-Serviceability APIs do not include the detail subelement in the fault element, the error does not relate to the request body. Data types that are defined in the AXL-Serviceability APIs .WSDL file specify the encoding rule for the detail element. The following fragments of the file describe the types:
64 <complexType name='CallInfoType'>65 <sequence>66 <element name='FileName' type='xsd:string'/>67 <element name='LineNo' type='xsd:int'/>68 <element name='ErrorCode' type='xsd:unsignedInt'/>69 <element name='Function' type='xsd:string'/>70 <element name='Params' type='xsd:string'/>71 </sequence>72 </complexType>7374 <complexType name='ErrorInfoType'>75 <sequence>76 <element name='Version' type='xsd:string'/>77 <element name='Time' type='xsd:time'/>78 <element name='ProcId' type='xsd:unsignedInt'/>79 <element name='ThreadId' type='xsd:unsignedInt'/>80 <element name='ArrayOfCallInfo' type='tns:ArrayOfCallInfoType'/>81 /sequence>82 </complexType>128 <complexType name='ArrayOfCallInfoType'>129 <complexContent>130 <restriction base='SOAP-ENC:Array'>131 <sequence>132 <element name='CallInfo'133 type='tns:CallInfoType' minOccurs='1' maxOccurs='unbounded'/>134 </sequence>135 </restriction>136 </complexContent>137 </complexType>AXL-Serviceability APIs name the detail entry element as ErrorInfo and the type as ErrorInfoType. This type provides a structure with several accessor elements. The Version accessor contains the build version of the astsvc.dll. The Time accessor denotes the time when the error occurs. The ProcId accessor contains the process ID of the AXL-Serviceability APIs, and, in this case, it should be the same process as the inetinfo.exe (IIS process). The ThreadId accessor contains the thread ID that generates the fault. The ArrayOfCallInfo accessor contains an array of CallInfo elements.
The type for CallInfo specifies CallInfoType and also represents a structure. CallInfoType contains detailed information that describes where the error occurs in the codes. It also includes the returned error code of the function, and the parameter data. The CallInfoType design allows capturing as much information as needed, so it is easy and fast to track down and investigate a problem. Depending on the implementation of the operation, several CallInfo elements can exist in the array.
The following example shows a successful AXL-Serviceability APIs SOAP response message with HTTP headers:
Example
HTTP/1.1 200 OKContent-Type: text/xml; charset=utf-8Content-Length: xxx<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonOpenSessionResponse xmlns:m="http://schemas.cisco.com/ast/soap/"><SessionHandle>{01944B7E-183F-44C5-977A-F31E3AE59C4C}</SessionHandle></m:PerfmonOpenSessionResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>The following example shows a failed AXL-Serviceability APIs SOAP response message with HTTP headers:
Example
HTTP/1.1 500 OKContent-Type: text/xml; charset=utf-8Content-Length: xxx<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><SOAP-ENV:Fault><faultcode>SOAP-ENV:Server</faultcode><faultstring>Perfmon error occurs</faultstring><detail><m:ErrorInfo xmlns:m="http://schemas.cisco.com/ast/soap/"><Version>3.2.0.2</Version><Time>07/16/2001 - 00:00:24</Time><ProcId>1200</ProcId><ThreadId>300</ThreadId><ArrayOfCallInfo SOAP-ENC:arrayType="m:CallInfoType[]"><CallInfo><FileName>perfmon.cpp</FileName><LineNo>396</LineNo><ErrorCode>3221228473</ErrorCode><Function>AddCounter</Function><Params>\\nozomi\tcp\Bad Counter Name</Params></CallInfo></ArrayOfCallInfo></m:ErrorInfo></detail></SOAP-ENV:Fault></SOAP-ENV:Body></SOAP-ENV:Envelope>Perfmon error codes can be refered form Microsoft site. Above error 3221228473 code refer to0xC0000BB9 The specified counter could not be found. PDH_CSTATUS_NO_COUNTERhttp://msdn.microsoft.com/library/default.asp?url=/library/en-us/perfmon/base/pdh_error_co des.aspNamespaces
AXL-Serviceability APIs uses the following XML namespaces:
•
This represents the namespace URI for SOAP envelope.
•
This represents the namespace for the SOAP-recommended encoding rule that is based on XML Schema.
•
This represents the namespace URL for AXL-Serviceability APIs data types as defined in the WSDL file.
Highly Isolated IIS Service
In this release, SOAP moves to highly isolated process that does not run as part of IIS thread. Faults on SOAP service, therefore, will not affect IIS process.
Components and Dependency
AXL-Serviceability APIs comprises the following module:
•
•
•
AXL-Serviceability APIs Ports
This section explains in full details the interface of SOAP service built-in ports.
PerfmonPort
PerfmonPort comprises several operations that allow clients to do the following perfmon-related tasks:
•
AXL-Serviceability APIs provides two ways to collect perfmon data: session-based and single-transaction.
•
•
•
The 'perfport.dll' SOAP extension implements PerfmonPort. For a short overview of Perfmon Monitoring in Windows 2000, refer to following links:
http://msdn.microsoft.com/library/default.asp?url=/library/en-us/perfmon/base/performance_objects_and_counters.asp
http://msdn.microsoft.com/library/default.asp?url=/library/en-us/perfmon/base/performance_data.asp
PerfmonListCounter
This operation returns the list of Perfmon objects and counters in a particular host.
Request Format
The PerfmonListCounter operation takes a single parameter:
Host
xsd:string
xsd:string
Contains the name or address of the target server from which to get the counter information.
The following example shows a PerfmonListCounter request:
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonListCounter xmlns:q1="http://schemas.cisco.com/ast/soap/"><Host xsi:type="xsd:string">nozomi</Host></q1:PerfmonListCounter></soap:Body></soap:Envelope>Response Format
PerfmonListCounter returns with information that describes the hierarchical structures of the Perfmon objects and counters. The body entry includes an ArrayOfObjectInfo element. The following fragments from the AXL-Serviceability APIs .WSDL file describe the types that this response uses:
106 <complexType name='ArrayOfObjectInfoType'>107 <complexContent>106 <restriction base='SOAP-ENC:Array'>109 <sequence>110 <element name='ObjectInfo'111 type='tns:ObjectInfoType' minOccurs='1' maxOccurs='unbounded'/>112 </sequence>113 </restriction>114 </complexContent>115 </complexType>The ArrayOfObjectInfo element comprises an array of ObjectInfo elements that have the following type:
56 <complexType name='ObjectInfoType'>57 <sequence>58 <element name='Name' type='tns:ObjectNameType'/>59 <element name='MultiInstance' type='xsd:boolean'/>60 <element name='ArrayOfCounter' type='tns:ArrayOfCounterType'/>61 </sequence>62 </complexType>24 <simpleType name='ObjectNameType'>25 <restriction base='string'/>26 </simpleType>The Name element, whose type is derived from string, describes the name of the object. MultiInstance element indicates whether the object has more than one instance. The ArrayOfCounter element acts as a container for an array of Counter elements that have the following types:
44 <complexType name='CounterType'>45 <sequence>46 <element name='Name' type='tns:CounterNameType'/>47 </sequence>48 </complexType>32 <simpleType name='CounterNameType'>33 <restriction base='string'/>34 </simpleType>The Name element, whose type is derived from xsd:string, describes the name of the counter.
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:EnvelopeSOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonListCounterResponse xmlns:m="http://schemas.cisco.com/ast/soap/"><ArrayOfObjectInfo SOAP-ENC:arrayType="m:ObjectInfoType[]"><ObjectInfo><Name>.NET CLR Memory</Name><MultiInstance>true</MultiInstance><ArrayOfCounter SOAP-ENC:arrayType="m:CounterType[]"><Counter><Name># Gen 0 Collections</Name></Counter><Counter><Name># Gen 1 Collections</Name></Counter>...</ArrayOfCounter></ObjectInfo><ObjectInfo><Name>.NET CLR LocksAndThreads</Name><MultiInstance>true</MultiInstance><ArrayOfCounter SOAP-ENC:arrayType="m:CounterType[]"><Counter><Name>Total # of Contentions</Name></Counter><Counter><Name>Contention Rate / sec</Name></Counter><Counter><Name>Current Queue Length</Name></Counter>...</ArrayOfCounter></ObjectInfo>...</ArrayOfObjectInfo></m:PerfmonListCounterResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonListInstance
This operation returns the list of instances of a perfmon object in a particular host. Instances of an object can dynamically come and go, and this operation returns the most recent list of instances.
Request Format
The PerfmonListIntance operation takes the following parameters:
Host
xsd:string
xsd:string
Contains the address of the target server on which the object resides.
Object
xsd:string
xsd:string
Contains the name of the object.
The following example shows the PerfmonListInstance request with nozomi host and Process object parameters.
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonListInstance xmlns:q1="http://schemas.cisco.com/ast/soap/"><Host xsi:type="xsd:string">nozomi</Host><Object xsi:type="xsd:string">Process</Object></q1:PerfmonListInstance></soap:Body></soap:Envelope>Response Format
PerfmonListInstance returns an element named ArrayOfInstance. The type for this element specifies ArrayOfInstanceType, which is an array of Instance elements. The following fragments from AXL-Serviceability APIs .WSDL file explain the types that this response uses:
84 <complexType name='ArrayOfInstanceType'>85 <complexContent>86 <restriction base='SOAP-ENC:Array'>87 <sequence>88 <element name='Instance'89 type='tns:InstanceType' minOccurs='0' maxOccurs='unbounded'/>90 </sequence>91 </restriction>92 </complexContent>93 </complexType>
Note
50 <complexType name='InstanceType'>51 <sequence>52 <element name='Name' type='tns:InstanceNameType'/>53 </sequence>54 </complexType>The type for Instance element specifies InstanceType. It represents a structure with a single-element member: Name.
28 <simpleType name='InstanceNameType'>29 <restriction base='string'/>30 </simpleType>The Name element, whose type is InstanceNameType, which is derived from xsd:string, contains the name of the instance of the requested object.
The following example shows the response to the request in the previous example:
Example
<SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonListInstanceResponse xmlns:m="http://schemas.cisco.com/ast/soap/"><ArrayOfInstance SOAP-ENC:arrayType="m:InstanceType[]"><Instance><Name>Idle</Name></Instance><Instance><Name>System</Name></Instance><Instance><Name>SMSS</Name></Instance><Instance><Name>CSRSS</Name></Instance><Instance><Name>WINLOGON</Name></Instance><Instance><Name>SERVICES</Name></Instance><Instance><Name>_Total</Name></Instance>...</ArrayOfInstance></m:PerfmonListInstanceResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonQueryCounterDescription
This operation returns the help text of a particular counter.
Request Format
PerfmonQueryCounterDescription takes the following parameter:
Counter
CounterNameType
xsd:string
Contains the name of the counter.
The following example shows the PerfmonQueryCounterDescription request:
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonQueryCounterDescriptionxmlns:q1="http://schemas.cisco.com/ast/soap/"><Counter xsi:type="xsd:string">\\nozomi\Server\Files Open</Counter></q1:PerfmonQueryCounterDescription></soap:Body></soap:Envelope>Response Format
PerfmonQueryCounterDescription returns an element named HelpText that is of the xsd:string type. It contains the help text of the requested counter.
The following example shows the response to the request in the previous example.
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonQueryCounterDescriptionResponsexmlns:m="http://schemas.cisco.com/ast/soap/"><HelpText>The number of files currently opened in the server. Indicates current serveractivity.</HelpText></m:PerfmonQueryCounterDescriptionResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonOpenSession
Client program submits this operation to get a session handle from the AXL-Serviceability APIs. The client needs a session handle to do the session-based perfmon counter data collection. The session handle represents a universally unique identifier that gets used only once. This guarantees that no duplicate handles exist. AXL-Serviceability APIs keep the opened handles in the cache. If no activity occurs on a handle for the last 25 hours, AXL-Serviceability APIs remove the handle and render it invalid.
In a session-based perfmon data collection, use the following related operations:
•
•
•
•
•
After a client gets a session handle, it normally proceeds to submit the PerfmonAddCounter operation call and then follows with the PerfmonCollectSessionData operation. PerfmonCollectSessionData specifies the main operation that does the collection of the perfmon data for the clients. When the client no longer needs the session handle, it should submit PerfmonCloseSession, so the AXL-Serviceability APIs can remove the handle from cache. Clients can dynamically add new counters to the session handle and remove some from it while the session handle is still open. The PerfmonRemoveCounter operation does counter removal.
Request Format
The PerfmonOpenSession operation takes no parameter.
The following example shows the PerfmonOpenSession request:
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonOpenSession xmlns:q1="http://schemas.cisco.com/ast/soap/" /></soap:Body></soap:Envelope>Response Format
PerfmonOpenSession returns a single element that is named SessionHandle. Its type specifies SessionHandleType, which is derived from xsd:string, and it contains the guide for the session handle.
The following example shows the PerfmonOpenSession response:
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonOpenSessionResponse xmlns:m="http://schemas.cisco.com/ast/soap/"><SessionHandle>{01944B7E-183F-44C5-977A-F31E3AE59C4C}</SessionHandle></m:PerfmonOpenSessionResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonAddCounter
This operation adds an array of counters to a session handle.
Request Format
PerfmonAddCounter takes the following parameters:
The following fragments from AXL-Serviceability APIs describe the types that this request uses:
95 <complexType name='ArrayOfCounterType'>96 <complexContent>97 <restriction base='SOAP-ENC:Array'>98 <sequence>99 <element name='Counter'100 type='tns:CounterType' minOccurs='1' maxOccurs='unbounded'/>101 </sequence>102 </restriction>103 </complexContent>104 </complexType>
Note
44 <complexType name='CounterType'>45 <sequence>46 <element name='Name' type='tns:CounterNameType'/>47 </sequence>48 </complexType>CounterType represents a structure, and it has a single element member: Name.
32 <simpleType name='CounterNameType'>33 <restriction base='string'/>34 </simpleType>The Name element that is of string-derived type contains the name of the counter.
The following example shows the PerfmonAddCounter request with two counters. This example uses a single-reference accessor.
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:tns="http://tempuri.org/"xmlns:types="http://tempuri.org/encodedTypes"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonAddCounter xmlns:q1="http://schemas.cisco.com/ast/soap/"><SessionHandle xsi:type="xsd:string">{1A490F1E-D82C-403F-9CF0-C4D4ABD6FF3E}</SessionHandle><ArrayOfCounter soapenc:arrayType="q1:CounterType[2]"><Counter><Name>\\nozomi\process(inetinfo)\handle count</Name></Counter><Counter><Name>\\nozomi\process(csrss)\handle count</Name></Counter></ArrayOfCounter></q1:PerfmonAddCounter"></soap:Body></soap:EnvelopeThe following shows an example of the PerfmonAddCounter request with three counters in the ArrayOfCounter parameter.
Note
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonAddCounter xmlns:q1="http://schemas.cisco.com/ast/soap/"><SessionHandle xsi:type="xsd:string">{1A490F1E-D82C-403F-9CF0-C4D4ABD6FF3E}</SessionHandle><ArrayOfCounter href="#id1"/></q1:PerfmonAddCounter><soapenc:Array id="id1"xmlns:q2="http://schemas.cisco.com/ast/soap/"soapenc:arrayType="q2:CounterType[3]"><Item href="#id2" /><Item href="#id3" /><Item href="#id4" /></soapenc:Array><q3:CounterType id="id2" xsi:type="q3:CounterType"xmlns:q3="http://schemas.cisco.com/ast/soap/"><Name xsi:type="xsd:string">\\nozomi\tcp\Segments/sec</Name></q3:CounterType><q4:CounterType id="id3" xsi:type="q4:CounterType"xmlns:q4="http://schemas.cisco.com/ast/soap/"><Name xsi:type="xsd:string">\\nozomi\tcp\Connections Reset</Name></q4:CounterType><q5:CounterType id="id4" xsi:type="q5:CounterType"xmlns:q5="http://schemas.cisco.com/ast/soap/"><Name xsi:type="xsd:string">\\nozomi\tcp\Connections Active</Name></q5:CounterType></soap:Body></soap:Envelope>Response Format
The following example shows that the PerfmonAddCounter returns no output:
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonAddCounterResponse xmlns:m="http://schemas.cisco.com/ast/soap/"/></SOAP-ENV:Body></SOAP-ENV:Envelope>If PefmonAddCounter fails to add one or more counters that are specified in the request, AXL-Serviceability APIs reply with a fault response. Some counters that are specified in the request may get successfully added, while others failed to be added.
In this case, AXL-Serviceability APIs reply with a fault. The Params element of CallInfo element specifies each failed counter name. Client programs can conclude that counter names, which are specified in the request but do not appear in the fault message, actually get added successfully to the query handle.
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><SOAP-ENV:Fault><faultcode>SOAP-ENV:Server</faultcode><faultstring>Perfmon error occurs</faultstring><detail><m:ErrorInfo xmlns:m="http://schemas.cisco.com/ast/soap/"><Version>3.2.0.1</Version><Time>07/15/2001 - 00:00:24</Time><ProcId>1212</ProcId><ThreadId>340</ThreadId><ArrayOfCallInfo SOAP-ENC:arrayType="m:CallInfoType[]"><CallInfo><FileName>perfmon.cpp</FileName><LineNo>396</LineNo><ErrorCode>3221228473</ErrorCode><Function>AddCounter</Function><Params>\\nozomi\tcp\Invalid Counter Name 1</Params></CallInfo><CallInfo><FileName>perfmon.cpp</FileName><LineNo>396</LineNo><ErrorCode>3221228473</ErrorCode><Function>AddCounter</Function><Params>\\nozomi\tcp\Invalid Counter Name 2</Params></CallInfo></ArrayOfCallInfo></m:ErrorInfo></detail></SOAP-ENV:Fault></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonRemoveCounter
This operation removes an array of counters from a session handle.
Request Format
PerfmonRemoveCounter takes the following parameters:
The following example shows a PerfmonRemoveCounter request with three counters in the ArrayOfCounter parameter.
Note
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:tns="http://tempuri.org/"xmlns:types="http://tempuri.org/encodedTypes"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonRemoveCounter xmlns:q1="http://schemas.cisco.com/ast/soap/"><SessionHandle xsi:type="xsd:string">{1A490F1E-D82C-403F-9CF0-C4D4ABD6FF3E}</SessionHandle><ArrayOfCounter soapenc:arrayType="q1:CounterType[2]"><Counter><Name>\\nozomi\process(inetinfo)\handle count</Name></Counter><Counter><Name>\\nozomi\process(csrss)\handle count</Name></Counter><Counter><Name>\\nozomi\process(regsvc)\handle count</Name></Counter></ArrayOfCounter></q1:PerfmonRemoveCounter"></soap:Body></soap:EnvelopeThe following example shows a PerfmonRemoveCounter that uses multi reference accessors.
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonRemoveCounter xmlns:q1="http://schemas.cisco.com/ast/soap/"><SessionHandle xsi:type="xsd:string">{1A490F1E-D82C-403F-9CF0-C4D4ABD6FF3E}</SessionHandle><ArrayOfCounter href="#id1" /></q1:PerfmonRemoveCounter><soapenc:Array id="id1" xmlns:q2="http://schemas.cisco.com/ast/soap/"soapenc:arrayType="q2:CounterType[3]"><Item href="#id2" /><Item href="#id3" /><Item href="#id4" /></soapenc:Array><q3:CounterType id="id2" xsi:type="q3:CounterType"xmlns:q3="http://schemas.cisco.com/ast/soap/"><Name xsi:type="xsd:string">\\nozomi\tcp\Segments/sec</Name></q3:CounterType><q4:CounterType id="id3" xsi:type="q4:CounterType"xmlns:q4="http://schemas.cisco.com/ast/soap/"><Name xsi:type="xsd:string">\\nozomi\tcp\Connections Reset</Name></q4:CounterType><q5:CounterType id="id4" xsi:type="q5:CounterType"xmlns:q5="http://schemas.cisco.com/ast/soap/"><Name xsi:type="xsd:string">\\nozomi\tcp\Connections Active</Name></q5:CounterType></soap:Body></soap:Envelope>Response Format
PerfmonRemoveCounter returns no data in the response as shown by the following example:
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonRemoveCounterResponse xmlns:m="http://schemas.cisco.com/ast/soap/"/></SOAP-ENV:Body></SOAP-ENV:Envelope>If PefmonRemoveCounter fails to remove one or more counters that the request specifies, AXL-Serviceability APIs reply with a fault response with similar semantics as PerfmonAddCounter. Some of the counters that are specified in the request get successfully removed, while some others failed to be removed. In this case, AXL-Serviceability APIs reply with a fault. The Params element of CallInfo element specifies each failed counter name. Client programs can conclude that counter names, which are specified in the request but do not appear in the fault message, actually get removed successfully from the query handle.
PerfmonCollectSessionData
This operation collects the perfmon data for all counters that have been added to the query handle.
Request Format
PerfmonCollectSessionData takes the following parameter:
SessionHandle
SessionHandleType
xsd:string
Contains the session handle that the PerfmonOpenSession operation previously opened
The following example shows a PerfmonCollectSessionData request:
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonCollectSessionData xmlns:q1="http://schemas.cisco.com/ast/soap/"><SessionHandle xsi:type="xsd:string">{FB343D6D-AA6E-4EDB-9CFA-63A5A3ED6405}</SessionHandle></q1:PerfmonCollectSessionData></soap:Body></soap:Envelope>Response Format
The PerfmonCollectSessionData operation returns the ArrayOfCounterInfo element that contains the value and status of all counters that were previously added to the session handle. The type for ArrayOfCounterInfo element specifies ArrayOfCounterInfoType, which represents an array of CounterInfo elements.
The following fragments from AXL-Serviceability APIs .WSDL show the types that this response uses:
117 <complexType name='ArrayOfCounterInfoType'>118 <complexContent>119 <restriction base='SOAP-ENC:Array'>120 <sequence>121 <element name='CounterInfo'122 type='tns:CounterInfoType' minOccurs='1' maxOccurs='unbounded'/>123 </sequence>124 </restriction>125 </complexContent>126 </complexType>ArrayOfCounterInfoType has one or more CounterInfo elements in the array. The CounterInfo element includes the following type:
36 <complexType name='CounterInfoType'>37 <sequence>38 <element name='Name' type='tns:CounterNameType'/>39 <element name='Value' type='xsd:long'/>40 <element name='CStatus' type='xsd:unsignedInt'/>41 </sequence>42 </complexType>32 <simpleType name='CounterNameType'>33 <restriction base='string'/>34 </simpleType>CounterInfoType specifies a structure with the following three element members.
The following example shows a PerfmonCollectSessionData response:
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonCollectSessionDataResponsexmlns:m="http://schemas.cisco.com/ast/soap/"><ArrayOfCounterInfo SOAP-ENC:arrayType="m:CounterInfoType[]"><CounterInfo><Name>\\nozomi\tcp\Segments/sec</Name><Value>0</Value><CStatus>0</CStatus></CounterInfo><CounterInfo><Name>\\nozomi\tcp\Connections Reset</Name><Value>6</Value><CStatus>0</CStatus></CounterInfo><CounterInfo><Name>\\nozomi\tcp\Connections Active</Name><Value>23</Value><CStatus>0</CStatus></CounterInfo></ArrayOfCounterInfo></m:PerfmonCollectSessionDataResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonCloseSession
This operation closes the session handle that the PerfmonOpenSession previously retrieved.
Request Format
PerfmonCloseSession takes the following parameter:
SessionHandle
SessionHandleType
xsd:string
Contains the session handle that the PerfmonOpenSession operation previously opened
The following example shows a PerfmonCloseSession request:
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonCloseSession xmlns:q1="http://schemas.cisco.com/ast/soap/"><SessionHandle xsi:type="xsd:string">{01944B7E-183F-44C5-977A-F31E3AE59C4C}</SessionHandle></q1:PerfmonCloseSession></soap:Body></soap:Envelope>Response Format
The following example shows that the PerfmonCloseSession does not return data in the response:
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonCloseSessionResponse xmlns:m="http://schemas.cisco.com/ast/soap/"/></SOAP-ENV:Body></SOAP-ENV:Envelope>PerfmonCollectCounterData
This operation returns the perfmon data for all counters that belong to an object in a particular host. Unlike the session-based perfmon data collection, this operation collects all data in a single request/response transaction. If the object represents multiple-instance object, this operation always returns the most current instances of the object.
Request Format
PerfmonCollectCounterData takes the following parameters:
Example
<?xml version="1.0" encoding="utf-8" ?><soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><q1:PerfmonCollectCounterData xmlns:q1="http://schemas.cisco.com/ast/soap/"><Host xsi:type="xsd:string">nozomi</Host><Object xsi:type="xsd:string">Processor</Object></q1:PerfmonCollectCounterData></soap:Body></soap:Envelope>Response Format
PerfmonCollectCounterData returns an ArrayOfCounterInfo element, which is an array of CounterInfo elements. The data types that this response uses appears similar to the ones that the response of PerfmonCollectSessionData as explained in the PerfmonCollectSessionData, "Response Format" section use.
The following example shows a PerfmonCollectCounterData response:
Example
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><m:PerfmonCollectCounterDataResponsexmlns:m="http://schemas.cisco.com/ast/soap/"><ArrayOfCounterInfo SOAP-ENC:arrayType="m:CounterInfoType[]"><CounterInfo><Name>\\nozomi\Processor(0)\% Processor Time</Name><Value>99</Value><CStatus>0</CStatus></CounterInfo><CounterInfo><Name>\\nozomi\Processor(0)\% User Time</Name><Value>0</Value><CStatus>0</CStatus></CounterInfo><CounterInfo><Name>\\nozomi\Processor(0)\% Privileged Time</Name><Value>0</Value><CStatus>0</CStatus></CounterInfo><CounterInfo><Name>\\nozomi\Processor(0)\Interrupts/sec</Name><Value>525</Value><CStatus>0</CStatus></CounterInfo>...</ArrayOfCounterInfo></m:PerfmonCollectCounterDataResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>Real-Time Information (RisPort)
Selecting Cisco CallManager Real-Time Information
Request Format
SOAP Action and Envelope information
This operation allows clients to perform Cisco CallManager device-related queries. HTTP header should have following SOAP action for these queries.
SOAPAction: "http://schemas.cisco.com/ast/soap/action/#RisPort#SelectCmDevices"Query information includes an Envelope as follows:
1. <?xml version="1.0" encoding="utf-8"?>2. <soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"3. xmlns:tns="http://schemas.cisco.com/ast/soap/"4. xmlns:types="http://schemas.cisco.com/ast/soap/encodedTypes"5. xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"6. xmlns:xsd="http://www.w3.org/2001/XMLSchema">Session ID
This SOAP header will have session ID that is a unique session ID from client.
7. <soap:Header>8. <tns:AstHeader id="id1">9. <SessionId xsi:type="xsd:string">SessionId</SessionId>10. </tns:AstHeader>11. </soap:Header>Selection Criteria
Selection criteria type, which is a Cisco CallManager Selection criteria, follows the SOAP header.
12. <soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">13. <tns:SelectCmDevice>If the same information is queried over and over again, send Stateinfo from the previous request for each repetitive query by client.
14. <StateInfo xsi:type="xsd:string" />15. <CmSelectionCriteria href="#id1"/>16. </tns:SelectCmDevice><tns:CmSelectionCriteria id="id1" xsi:type="tns:CmSelectionCriteria">Maximum Devices Specification
The following example specifies how many maximum devices can be returned for search criteria.
17. <MaxReturnedDevices xsi:type="xsd:unsignedInt">10</MaxReturnedDevices>Search Device Classes
The following example specifies the device class type to query for real-time status. Device classes include 'Any', 'Phone', 'Gateway', 'H323', 'Cti', 'VoiceMail', 'MediaResources', 'HuntList', 'SIPTrunk', and 'unknown'.
18. <Class xsi:type="tns:DeviceClass">Any</Class>The following example specifies the Model of the device—255 specifies all models.
19. <Model xsi:type="xsd:unsignedInt">255</Model>MODEL_30SPP = 1, // Cisco 30 SP+MODEL_12SPP = 2, // Cisco 12 SP+MODEL_12SP = 3, // Cisco 12 SPMODEL_12S = 4, // Cisco 12 SMODEL_30VIP = 5, // Cisco 30 VIPMODEL_TELECASTER_BID = 6, // Cisco 7910MODEL_TELECASTER_MGR = 7, // Cisco 7960MODEL_TELECASTER_BUSINESS = 8, // Cisco 7940MODEL_IP_CONFERENCE_PHONE = 9, // Cisco 7935MODEL_VGC_PHONE = 10, // Cisco VGC PhoneMODEL_VGC_BOX_PHONE = 11, // Cisco VGC Virtual PhoneMODEL_ATA_186 = 12, // Cisco ATA 186MODEL_SCCP_PHONE = 20, // SCCP PhoneMODEL_VEGA = 30, // Analog AccessMODEL_TITAN1 = 40, // Digital AccessMODEL_TITAN2 = 42, // Digital Access+MODEL_LENNON = 43, // Digital Access WS-X6608MODEL_ELVIS = 47, // Analog AccessWS-X6624MODEL_CHALICE = 48, // VGC GatewayMODEL_CONF_BRIDGE = 50, // Conference BridgeMODEL_YOKO_CONF_BRIDGE = 51, // Conference Bridge WS-X6608MODEL_DIXIELAND_CFB = 52, // Cisco IOS Conference Bridge (HDV2)MODEL_SUMMIT_CFB = 53, // Cisco Conference Bridge (WS-SVC-CMM)MODEL_H323_PHONE = 61, // H.323 PhoneMODEL_H323_GATEWAY = 62, // H.323 GatewayMODEL_MUSIC_ON_HOLD = 70, // Music On HoldMODEL_DEVICE_PILOT = 71, // Device PilotMODEL_CTI_PORT = 72, // CTI PortMODEL_CTI_ROUTE_POINT = 73, // CTI Route PointMODEL_UONE = 80, // Voice Mail PortMODEL_DIXIELAND_SW_MTP = 83, // Cisco IOS Software Media Termination Point (HDV2)MODEL_SUMMIT_APP_CFB = 84, // Cisco Media Server (WS-SVC-CMM-MS)MODEL_FLINT_CONF_BRIDGE = 85, // Cisco Video Conference Bridge (IPVC-35xx)MODEL_ROUTE_LIST = 90, // Route ListMODEL_LOAD_SIMULATOR = 100, // Load SimulatorMODEL_MTP = 110, // Media Termination PointMODEL_YOKO_MTP = 111, // Media Termination Point HardwareMODEL_DIXIELAND_MTP = 112, // Cisco IOS Media Termination Point (HDV2)MODEL_SUMMIT_MTP = 113, // Cisco Media Termination Point (WS-SVC-CMM)MODEL_MGCP_STATION = 120, // MGCP StationDEVICE/ ENUM VALUE DEVICE DESCRIPTION------------------------------------------------------------------------------------------ -----------------MODEL_MGCP_TRUNK = 121, // MGCP TrunkMODEL_GATEKEEPER = 122, // GateKeeperMODEL_14_BUTTON_SIDECAR = 124, // 14-Button Line Expansion ModuleMODEL_TRUNK = 125, // TrunkMODEL_ANN = 126, // Tone Announcement PlayerMODEL_SIP_TRUNK = 131, // SIP TrunkMODEL_SIP_GATEWAY = 132, // SIP GatewayMODEL_UNKNOWN_MGCP_GATEWAY = 254, // Unknown MGCP GatewayMODEL_UNKNOWN = 255, // UnknownMODEL_CISCO_IP_PHONE_7905 = 20000, // Cisco 7905MODEL_7920 = 30002, // Cisco 7920MODEL_UBIQUITY_I = 30004, // Ubiquity IMODEL_IP250D = 30005, // IP250DMODEL_CISCO_7970 = 30006, // Cisco 7970MODEL_CISCO_7912 = 30007, // Cisco 7912MODEL_CISCO_7902 = 30008, // Cisco 7902MODEL_CISCO_SOFTPHONE_SE_M = 30016, // Cisco IP CommunicatorMODEL_SAMPLEPHONE = 30017, // SamplePhoneMODEL_CISCO_7965 = 30018, // Cisco 7965MODEL_CISCO_7936 = 30019, // Cisco 7936MODEL_TANDBERG_VIDEO_PHONE = 30020 // Tandberg Video PhoneDevice Status in Search Criteria
Specify registered/unregistered status devices. The following example shows status 'Any', 'Registered', 'UnRegistered', 'Rejected', and 'Unknown.'
20. <Status xsi:type="tns:CmDevRegStat">Registered</Status>The following example specifies the server name where the search needs to be performed. If no name is specified, a search in all servers in a cluster results.
21. <NodeName xsi:type="xsd:string" />Specify Selection type whether it is IP Address/Name22. <SelectBy xsi:type="tns:CmSelectBy">Name</SelectBy>Array of Items for Which Search Criteria Are Specified
The following example specifies an array that contains the IP Address or Device Name of the items for which a real-time status is required.
23. <SelectItems href="#id2" />Name or IP</tns:CmSelectionCriteria24. <soapenc:Array id="id2" soapenc:arrayType="tns:SelectItem[2]">25. <Item href="#id3"/><Item xsi:null="1"/>26. </soapenc:Array>27. <tns:SelectItem id="id3" xsi:type="tns:SelectItem">28. <Item xsi:type="xsd:string"/></tns:SelectItem>29. </soap:Body>30. </soap:Envelope>Response Format
The Response follows the following schema and contains information for one to many servers for each server and contains a sequence of search information that is found on the search criteria.
<complexType name='SelectCmDeviceResult'><sequence><element name='TotalDevicesFound' type='xsd:unsignedInt'/><element name='CmNodes' type='tns:CmNodes'/></sequence></complexType>CMNodes provides a list of CMNodes that are given in search criteria.
<complexType name='CmNodes'><complexContent><restriction base='SOAP-ENC:Array'><sequence><element name='CmNode' type='tns:CmNode' minOccurs='0 maxOccurs='unbounded'/></sequence></restriction></complexContent></complexType>Each CMNode contains a sequence of devices and their registration status.
<complexType name='CmNode'><sequence><element name='ReturnCode' type='tns:RisReturnCode'/><element name='Name' type='xsd:string'/><element name='NoChange' type='xsd:boolean'/><element name='CmDevices' type='tns:CmDevices'/></sequence></complexType><complexType name='CmDevices'><complexContent><restriction base='SOAP-ENC:Array'><sequence><element name='CmDevice' type='tns:CmDevice' minOccurs='0' maxOccurs='200'/></sequence></restriction></complexContent></complexType>The CMDevice information contains the following information.
<complexType name='CmDevice'><sequence><element name='Name' type='xsd:string'/><element name='IpAddress' type='xsd:string'/><element name='DirNumber' type='xsd:string'/><element name='Class' type='tns:DeviceClass'/><element name='Model' type='xsd:unsignedInt'/><element name='Product' type='xsd:unsignedInt'/><element name='BoxProduct'type='xsd:unsignedInt'/><element name='Httpd' type='tns:CmDevHttpd'/><element name='RegistrationAttempts' type='xsd:unsignedInt'/><element name='IsCtiControllable' type='xsd:boolean'/><element name='LoginUserId' type='xsd:string'/><element name='Status' type='tns:CmDevRegStat'/><element name='StatusReason' type='xsd:unsignedInt'/><element name='PerfMonObject' type='xsd:unsignedInt'/><element name='DChannel' type='xsd:unsignedInt'/><element name='Description' type='xsd:string'/><element name='H323Trunk' type='tns:H323Trunk'/><element name='TimeStamp' type='xsd:unsignedInt'/></sequence></complexType>Choosing CTI Real-Time Information
Request Format
SOAP Action
This operation allows client to perform a CTI manager-related query.
The HTTP header should have following SOAP action:
SOAPAction: http://schemas.cisco.com/ast/soap/action/#RisPort#SelectCtiItemsEnvelope Information
The query information should have an Envelope as follows:
1. ?xml version="1.0" encoding="utf-8"?>2. <soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"3. xmlns:tns="http://schemas.cisco.com/ast/soap/"4. xmlns:types="http://schemas.cisco.com/ast/soap/encodedTypes"5. xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"6. xmlns:xsd="http://www.w3.org/2001/XMLSchema">Session ID
The following example shows a SOAP header that contains a session ID. The client sets a unique session ID.
7. <soap:Header>8. <tns:AstHeader id="id1">9. <SessionId xsi:type="xsd:string">jSessionId</SessionId>10. </tns:AstHeader>11. </soap:Header>12.13. <soap:Body soap:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">14. <tns:SelectCtiItem><StateInfo xsi:type="xsd:string" /><CtiSelectionCriteria href="#id1" /></tns:SelectCtiItem>15. <tns:CtiSelectionCriteria id="id1" xsi:type="tns:CtiSelectionCriteria">Maximum Device Information
The following example specifies the maximum number of devices that this search needs to return:
16. <MaxReturnedItems xsi:type="xsd:unsignedInt">10</MaxReturnedItems>CTI Application/Device/Line Specification
The following example specifies on which CTI manager class Line/Device/Provider a search is provided:
17. <CtiMgrClass xsi:type="tns:CtiMgrClass">Line</CtiMgrClass>Status of CTI Item Search
The following example specifies the Status of class on which to search:
18. <Status xsi:type="tns:CtiStatus">Any</Status>Server Name for Search
The following example specifies the server name on which the search is performed:
19. <NodeName xsi:type="xsd:string" />Type of Search
The following example specifies the type of selection:
20. <SelectAppBy xsi:type="tns:CtiSelectAppBy">AppIpAddress</SelectAppBy>List of Items That Needs to be Searched
The following example specifies an array for items for which the real-time status is required:
21. <AppItems href="#id2" />Name /IP</tns:CtiSelectionCriteria>22. <soapenc:Array id="id2" soapenc:arrayType="tns:SelectAppItem[2]">23. <Item href="#id3" /><Item xsi:null="1" /></soapenc:Array>24. <tns:SelectAppItem id="id3" xsi:type="tns:SelectAppItem">25. <AppItem xsi:type="xsd:string"/>26. </tns:SelectAppItem>27. </soap:Body>28. </soap:Envelope>Response format
The Response includes a sequence of CMNodes with sequences of CTI devices and lines real-time information.
<complexType name='CtiItem'><sequence><element name='AppId' type='xsd:string'/><element name='ProviderName' type='xsd:string'/><element name='UserId' type='xsd:string'/><element name='AppIpAddr' type='xsd:string'/><element name='AppStatus' type='tns:CtiStatus'/><element name='AppStatusReason' type='xsd:unsignedInt'/><element name='AppTimeStamp' type='xsd:unsignedInt'/><element name='CtiDevice' type='tns:CtiDevice'/><element name='CtiLine' type='tns:CtiLine'/></sequence></complexType>CTI Device real-time information contains the following sequence of information:
<complexType name='CtiDevice'><sequence><element name='AppControlsMedia' type='xsd:boolean'/><element name='DeviceName' type='xsd:string'/><element name='DeviceStatus' type='tns:CtiStatus'/><element name='DeviceStatusReason' type='xsd:unsignedInt'/><element name='DeviceTimeStamp' type='xsd:unsignedInt'/></sequence></complexType>CTI Line contains the following sequence of information:
<complexType name='CtiLine'><sequence><element name='DirNumber' type='xsd:string'/><element name='LineStatus' type='tns:CtiStatus'/><element name='LineStatusReason' type='xsd:unsignedInt'/> <element name='LineTimeStamp' type='xsd:unsignedInt'/></sequence></complexType>Interface to Get Server Names and Cluster Name
The interface to get cluster name getServiceParameter, interface to get configured servers in cluster listProcessNodeByService, and interface to get configured devices in cluster listDeviceByNameAndClass get defined as part of the AXL-DB WSDL file. Send your queries to API question mailer on these interfaces.
Authentication
The following sections describe the currently used authentication.
Basic
Basis authentication uses base64 to encode and decode the credential information. Because base64 is a two-way function, which requires no key, this protocol is a clear-text authentication that is not secure. The Basic provides an advantage because it is widely implemented by many platforms, and most HTTP client agents support it. Basic authentication can be secure if the encryption, such as SSL, gets used.
Authorization
Each LDAP user gets checked against an MLA configuration for permissions. If the LDAP user in basic authentication does not have permission to "Read and Execute," the access to SOAP APIs gets denied.
Rate Control
The AXL-Serviceability Interface includes a request rate control mechanism that monitors the request rates for the complete system. If the request rate is more than supported, a "SOAP Fault" gets sent to the client and the request gets blocked. Requests rates get tracked for the system. This rate control gets enabled for "Real-time Data requests" and "Perfmon Data Requests." These rates get controlled through "Enterprise parameters" as shown in Figure 1. The system provides Help for these parameter configurations as shown in Figure 2.

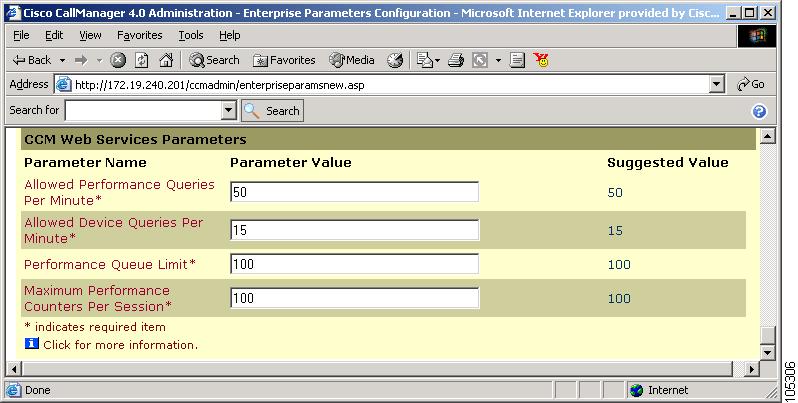

Figure 1 Rate Control Enterprise Parameters

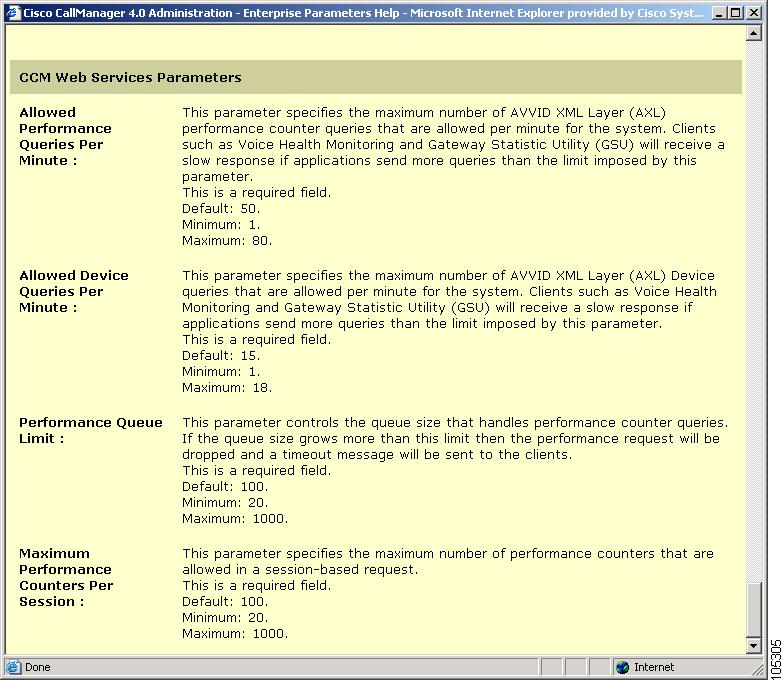

Figure 2 Help for Rate Control Parameters
Obtaining Documentation
Cisco provides several ways to obtain documentation, technical assistance, and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation on the World Wide Web at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
International Cisco websites can be accessed from this URL:
http://www.cisco.com/public/countries_languages.shtml
Documentation CD-ROM
Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM package, which may have shipped with your product. The Documentation CD-ROM is updated regularly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual or quarterly subscription.
Registered Cisco.com users can order a single Documentation CD-ROM (product number DOC-CONDOCCD=) through the Cisco Ordering tool:
http://www.cisco.com/en/US/partner/ordering/ordering_place_order_ordering_tool_launch.html
All users can order annual or quarterly subscriptions through the online Subscription Store:
http://www.cisco.com/go/subscription
Click Subscriptions & Promotional Materials in the left navigation bar.
Ordering Documentation
You can find instructions for ordering documentation at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
You can order Cisco documentation in these ways:
•
http://www.cisco.com/en/US/partner/ordering/index.shtml
•
Documentation Feedback
You can submit e-mail comments about technical documentation to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883We appreciate your comments.
Obtaining Technical Assistance
For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, the Cisco Technical Assistance Center (TAC) provides 24-hour-a-day, award-winning technical support services, online and over the phone. Cisco.com features the Cisco TAC website as an online starting point for technical assistance. If you do not hold a valid Cisco service contract, please contact your reseller.
Developer Support
The Developer Support Program provides formalized support for Cisco Systems interfaces to enable developers, customers, and partners in the Cisco Service Provider solutions Ecosystem and Cisco AVVID Partner programs to accelerate their delivery of compatible solutions.
The Developer Support Engineers are an extension of the product technology engineering teams. They have direct access to the resources necessary to provide expert support in a timely manner.
For additional information on this program, refer to the Developer Support Program Web Site at
www.cisco.com/go/developer support/.Developers using the AXL Serviceability Programming Interface Guide are encouraged to join the Cisco Developer Support Program. This new program provides a consistent level of support while leveraging Cisco interfaces in development projects.
Note
Cisco TAC Website
The Cisco TAC website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The Cisco TAC website is available 24 hours a day, 365 days a year. The Cisco TAC website is located at this URL:
Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a login ID or password, register at this URL:
http://tools.cisco.com/RPF/register/register.do
Opening a TAC Case
Using the online TAC Case Open Tool is the fastest way to open P3 and P4 cases. (P3 and P4 cases are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Case Open Tool automatically recommends resources for an immediate solution. If your issue is not resolved using the recommended resources, your case will be assigned to a Cisco TAC engineer. The online TAC Case Open Tool is located at this URL:
http://www.cisco.com/tac/caseopen
For P1 or P2 cases (P1 and P2 cases are those in which your production network is down or severely degraded) or if you do not have Internet access, contact Cisco TAC by telephone. Cisco TAC engineers are assigned immediately to P1 and P2 cases to help keep your business operations running smoothly.
To open a case by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447For a complete listing of Cisco TAC contacts, go to this URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
TAC Case Priority Definitions
To ensure that all cases are reported in a standard format, Cisco has established case priority definitions.
Priority 1 (P1)—Your network is "down" or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Priority 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Priority 3 (P3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Priority 4 (P4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•
http://www.cisco.com/en/US/products/products_catalog_links_launch.html
•
•
•
http://www.cisco.com/go/iqmagazine
•
http://www.cisco.com/en/US/about/ac123/ac147/about_cisco_the_internet_protocol_journal.html
•
http://www.cisco.com/en/US/learning/index.html
CCIP, CCSP, the Cisco Arrow logo, the Cisco Powered Network mark, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherSwitch, Fast Step, GigaStack, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, MGX, MICA, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, RateMUX, Registrar, ScriptShare, SlideCast, SMARTnet, StrataView Plus, Stratm, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries.
All other trademarks mentioned in this document or Web site are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0304R)
Copyright © 2003, Cisco Systems, Inc.
All rights reserved.
