Hardware Features

Connectors and ports on the AP

This section contains figures showing the connectors, ports, and LEDs on the CW9172H.

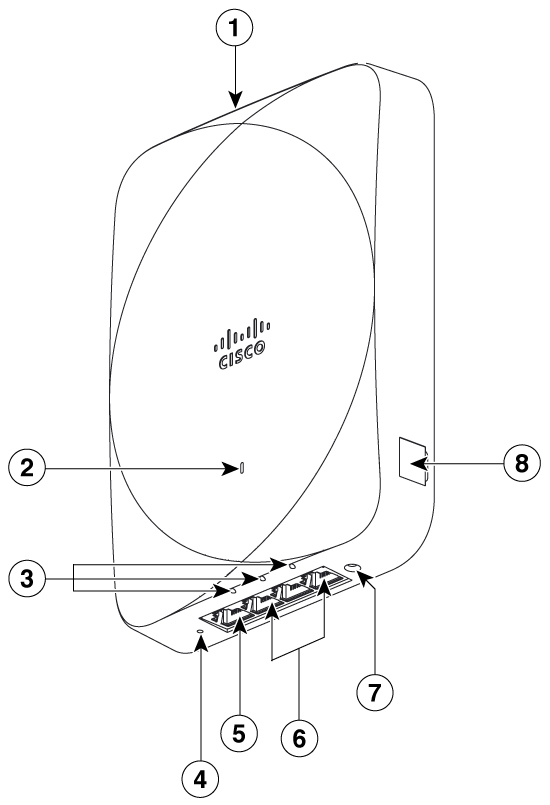

Figure 1. CW9172H top view with LEDs and ports

1

Security screw hole with cover for AIR-AP-BRACKET-W4

5

Passthrough Ethernet port

1

2

System LED

2

6

LAN ports

3

Ethernet status LEDs

3

7

Security screw hole for CW-MNT-H1

4

Mount bracket detent tool access hole for CW-MNT-H1

8

RJ-45 console port with cover

1 Default baud rate is 115200
2 For more information, see Table 1.
3 For more information, see configure-and-deploy-your-ap.html#ap_leds__.

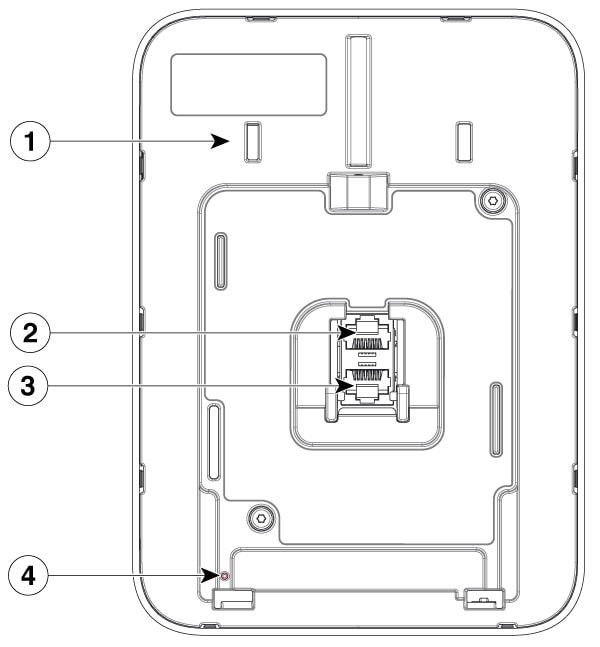

Figure 2. CW9172H rear view

1

Bottom cover

3

Passthrough Ethernet port

2

2.5G uplink WAN port

4

Reset button

4
4 For information on how to use the reset button, see Using the Mode Button
