Secure Firewall 4200 Threat Defense Getting Started: Firewall Management Center at a Central Headquarters

PDF

Cable the firewall

Updated: March 18, 2026

Want to summarize with AI?

Log in

Overview

Learn how to cable the Secure Firewall 4200 so you can complete the initial hardware setup and prepare required ports for network connectivity before configuration.

  • Obtain a console cable—The firewall does not ship with a console cable by default, so you will need to buy a third-party USB-to-RJ-45 serial cable, for example.

  • Install SFPs into the data interface ports—The fixed ports are 1/10/25-Gbps SFP28 ports that require SFP/SFP+/SFP28 modules.

  • See the hardware installation guide for more information.

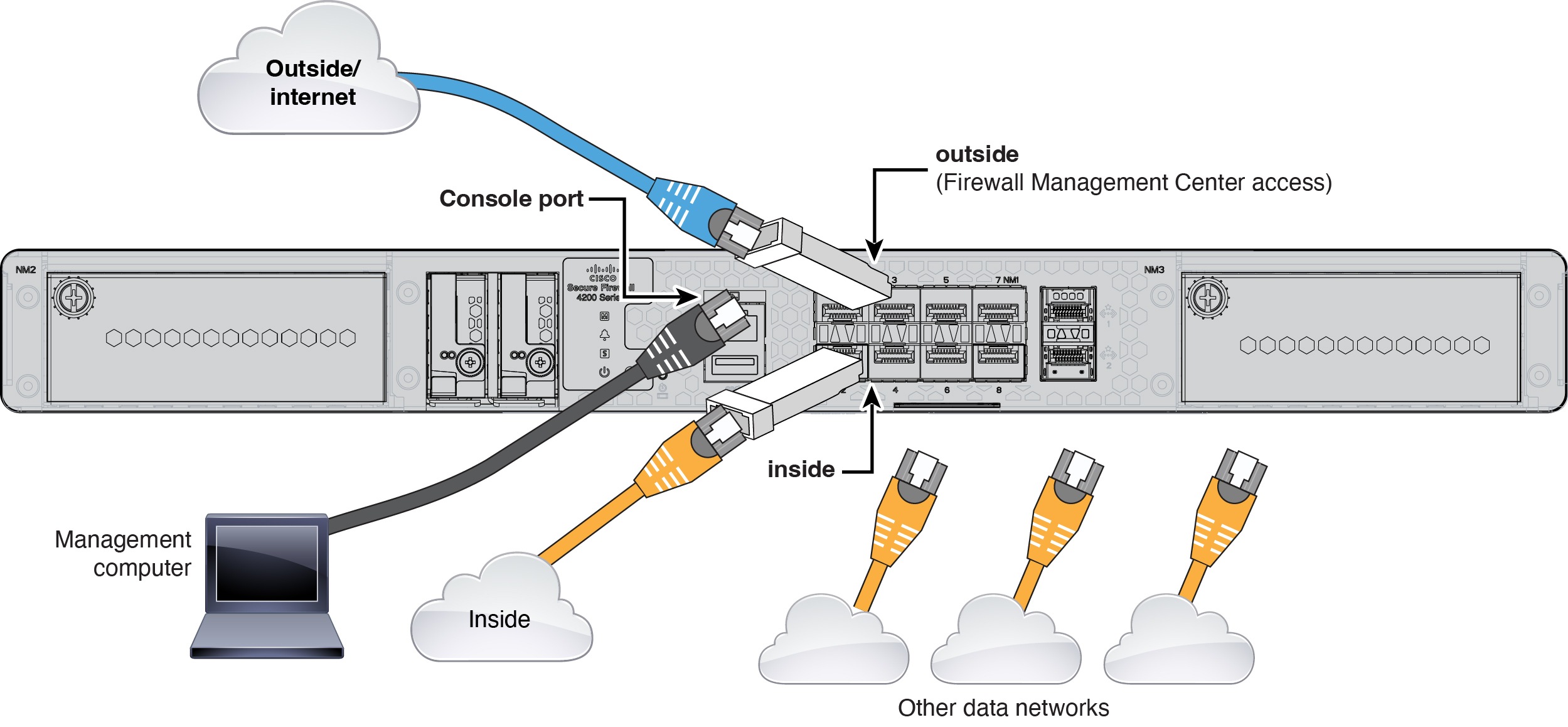

Cabling for a Management Center at a Central Headquarters
