Overview

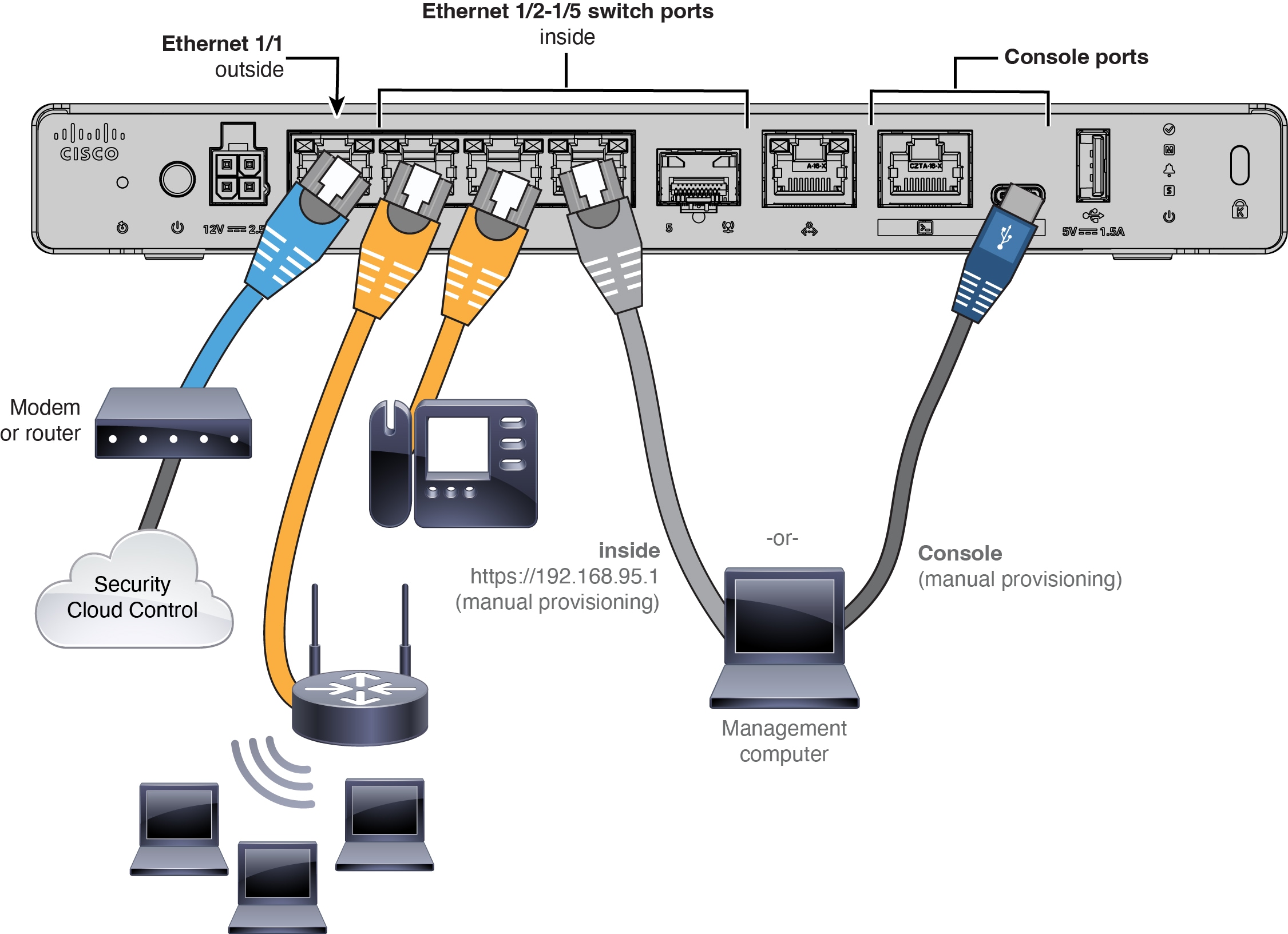

Learn how to cable the Secure Firewall 200 so you can complete the initial hardware setup and prepare required ports for network connectivity before configuration.
-
Install an SFP into Ethernet 1/5—It is a 1-Gbps SFP port that requires an SFP module.
-
See the hardware installation guide for more information.
-
If you use zero-touch provisioning, do not cable both the outside and the Management interface. This guide covers management on the outside interface, but you may want to use zero-touch provisioning on Management with high availability. If you use zero-touch provisioning on outside and want to use high availability, you will have to change the outside IP address to a static address after registration.
