Release Notes for Cisco vEdge Device, Cisco SD-WAN Release 20.8.x


Note

The documentation set for this product strives to use bias-free language. For purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on standards documentation, or language that is used by a referenced third-party product.


These release notes accompany the Cisco SD-WAN Release 20.8.x, which provides Cisco SD-WAN capabilities. They include release-specific information for Cisco vSmart Controllers, Cisco vBond Orchestrators, Cisco vManage as applicable to Cisco vEdge devices.

Related Releases

For release information about Cisco IOS XE SD-WAN devices, refer to Release Notes for Cisco IOS XE SD-WAN Devices, Cisco IOS XE Release 17.8.x.

For release information about Cisco SD-WAN Controllers, refer to Release Notes for Cisco SD-WAN Controllers, Cisco SD-WAN Release 20.8.x

What's New for Cisco SD-WAN Release 20.8.x

This section applies to Cisco vEdge devices.

Cisco is constantly enhancing the SD-WAN solution with every release and we try and keep the content in line with the latest enhancements. The following table lists new and modified features we documented in the Configuration, Command Reference, and Hardware Installation guides. For information on additional features and fixes that were committed to the SD-WAN solution, see the Resolved and Open Bugs section in the Release Notes.

Table 1. Cisco SD-WAN Release 20.8.1
Feature Description

Routing

Verify OMP routes prefix

The verify keyword is added to "show omp route <prefix>" CLI to validate the availability of route on Cisco vEdge devices.

Policies

Policy Checker on Cisco vSmart Controller

The test policy CLI enables you to troubleshoot large policies with numerous sequence numbers. This command identifies and displays the sequence number that matches a particular input variable and a policy name on Cisco vSmart Controllers.

Security

Layer 7 Health Check for Manual Tunnels

You can create and attach trackers to manually created GRE or IPSec tunnels to a SIG endpoint. Trackers help failover traffic when a SIG tunnel is down.

Single Sign-On Using Azure AD

Single Sign-On (SSO) with security assertion mark-up language (SAML) gives faster, easier, and trusted access to cloud applications without storing passwords or requiring you to log in to each application individually.

Cloud OnRamp

Support for SVL Port Configuration on 100G Interfaces

With this feature, you can configure SVL ports on 100G Ethernet interfaces of Cisco Catalyst 9500-48Y4C switches, thus ensuring a high level of performance and throughput.

View Details of Microsoft Telemetry and View Application Server Information for Office 365 Traffic

This feature adds better visibility into how Cloud onRamp for SaaS determines the best path for Microsoft Office 365 traffic, if you have opted to use Microsoft telemetry.

One enhancement is a chart that shows how Microsoft rates the connection quality of different interfaces, specifically for different types (called service areas) of Office 365 traffic. This is helpful for troubleshooting Office 365 performance issues.

Another addition is the SD-AVC Cloud Connector page, which shows a list of Microsoft URL/IP endpoints and categories that Cisco SD-WAN receives from Microsoft Cloud.

User-Defined SaaS Application Lists

This feature expands the range of SaaS applications that Cloud onRamp for SaaS can monitor, and for which it can determine the best network path. The feature enables you to define lists of one or more SaaS applications, together with the relevant application server for those SaaS applications. Cloud onRamp for SaaS handles these lists in the same way that it handles the predefined set of SaaS applications that it can monitor.

When you enable a user-defined list, Cloud onRamp for SaaS probes for the best path to the application server and routes the application traffic for applications in the list to use the best path.

Cisco SD-WAN Monitor and Maintain

Software Upgrade Workflow for Cisco SD-WAN edge devices.

This feature introduces a guided workflow through which you can upgrade the software image on your Cisco IOS XE SD-WAN devices and Cisco vEdge devices and monitor the status of the software upgrade.

With this workflow, you can choose to download, install, and activate the new software image in discrete steps or in a single step.

Bidirectional Support for Packet Tracing

This feature provides a detailed understanding of how data packets are processed by the edge devices in both the directions. The bidirectional debugging can help you to diagnose issues and troubleshoot them more efficiently.

Cisco Hierarchical SD-WAN Configuration Guide

Hierarchical SD-WAN: Secondary Regions

Secondary regions provide another facet to the Hierarchical SD-WAN architecture and enable direct tunnel connections between edge routers in different primary access regions. When you assign an edge router a secondary region, the router effectively operates in two regions simultaneously, and has different paths available through its primary and secondary regions.

Hierarchical SD-WAN: Router Affinity

Often a router has multiple options to choose for the next hop when routing a flow to its destination. When multiple devices can serve as the next hop for a flow, you can specify the order of preference among the devices by configuring router affinity groups. The result is that a router attempts to use a route to the next-hop device of highest preference first, and if that device is not available, it attempts to use a route to the next-hop device of the next lower preference. Affinity groups enable this functionality without requiring complex control policies.

Software and Hardware Behavior Changes in Cisco SD-WAN Release 20.8.1

Behavior Change

Description

Support is no longer available for configuring an SNMPv3 user with the Secure Hash Algorithm (SHA-1) authentication protocol. You need to configure an SNMPv3 user with the SHA-256 authentication protocol.

A note is added in the Configure SNMPv3 on Cisco vEdge Devices Using Cisco vManage section.

A new command show support omp peer is added to validate the availability of Cisco SD-WAN Overlay Management Protocol (OMP) routes on Cisco vEdge devices.

A new command show support omp peer is added.

A note is added in the Verify OMP Peer Sessions section.

Support is added for capturing IPv6 packets for tracing and troubleshooting. You can now choose an IPv6 interface from the Interface drop-down list.

A note is added in the Capture Packets section.

The Application Usage column and the Application Usage links are removed from the Monitor > Devices > WAN - Tunnel window. After configuring on-demand troubleshooting for a device, you can view SD-WAN Application Intelligence Engine (SAIE) usage data based on the selected filters or based on application families sorted by usage.

A note is added in the View TLOC Loss, Latency, and Jitter Information section.

A note is added in the View Tunnel Connections section.

Secure Internet Gateway (SIG) tracker monitor statistics are no longer reset at every Domain Name System (DNS) cache timeout interval. SIG tracker monitor statistics are now reset every two hours. A SIG tracker allows you to track the health of your SIG tunnels.

A note is added in the Create Automatic Tunnels Using SIG Feature Template section.

Alarms are added to syslog with syslog facility and priority local7.notice.

A new command show alarms history is added for viewing the list of alarms raised in the past.

A new command show alarms history is added.

Updated text is added in the Syslog Message Format section.

A new operational command request nms server-proxy set management-ip is added for entering the management IP address and port.

A new command request nms server-proxy is added.

Change in time-out behavior for template push to CCM.

In Cisco vManage Release 20.7.x and earlier releases, the Cisco Colo Manager (CCM) and CSP device configuration tasks time out 30 minutes after the tasks are created. In the case of long-running image installation operations, these configuration tasks may time out and fail, while the cluster activation state continues to be in a pending state.

From Cisco vManage Release 20.8.1, the CCM and CSP device configuration tasks time out 30 minutes after the last heartbeat status message that Cisco vManage received from the target devices. With this change, long-running image installation operations do not cause configuration tasks to fail after a predefined interval of time after task creation.

Change in CCM workflow.

In Cisco vManage Release 20.7.x and earlier releases, Cisco Colo Manager (CCM) bring up and activation progress is reported as part of the CLOUD ONRAMP CCM task. This task shows the seven steps in the CCM bring up and activation sequence and indicates whether the sequence was successfully completed or not. The Push Feature Template Configuration task shows the status of the RBAC settings configuration push.

From Cisco vManage Release 20.8.1, CLOUD ONRAMP CCM task is completed when Cisco vManage receives CCM Healthy from the target CSP device. The Push Feature Template Configuration task shows the seven steps in the CCM bring up and activation sequence and indicates whether the sequence was successfully completed or not, along with the status of the RBAC settings configuration push.

Important Notes, Known Behavior, and Workaround

  • Starting from Cisco SD-WAN Release 20.5.1, Cloud onRamp for IaaS isn't supported for Cisco vEdge Cloud Router running on Cisco SD-WAN Release 20.5.1. However, Cloud onRamp for IaaS is supported with AWS as the cloud provider for Cisco vEdge Cloud Routers using Cisco SD-WAN Release 20.4.1 and earlier. Cloud onRamp for IaaS is also supported with Microsoft Azure as the cloud provider for Cisco vEdge Routers using Cisco SD-WAN Release 20.3.1 and earlier.

  • For information about upgrade paths, see Cisco vManage Upgrade Paths.

Resolved and Open Bugs

About the Cisco Bug Search Tool

Use the Cisco Bug Search Tool to access open and resolved bugs for a release.

The tool allows you to search for a specific bug ID, or for all bugs specific to a product and a release.

You can filter the search results by last modified date, bug status (open, resolved), severity, rating, and support cases.

Bugs for Cisco SD-WAN Release 20.8.1

This section details all fixed and open bugs for this release. These are available in the Cisco Bug Search Tool through the Resolved Bug Search.

Resolved Bugs for Cisco SD-WAN Release 20.8.1

Identifier

Headline

CSCwa92331

Affinity logic not working if entire CG1 vSmart shutdown

CSCwa67563

Cisco vEdge USB directory requires root access on 20.6

CSCwa82541

Cisco vEdge: ECMP for DP based DIA is not maintained if AAR policy applied

Open Bugs for Cisco SD-WAN Release 20.8.1

Identifier

Headline

CSCwb55566

FCV1: chassis-uuid missing in show output when Cisco vEdge-20.8.0.07-15 deployed w/ bootstrap-config

CSCwb52613

Cisco vEdge speed test will fail if the device system-ips has the same last 2 octets

Supported Devices

Table 2. Supported Devices and Versions in Cisco SD-WAN Release 20.8.x

Device Family

Device Name

Cisco vEdge Devices

  • vEdge 2000

  • vEdge 5000

  • vEdge Cloud

Cisco ISR 1100 and ISR 1100X Series Integrated Services Routers

  • ISR1100-4G

  • ISR1100X-4G

  • ISR1100-6G

  • ISR1100X-6G

  • ISR1100-4GLTENA

  • ISR1100-4GLTEGB


Note

Starting from Cisco SD-WAN Release 20.7.1, the vEdge 100 and vEdge 1000 platforms are not supported. For more information see, End-of-Sale and End-of-Life Announcement for the Cisco VEDGE-100B, VEDGE-100M AND VEDGE-1000.


Table 3. Supported Modules on Cisco ISR 1100 and ISR 1100X Series Integrated Services Routers

Module Family

Module Name

Cellular Modules

  • D-LTE-AS

  • D-LTE-GB

  • D-LTE-NA

These modules are supported on Cisco ISR 1100 and ISR 1100X Series Integrated Services Routers using Cisco SD-WAN Release 20.4.1 or later releases. The modules are not supported on Cisco ISR1100-4GLTE models.

Cisco vManage GUI Changes

This section presents a comparative summary of the significant changes between Cisco vManage 20.7.x and earlier releases, and Cisco vManage Release 20.8.1.

Change in Control Labels

In Cisco vManage Release 20.8.1, the labels of the following UI elements have changed:

  • DPI to SAIE: The deep packet inspection (DPI) flow is now called the SD-WAN Application Intelligence Engine (SAIE) flow. As a result, all UI elements related to DPI have been renamed as SAIE.

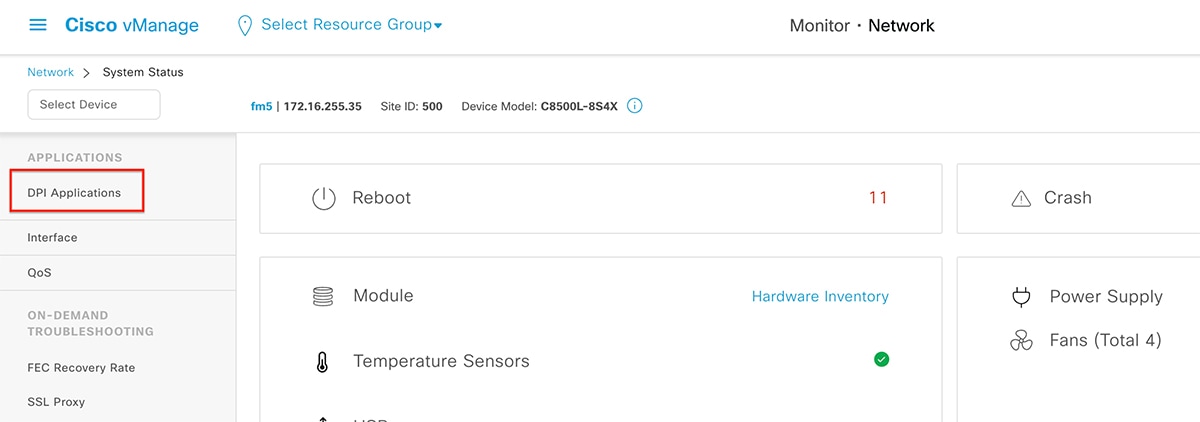

    Figure 1. Example of Labels with DPI in Cisco vManage 20.7.x and Earlier Releases

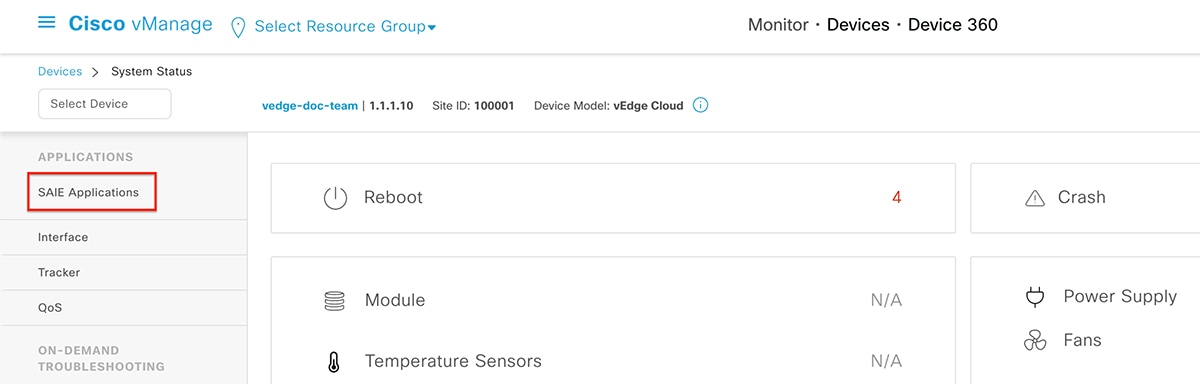

    Figure 2. Example of Labels with SAIE in Cisco vManage Release 20.8.1
  • Device to Device Templates (Configuration > Templates)

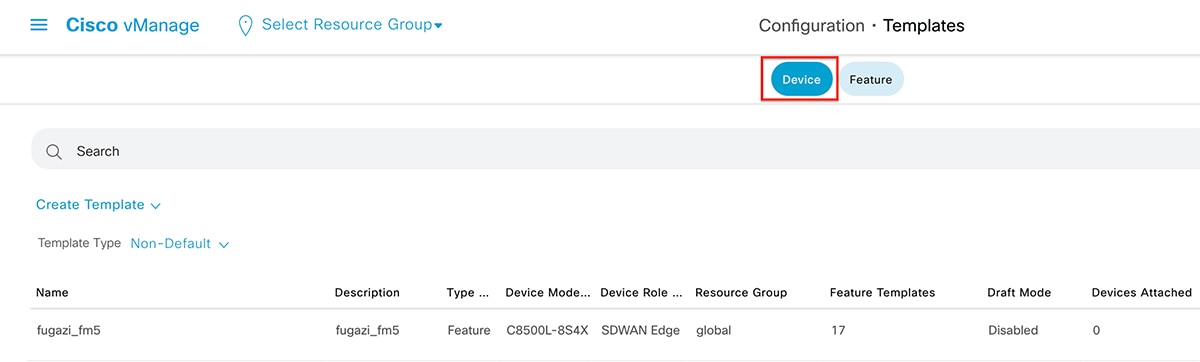

    Figure 3. Device Tab in Cisco vManage 20.7.x and Earlier Releases
    Figure 4. Device Templates Tab in Cisco vManage Release 20.8.1
  • Feature to Feature Templates (Configuration > Templates)

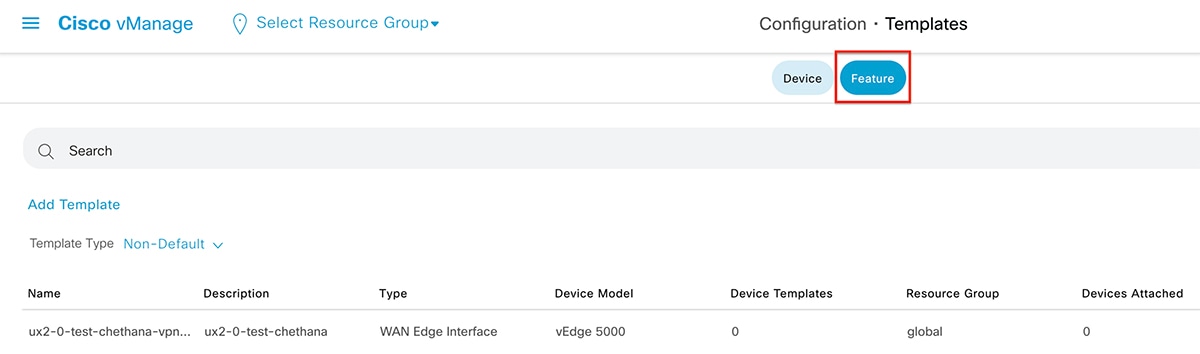

    Figure 5. Feature Tab in Cisco vManage 20.7.x and Earlier Releases

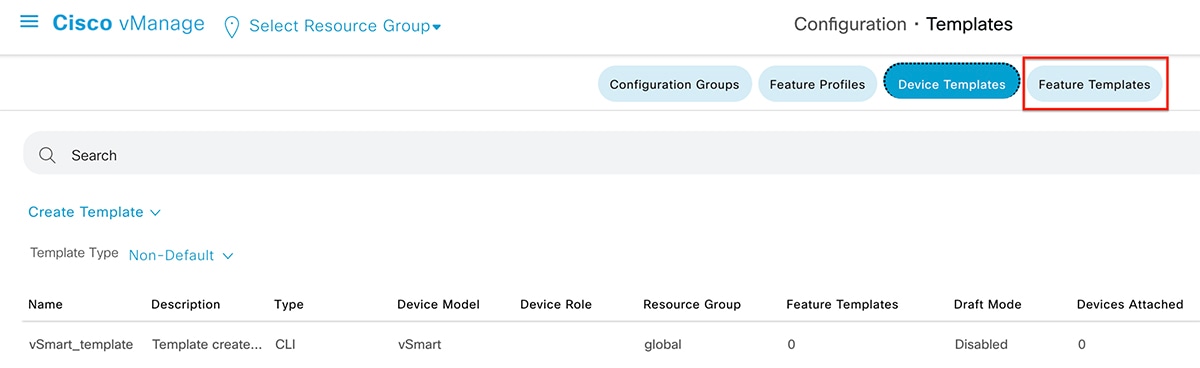

    Figure 6. Feature Templates Tab in Cisco vManage Release 20.8.1

Support for Web Content Accessibility Guidelines (WCAG) 2.1 Standard

Cisco vManage Release 20.8.1 supports Web Content Accessibility Guidelines (WCAG) 2.1 standard for the AA conformance level, with the following limitations:

Table 4.

WCAG Success Criterion

Support

Limitation

2.1.2: No Keyborad Trap

Not Supported

You cannot exit from SSH terminal using the keyboard.

2.4.5: Multiple Ways

Not Supported

You can locate pages on Cisco vManage using only one method.

1.1.1: Non-text Content

Partially Supported

Cisco vManage partially supports alternative text.

1.3.1, 3.3.1, 3.3.2, and 4.1.3: Screen Reader

Partially Supported

Cisco vManage partially supports screen reader for annoucements, error messages and data tables.

1.3.5: Identify Input Purpose

Partially Supported

Some input fields which collect personal information are not entirely supported by identify input purpose.

1.4.1: Use of color

Partially Supported

Cisco vManage uses colors to convey certain information and is partially compliant with WCAG 2.1 criterion for the use of colors.

1.4.3: Contrast

Partially Supported

Cisco vManage contains GUI elements that are not visible in the OS high contrast setting. Some text does not fully comply with the WCAG 2.1 color contrast ratio standards.

1.4.4: Resize text

Partially Supported

Cisco vManage partially supports browser resize text functionality.

1.4.10: Content reflow

Partially Supported

Cisco vManage partially supports content reflow.

1.4.11: Non-text contrast

Partially Supported

Cisco vManage partially supports non-text contrast ratio of 3:1.

1.4.13: Content on hover or focus

Partially Supported

Cisco vManage partially supports content on hover or focus.

2.1.1: Keyboard

Partially Supported

Cisco vManage elements provide partial support to access the elements using the keyboard.

2.4.2: Page titled

Partially Supported

Cisco vManage does not have meaningful page titles.

2.4.3: Focus order

Partially Supported

Some elements in Cisco vManage do not have a logical focus order.

2.4.4: Link purpose (in-context)

Partially Supported

Cisco vManage partially supports link purpose (in context).

2.4.6: Headings and labels

Partially Supported

Cisco vManage partially supports label in name.

2.4.7: Focus visible

Partially Supported

Cisco vManage partially supports visible focus indicator.

2.5.3: Label in name

Partially Supported

Cisco vManage contains some accessible names that do not match with their visible label.

4.1.1: Parsing

Partially Supported

Some GUI elements do not have a unique ID on a page.

4.1.2: Name, role, value

Partially Supported

Cisco vManage contains some elements that do not have corrected names and roles.
