Prepare for Installation


Note
The images in this chapter are only for representational purposes, unless specified otherwise. The chassis' actual appearance and size may vary.

Warning

Statement 1071—Warning Definition

IMPORTANT SAFETY INSTRUCTIONS

Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Read the installation instructions before using, installing, or connecting the system to the power source. Use the statement number at the beginning of each warning statement to locate its translation in the translated safety warnings for this device.

SAVE THESE INSTRUCTIONS

Safety Guidelines

Before you perform any procedure in this document, review the safety guidelines in this section to avoid injuring yourself or damaging the equipment. The following guidelines are for your safety and to protect the equipment. Because the guidelines do not include all hazards, be constantly alert.

  • Keep the work area clear, smoke and dust-free during and after installation. Do not allow dirt or debris to enter into any laser-based components.

  • Do not wear loose clothing, jewelry, or other items that could get caught in the router or other associated components.

  • Cisco equipment operates safely when used in accordance with its specifications and product-usage instructions.

  • If potentially hazardous conditions exist, do not work alone.

  • Take care when connecting multiple units to the supply circuit so that wiring is not overloaded.

  • This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain about whether suitable grounding is available.

  • When installing or replacing the unit, the ground connection must always be made first and disconnected last.

  • To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the handles on modules (such as power supplies, fans, or cards); these types of handles are not designed to support the weight of the unit.

  • Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

Compliance and Safety Information

The Cisco 8000 Series Routers are designed to meet the regulatory compliance and safety approval requirements. For detailed safety information, see Regulatory Compliance and Safety Information—Cisco 8000 Series Routers.


Warning

Statement 1089—Instructed and Skilled Person Definitions

An instructed person is someone who has been instructed and trained by a skilled person and takes the necessary precautions when working with equipment.

A skilled person or qualified personnel is someone who has training or experience in the equipment technology and understands potential hazards when working with equipment.

There are no serviceable parts inside. To avoid risk of electric shock, do not open.


Warning

Statement 9001—Product Disposal

Ultimate disposal of this product should be handled according to all national laws and regulations.


Warning

Statement 1074—Comply with Local and National Electrical Codes

To reduce risk of electric shock or fire, installation of the equipment must comply with local and national electrical codes.


Warning

Statement 1090—Installation by Skilled Person

Only a skilled person should be allowed to install, replace, or service this equipment. See statement 1089 for the definition of a skilled person.

There are no serviceable parts inside. To avoid risk of electric shock, do not open.


Warning

Statement 1029—Blank Faceplates and Cover Panels

Blank faceplates and cover panels serve three important functions: they reduce the risk of electric shock and fire, they contain electromagnetic interference (EMI) that might disrupt other equipment, and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Laser Safety


Warning

Statement 1051—Laser Radiation

Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments.


Warning

Statement 1055—Class 1/1M Laser

Invisible laser radiation is present. Do not expose to users of telescopic optics. This applies to Class 1/1M laser products.


Warning

Statement 1255—Laser Compliance Statement

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Energy Hazard

The routers can be configured for a DC power source. Do not touch terminals while they are live. Observe the following warning to prevent injury.


Warning

Statement 1086—Replace Cover on Power Terminals

Hazardous voltage or energy may be present on power terminals. To reduce the risk of electric shock, make sure the power terminal cover is in place when the power terminal is not being serviced. Be sure uninsulated conductors are not accessible when the cover is in place.

Preventing Electrostatic Discharge Damage

Many router components can be damaged by static electricity. Not exercising the proper electrostatic discharge (ESD) precautions can result in intermittent or complete component failures. To minimize the potential for ESD damage, always use an ESD-preventive antistatic wrist strap (or ankle strap) and ensure that it makes adequate skin contact.


Note
Check the resistance value of the ESD-preventive strap periodically. The measurement should be 1–10 megohms.

Before you perform any of the procedures in this guide, attach an ESD-preventive strap to your wrist and connect the leash to the chassis.

Cautions and regulatory compliance statements for NEBS

The NEBS-GR-1089-CORE regulatory compliance statements and requirements are discussed in this section.


Note

Statement 7001—ESD Mitigation

This equipment may be ESD sensitive. Always use an ESD ankle or wrist strap before handling equipment. Connect the equipment end of the ESD strap to an unfinished surface of the equipment chassis or to the ESD jack on the equipment if provided.


Warning

Statement 7003—Shielded Cable Requirements for Intrabuilding Lightning Surge

The intrabuilding port(s) of the equipment or subassembly, which is the management Ethernet port, must use shielded intrabuilding cabling/wiring that is grounded at both ends.


Warning

Statement 7005—Intrabuilding Lightning Surge and AC Power Fault

The intrabuilding port(s) of the equipment or subassembly, which is the management Ethernet port, must not be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intrabuilding interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring.


Warning

Statement 7011—Surge Protection Device Requirements for GR-1089 Antenna Ports

Protect equipment antenna ports, that are classified as Type 6 according to GR-1089-CORE, with lightning surge protectors that are rated at a minimum of 600 V peak surge of 1.2/50 uS duration.

Connecting a Cable to the GNSS Antenna Interface

  • GNSS modules have built-in ESD protections on all pins, including the RF-input pin. However, additional surge protection is required if an outdoor antenna is being connected. The Lightning Protector must be able to provide a low clamping voltage (less than 600V).

  • A lightning protection must be mounted at the place where the antenna cable enters the building. The primary lightning protection must be capable of conducting all potentially dangerous electrical energy to PE (Protective Earth).

  • Surge arrestors should support DC-pass and suitable for the GPS frequency range as per the constellation used with low attenuation.

Warning

Statement 7012—Equipment Interfacing with AC Power Ports

Connect this equipment to AC mains that are provided with a surge protective device (SPD) at the service equipment that complies with NFPA 70, the National Electrical Code (NEC).


Note

Statement 7013—Equipment Grounding Systems—Common Bonding Network (CBN)

This equipment is suitable for installations using the CBN.

Note

Statement 7016—Battery Return Conductor

The battery return conductor of this equipment shall be treated as (DC-I).


Note

Statement 7018—System Recover Time

The equipment is designed to boot up in less than 30 minutes provided the neighboring devices are fully operational.


Note

Statement 8015—Installation Location Network Telecommunications Facilities

This equipment is suitable for installation in network telecommunications facilities.


Note

Statement 8016—Installation Location Where the National Electric Code (NEC) Applies

This equipment is suitable for installation in locations where the NEC applies.

Installation Guidelines

Before installing the chassis, ensure that the following guidelines are met:

  • Site is properly prepared so that there is sufficient room for installation and maintenance.

  • Operating environment is within the ranges that are listed in Environment and Physical specifications. For more details on environmental requirements, see Cisco 8000 Series Routers Data Sheet.

  • Chassis is mounted at the bottom of the rack if it is the only unit in the rack.

  • When mounting the chassis in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.

  • If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the chassis in the rack.

  • Airflow around the chassis and through the vents is unrestricted.

  • Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent lighting fixtures. Make sure that the cabling is safely away from other devices that might damage the cables.

  • Each port must match the wave-length specifications on each end of the cable, and the cable must not exceed the stipulated cable length.


Note

Cisco 8000 Series Routers function in operating temperatures of up to 40°C at sea level. For every 300 meters (1000 ft) above sea level, the maximum temperature is reduced by 1°C. For more details on environmental requirements, see Cisco 8000 Series Routers Data Sheet.


Note

For fixed-port routers that support port side exhaust fans and power supplies, the maximum temperature is reduced by 5°C (for example, 35°C at sea level or 30°C at 1500 meters).

Procure Tools and Equipment

Obtain these necessary tools and equipment for installing the chassis:

  • Number 1 and number 2 Phillips screwdrivers with torque capability to rack-mount the chassis.

  • 3/16-inch flat-blade screwdriver.

  • Tape measure and level.

  • ESD wrist strap or other grounding device.

  • Antistatic mat or antistatic foam.

  • Two-hole 2 AWG lug (1) is provided with the accessory kit. If you choose to use a different sized ground wire, you must procure your own two-hole lug that has .25 inch holes and .625 inch spacing between the holes.

  • Crimping tool for lug.

  • Wire-stripping tool.

Router Accessory Kit

The following table contains the router accessory kit PIDs. The router accessory kit contains the rack mount kit and the ground lug kit. The rack mount kit present in the accessory kit contains the screws and brackets required for installation.

Router

Accessory Kit

Items in Accessory Kit and Rack Depth Range

Cisco 8102 Router

8100-2RU-KIT

Rack mount kit and ground lug kit

Cisco 8101 Router

8100-1RU-KIT

Rack mount kit and ground lug kit

Cisco 8111-32EH-O Router

8K-1RU-KIT-S

For rack depths between 23 in. (584.2 mm) and 32.29 in. (820.16 mm). Contains rack mount kit and ground lug kit.

8K-1RU-KIT-L

For rack depths between 32.40 in. (822.96 mm) and 42 in. (1066.8 mm). Contains rack mount kit and ground lug kit.

8K-1RU-RAIL-KIT

Rack mount kit and ground lug kit

Cisco 8122-64EH-O Router

8K-2RU-CBLMGMT

2RU chassis cable management

8K-2RU-FILTER

2RU chassis filter

8K-2RU-KIT-M

2RU chassis rail kit

Cisco 8102-28FH-DPU-O

8K-2RU-KIT-L

For rack depths between 30 in. (762 mm) and 40 in. (1016 mm). Contains rack mount kit and ground lug kit.

8K2RU-KIT-S

For rack depths between 23 in. (584.2 mm) and 30 in. (762 mm). Contains rack mount kit and ground lug kit.

8K-2RU-2P-KIT

Rack mount kit and ground lug kit

Cisco 8122-64EHF-O Router

8K-2RU-CBLMGMT

2RU chassis cable management

8K-2RU-FILTER

2RU chassis filter

8K-2RU-KIT-SB

2RU chassis rail kit

Prepare Your Location

This section illustrates how the building that houses the chassis must be properly grounded to the earth ground.


Note
Unless specified otherwise, the image is only for representational purposes. The rack's actual appearance and size may vary.

Note
This image is only for representational purposes. Your grounding requirement depends on your building.
Figure 1. Building with Rack Room Connected to Earth Ground

Prepare Yourself

This section illustrates how to prepare yourself before removing the chassis from the sealed antistatic bag. The figures show how to cuff the ESD strap around the wrist and the ground cord that connects the cuff to the ground. ESD wrist straps are the primary means of controlling static charge on personnel.

Figure 2. Wearing the ESD Strap

Prepare Rack for Chassis Installation

Install the Cisco 8100 Series Routers on a standard 19 inch, Electronic Industries Alliance (EIA) rack with mounting rails that conform to English universal hole spacing according to Section 1 of the ANSI/EIA-310-D-1992 standard.


Note

The Cisco 8102-64H-O, Cisco 8122-64EH-O and Cisco 8111-32EH-O, and Cisco 8102-28FH-DPU-O router rack mount kit contains the rack mounting brackets for 19-inch rack. To install the chassis in a 23-inch rack or an ETSI rack, you need adapter plates to accommodate the 19-inch rack mount brackets.

The spacing between the posts of the rack must be (EIA-310-D-1992 19-inch rack compatible) wide enough to accommodate the width of the chassis.

Before you move the chassis or mount the chassis into the rack, we recommend that you do the following:

Procedure

Step 1

Place the rack at the location where you plan to install the chassis.

Step 2

(Optional) Secure the rack to the floor.

To bolt the rack to the floor, a floor bolt kit (also called an anchor embedment kit) is required. For information on bolting the rack to the floor, consult a company that specializes in floor mounting kits (such as Hilti; see Hilti.com for details). Make sure that floor mounting bolts are accessible, especially if annual retorquing of bolts is required.

Note



Ensure that the rack in which the chassis is being installed is grounded to earth ground.

Clearance Requirements

The chassis requires front-to-back airflow. Leave at least 6.0 in. (15.24 cm) front and rear clearance for air intake or exhaust. We recommend that you have at least 6.0 in. (15.24 cm) of space in front of the chassis to provide room to maneuver the cables to make the required connections. Leave an extra 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

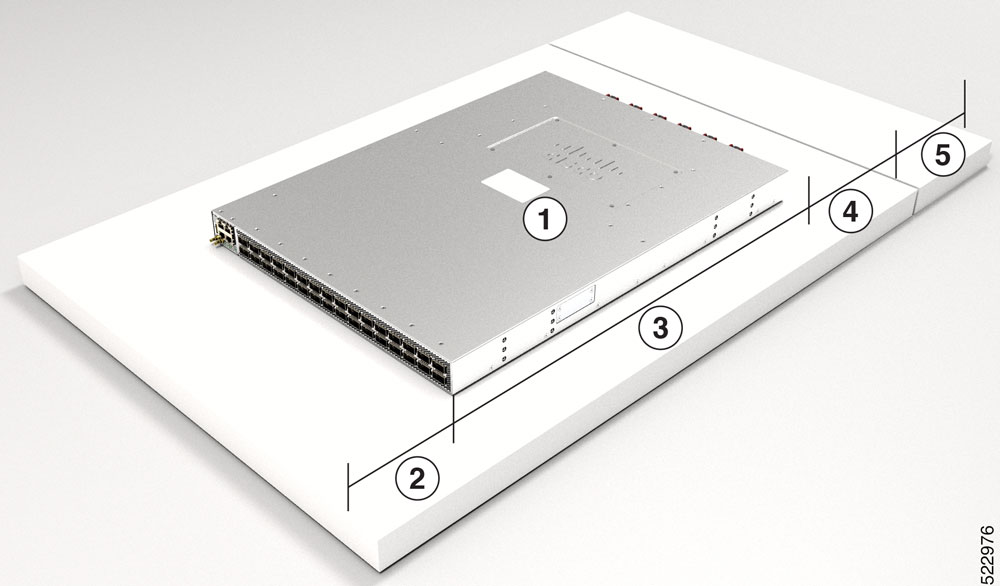

Figure 3. Clearances Required Around the Chassis for Cisco 8102-64H-O

1

Chassis

4

6.0 in. (15.24 cm) rear clearance for air intake/exhaust.

2

6.0 in. (15.24 cm) front clearance for air intake/exhaust.

5

Additional 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

3

20.1 in. (51.1 cm) Chassis depth.

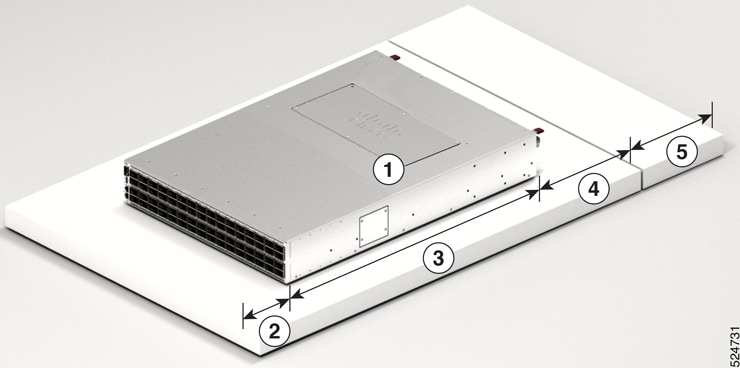

Figure 4. Clearances Required Around the Chassis for Cisco 8101-32H-O

1

Chassis

4

6.0 in. (15.24 cm) rear clearance for air intake/exhaust.

2

6.0 in. (15.24 cm) front clearance for air intake/exhaust.

5

Additional 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

3

19.34 in. (49.1 cm) Chassis depth.

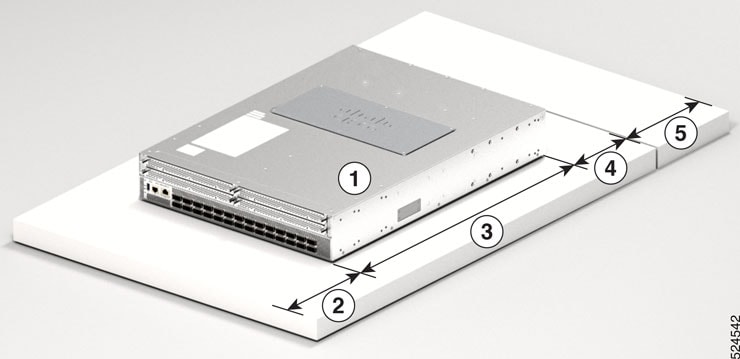

Figure 5. Clearances Required Around the Chassis for Cisco 8111-32EH-O

1

Chassis

4

6.0 in. (15.24 cm) rear clearance for air intake/exhaust.

2

6.0 in. (15.24 cm) front clearance for air intake/exhaust.

5

Additional 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

3

23.6 in. (60 cm) Chassis depth.

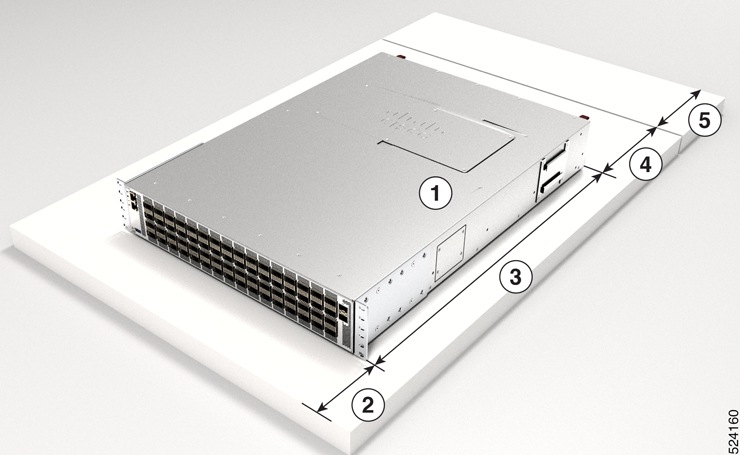

Figure 6. Clearances Required Around the Chassis for Cisco 8122-64EH-O

1

Chassis

4

6.0 in. (15.24 cm) rear clearance for air intake/exhaust.

2

6.0 in. (15.24 cm) front clearance for air intake/exhaust.

5

Additional 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

3

24.7 in. (62.7 cm) Chassis depth.
Figure 7. Clearances Required Around the Chassis for Cisco 8102-28FH-DPU-O

1

Chassis

4

6.0 in. (15.24 cm) rear clearance for air intake/exhaust.

2

6.0 in. (15.24 cm) front clearance for air intake/exhaust.

5

Additional 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

3

23.6 in. (60 cm) Chassis depth.
Figure 8. Clearances Required Around the Chassis for Cisco 8122-64EHF-O

1

Chassis

4

6.0 in. (15.24 cm) rear clearance for air intake/exhaust.

2

6.0 in. (15.24 cm) front clearance for air intake/exhaust.

5

Additional 6.0 in. (15.24 cm) rear clearance for removal and installation of power supplies and fan modules.

3

24.7 in. (62.7 cm) Chassis depth.
