SSL Configuration Examples

Table Of Contents

SSL Configuration Examples

CSM-S Configuration Example (Bridge Mode, No NAT)

CSM-S Configuration Example (Router Mode, Server NAT)

CSM-S and SSLM Configuration Example (Router Mode, Server NAT)

Integrated Secure Content-Switching Service Example

Configuring the CSM

Configuring the SSL Daughter Card

Certificate Security Attribute-Based Access Control Examples

HTTP Header Insertion Examples

Example 1

Example 2

Example 3

URL Rewrite Examples

Example 1

Example 2

Example 3

Example 4


SSL Configuration Examples

This appendix contains these sections:

•CSM-S Configuration Example (Bridge Mode, No NAT)

•CSM-S Configuration Example (Router Mode, Server NAT)

•CSM-S and SSLM Configuration Example (Router Mode, Server NAT)

•Integrated Secure Content-Switching Service Example

•Certificate Security Attribute-Based Access Control Examples

•HTTP Header Insertion Examples

•URL Rewrite Examples

CSM-S Configuration Example (Bridge Mode, No NAT)

This section describes a CSM-S configuration which allows a client to load balance HTTP to three web servers (IP addresses 192.168.6.10, 192.168.6.20, and 192.168.6.30) and offload HTTPS then load balance to the same three web servers.

In this example, the CSM-S client VLAN and the server VLAN for the SSL daughter card are configured in the same IP subnet (bridge mode), while the web servers are on a private IP network and reside in a separate VLAN. (See Figure B-1.)

The CSM-S is configured so that it does not perform NAT operations when it is directing encrypted traffic to the SSL daughter card. The SSL daughter card is also configured not to perform NAT operations when it is sending decrypted traffic back to the CSM-S for load balancing the decrypted traffic. The CSM-S is then configured to perform NAT for the decrypted traffic to the selected destination server.

The administration network is separate from the client traffic networks and must reside in its own administration VLAN, which must be configured on both the CSM-S and SSL Daughter Card.

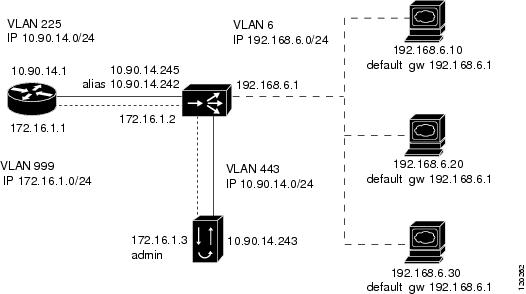

Figure B-1 Bridge Mode, No NAT Configuration Example

The following addresses are configured on the CSM-S:

•Client clear text traffic—10.90.14.181:80

•Client SSL traffic—10.90.14.181:443

•Decrypted traffic from SSL daughter card—10.90.14.181:80

•Client VLAN 225 with IP address 10.90.14.245 for client communication

•Server VLAN 443 with IP address 10.90.14.245, and alias 10.90.14.242 for SSL Daughter Card communication

•Server VLAN 999 with IP address 172.16.1.2 to allow Administrative communication to reach the SSL Daughter Card

•Server VLAN 6 with IP address 192.168.6.2, and an alias 192.168.6.1 for real server communications.

The following address is configured on the SSL daughter card:

•10.90.14.181:443 (this IP address is configured with the secondary keyword which is a CSM-S and bridge mode requirement).

•VLAN 443 with IP address 10.90.14.243 and a gateway of 10.90.14.1.

•VLAN 999with IP address 172.16.1.3, a gateway of 172.16.1.1, and admin enabled.

Figure B-1 shows VLAN 225and VLAN 443 in the same subnet and VLAN 6 in a separate subnet.

Add all the VLANs (listed above) to the VLAN database, and configure the IP address on the VLAN interface for VLAN 999, VLAN 225 and VLAN 6 on the MSFC. Configure

Note While VLAN 999 (172.16.1.1) and VLAN 225 (10.90.14.1) exist as Layer 3 interfaces on the MSFC. VLAN 443 and VLAN 6 (192.168.6.1) exist as VLANs in the VLAN database, but they do not have corresponding Layer 3 interfaces on the MSFC.

This example shows how to create the Layer 2 and Layer 3 VLANs on the switch MSFC:

Cat6k# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Cat6k(config)# vlan 6

Cat6k(config-vlan)# name Server_communications

Cat6k(config-if)# vlan 225

Cat6k(config-vlan)# name Client_communications

Cat6k(config-vlan)# interface Vlan225

Cat6k(config-if)# ip address 10.90.14.1 255.255.255.0

Cat6k(config-if)# no shutdown

Cat6k(config-if)# vlan 443

Cat6k(config-vlan)# name SSL-DC_communications

Cat6k(config-if)# vlan 999

Cat6k(config-vlan)# name SSL-DC_administrative

Cat6k(config-vlan)# interface Vlan999

Cat6k(config-if)# ip address 172.16.1.1 255.255.255.0

Cat6k(config-if)# no shutdown

This example shows how to create the client and server VLANs on the CSM-S installed in slot number 5:

Cat6k# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Cat6k(config-module-csm)# module ContentSwitchingModule 5

Cat6k(config-module-csm)# vlan 999 server

Cat6k(config-slb-vlan-server)# ip address 172.16.1.2 255.255.255.0

Cat6k(config-slb-vlan-server)# vlan 225 client

Cat6k(config-slb-vlan-client)# description Client Traffic

Cat6k(config-slb-vlan-client)# ip address 10.90.14.245 255.255.255.0

Cat6k(config-slb-vlan-client)# gateway 10.90.14.1

Cat6k(config-slb-vlan-client)# !

Cat6k(config-slb-vlan-client)# vlan 6 server

Cat6k(config-slb-vlan-server)# description Server Traffic

Cat6k(config-slb-vlan-server)# ip address 192.168.6.2 255.255.255.0

Cat6k(config-slb-vlan-server)# alias 192.168.6.1 255.255.255.0

Cat6k(config-slb-vlan-server)# !

Cat6k(config-slb-vlan-server)# vlan 443 server

Cat6k(config-slb-vlan-server)# ip address 10.90.14.245 255.255.255.0


This example shows how to create real servers with names.

Cat6k(config-slb-vlan-server)# real LINUX

Cat6k(config-slb-module-real)# address 192.168.6.10

Cat6k(config-slb-module-real)# inservice

Cat6k(config-slb-module-real)# real WIN2K

Cat6k(config-slb-module-real)# address 192.168.6.20

Cat6k(config-slb-module-real)# inservice

Cat6k(config-slb-module-real)# real SUN

Cat6k(config-slb-module-real)# address 192.168.6.30

Cat6k(config-slb-module-real)# inservice

This example shows how to create the server farm of web servers (configured with server NAT) and the server farm of the SSL daughter card (configured with no server NAT and local):

Cat6k(config-slb-module-real)# serverfarm SSLOFFLOADERS

Cat6k(config-slb-sfarm)# no nat server

Cat6k(config-slb-sfarm)# real 10.90.14.243 local

Note The keyword local is required to configure the CSM-S to send traffic to this real over the local VLAN to the SSL Daughter Card.

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# serverfarm WEB

Cat6k(config-slb-sfarm)# real name LINUX

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# real name WIN2K

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# real name SUN

Cat6k(config-slb-real)# inservice

This example shows how to configure the two virtual servers to direct HTTPS traffic to the SSL daughter card for off loading and to load balance HTTP to web servers. In this example, the web servers are receiving traffic to port 80 only, either directly from the clients or as decrypted traffic from the SSL daughter cards (since no port translation is configured).

Cat6k(config-slb-module-real)# serverfarm SSLOFFLOADERS

Cat6k(config-slb-sfarm)# no nat server

Cat6k(config-slb-sfarm)# real 10.90.14.243 local

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# serverfarm WEB

Cat6k(config-slb-sfarm)# real name LINUX

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# real name WIN2K

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# real name SUN

Cat6k(config-slb-real)# inservice

This example shows how to configure the two virtual servers to direct HTTP traffic to the SSL daughter card for off loading and to load balance HTTP to web servers. In this example, the web servers are receiving traffic to port 80 only, either directly from the clients or as decrypted traffic from the SSL daughter cards (since no port translation is configured).

Cat6k(config-slb-real)# vserver SSLTERMINATION

Cat6k(config-slb-vserver)# virtual 10.90.14.181 tcp https

Cat6k(config-slb-vserver)# vlan 225

Cat6k(config-slb-vserver)# serverfarm SSLOFFLOADERS

Cat6k(config-slb-vserver)# persistent rebalance

Cat6k(config-slb-vserver)# inservice

Cat6k(config-slb-vserver)# vserver WEBSERVERS

Cat6k(config-slb-vserver)# virtual 10.90.14.181 tcp www

Cat6k(config-slb-vserver)# serverfarm WEB

Cat6k(config-slb-vserver)# persistent rebalance

Cat6k(config-slb-vserver)# inservice

Cat6k(config-slb-vserver)# exit

Cat6k(config-module-csm)# exit

Cat6k(config)# exit

This example shows how to configure the administration VLAN on the SSL daughter card to communicate over the VLAN 999:

SSL-DC# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

SSL-DC(config)# ssl-proxy vlan 999

SSL-DC(config-vlan)# ipaddr 172.16.1.3 255.255.255.0

SSL-DC(config-vlan)# gateway 172.16.1.1

SSL-DC(config-vlan)# admin


Next the VLAN 443 is configured to allow communication with clients for off loading client SSL
connections:

SSL-DC(config-vlan)# ssl-proxy vlan 443

SSL-DC(config-vlan)# ipaddr 10.90.14.243 255.255.255.0

SSL-DC(config-vlan)# gateway 10.90.14.1

To complete the configuration, enter the ssl-proxy service command to create a new service on the SSL daughter card (sslterm). This example shows how to configure a virtual IP address that matches the virtual server created on the CSM-S. (This virtual IP address is configured with the secondary keyword so that the SSL daughter card does not reply to ARP requests for this IP address. This is also a requirement for bridging network designs) The service is configured to send decrypted traffic back to the CSM-S without performing NAT.

SSL-DC(config-vlan)# ssl-proxy service sslterm

SSL-DC(config-ssl-proxy)# virtual ipaddr 10.90.14.181 protocol tcp port 443 secondary

SSL-DC(config-ssl-proxy)# server ipaddr 10.90.14.245 protocol tcp port 80

SSL-DC(config-ssl-proxy)# no nat server

SSL-DC(config-ssl-proxy)# certificate rsa general-purposetrustpoint certs-key


*Aug 19 20:52:11.487: %STE-6-PKI_SERVICE_CERT_INSTALL: Proxy: sslterm, Trustpoin

t: certs-key, Key: RSAKEY, Serial#: 1A65, Index: 2

*Aug 19 20:52:11.487: %STE-6-PKI_CA_CERT_INSTALL: Root, Subject Name: CN = Thawt

e Test CA Root, OU = TEST TEST TEST, O = Thawte Certification, ST = FOR TESTING

PURPOSES ONLY, C = ZA, Serial#: 00, Index: 3


SSL-DC(config-ssl-proxy)# inservice


*Aug 19 20:52:11.515: %STE-5-UPDOWN: ssl-proxy service sslterm changed state to

UP

These examples show the output of the various show commands on the MSFC and CSM:

Cat6k# show module csm 5 vlan detail

vlan   IP address       IP mask          type

---------------------------------------------------

6      192.168.6.2      255.255.255.0    SERVER

  Description: Server Traffic

  ALIASES

  IP address       IP mask

  --------------------------------

  192.168.6.1      255.255.255.0

225    10.90.14.245     255.255.255.0    CLIENT

  Description: Client Traffic

  GATEWAYS

  10.90.14.129

443    10.90.14.245     255.255.255.0    SERVER

999    172.16.1.2       255.255.255.0    SERVER


Cat6k# show module csm 5 real


real                  server farm      weight  state          conns/hits

-------------------------------------------------------------------------

10.90.14.243          SSLOFFLOADERS    8       OPERATIONAL    0

LINUX                 WEB              8       OPERATIONAL    0

WIN2K                 WEB              8       OPERATIONAL    0

SUN                   WEB              8       OPERATIONAL    0


Cat6k# show module csm 5 vserver detail

SSLTERMINATION, type = SLB, state = OPERATIONAL, v_index = 12

  virtual = 10.90.14.181/32:443 bidir, TCP, service = NONE, advertise = FALSE

  idle = 3600, replicate csrp = none, vlan = 225, pending = 30, layer 4

  max parse len = 2000, persist rebalance = TRUE

  ssl sticky offset = 0, length = 32

  conns = 1, total conns = 4

  Default policy:

    server farm = SSLOFFLOADERS, backup = <not assigned>

    sticky: timer = 0, subnet = 0.0.0.0, group id = 0

  Policy          Tot matches  Client pkts  Server pkts

  -----------------------------------------------------

  (default)           4            32           21


WEBSERVERS, type = SLB, state = OPERATIONAL, v_index = 13

  virtual = 10.90.14.181/32:80 bidir, TCP, service = NONE, advertise = FALSE

  idle = 3600, replicate csrp = none, vlan = ALL, pending = 30, layer 4

  max parse len = 2000, persist rebalance = TRUE

  ssl sticky offset = 0, length = 32

  conns = 1, total conns = 7

  Default policy:

    server farm = WEB, backup = <not assigned>

    sticky: timer = 0, subnet = 0.0.0.0, group id = 0

  Policy          Tot matches  Client pkts  Server pkts

  -----------------------------------------------------

  (default)       7            45           35

These examples show the output of the various show commands on the SSL daughter card:

SSL-DC# show ssl-proxy service sslterm

Service id: 1, bound_service_id: 257

Virtual IP: 10.90.14.181, port: 443 (secondary configured)

Server IP: 10.90.14.245, port: 80

rsa-general-purpose certificate trustpoint: certs-key

  Certificate chain for new connections:

    Certificate:

       Key Label: RSAKEY, 1024-bit, not exportable

       Key Timestamp: 02:03:11 UTC Aug 19 2004

       Serial Number: 1A65

    Root CA Certificate:

       Serial Number: 00

  Certificate chain complete

Admin Status: up

Operation Status: up


SSL-DC# show ssl-proxy stats

TCP Statistics:

    Conns initiated     : 4             Conns accepted       : 4

    Conns established   : 8             Conns dropped        : 4

    Conns Allocated     : 4             Conns Deallocated    : 4

    Conns closed        : 8             SYN timeouts         : 0

    Idle timeouts       : 0             Total pkts sent      : 43

    Data packets sent   : 19            Data bytes sent      : 5875

    Total Pkts rcvd     : 48            Pkts rcvd in seq     : 21

    Bytes rcvd in seq   : 3264


SSL Statistics:

    conns attempted     : 4             conns completed     : 4

    full handshakes     : 2             resumed handshakes  : 2

    active conns        : 0             active sessions     : 0

    renegs attempted    : 0             conns in reneg      : 0

    handshake failures  : 0             data failures       : 0

    fatal alerts rcvd   : 0             fatal alerts sent   : 0

    no-cipher alerts    : 0             ver mismatch alerts : 0

    no-compress alerts  : 0             bad macs received   : 0

    pad errors          : 0             session fails       : 0


FDU Statistics:

    IP Frag Drops       : 0             IP Version Drops    : 0

    IP Addr Discards    : 0             Serv_Id Drops       : 0

    Conn Id Drops       : 0             Bound Conn Drops    : 0

    Vlan Id Drops       : 0             TCP Checksum Drops  : 0

    Hash Full Drops     : 0             Hash Alloc Fails    : 0

    Flow Creates        : 8             Flow Deletes        : 8

    Conn Id allocs      : 4             Conn Id deallocs    : 4

    Tagged Pkts Drops   : 0             Non-Tagg Pkts Drops : 0

    Add ipcs            : 3             Delete ipcs         : 0

    Disable ipcs        : 2             Enable ipcs         : 0

    Unsolicited ipcs    : 127           Duplicate Add ipcs  : 0

    IOS Broadcast Pkts  : 613           IOS Unicast Pkts    : 1110

    IOS Multicast Pkts  : 0             IOS Total Pkts      : 1723

    IOS Congest Drops   : 0             SYN Discards        : 0

CSM-S Configuration Example (Router Mode, Server NAT)

This section describes a CSM-S configuration which allows a client to load balance HTTP to three web servers (IP addresses 192.168.6.10, 192.168.6.20, and 192.168.6.30) and offload HTTPS then load balance to the same three web servers.

In this example, the CSM-S client VLAN is on a public network, the server VLAN for the SSL daughter card is in the a private IP subnet, and the web servers are in a different private IP network and reside in a separate VLAN. (See Figure B-2.)

The CSM-S is configured to perform the default server NAT operations to direct encrypted client traffic to the SSL daughter card. The SSL daughter card is also configured to perform server NAT operations when sending decrypted traffic back to the CSM-S. The CSM-S is then configured to perform another NAT on the decrypted traffic to the selected destination server.

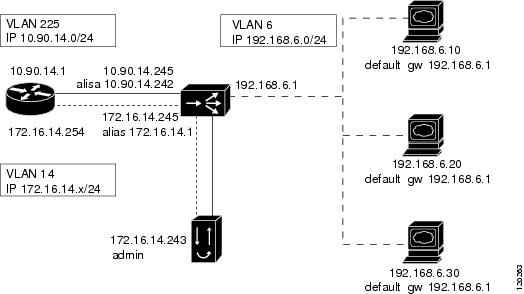

Figure B-2 Configuration Example—Router Mode, Server NAT

The following addresses are configured on the CSM-S virtual servers:

•Client clear text traffic—10.90.14.182:80

•Client SSL traffic—10.90.14.182:443

•Decrypted traffic from SSL daughter card—10.90.14.182:80

•Client VLAN 225 with IP address 10.90.14.245 for client communication

•Server VLAN 14 with IP address 172.16.14.245, and alias 172.16.14.1 for SSL Daughter Card communication

•Server VLAN 6 with IP address 192.168.6.2, and an alias 192.168.6.1 for real server communications

The following address is configured on the SSL daughter card:

•172.16.14.182:443 (this IP address is configured with the secondary keyword a CSM-S requirement)

•VLAN 14 with IP address 172.16.14.243, a route for client traffic to the CSM-S VLAN interface, and a gateway of 172.16.14.254 for routing administrative traffic.

Figure B-2, shows VLAN 225, VLAN 14 and VLAN 6 are each in separate subnets.

Add all the VLANs (listed above) to the VLAN database, and configure the IP address on the VLAN interface for VLAN 14 and VLAN 225 on the MSFC.

Note VLAN 225 (10.90.14.1) exists as a Layer 3 interface on the MSFC to route Client traffic to the CSM-S. VLAN 14 (172.16.1.254) is also configured on the MSFC to allow administrative traffic to be routed to the SSL Daughter Card. VLAN 14 (172.16.14.1) is configured on the CSM-S to send and received SSL traffic to/from the SSL Daughter Card. VLAN 6 (192.168.6.1) exists only as a VLAN in the VLAN database and as CSM-S and SSL Daughter Card VLANs, but it does not have corresponding Layer 3 interfaces on the MSFC.

This example creates the Layer 2 and Layer 3 VLANs on the switch MSFC:

Cat6k# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Cat6k(config)# vlan 6

Cat6k(config-vlan)# name Server_communications

Cat6k(config)# vlan 14

Cat6k(config-vlan)# name SSL-DC_communications

Cat6k(config-vlan)# interface Vlan14

Cat6k(config-if)# ip address 172.16.14.254 255.255.255.0

Cat6k(config-if)# no shutdown

Cat6k(config-if)# vlan 225

Cat6k(config-vlan)# name Client_communications

Cat6k(config-vlan)# interface Vlan225

Cat6k(config-if)# ip address 10.90.14.1 255.255.255.0

Cat6k(config-if)# no shutdown

This example shows how to create the client and server VLANs on the CSM installed in slot number 5:

Cat6k# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Cat6k(config)# module ContentSwitchingModule 5

Cat6k(config-module-csm)# vlan 225 client

Cat6k(config-slb-vlan-client)# description Client Traffic

Cat6k(config-slb-vlan-client)# ip address 10.90.14.245 255.255.255.0

Cat6k(config-slb-vlan-client)# gateway 10.90.14.1

Cat6k(config-slb-vlan-client)# vlan 6 server

Cat6k(config-slb-vlan-server)# description Server Traffic

Cat6k(config-slb-vlan-server)# ip address 192.168.6.2 255.255.255.0

Cat6k(config-slb-vlan-server)# alias 192.168.6.1 255.255.255.0

Cat6k(config-slb-vlan-server)# vlan 14 server

Cat6k(config-slb-vlan-server)# ip address 172.16.14.245 255.255.255.0

Cat6k(config-slb-vlan-server)# alias 172.16.14.1 255.255.255.0


This example shows how to create real servers with names.

Cat6k(config-slb-vlan-server)# real LINUX

Cat6k(config-slb-module-real)# address 192.168.6.10

Cat6k(config-slb-module-real)# inservice

Cat6k(config-slb-module-real)# real WIN2K

Cat6k(config-slb-module-real)# address 192.168.6.20

Cat6k(config-slb-module-real)# inservice

Cat6k(config-slb-module-real)# real SUN

Cat6k(config-slb-module-real)# address 192.168.6.30

Cat6k(config-slb-module-real)# inservice

This example shows how to create the server farm of web servers (configured with server NAT) and the server farm of the SSL daughter card (configured with server NAT and local):

Cat6k(config-slb-module-real)# serverfarm SSLOFFLOADERS

Cat6k(config-slb-sfarm)# nat server

Cat6k(config-slb-sfarm)# no nat client

Cat6k(config-slb-sfarm)# real 172.16.14.182 local

Note The keyword local is required to configure the CSM-S to send traffic to this real over the local VLAN to the SSL Daughter Card.

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# serverfarm WEB

Cat6k(config-slb-sfarm)# nat server

Cat6k(config-slb-sfarm)# no nat client

Cat6k(config-slb-sfarm)# real name LINUX

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# real name WIN2K

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-real)# real name SUN

Cat6k(config-slb-real)# inservice

This example shows how to configure the two virtual servers. In this example, the web servers receive requests to port 80 directly from the clients. HTTPS traffic is received on port 443 and sent to the SSL Daughter Card for decryption. Upon decryption, the HTTP traffic is sent to the public HTTP virtual for load balancing:

Cat6k(config-slb-real)# vserver SSLTERMINATION

Cat6k(config-slb-vserver)# virtual 10.90.14.182 tcp https

Cat6k(config-slb-vserver)# serverfarm SSLOFFLOADERS

Cat6k(config-slb-vserver)# persistent rebalance

Cat6k(config-slb-vserver)# inservice


Cat6k(config-slb-vserver)# vserver WEBSERVERS

Cat6k(config-slb-vserver)# virtual 10.90.14.182 tcp www

Cat6k(config-slb-vserver)# serverfarm WEB

Cat6k(config-slb-vserver)# persistent rebalance

Cat6k(config-slb-vserver)# inservice

This example shows how to configure the SSL Daughter Card to communicate with the CSM-S over VLAN 14 for client traffic and administrative traffic:

SSL-DC# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

SSL-DC(config)# ssl-proxy vlan 14

SSL-DC(config-vlan)# ipaddr 172.16.14.243 255.255.255.0

SSL-DC(config-vlan)# gateway 172.16.14.254

SSL-DC(config-vlan)# route 10.90.14.0 255.255.255.0 gateway 172.16.14.1

SSL-DC(config-vlan)# admin

Note The gateway command is required for routing administrative communication. The router defined only effects traffic destined for the VLAN IP address (TELNET, SSH, and so on...)
The route statement is required to route traffic back to the CSM-S alias IP when the SSL Daughter Card is receiving encrypted traffic on one network and sending decrypted traffic to a different IP network.

Note The administrative VLAN can be configured separately if required by adding a new VLAN and the appropriate IP address on both the CSM-S and SSL daughter card.

To complete the configuration, enter the ssl-proxy service command to create a new service on the SSL daughter card (sslterm). This example shows how to configure a virtual IP address that matches the virtual server created on the CSM-S. (This virtual IP address is configured with the secondary keyword so that the SSL daughter card does not reply to ARP requests for this IP address. This is also a requirement for bridging network designs) The service is configured to send decrypted traffic back to the CSM-S while performing NAT on the destination address:

SSL-DC(config-vlan)# ssl-proxy service sslterm

SSL-DC(config-ssl-proxy)# virtual 172.16.14.182 protocol tcp port 443 secondary

SSL-DC(config-ssl-proxy)# server ipaddr 10.90.14.182 protocol tcp port 80

SSL-DC(config-ssl-proxy)# certificate rsa general-purpose trustpoint certs-key


*Aug 22 14:44:47.395: %STE-6-PKI_SERVICE_CERT_INSTALL: Proxy: sslterm, Trustpoin

t: certs-key, Key: RSAKEY, Serial#: 1A65, Index: 6

*Aug 22 14:44:47.395: %STE-6-PKI_CA_CERT_INSTALL: Root, Subject Name: CN = Thawt

e Test CA Root, OU = TEST TEST TEST, O = Thawte Certification, ST = FOR TESTING

PURPOSES ONLY, C = ZA, Serial#: 00, Index: 7


SSL-DC(config-ssl-proxy)# inservice


*Aug 22 14:44:47.423: %STE-5-UPDOWN: ssl-proxy service sslterm changed state to UP


Cat6k # configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Cat6k(config)# interface Vlan14

Cat6k(config-if)# ip address 172.16.14.254 255.255.255.0

Cat6k(config-if)# no shutdown

These examples show the output of the various show commands on the MSFC and CSM:

cat6k# show mod csm 5 vlan detail

vlan   IP address       IP mask          type

---------------------------------------------------

6      192.168.6.2      255.255.255.0    SERVER

  Description: Server Traffic

  ALIASES

  IP address       IP mask

  --------------------------------

  192.168.6.1      255.255.255.0

14     172.16.14.245    255.255.255.0    SERVER

  ALIASES

  IP address       IP mask

  --------------------------------

  172.16.14.1      255.255.255.0

225    10.90.14.245     255.255.255.0    CLIENT

  Description: Client Traffic

  GATEWAYS

  10.90.14.129


Cat6k# show mod csm 5 real

real                  server farm      weight  state          conns/hits

-------------------------------------------------------------------------

172.16.14.182         SSLOFFLOADERS    8       OPERATIONAL    0

LINUX                 WEB              8       OPERATIONAL    0

WIN2K                 WEB              8       OPERATIONAL    0

SUN                   WEB              8       OPERATIONAL    0



Cat6k# show mod csm 5 vserver detail

SSLTERMINATION, type = SLB, state = OPERATIONAL, v_index = 20

  virtual = 10.90.14.182/32:443 bidir, TCP, service = NONE, advertise = FALSE

  idle = 3600, replicate csrp = none, vlan = ALL, pending = 30, layer 4

  max parse len = 2000, persist rebalance = TRUE

  ssl sticky offset = 0, length = 32

  conns = 0, total conns = 8

  Default policy:

    server farm = SSLOFFLOADERS, backup = <not assigned>

    sticky: timer = 0, subnet = 0.0.0.0, group id = 0

  Policy          Tot matches  Client pkts  Server pkts

  -----------------------------------------------------

  (default)       8            75           46


WEBSERVERS, type = SLB, state = OPERATIONAL, v_index = 21

  virtual = 10.90.14.182/32:80 bidir, TCP, service = NONE, advertise = FALSE

  idle = 3600, replicate csrp = none, vlan = ALL, pending = 30, layer 4

  max parse len = 2000, persist rebalance = TRUE

  ssl sticky offset = 0, length = 32

  conns = 0, total conns = 11

  Default policy:

    server farm = WEB, backup = <not assigned>

    sticky: timer = 0, subnet = 0.0.0.0, group id = 0

  Policy          Tot matches  Client pkts  Server pkts

  -----------------------------------------------------

  (default)       11           58           38

These examples show the output of the various show commands on the SSL daughter card:

SSL-DC# show ssl-proxy service sslterm

Service id: 4, bound_service_id: 260

Virtual IP: 172.16.14.182, port: 443 (secondary configured)

Server IP: 10.90.14.182, port: 80

rsa-general-purpose certificate trustpoint: certs-key

  Certificate chain in graceful rollover, being renewed:

    Certificate:

       Key Label: RSAKEY, 1024-bit, not exportable

       Key Timestamp: 02:03:11 UTC Aug 19 2004

       Serial Number: 1A65

    Root CA Certificate:

       Serial Number: 00

  Service certificate in graceful rollover

Admin Status: up

Operation Status: up


SSL-DC# show ssl-proxy stats

TCP Statistics:

    Conns initiated     : 12            Conns accepted       : 12

    Conns established   : 24            Conns dropped        : 12

    Conns Allocated     : 12            Conns Deallocated    : 12

    Conns closed        : 24            SYN timeouts         : 0

    Idle timeouts       : 0             Total pkts sent      : 129

    Data packets sent   : 59            Data bytes sent      : 23001

    Total Pkts rcvd     : 146           Pkts rcvd in seq     : 57

    Bytes rcvd in seq   : 9826


SSL Statistics:

    conns attempted     : 12            conns completed     : 12

    full handshakes     : 10            resumed handshakes  : 2

    active conns        : 0             active sessions     : 0

    renegs attempted    : 0             conns in reneg      : 0

    handshake failures  : 0             data failures       : 0

    fatal alerts rcvd   : 0             fatal alerts sent   : 0

    no-cipher alerts    : 0             ver mismatch alerts : 0

    no-compress alerts  : 0             bad macs received   : 0

    pad errors          : 0             session fails       : 0


FDU Statistics:

    IP Frag Drops       : 0             IP Version Drops    : 0

    IP Addr Discards    : 0             Serv_Id Drops       : 2

    Conn Id Drops       : 0             Bound Conn Drops    : 0

    Vlan Id Drops       : 0             TCP Checksum Drops  : 0

    Hash Full Drops     : 0             Hash Alloc Fails    : 0

    Flow Creates        : 24            Flow Deletes        : 24

    Conn Id allocs      : 12            Conn Id deallocs    : 12

    Tagged Pkts Drops   : 0             Non-Tagg Pkts Drops : 0

    Add ipcs            : 7             Delete ipcs         : 0

    Disable ipcs        : 6             Enable ipcs         : 0

    Unsolicited ipcs    : 3579          Duplicate Add ipcs  : 0

    IOS Broadcast Pkts  : 17881         IOS Unicast Pkts    : 31780

    IOS Multicast Pkts  : 0             IOS Total Pkts      : 49661

    IOS Congest Drops   : 0             SYN Discards        : 0

CSM-S and SSLM Configuration Example (Router Mode, Server NAT)

This section scales the previous CSM-S configuration "SSL Configuration Examples" by adding a SSL Services Module (SSLM) to the design. The SSLM is added using the same VLAN and IP network as the SSL daughter card. The CMS-S will use weighted round robin to load balance traffic between the SSLM and SSL-DC. Since the SSLM is approximately three times faster than the SSL daughter card weighted round robin is needed to spread the traffic across SSL off loaders according to the performance of the SSL off loader. The CSM-S applies SSL sticky to the client connections to ensure the same SSL session continue to use the same SSL off loader for the duration of the SSL session. In this example the duration is thirty minutes.

In this example, the SSL Services Module is added to the previous CSM-S configuration. The SSL
Services Module will accept client connections on the same network as the SSL daughter card. (See
Figure B-3.)

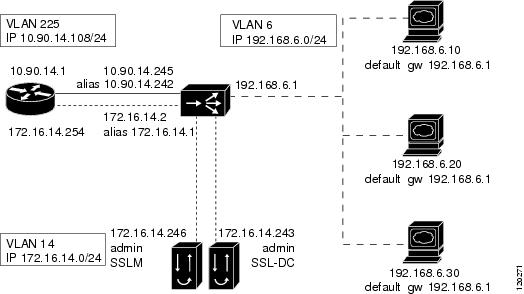

Figure B-3 Configuration Example—CSM-S and SSLM Router Mode, Server NAT

The following address is configured on the SSL Service Module:

•ssl-proxy service virtual of 172.16.14.10:443 and a server IP of 10.90.14.182:80

•VLAN 14 with IP address 172.16.14.246, a route for client traffic to the CSM-S VLAN interface, and a gateway of 172.16.14.254 for routing administrative traffic.

Along with he SSL Service Module configuration the MSFC must be configured to allow VLAN 14 traffic to pass to the SSL Service Module.

This example creates the Layer 2 and Layer 3 VLANs on the Cat6k MSFC:

Cat6k# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Cat6k(config)# ssl-proxy module 6 allowed-vlan 14


This example shows how to add the SSL Service Module to the CSM-S.

Cat6k(config-slb-vlan-server)# real SSLM

Cat6k(config-slb-module-real)# address 172.16.14.10

Cat6k(config-slb-module-real)# inservice

Cat6k(config-slb-module-real)# inservice

This example shows how to add the SSLM real to the server farm of SSL off loaders and configure the weights for each real:

Cat6k(config-slb-module-real)# serverfarm SSLOFFLOADERS

Cat6k(config-slb-sfarm)# real 172.16.14.182 local

Cat6k(config-slb-sfarm)# weight 1

Cat6k(config-slb-real)# inservice

Cat6k(config-slb-sfarm)# real name SSLM

Cat6k(config-slb-sfarm)# weight 3

Cat6k(config-slb-real)# inservice

This example shows how to configure the CSM-S virtual server to apply SSL sticky for thirty minute sessions and use an SSL Session ID offset (SSL sticky sticky 10 ssl timeout 30).

Cat6k(config-slb-real)# vserver SSLTERMINATION

Cat6k(config-slb-vserver)# sticky 30 group 10

Cat6k(config-slb-vserver)# ssl-sticky offset 20 length 6

This example shows how to configure the SSL Service Module to communicate with the CSM-S over VLAN 14 for client traffic and administrative traffic:

SSLM# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

SSLM(config)# ssl-proxy vlan 14

SSLM(config-vlan)# ipaddr 172.16.14.246 255.255.255.0

SSLM(config-vlan)# gateway 172.16.14.254

SSLM(config-vlan)# route 10.90.14.0 255.255.255.0 gateway 172.16.14.1

SSLM(config-vlan)# admin

Note The gateway command is required for routing administrative communication. The router defined only effects traffic destined for the VLAN IP address (TELNET, SSH, and so on...)
The route statement is required to route traffic back to the CSM-S alias IP when the SSL Daughter Card is receiving encrypted traffic on one network and sending decrypted traffic to a different Ip network.

To complete the configuration, enter the ssl-proxy service command to create a new service on the SSL daughter card (sslterm). This example shows how to configure a virtual IP address that matches the virtual server created on the CSM-S. (This virtual IP address is configured with the secondary keyword so that the SSL daughter card does not reply to ARP requests for this IP address. This is also a requirement for bridging network designs) The service is configured to send decrypted traffic back to the CSM-S while performing NAT on the destination address:


SSLM(config)# ssl-proxy service sslterm

SSLM(config-ssl-proxy)# virtual ipaddr 172.16.14.10 protocol tcp port 443

SSLM(config-ssl-proxy)# server ipaddr 10.90.14.182 protocol tcp port 80

SSLM(config-ssl-proxy)# certificate rsa general-purpose trustpoint certs-key


*Aug 24 01:40:17.581: %STE-6-PKI_SERVICE_CERT_INSTALL: Proxy: sslterm, Trustpoint:
certs-key, Key: RSAKEY, Serial#: 1C2B, Index: 2

*Aug 24 01:40:27.637: %STE-6-PKI_SERVICE_CERT_DELETE: Proxy: , Trustpoint: certs-key, Key:
RSAKEY, Serial#: 1C2B, Index: 0


SSLM(config-ssl-proxy)# inservice


*Aug 24 01:40:34.165: %STE-5-UPDOWN: ssl-proxy service sslterm changed state to UP


SSLM(config-ssl-proxy)# exit


Cat6k# show mod csm 5 real


real                  server farm      weight  state          conns/hits

-------------------------------------------------------------------------

SSLM                  SSLOFFLOADERS    3       OPERATIONAL    0

172.16.14.182         SSLOFFLOADERS    1       OPERATIONAL    0

LINUX                 WEB              8       OPERATIONAL    0

SUN                   WEB              8       OPERATIONAL    0

WIN2K                 WEB              8       OPERATIONAL    0


Cat6k# show mod csm 5 vserver detail

SSLTERMINATION, type = SLB, state = OPERATIONAL, v_index = 22

  virtual = 10.90.14.182/32:443 bidir, TCP, service = NONE, advertise = FALSE

  idle = 3600, replicate csrp = none, vlan = ALL, pending = 30, layer 7

  max parse len = 2000, persist rebalance = TRUE

  ssl sticky offset = 20, length = 6

  conns = 0, total conns = 12

  Default policy:

    server farm = SSLOFFLOADERS, backup = <not assigned>

    sticky: timer = 30, subnet = 0.0.0.0, group id = 10

  Policy          Tot matches  Client pkts  Server pkts

  -----------------------------------------------------

  (default)       12           135          96


WEBSERVERS, type = SLB, state = OPERATIONAL, v_index = 23

  virtual = 10.90.14.182/32:80 bidir, TCP, service = NONE, advertise = FALSE

  idle = 3600, replicate csrp = none, vlan = ALL, pending = 30, layer 4

  max parse len = 2000, persist rebalance = TRUE

  ssl sticky offset = 0, length = 32

  conns = 0, total conns = 12

  Default policy:

    server farm = WEB, backup = <not assigned>

    sticky: timer = 0, subnet = 0.0.0.0, group id = 0

  Policy          Tot matches  Client pkts  Server pkts

  -----------------------------------------------------

  (default)       12           75           67


Cat6k# show mod csm 5 sticky


group   sticky-data              real                  timeout

----------------------------------------------------------------

10      ssl ADB70000:000DBCAF    172.16.14.182         1680

10      ssl A03F0000:00602F30    172.16.14.10          1596

These examples show the output of the various show commands on the SSL Services Module:

SSLM# show ssl-proxy service sslterm

Service id: 1, bound_service_id: 257

Virtual IP: 172.16.14.10, port: 443

Server IP: 10.90.14.182, port: 80

rsa-general-purpose certificate trustpoint: certs-key

  Certificate chain for new connections:

    Certificate:

       Key Label: RSAKEY, 1024-bit, exportable

       Key Timestamp: 13:12:48 UTC Aug 23 2004

       Serial Number: 1C2B

    Root CA Certificate:

       Serial Number: 00

  Certificate chain complete

Admin Status: up

Operation Status: up


SSLM# show ssl-proxy stats

TCP Statistics:

    Conns initiated     : 14            Conns accepted       : 14

    Conns established   : 28            Conns dropped        : 10

    Conns Allocated     : 14            Conns Deallocated    : 14

    Conns closed        : 28            SYN timeouts         : 0

    Idle timeouts       : 0             Total pkts sent      : 181

    Data packets sent   : 90            Data bytes sent      : 47214

    Total Pkts rcvd     : 196           Pkts rcvd in seq     : 85

    Bytes rcvd in seq   : 32480

SSL Statistics:

    conns attempted     : 14            conns completed     : 14

    full handshakes     : 11            resumed handshakes  : 3

    active conns        : 0             active sessions     : 0

    renegs attempted    : 0             conns in reneg      : 0

    handshake failures  : 0             data failures       : 0

    fatal alerts rcvd   : 0             fatal alerts sent   : 0

    no-cipher alerts    : 0             ver mismatch alerts : 0

    no-compress alerts  : 0             bad macs received   : 0

    pad errors          : 0             session fails       : 0

FDU Statistics:

    IP Frag Drops       : 0             IP Version Drops    : 0

    IP Addr Discards    : 0             Serv_Id Drops       : 0

    Conn Id Drops       : 0             Bound Conn Drops    : 0

    Vlan Id Drops       : 0             TCP Checksum Drops  : 1

    Hash Full Drops     : 0             Hash Alloc Fails    : 0

    Flow Creates        : 28            Flow Deletes        : 28

    Conn Id allocs      : 14            Conn Id deallocs    : 14

    Tagged Pkts Drops   : 0             Non-Tagg Pkts Drops : 0

    Add ipcs            : 2             Delete ipcs         : 0

    Disable ipcs        : 1             Enable ipcs         : 0

    Unsolicited ipcs    : 0             Duplicate Add ipcs  : 0

    IOS Broadcast Pkts  : 68857         IOS Unicast Pkts    : 293

    IOS Multicast Pkts  : 0             IOS Total Pkts      : 69150

    IOS Congest Drops   : 0             SYN Discards        : 0

Integrated Secure Content-Switching Service Example

Configuring an integrated secure content-switching service (using a content switching module [CSM] as a server load balancer) with backend encryption has all the benefits of load-balancing and content switching, while securing data with full SSL coverage as it traverses paths of vulnerability.

As shown in Figure B-4, an integrated secure content-switching service configuration involves five processing steps:

1. The CSM load balances the SSL traffic, based on either load-balancing rules or using the SSL sticky feature (see the "Configuring Session Persistence (Stickiness)" section for information on configuring sticky connections), to an SSL daughter card.

2. The SSL daughter card terminates the SSL session, decrypts the SSL traffic into clear text traffic, and forwards the traffic back to the CSM.

3. The CSM content-switches the clear text traffic to the SSL daughter card again for encryption to SSL traffic.

4. The SSL daughter card forwards the encrypted SSL traffic to the CSM.

5. The CSM forwards the SSL traffic to the HTTPS server.

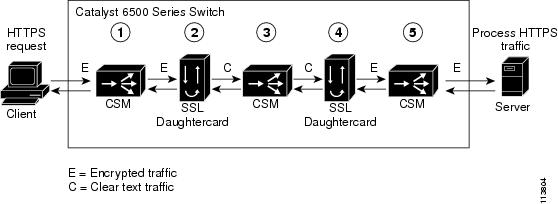

Figure B-4 Backend Encryption Example—Integrated Secure Content-Switching Service

Configuring the CSM

This example shows how to configure the VLANs on the CSM. VLAN 24 is the VLAN through which client traffic arrives. VLAN 35 is the VLAN between the SSL daughter card and the CSM.

Router# confure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)# module ContentSwitchingModule 6

Router(config-module-csm)# vlan 24 client

Route(config-slb-vlan-client)# ip address 24.24.24.24 255.0.0.0

Route(config-slb-vlan-client)# vlan 35 server

Route(config-slb-vlan-server)# ip address 35.35.35.35 255.0.0.0

Route(config-slb-vlan-server)# route 36.0.0.0 255.0.0.0 gateway 35.200.200.3

This example shows how to configure the URL policy for Layer 7 parsing:

Route(config-slb-vlan-server)# map URL url

Router(config-slb-map-url)# match protocol http method GET url /*

This example shows how to create server farms:

Router(config-slb-map-url)# serverfarm SSLCARDS

Router(config-slb-sfarm)# real 35.200.200.101 local

Router(config-slb-real)# inservice


Router(config-slb-real)# serverfarm VLAN36REALS

Router(config-slb-sfarm)# real 36.200.200.14

Router(config-slb-real)# inservice

Router(config-slb-real)# real 36.200.200.5

Router(config-slb-real)# inservice

This example shows how to create the virtual servers:

Router(config-slb-real)# vserver LB-HTTP-SSLMODS

Router(config-slb-vserver)# virtual 35.35.35.25 tcp 81

Router(config-slb-vserver)# vlan 35

Router(config-slb-vserver)# slb-policy URL

Router(config-slb-vserver)# inservice


Router(config-slb-vserver)# vserver LB-SSL-SSLMODS

Router(config-slb-vserver)# virtual 24.24.24.25 tcp https

Router(config-slb-vserver)# serverfarm SSLCARDS

Router(config-slb-vserver)# inservice

This example shows how to display the status of the real servers and virtual servers:

Router# sh module contentSwitchingModule all reals

---------------------- CSM in slot 6 ----------------------


real                  server farm      weight  state          conns/hits

-------------------------------------------------------------------------

35.200.200.101        SSLCARDS         8       OPERATIONAL    0

36.200.200.14         VLAN36REALS      8       OPERATIONAL    0

36.200.200.5          VLAN36REALS      8       OPERATIONAL    0


Router# sh module contentSwitchingModule all vservers

---------------------- CSM in slot 6 ----------------------


vserver         type  prot virtual                  vlan state        conns

---------------------------------------------------------------------------

LB-HTTP-SSLMODS SLB   TCP  35.35.35.25/32:81        35   OPERATIONAL  0

LB-SSL-SSLMODS  SLB   TCP  24.24.24.25/32:443       ALL  OPERATIONAL  0

Configuring the SSL Daughter Card

This example shows how to create the VLAN between the SSL daughter card and the CSM:

ssl-proxy(config)# ssl-proxy vlan 35

ssl-proxy(config-vlan)# ipaddr 35.200.200.3 255.0.0.0

ssl-proxy(config-vlan)# gateway 35.200.200.100

ssl-proxy(config-vlan)# admin

This example shows how to configure a trusted certificate authority pool on the SSL daughter card:

ssl-proxy(config-vlan)# ssl-proxy pool ca net

ssl-proxy(config-ca-pool)# ca trustpoint keon-root

ssl-proxy(config-ca-pool)# ca trustpoint net-root

ssl-proxy(config-ca-pool)# ca trustpoint TP-1024-pcks12-root

This example shows how to configure a URL rewrite policy on the SSL daughter card:

ssl-proxy(config)# ssl-proxy policy url-rewrite frontend

ss(config-url-rewrite-policy)# url www.cisco.com clearport 80 sslport 443

ss(config-url-rewrite-policy)# url wwwin.cisco.com clearport 80 sslport 443

ss(config-url-rewrite-policy)# url wwwin.cisco.com clearport 81 sslport 443

This example shows how to configure the SSL server proxy that accepts client traffic coming through the CSM. This example also shows how to configure client authentication, SSL v2.0 forwarding, and URL rewrite policy.

Note For SSL V2.0 connections, the SSL daughter card directly opens a connection to the configured server.

ssl-proxy(config-ca-pool)# ssl-proxy service frontend

ssl-proxy(config-ssl-proxy)# virtual ipaddr 35.200.200.101 protocol tcp port 443 secondary

ssl-proxy(config-ssl-proxy)# server ipaddr 35.35.35.25 protocol tcp port 81

ssl-proxy(config-ssl-proxy)# server ipaddr 35.200.200.14 protocol tcp port 443 sslv2

ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint TP-1024-pkcs12

ssl-proxy(config-ssl-proxy)# policy url-rewrite frontend

ssl-proxy(config-ssl-proxy)# trusted-ca net

ssl-proxy(config-ssl-proxy)# authenticate verify all

ssl-proxy(config-ssl-proxy)# inservice

This example shows how to configure the SSL client proxy that accepts clear text traffic from the CSM after the traffic completes Layer 7 parsing and decides the real server. This example also shows how to configure client certificates and a wildcard proxy.

Note The gateway address (35.200.200.125) is the address through which the real servers (36.200.200.14 and 36.200.200.5) are reached.

ssl-proxy(config-ssl-proxy)# ssl-proxy service wildcard client

ssl-proxy(config-ssl-proxy)# virtual ipaddr 0.0.0.0 0.0.0.0 protocol tcp port 81 secondary

ssl-proxy(config-ssl-proxy)# server ipaddr 35.200.200.125 protocol tcp port 443

ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint client-cert

ssl-proxy(config-ssl-proxy)# no nat server

ssl-proxy(config-ssl-proxy)# trusted-ca net

ssl-proxy(config-ssl-proxy)# authenticate verify all

ssl-proxy(config-ssl-proxy)# inservice

ssl-proxy(config-ssl-proxy)# ^Z

This example shows how to display the status of the SSL server proxy service:

ssl-proxy# show ssl-proxy service frontend

Service id: 2, bound_service_id: 258

Virtual IP: 35.200.200.101, port: 443

Server IP: 35.35.35.25, port: 81

SSLv2  IP: 35.200.200.14, port: 443

URL Rewrite Policy: frontend

Certificate authority pool: net

  CA pool complete

rsa-general-purpose certificate trustpoint: TP-1024-pkcs12

  Certificate chain for new connections:

    Certificate:

       Key Label: TP-1024-pkcs12, 1024-bit, not exportable

       Key Timestamp: 22:53:16 UTC Mar 14 2003

       Serial Number: 3C2CD2330001000000DB

    Root CA Certificate:

       Serial Number: 313AD6510D25ABAE4626E96305511AC4

  Certificate chain complete

Certificate authentication type: All attributes (like CRL) are verified

Admin Status: up

Operation Status: up

ssl-proxy#

This example shows how to display the status of the SSL client proxy service:

ssl-proxy# show ssl-proxy service wildcard

Service id: 267, bound_service_id: 11

Virtual IP: 0.0.0.0, port: 81 (secondary configured)

Virtual IP mask: 0.0.0.0

Server IP: 35.200.200.125, port: 443

Certificate authority pool: net

  CA pool complete

rsa-general-purpose certificate trustpoint: client-cert

  Certificate chain for new connections:

    Certificate:

       Key Label: client-cert, 1024-bit, not exportable

       Key Timestamp: 18:42:01 UTC Jul 14 2003

       Serial Number: 04

    Root CA Certificate:

       Serial Number: 01

  Certificate chain complete

Certificate authentication type: All attributes (like CRL) are verified

Admin Status: up

Operation Status: up

ssl-proxy#

Certificate Security Attribute-Based Access Control Examples

Certificate security attribute-based access control adds fields to the certificate that allow specifying an access control list (ACL) to create a certificate-based ACL.

For information on configuring certificate security attribute-based access control, refer to Certificate Security Attribute-Based Access Control at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122newft/122t/122t15/ftcrtacl.htm

This example shows that the SSL connections for the SSL proxy service "ssl-offload" are successful only if the subject-name of the client certificate contains the domain name .cisco.com:

ssl-proxy(config)# ssl-proxy service ssl-offload

ssl-proxy(config-ssl-proxy)# virtual ipaddr 8.100.100.126 protocol tcp port 443 secondary

ssl-proxy(config-ssl-proxy)# server ipaddr 191.162.2.8 protocol tcp port 80

ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint cert

ssl-proxy(config-ssl-proxy)# nat client client-nat

ssl-proxy(config-ssl-proxy)# trusted-ca root-ca

ssl-proxy(config-ssl-proxy)# authenticate verify all

ssl-proxy(config-ssl-proxy)# inservice

ssl-proxy(config-ssl-proxy)# exit

ssl-proxy(config)#

ssl-proxy(config)# ssl-proxy pool ca root-ca

ssl-proxy(config-ca-pool)# ca trustpoint root

ssl-proxy(config-ca-pool)# exit

ssl-proxy(config)#

ssl-proxy(config)# crypto ca trustpoint root

ssl-proxy(ca-trustpoint)# enrollment mode ra

ssl-proxy(ca-trustpoint)# enrollment terminal

ssl-proxy(ca-trustpoint)# crl optional

ssl-proxy(ca-trustpoint)# match certificate acl

ssl-proxy(ca-trustpoint)# exit

ssl-proxy(config)#

ssl-proxy(config)# crypto ca certificate map acl 10

ssl-proxy(ca-certificate-map)# subject-name co .cisco.com

ssl-proxy(ca-certificate-map)# exit

This example shows that the certificate ACLs are configured so that SSL connections for the proxy service "ssl-offload" are successful for the following conditions:

•The subject-name of the client certificate contains ste3-server.cisco.com or ste2-server.cisco.com.

•The valid-start of the client certificate is greater than or equal to 30th Jul 2003.

•The expiration date of the client certificate is less than 1st Jan 2007.

•The issuer-name of the client certificate contains the string "certificate manager."

ssl-proxy(config)# ssl-proxy service ssl-offload

ssl-proxy(config-ssl-proxy)# virtual ipaddr 8.100.100.126 protocol tcp port 443 secondary

ssl-proxy(config-ssl-proxy)# server ipaddr 191.162.2.8 protocol tcp port 80

ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint cert

ssl-proxy(config-ssl-proxy)# nat client client-nat

ssl-proxy(config-ssl-proxy)# trusted-ca root-ca

ssl-proxy(config-ssl-proxy)# authenticate verify all

ssl-proxy(config-ssl-proxy)# inservice

ssl-proxy(config-ssl-proxy)# exit

ssl-proxy(config)#

ssl-proxy(config)# ssl-proxy pool ca root-ca

ssl-proxy(config-ca-pool)# ca trustpoint root

ssl-proxy(config-ca-pool)# exit

ssl-proxy(config)#

ssl-proxy(config)# crypto ca trustpoint root

ssl-proxy(ca-trustpoint)# enrollment mode ra

ssl-proxy(ca-trustpoint)# enrollment terminal

ssl-proxy(ca-trustpoint)# crl optional

ssl-proxy(ca-trustpoint)# match certificate acl

ssl-proxy(ca-trustpoint)# exit

ssl-proxy(config)#

ssl-proxy(config)# crypto ca certificate map acl 10

ssl-proxy(ca-certificate-map)# subject-name co ste3-server.cisco.com

ssl-proxy(ca-certificate-map)# valid-start ge Jul 30 2003 00:00:00 UTC

ssl-proxy(ca-certificate-map)# expires-on lt Jan 01 2007 00:00:00 UTC

ssl-proxy(ca-certificate-map)# issuer-name co certificate manager

ssl-proxy(ca-certificate-map)# exit

ssl-proxy(config)#

ssl-proxy(config)# crypto ca certificate map acl 20

ssl-proxy(ca-certificate-map)# subject-name co ste2-server.cisco.com

ssl-proxy(ca-certificate-map)# expires-on lt Jan 01 2007 00:00:00 UTC

ssl-proxy(ca-certificate-map)# issuer-name co certificate manager

ssl-proxy(ca-certificate-map)# valid-start ge Jul 30 2003 00:00:00 UTC

ssl-proxy(ca-certificate-map)# exit






 This example shows that the server certificate is checked for the domain name in the certificate field. SSL initiation is successful only if the subject-name of the server certificate contains the domain name .cisco.com.





ssl-proxy# configure terminal








Enter configuration commands, one per line.  End with CNTL/Z.








ssl-proxy(config)# ssl-proxy service ssl-initiation client








ssl-proxy(config-ssl-proxy)# virtual ipaddr 8.100.100.126 protocol tcp port 81








ssl-proxy(config-ssl-proxy)# server ipaddr 191.162.2.8 protocol tcp port 443 secondary








ssl-proxy(config-ssl-proxy)# nat client client-nat








ssl-proxy(config-ssl-proxy)# trusted-ca root








ssl-proxy(config-ssl-proxy)# authenticate verify all








ssl-proxy(config-ssl-proxy)# inservice








ssl-proxy(config-ssl-proxy)# exit








ssl-proxy(config)#








ssl-proxy(config)# ssl-proxy pool ca root-ca








ssl-proxy(config-ca-pool)# ca trustpoint root








ssl-proxy(config-ca-pool)# exit








ssl-proxy(config)#








ssl-proxy(config)# crypto ca trustpoint root








ssl-proxy(ca-trustpoint)# enrollment mode ra








ssl-proxy(ca-trustpoint)# enrollment terminal








ssl-proxy(ca-trustpoint)# crl optional








ssl-proxy(ca-trustpoint)# match certificate acl








ssl-proxy(ca-trustpoint)# exit








ssl-proxy(config)#








ssl-proxy(config)# crypto ca certificate map acl 10








ssl-proxy(ca-certificate-map)# subject-name co .cisco.com








ssl-proxy(ca-certificate-map)# exit








ssl-proxy(config)#








 HTTP Header Insertion Examples




 The following examples show how to insert various HTTP headers and how to display header insertion statistics.




 Example 1



 This example shows how to insert custom headers, client IP address and TCP port number information, and a prefix string in HTTP requests sent to the server:





ssl-proxy# configure terminal








Enter configuration commands, one per line.  End with CNTL/Z.








ssl-proxy(config)# ssl-proxy policy http-header ssl-offload








ssl-proxy(config-http-header-policy)# custom "SOFTWARE VERSION :2.1(1)"








ssl-proxy(config-http-header-policy)# custom "module :SSL MODULE - CATALYST 6500"








ssl-proxy(config-http-header-policy)# custom
type-of-proxy:server_proxy_with_1024_bit_key_size








ssl-proxy(config-http-header-policy)# client-ip-port








ssl-proxy(config-http-header-policy)# prefix SSL-OFFLOAD








ssl-proxy(config-http-header-policy)# exit








ssl-proxy(config)#








ssl-proxy(config)# ssl-proxy service ssl-offload








ssl-proxy(config-ssl-proxy)# virtual ipaddr 8.100.100.126 protocol tcp port 443 secondary








ssl-proxy(config-ssl-proxy)# server ipaddr 191.162.2.8 protocol tcp port 80








ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint cert








ssl-proxy(config-ssl-proxy)# nat client client-nat








ssl-proxy(config-ssl-proxy)# policy http-header ssl-offload








ssl-proxy(config-ssl-proxy)# inservice








ssl-proxy(config-ssl-proxy)# exit








ssl-proxy(config)# exit













 Custom headers and client IP address and TCP port number information are added to every HTTP request and are prefixed by the prefix string, as shown below:





SSL-OFFLOAD-Client-IP:7.100.100.1








SSL-OFFLOAD-Client-Port:59008








SSL-OFFLOAD-SOFTWARE VERSION :2.1(1)








SSL-OFFLOAD-module :SSL MODULE - CATALYST 6500








SSL-OFFLOAD-type-of-proxy:server_proxy_with_1024_bit_key_size













 This example shows how to display header insertion information:





ssl-proxy# show ssl-proxy stats hdr








Header Insert Statistics:








    Session Headers Inserted :0          Custom Headers Inserted :2








    Session Id's Inserted    :0          Client Cert. Inserted   :0








    Client IP/Port Inserted  :2








    No End of Hdr Detected   :0          Payload no HTTP header  :0








    Desc Alloc Failed        :0          Buffer Alloc Failed     :0








    Client Cert Errors       :0          No Service              :0













 This example shows how to display SSL statistics:





ssl-proxy# show ssl-proxy stats ssl








SSL Statistics:








    conns attempted     :2             conns completed     :2








    conns in handshake  :0             conns in data       :0








    renegs attempted    :0             conns in reneg      :0








    active sessions     :0             max handshake conns :1








    rand bufs allocated :0             cached rand buf miss:0








    current device q len:0             max device q len    :2








    sslv2 forwards      :0             cert reqs processed :0








    fatal alerts rcvd   :0             fatal alerts sent   :0








    stale packet drops  :0             service_id discards :0








    session reuses      :0















    SSL3 Statistics:








      full handshakes    :0             resumed handshakes :0








      handshake failures :0             data failures      :0








      bad macs received  :0             pad errors         :0








      conns established with cipher rsa-with-rc4-128-md5        :0








      conns established with cipher rsa-with-rc4-128-sha        :0








      conns established with cipher rsa-with-des-cbc-sha        :0








      conns established with cipher rsa-with-3des-ede-cbc-sha   :0















    TLS1 Statistics:








      full handshakes    :1             resumed handshakes :1








      handshake failures :0             data failures      :0








      bad macs received  :0             pad errors         :0








      conns established with cipher rsa-with-rc4-128-md5        :0








      conns established with cipher rsa-with-rc4-128-sha        :2








      conns established with cipher rsa-with-des-cbc-sha        :0








      conns established with cipher rsa-with-3des-ede-cbc-sha   :0







 Example 2



 This example shows how to insert session headers and a prefix string. The full session headers are added to the HTTP request when the full SSL handshake occurs. However, only the session ID is inserted when the session resumes.





ssl-proxy# configure terminal








Enter configuration commands, one per line.  End with CNTL/Z.








ssl-proxy(config)# ssl-proxy policy http-header ssl-offload








ssl-proxy(config-http-header-policy)# session








ssl-proxy(config-http-header-policy)# prefix SSL-OFFLOAD








ssl-proxy(config-http-header-policy)# exit








ssl-proxy(config)#








ssl-proxy(config)# ssl-proxy service ssl-offload








ssl-proxy(config-ssl-proxy)# virtual ipaddr 8.100.100.126 protocol tcp port 443 secondary








ssl-proxy(config-ssl-proxy)# server ipaddr 191.162.2.8 protocol tcp port 80








ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint cert








ssl-proxy(config-ssl-proxy)# nat client client-nat








ssl-proxy(config-ssl-proxy)# policy http-header ssl-offload








ssl-proxy(config-ssl-proxy)# inservice








ssl-proxy(config-ssl-proxy)# exit








ssl-proxy(config)# exit













 For the full SSL handshake, the session headers, prefixed by the prefix string, are added to the HTTP request as shown below:





SSL-OFFLOAD-Session-Id:33:FF:2C:2D:25:15:3C:50:56:AB:FA:5A:81:0A:EC:E9:00:00:0A:03:00:60:








2F:30:9C:2F:CD:56:2B:91:F2:FF








SSL-OFFLOAD-Session-Cipher-Name:RC4-SHA








SSL-OFFLOAD-Session-Cipher-Key-Size:128








SSL-OFFLOAD-Session-Cipher-Use-Size:128













 When the session resumes, only the session ID is inserted:





SSL-OFFLOAD-Session-Id:33:FF:2C:2D:25:15:3C:50:56:AB:FA:5A:81:0A:EC:E9:00:00:0A:03:00:60:








2F:30:9C:2F:CD:56:2B:91:F2:FF













 This example shows how to display header insertion information:





ssl-proxy# show ssl-proxy stats hdr








Header Insert Statistics:








    Session Headers Inserted :1          Custom Headers Inserted :0








    Session Id's Inserted    :2          Client Cert. Inserted   :0








    Client IP/Port Inserted  :0








    No End of Hdr Detected   :0          Payload no HTTP header  :0








    Desc Alloc Failed        :0          Buffer Alloc Failed     :0








    Client Cert Errors       :0          No Service              :0













 This example shows how to display SSL statistics:





ssl-proxy# show ssl-proxy stats ssl








SSL Statistics:








    conns attempted     :2             conns completed     :2








    conns in handshake  :0             conns in data       :0








    renegs attempted    :0             conns in reneg      :0








    active sessions     :0             max handshake conns :1








    rand bufs allocated :0             cached rand buf miss:0








    current device q len:0             max device q len    :2








    sslv2 forwards      :0             cert reqs processed :0








    fatal alerts rcvd   :0             fatal alerts sent   :0








    stale packet drops  :0             service_id discards :0








    session reuses      :0
















    SSL3 Statistics:








      full handshakes    :0             resumed handshakes :0








      handshake failures :0             data failures      :0








      bad macs received  :0             pad errors         :0








      conns established with cipher rsa-with-rc4-128-md5        :0








      conns established with cipher rsa-with-rc4-128-sha        :0








      conns established with cipher rsa-with-des-cbc-sha        :0








      conns established with cipher rsa-with-3des-ede-cbc-sha   :0















    TLS1 Statistics:








      full handshakes    :1             resumed handshakes :1








      handshake failures :0             data failures      :0








      bad macs received  :0             pad errors         :0








      conns established with cipher rsa-with-rc4-128-md5        :0








      conns established with cipher rsa-with-rc4-128-sha        :2








      conns established with cipher rsa-with-des-cbc-sha        :0








      conns established with cipher rsa-with-3des-ede-cbc-sha   :0







 Example 3



 This example shows how to insert the custom headers, the decoded client certificate fields, and the IP address and destination TCP port number of the client-side connection, prefixed by the prefix string. The complete decoded client certificate fields are inserted for the full SSL handshake. However, only the session ID is inserted when the SSL session resumes.





ssl-proxy# configure terminal








Enter configuration commands, one per line.  End with CNTL/Z.








ssl-proxy(config)# ssl-proxy policy http-header ssl-offload








ssl-proxy(config-http-header-policy)# custom "SOFTWARE VERSION :2.1(1)"








ssl-proxy(config-http-header-policy)# custom "module :SSL MODULE - CATALYST 6500"








ssl-proxy(config-http-header-policy)# custom
type-of-proxy:server_proxy_with_1024_bit_key_size








ssl-proxy(config-http-header-policy)# client-cert








ssl-proxy(config-http-header-policy)# client-ip-port








ssl-proxy(config-http-header-policy)# prefix SSL-OFFLOAD








ssl-proxy(config-http-header-policy)# exit








ssl-proxy(config)# ssl-proxy service ssl-offload








ssl-proxy(config-ssl-proxy)# virtual ipaddr 8.100.100.126 protocol tcp port 443 secondary








ssl-proxy(config-ssl-proxy)# server ipaddr 191.162.2.8 protocol tcp port 80








ssl-proxy(config-ssl-proxy)# certificate rsa general-purpose trustpoint cert








ssl-proxy(config-ssl-proxy)# nat client client-nat








ssl-proxy(config-ssl-proxy)# policy http-header ssl-offload








ssl-proxy(config-ssl-proxy)# trusted-ca root-ca








ssl-proxy(config-ssl-proxy)# authenticate verify all








ssl-proxy(config-ssl-proxy)# inservice








ssl-proxy(config-ssl-proxy)# exit








ssl-proxy(config)# exit













 For the full SSL handshake, the custom headers, the decoded client certificate fields, the IP address and destination TCP port number of the client-side connection, prefixed by the prefix string, are added to the HTTP request, as shown below:





SSL-OFFLOAD-Client-IP:7.100.100.1








SSL-OFFLOAD-Client-Port:59011








SSL-OFFLOAD-Session-Id:0F:61:9C:F2:E5:98:70:9D:1B:C1:EA:1D:38:F5:A1:2B:00:00:0E:03:00:60:








2F:30:9C:2F:1D:7D:5A:82:30:F6








SSL-OFFLOAD-SOFTWARE VERSION :2.1(1)








SSL-OFFLOAD-module :SSL MODULE - CATALYST 6500








SSL-OFFLOAD-type-of-proxy:server_proxy_with_1024_bit_key_size








SSL-OFFLOAD-ClientCert-Valid:1








SSL-OFFLOAD-ClientCert-Error:none








SSL-OFFLOAD-ClientCert-Fingerprint:1B:11:0F:E8:20:3F:6C:23:12:9C:76:C0:C1:C2:CC:85








SSL-OFFLOAD-ClientCert-Subject-CN:a








SSL-OFFLOAD-ClientCert-Issuer-CN:Certificate Manager








SSL-OFFLOAD-ClientCert-Certificate-Version:3








SSL-OFFLOAD-ClientCert-Serial-Number:0F:E5








SSL-OFFLOAD-ClientCert-Data-Signature-Algorithm:sha1WithRSAEncryption








SSL-OFFLOAD-ClientCert-Subject:OID.1.2.840.113549.1.9.2 = ste2-server.cisco.com +








OID.2.5.4.5 = B0FFF22E, CN = a, O = Cisco








SSL-OFFLOAD-ClientCert-Issuer:CN = Certificate Manager, OU = HSS, O = Cisco, L = San Jose,








ST = California, C = US








SSL-OFFLOAD-ClientCert-Not-Before:22:29:26 UTC Jul 30 2003








SSL-OFFLOAD-ClientCert-Not-After:07:00:00 UTC Apr 27 2006








SSL-OFFLOAD-ClientCert-Public-Key-Algorithm:rsaEncryption








SSL-OFFLOAD-ClientCert-RSA-Public-Key-Size:1024 bit








SSL-OFFLOAD-ClientCert-RSA-Modulus-Size:1024 bit








SSL-OFFLOAD-ClientCert-RSA-Modulus:B3:32:3C:5E:C9:D1:CC:76:FF:81:F6:F7:97:58:91:4D:B2:0E:








C1:3A:7B:62:63:BD:5D:F6:5F:68:F0:7D:AC:C6:72:F5:72:46:7E:FD:38:D3:A2:E1:03:8B:EC:F7:C9:9A:








80:C7:37:DA:F3:BE:1F:F4:5B:59:BD:52:72:94:EE:46:F5:29:A4:B3:9B:2E:4C:69:D0:11:59:F7:68:3A:








D9:6E:ED:6D:54:4E:B5:A7:89:B9:45:9E:66:0B:90:0B:B1:BD:F4:C8:15:12:CD:85:13:B2:0B:FE:7E:8D:








F0:D7:4A:98:BB:08:88:6E:CC:49:60:37:22:74:4D:73:1E:96:58:91








SSL-OFFLOAD-ClientCert-RSA-Exponent:00:01:00:01








SSL-OFFLOAD-ClientCert-X509v3-Authority-Key-Identifier:keyid=EE:EF:5B:BD:4D:CD:F5:6B:60:








9D:CF:46:C2:EA:25:7B:22:A5:08:00








SSL-OFFLOAD-ClientCert-X509v3-Basic-Constraints:








SSL-OFFLOAD-ClientCert-Signature-Algorithm:sha1WithRSAEncryption








SSL-OFFLOAD-ClientCert-Signature:87:09:C1:F8:86:C1:15:C5:57:18:8E:B3:0D:62:E1:0F:6F:D4:9D:








75:DA:5D:53:E2:C6:0B:73:99:61:BE:B0:F6:19:83:F2:E5:48:1B:D2:6C:92:83:66:B3:63:A6:58:B4:5C:








0E:5D:1B:60:F9:86:AF:B3:93:07:77:16:74:4B:C5













 This example shows how to display header insertion information:





ssl-proxy# show ssl-proxy stats hdr








Header Insert Statistics:








    Session Headers Inserted :0          Custom Headers Inserted :1








    Session Id's Inserted    :1          Client Cert. Inserted   :1








    Client IP/Port Inserted  :1








    No End of Hdr Detected   :0          Payload no HTTP header  :0








    Desc Alloc Failed        :0          Buffer Alloc Failed     :0








    Client Cert Errors       :0          No Service              :0






 This example shows how to display SSL statistics:





ssl-proxy# show ssl-proxy stats ssl








SSL Statistics:








    conns attempted     :1             conns completed     :1








    conns in handshake  :0             conns in data       :0








    renegs attempted    :0             conns in reneg      :0








    active sessions     :0             max handshake conns :1








    rand bufs allocated :0             cached rand buf miss:0








    current device q len:0             max device q len    :2








    sslv2 forwards      :0             cert reqs processed :1








    fatal alerts rcvd   :0             fatal alerts sent   :0








    stale packet drops  :0             service_id discards :0








    session reuses      :0















    SSL3 Statistics:








      full handshakes    :0             resumed handshakes :0








      handshake failures :0             data failures      :0








      bad macs received  :0             pad errors         :0








      conns established with cipher rsa-with-rc4-128-md5        :0








      conns established with cipher rsa-with-rc4-128-sha        :0








      conns established with cipher rsa-with-des-cbc-sha        :0








      conns established with cipher rsa-with-3des-ede-cbc-sha   :0















    TLS1 Statistics:








      full handshakes    :1             resumed handshakes :0








      handshake failures :0             data failures      :0








      bad macs received  :0             pad errors         :0








      conns established with cipher rsa-with-rc4-128-md5        :0








      conns established with cipher rsa-with-rc4-128-sha        :0








      conns established with cipher rsa-with-des-cbc-sha        :0








      conns established with cipher rsa-with-3des-ede-cbc-sha   :1








 URL Rewrite Examples




 These examples show how to configure URL rewrite depending on the desired outcome and assume the following proxy configuration:





ssl-proxy service frontend








 virtual ipaddr 35.200.200.101 protocol tcp port 443 secondary








 server ipaddr 35.200.200.14 protocol tcp port 80








 certificate rsa general-purpose trustpoint TP-1024-pkcs12








 policy url-rewrite test-url-rewrite








 inservice








!







 Example 1



 This example shows how to configure a protocol rewrite (for example, HTTP to HTTPS) when the clear text port is a standard HTTP port 80. In this example, when the server sends the relocation string as http://ssl-136.cisco.com/index2.html, the SSL daughter card rewrites the string as https://ssl-136.cisco.com/index2.html.



 To configure a protocol rewrite (HTTP to HTTPS), specify any of the following URL rewrite rules:



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl-136.cisco.com
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl*
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url *com
!




 Example 2



 This example shows how to configure a protocol rewrite (for example, HTTP to HTTPS) when the clear text port is a nonstandard HTTP port. In this example, when the server sends the relocation string as http://ssl-136.cisco.com:100/index2.html, the SSL daughter card rewrites the string as https://ssl-136.cisco.com/index2.html.



 To configure a protocol rewrite (HTTP to HTTPS) with a nonstandard clear text port, specify any of the following URL rewrite rules:



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl-136.cisco.com clearport 100
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl* clearport 100
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url *com clearport 100
!




 Example 3



 This example shows how to configure a protocol rewrite and SSL port rewrite when the clear text port is a standard HTTP port 80. In this example, when the server sends the relocation string as http://ssl-136.cisco.com/index2.html, the SSL daughter card rewrites the string as https://ssl-136.cisco.com:445/index2.html.



 To configure a protocol rewrite (HTTP to HTTPS) with a nonstandard SSL text port, specify any of the following URL rewrite rules:



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl-136.cisco.com sslport 445
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl* sslport 445
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url *com sslport 445
!




 Example 4



 This example shows how to configure a protocol rewrite and SSL port rewrite when the clear text port is nonstandard. In this example, when the server sends the relocation string as http://ssl-136.cisco.com:100/index2.html, the SSL daughter card rewrites the string as https://ssl-136.cisco.com:445/index2.html.



 To configure a protocol rewrite and SSL port rewrite with a nonstandard clear text port, specify any of the following URL rewrite rules:



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl-136.cisco.com clearport 100 sslport 445
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url ssl* clearport 100 sslport 445
!



 •ssl-proxy policy url-rewrite test-url-rewrite
 url *com clearport 100 sslport 445
!










 This example displays the above URL rewrite policy:





ssl-proxy# show ssl-proxy policy url-rewrite test-url-rewrite








Rule URL                                     Clearport SSLport








  1 *com                                       100        445








SSL proxy services using this policy:








          frontend








Usage count of this policy:1















ssl-proxy#






















































































































































































































Was this Document Helpful?







      FeedbackFeedback

























































Contact Cisco
