Cisco Application Centric Infrastructure Simulator Appliance Release Notes, Release 4.2(4)

Cisco ACI Simulator Appliance Release Notes, Release 4.2(4)

This document provides the compatibility information, usage guidelines, and the scale values that were validated in testing this Cisco ACI Simulator appliance release. Use this document in combination with the documents listed in the Related Documentation section.

Note: The ACI Simulator appliance server is no longer for sale after June 20, 2019, as noted here. For recent and future releases, you can download the Cisco ACI Simulator VM, an OVA file that can be installed in a virtual machine (VM) on any server that meets the installation requirements.

The Cisco ACI Simulator appliance 4.2(4) release contains the same functionality as the Cisco Application Policy Infrastructure Controller (APIC) 4.2(4) release. For information about the functionality, see the Cisco Application Policy Infrastructure Controller Release Notes, Release 4.2(4).

For more information about this product, see Related Content.

Note: The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product.

Contents

■      Introduction

■      Software Features

■      Installation Notes

■      Compatibility Information

■      Usage Guidelines

■      Supported Scale with the Cisco ACI Simulator Appliance

■      Related Content

■      Legal Information

Introduction

The Cisco Application Centric Infrastructure (ACI) is conceptualized as a distributed, scalable, multi-tenant infrastructure with external endpoint connectivity that is controlled and grouped through application centric policies. The Cisco Application Policy Infrastructure Controller (APIC) is the key architectural component that is the unified point of automation, management, monitoring, and programmability for the Cisco ACI. The Cisco APIC supports the deployment, management and monitoring of any application anywhere, with a unified operations model for physical and virtual components of the infrastructure. The Cisco APIC programmatically automates network provisioning and control based on the application requirements and policies. It is the central control engine for the broader cloud network, simplifying management while allowing tremendous flexibility in how application networks are defined and automated and also providing northbound REST APIs. The Cisco APIC is a distributed system implemented as a cluster of many controller instances.

Cisco ACI Simulator Appliance

The intent of the Cisco ACI Simulator appliance is to provide real, fully-featured Cisco APIC software, along with a simulated fabric infrastructure of leaf switches and spine switches in one physical server. You can use the Cisco ACI Simulator appliance to understand features, exercise APIs, and initiate integration with third-party orchestration systems and applications. The native GUI and CLI of the Cisco APIC use the same APIs that are published to third parties.

The Cisco ACI Simulator appliance includes simulated switches, so you cannot validate a data path. However, some of the simulated switch ports have been mapped to the front-panel server ports, which allows you to connect external management entities such as ESX servers, vCenters, vShields, bare metal servers, Layer 4 to Layer 7 services, AAA systems, and other physical or virtual service appliances. In addition, the Cisco ACI Simulator appliance allows simulation of faults and alerts to facilitate testing and demonstrate features.

One instance of the production Cisco APIC will be shipped per server appliance. By contrast, the Cisco ACI Simulator appliance includes three actual Cisco APIC instances and two simulated leaf switches and two simulated spine switches in a single server. As a result, the performance of the Cisco ACI Simulator appliance will be slower than deployments on actual hardware. You can perform operations on the simulated fabric using any of the following functional interfaces:

■      Graphical user interface (GUI)

■      Command Line Interface (CLI)

■      Application programming interface (API)

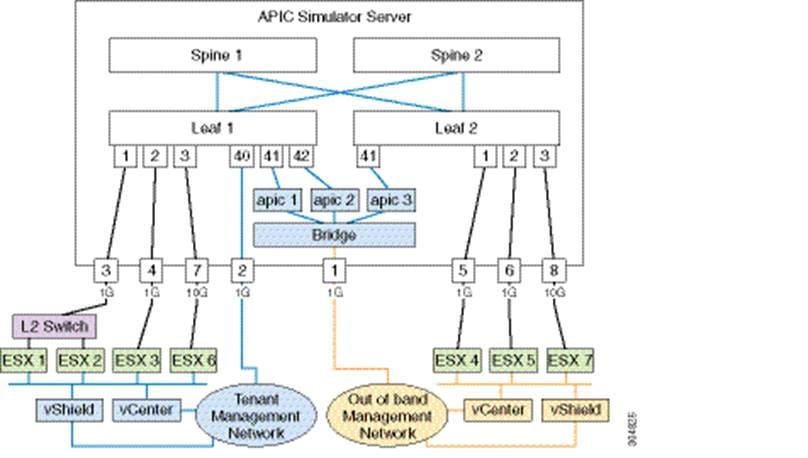

Figure 1 shows the components and connections simulated within the simulator server.

Figure 1 Simulated Components and Connections in the Cisco ACI Simulator Appliance Server

Software Features

This section lists the key software features of the Cisco ACI Simulator appliance that are available in this release.

■      Application centric network policies

■      Data model-based declarative provisioning

■      Application, topology monitoring, and troubleshooting

■      Third-party integration (Layer 4 to Layer 7 services, WAN, vCenter, vShield)

■      Physical infrastructure policies (spine and leaf)

■      Cisco ACI inventory and configuration

■      Implementation on a distributed framework across a cluster of appliances

■      Health Scores for key Managed Objects (tenants, application profiles, switches, and so on)

■      Fault, event and performance management

Installation Notes

The Cisco ACI Simulator software is preinstalled on the Cisco ACI Simulator appliance. When you launch the Cisco ACI Simulator appliance for the first time, the Cisco APIC console presents a series of initial setup options. See the Cisco ACI Simulator VM Installation Guide for information about the setup options.

The ISO image is not supported. You must use the OVA image.

Compatibility Information

This release of the Cisco ACI Simulator appliance supports the following software:

■      For the supported VMware vCenter and vShield releases, see the ACI Virtualization Compatibility Matrix.

■      Web browsers for the Cisco ACI Simulator appliance GUI:

—     Chrome version 35 (at minimum) on Mac and Windows.

—     Firefox version 26 (at minimum) on Mac and Windows.

■      The Cisco ACI Simulator appliance does not support Smart Licensing.

Usage Guidelines

This section includes usage guidelines that are specific to this release.

■      General Usage Guidelines

■      Layer 4 to Layer 7 Services Usage Guidelines

General Usage Guidelines

Observe the following guidelines when using this software release:

■      The Cisco ACI Simulator appliance software cannot be installed separately on a standard Cisco UCS C220 Server or on other servers. The software runs only on the Cisco ACI Simulator appliance server, which has the following PID:

—    APIC-SIM-S2 (based on Cisco UCS C220 M4 server)

■      The Cisco ACI Simulator appliance GUI includes an online version of the Quick Start guide that includes video demonstrations.

■      Do not do change the following:

—     Default names in the initial setup for node names and the cluster configuration.

—     Cluster size and the number of Cisco APIC nodes.

—     Infra VLAN.

■      The Cisco ACI Simulator appliance does not support the following:

—     Configuration of a DHCP server policy.

—     Configuration of a DNS service policy.

—     Configuring out-of-band management access for switches.

—     Data path forwarding (the Cisco ACI Simulator appliance includes simulated switches.

—     CDP is not supported between a leaf and an ESX/hypervisor or between a leaf and an unmanaged/L2 switch. Only LLDP is supported in these cases.

■      The Cisco ACI Simulator appliance uses NAT for inband management. Inband IPs configured by policy are not used. Instead, Cisco APIC and node inband IPs are internally allocated.

■      Cisco APIC out-of-band management IP/Gateway cannot be modified using an out-of-band management policy and can be configured only during the Cisco APIC first time setup screen.

■      Keep the vMotion PNIC outside of the Simulator network.

■      The infrastructure EPG in the Infra tenant is for internal use only.

■      The MP-BGP route reflector and the OSPF external routed network protocols do not work if you are using the simulator

■      Virtual shell (VSH) and ishell commands do not work on switches. These commands are implemented on the Cisco NX-OS software, and the Cisco NX-OS software is not available on the simulator.

■      The MP-BGP route reflector and the OSPF external routed network protocols do not work if you are using the simulator.

■      Virtual shell (VSH) and ishell commands do not work on switches. These commands are implemented on the Cisco NX-OS software, and the Cisco NX-OS software is not available on the simulator.

■      Statistics are simulated. As a result, threshold crossing alert (TCA) faults are generated in the simulator to demonstrate the fault generation on the statistics threshold crossing.

■      Create a syslog and Call Home source policy under common policy. This policy applies at the system level and sends all syslog and Call Home messages system wide. The GUI path to create syslog and Call Home under common policy are as follows: Admin / External Data Collector/ Monitoring Destinations / [Callhome | SNMP | Syslog].

■      The Cisco ACI Simulator appliance simulates faults for counters, which might cause the health score of the top-of-rack (TOR) switch to go down. The faults look similar to the following example:

<faultInst ack="no" cause="threshold-crossed" changeSet="" childAction="" code="F54431" created="2014-01-21T17:20:13.179+00:00" descr="TCA: l2IngrBytes5min dropRate value 9049.94 raised above threshold 9000 and value is recovering "dn="topology/pod-1/node-17/sys/ctx-[vxlan-2621440]/bd-[vxlan-15826914]/vlan-[vlan- 1031]/fault-F54431" domain="infra" highestSeverity="minor" lastTransition="2014-01-21T17:22:35.185+00:00" lc="raised" modTs="never" occur="1"origSeverity="minor" prevSeverity="minor" rule="tca-l2-ingr-bytes-drop-rate" severity="minor" status="" subject="counter" type="operational"/> <faultInst ack="no" cause="threshold-crossed" changeSet="" childAction="" code="F54447" created="2014-01-21T17:20:13.244+00:00" descr="TCA: l2IngrPkts5min dropRate value 3.53333 raised above threshold 10" dn="topology/pod-1/node-17/sys/ctx-[vxlan-2621440]/bd-[vxlan-15826914]/vlan-[vlan-1 031]/fault-F54447" domain="infra" highestSeverity="warning" lastTransition="2014-01-21T19:42:37.983+00:00" lc="retaining" modTs="never" occur="9" origSeverity="warning"prevSeverity="warning" rule="tca-l2-ingr-pkts-drop-rate" severity="cleared" status="" subject="counter" type="operational"/>

Layer 4 to Layer 7 Services Usage Guidelines

Observe the following guidelines when using Layer 4 to Layer 7 services:

■      This release supports Layer 4 to Layer 7 services integration with Citrix and ASA. These packages are not prepackaged in the Simulator appliance. Depending on the Layer 4 to Layer 7 services that you want to test, you should procure the corresponding package from the file share.

■      Service nodes should be connected using the out-of-band connection. The service node and the Cisco APIC should be in the same subnet.

■      You can test Layer 4 to Layer 7 services by connecting your service appliance using in-band management connectivity between the simulator and the appliance.

■      For additional information on Layer 4 to Layer 7 services, see the Cisco APIC Layer 4 to Layer 7 Services Deployment Guide, Release 4.2(x).

Supported Scale with the Cisco ACI Simulator Appliance

The following table lists the scale values that were tested without an external service node in this release.



Related Content

See the Cisco Application Centric Infrastructure Simulator page for the Cisco ACI Simulator documentation.

See the Cisco Application Policy Infrastructure Controller (APIC) page for the Cisco APIC documentation.
