Overview

Features

Cisco® Provider Connectivity Assurance Sensor Modules (formerly Accedian Skylight Sensor Modules) allow you to more effectively address end-to-end service lifecycles, from Service Activation Testing (SAT) to assurance management and service demarcation. The small form factor of the modules helps keep them power-efficient, and all management capabilities are automated and orchestrated through the Provider Connectivity Assurance Sensor Control software.

These modules are equipped with a fully featured Field-Programmable Gate Array (FPGA) capable of active Layer 2 through 4 testing and traffic generation—without compromising performance, scalability, and precision. This makes Assurance Sensor Modules an ideal fit for cost- and space-sensitive applications where performance is a key service differentiator.

Figure 1. Cisco Provider Connectivity Assurance Sensor Module 10G

The following table lists the features for the Module 10G.

Table 1. Sensor Module 10G Features

Feature

Description

Form factor

1 RU

Rack mount

Standard 19-in. (48.3 cm) or 23-in (58.42 cm) rack

Optical ports

Two fixed optical connectors

The following table lists the regulation and standard compliance features of the Module 10G.

Table 2. Regulation and Standard Compliance (Model: ANT10, ANT10h)

Feature

Description

Safety

IEC 60950-1, IEC 62368-1, EN 62368-1, CSA/UL 62368-1, AS/NZS 62368.1, J62368-1, CEI EN 62368-1, DS/EN 62368-1

EMC - Emission (Class A)

CISPR 32, EN 55032, FCC (47 CFR 15, Subpart B), ICES-003, AS/NZS CISPR 32, VCCI, KN 32, CNS 13438

EMC - Immunity

CISPR 35, EN 55035, KN 35

Telco

NEBS Level-3: GR-63, GR-1089 (DC model only)

RoHS

IEC 63000, EN IEC 63000

Package Contents

The package contents for the Sensor Module 10G include:

  • Sensor Module 10G (1x)

  • AC model: power cord retainer clip (1x)

  • Drywall anchor kit (1x)

  • Rubber feet (4x)

  • L-bracket kit (1x)

  • Cisco Provider Connectivity Assurance Sensor Module 10G—This document contains URLs that point to the hardware installation guide, regulatory compliance and safety information guide, warranty, and licensing pages, and a QR code that points to the management center Documentation Portal

Serial Number Locations

The Serial Number (SN) and the Media Access Control (MAC) address are located at the bottom of the Sensor Module 10G.

Front Panel

The following figure shows the front panel features for the Sensor Module 10G. See Front Panel LEDs for a description of the LEDs.

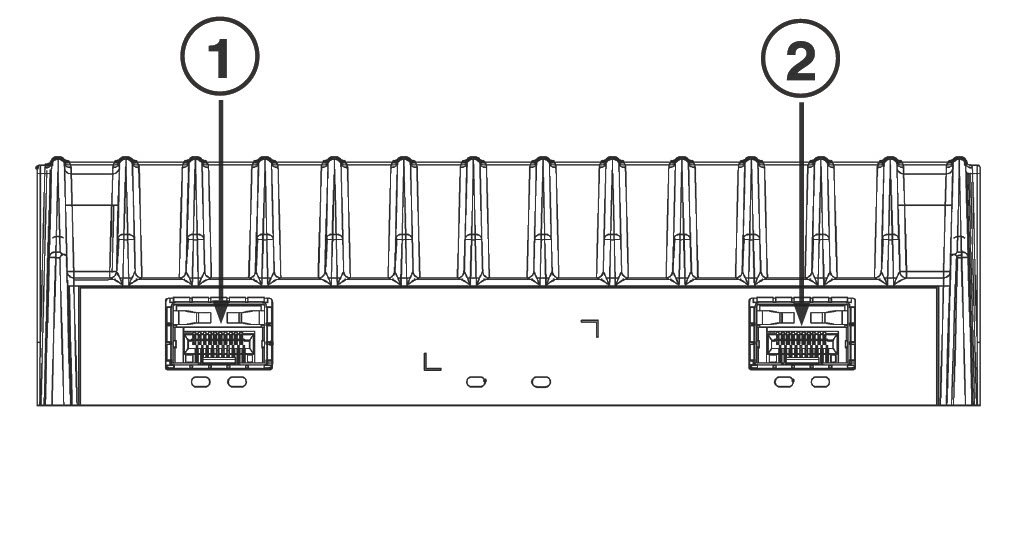

Figure 2. Sensor Module 10G Front Panel

1

Optical port 1

SFP 1G/10G Ethernet port 1

2

Optical port 2

SFP 1G/10G Ethernet port 2

Front Panel LEDs

The following figure shows the front panel LEDs and describes their states.

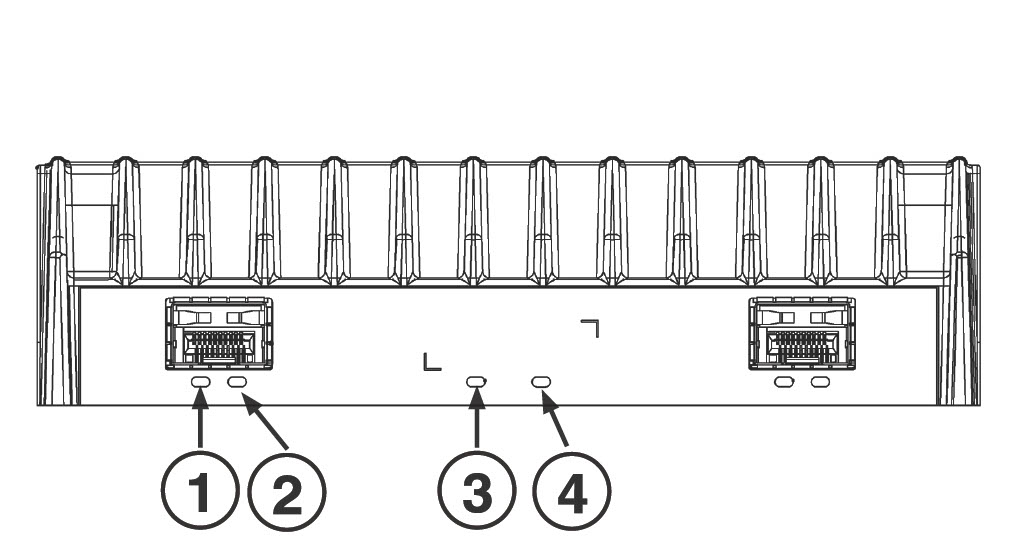

Figure 3. Sensor Module 10G Front Panel LEDs

1

TX LED:

  • Off—Port is not transmitting data.

  • Flashing—Port is transmitting data.

2

Link/RX LED:

  • Off—Link is inactive.

  • On—Link is active.

  • Flashing—Port is receiving data.

3

PWR LED:

  • Off—Device is unpowered.

  • On—Device is powered.

4

STATUS LED:

  • Off—Device is not ready.

  • On—Device is ready, but unmanaged.

  • Flashing—Device is ready, and remotely managed.

    • Slow flashing means the system is currently managed by a remote controller.

    • Fast flashing means a critical system failure is detected.

Rear Panel

The following figure shows the rear panel of the Sensor Module 10G - AC Input Power Model.

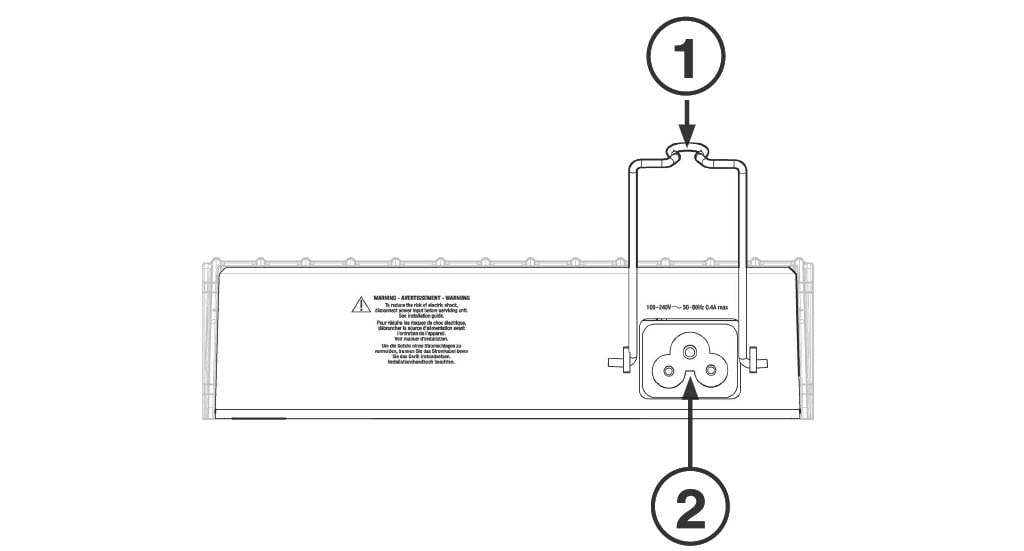

Figure 4. Sensor Module 10G Rear Panel - AC Input Power Model

1

AC cord retainer

Secure the power cord through the retainer clip

2

AC power input

Connect appropriate power cord here

The following figure shows the rear panel of the Sensor Module 10G - DC Input Power Model.

Figure 5. Sensor Module 10G Rear Panel - DC Input Power Model

1

DC power input (Feed A and B)

Connect appropriate power source here

Note



The Module comes with two polarized DC feeds

2

Functional ground connection

Fasten the ground lug here

Power Supply

The following table lists the specifications for each power supply used in the Sensor Module 10G.

Table 3. Power Specifications

Description

Specification

Input power ratings

AC: 100 to 240 V AC, 50 to 60 Hz, 0.4 AMax

DC: 20 to 57 V DC, 1.75 AMax

Output power ratings

SFP: 2.5 WMax per port, 4.0 WMax for all ports

Warning



Transceivers used in the ports must stay within their specifications under all operating conditions of the system.

Power consumption

18 WTyp, 21 WMax (61 BTU/hrTyp, 72 BTU/hrMax)

Hardware Specifications

The following table contains hardware specifications for the Sensor Module 10G.

Dimensions (H x W x D)

1.5 x 5.7 x 7.8 inches (3.8 x 14.5 x 19.8 cm)

Weight

3.3 lb (1.5 kg)

Temperature

Operating:

  • Commercial: 32 to 122°F (0 to 50°C)

  • Hardened*: -40 to 149°F (-40 to 65°C)

    *Cold Start: -13°F (-25°C)

Storage: -40 to 158°F (-40 to 70°C)

Humidity

Operating: 5 to 85% RH, noncondensing

Storage: 5 to 95% RH, noncondensing

Altitude

6562 ft (2000 m), above sea level

Product ID Numbers

The following table lists the field-replaceable PIDs associated with the Sensor Module 10G. If any internal components fail, you must get a return material authorization (RMA). See the Cisco Returns Portal for more information.

Table 4. Sensor Module 10G PIDs

PID

Description

SKY-MOD10G-A

Module 10G - 2xSFP+ - Single Internal AC Power Supply DHCP enabled

SKY-MOD10G-DD

Module 10G - 2xSFP+ - Dual DC Power Supply DHCP enabled

SKY-MOD10G-H-DD

Module 10G - 2xSFP+ - Dual DC Power Supply - Hardened DHCP enabled

SKY-MOD10G-H-A

Module 10G - 2xSFP+ - Single Internal AC Power Supply - Hardened DHCP enabled

Power Cord Specifications

Each AC power input requires a separate power cord. Power cords are available for connection to the Sensor Module 10G.

If you do not order the optional power cord with the system, you are responsible for selecting the appropriate power cord for the product. Using a incompatible power cord with this product may result in electrical safety hazard.

PID

 Description

SKY-PC-NA

 North America – C5 termination

SKY-PC-EUR

 Europe – C5 termination

SKY-PC-UK

 United Kingdom – C5 termination

SKY-PC-JPN

 Japan – C5 termination

SKY-PC-IND

 India – C5 termination

SKY-PC-SIN

 Singapore – C5 termination

SKY-PC-AUS

 Australia / New Zealand – C5 termination

SKY-PC-SWI

 Switzerland – C5 termination

SKY-PC-ITA

 Italy – C5 termination

SKY-PC-ISL

 Israel – C5 termination

SKY-PC-TWN

 Taiwan – C5 termination

SKY-PC-ARG

 Argentina – C5 termination

SKY-PC-BRZ

 Brazil – C5 termination

SKY-PC-C20

 C20 – C5 termination

SKY-PC-C14

 C14 – C5 termination

SKY-PC-CHN

 China – C5 termination

Note

Only the approved power cords for the Sensor Module 10G are supported.
