NSO SMI Automation Function Pack, Release 2025.03.0
NSO SMI Automation Function Pack, Release 2025.03.0
The NSO SMI Automation Function Pack is a collection of multiple packages including the cisco-smi-deployer (previously referred to as the SMI Core Function Pack).
The key highlights of this release include:
● Cluster sync lock support at cluster level: This feature provides the capability to lock a cluster, preventing any cluster synchronization operations from executing on it. Operators can utilize this feature to restrict system changes to specific clusters by applying a synchronization lock on other clusters.
● Preserving remote IP addresses for TACACS authentication: This capability preserves and relays the remote IP address to the TACACS server during authentication flows. The TACACS server then receives this remote IP address, enabling it to log the address and enforce policies based on it.
For more information on SMI AFP, see the Related resources section.
This section provides a brief description of the new software features introduced in this release.
Table 1. New software features for SMI Automation Function Pack, Release 2025.03.0
| Product impact |
Feature |
Description |
| Software Reliability |
Cluster sync lock support at cluster level |
This feature provides the ability to prevent any cluster synchronization operations from executing on a specific cluster. This offers an additional layer of protection in multi-cluster deployments and complex workflows, safeguarding against unintentional changes that could impact service. |
| Software Reliability |
Ops-center enhancements for TACACS - remote IP and logging |
This feature provides the capability to relay the remote IP address of a device or user logging into the Ops center (via SSH or NETCONF) to the TACACS server during authentication, enabling the TACACS server to log this IP and enforce policies based on it. |
There are no behavior changes in this release.
This table lists the resolved issues in this specific software release.
Note: This software release may contain bug fixes first introduced in other releases. To see additional information, click the bug ID to access the Cisco Bug Search Tool. To search for a documented Cisco product issue, type in the browser: <bug_number> site:cisco.com
Table 2. Resolved issues for SMI Automation Function Pack, Release 2025.03.0
| Bug ID |
Description |
| Cilium when enabled from CFP does not work anymore |
This table lists the open issues in this specific software release.
Note: This software release may contain open bugs first identified in other releases. To see additional information, click the bug ID to access the Cisco Bug Search Tool. To search for a documented Cisco product issue, type in the browser: <bug_number> site:cisco.com
Table 3. Open issues for SMI Automation Function Pack, Release 2025.03.0
| Bug ID |
Description |
| SMI AFP does not allow configuring functions without static NETCONF and SSH ports. |
This section lists compatibility information of the Cisco UCC software products that are verified to work with this version of the NSO SMI AFP software.
Table 4. Compatibility information for SMI Automation Function Pack, Release 2025.03.0
| Product |
Supported release |
| CEE |
2025.03.1.i08 |
| PCF |
2025.03.0.i37 |
| RCM |
2025.03.0.i48 |
| SMF+cnSGWc |
2025.03.0.i108 |
| UPF |
21.28.m36.98553 |
The NSO SMI AFP software is compatible with the following operating systems:
Table 5. Compatible operating systems for NSO SMI AFP software
| OS |
Minimum server configuration |
Version |
| Ubuntu |
CPU: 8 Cores RAM: 64 GB Disk: 250 GB |
18.04 LTS |
| Red Hat |
CPU: 8 Cores RAM: 64 GB Disk: 250 GB |
7.3 (Maipo) |
| CentOS |
CPU: 8 Cores RAM: 64 GB Disk: 250 GB |
7.4 (Core) |
| MacOS |
CPU: 8 Cores RAM: 64 GB Disk: 250 GB |
10.12.6 |
Note the following product, platform, and runtime requirements for this release:
● NSO: 6.4.5.1
● SMI: 2025.03.1.10
● Python: 3.12.x
This section provides information about the release packages associated with NSO SMI AFP.
Table 6. Software packages for SMI Automation Function Pack, Release 2025.03.0
| Software package |
Release |
| ncs-6.4.5.1-nso-smi-afp-2025.03.0.tar.SPA.tgz |
SMI AFP version: 2025.03.0 |
| cisco-ccg-nc-1.0 |
1.0 |
| cisco-cee-nc-1.1 |
1.1.2 |
| cisco-dvpc-nc-1.0 |
1.0 |
| cisco-etsi-nfvo |
4.7.7 |
| cisco-nrf-nc-1.0 |
1.0 |
| cisco-pcf-nc-1.1 |
1.1 |
| cisco-rcm-nc-1.0 |
1.0 |
| cisco-smf-nc-1.1 |
1.1 |
| cisco-smi-deployer |
2025.03.0 |
| cisco-smi-dvpc |
1.0 |
| cisco-smi-nc-1.1 |
1.1.1 |
| cisco-staros-cli-5.55 |
5.55 |
| esc |
5.3.0.94 |
| etsi-sol003-gen-1.13 |
1.13.19 |
| mobility-common |
3.5.2 |
| mop-automation |
3.5.2 |
| mop-common |
3.5.2 |
| openstack-cos-gen-4.2 |
4.2.34 |
| resource-manager |
4.2.10 |

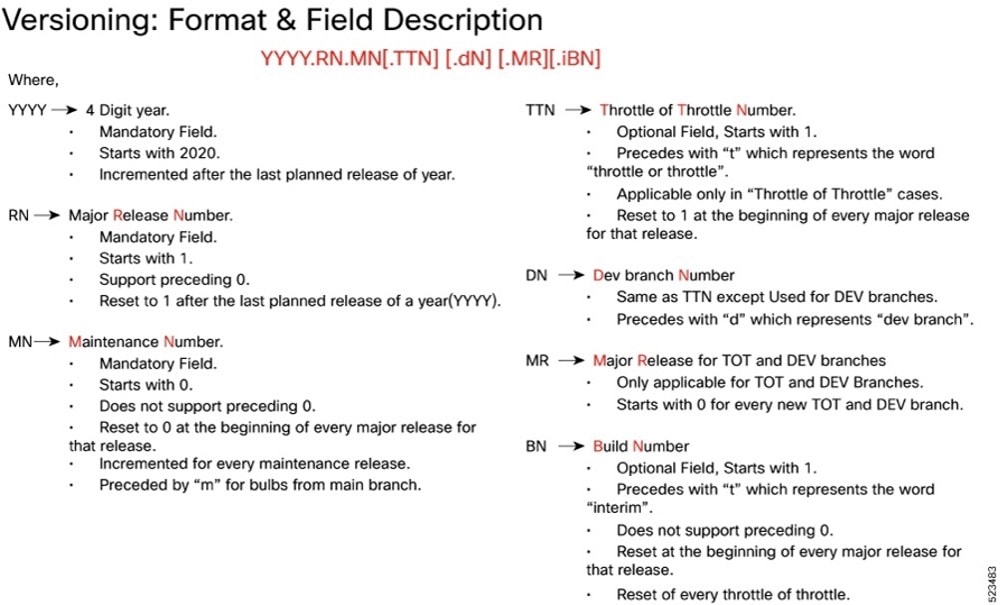

Cloud native product version numbering system
The show helm list command displays detailed information about the version of the cloud native product currently deployed.

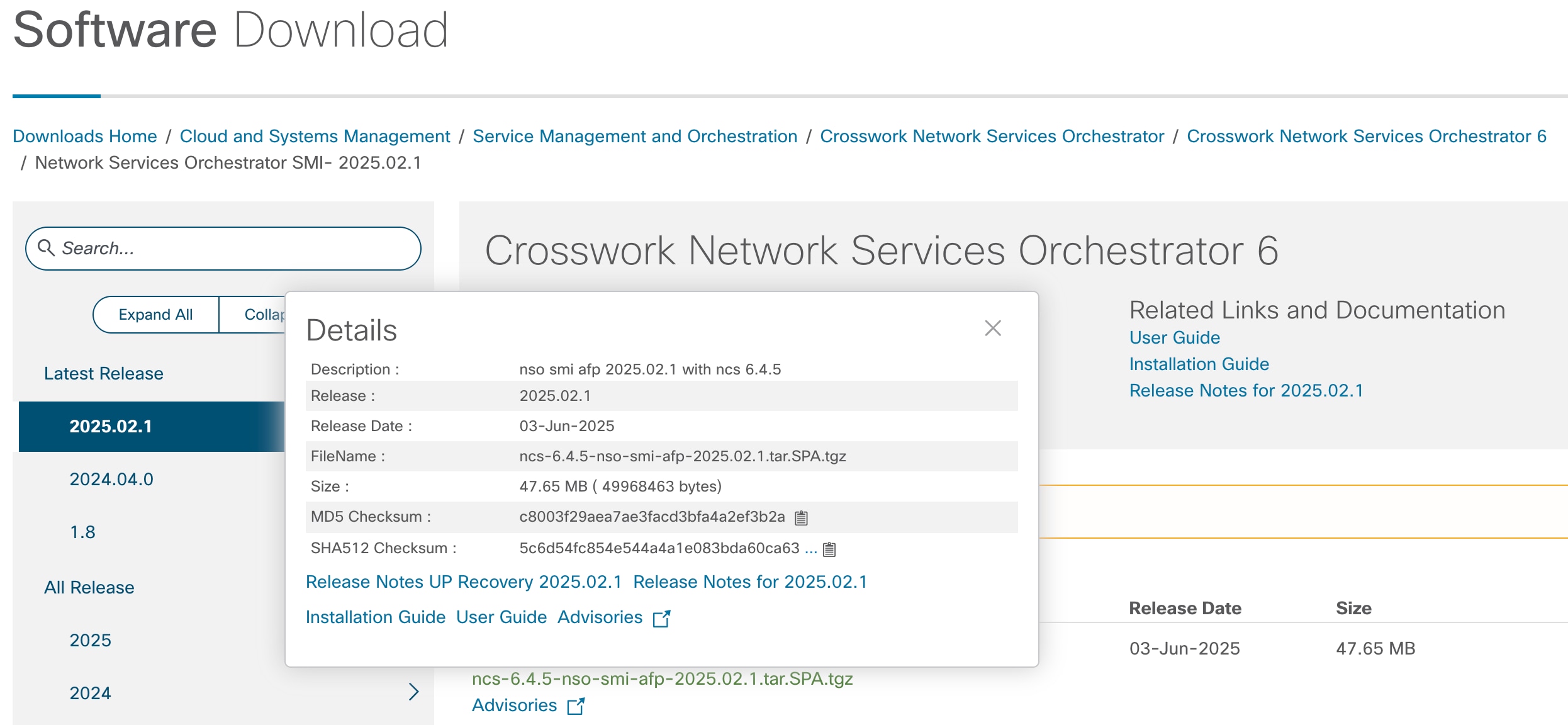

Image checksum information is available through Cisco.com Software Download Details. To find the checksum, hover the mouse pointer over the software image you have downloaded.
To validate the information, calculate a SHA512 checksum using the information in the following table and verify that it matches the one provided on the software download page.
To calculate a SHA512 checksum on your local desktop, see this table.
Table 7. Checksum calculations per operating system
| Operating System |
SHA512 checksum calculation command examples |
| Microsoft Windows |
Open a command line window and type the following command: > certutil.exe -hashfile <filename.extension> SHA512 |
| Apple MAC |
Open a terminal window and type the following command: $ shasum -a 512 <filename.extension> |
| Linux |
Open a terminal window and type the following command: $ sha512sum <filename.extension> OR $ shasum -a 512 <filename.extension> |
| Note: <filename> is the name of the file. <extension> is the file type extension (for example, .zip or .tgz). |
|
If the SHA512 checksum does not match, we advise you not to attempt upgrading any systems with the corrupted software image. Download the software again and verify the SHA512 checksum again. If there is a constant mismatch, please open a case with the Cisco Technical Assistance Center.
NSO SMI AFP software images are signed via x509 certificates. Please view the .README file packaged with the software for information and instructions on how to validate the certificates.
This table provides key resources and links to the support information and essential documentation for SMI AFP.
Table 8. Related resources and additional information
| Resource |
Link |
| NSO SMI AFP documentation |
|
| Service request and additional information |
