Dashboard Studio show 12:00AM time on X-axis

Available Languages

Updated:September 29, 2026
Document ID:SPLK047274

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Applicability

Splunk Enterprise 9.2.1

Description

Dashboard Studio DB is showing 12:00AM time on X-axis for a months long bar chart,  showing also some grouping of events over several months. Most users just see the month and the year in the x-axis as expected for _time (as it should show), but other users are seeing the month, year, and also a time of 12:00AM on X-axis.

Examples:

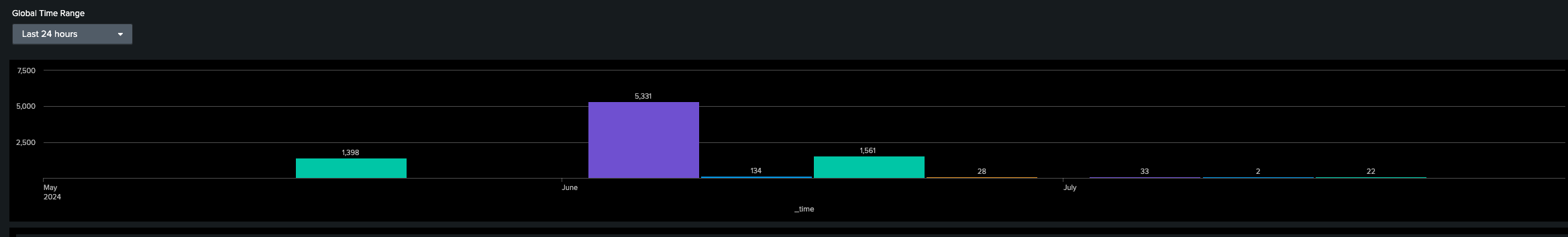

Expected dashboard view:

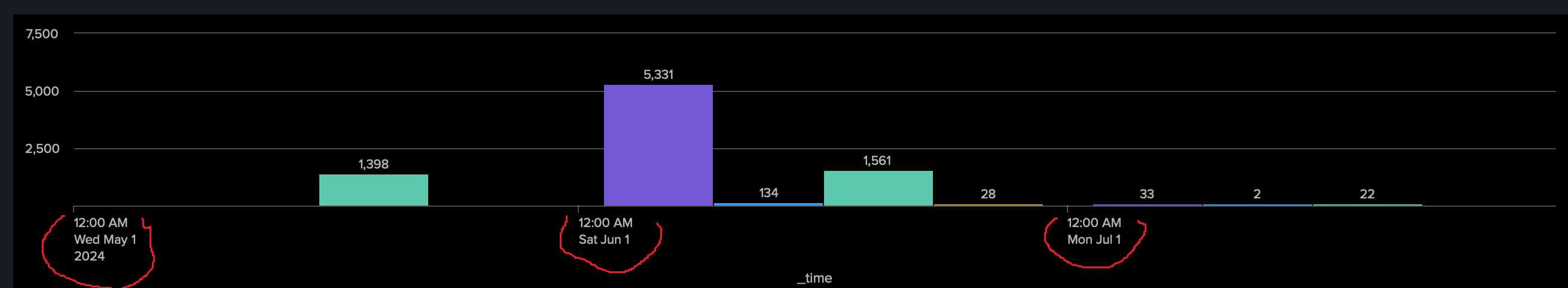

Unexpected results:


Investigation

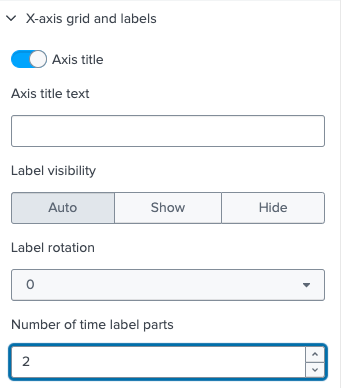

Even when the 'Number of Time Label Parts' is set to 2 ( year and month) in the affected dashboard's settings under the X-axis grid and labels section, the issue persists, confirming it as a known issue.

1 = year
2 = year and month
3 = year, month, and time


Resolution

Some users are seeing different time formats due to having different serializedTimeszone, and that is causing a different timezone offset in @splunk/visualizations(@splunk/charting) – leading to different inconsistent time formatting behaviors - showing 12:00am vs. not showing.

It's currently expected behavior.

Revision History

Revision Publish Date Comments
1.0
29-Sep-2026
Initial Release
