Introduction

This document describes the analysis and processing of EIGRP Convergence Time in Catalyst 8500 Dual-Link Failure Scenarios.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• Enhanced Interior Gateway Routing Protocol (EIGRP) concepts and functionality

Components Used

• Cisco Catalyst C8500-12X Edge Platform in version 17.12.05a
• Cisco Catalyst C9500 switch in version 17.12.05a

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

EIGRP Background

Problem Background

Problem Description

The issue behavior: After administratively shutting down two EIGRP interfaces simultaneously, one of the routes associated with those interfaces could still be observed in the routing table for a short period. The expected is that all routes learned through the two failed interfaces would disappear immediately after both interfaces were shut down.

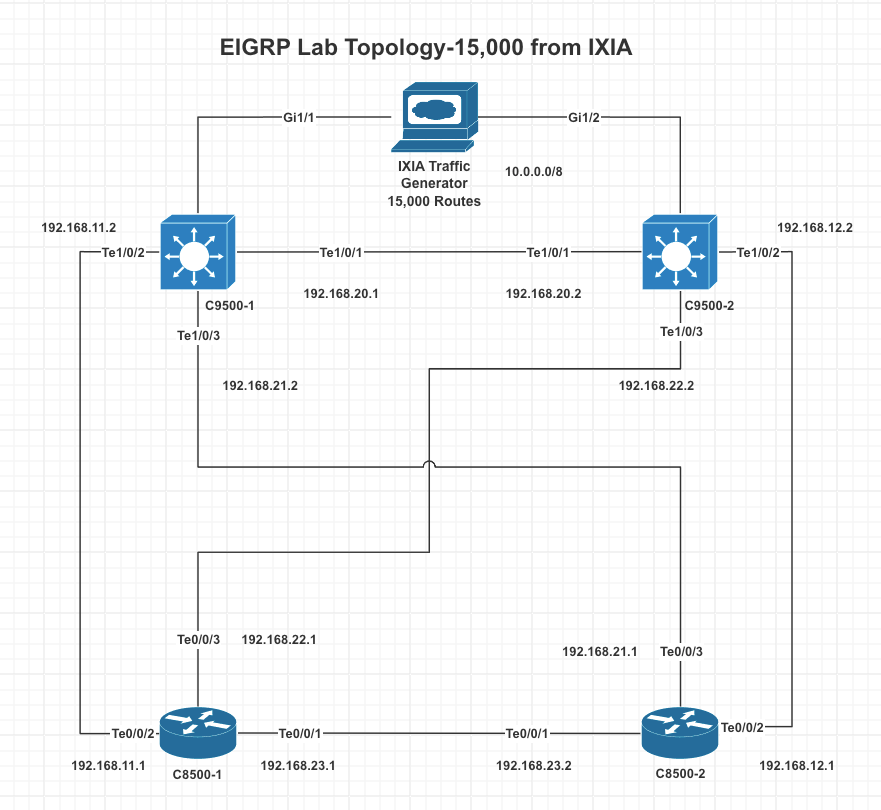

Topology

The IXIA traffic generator advertised 15,000 routes into the EIGRP domain to simulate a production-scale routing environment.

Conclusion

This behavior is expected and is caused by the EIGRP DUAL (Diffusing Update Algorithm). It is not a software defect.

When multiple interfaces fail almost simultaneously, DUAL attempts to install an alternate feasible path before initiating a full network-wide recomputation. As a result, the routing table can temporarily display a route through another available successor or feasible successor until the topology converges.

Test Procedure

The debugs were enabled on C8500-1 before shutting down two interfaces simultaneously.

debug eigrp fsm
debug eigrp neighbor
debug eigrp packets
debug ip routing
debug ip eigrp

The interfaces were then shut down simultaneously.

C8500-1(config)#interface range Te0/0/2, Te0/0/3
C8500-1(config-if-range)#shutdown

Expected DUAL Processing

The sequence of events observed during convergence is shown here.

Step 1 – Interfaces Go Down

Once the interfaces are administratively shut down:

• Interface state changes to DOWN.
• Connected routes are immediately removed.
• Neighbor adjacency is declared down.
• DUAL starts topology recalculation.

Example debug:

RT: interface Te0/0/2 removed from routing table
RT: interface Te0/0/3 removed from routing table
%DUAL-5-NBRCHANGE: EIGRP-IPv4 500: Neighbor 192.168.11.2 (TenGigabitEthernet0/0/2) is down: interface down
%DUAL-5-NBRCHANGE: EIGRP-IPv4 500: Neighbor 192.168.22.2 (TenGigabitEthernet0/0/3) is down: interface down
%LINK-5-CHANGED: Interface TenGigabitEthernet0/0/2, changed state to administratively down
%LINK-5-CHANGED: Interface TenGigabitEthernet0/0/3, changed state to administratively down

At this point the original successor becomes invalid.

C8500-1#show ip route eigrp
   10.0.0.0/24 is subnetted, 15000 subnets
D        10.0.0.0 [90/256768] via 198.168.23.2, 00:00:00, TenGigabitEthernet0/0/1
D        10.0.1.0 [90/256768] via 198.168.23.2, 00:00:01, TenGigabitEthernet0/0/1
D        10.0.2.0 [90/256512] via 192.168.22.2, 00:00:02, TenGigabitEthernet0/0/3                  <<<<<< not disappear directly
D        10.0.3.0 [90/256768] via 198.168.23.2, 00:00:01, TenGigabitEthernet0/0/1
D        10.0.4.0 [90/256512] via 192.168.22.2, 00:00:02, TenGigabitEthernet0/0/3                  <<<<<< not disappear directly
D        10.0.5.0 [90/256512] via 192.168.22.2, 00:00:02, TenGigabitEthernet0/0/3                  <<<<<< not disappear directly
D        10.0.6.0 [90/256768] via 198.168.23.2, 00:00:00, TenGigabitEthernet0/0/1
D        10.0.7.0 [90/256768] via 198.168.23.2, 00:00:00, TenGigabitEthernet0/0/1
D        10.0.8.0 [90/256768] via 198.168.23.2, 00:00:01, TenGigabitEthernet0/0/1
D        10.0.9.0 [90/256768] via 198.168.23.2, 00:00:00, TenGigabitEthernet0/0/1
D        10.0.10.0 [90/256512] via 192.168.22.2, 00:00:03, TenGigabitEthernet0/0/3                 <<<<<< not disappear directly
D        10.0.11.0 [90/256512] via 192.168.22.2, 00:00:03, TenGigabitEthernet0/0/3                 <<<<<< not disappear directly
D        10.0.12.0 [90/256512] via 192.168.22.2, 00:00:03, TenGigabitEthernet0/0/3

Step 2 – DUAL Searches for an Alternate Path

Before flooding queries throughout the network, DUAL checks its topology table for another valid successor.

Example topology information:

Next Hop	Status
192.168.11.2	Original Successor (Failed)
192.168.22.2	Best Alternate Path
198.168.23.2	Feasible Successor

The debug shows:

Find FS for destination

EIGRP-IPv4(500): 192.168.11.2 metric INF/INF (invalid)
EIGRP-IPv4(500): 192.168.22.2 metric 256512/256256
EIGRP-IPv4(500): 198.168.23.2 metric 256768/256512

DUAL therefore selects 192.168.22.2（metric = 256512）as the new successor.

Step 3 – Temporary Route Installation

The routing table is updated immediately.

RT: delete route to 10.0.0.0 via 192.168.11.2
RT: updating eigrp 10.0.0.0/8 via 192.168.22.2
...
RT: rib update return code: 19
EIGRP-IPv4: routing table not updated thru 192.168.23.2

Although another path through 192.168.23.2 already exists, it is not installed, because a better metric is still available.

Therefore, users can observe that the route still exists even though one of the failed interfaces has already been shut down.

This is the behavior that caused the network administrator concern.

Step 4 – Second Path Also Fails

The second interface subsequently goes down.

%DUAL-5-NBRCHANGE: Neighbor 192.168.22.2 is down

At this moment:

• Current successor disappears.
• No immediate valid successor remains.
• DUAL enters Active state.

RT: delete route to 10.0.0.0 via 192.168.22.2
RT: no routes to 10.0.0.0, delayed flush

Step 5 – DUAL Receives Reply

DUAL sends Queries and waits for Replies from remaining neighbors.

A remaining neighbor replies with an alternate path.

EIGRP: Received REPLY on Te0/0/1 from 192.168.23.2
...
RT: add 10.0.0.0/8 via 192.168.23.2, eigrp metric [90/256768]

The new successor is then installed.

Step 6 – Network Reconverges

Once convergence completes, EIGRP advertises the updated topology.

Send UPDATE
Advertise out Te0/0/1

All neighbors receive the new topology information.

The network returns to a stable state.

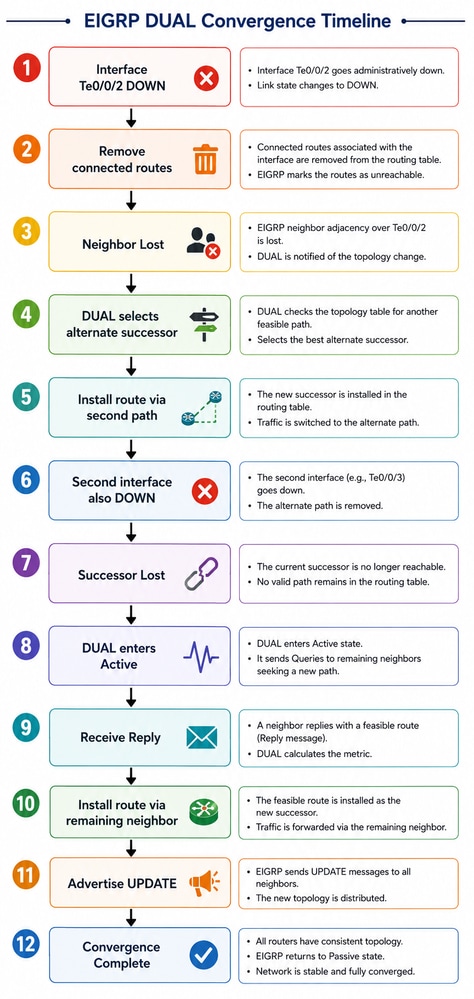

Convergence Timeline

Why Does the Route Still Exist

The key reason is that DUAL does not immediately remove a destination if another valid successor or feasible successor is available.

Instead, DIGRP attempts to preserve forwarding continuity by switching traffic to another available path before initiating a complete topology recomputation.

Therefore, after the first interface failure:

• The original route disappears.
• A better alternate path is installed immediately.
• The destination remains present in the routing table.

Only after the second alternate path also becomes unavailable does DUAL begin another recomputation and install the final available path.

This behavior is fully consistent with the EIGRP design objective of fast convergence.

Key DUAL Concepts

Term	Description
Successor	Current best loop-free route installed in the routing table.
Feasible Successor	Backup loop-free route stored in the topology table.
Feasible Distance (FD)	Lowest calculated metric to a destination.
Reported Distance (RD)	Metric advertised by a neighbor.
Active State	DUAL is searching for a new path.
Passive State	Route is stable.
Reply Count	Number of outstanding replies before convergence completes.
Metric = Infinity	Indicates the route is no longer reachable.
RIB Return Code 19	The candidate route was not installed because a better route already exists in the RIB

Final Conclusion

The observed behavior is expected EIGRP DUAL behavior rather than a routing anomaly.

When two interfaces are shut down in rapid succession:

1. EIGRP immediately removes routes associated with the failed interface.
2. DUAL installs the best available alternate successor.
3. The destination remains visible in the routing table because an alternate path is available.
4. If that alternate path also fails, DUAL performs another recomputation.
5. After receiving Replies from remaining neighbors, a new successor is installed and convergence completes.

Therefore, the observation that one route remains in the routing table after simultaneously shutting down two interfaces is a normal result of the DUAL convergence process and does not indicate a software defect.
