Cisco Catalyst 9500 Series Switches Ordering Guide
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Before placing an order, review the following information:
● The Cisco Catalyst 9500 Series offer structure has three main components: the switch hardware, a Network stack perpetual license, and choice between a Cisco Catalyst Software Subscription or Cisco DNA subscription (DNA).The Software subscriptions and the Network Stack perpetual licenses are smart product IDs (SKUs). The subscription, which comes with a perpetual license, is required with a hardware purchase.
● A Smart Account is mandated during purchase (for more information, please see the Smart Accounts section).
● Available service options:
◦ Solution support
◦ Enhanced Limited Lifetime Warranty (E-LLW)
◦ Smart Net Total Care support (SNTC)
◦ Success Tracks (Cisco CX)
◦ Included base product-level support (Catalyst Software Subscription)
Cisco Catalyst 9500 Series highlights
Cisco Catalyst 9500 Series switches are Cisco’s lead fixed enterprise core and aggregation switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9500 Series, including the new Catalyst 9500X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
This document is aimed at providing a detailed overview of the ordering process for Cisco Catalyst 9500 Series switches on Cisco Commerce Workspace.
Hardware and software order overview
Cisco Catalyst 9500 Series switches can be ordered through Cisco Commerce Workspace (CCW) as a Cisco Catalyst or DNA Essentials or Advantage subscription. Both options include switch hardware coupled with Cisco IOS-XE and the Network Stack software.
What is the difference between the Catalyst and Cisco DNA software subscription for Switching?
The Catalyst Software Subscription for Switching includes base software and hardware support for the Essentials and Advantage tiers. This support delivers a four-hour TAC response objective for severity 1 and 2 service requests. In addition, if you opt for the Advantage tier, you also receive ISE licenses (quantity dependent on switch model). Catalyst 9500 series receive 10 endpoint sessions per Catalyst Advantage license.
| Eligible product families* |
Cisco Catalyst 9600 Series |
Cisco Catalyst 9500 Series |
Cisco Catalyst 9400 Series |
Cisco Catalyst 9300 Series |
| ISE quantity per Advantage license |
40 endpoint sessions for ISE |
10 endpoint sessions for ISE |
40 endpoint sessions for ISE |
10 endpoint sessions for ISE |
The Cisco DNA software subscription for Switching includes base support for software only (not hardware), delivering a one-hour TAC response objective for severity 1 and 2 service requests. RMAs are also accessed through the Catalyst warranty program. In addition, the Cisco DNA software subscription does not include ISE licenses.
Note that for both the Cisco DNA and Catalyst software subscriptions for Switching:
● Cisco DNA features and tier levels (Essentials, Advantage) remain the same.
● Hardware replacements are accessed separately through the Catalyst warranty program.1
Software licenses
Table 1. License matrix
|
|
Cisco Catalyst Software Subscription new |
Cisco DNA subscription |
Network Advantage |
Network Essentials |
|
| Packages1 |
3, 5 or 7 Year Terms |
3, 5 or 7 Year Terms |
Perpetual |
Perpetual |
|
| Tiers |
Advantage, Essentials |
Advantage, Essentials |
Advantage, Essentials |
Advantage, Essentials |
|
| Portability2 |
ü |
ü |
ü |
ü |
|
| Management options |
Catalyst Center, Meraki Dashboard |
Catalyst Center, Meraki Dashboard |
CLI, Web UI |
CLI, Web UI |
|
| Included support |
Base product-level support for Hardware, Software and OS |
Software support (SWSS) |
× |
× |
|
| Included3 add-ons: Common ISE policy, Thousand Eyes network and application assurance, Cisco Spaces |
× |
× |
× |
× |
|
| Included ISE endpoint licenses |
10 |
× |
× |
× |
|
Catalyst Software Subscription feature matrix
For the latest features, please view the Switching feature matrix.
How to order a Cisco Catalyst 9500 Series switch
Both a network stack license and Catalyst Software Subscription or Cisco DNA subscription are mandatory at the time of purchase and come in two licensing tier options: Essential (-E) and Advantage (-A). Network Stack Essential or Advantage comes embedded in the hardware, while a Catalyst Software Subscription or Cisco DNA term license needs to be selected at the time of order.
To order in the Cisco Commerce Workspace, follow these steps:
1. Select the appropriate C9500 or C9500X -E or -A device for the desired license type.
2. Choose the preferred consumption model Cisco DNA Advantage or Essentials.
3. Choose the Cisco DNA term license (3, 5, or 7 years).
4. Add other components (for example, secondary power supply, power cables, IOS Software version, SSD and so on).
Step-by-step ordering in Cisco commerce workspace
Enter the hardware PID in Cisco Commerce Workspace.
The Network Stack license is perpetual and embedded in the hardware by default (it will not be visible in the selection menu) and aligns with the hardware PID (-E/-A).
A Catalyst Software Subscription or Cisco DNA Essentials or Advantage subscription option is available for selection and is mandatory. Customers are encouraged to purchase the Cisco Catalyst Software Subscription option to enable advanced Cisco Networking solutions. Base product-level support for Hardware, Software and OS.
For Cisco Software Subscription (preferred), the term-based Cisco DNA license can be a 3, 5 or 7 year term. A Cisco Software Subscription term is mandatory (customers must select one of the term options to complete the configuration).
Note: Cisco DNA Subscription must be deselected by using “Clear Section”, when ordering Cisco Software Subscription.
For Cisco DNA Advantage, the term-based Cisco DNA license is preselected to the 5 year term by default but can be changed to a 3 or 7 year term. A Cisco DNA Software term license is mandatory (customers must select one of the term options to complete the configuration).
A selection of minimum quantity of 1 from Software is mandatory to complete the configuration:
The primary power supply is added by default, based on the hardware model:
A secondary power supply is selected by default. Please select the C9500-SPS-NONE option if a secondary power supply is not required.
A power cable must be selected to complete the configuration:
For C9500X, an option is provided to select the desired direction of airflow (Note: 6 front to back cooling Fans selected by default and can be changed to 6 back to front cooling Fans):
Default accessories shipped with the box
Cisco Catalyst 9500 Series switches ships with the following components and accessories by default:
● Switch.
● Default power supply (based on selected switch).
● Power cable.
● Accessories (19” Mounting brackets, cable guide etc. as described in the Catalyst 9500 Hardware Installation Guide).
Cisco Catalyst 9500 Series switch hardware is available with Catalyst Software Subscription or Cisco DNA Advantage. For a full list of features, please visit the Switching Feature Matrix: https://www.cisco.com/c/m/en_us/products/software/dna-subscription-switching/en-sw-sub-matrix-switching.html?OID=otren019471.
Introduction to Smart Licensing
Cisco Smart Licensing is a flexible licensing model that provides you with an easier, faster, and more consistent way to purchase and manage software across the Cisco portfolio and across your organization. And it’s secure – you control what users can access. With Smart Licensing you get:
● Easy Activation: Smart Licensing establishes a pool of software licenses that can be used across the entire organization—no more PAKs (Product Activation Keys).
● Unified Management: My Cisco Entitlements (MCE) provides a complete view into all of your Cisco products and services in an easy-to-use portal, so you always know what you have and what you are using.
● License Flexibility: Your software is not node-locked to your hardware, so you can easily use and transfer licenses as needed.
To use Smart Licensing, you must first set up a Smart Account on Cisco Software Central (software.cisco.com).
For a more detailed overview on Cisco Licensing, go to cisco.com/go/licensingguide.
Upgrading license level
Customers will be able to upgrade the network stack license and Catalyst Software Subscription or Cisco DNA subscription license levels (for example, -E to -A license upgrade). Customers will be credited for the remainder of the term. Customers will purchase the upgrade license and then reach out to CPS (Cisco Partner Services) to initiate the upgrade process, which includes the license-level upgrade and credit.
Note that a license cannot be upgraded at the time of purchase.
Things to know:
● Smart License enabled refers to Cisco offers that have Smart Software Licensing capabilities.
● Smart Account assignments at the time of order are mandatory. Customers benefit from Smart Software Licensing capabilities across their entire Cisco Smart Software License-enabled installed base all appearing in a central location: their Smart Account.
● Cisco Smart Software Manager (SSM) will enable the management of Cisco catalyst 9500 Series switch software licenses.
● Smart License consumption visibility will only be available when the switch supports the Smart Licensing technology via the Entitlement Portal.
A Smart Account is a central data repository that provides visibility and access control to all of Cisco software licenses and entitlements across an organization. Smart Accounts allow you to store, manage, and move assets from one place to another and begin to use them immediately. Smart Accounts are crucial to helping enable Cisco Smart Software Licensing. With Smart Software Licensing, capabilities extend across an entire organization:
● Operations Exchange site featuring Smart Account overviews and training sessions; navigate to the Smart Account Resources panel on the page
After a Smart Account has been set up, customers have the flexibility to create subaccounts (virtual accounts) to help manage licenses for departments, areas, or locations within their organization. Licenses can be pooled within virtual accounts as needed. Smart Accounts have role-based user access controls, which allow the delegation of authority to account administrators at the Smart Account level or at the virtual account level. In addition, customers can manage partner visibility and management rights to your virtual or enterprise-level accounts.
To learn how to create Smart Accounts, visit https://www.cisco.com/c/en/us/buy/smart-accounts.html.
Smart Licensing is a cloud-based license management platform built to simplify the purchase, deployment, and management of Cisco software assets. Entitlements are immediately deposited into a customer’s virtual account for use. This eliminates the need to install license files on every device. Products that are Smart License enabled communicate to Cisco to report consumption. The primary location for managing product registration and monitoring Smart License (SL) consumption is the Cisco Smart Software Manager. License ownership and consumption are readily available to help customers make better purchase decisions based on consumption or other business needs.
Cisco Smart Software Manager
Cisco Smart Software Manager enables the management of software licenses. The interface allows customers to activate their product, manage entitlements, and renew and upgrade software. An active Smart Account is required to complete the Smart License registration process.
To learn more about end-to-end Smart Account and Smart License management, visit https://www.cisco.com/c/en/us/buy/smart-accounts/software-manager.html.
Smart Accounts and Smart Licensing availability
Important information about Smart Account and Smart License availability
● C9500 and C9500X PIDs are smart PIDs, but the switch will operate in RTU mode by default. License entitlements will be deposited in the Cisco Smart Software Manager and the Smart Account. In addition to viewing entitlements, customers will be able to track consumption.
● Smart Accounts are mandatory. If a customer does not have a Smart Account set up prior to the purchase, a new Smart Account must be created at the time of purchase.
Deploying smart licenses for Cisco Catalyst 9500 Series switches
Cisco Catalyst 9500 Series switches come in different licensing packages in comparison to existing Cisco Catalyst platforms. The ordering process will include a requirement to establish a Smart Account where software licenses will be deposited. Smart Licenses are transferable between the same type of devices (for example, from C9500 to C9500 switches). (See Figure 2.)
Smart licensing model
In the deployment model in Figure 2, the Smart Account Cisco back end and Cisco Catalyst 9500 Series switches do not have a communication channel to report usage and consumption. They operate as separate entities. The switches must be configured in RTU mode with correct license level to enable the purchased feature set:
● Consumption reporting: License usage and consumption are performed on Cisco Smart Software Manager only when the device has capability to report Smart License usage.
For further references about the Cisco Catalyst 9000 RTU licensing model, refer to the Configuration Guide.
Software-Defined Access (SD-Access)
Software-Defined Access (SD-Access) enables policy-based automation from edge to cloud with foundational capabilities using controller-based architecture, including design with validated design templates, simplified device deployment, unified management of wired and wireless, network virtualization with segmentation, group-based policies, and contextual-based analytics.
SD-Access can be enabled via individual Cisco DNA Advantage.
The Solution Support service option is strongly recommended; it provides coverage for a Cisco DNA Essentials and Advantage software licenses. Additional product-level hardware support options are available: Smart Net Total Care (SNTC) support, partner service support (PSS), and enhanced limited lifetime hardware warranty. It is strongly recommended that the term of the hardware support contract match the software subscription license term to avoid any service support gaps for the duration of the term.
With a Catalyst Software Subscription, base product-level hardware and software support is included.
How does the base product-level support for software and hardware included in the Catalyst Switch software subscription differ from Cisco Smart Net Total Care (SNTC) and Software Support Services (SWSS)?
The base product-level support for software and hardware support included in the Catalyst Switch software subscription delivers the same features and benefits you experience today with Smart Net Total Care and Software Support Basic except as follows:
● The Cisco TAC response objective for severity 1 and 2 service requests is:
◦ Four hours, compared to one hour for Smart Net Total Care and Software Support Basic), and
◦ Next Business Day (NBD) where commercially available for severity 3 and 4 service requests, compared to one hour for Smart Net Total Care during business hours and next business day outside of business hours, and next business day for Software Support Basic during and outside of business hours).
● Hardware replacements are accessed through the Catalyst warranty program1, compared to a choice of eight RMA service-level options offered through Smart Net Total Care and Software Support Basic.
What are my support service options if I need faster response objectives for critical issues, more hardware RMA options, and/or higher levels of support than what’s included in the Catalyst Switch software subscription?
Because your enterprise network is the cornerstone of your IT and business, we recommend Cisco Success Tracks and CX Cloud, which is the one-stop, unified digital interface to Success Tracks.
Success Tracks is designed to accelerate adoption and maximize value for the security, automation, and assurance capabilities in your Cisco enterprise network. It also fulfills your need for faster response objectives (30 minutes for severity 1 and 2 service requests) and all of Cisco’s RMA options (eight, as fast as two hours).
Can you tell me more about Success Tracks and CX Cloud?
Success Tracks is a set of comprehensive services accessed through the unified digital platform, CX Cloud. It offers streamlined, personalized access to Cisco experts and customized content that can help you simplify solution adoption, resolve complex issues faster than single product-focused support, and optimize your IT environment through:
● Expert Resources: Expert guidance, best practices, and proven methodologies for a successful path to adoption.
● Trusted Support: Prescriptive support to detect, prevent, and efficiently solve complex hardware, software, and multi-product, multi-vendor issues through a Cisco primary point of contact who streamlines the support experience across your Cisco enterprise network.
● Insights and Analytics: Telemetry and intelligence with analytics that provide proactive and predictive insights and guided recommendations to help you solve problems faster and optimize operations.
● Contextual Learning: Digital learning resources, tailored instructor-led training, certification prep and virtual practice labs, designed to expand a workforce’s skillset and capacity to achieve business outcomes faster and more efficiently.

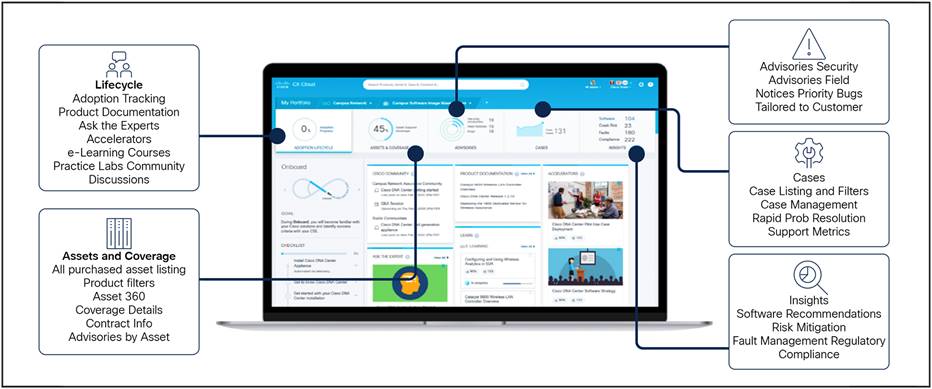

CX Cloud
To see how Success Tracks can drive faster adoption and ROI for your Catalyst-based enterprise network, connect with your Cisco representative and request a CX Cloud demo.
|
|
|
Existing included support |
Smart Net Total Care |
New included support |
Success Tracks Level 1 |
| Expert resources |
Communities |
Cisco Community |
Cisco Community |
Cisco Community |
Cisco and Success Tracks Community |
| Success tips |
|
|
|
|
|
| Ask the experts (1:many interactive webinars) |
|
|
|
|
|
| Support |
24/7 access to the Cisco TAC for software, hardware, iOS support |
Cisco Catalyst software only |
Cisco Catalyst hardware only |
|
|
| Software, PAK IOS-XE updates |
Software |
IOS-XE |
|
|
|
| Hardware RMA |
Warranty-level |
8 options |
Warranty-level |
8 options |
|
| Service request response objectives for Severity 1 and 2 cases |
1 hour |
1 hour |
4 hours |
30 minutes |
|
| TAC engineer focused on software OR hardware/iOS |
|
|
|
|
|
| TAC engineer focused across software and hardware/IOS-XE and multivendor products |
|
|
|
|
|
| No triage required to open a case |
|
|
|
|
|
| Case prioritization over SNTC, SWSS, included support service requests |
|
|
|
|
|
| Insights and analytics |
Adoption view |
|
|
|
|
| Assets and license view |
|
Via SNTC portal |
|
|
|
| Case management |
|
Via SNTC portal |
|
|
|
| Security advisories, field notices, priority bugs |
|
|
|
|
|
| Rapid problem resolution |
|
|
|
|
|
| Contextual learning |
E-learning (on demand courses) |
|
|
|
|
Comparison of Cisco support models for Cisco Catalyst Software Subscriptions.
Cisco Enhanced Limited Lifetime hardware Warranty
Cisco Catalyst 9500 Series switches come with an Enhanced Limited Lifetime hardware Warranty (E-LLW) that includes Next-Business-Day (NBD) delivery of replacement hardware where available and 90 days of 8x5 Cisco Technical Assistance Center (TAC) support.
Tables 2 provides ordering information for switches, Cisco DNA Software licenses
Table 2. Switches and Cisco DNA subscription software
| Hardware Product number |
Product description |
License type |
3 year |
5 year |
7 year |
| C9500X-60L4D-A |
Cisco Catalyst 9500X switch with 60x 10/25/50G SFP56 ports + 4x 40/100/200/400G Advantage |
Cisco DNA Advantage License |
C9500X-DNA-A-3Y |
C9500X-DNA-A-5Y |
C9500X-DNA-A-7Y |
| C9500X-28C8D-A |
Catalyst 9500X 28x100G + 8x400G, Advantage |
Cisco DNA Advantage License |
C9500X-DNA-A-3Y |
C9500X-DNA-A-5Y |
C9500X-DNA-A-7Y |
| C9500X-28C8D-E |
Catalyst 9500X 28x100G + 8x400G, Essential |
Cisco DNA Essential License |
C9500X-DNA-E-3Y |
C9500X-DNA-E-5Y |
C9500X-DNA-E-7Y |
| C9500-12Q-A |
Cisco Catalyst 9500 12-port 40G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-L-A-3Y |
C9500-DNA-L-A-5Y |
C9500-DNA-L-A-7Y |
| C9500-12Q-E |
Cisco Catalyst 9500 12-port 40G switch, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-L-E-3Y |
C9500-DNA-L-E-5Y |
C9500-DNA-L-E-7Y |
| C9500-16X-A |
Cisco Catalyst 9500 16-port 10G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-L-A-3Y |
C9500-DNA-L-A-5Y |
C9500-DNA-L-A-7Y |
| C9500-16X-E |
Cisco Catalyst 9500 16-port 10G switch, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-L-E-3Y |
C9500-DNA-L-E-5Y |
C9500-DNA-L-E-7Y |
| C9500-16X-2Q-A |
Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-L-A-3Y |
C9500-DNA- L-A-5Y |
C9500-DNA- L-A-7Y |
| C9500-16X-2Q-E |
Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-L-E-3Y |
C9500-DNA-L-E-5Y |
C9500-DNA- L-E-7Y |
| C9500-24Q-A |
Cisco Catalyst 9500 24-port 40G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-24Q-E |
Cisco Catalyst 9500 24-port 40G switch, NW Essentials License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-24X-A |
Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-L-A-3Y |
C9500-DNA-L-A-5Y |
C9500-DNA-L-A-7Y |
| C9500-24X-E |
Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-L-E-3Y |
C9500-DNA-L-E-5Y |
C9500-DNA-L-E-7Y |
| C9500-24Y4C-A |
Cisco Catalyst 9500 High Performance 24-port 25G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-L-A-3Y |
C9500-DNA-L-A-5Y |
C9500-DNA-L-A-7Y |
| C9500-24Y4C-E |
Cisco Catalyst 9500 High Performance 24-port 25G switch, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-L-E-3Y |
C9500-DNA-L-E-5Y |
C9500-DNA-L-E-7Y |
| C9500-32C-A |
Cisco Catalyst 9500 High Performance 32-port 100G switch, NW Ess. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-32C-E |
Cisco Catalyst 9500 High Performance 32-port 100G switch, NW Adv. License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-32QC-A |
Cisco Catalyst 9500 High Performance 32-port 40G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-32QC-E |
Cisco Catalyst 9500 High Performance 32-port 40G switch, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-40X-A |
Cisco Catalyst 9500 40-port 10G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-40X-E |
Cisco Catalyst 9500 40-port 10G switch, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-40X-2Q-A |
Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-40X-2Q-E |
Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-48X-A |
Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-48X-E |
Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-48Y4C-A |
Cisco Catalyst 9500 High Performance 48-port 25G switch, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
| C9500-48Y4C-E |
Cisco Catalyst 9500 High Performance 48-port 25G switch, NW Ess. License |
Cisco DNA Essential License |
C9500-DNA-E-3Y |
C9500-DNA-E-5Y |
C9500-DNA-E-7Y |
| C9500-48Y4C-A-BUN |
2 x Cisco Catalyst 9500 High Performance 48-port 25G switch, 8 x QSFP-40/100-SRBD, NW Adv. License |
Cisco DNA Advantage License |
C9500-DNA-A-3Y |
C9500-DNA-A-5Y |
C9500-DNA-A-7Y |
Table 3 provides ordering information for network modules, power supplies, cables, fan and accessories
Table 3. Network modules, power supplies, cables, fan and accessories
| Product Number |
Product description |
|
| C9500-NM-2Q |
Cisco Catalyst 9500 2 x 40GE Network Module |
|
| C9500-NM-8X |
Cisco Catalyst 9500 8 x 10GE Network Module |
|
| C9500-NM-2Q= |
Cisco Catalyst 9500 2 x 40GE Network Module Spare |
|
| C9500-NM-8X= |
Cisco Catalyst 9500 8 x 10GE Network Module Spare |
|
| C9K-PWR-1600WAC-R |
1600W AC Power Supply |
|
| C9K-PWR-650WAC-R |
650W AC Power Supply |
|
| C9K-PWR-650WACL-R |
650W AC Power Supply |
|
| C9K-PWR-1500WAC |
1500W AC Power Supply (C9500X) |
|
| C9K-PWR-1600WDC-R |
1600W DC Power Supply |
|
| C9K-PWR-930WDC-R |
930W DC Power Supply |
|
| C9K-PWR-1500WDC |
1500W DC Power Supply (C9500X) |
|
| C9K-PWR-1600WACR/2 |
1600W AC Power Supply, Redundant |
|
| C9K-PWR-650WAC-R/2 |
650W AC Power Supply, Redundant |
|
| C9K-PWR-650WACLR/2 |
650W AC Power Supply, Redundant |
|
| C9K-PWR-1500WAC/2 |
1500W AC Power Supply, Redundant (C9500X) |
|
| C9K-PWR-1600WDCR/2 |
1600W DC Power Supply, Redundant |
|
| C9K-PWR-930WDC-R/2 |
930W DC Power Supply, Redundant |
|
| C9K-PWR-1500WDC/2 |
1500W DC Power Supply, Redundant (C9500X) |
|
| C9K-PWR-C4-BLANK |
Catalyst 9500 power supply blank cover |
|
| C9K-PWR-C5-BLANK |
Catalyst 9500 power supply blank cover |
|
| PWR-C6-BLANK |
Catalyst 9500X power supply blank cover |
|
| C9K-T1-FANTRAY |
Catalyst 9500 fan tray (C9500-32QC, C9500-48Y4C and C9500-24Y4C) |
|
| FAN-T4-R |
Catalyst 9500 Type 4 front to back cooling Fan (C9500-24Q, C9500-12Q, C9500-40X and C9500-16X) |
|
| C9K-T2-FANTRAY |
Catalyst 9500 Type 5 front to back cooling Fan (C9500-32C) |
|
| C9500X-FAN-1U-F |
Catalyst 9500X back to front cooling fan |
|
| C9500X-FAN-1U-R |
Catalyst 9500X front to back cooling Fan |
|
| PWR-C4-950WAC-R |
950W AC Config 4 Power Supply front to back cooling |
|
| PWR-C4-950WAC-R/2 |
950W AC Config 4 Power Supply front to back cooling, Redundant |
|
| PWR-C4-BLANK |
Catalyst 9500 power supply blank cover |
|
| CAB-C15-CBN-JP |
Japan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15 |
|
| CAB-TA-250V-JP |
Japan 250V AC Type A Power Cable |
|
| CAB-TA-AP |
Australia AC Type A Power Cable |
|
| CAB-TA-AR |
Argentina AC Type A Power Cable |
|
| CAB-TA-DN |
Denmark AC Type A Power Cable |
|
| CAB-TA-EU |
Europe AC Type A Power Cable |
|
| CAB-TA-IN |
India AC Type A Power Cable |
|
| CAB-TA-IS |
Israel AC Type A Power Cable |
|
| CAB-TA-IT |
Italy AC Type A Power Cable |
|
| CAB-TA-SW |
Switzerland AC Type A Power Cable |
|
| CAB-TA-UK |
United Kingdom AC Type A Power Cable |
|
| CAB-TA-NA |
North America AC Type A Power Cable |
|
| CAB-C15-CBN |
Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors |
|
| CAB-TA-JP |
Japan AC Type A Power Cable |
|
| PWR-CAB-AC-USA520 |
US AC Power Cord for Cisco ASR 900, NEMA 5-20 |
|
| PWR-CAB-AC-USA |
Power Cord for AC V2 Power Module (USA), NEMA L6-20P |
|
| PWR-CAB-AC-AUS |
Power Cord for AC V2 Power Module (Australia), AS 3112 |
|
| PWR-CAB-AC-EU |
Power Cord for AC V2 Power Module (Europe), CEE 7/7 |
|
| PWR-CAB-AC-ITA |
Power Cord for AC V2 Power Module (Italy), CEI-23-50 |
|
| PWR-CAB-AC-SA |
Power Cord for AC V2 Power Module (South Africa), SABS 164 |
|
| PWR-CAB-AC-UK |
Power Cord for AC V2 Power Module (UK), EN 60309-2 |
|
| PWR-CAB-AC-ISRL |
Power Cord for AC V2 Power Module (Israel), SI 32 |
|
| PWR-CAB-AC-CHN |
Power Cord for AC V2 Power Module (China), GB2099.1/GB1002 |
|
| PWR-CAB-AC-BRA |
Power Cord for AC V2 Power Module (Brazil), NBR 14136 |
|
| PWR-CAB-AC-SUI |
Power Cord for AC V2 Power Module (Swiss), SEV 1011 |
|
| PWR-CAB-AC-JPN |
Power Cord for AC V2 Power Module (Japan), JIS C8303 |
|
| PWR-CAB-AC-IND |
India AC Power Cord for Cisco ASR 900, IS:1293 |
|
| PWR-CAB-AC-ARG |
AC POWER CORD, WIRE HARNESS, Argentina, IRAM 2073, IEC60320 C21, ST, 4M, 30 AWG, STRANDED, 250.0 V, 16.0 A |
|
| PWR-2KW-DC-CBL |
Power Cord - 2KW DC |
|
| CAB-48DC-40A-8AWG |
C-Series -48VDC PSU Power Cord, 3.5M, 3 Wire, 8AWG, 40A |
|
| C9500-ACCKITH-19I= |
Accessory Kit for Cisco Catalyst 9500 Series – High-End - 19" rack mount |
|
| C9500-ACCKITH-23I= |
Accessory Kit for Cisco Catalyst 9500 Series – High-End - 23" rack mount |
|
| C9500-4PTH-KIT= |
Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series – High-End |
|
| C9500-ACC-KIT-19I= |
Accessory Kit for Cisco Catalyst 9500 Series - 19" rack mount |
|
| C9500-ACC-KIT-23I= |
Accessory Kit for Cisco Catalyst 9500 Series - 23" rack mount |
|
| C9500-4PT-KIT= |
Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series |
|
| C9500X-ACCKIT-19I= |
Accessory Kit for Cisco Catalyst 9500X Switch - 19" rack mount |
|
| C9500X-ACCKIT-23I= |
Accessory Kit for Cisco Catalyst 9500X Switch - 23" rack mount |
|
| C9500X-4PTH-KIT= |
Extension rails and brackets for four-point mounting for Cisco Catalyst 9500X Switch |
|
Table 4 and 5 provides ordering information for Software PIDs
Table 4. Cisco DNA Software PIDs
| Cisco DNA Term Licenses |
|
| Cisco DNA Advantage licenses |
|
| C9500X-DNA-A-3Y |
Catalyst 9500X Cisco DNA Advantage license (3Y) for 28C8D SKU |
| C9500X-DNA-A-5Y |
Catalyst 9500X Cisco DNA Advantage license (5Y) for 28C8D SKU |
| C9500X-DNA-A-7Y |
Catalyst 9500X Cisco DNA Advantage license (7Y) for 28C8D SKU |
| C9500-DNA-A-3Y |
Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-5Y |
Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-7Y |
Catalyst 9500 NW and Cisco DNA Advantage license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-L-A-3Y |
Catalyst 9500 NW and Cisco DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-A-5Y |
Catalyst 9500 NW and Cisco DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-A-7Y |
Catalyst 9500 NW and Cisco DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU |
| Cisco DNA Essentials licenses |
|
| C9500X-DNA-E-3Y |
Catalyst 9500X Cisco DNA Essential license (3Y) for 28C8D SKU |
| C9500X-DNA-E-5Y |
Catalyst 9500X Cisco DNA Essential license (5Y) for 28C8D SKU |
| C9500X-DNA-E-7Y |
Catalyst 9500X Cisco DNA Essential license (7Y) for 28C8D SKU |
| C9500-DNA-L-E-3Y |
Catalyst 9500 NW and Cisco DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-E-5Y |
Catalyst 9500 NW and Cisco DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-E-7Y |
Catalyst 9500 NW and Cisco DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-E-3Y |
Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-5Y |
Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-7Y |
Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| Cisco DNA License Upgrade |
Upgrade from Essentials to Advantage |
| C9500-LIC= |
Electronic SW License for C9500 Switches |
| C9500X-DNA-28C8DEA |
C9500X DNA 28P100G 4P400G Upgrade License |
| C9500-DNA-16X-E-A |
C9500 DNA 16P10G Upgrade License |
| C9500-DNA-24Y4CEA |
C9500 DNA 24P25G Upgrade License |
| C9500-DNA-32C-E-A |
C9500 DNA 32P100G Upgrade License |
| C9500-DNA-32QC-E-A |
C9500 DNA 32P40G Upgrade License |
| C9500-DNA-48Y4CEA |
C9500 DNA 48P25G Upgrade License |
| C9500-DNA-12Q-E-A |
C9500 DNA 12P40G Upgrade License |
| C9500-DNA-24Q-E-A |
C9500 DNA 24P40G Upgrade License |
| C9500-DNA-40X-E-A |
C9500 DNA 40P10G Upgrade License |
Table 5. Cisco Catalyst Software SKUs
| Product Description |
|
| C9500-DNX-A-12Q-3Y |
C9500 Advantage Catalyst Software subscription, 12-Port, 3Y License |
| C9500-DNX-A-12Q-5Y |
C9500 Advantage Catalyst Software subscription, 12-Port, 5Y License |
| C9500-DNX-A-12Q-7Y |
C9500 Advantage Catalyst Software subscription, 12-Port, 7Y License |
| C9500-DNX-E-12Q-3Y |
C9500 Essentials Catalyst Software subscription, 12-Port, 3Y License |
| C9500-DNX-E-12Q-5Y |
C9500 Essentials Catalyst Software subscription, 12-Port, 5Y License |
| C9500-DNX-E-12Q-7Y |
C9500 Essentials Catalyst Software subscription, 12-Port, 7Y License |
| C9500-DNX-A-16X-3Y |
C9500 Advantage Catalyst Software subscription, 16-Port, 3Y License |
| C9500-DNX-A-16X-5Y |
C9500 Advantage Catalyst Software subscription, 16-Port, 5Y License |
| C9500-DNX-A-16X-7Y |
C9500 Advantage Catalyst Software subscription, 16-Port, 7Y License |
| C9500-DNX-E-16X-3Y |
C9500 Essentials Catalyst Software subscription, 16-Port, 3Y License |
| C9500-DNX-E-16X-5Y |
C9500 Essentials Catalyst Software subscription, 16-Port, 5Y License |
| C9500-DNX-E-16X-7Y |
C9500 Essentials Catalyst Software subscription, 16-Port, 7Y License |
| C9500-DNX-A-24Q-3Y |
C9500 Advantage Catalyst Software subscription, 24-Port, 3Y License |
| C9500-DNX-A-24Q-5Y |
C9500 Advantage Catalyst Software subscription, 24-Port, 5Y License |
| C9500-DNX-A-24Q-7Y |
C9500 Advantage Catalyst Software subscription, 24-Port, 7Y License |
| C9500-DNX-E-24Q-3Y |
C9500 Essentials Catalyst Software subscription, 24-Port, 3Y License |
| C9500-DNX-E-24Q-5Y |
C9500 Essentials Catalyst Software subscription, 24-Port, 5Y License |
| C9500-DNX-E-24Q-7Y |
C9500 Essentials Catalyst Software subscription, 24-Port, 7Y License |
| C9500-DNX-A-24Y-3Y |
C9500 Advantage Catalyst Software subscription, 24-Port, 3Y License |
| C9500-DNX-A-24Y-5Y |
C9500 Advantage Catalyst Software subscription, 24-Port, 5Y License |
| C9500-DNX-A-24Y-7Y |
C9500 Advantage Catalyst Software subscription, 24-Port, 7Y License |
| C9500-DNX-E-24Y-3Y |
C9500 Essentials Catalyst Software subscription, 24-Port, 3Y License |
| C9500-DNX-E-24Y-5Y |
C9500 Essentials Catalyst Software subscription, 24-Port, 5Y License |
| C9500-DNX-E-24Y-7Y |
C9500 Essentials Catalyst Software subscription, 24-Port, 7Y License |
| C9500-DNX-A-28C-3Y |
C9500 Advantage Catalyst Software subscription, 28-Port, 3Y License |
| C9500-DNX-A-28C-5Y |
C9500 Advantage Catalyst Software subscription, 28-Port, 5Y License |
| C9500-DNX-A-28C-7Y |
C9500 Advantage Catalyst Software subscription, 28-Port, 7Y License |
| C9500-DNX-E-28C-3Y |
C9500 Essentials Catalyst Software subscription, 28-Port, 3Y License |
| C9500-DNX-E-28C-5Y |
C9500 Essentials Catalyst Software subscription, 28-Port, 5Y License |
| C9500-DNX-E-28C-7Y |
C9500 Essentials Catalyst Software subscription, 28-Port, 7Y License |
| C9500-DNX-A-32C-3Y |
C9500 Advantage Catalyst Software subscription, 32-Port, 3Y License |
| C9500-DNX-A-32C-5Y |
C9500 Advantage Catalyst Software subscription, 32-Port, 5Y License |
| C9500-DNX-A-32C-7Y |
C9500 Advantage Catalyst Software subscription, 32-Port, 7Y License |
| C9500-DNX-E-32C-3Y |
C9500 Essentials Catalyst Software subscription, 32-Port, 3Y License |
| C9500-DNX-E-32C-5Y |
C9500 Essentials Catalyst Software subscription, 32-Port, 5Y License |
| C9500-DNX-E-32C-7Y |
C9500 Essentials Catalyst Software subscription, 32-Port, 7Y License |
| C9500-DNX-A-32Q-3Y |
C9500 Advantage Catalyst Software subscription, 32-Port, 3Y License |
| C9500-DNX-A-32Q-5Y |
C9500 Advantage Catalyst Software subscription, 32-Port, 5Y License |
| C9500-DNX-A-32Q-7Y |
C9500 Advantage Catalyst Software subscription, 32-Port, 7Y License |
| C9500-DNX-E-32Q-3Y |
C9500 Essentials Catalyst Software subscription, 32-Port, 3Y License |
| C9500-DNX-E-32Q-5Y |
C9500 Essentials Catalyst Software subscription, 32-Port, 5Y License |
| C9500-DNX-E-32Q-7Y |
C9500 Essentials Catalyst Software subscription, 32-Port, 7Y License |
| C9500-DNX-A-40X-3Y |
C9500 Advantage Catalyst Software subscription, 40-Port, 3Y License |
| C9500-DNX-A-40X-5Y |
C9500 Advantage Catalyst Software subscription, 40-Port, 5Y License |
| C9500-DNX-A-40X-7Y |
C9500 Advantage Catalyst Software subscription, 40-Port, 7Y License |
| C9500-DNX-E-40X-3Y |
C9500 Essentials Catalyst Software subscription, 40-Port, 3Y License |
| C9500-DNX-E-40X-5Y |
C9500 Essentials Catalyst Software subscription, 40-Port, 5Y License |
| C9500-DNX-E-40X-7Y |
C9500 Essentials Catalyst Software subscription, 40-Port, 7Y License |
| C9500-DNX-A-48Y-3Y |
C9500 Advantage Catalyst Software subscription, 48-Port, 3Y License |
| C9500-DNX-A-48Y-5Y |
C9500 Advantage Catalyst Software subscription, 48-Port, 5Y License |
| C9500-DNX-A-48Y-7Y |
C9500 Advantage Catalyst Software subscription, 48-Port, 7Y License |
| C9500-DNX-E-48Y-3Y |
C9500 Essentials Catalyst Software subscription, 48-Port, 3Y License |
| C9500-DNX-E-48Y-5Y |
C9500 Essentials Catalyst Software subscription, 48-Port, 5Y License |
| C9500-DNX-E-48Y-7Y |
C9500 Essentials Catalyst Software subscription, 48-Port, 7Y License |
| C9500-DNX-A-60L-3Y |
C9500 Advantage Catalyst Software subscription, 60-Port, 3Y License |
| C9500-DNX-A-60L-5Y |
C9500 Advantage Catalyst Software subscription, 60-Port, 5Y License |
| C9500-DNX-A-60L-7Y |
C9500 Advantage Catalyst Software subscription, 60-Port, 7Y License |
Optics support
The Cisco Catalyst 9500 Series supports a wide range of optics. Because the list of supported optics is updated on a regular basis, please consult the tables available here for the latest compatibility information: https://www.cisco.com/c/en/us/support/interfaces-modules/transceiver-modules/products-device-support-tables-list.html.
Smart Accounts: all you need to know
● Operations Exchange: partner and distributor software training: A comprehensive list of external software training resources. Detailed training modules for ordering and license management.
● SalesConnect Briefcase: Software training resources for Cisco internal sellers.
● Smart Account Leading Practices for Customers: A leading practices guide that can help customers decide how to structure their Smart Accounts or if they need multiple Smart Accounts.
● Smart Account Decision Tree: A short branching survey that helps partners and customers understand what type of Smart Accounts to create. Message templates for account managers to use when sending information about Smart Accounts to customers.
● CDC site: The primary Cisco.com site for Smart Accounts.
● AMER Software training schedule: List of live software training sessions currently offered.
● Training reservation form: Form to request a live software training session.
