Cisco CRS-X 4-Port 100 GE LAN_OTN Interface Module Data Sheet
Available Languages
The Cisco® CRS-X Carrier Routing System provides outstanding economical scale, IP and optical network convergence, and a proven architecture that’s delivered 10 times the capacity over 10 years. The Cisco CRS-X 4-Port 100GE LAN/OTN Interface Module is powered by advanced forwarding application-specific integrated circuits (ASICs), a chipset architecture based on multidimensional engineering, and Cisco IOS® XR Software, a unique distributed operating system.

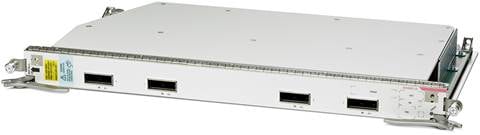

This Cisco CRS-X interface module (Figure 1) offers the following advanced features and benefits:
● 400-Gbps line-rate throughput per slot, increasing the Cisco CRS capacity to 12.8 Tbps in a single chassis
● Advanced forwarding ASIC to support 100-Gbps single-flow traffic processing with optimized power consumption
● Superior investment protection that maintains the existing Cisco CRS architecture, making it compatible with existing Cisco CRS-1 line cards, Cisco CRS-3 line cards, and physical layer interface modules (PLIMs).
● Support for transparent In-service migration from an existing Cisco CRS-1 or CRS-3
● Space, cost, and power savings with 100-Gbps Cisco CPAK™ optics
● Flexibility through Cisco AnyPort Technology, which introduces 100-Gbps to 40-Gbps and 40-Gbps to 10‑Gbps breakout options
The Cisco CRS 4-Port 100 GE LAN/OTN Interface Module connects into an existing transport network and provides four ports with 100 Gbps of data per port, for 400 Gigabit Ethernet (GE) LAN physical layer (LAN-PHY) transport or Optical Transport Network (OTN) Transport Unit Level 3 (OTU-4) transport. The interface module requires a Modular Services Card (MSC) capable of 400 Gbps, a Forwarding Processor card, or a Label Switch Processor card for operation. It is supported across the Cisco CRS 8-slot, 16-slot, back-to-back, and multichassis systems, based on either an enhanced chassis or traditional chassis. The interface module can operate in either 400-Gbps or 200-Gbps mode. The 400-Gbps mode in a Cisco CRS enhanced chassis-based system allows the interface module to deliver full 400-Gbps line-rate throughput. In 200-Gbps mode, however, two of the four ports are shut down to conserve power.
Product Specifications
Table 1 gives specifications of the Cisco CRS-X 4-port 100GE LAN/OTN Interface Module.
Table 1. Product Specifications
Approvals and Compliance
Table 2 gives standards compliance information for the Cisco CRS-X 4-port 100GE LAN/OTN Interface Module.
Table 2. Compliance and Agency Approvals
| Feature |
Description |
| Safety standards |
● UL/CSA/IEC/EN 60950-1, 2
nd ed, AM 1
● AS/NZS 60950.1
● IEC/EN 60825 Laser Safety
● FDA - Code of Federal Regulations Laser Safety
|
| EMI |
● FCC Class A
● ICES 003 Class A
● AS/NZS CISPR 22 Class A
● CISPR 22 (EN55022) Class A
● VCCI Class A
● IEC/EN 61000-3-2: Power Line Harmonics
● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
|
| Immunity (basic standards) |
● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8-kV contact, 15-kV air)
● IEC/EN-61000-4-3: Radiated Immunity (10V/m)
● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2-kV power, 1-kV signal)
●
IEC/EN-61000-4-5: Surge AC Port (4-kV CM, 2-kV DM)
● IEC/EN-61000-4-5: Signal Ports (1 kV)
●
IEC/EN-61000-4-5: Surge DC Port (1 kV)
● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10 Vrms)
● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
● IEC/EN-61000-4-11: Voltage Dips, Short Interruptions, and Voltage Variations
|
| ETSI and EN |
● EN300 386: Telecommunications Network Equipment (EMC)
EN55022: Information Technology Equipment (Emissions) EN55024: Information Technology Equipment (Immunity)
●
EN50082-1/EN-61000-6-1: Generic Immunity Standard
|
| Network Equipment Building Standards (NEBS) |
This product is designed to meet the following requirements (qualification in progress):
●
SR-3580: NEBS Criteria Levels (Level 3)
● GR-1089-CORE: NEBS EMC and Safety
● GR-63-CORE: NEBS Physical Protection
|
Additional Specifications
Table 3. Additional Specifications
Ordering Information
To place an order, contact your local Cisco representative or visit the Cisco Ordering homepage. Use the ordering information in Table 4.
Table 4. Ordering Information
| Product Name |
Part Number |
| Cisco CRS-X 4-Port 100GE LAN/OTN Interface Module |
4x100GE-LO |
| Cisco 4-Port 100G CPAK Gigabit Ethernet LR4 (10 km) Optics |
CPAK-100G-LR4 |
| Cisco 4-Port 100G SR10 Gigabit Ethernet SR10 (100M) Optics |
CPAK-100G-SR10 |
Cisco Services
Cisco Services helps networks, applications, and the people who use them work together more effectively.
Today, the network is a strategic platform in a world that demands better integration between people, information, and ideas. The network works better when services, together with products, create solutions aligned with business needs and opportunities.
The unique Cisco Lifecycle approach to services defines the required activities at each phase of the network lifecycle to help ensure service excellence. With a collaborative delivery methodology that joins the forces of Cisco, our skilled network of partners, and our customers, we achieve the best results.
For More Information
For more information about the Cisco CRS-X 4-port 100 GE LAN/OTN Interface Module, the Cisco CRS Family, or other available interface, contact your local Cisco representative or visit: http://www.cisco.com/go/crs.
