Cisco® 809 Industrial Integrated Services Routers, referred to here as the IR809, are compact, ruggedized routers designed for deployment in harsh industrial environments.

The IR809 is Cisco’s smallest multimode 3G and 4G LTE wireless router, making it an excellent solution for distribution automation and remote asset management across multiple industrial vertical markets (Figure 1). The IR809 has an integrated 9.6 to 60V DC power input and is designed to withstand hostile environments, including shock, vibration, dust, and humidity, and supports a wide temperature range (–40 to 60°C and type-tested at 85°C for 16 hours). The IR809 brings together:

    Enterprise-class wireline-like services, such as quality of service (QoS)

    Cisco advanced virtual private network (VPN) technologies (such as Dynamic Multipoint VPN [DMVPN] and Flexible VPN [FlexVPN])

    Multiple Virtual Routing and Forwarding (VRF) instances for cellular highly secure data, voice, and video communications

    Cisco IOx, an open, extensible environment for hosting applications at the network edge

The IR809 also extends connectivity to include low-power wide-area (LPWA) access using the Cisco Interface Module for LoRaWAN.

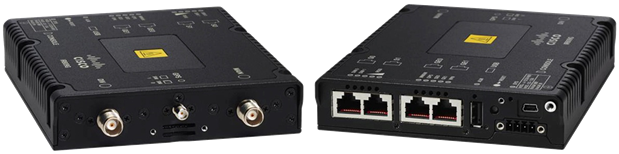

Figure 1.       Cisco 809 Industrial Integrated Services Routers with 4G LTE


Product Overview

The Cisco 809 Industrial Integrated Services Routers support the latest Third-Generation Partnership Project (3GPP) Release 9 Category 3 and Category 4 LTE standards. The routers provide persistent, reliable LTE connectivity transparent hand-offs between LTE and 3G networks.

The following models are available:

    IR809G-LTE-NA-K9: Multimode 4G, 3G, and 2G connectivity to cellular networks operating in LTE 1900 MHz (band 2 PCS), 1700/2100 MHz (band 4 AWS), 850 MHz (band 5), 700 MHz (band 17), and 1900 MHz (band 25 extended PCS) frequencies; backward-compatible with UMTS and HSPA+, at 850 MHz (band 5), 900 MHz (band 8), 1900 MHz (band 2 PCS), and 1700/2100 MHz (band 4 AWS).

    IR809G-LTE-VZ-K9: Multimode 4G, 3G, and 2G connectivity to cellular networks operating in LTE 700 MHz (band 13), 1700/2100 MHz (band 4 AWS), and 1900 MHz (band 25 extended PCS) frequencies; backward-compatible with EVDO Rev A/CDMA 1x BC0, BC1, and BC10.

    IR809G-LTE-LA-K9: Multimode 4G and 3G connectivity to cellular networks operating in FDD LTE 2100 MHz (band 1), 1800 MHz (band 3), 850 MHz (band 5), 2600 (band 7), 900 (band 8), 850 (band18, band19), 1500 (band 21), 700 (band 28), and TDD LTE 2600 (band 38), 1900 (band 39), 2300 (band 40), and 2500 (band 41); backward-compatible with WCDMA 2100 MHz (band 1), 850 MHz (band 5), 800 MHz (band 6, band 19), 900 MHz (band 8), 1700 MHz (band 9), and TD-SCDMA 1900 MHz (band 39).

    IR809G-LTE-GA-K9: Multimode 4G, 3G, and 2G connectivity to cellular networks operating in LTE 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7) frequencies; backward-compatible with UMTS and HSPA+ at 850 MHz (band 5), 900 MHz (band 8), 1900 MHz (band 2), and 2100 MHz (band 1).

The IR809 routers offer a broad range of features for industrial and enterprise Internet of Things (IoT), as listed in Figure 2.

Figure 2.       Cisco 809 Industrial Integrated Services Routers Offer a Broad Range of Features


LTE connectivity: LTE offers a cost-effective alternative in areas where broadband services either are not available or are very expensive.

Quality of service (QoS): QoS enables differentiated treatment of traffic for mission-critical services and load balancing for a better user experience.


Supervisory control and data acquisition (SCADA) applications: DNP3 serial–to–DNP3/IP translation and IEC 60870 T101–to–IEC 60870 T104 protocol translation serves as a SCADA gateway and Raw Socket transport for managing remote terminal units (RTUs).


Smart-grid compliant: The routers are IEEE 1613 and IEC 61850-3 certified for distribution automation and secondary substation deployments.


Industrial security: Services include area firewall and VPN services, which require no additional hardware or client software.


GPS. The routers support remote tracking asset management in a distributed network.


Fog computing, management, and automation: Enable remote monitoring and control at the edge and improve process efficiency by moving the intelligence to the edge rather than the cloud.


Network management: Tools such as Cisco IoT Field Network Director, Cisco Prime, and Cisco Application Policy Infrastructure Controller Enterprise Module (APIC-EM) simplify deployment of a secure network head end using the Cisco Industrial Operations Kit.


Multiple packet data network (PDN) feature: This feature allows the router to connect to different access point names (APNs), enabling traffic segregation. For example, public Internet traffic can be kept separate from mission-critical traffic emerging from the sensors and devices connected to the router.


4G LTE multiple-bearer QoS for cellular: The IR809 supports 4G LTE multiple bearers, enabling differentiated treatment of traffic based on the QoS policies. The QoS feature depends on a service provider’s ability to classify and enforce QoS policies and hence requires providers to launch this service in their networks.


Multi-VRF: The IR809 supports the multi-VRF feature, which allows customers to configure and maintain more than one instance of a routing and forwarding table within the same customer edge (CE) device. For service providers, this feature enables them to support two or more VPNs, and the IP addresses can overlap several VPNs.

Business Benefits and Application Examples

Industrial customers are looking for real-time monitoring and control of industrial assets to help increase operation efficiency.

Utilities

Utilities are seeking the capability to monitor thousands of miles of electrical or water infrastructure often located in harsh environments through 3G and 4G cellular networks to provide remote assets monitoring and reliable and secure SCADA traffic backhauling. Devices that enable this connectivity need to be able to be remotely monitored and configured. They also need to support traditional serial interfaces to interconnect with existing monitoring devices.

Oil and Gas

Oil and gas companies need to monitor pipeline infrastructure across wide geographic areas and remote locations using 3G and 4G cellular networks to collect data from remote terminal units and securely transport SCADA traffic to a network operations center (NOC).

Transportation

Highways and transportation agencies require reliable always-on communication between speed cameras, monitoring cameras, ticket terminals, etc. Wireless devices to support such continuous communication need to support 3G and 4G networks to help ensure good, wide coverage; support continuous operation in very harsh environments; be very compact for deployment in roadside cabinets; and support serial interfaces to existing traditional devices.

Primary Features and Benefits

Table 1 lists the features and benefits of the IR809.

Table 1.         Features and Benefits of Cisco 809 Industrial Integrated Services Routers

Features

Benefits

IoT Enablement

Compact ruggedized form factor

Designed for hostile outdoor remote assets monitoring and machine-to-machine (M2M) communications and integrated 9.6 to 60V DC power supply.

Raw socket transport and SCADA

Raw Socket can be used to transport SCADA data from RTUs. This method is an alternative to the Block Serial Tunnel (BSTUN) protocol. The IR809 provides DNP3 serial–to–DNP3/IP translation and IEC 60870 T101–to–IEC 60870 T104 protocol translation to serve as a SCADA gateway to do the following:

  Receive data from RTUs (T101 or DNP3 serial) and relay configuration commands from the control center (T104 or DNP3 IP) SCADA applications.
  Receive configuration commands from the control center and relay RTU data to the control center.
  Terminate incoming T104 or DNP3 IP requests from the control center when an RTU is offline.

Cisco IOx application support

Provides an open, extensible environment for hosting OS and applications at the network edge.

IoT field network director

Available as an optional Industrial Operations Kit. This software platform manages a multiservice network and security infrastructure for IoT applications such as transportation, smart grid, services, distribution automation, and substation automation.

Multiple mounting options

  Supports a variety of mounting options: floor mount, wall mount, and DIN rail mount.

Lightweight, compact size with low power consumption

  Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.

Increased performance to run concurrent services

  Performance allows customers to take advantage of broadband network speeds while running highly secure, concurrent data, voice, video, wireless, and IoT services.

Enhanced security

  An integrated stateful and application inspection firewall provides network perimeter security. Hardware-assisted high-speed IP Security (IPsec), Triple Data Encryption Standard (3DES), and next-generation encryption protocols such as Advanced Encryption Standard (AES) and Secure Hash Algorithm (SHA) offer data privacy over the Internet.
  Intrusion prevention enforces security policies in a larger enterprise or service provider network.

Multiple WAN and LAN Connections

Two Gigabit Ethernet interfaces

  Allows multiple Ethernet device connectivity in a small office or other remote location with the capability to designate a port as the network edge.
  Provides VLANs for Layer 3 IP subinterfaces.
  Provides inter-VLAN routing capabilities.

Two serial interfaces

  These two asynchronous serial interfaces (one RS-232 port and one RS-232/RS485 port) can be used with Raw Socket, protocol translation, and IOx applications to provide two serial connections to local RTUs for SCADA transport and RTU management.

LoRaWAN

  Extends IR809 connectivity to include LPWA access using Cisco Interface Module for LoRaWAN. For more information, see http://www.cisco.com/c/en/us/products/routers/interface-module-lorawan.

Transparent Roaming Between Wireless Networks

Dual subscriber-identity-module (SIM) support

  The dual SIM feature provides reliability and multihoming capabilities over LTE and HSPA networks.

Cisco IOS® Mobile IP features

  Mobile IP offers transparent roaming for mobile networks, establishing a transparent Internet connection regardless of location or movement. This feature enables mission-critical applications to stay connected even when roaming between networks.
  Assigned IP addresses to the home network are maintained in private and public networks.
  Both Proxy Mobile IP (PMIPv6) and Network Mobility (NEMO) are supported.

Cisco IOS Mobile network features

  This feature allows an entire subnet or mobile network to maintain connectivity to the home network while roaming.

Multiple wireless WAN technologies

  Users can use the best wireless (4G LTE, 3.7G, 3.5G, 3G, or 2G) technology or network available. IR809G-LTE-LA-K9 does not support 2G.

Advanced IP Services in Standards-Based Cisco IOS Software

Advanced security features

  Authorization and authentication determine which individuals and devices have access to the network.
  Firewall protection provides perimeter security when public networks are used.
  3DES and AES encryption provide highly secure VPNs when data is transmitted and received over public networks.
  The next-generation protocol suites enable users to monitor potential malicious activity on the network.
  IPsec over IPv4 & IPv6, IPsec stateful failover, VRF-aware IPsec, DMVPN, FlexVPN and PMIPv6.

Routing

  Enables advanced routing capabilities using Enhanced Interior Gateway Routing Protocol (EIGRP), Multiprotocol Border Gateway Protocol (MP-BGP), IPv4 and IPv6 on all interfaces including cellular, IPv4/IPv6 Multicast, Generic Routing Encapsulation (GRE) and multipoint GRE (MGRE), Network Address Translation (NAT), Domain Name System (DNS) proxy and spoofing, IP service-level agreement (SLA), and QoS.

QoS features

  Provides traffic precedence to delay-sensitive and mission-critical services.
  Facilitates low-latency routing of delay-sensitive industrial applications.
  Supported on all LAN and WAN interfaces including cellular.
  Provides LTE QoS with support for up to 8 concurrent bearers on each cellular WAN interface for traffic classification and prioritization.

Management and manageability

  Network managers can remotely manage and monitor networks with Simple Network Management Protocol Versions 1, 2, and 3 (SNMPv1, v2, and v3); Telnet; and HTTP/HTTPS and Secure Shell Version 2 (SSHv2). They can also manage and monitor networks locally through a console port.
  Support for extensive 3G and 4G LTE-based MIBs allows centralized management of remote devices and gives network managers visibility into and control over the network configuration at the remote site.
  Network managers can reset to a predesignated golden image, as well as configure an IR809 through Cisco IOS ® Software or through an external reset button.
  Network managers can upgrade 3G, 3.5G, 3.7G, and 4G LTE firmware and router configurations remotely.
  The tight integration with Cisco IOS Software enables the router to self-monitor the LTE WAN link and automatically recover from a radio link failure.
  Network management tools such as Cisco IoT Field Network Director, Cisco Prime, and APIC-EM simplify deployment of a secure network head end using the Cisco Industrial Operations Kit.

Product Specifications

Table 2 provides 4G LTE specifications for the IR809.

Table 2.         4G LTE Specifications for Cisco 809 Industrial Integrated Services Routers

Region Theaters

IR809G-LTE-GA-K9

IR809G-LTE-NA-K9

IR809G-LTE-VZ-K9

IR809G-LTE-LA-K9

Bands

LTE bands 1, 3, 7, 8, and 20; 800 (band 20), 900 (band 8), 1800 (band 3), 2100 (band 1), and 2600 (band 7) MHz

LTE band 2 PCS 1900, band 4 AWS (1700/2100), band 17 (700), and band 25 extended PCS 1900

LTE band 13 (700), band 4 AWS (1700/2100), and band 25 extended PCS (1900)

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, and 38–41

Theoretical download and upload speeds*

100 and 50 Mbps

100 and 50 Mbps

100 and 50 Mbps

150 and 50 Mbps

Australia

Yes

No

No

Yes

Europe

Yes

No

No

No

Middle East

Yes

No

No

No

Latin America (LATAM) and Asia-Pacific (APAC)

Yes (Please refer to Product Approval Status tool.)

Yes (Please refer to Product Approval Status tool.)

No

Yes (Please refer to Product Approval Status tool.)

United States

No

Yes (ATT)

Yes (Verizon)

No

Canada

No

Yes

No

No



Feature

Description

Important 4G LTE features

  Single and dual LTE WAN support for WAN redundancy, high reliability, and enhanced throughput
  LTE QoS with support for up to 8 concurrent bearers on each cellular WAN interface for traffic classification and prioritization
  Multiple Packet Data Networks (PDNs)
  Automatic switchover and failover between primary and backup links
  IPv4 and IPv6 support
  Multichannel interface processor (MIP) profile configuration
  Send and receive Short Message Service (SMS; maximum 160 characters)
  4G and 3G MIB with extension and traps
  Remotely initiated data callback using SMS
  Remote firmware upgrade over 4G LTE
  Virtual diagnostic monitoring
  Mobile equipment personalization (MEP) lock and unlock capabilities
  SIM lock and unlock capabilities

Dual SIM support


  High reliability and cellular multihoming support for dual SIM card socket; compliant with ISO-7816-2 (SIM mechanical)
  Capability for the two SIMs to operate in active-backup mode

Global Positioning System (GPS)


  GPS antenna: SMA connector (separate active GPS with SMA antenna option)
  Standalone GPS; needs line of sight
  Configuration of multiple profiles
  Assisted GPS (will be supported in future Cisco IOS Software release)

SMS


  Send and receive SMS (maximum 160 characters)

MIBs


  Enhanced 3G MIB with 4G MIB extension (4G LTE parameters are covered with 3G MIB and 3G MIB extension)
  ENTITY MIB
  IF MIB
  3G wireless WAN (WWAN) MIB persistence

4G LTE network management and diagnostics

  In-band and out-of-band management using Telnet (Cisco IOS Software command-line interface [CLI]) and SNMP, including MIB II and other extensions
  Industry-standard 4G LTE diagnostics and monitoring tools (QUALCOMM CDMA Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM]).

Programming interfaces

  Cisco IOS Software CLI

Wireless technologies supported (performance and throughput)

IR809G-LTE-GA-K9

Cisco LTE 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7) at Category 3 LTE speeds1.

Backward compatibility:

  UMTS and HSPA+: 850, 900, 1900, and 2100 MHz
  Quad-band EDGE, GPRS, and GSM: 800, 900, 1800, and 1900 MHz
  HSPA+ speed DL up to CAT 20 (42.2 Mbps) and UL up to CAT 6 (5.76 Mbps)
  DC-HSPA+ speed DL with CAT 24 (42.2 Mbps) and UL up to CAT 6 (5.76 Mbps)

IR809G-LTE-NA-K9

Cisco LTE 1900 MHz (band 2 PCS), 1700/2100 MHz (band 4 AWS), and 700 MHz (band 17) at Category 3 LTE speeds1.

Backward compatibility:

  UMTS and HSPA+: 850 (band 5), 900 (band 8), 1700/2100 (band 4 AWS), 1900 (band 2), and 2100 (band 1) MHz
  Quad-band EDGE, GPRS, and GSM: 800, 900, 1800. and 1900 MHz
  HSPA+ speed DL up to CAT 20 (42.2 Mbps) and UL up to CAT 6 (5.76 Mbps)
  DC-HSPA+ speed DL with CAT 24 (42.2 Mbps) and UL up to CAT 6 (5.76 Mbps)

IR809G-LTE-VZ-K9

Cisco LTE 700 MHz (band 13), 1700/2100 MHz (band 4 AWS), and 1900 MHz (band 25 extended PCS) at Category 3 LTE speeds1.

Backward compatibility:

  EVDO Rev A/CDMA 1x BC0, BC1, and BC10

IR809G-LTE-LA-K9

Cisco LTE FDD 2100 MHz (band 1), 1800 MHz (band 3), 850 MHz (band 5), 2600 (band 7), 900 (band 8), 850 (band18, band19), 1500 (band 21), and 700 (band 28); and TDD LTE 2600 (band 38), 1900 (band 39), 2300 (band 40), and 2500 (band 41) at Category 4 LTE speeds1 (peak downlink rate: 150 Mbps; peak uplink rate: 50 Mbps)

Backward compatibility:

  UMTS and HSPA+: 2100 MHz (band 1), 850 MHz (band 5), 800 MHz (band 6 and band 19), 900 MHz (band 8), 1700 MHz (band 9), and TD-SCDMA 1900 MHz (band 39)

LED indicators for 4G

  Received-signal-strength indication (RSSI; green)
  WWAN (green)
  SIM status (green and yellow)
  GPS (green and yellow)
  SYS (green and yellow)
  VPN (green)
1 LTE CAT 3 and CAT 4 download and upload speeds depend on specific carrier channel bandwidth and carrier LTE network provisioning.

Table 3 lists the software features supported on IR809.

Table 3.         Cisco IOS Software Features on Cisco 809 Industrial Integrated Services Routers

Feature

Description

Cisco IOS Software requirements

  Cisco IOS Software feature set: Universal Cisco IOS Software image
  Cisco IOS Software Release 15.6(3)M2 or later and modem firmware Release 5.5.58 or later

IPv4 and IPv6 services features

  Routing Information Protocol Versions 1 and 2 (RIPv1 and RIPv2)
  Generic routing encapsulation (GRE) and multipoint GRE (MGRE)
  Cisco Express Forwarding
  Standard 802.1d Spanning Tree Protocol
  Layer 2 Tunneling Protocol (L2TP)
  Layer 2 Tunneling Protocol Version 3 (L2TPv3)
  Network Address Translation (NAT)
  Dynamic Host Configuration Protocol (DHCP) server, relay, and client
  Dynamic DNS (DDNS)
  DNS proxy
  DNS spoofing
  Access control lists (ACLs)
  IPv4 and IPv6 multicast
  Open Shortest Path First (OSPF)
  Border Gateway Protocol (BGP)
  Enhanced Interior Gateway Routing Protocol (EIGRP)
  Virtual Route Forwarding (VRF) Lite
  Next-Hop Resolution Protocol (NHRP)
  Bidirectional Forwarding Detection (BFD)
  Web Cache Communication Protocol (WCCP)

Security features

Secure connectivity

  Secure Sockets Layer (SSL) VPN for secure remote access
  Hardware-accelerated DES, 3DES, AES 128, AES 192, and AES 256
  Public-key-infrastructure (PKI) support
  20 IPsec tunnels
  Cisco Easy VPN Solution client and server
  NAT transparency
  Dynamic Multipoint VPN (DMVPN)
  Tunnel-less Group Encrypted Transport VPN
  Flex VPN
  IPsec stateful failover
  VRF-aware IPsec
  IPsec over IPv6

Cisco IOS Firewall

  Zone-based policy firewall
  VRF-aware stateful inspection routing firewall
  Stateful inspection transparent firewall
  Advanced application inspection and control
  Secure HTTP (HTTPS), FTP, and Telnet Authentication Proxy
  Dynamic and static port security
  Firewall stateful failover
  VRF-aware firewall

Integrated Threat Control

  Control-plane policing (CoPP)
  Flexible packet matching
  Network foundation protection

QoS features

  Low Latency Queuing (LLQ)
  Weighted Fair Queuing (WFQ)
  Class-Based WFQ (CBWFQ)
  Class-Based Traffic Shaping (CBTS)
  Class-Based Traffic Policing (CBTP)
  Policy-Based Routing (PBR)
  Class-Based QoS MIB
  Class of service (CoS)–to–differentiated services code point (DSCP) mapping
  Class-Based Weighted Random Early Detection (CBWRED)
  Resource Reservation Protocol (RSVP)
  Real-Time Transport Protocol (RTP) header compression (cRTP)
  Differentiated Services (DiffServ)
  QoS preclassify and prefragmentation
  Hierarchical QoS (HQoS)

Management features

  Cisco IoT Field Network Director and Industrial Operations Kit
  Cisco Application Policy Infrastructure Controller Enterprise Module (APIC-EM)
  Cisco Universal Plug and Play (UPnP) 1
  Cisco Configuration Professional Express 1
  Cisco Configuration Engine support
  Cisco AutoInstall
  IP service-level agreement (IP SLA)
  Cisco IOS Embedded Event Manager (EEM)
  Telnet, SNMPv3, SSH Protocol, CLI, and HTTP management
  RADIUS and TACACS+
  Cisco Prime
  Jasper Control center

High-availability features

  Virtual Router Redundancy Protocol (VRRP) (RFC 2338)
  Hot Standby Router Protocol (HSRP)
  Multigroup HSRP (MHSRP)
  Dual SIM support for cellular failover

IPv6 features

  IPv6 addressing architecture
  IPv6 unicast and multicast forwarding
  IPv6 ACLs
  IPv6 over cellular
  IPv6 routing
  IPv6 domain name resolution
1Future Cisco IOS Software release.

Table 4 lists the system specifications, and Table 5 lists antenna specifications for the IR809.

Table 4.         System Specifications for Cisco 809 Industrial Integrated Services Routers

Feature

Specification

Memory

Default and maximum DRAM

2 GB

Default and maximum flash memory

4 GB

IP rating

IP30

Interface Support

Console

  Mini type-B USB; also supports remote 4G LTE diagnostics and monitoring tools

WAN interfaces

  WWAN with multimode 4G LTE, 3.7G, 3.5G, 3G, and 2G speeds; IR809G-LTE-LA-K9 does not support 2G

LAN and WAN interfaces

  Two 10/100/1000BASE-T Gigabit Ethernet ports

LEDs

  System OK (green and amber)
  WWAN (green)
  Speed and link for Gigabit Ethernet WAN port (green)
  Speed and link for all Fast Ethernet LAN ports (green)

Serial interface

  1 RS-232 and 1 RS-232/RS-485
  Support for asynchronous mode with speed up to 115,200 baud

Serial protocol support

  SCADA, DNP3, T101-104, Raw Socket TCP and UDP, and SLIP

Physical Characteristics

Physical dimensions (H x W x D)

1.15 x 5.05 x 6.27 in. (29.21 x 128 x 159.2 mm)

Weight

1 lb 11 oz. (0.77 kg)

Mounting options

Panel and door and DIN rail mount

Mean time between failure (MTBF; ground benign)

440,000 hours or more

Platform power consumption

Idle = 12W

Typical = 15W

Maximum = 19W

Environmental operating temperature range

–40 to 140°F (–40 to 60°C) in a sealed NEMA cabinet with no airflow

–40 to 158°F (–40 to 70°C) in a vented cabinet with 40 linear feet per minute (LFM) of air

–40 to 167°F (–40 to 75°C) in a forced air enclosure with 200 LFM of air

Type tested at 85°C for 16 hours

Operating altitude

50ºC up to 5000 ft (above 5000 ft derate maximum operating temperature 1.50°C per 1000 ft) Maximum altitude: 10,000 ft

Standard safety certifications

  UL 60950-1, 2nd edition
  CAN/CSA C22.2 No. 60950-1, 2nd edition
  EN 60950-1, 2nd edition
  CB to IEC 60950-1, 2nd edition with all group differences and national deviations

Hazardous locations standards

  ANSI/ISA 12.12.01 (Class 1, Div 2 A-D)
  CSA 213 (Class 1, Div 2 A-D)
  IEC 60079-0 and -15 IECEx test report (Class I, Zone 2, gas groups IIC)
  EN 60079-0 and -15 ATEX certification (Class I, Zone 2, gas groups IIC)

Industry standards

  IEC 61850-1
  IEEE 1613

EMC emissions

FCC 47 CFR Part 15 Subpart C Class A

EN 55032/CISPR 32 Class A, EN 55022 Class A

VCCI Class A, AS/NZS CISPR 32 Class A

CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A

KN 32 Class A, EN 300 386

EMC immunity

CISPR 35, EN 55024

KN 35

EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29

Radio cellular

AS/NZS: ACMA EMR, and AS/CA S042.1 and 4

Japan: Articles 2 and 9

EN 301 489-1, 7, 24, and 52

EN 301 908 -1, 2, and 13

EN 301 511

EN 50385 MPE

FCC 47 CFR Part 22

FCC 47 CFR Part 15 Subpart C

FCC 47 CFR Part 2 MPE

RSS 102/247

Power specifications

Minimum and maximum voltage: 9.6 to 60V DC input

Maximum and minimum current: 2A (9.6V DC) and 0.4A (60V DC)

Table 5.         Antenna Specifications for Cisco 809 Industrial Integrated Services Routers

Item

Specification

ANT-3-4G2G1-O

Description: Cisco transportation omnidirectional 3-element antenna for 2G, 3G, and 4G cellular and GPS

  MIMO 2 x cellular elements and 1 x GPS active antenna
  Vehicular roof stud/nut mounting, qualified to vehicular shock and vibe standards
  IP67 waterproof with proper installation on the roof on an 8 x 8” flat mounting surface
  Covers 2G, 3G, and 4G cellular bands in 698-2700 MHz frequency range
  LTE MIMO support with low correlation coefficient
  Low-noise active GPS antenna
  Specifications that follow are given with 1-foot diameter ground plane under antenna

Cellular electrical specifications (specifications apply to both elements):

  Frequency ranges: 698 to 960 MHz and 1710 to 2700 MHz
  Typical gain (dBi): 698 to 960 MHz = 2.6 dBi, and 1710 to 2700 MHz = 4.6 dBi
  Efficiency: 60%
  Polarization: Linear and vertical
  Port impedance: 50 ohms
  Voltage standing wave ratio (VSWR): < 2.1:1 (698 to 960 MHz) and < 2.0:1 (1710 to 2700 MHz)
  Radiation pattern: Omnidirectional
  Integrated RF cables: 2 ft, LMR-195 type, TNC (male)

GPS electrical specifications:

  Frequency range: 1575.42 MHz +/–1 MHz (GPS L1)
  Amplifier gain: 27dB +/–3dB
  Noise figure: 4dB max
  Port impedance: 50 ohms
  Output VSWR: < 2.0:1
  Radiation pattern: RHCP
  DC voltage: 2.7–12V DC
  DC current: < 20 mA over –40 to 85°C temperature range
  Integrated RF cable: 17 ft, LMR-100 type, SMA(m)

Mechanical and environmental specifications:

  Mount style: Vehicular roof or similar; stud and nut mount
  Environment: Outdoor, vehicular roof, transportation ruggedized and qualified to subset of SAE1455 and MILSTD 810G
  Connectors: 2 x TNC(m) cellular and 1 x SMA(m) GPS
  Antenna dimensions: 7.1 in. diameter x 2.4 in. height (18.0 x 6.5 cm), excluding RF cables
  Weight: 1.48 lb (0.67 kg)
  Operating temperature range: –40 to 70°C
  Storage temperature: –40 to 85°C
  Maximum power: 10W
  Radome: Polycarbonate, UV, black
  Material substance compliance: ROHS compliant

ANT-4G-OMNI-OUT-N1

Description: Cisco outdoor omnidirectional antenna for 2G, 3G, and 4G LTE cellular

  UV-stable radome
  Mast-mounting bracket
  Applicable for both 2G and 3G solutions
  Domestic LTE 700 band and global LTE 2600 band
  Domestic cellular and global GSM
  WiMAX 2300 and 2500

Electrical specifications

  Frequency ranges: 698 to 960 MHz, 1710 to 2170 MHz, and 2300 to 2700 MHz
  Nominal gain (dBi): 698 to 960 MHz = 1.5 dBi, and 1710 to 2700 MHz = 3.5 dBi
  3 dB beam width (E plane): 698 to 960 MHz = 81 degrees, 1710 to 2170 MHz = 75 degrees, and 2300 to 2700 MHz = 100 degrees
  3 dB beam width (H plane): 360 degrees, omnidirectional
  Polarization: Vertical and linear
  Normal impedance: 50 ohms
  VSWR: < 2.5:1 (698 to 960 MHz) and < 2.0:1 (1710 to 2690 MHz)
  Radiation pattern: Omnidirectional

Mechanical specifications

  Mount style: Mast mount, upright position only
  Environment: Outdoor
  Connector: N-type socket
  Antenna length (height): 9.8 x 1 in. (24.9 x 2.45 cm)
  Weight: 1.5 lb (0.68 kg)
  Dimensions (H x Outside dimensions): 9.8 x 1 in. (248 x 24.5 mm)
  Operating temperature range: –22 to 158°F (–30 to 70°C)
  Storage temperature: –40 to 185°F (–40 to 85°C)
  Maximum power: 20W
  Radome: polycarbonate, UV, white
  Material substance compliance: ROHS compliant

ANT-4G-PNL-OUT-N1

Description: Cisco multiband panel outdoor 4G LTE antenna

  Supports 3G and 4G LTE solutions
  Supports bands
  Wall mount and mast mount
  Indoor and outdoor
  Dual type-N socket connector

Electrical specifications

  Frequency ranges: 698 to 960 MHz and 1710 to 2700 MHz
  VSWR: 2.0:1 maximum
  Gain: 8.0 to 10.0 dBi (698 to 960 MHz) and 6.0 to 9.5 dBi (1710 to 2700 MHz)
  3 dB beam width (vertical plane): 55 to 70 degrees = 698 to 960 MHz, 53 to 98 degrees = 1710 to 2200 MHz, 60 to 70 degrees = 2200 to 2500 MHz, and 55 to 70 degrees = 2500 to 2700 MHz
  3 dB beam width (horizontal plane): 55 to 70 degrees = 698 to 960 MHz and 50 to 90 degrees = 1710 to 2200 MHz
  F/B ratio: > 15 dB, typical 20 dB = 698 to 960 MHz; and > 17 dB, typical 23 dB = 1700 to 2700 MHz
  Isolation: > 30 dB
  Polarization: slant +/–45 degrees
  Nominal impedance: 50 ohms
  Radiation pattern: Directional

Mechanical specifications

  Mount style: Wall or mast mount
  Environment: Outdoor
  Connector: Dual type-N female (direct connect or dual 12 in. (30 cm))
  Antenna length (height): 11.6 in. (2.95 cm)
  Temperature range (operating): –22 to 158°F (–30 to 70°C)
  Storage temperature: –40 to 85°C
  Wind rating: 160 km per hour
  IP rating: IP 55
  Radome: Polycarbonate, UV resistant, white
  Material substance compliance: ROHS compliant

ANT-4G-DP-IN-TNC

Description: Cisco indoor swivel-mount dipole antenna

  Low-profile blade style sheath
  Applicable for both 3G and 4G solutions
  Domestic LTE 700 and global LTE 2600 bands
  Domestic cellular and global GSM
  Conformance to RoHS
  Complete cellular and 3G and 4G data communications in a single antenna

Electrical specifications

  Operating frequency ranges: 698 to 806 MHz, 824 to 894 MHz, 880 to 960 MHz, 1710 to 1880 MHz, 1850 to 1990 MHz, 1920 to 2170MHz, 2100 to 2500 MHz, and 2500 to 2690 MHz
  Peak gain: 0.5 dBi (698 to 960 MHz) and 2.2 dBi (1710 to 2700 MHz)
  Average efficiency: 55% (698 to 960 MHz) and 73% (1710 to 2700 MHz)
  Maximum input power: 3W
  VSWR: < 2.5:1
  Characteristic impedance: 50 ohms
  Polarization: Linear

Mechanical specifications

  Type: Dipole
  Antenna dimensions (L x W x D): 229 x 30.5 x 15 mm
  Mount style: Direct mount
  Environment: Indoor
  RF connector: TNC (m)
  Antenna weight: 49g
  Temperature rating: –31 to 158°F (–35 to 70°C)
  Material substance compliance: RoHS compliant

GPS-ACT-ANTM-SMA

Description: Cisco 4G indoor/outdoor active GPS antenna

  Maximum input power: 1W
  Connector: SMA male
  VSWR: 2:1 or less
  Characteristic impedance: 50 ohm antenna base
  Radome color: Black
  Antenna dimensions (L x W x H): 1.7 x 1.4 x 0.55 in. (44 x 36 x 14 mm)
  Operating temperature: –40 to 185°F (–40 to 85°C)
  Operating frequency ranges: 1574.42 to 1576.42
  MHz polarization: RHCP
  Maximum peak gain (at Boresight): 4 dBic
  Shocks: 50G
  Drop test: 10 x 3 axis per 1m drop 6 axis
  Cable length: 17 ft (5.18m)
  Mount bracket: Metal
  Anchor: 1 inch. The anchor drill size is 3/16.
  Screws: 3 stainless-steel screws that are self-drilling pan head #2 Phillips.

Antenna extension 4G-AE015-R

Description

  Single-unit antenna extension base: 15 ft (457.2 cm)

Electrical specifications

  Frequency range: 6 GHz
  Attenuation: Less than 3 dB at or below 2.5 GHz
  Base connector: TNC socket
  Pigtail connector: TNC plug

Mechanical specifications

  Base material: Cisco gray UL94 V0 PC/ABS plastic
  Dimensions: 2.8 x 2.4 x 1.8 in. (7.1 x 6.1 x 4.6 cm)
  Weight: 6 oz (0.17 kg)
  Cable: 15 ft (457.2 cm) nonplenum rated Pro-Flex Plus 195

Antenna extension 4G-AE010-R

Description

  Single-unit antenna extension base: 10 ft. (304.8 cm); one cable included

Electrical specifications

  Frequency range: 6 GHz
  Attenuation: Less than 3 dB at or below 2.5 GHz
  Base connector: TNC socket
  Pigtail connector: TNC plug

Mechanical specifications

  Base material: UL 94 V0PC and ABS plastic
  Dimensions: 2.8 x 2.4 x 1.8 in. (7.1 x 6.1 x 4.6 cm)
  Weight: 6 oz (0.17 kg)
  Cable: 10 ft (304.8 cm) nonplenum rated Pro-Flex Plus 195
1 -N antenna works with -N cables and -N lighting arrestor.

Ordering Information

For more information about ordering the IR809, visit the Cisco Ordering homepage and refer to Tables 6 and 7.

Table 6.         Ordering Information for Cisco 809 Industrial Integrated Services Routers

Product

Description

Cisco IR809G 4G LTE Integrated Services Routers

IR809G-LTE-LA-K9

Compact Cisco IR809 Ruggedized Secure Multi-Mode 4G LTE Industrial Integrated Services Router for Australia, Asia (including Japan) and Latin America; LTE FDD bands 1, 3, 5, 7, 8, 18, 19, 21, 28 and TDD LTE band 38, 39, 40, 41 bands with carrier aggregation, UMTS/HSPA+ bands and TD-SCDMA band 39 with ETSI compliance

IR809G-LTE-GA-K9

Compact Cisco IR809 Ruggedized Secure Multi-Mode 4G LTE Industrial Integrated Services Router for Europe; LTE 800/900/1800/2100/2600 MHz, 850/900/1900/2100 MHz UMTS/HSPA+ bands with ETSI compliance

IR809G-LTE-NA-K9

Compact Cisco IR809 Ruggedized Secure Multi-Mode 4G LTE Industrial Integrated Services Router for North America; LTE 700 MHz (band 17), 1900 MHz (band 2 PCS), or 1700/2100 MHz (band 4 AWS) networks; backward-compatible with UMTS and HSPA+: 850 MHz (band 5), 900 MHz (band 8), 1900 MHz (band 2 PCS), and 1700/2100 MHz (band 4 AWS) with FCC compliance

IR809G-LTE-VZ-K9

Compact Cisco IR809 Ruggedized Secure Multi-Mode 4G LTE Industrial Integrated Services Router for Verizon in North America; LTE 700 MHz (band 13), 1700/2100 MHz (band 4 AWS), or 1900 MHz (band 25 extended PCS) networks; backward-compatible with EVDO Rev A/CDMA 1x BC0, BC1, BC10 with FCC compliance

Power Supplies and Mounting Brackets

PWR-IE50W-AC-L(=)

AC power adapter with 110/240V AC and 90-264V input (operating temperature: -20C to +70C)

For more details on this power supply, visit: https://www.cisco.com/c/en/us/products/collateral/switches/industrial-ethernet-switches/datasheet-c78-742180.html

IR809-DINRAIL1

DIN rail kit for the IR809 (available in future)

IR809-VM-DINRAIL2

Vertical-mount DIN rail kit for the IR809 (available in future)

Cisco IOS Software and Licenses

SL-IR800-DATA-K9

Cisco 800 Series Industrial Routers Data License

SL-IR800-SNPE-K9

Cisco 800 Series Industrial Routers No Payload Encryption License

SL-IR800-SEC-K9

Cisco 800 Series Industrial Routers Security License

SL-IR800-IPB-K9

Cisco 800 Series Industrial Routers IP Base License

FW-MC7304-LTE-AU

Cisco Australia MC7304 modem image switching provisioning firmware

FW-MC7304-LTE-GB

Cisco Global MC7304 modem image switching provisioning firmware

FW-MC7354-LTE-AT

Cisco ATT MC7354 modem image switching provisioning firmware

FW-MC7354-LTE-CA

Cisco Canada MC7354 modem image switching provisioning firmware

FW-MC7350-LTE-VZ

Cisco Verizon MC7350 modem image switching provisioning firmware

FW-7430-LTE-AU

Cisco LTE modem firmware for Telstra (Australia)

FW-7430-LTE-JP

Cisco LTE modem firmware for NTT DoCoMo (Japan)

FW-7430-LTE-SB

Cisco LTE modem firmware for Softbank (Japan)

FW-7430-LTE-KD

Cisco LTE modem firmware for KDDI (Japan)

FW-7430-LTE-GN

Cisco LTE modem generic firmware

Operating: Shock

2.39m per second (94 in. per second) at 2 ms

Operating: Vibration

3 to 500 Hz.41 GRMS (2 hours)

Nonoperating: Shock

65 to 80G at 8 ms

Nonoperating: Vibration

3- to 500 Hz 1.12 GRMS (0.5 hour)

1 Meets IEEE 1613 and IEC 61850-3 standards.
2 Not compliant with IEEE 1613 and IEC 61850-3 standards, but has passed the following tests:

Table 7.         Antenna Ordering Information for Cisco 809 Industrial Integrated Services Routers

Note:    None of the antennas are included by default along with the IR809.

Description

Part Number

Cisco transportation omnidirectional 3-element antenna for 2G, 3G, 4G cellular and GPS

ANT-3-4G2G1-O

ANT-3-4G2G1-O= (Spare)

Multiband Omni-Directional Stick Outdoor 4G Antenna

ANT-4G-OMNI-OUT-N1

ANT-4G-OMNI-OUT-N=1 (Spare)

Multiband Panel Outdoor 4G Antenna

ANT-4G-PNL-OUT-N1

ANT-4G-PNL-OUT-N=1 (Spare)

Indoor swivel-mount dipole antenna

ANT-4G-DP-IN-TNC

ANT-4G-DP-IN-TNC= (Spare)

Multi-Band Omnidirectional Antenna-Ceiling Mount

4G-ANTM-OM-CM

4G-ANTM-OM-CM= (Spare)

Standalone active SMA GPS antenna with 17-ft (5 m)extender

GPS-ACT-ANTM-SMA

GPS-ACT-ANTM-SMA= (Spare)

Single Unit Antenna Extension Base (10-ft, one cable included)

4G-AE010-R

4G-AE010-R= (Spare)

Single Unit Antenna Extension Base (15-ft cable)

4G-AE015-R

4G-AE015-R= (Spare)

50-ft (15m) Ultra Low Loss LMR 400 Cable with TNC Connector

4G-CAB-ULL-50

4G-CAB-ULL-50= (Spare)

20-ft (6m) Ultra Low Loss LMR 400 Cable with TNC Connector

4G-CAB-ULL-20

4G-CAB-ULL-20= (Spare)

50-ft (15 m) Ultra Low Loss LMR 400 Cable TNC-N Connector

CAB-L400-50-TNC-N1

CAB-L400-50-TNC-N=1 (Spare)

20-ft (6 m) Ultra Low Loss LMR 400 Cable with TNC-N Connector

CAB-L400-20-TNC-N1

CAB-L400-20-TNC-N=1 (Spare)

20-ft (6m) Ultra Low Loss LMR 400 Cable with N Connectors

CAB-L400-20-N-N1

CAB-L400-20-N-N=1 (Spare)

Lightning Arrestor Kit: female to female

CGR-LA-NF-NF

CGR-LA-NF-NF= (Spare)

Lightning Arrestor Kit: male to female

CGR-LA-NM-NF

CGR-LA-NM-NF= (Spare)

1 -N antenna works with -N cables and -N lighting arrestor.



Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

For More Information

For more information about the Cisco 809 Industrial Integrated Services Routers, visit http://www.cisco.com/go/ir809 or contact your local Cisco account representative.

For more information about the Cisco IOx platform, visit http://www.cisco.com/go/iox or contact your local Cisco account representative.

Cisco and Partner Services for the Enterprise Networks Architecture

Enable Cisco Enterprise Networks Architecture and the business solutions that run on it with intelligent, personalized services from Cisco and our partners. Backed by deep networking expertise and a broad ecosystem of partners, these services can help you plan, build, and run a network that enables you to expand geographically, adopt new business models, and promote business innovation. Whether you are seeking to transition to a Cisco ONE enterprise networks architecture, solve specific business problems, or improve operation efficiency, we have a service that can help you get the most from your IT environment. For more information, visit http://www.cisco.com/go/services.

Warranty Coverage and Technical Service Options

The IR809 comes with the Cisco 5-year limited hardware warranty. Adding a contract for a technical service offering, such as Cisco SMARTnet Service, provides benefits not available with the warranty, including access to OS updates, Cisco.com online resources, and Cisco Technical Assistance Center (TAC) support services. Table 8 shows the available technical services.

For information about Cisco warranties, visit http://www.cisco.com/go/warranty.

For information about Cisco Technical Services, visit http://www.cisco.com/go/ts.

Table 8.         Cisco Technical Services for the Cisco 809 Industrial Integrated Services Routers

Technical Services

Cisco SMARTnet Service

  Global access to the Cisco TAC 24 hours a day
  Unrestricted access to the extensive Cisco.com resources, communities, and tools
  Next-business-day (NBD), 8 x 5 x 4, 24 x 7 x 4, and 24 x 7 x 2 advance hardware replacement1 and onsite parts replacement and installation available 1
  Ongoing operating system software updates within the licensed feature set 2
  Proactive diagnostics and real-time alerts on Cisco Smart Call Home-enabled devices

Cisco Smart Foundation Service

  NBD advance hardware replacement as available
  Business-hours access to small and medium-sized business (SMB) Cisco TAC (access levels vary by region)
  Access to Cisco.com SMB knowledge base
  Online technical resources through the Cisco Smart Foundation portal
  OS software bug fixes and patches
1 Advance hardware replacement is available in various service-level combinations. For example, 8 x 5 x NBD indicates that shipment is initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant region), with NBD delivery. Where NBD is not available, same-day shipment is provided. Restrictions apply; review the appropriate service descriptions for details.
2 Cisco OS updates include maintenance releases, minor updates, and major updates in the licensed feature set.







Learn more
