Overview

WAN Interface Modules (WIM) provide highly flexible connectivity options for Cisco^® 800M Series Integrated Services Routers. The Cisco 1-port Serial WAN Interface Module (WIM-1T) provides for WAN access and low-density WAN aggregation and legacy protocol transport.

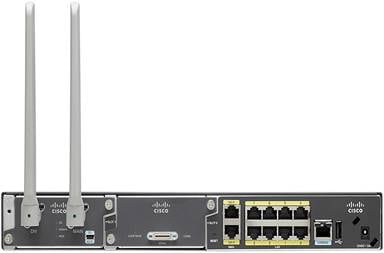

Figure 1 shows the rear of the Cisco 800M Series ISR (C841M-8X) with the 1-port serial WIM-1T modules inserted in second slot (Slot 1).

Figure 1. Cisco 800M Series ISR (C841M-8X) WIM-1T in Slot 1

Ordering Information

Table 1 gives ordering information for the1-port Serial WAN Interface Module (WIM-1T) and Table 2 lists the connectors and cables.

Table 1. Ordering Information for WIM-1T

Part Number

Description

Supported Platforms and Quantity

Minimum IOS Release

WIM-1T

One-port Serial WAN Interface Module

Cisco 800M Series Routers (C841M-4X, C841M-8X)

2 Modules per Chassis

15.5(1)T1

Table 2. Connectors and Cables

Part Number	Cable Type	Length	Connector Type
CAB-SS-V35MT	V.35 DTE	10 ft (3m)	Male
CAB-SS-V35FC	V.35 DCE	10 ft (3m)	Female
CAB-SS-232MT	EIA/TIA-232 DTE	10 ft (3m)	Male
CAB-SS-232FC	EIA/TIA-232 DCE	10 ft (3m)	Female
CAB-SS-449MT	EIA/TIA-449 DTE	10 ft (3m)	Male
CAB-SS-449FC	EIA/TIA-449 DCE	10 ft (3m)	Female
CAB-SS-X21MT	X.21 DTE	10 ft (3m)	Male
CAB-SS-X21FC	X.21 DCE	10 ft (3m)	Female
CAB-SS-530MT	EIA/TIA-530 DTE	10 ft (3m)	Male
CAB-SS-530FC	EIA/TIA-530 DCE	10 ft (3m)	Male

Specifications

Table 3 gives specifications for the 1-port serial WAN interface module.

Table 3. Serial WAN Interface Module Specifications

Feature	Specification
Product ID	WIM-1T
Serial Interface Form Factor	Pluggable WAN Interface Module
Dimensions (HxWxD)	1.65 x 3.97 x 4.62 in.
Weight	0.4 kg
Serial WAN Interface	● Support for both synchronous and asynchronous modes ● Synchronous maximum speed of up to 8 Mbps ● Asynchronous maximum speed of up to 115.2 kbps ● Support for network clock synchronization
Encapsulation	PPP and HDLC
Serial protocol support	EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21
Cisco Smart Serial Cabling	Cisco Smart Serial connectors and supported cables
Approvals and Compliance	Safety: ● IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013 ● EN60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 ITE equipment ● UL 60950-1+ AMD 1 AMD 2 ITE equipment
Approvals and Compliance	EMC: ● EN55022 Class B ● EN55024 ● EN61000-3-2 ● EN61000-3-3 ● VCCI Class B ● 47 CFR Part 15 ● EN 300 386 v1.6.1 ● EN 301 489-1 ● EN 301 489-7 ● EN 301 489-24
