The Cisco® NCS 1000 Mux/Demux 64-Channel Patch Panel is a standalone passive unit that contains both a 64-channel optical multiplexer and a 64-channel optical demultiplexer, precabled within the unit’s housing.
This unit provides support for 400ZR and NCS1004 multihaul coherent channels up to 63 Gbaud at 75-GHz spacing. This filter is designed with optimum tradeoff between bandwidth and isolation for a network designed with 64 channels of 400ZR.

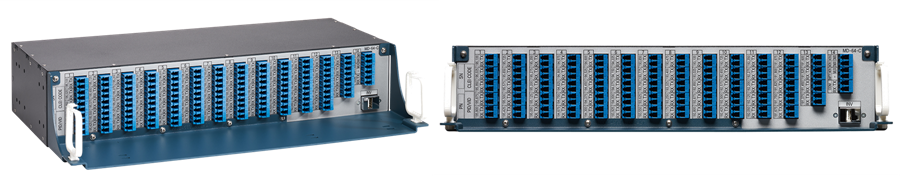

Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel
The panel’s ports are arranged in 18 columns and 5 rows. The placement of the clips provides optimal fiber routing, facilitating the addition of fibers in an incremental manner and resulting in a simple design that is easy to maintain and troubleshoot. A separate tie wrap is provided for fastening the USB cable used for passive inventory management and storage of insertion loss values. The panel shall fit into ETSI 300-mm and ANSI 450-mm racks.

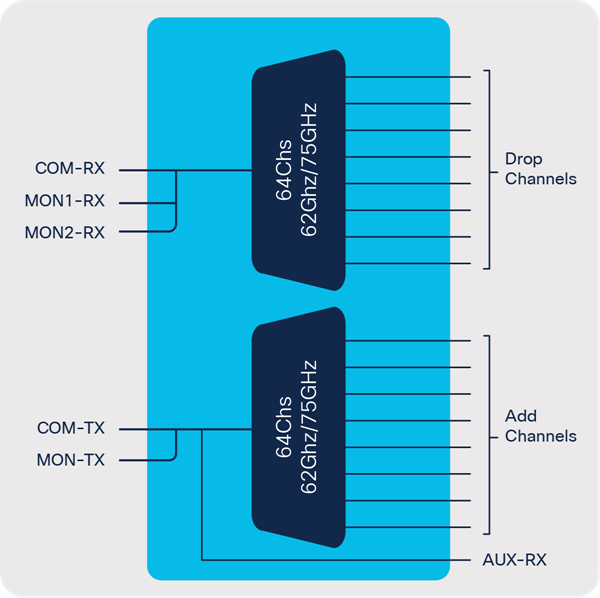

Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel standalone configuration
The Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel provides the following customer benefits:
● Optimized for network architectures with 400ZR and openZR+ DCOs
● Can be used in multiple use cases:
◦ Standalone with any third-party line systems
◦ With NCS1001 line system for metro P2P applications
◦ With NCS2000 line system for ROADM use cases
● Ease of operation with 400ZR or openZR+ optics on the router and NCS1001 as line system
● Suitable for 63-Gbd coherent DWDM channels from Cisco or any alien transponder
● Best-in-class operational efficiency with zero electrical power requirements
● Fiber management plate with integrated clips for secure but easy fiber access
● Low optical insertion loss for improved distance and performance
● USB port for passive inventory

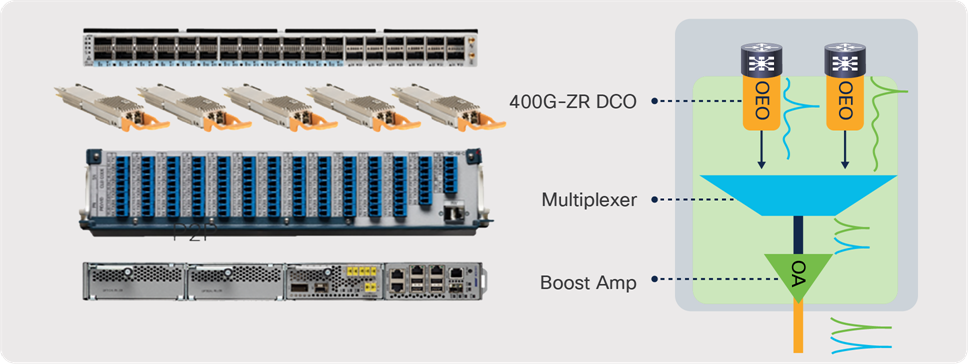

400G ZR Cisco solution with 64-channel mux/demux
Table 1 provides the channel plan for the Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel. Tables 2, 3, and 4 provide optical and mechanical specifications.
Table 1. Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel channel plan
| Channel ID |
Frequency (THz) |
Wavelength (nm) |
Channel ID |
Frequency (THz) |
Wavelength (nm) |
| 1 |
196.100 |
1528.77 |
33 |
193.7 |
1547.72 |
| 2 |
196.025 |
1529.36 |
34 |
193.625 |
1548.31 |
| 3 |
195.95 |
1529.94 |
35 |
193.55 |
1548.91 |
| 4 |
195.875 |
1530.53 |
36 |
193.475 |
1549.52 |
| 5 |
195.8 |
1531.12 |
37 |
193.4 |
1550.12 |
| 6 |
195.725 |
1531.70 |
38 |
193.325 |
1550.72 |
| 7 |
195.65 |
1532.29 |
39 |
193.25 |
1551.32 |
| 8 |
195.575 |
1532.88 |
40 |
193.175 |
1551.92 |
| 9 |
195.5 |
1533.47 |
41 |
193.1 |
1552.52 |
| 10 |
195.425 |
1534.05 |
42 |
193.025 |
1553.13 |
| 11 |
195.35 |
1534.64 |
43 |
192.95 |
1553.73 |
| 12 |
195.275 |
1535.23 |
44 |
192.875 |
1554.34 |
| 13 |
195.2 |
1535.82 |
45 |
192.8 |
1554.94 |
| 14 |
195.125 |
1536.41 |
46 |
192.725 |
1555.55 |
| 15 |
195.05 |
1537.00 |
47 |
192.65 |
1556.15 |
| 16 |
194.975 |
1537.59 |
48 |
192.575 |
1556.76 |
| 17 |
194.9 |
1538.19 |
49 |
192.5 |
1557.36 |
| 18 |
194.825 |
1538.78 |
50 |
192.425 |
1557.97 |
| 19 |
194.75 |
1539.37 |
51 |
192.35 |
1558.58 |
| 20 |
194.675 |
1539.96 |
52 |
192.275 |
1559.19 |
| 21 |
194.6 |
1540.56 |
53 |
192.2 |
1559.79 |
| 22 |
194.525 |
1541.15 |
54 |
192.125 |
1560.40 |
| 23 |
194.45 |
1541.75 |
55 |
192.05 |
1561.01 |
| 24 |
194.375 |
1542.34 |
56 |
191.975 |
1561.62 |
| 25 |
194.3 |
1542.94 |
57 |
191.9 |
1562.23 |
| 26 |
194.225 |
1543.53 |
58 |
191.825 |
1562.84 |
| 27 |
194.15 |
1544.13 |
59 |
191.75 |
1563.45 |
| 28 |
194.075 |
1544.72 |
60 |
191.675 |
1564.07 |
| 29 |
194 |
1545.32 |
61 |
191.6 |
1564.68 |
| 30 |
193.925 |
1545.92 |
62 |
191.525 |
1565.29 |
| 31 |
193.85 |
1546.52 |
63 |
191.45 |
1565.90 |
| 32 |
193.775 |
1547.12 |
64 |
191.375 |
1566.52 |
Table 2. Optical specifications of Cisco NCS 1000 Mux 64-Channel Patch Panel
| Parameter |
Minimum |
Maximum |
| Insertion loss |
3 dB |
5.5 dB |
| 3-dB net bandwidth around ITU-T center wavelength |
±33 GHz |
N/A |
| 1.5-dB net bandwidth around ITU-T center wavelength |
±30 GHz |
N/A |
| Adjacent channel isolation |
4.5 dB |
N/A |
| Adjacent channel isolation @ central wavelength position |
20 dB |
N/A |
| Group delay ripple (GDR) |
N/A |
±14 ps |
| Chromatic dispersion |
N/A |
±150 ps/nm |
| Return loss |
40 dB |
N/A |
| Polarization Dispersion Loss (PDL) |
N/A |
0.8 dB |
| Polarization Mode Dispersion (PMD) |
N/A |
1 ps |
Table 3. Optical specifications of Cisco NCS 1000 Demux 64-Channel Patch Panel
| Parameter |
Minimum |
Maximum |
| Insertion loss |
3dB |
5.5 dB |
| 3-dB net bandwidth around ITU-T center wavelength |
±38 GHz |
N/A |
| 1.5-dB net bandwidth around ITU-T center wavelength |
±31 GHz |
N/A |
| Adjacent channel isolation |
1 dB |
N/A |
| Adjacent channel isolation @ central wavelength position |
9 dB |
N/A |
| Group Delay Ripple (GDR) |
N/A |
±1 ps |
| Chromatic dispersion |
N/A |
±20 ps/nm |
| Return loss |
40 dB |
N/A |
| Polarization Dispersion Loss (PDL) |
N/A |
0.7 dB |
| Polarization Mode Dispersion (PMD) |
N/A |
0.7 ps |
Table 4. Mechanical specifications of Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel
| Parameter |
Operating range |
| Operating temperature range |
-5°C to 55°C |
| Storage temperature range |
-40°C to 85°C |
| Operating humidity range |
5% RH to 85% RH |
| Height |
12.65 inches |
| Width |
0.97 inches |
| Depth |
9.45 inches |
| Weight |
5.5 pounds |
Table 5 lists regulatory compliance information for the patch panel. Note that all compliance documentation may not be completed at the time of product release. Please check with your Cisco sales representative for countries that are not listed below.
Table 5. Regulatory compliance
| ETSI system |
|
| Countries and regions supported |
|
|
●
Canada
●
United States
●
Korea
●
Japan
●
European Union
|
● European Union
● Africa
● CSI
● Australia
● New Zealand
● China
● Korea
● India
● Saudi Arabia
● South America
|
|
●
EMC (Emissions)
|
● FCC 47CFR15, Class A
● AS/NZS CISPR 32, Class A
● CISPR 32, Class A
● EN55032, Class A
● ICES-003, Class A
● VCCI, Class A
● KN 32, Class A
● EN/61000-3-2/KN61000-3-2
● EN61000-3-3//KN61000-3-3
● CNS-13438, Class A
|
|
●
EMC (Immunity)
|
● IEC/EN61000-4-2 Electrostatic Discharge Immunity
● IEC/EN61000-4-3 Radiated Immunity
● IEC/EN61000-4-4 EFT-B Immunity
● IEC/EN61000-4-5 Surge AC Port
● IEC/EN61000-4-6 Immunity to Conducted Disturbances
● IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
● KN 35
|
|
●
EMC (ETSI/EN)
|
● EN 300 386 Telecommunications Network Equipment (EMC)
● EN55032 Electromagnetic Compatibility of Multimedia Equipment-Emission Requirements
● EN55035 Electromagnetic Compatibility of Multimedia Equipment-Immunity Requirements
● EN55024 Information Technology Equipment (Immunity)
● EN61000-6-1/EN61000-6-2 Generic Immunity Standard
● EN61000-3-2 Power Line Harmonics
● EN61000-3-3 Voltage Changes, Fluctuations, and Flicker
|
| Safety |
|
|
●
CAN/CSA 22.2 No. 62368-1: 2014
●
UL 62368-1, 2nd Ed.
|
● IEC 62368-1: 2014
● BS EN 62368-1: 2014 plus A11: 2017
|
| Laser |
|
|
● 21CFR1040 (2008/04) (Accession Letter and CDRH Report) Guidance for Industry and FDA Staff (Laser Notice No. 56), May 2019
|
● Comply with 21 CFR 1040.10 and 1040.11
|
| Optical |
|
|
● ITU-T G.691
|
● ITU-T G.975
|
| Quality |
|
|
●
TR-NWT-000332, Issue 4, March 2016
|
|
Table 6. Ordering information
| Part number |
Description |
| NCS1K-MD-64-C= |
NCS 1000 64 chs Odd Mux/Demux Patch Panel - C-band |
The following are the warranty:
● Hardware warranty duration: 5 years
● Software warranty duration: 1 year
● Hardware replacement, repair, or refund procedure: Cisco or our service center will use commercially reasonable efforts to ship a replacement part for delivery within 15 working days after receipt of the defective product at Cisco’s site. Actual delivery times of replacement products may vary depending on customer location.
Your formal warranty statement appears in the Cisco Information Packet that accompanies your Cisco product.
Product warranty terms and other information applicable to Cisco products are available at: https://www.cisco.com/go/warranty.
Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.
Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:
Table 7. Cisco Environmental Sustainability Information
| Sustainability Topic |
Reference |
|
| General |
Information on product-material-content laws and regulations |
|
| Information on electronic waste laws and regulations, including our products, batteries and packaging |
||
| Information on product takeback and reuse program |
||
| Sustainability Inquiries |
Contact: csr_inquiries@cisco.com |
|
| Countries and Regions Supported |
||
| Power |
Power |
Max power consumption < 1.25W |
| Material |
Product packaging, weight and materials |
Packing box: SINGLE WALL, K3K Packing foam: pink static dissipative closed-cell polyethylene Packing bag: Transparent anti-static grid bag Shipping box: Double wall, v5v5v For additional information, Contact: environment@cisco.com |
| Weight |
||
| % Packaging foam reduction from previous generation |
Cisco NCS 1000 Mux/Demux 64-Channel Patch Panel uses use the same packing foam as previous generation |
|
| Packaging efficiency |
2Pc/3Pc shipped per pallet (Vendor1), 1pc per carton box (vendor 2) |
|
| MTBF |
12776287 hours |
|
