The Cisco Catalyst IE3100 Heavy Duty Series delivers Gigabit Ethernet connectivity in a compact, IP67 platform that is purpose-built for any industrial application in a wet, vibration-prone and space-constrained scenario.

Product overview

Cisco® Catalyst IE3100 Heavy Duty Series switches deliver the advanced capability similar to the Cisco Catalyst IE3100 Rugged Series, but now in environments with extreme exposure to dust, vibration, and water. The platform is built to withstand the harshest environments found in manufacturing, transportation, mining, and rail. This switch is ideal for space-constrained, vibration-prone, wet deployments often found on production floors, railways and trains, clean rooms, outdoor spaces, and entertainment venues such as theme parks. By providing reliable connectivity to data sources like sensors, cameras, and other equipment located in tight spaces and extreme conditions, Catalyst IE3100 Heavy Duty switches help build a network ready for the demanding requirements of software-defined automation and industrial AI.

The Cisco Catalyst IE3100 Heavy Duty Series switches are available in 8 Gigabit Ethernet (X-coded) or 6 Fast Ethernet (D-coded) with 2 Gigabit Ethernet (X-coded) M12 interfaces. The switches can be wall mounted in all orientations and deployed without the dependency on a housing cabinet.

The IE3100H Series switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models. Additionally, you can provide secure Zero-Trust Network Access (ZTNA) to industrial assets at scale with Cisco Secure Equipment Access.

The Cisco Catalyst IE3100 Heavy Duty Series can be managed with a powerful management tool, Cisco Catalyst Center, and can easily be set up with a user-friendly modern GUI tool called WebUI.

The IE3100 Heavy Duty Series switches offer:

     Robust resiliency enabled by features such as Media Redundancy Protocol (MRP) or Resilient Ethernet Protocol (REP)

     Support for removable media (SD card) for local backups and fast recovery

     Simplified software management with universal images

     Support for industrial automation protocols Ethernet/IP (CIP), Modbus, and PROFINET

A white box with black and silver connectorsAI-generated content may be incorrect.

Figure 1.

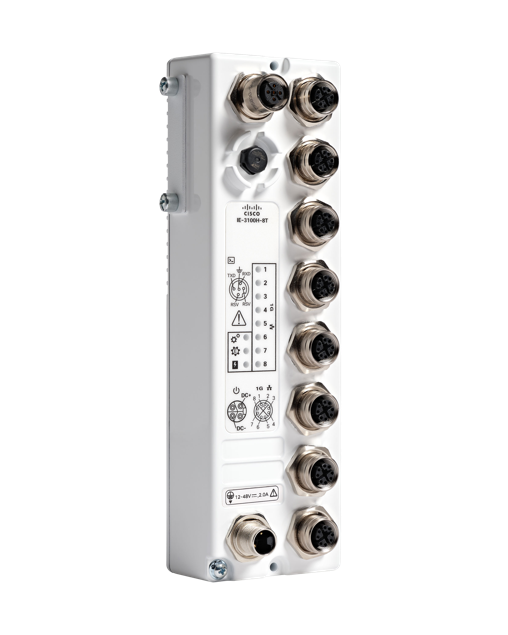

IE-3100H-8T-E switch

A white box with black and silver connectorsAI-generated content may be incorrect.

Figure 2.

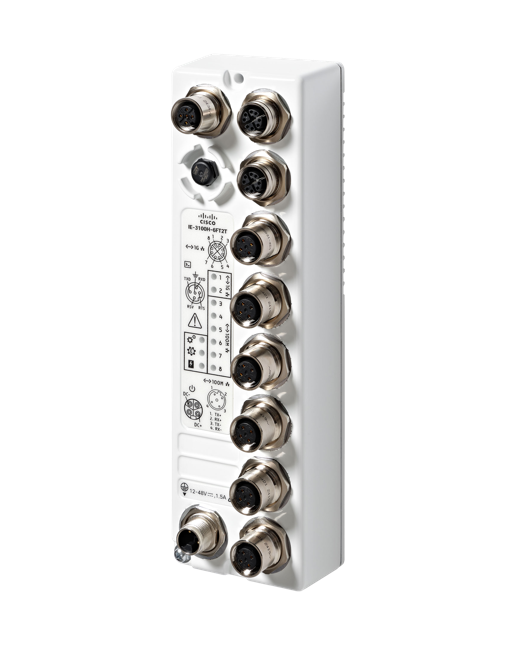

IE-3100H-6FT2T-E switch

Features and benefits

Table 1.           Features and benefits

Feature

Benefit

Heavy-duty design and industry compliance

  Mount the switch close to where the work is done, in the most demanding environments
  IP66/IP67 rated, providing protection against dust and submersion in water
  Hardened for vibration, shock and surge, electrical noise, and extreme temperatures (–40°F to 167°F [–40°C to 75°C])
  Compliant with industrial automation standards; supports Ethernet/IP Common Industrial Protocol (CIP)
  Supports Supervisory Control and Data Acquisition (SCADA) protocol classification—Generic Object-Oriented Substation Events (GOOSE) messaging, Modbus TCP/IP

Full gigabit Ethernet switch

  Up to 8 Gigabit Ethernet M12 ports provide multiple resilient design options
  Provides secure access for new high-speed applications in the industrial space
  Allows IP-based Supervisory Control and Data Acquisition (SCADA) connectivity
  Delivers multiple rings, redundant ring topology for new network configurations

Redundancy and resiliency

  Resilient Ethernet Protocol (REP)
  Media Redundancy Protocol (MRP)

User-friendly WebUI

  Allows for easy configuration and monitoring, even by nonspecialist personnel
  Eliminates the need for more complex terminal emulation programs
  Reduces the cost of deployment

Industrial automation protocols

  Ethernet/IP (CIP), Modbus, SCADA, GOOSE, and PROFINET MRP (IEC 62439-2) allow integration with existing management platforms from Rockwell, Siemens, and others
  IEEE 1588v2 Precision Timing Protocol (PTP) (both power profile for utility and default profile for manufacturing are supported)
  gRPC (open source Remote Procedure Calls) mutual TLS (mTLS) Stream Telemetry

Zero Trust Network Access (ZTNA)

  Secure remote access to Operational Technology (OT) assets efficiency with Cisco Secure Equipment Access (SEA)
  Remote users connect to a cloud portal for authentication and authorization to configured devices and protocols for a designed date and time

Platform support

Table 2.           Product feature sets

Product Family

Platforms Supported

IOS Images (Feature Sets) Supported

IE3100

IE-3100H-6FT2T-E

Network Essentials

IE-3100H-8T-E

Network Essentials

Product specifications

Table 3 highlights the hardware configuration for the Cisco Catalyst IE3100 Heavy Duty Series

Table 3.           Hardware configurations

Product ID

Total M12 Ports

10/100 Fast Ethernet (C-code) ports

10/100/1000 Gigabit Ethernet (X-code) ports

IE-3100H-6FT2T-E

8

6

2

IE-3100H-8T-E

8



8

Table 4.           Hardware specifications

Product ID

IE-3100H-6FT2T-E

IE-3100H-8T

Removable Storage

SD card1

SD card1

Alarms

No alarm port

No alarm port

Console Ports

1 (A-coded M12)

1 (A-coded M12)

Power Inputs

Single power source (L-coded M12)

Single power source (L-coded M12)

1 The SD card is optional and not shipped by default with the switch.

Table 5.           Physical configurations

Product ID

Dimensions (H x W x D)

Weight

Mounting

IE-3100H-6FT2T-E

7.90 x 2.71 x 2.10 in

20.07 x 6.88 x 5.33 cm

1.75 lbs (0.79 kg)1

Wall

IE-3100H-8T-E

7.90 x 2.71 x 2.33 in

20.07 x 6.88 x 5.92 cm

1.65 lbs (0.75 kg)1

Wall

1 Chassis only

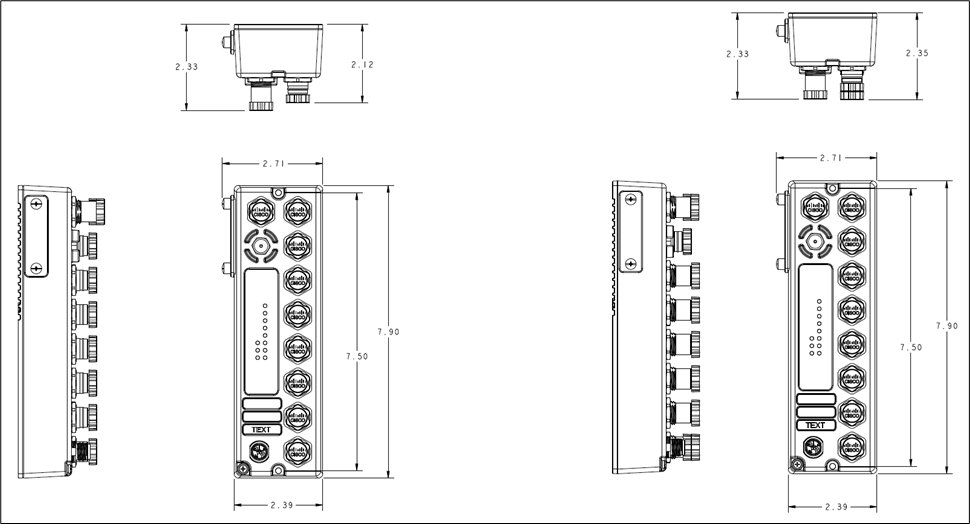

IE-3100H-6FT2T-E dimensions (left), IE-3100H-8T-E (right)

Figure 3.

IE-3100H-8T-E dimensions (left), IE-3100-6FT2T-E (right)

Table 6 highlights power specifications for the Cisco Catalyst IE3100 Heavy Duty Series

Table 6.           Power specifications

Product ID

Input Voltage Range

Max current during normal operation

Inrush Current

Power Consumption

IE-3100H-6FT2T-E

12V to 48V nominal

9.6V to 60V absolute

1.2 A with 12V input

0.6 A with 24V input

0.3 A with 48V input

17.4 A for 0.15ms with 12V input

42 A for 0.1ms with 24V input

91.7 A for 0.1ms with 48V input

10.4W

IE-3100H-8T-E

12V to 48V nominal

9.6V to 60V absolute

1.4 A with 12V input

0.7 A with 24V input

0.35 A with 48V input

17.4 A for 0.15ms with 12V input

42 A for 0.1ms with 24V input

91.7 A for 0.1ms with 48V input

11.6W

1 Max Current should be used for sizing power supplies and electrical wiring.
2 Power consumption should be used for thermal load and battery capacity.
3 Power consumption varies with the local ambient temperature, the input voltage, and the number/type of active interfaces. Please see the IE-310x Power Estimator for more detailed power consumption.
4 For BTU/hr, please convert the Power Consumption watts to BTU/hr.

Table 7.           Performance and scalability features

Feature

Performance

Forwarding rate

Line rate for all ports and all packet sizes

Number of queues

8 egress

Unicast MAC addresses

8000

Internet Group Management Protocols (IGMP) multicast groups

512

VLANs

256

IPv4 indirect routes

2000

Spanning Tree Protocol (STP) instances

128

DRAM

4GB

SD card capacity1

16GB

1 The SD card is optional and not shipped by default with the switch.

Table 8.           Power supply options

Product ID

Description

PWR-IE160W-67-DC=

IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W

Table 9.           Key supported software features (Network Essentials license)

Network Essentials license (perpetual)

Features

Layer 2 switching

802.1Q, 802.1w, 802.1ab, 802.1s, 802.3ad, Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Switch Port Analyzer (SPAN), Remote-SPAN (RSPAN), Flow-Based SPAN (FSPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Q-in-Q, EtherChannel

Multicast

IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping

Management

WebUI, Management Information Base (MIB), Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, RESTCONF, Embedded Event Manager (EEM), Cisco Network Plug and Play (PnP), Express Setup, Delayless IPDT

Security

DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP), Security Exchange Protocol (SXP)

Quality of Service (QoS)

802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, Ingress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing

Layer 3 routing

Inter-VLAN routing, static routing

Industrial Ethernet

Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 20171), Network Time Protocol (NTP) to PTP, Sampled Values

Redundancy

Resilient Ethernet Protocol (REP) ring, Media Redundancy Protocol (MRP)

Automation

YANG, NETCONF, RESTCONF

1 Support planned with future software updates

Table 10 highlights the details of Cisco Catalyst Center Essentials for the Cisco Catalyst IE3100 Heavy Duty Series

Table 10.       Cisco Catalyst Center Essentials license

Features2

Description

Cisco Catalyst Center Essentials1

Cisco Catalyst Center

Discovery, topology, inventory, software image management

Yes

Visibility

Overall Health Dashboard

Yes

Day-zero network bring-up automation

Cisco Network Plug-and-Play application

Yes

SD-Access Extended Node

SD-Access fabric overlay extension

Yes

Industrial Support

MRP Monitoring, REP Configuration

Yes

1 Cisco Catalyst Center license for Industrial Ethernet switches are add-on/optional and not mandatory. They do not include Network Tier features.
2 Does not represent all supported Cisco Catalyst Center features. Refer to Catalyst Center datasheet for additional information

Table 11 highlights the compliance specifications for the Cisco Catalyst IE3100 Heavy Duty Series

Table 11.       Compliance specifications

Product ID

Specifications

Industrial Automation

IEC 62443-4-1

IEC 62443-4-2

Emissions, immunity and regulatory compliance

Emissions (Class A):

FCC 47 CFR Part 15 Subpart B

EN55032/CISPR 32

VCCI

AS/NZS CISPR 32

CISPR 11

ICES 003

CNS 15936

KS C9832

Immunity:

CISPR35/EN55035

AS/NZS CISPR 35

Industry standards

EN 61000-6-2 Immunity standards for Industrial Environment (ENV)

EN 61000-6-4 Emission standards for Industrial ENV

EN 61000-6-1 Immunity standards for Light Industrial ENV

EN 61326-1 Industrial Control

EN 61131-2 Programmable Controllers

NEMA T2S Traffic Controller Assemblies

IP66/IP67

ODVA Industrial Ethernet/IP

ABB Industrial IT Certificate

Safety standards and certifications

UL/CSA 60950-1

NOM to NOM-019-SCFI (through partners and distributor)

UL/CSA 62368-1, EN62368-1, CB to IEC623680-1 with country deviations

UL61010-2-201

CSA C22.2, No 142

Operating environment

Operating temperature:

–40° to 167°F (–40° to 75°C) (fan cooled enclosure)

–40° to 158°F (–40° to 70°C) (vented enclosure with minimum 40 lfm on unit)

–40° to 140°F (–40° to 60°C) (sealed enclosure operating)

+185°F (85°C) (short term operating for 16 hours)

EN 60068-2-1

EN 60068-2-2

EN 61131

Altitude:

Up to 15,000 feet (4,572 m) with no temperature derating

Up to 40,000 feet (12,192 m) with temperature derating down to 25°C (77°F)

Storage environment

–40 to 185°F (–40 to 85°C)

Altitude: 40,000 feet (12,192 m)

IEC 60068-2-14

Humidity

IEC60068-2-3

IEC60068-2-30

Shock and vibrations

EC 60068-2-27 (Operational shock: 30G 11ms, half sine)

IEC 60068-2-27 (Non-operational shock 55-70G, trapezoidal)

IEC 60068-2-6, IEC 60068-2-64, EN 61373 (operational vibration)

IEC 60068-2-6, IEC 60068-2-64, EN 61373 (non-operational vibration)

Corrosion

IEC 60068-2-52 (salt mist, method 3)1

IEC60068-2-60 (flowing mixed gases)1

Railway

EN50155:2021 (clauses 13.4.1-6, 13.4.9, 13.4.10, 13.4.13)1

EN50121-3-2:20211

EN50121-4:20211

EN61373:20101

EN50124-1:20171

AREMA C&S Manual:20221

EN50153:2020 Clause 8.31

EN45545-21

Warranty

Five-year limited hardware warranty on all IE3100 Rugged Series product IDs and all Industrial Ethernet (IE) power supplies. See more information in the Warranty section.

1 Certification in progress

Table 12 highlights the hardware configuration for the Cisco Catalyst IE3100 Heavy Duty Series

Table 12.       MTBF Information

Product ID

Rated MTBF (House) based on Telcordia Issue 41

IE-3100H-6FT2T-E

997,510 Hrs

IE-3100H-8T-E

960,120 Hrs

1 Telcordia Issue 4 tested at 25°C

Table 13 highlights information about management and standards for the Cisco Catalyst IE3100 Heavy Duty Series

Table 13.       Management and standards1

Description

Specifications

IEEE Standards

  IEEE 802.1p Layer2 COS prioritization
  IEEE 802.1D MAC Bridges, STP
  IEEE 802.1q VLAN
  IEEE 802.1s Multiple Spanning-Trees
  IEEE 802.1w Rapid Spanning-Tree
  IEEE 802.1x Port Access Authentication
  IEEE 802.1AB Link Layer Discovery Protocol LLDP
  IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  IEEE 802.3ah 100BASE-X SMF/MMF only
  IEEE 802.3u 100BASE-TX specification
  IEEE 802.3ab 1000BASE-T specification
  IEEE 802.3z 1000BASE-X specification
  IEEE 1588v2 Precision Time Protocol (PTP)

Request for Comments (RFC) compliance

  RFC 768: User Datagram Protocol (UDP)
  RFC 783: Trivial File Transfer Protocol (TFTP)
  RFC 791: IPv4 protocol
  RFC 792: Internet Control Message Protocol (ICMP)
  RFC 793: TCP
  RFC 826: ARP
  RFC 854: Telnet
  RFC 951: BOOTP
  RFC 959: FTP
  RFC 1157: SNMPv1
  RFC 1901,1902-1907 SNMPv2
  RFC 2273-2275: SNMPv3
  RFC 2571: SNMP Management
  RFC 1166: IP Addresses
  RFC 1256: ICMP Router Discovery
  RFC 1305: NTP
  RFC 1492: TACACS+
  RFC 1493: Bridge MIB Objects
  RFC 1534: DHCP and BOOTP interoperation
  RFC 1542: Bootstrap Protocol
  RFC 1643: Ethernet Interface MIB
  RFC 1757: Remote Monitoring (RMON)
  RFC 2068: HTTP
  RFC 2131, 2132: DHCP
  RFC 2236: IGMP v2
  RFC 3376: IGMP v3
  RFC 2474: DiffServ Precedence
  RFC 3046: DHCP Relay Agent Information Option
  RFC 3580: 802.1X RADIUS
  RFC 4250-4252 SSH Protocol

SNMP MIB objects

  BRIDGE-MIB
  CALISTA-DPA-MIB
  CISCO-ACCESS-ENVMON-MIB
  CISCO-ADMISSION-POLICY-MIB
  CISCO-AUTH-FRAMEWORK-MIB
  CISCO-BRIDGE-EXT-MIB
  CISCO-BULK-FILE-MIB
  CISCO-CABLE-DIAG-MIB
  CISCO-CALLHOME-MIB
  CISCO-CAR-MIB
  CISCO-CDP-MIB
  CISCO-CIRCUIT-INTERFACE-MIB
  CISCO-CONFIG-COPY-MIB
  CISCO-CONFIG-MAN-MIB
  CISCO-DATA-COLLECTION-MIB
  CISCO-DHCP-SNOOPING-MIB
  CISCO-EMBEDDED-EVENT-MGR-MIB
  CISCO-ENTITY-ALARM-MIB
  CISCO-ENTITY-VENDORTYPE-OID-MIB
  CISCO-ENVMON-MIB
  CISCO-ERR-DISABLE-MIB
  CISCO-FLASH-MIB
  CISCO-FTP-CLIENT-MIB
  CISCO-IGMP-FILTER-MIB
  CISCO-IMAGE-MIB
  CISCO-IP-STAT-MIB
  CISCO-LAG-MIB
  CISCO-LICENSE-MGMT-MIB
  CISCO-MAC-AUTH-BYPASS-MIB
  CISCO-MAC-NOTIFICATION-MIB
  CISCO-MEMORY-POOL-MIB
  CISCO-PAE-MIB
  CISCO-PAGP-MIB
  CISCO-PING-MIB
  CISCO-PORT-QOS-MIB
  CISCO-PORT-SECURITY-MIB
  CISCO-PORT-STORM-CONTROL-MIB
  CISCO-PRIVATE-VLAN-MIB
  CISCO-PROCESS-MIB
  CISCO-PRODUCTS-MIB
  CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB
  CISCO-RTTMON-ICMP-MIB
  CISCO-RTTMON-IP-EXT-MIB
  CISCO-RTTMON-MIB
  CISCO-RTTMON-RTP-MIB
  CISCO-SNMP-TARGET-EXT-MIB
  CISCO-STP-EXTENSIONS-MIB
  CISCO-SYSLOG-MIB
  CISCO-TCP-MIB
  CISCO-UDLDP-MIB
  CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
  CISCO-VLAN-MEMBERSHIP-MIB
  CISCO-VTP-MIB
  ENTITY-MIB
  ETHERLIKE-MIB
  HC-RMON-MIB
  IEEE8021-PAE-MIB
  IEEE8023-LAG-MIB
  IF-MIB
  IP-FORWARD-MIB
  LLDP-EXT-MED-MIB
  LLDP-EXT-PNO-MIB
  LLDP-MIB
  NETRANGER
  NOTIFICATION-LOG-MIB
  OLD-CISCO-CHASSIS-MIB
  OLD-CISCO-CPU-MIB
  OLD-CISCO-FLASH-MIB
  OLD-CISCO-INTERFACES-MIB
  OLD-CISCO-IP-MIB
  OLD-CISCO-MEMORY-MIB
  OLD-CISCO-SYS-MIB<
  OLD-CISCO-SYSTEM-MIB
  OLD-CISCO-TCP-MIB
  OLD-CISCO-TS-MIB
  RMON-MIB
  RMON2-MIB
  SMON-MIB
  SNMP-COMMUNITY-MIB
  SNMP-FRAMEWORK-MIB
  SNMP-MPD-MIB
  SNMP-NOTIFICATION-MIB
  SNMP-PROXY-MIB
  SNMP-TARGET-MIB
  SNMP-USM-MIB
  SNMP-VIEW-BASED-ACM-MIB
  SNMPv2-MIB
  TCP-MIB
  UDP-MIB
1 The list of standards is not final and may change.

Ordering information

Table 14 lists the ordering information for the Cisco Catalyst IE3100 Heavy Duty Series

Table 14.       Ordering information

Product ID

Product Description

IE-3100H-6FT2T-E

IE3100 IP67 w/6FE 2GE M12 Ports, Fixed sys, NE

IE-3100H-8T-E

IE3100 IP67 w/8GE M12 Ports, Fixed sys, NE

PWR-IE160W-67-DC=

IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W

IE3100-DNA-E-L

Cisco Catalyst Center Essentials license for IE3100 Series (up to 12 ports)

IE3100-DNA-E-L-1Y

IE3100 Cisco Catalyst Center Essentials (up to 12 Ports), 1 Year Term license

IE3100-DNA-E-L-3Y

IE3100 Cisco Catalyst Center Essentials (up to 12 Ports), 3 Year Term license

IE3100-DNA-E-L-5Y

IE3100 Cisco Catalyst Center Essentials (up to 12 Ports), 5 Year Term license

IE3100-DNA-E-L-7Y

IE3100 Cisco Catalyst Center Essentials (up to 12 Ports), 7 Year Term license

IE3100-DNA-E-L-10Y

IE3100 Cisco Catalyst Center Essentials (up to 12 Ports), 10 Year Term license

Warranty information

A five-year limited hardware warranty is offered on all IE3100 Heavy Duty Series product IDs and power supplies (see Table 8 above). See the following link for more details on the warranty: https://www.cisco.com/c/en/us/products/warranties/warranty-doc-c99-740591.html.

Cisco environmental sustainability

Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) report.

Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:

Table 15.       Links to environmental sustainability topics

Sustainability topic

Reference

Information on product material content laws and regulations

Materials

Information on electronic waste laws and regulations, including products, batteries, and packaging

Waste Electrical and Electronic Equipment WEEE compliance

Reference links to product-specific environmental sustainability information that is mentioned in relevant sections of this data sheet are provided in the following table:

Table 16.       Product-specific environmental sustainability information

Sustainability topic

Reference

Power

Power specifications and consumption

Table 5. Physical configurations

Environmental characteristics

Operating Temperature, industry standards, EMC emissions

Table 11. Compliance specifications

Material

Unit weight

Table 5. Physical configurations

Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.

Cisco and Partner Services

For information on services, visit https://www.cisco.com/web/services/.

Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital® makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

For more information

For more information about the Cisco IE3100 Heavy Duty Series, visit https://www.cisco.com/go/ie3100H or contact your local account representative.



Learn more
