Webex Room Navigator

Transform your workplace with simple and Product overview intelligent experiences while eliminating the friction from the employee journey.

The table-stand Webex Room Navigator touch panel is a purpose-built touch controller designed to bring ease and convenience into modern workspaces by providing instant access to conference controls, smart room booking, room controls and your go-to workplace applications.

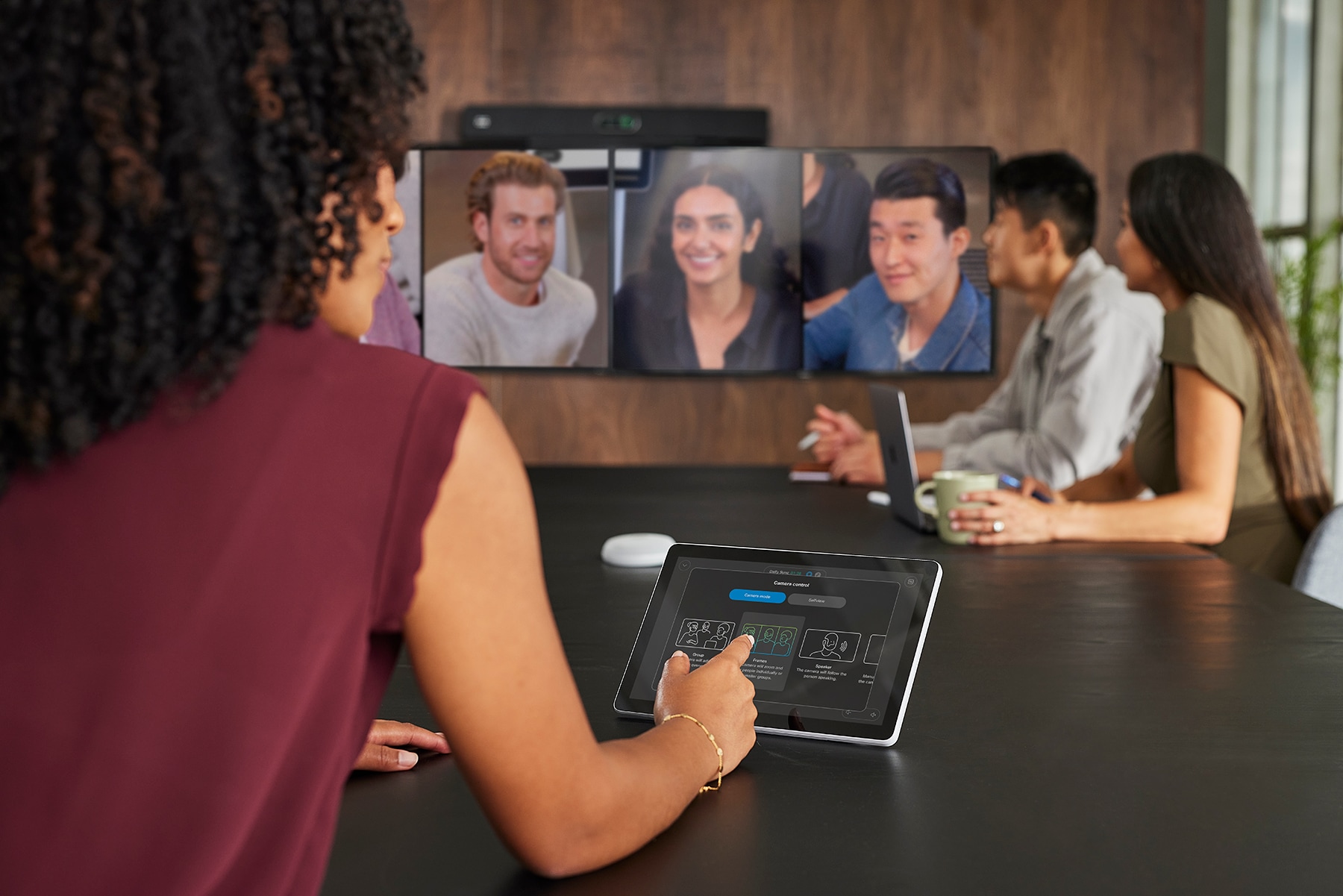

Webex Room Navigator unit used as table-stand room controller

Above: Webex Room Navigator unit used as table-stand room controller

Product overview

The table-stand model of Webex Room Navigator is a 10-inch touch display that allows you to intuitively control your Webex collaboration devices, check workspace availability and book a meeting room, control room peripherals, and run third-party applications for wayfinding, space reservation, digital signage and other workspace experience workflows.

This touch-based unit was designed to create uninterrupted workflows and help maximize the utilization of your collaboration spaces while delivering these experiences in a way that is scalable, secure and easy to manage.

Webex Room Navigator for table is a versatile device that combines controls, an intuitive display and sensors into an elegant touch panel. It can be either configured as a room control device or a room booking unit within meeting rooms.

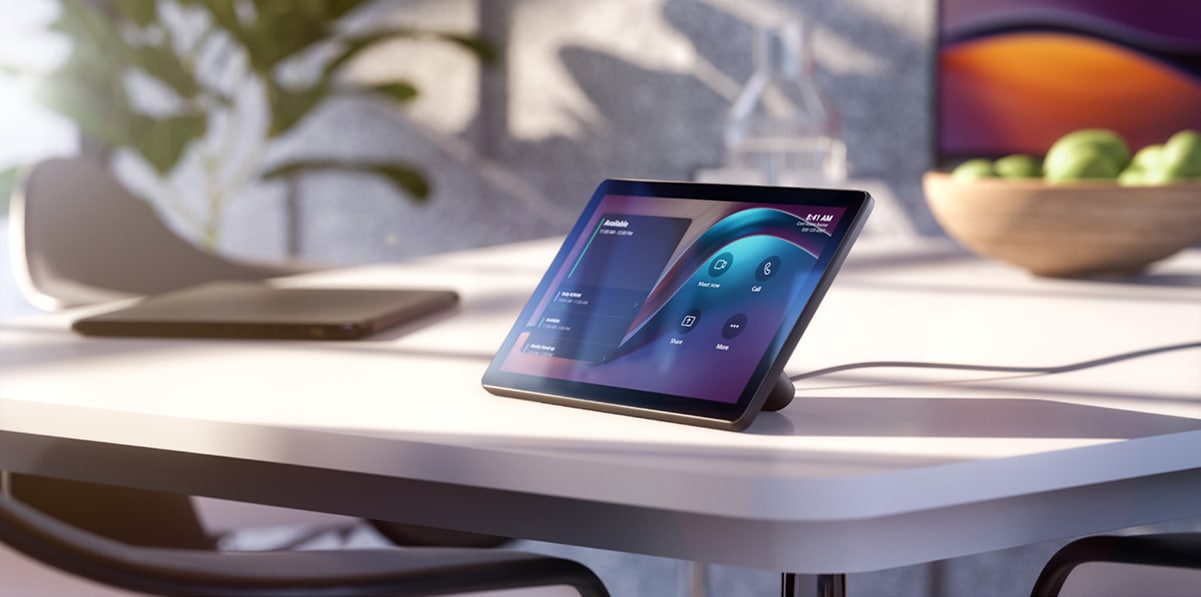

Webex Room Navigator table-stand panel used as a room control device in a small huddle space

Above: Webex Room Navigator table-stand panel used as a room control device in a small huddle space

Room Navigator is a touch panel that facilitates intuitive access to multiple systems in interior spaces while the integrated sensors of the control unit provide control and optimization of the environment. It enhances the ease of connection by providing instant access to meeting, contacts, directories, and content. The device can be used to control conference systems, move partitions, curtains and other room peripherals, access third-party workspace applications and provide room booking capabilities.

The control display with its calm appearance and aesthetics showcases clean surfaces and fine details for a friendly, approachable look. It supports two positions on the table with different viewing angles, including a 180-degrees rotation of the user interface when the device is tilted. The device adapts smoothly from small to large conference spaces and huddle rooms while equipped with a detachable foot stand to enable easy disassembly, securely lock the cable and avoid connector strain.

You only need a single Ethernet cable to power the device and access the network. Webex Room Navigator can be connected directly to a Webex video device or remotely paired to it when plugged on a PoE network.

Features and benefits

Webex Room Navigator offers room intelligence in a box, bringing efficiency, usability and aesthetics to your workspaces. Recognized in the Red Dot Design Awards, this room panel delivers smooth integration with collaboration endpoints and third-party applications, unmatched room intelligence, and UI consistency in a cost-effective, scalable and simple way.

It unlocks the best combination of user centric design, purpose-built hardware, native software and an open approach to integration out of the box to help you transform your physical workspaces.

Webex Room Navigator is a competitive, feature-rich and highly flexible solution that can be used either as a room and conference control panel or a dedicated scheduling display, has a robust device management platform, and offers rich sensor data that supports creating a safer and optimized workspace environment. It can be configured to run third-party applications to help you protect your existing workspace management and room booking investments. With the Room Navigator, you can experience frictionless meetings, effortless space reservation, and streamlined room and device integrations.

With the Webex approach to room controls and space reservation, you can significantly simplify your deployment, lower total cost of ownership and ease management efforts by leveraging a single vendor to provide platform agnostic video collaboration devices, the underlying meeting service, the room control hardware, and the associated room booking software solution.

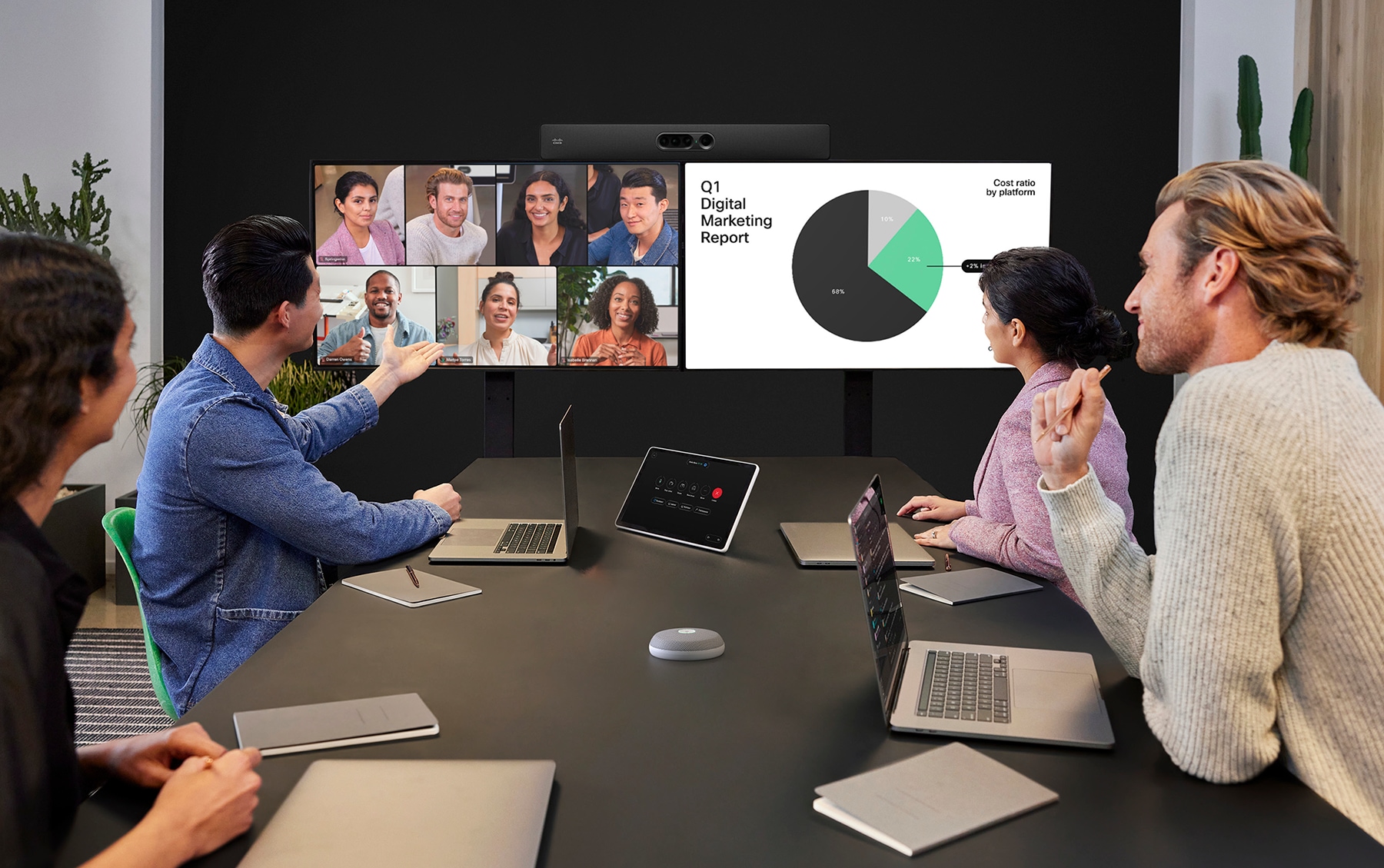

Webex Room Navigator unit used as a standing monitor controller

Above: Webex Room Navigator unit used as a standing monitor controller

Table 1.           Features and benefits

FEATURE

BENEFIT

Room controls

  Brings intelligent room controls to Webex Room Series and Webex Board Series-enabled workspaces
  Optimized for an effortless user experience, the table version of the user interface can rotate 180 degrees when the device is tilted, allowing for two different viewing angles
  Optimized for an effortless user experience – from launching a video or audio conference with one button to push, controlling the camera, and changing video layout, to sharing content, viewing contact lists and directories, and apply other in-call actions
  The user interface can be configured by administrators to easily control other room peripherals such as lighting, blinds, room dividers, and curtains
  Macros offer smart customizations to extend the features and functionality available in Room Navigator, such as controlling light, blinds and room amenities or configuring “ghost meeting” release when no one shows up in a meeting

Room booking

  The table-stand controller can be configured for lightweight room booking capabilities, blending space reservation with the core conference and room control functionality
  Enables calendar display, ad-hoc room booking, meeting extensions, meeting end reminders, non-booked room reminders and check-outs with a few taps on the touch screen
  Offers Webex hybrid calendar synchronization
  Beyond the native Webex room booking solution, Navigator can run third-party, persistent web apps for room booking from best-of-breed space reservation and workspace experience solution providers
  Webex native room booking is license-free when paired with a Webex room device

Workspace intelligence

  Room Navigator comes with embedded environmental sensors to track temperature, humidity, and air quality in the room
  Allows facility managers to get a real-time health-check on their workspaces
  Sensors monitor comfort and supplies you with actionable insights through Control Hub via APIs, so you can make interventions to improve employee wellbeing
  Sensor data, alongside room occupancy and user behavior metrics, can be ingested to third-party analytics dashboards for workspace optimization and resource planning purposes

Third-party web applications

  Third-party mode: Room Navigator supports running persistent web applications to enable third-party experiences from Appspace, UMA, and other ecosystem partners
  Web apps running on Navigator get access to specific RoomOS APIs to build custom integrations for room booking, wayfinding, space reservation and digital signage

Easy setup and management

  Room Navigator can be configured either as a room controller, a room booking device or in persistent web app mode – users can select from default options when it is booted for the first time or can configure the device for the desired use case anytime
  Webex Room Navigator can be connected directly to a Webex video device or remotely paired to it when plugged on a PoE network

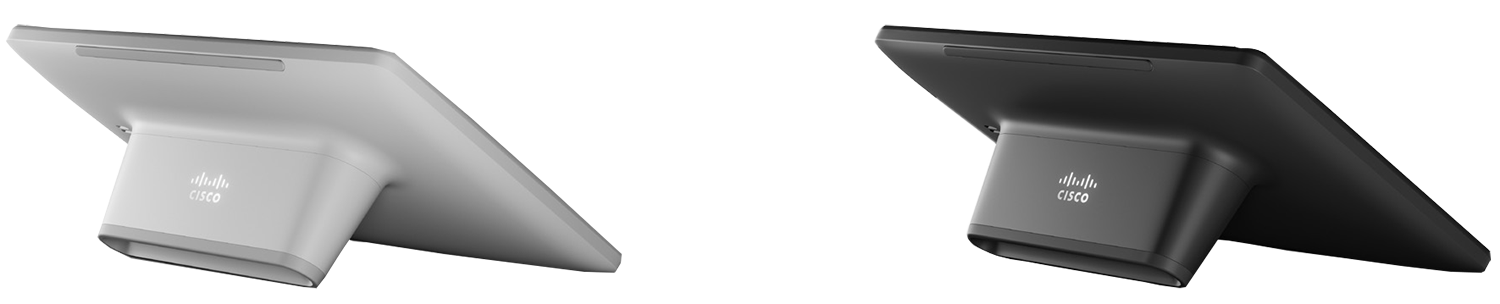

Room Navigator table-stand touch panel from a back and front perspective view

Above: Room Navigator table-stand touch panel from a back and front perspective view

Product specifications

Table 2.           Product specifications

SPECIFICATION

DESCRIPTION

Product compatibility

Webex Room Kit Series, Webex Room Series, Webex Room Panorama Series, Webex Board Series (Board S Series and Board Pro Series)

Software compatibility

CE9.14.3 or later, or Webex Cloud

Call-control compatibility

  Hosted: Controlled by codec, Cisco Unified Communications Manager 10.5.2 or newer, Webex Cloud
  Cloud: Webex Cloud

Native Webex room booking

  Integrates with O365, Exchange and Google Calendar through Webex Hybrid Calendar service (requires Webex activation)
  Ad-hoc space reservation with a few taps
  View all upcoming meetings from room calendar
  Extend your meetings
  Touchless booking inside the room with Webex Assistant
  Meeting reminders with single tap extension

Third-party web applications

  Supports the usage of persistent web apps enabling third-party experiences
  Web apps running on Navigator get access to the meeting room sensors’ data and the Webex hybrid calendar to enhance custom integrations for wayfinding, room booking, and digital signage

Default components

  Room Navigator touch panel
  Table stand

Signaling protocols

TCP/IP

Display

  Capacitive touch LCD
  10.1-inch diagonal
  Anti-glare and anti-fingerprint

Resolution

1920 x 1200

Memory

2GB

Sensors

  Measures temperature, humidity, and air quality (TVOC). This is combined with general noise, ambient noise, and reverberation time (RT60) for room acoustics originating from built-in sensors in the Webex video endpoints
  Sensor values are accessible from Webex Room APIs, displayed on the Control Hub dashboard and can be extracted to third-party analytics and workspace management tools

Language support

English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish; (depends on software version)

Digital signage

Configurable in Control Hub

Physical dimensions (H x L x D)

  2.8 x 9.53 x 6.42 in. (7.1 x 24.2 x 16.3 cm)
  Maximum height in vertical position 5.2 in (13.2 cm)
  Minimal height in lower position on the table: 3.85 in (9.77 cm)
  For more information, please consult the Webex Room Navigator CAD drawings

Physical dimensions

Weight

1.39lb (0.63kg)

Power

  Power over Ethernet (PoE)
  100-240VAC, 0.5A max, 50/60Hz

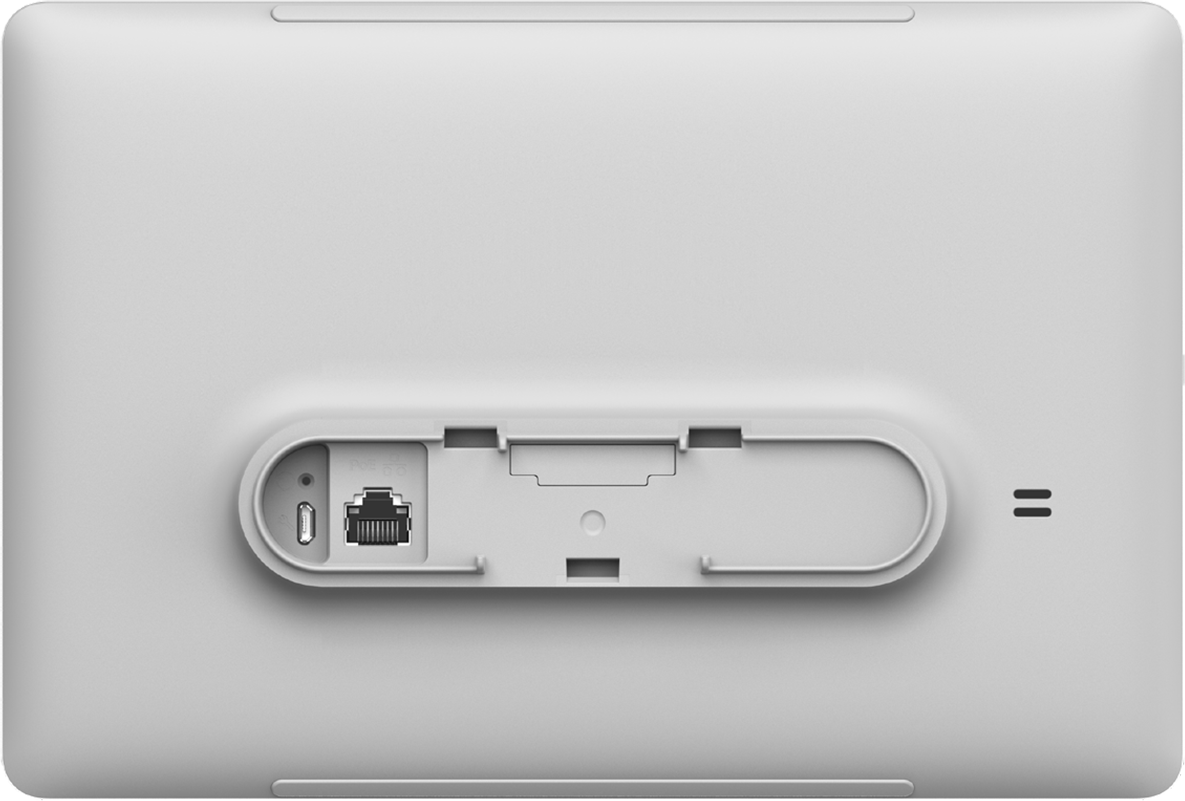

Interfaces

  1x Ethernet (RJ-45) 100/1000 Mbps for LAN (external network) or direct pairing
  1x microUSB (service port)
  1x factory reset pinhole

Security

  Secure management using HTTPS and SSH protocols
  Password protection for IP administration
  Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
  Password protection to access administration
  Option to disable IP services
  Network settings protection
  Support for 802.1x authentication protocol (either when the device is paired directly or remotely with the video endpoint)

Registration

Room Navigator must be registered directly to a Webex device

Administration

  Centralized room and device management
  Workspace insights on a per workspace level and single dashboard for all workspaces
  Simple onboarding – PIN-based pairing with room device

Operating temperature and humidity

  0°C to 40°C (32°F to 104°F) ambient temperature
  10% to 90% Relative Humidity (RH)

Storage and transport temperature

-20°C to 60° (-4° to 140°F) at RH 10% to 90% (noncondensing)

Regulatory compliance and standards

  Directive 2014/30/EU (EMC Directive) and Directive 2014/35/EU (Low-Voltage Directive)
  Directive 2011/65/EU (RoHS)
  Directive 2002/96/EU (WEEE)
  NRTL approved (product safety)
  EMC: EN 55032 – Class A, EN 55024
  Safety: EN 60950-1, EN 62479
  FCC CFR 47 Part 15B (EMC) – Class A

The list above reflects the regulations applicable at the time of publishing this document. For an updated list of regulations applicable, see the Product Approval Status Database for approval documents per country.

Warranty information

Warranty information is available on Cisco.com at the Product Warranties page.

Ordering information

Webex Room Navigator devices are available as a part of an endpoint order and also as standalone units.

To place an order, visit the Cisco Ordering Home Page and refer to Table 3. To download software, visit the Cisco Software Center.

See individual endpoint data sheets for whether Room Navigator comes standard with product.

Table 3.           Ordering information

PRODUCT NAME

PART NUMBER

COMPLIANCE MODEL NUMBER

Webex Room Navigator (table-stand version)

CS-T10-TS-K9=

TTC5-15

Foot stand spare

CS-T10-TS-FT=



Note:      Many of the products and features described herein remain in varying stages of development and will be offered on a when-and-if-available basis. This roadmap is subject to change at the sole discretion of Cisco, and Cisco will have no liability for delay in the delivery or failure to deliver any of the products or features set forth in this document.
