Cisco® Room Kit EQX is an integrated collaboration device solution that combines an AI-infused video conferencing system with flexible mounting options and iconic design to enable a flagship video meeting experience in your medium-to-large meeting rooms and collaboration spaces.

It gives the flexibility to bring your own external displays and integrate them with an all-in-one, purpose-built kit of room conferencing hardware components. What’s more, the Room Kit EQX helps you simplify meeting room video deployment, configuration and management at scale while keeping your room setup clutter-free with a premium look and feel.

This all-in-one bundle brings you unrivalled multi-platform collaboration on Cisco Rooms or Microsoft Teams Rooms to let you define your preferred native software experience while meeting the ultimate hybrid meeting room standard across your workspaces.

Product overview

Cisco Room Kit EQX is an intelligent, ultra-immersive video conferencing system powered by Cisco Rooms and designed to enable flagship hybrid meeting experiences in any medium or large collaboration space. It sets a new standard for multi-screen video collaboration with an integrated and premium design that brings a blend of next-generation meeting hardware and advanced collaboration AI to help your teams stay focused and productive.

This intelligent room device solution scales artificial intelligence-powered video meeting experiences, room deployment flexibility, platform interoperability, and workspace intelligence to elevate video conferencing in meeting spaces where the highest hybrid video conferencing standards and consistent, premium room setup are expected.

Video-enable your conference rooms with a room kit that’s easy to deploy, engaging to use, and more affordable to maintain—creating a connected, intelligent workplace.

AI-enhanced, cinematic video meetings

The Room Kit EQX offers AI-infused meeting experiences that allow meeting participants to communicate with clarity, feel included, and stay focused—and not distracted by the technology deployed in the workspace. This hardware offering uses a high-performing NVIDIA® AI engine to power next-generation camera, audio and language processing intelligence to enable more engaging and equitable meetings.

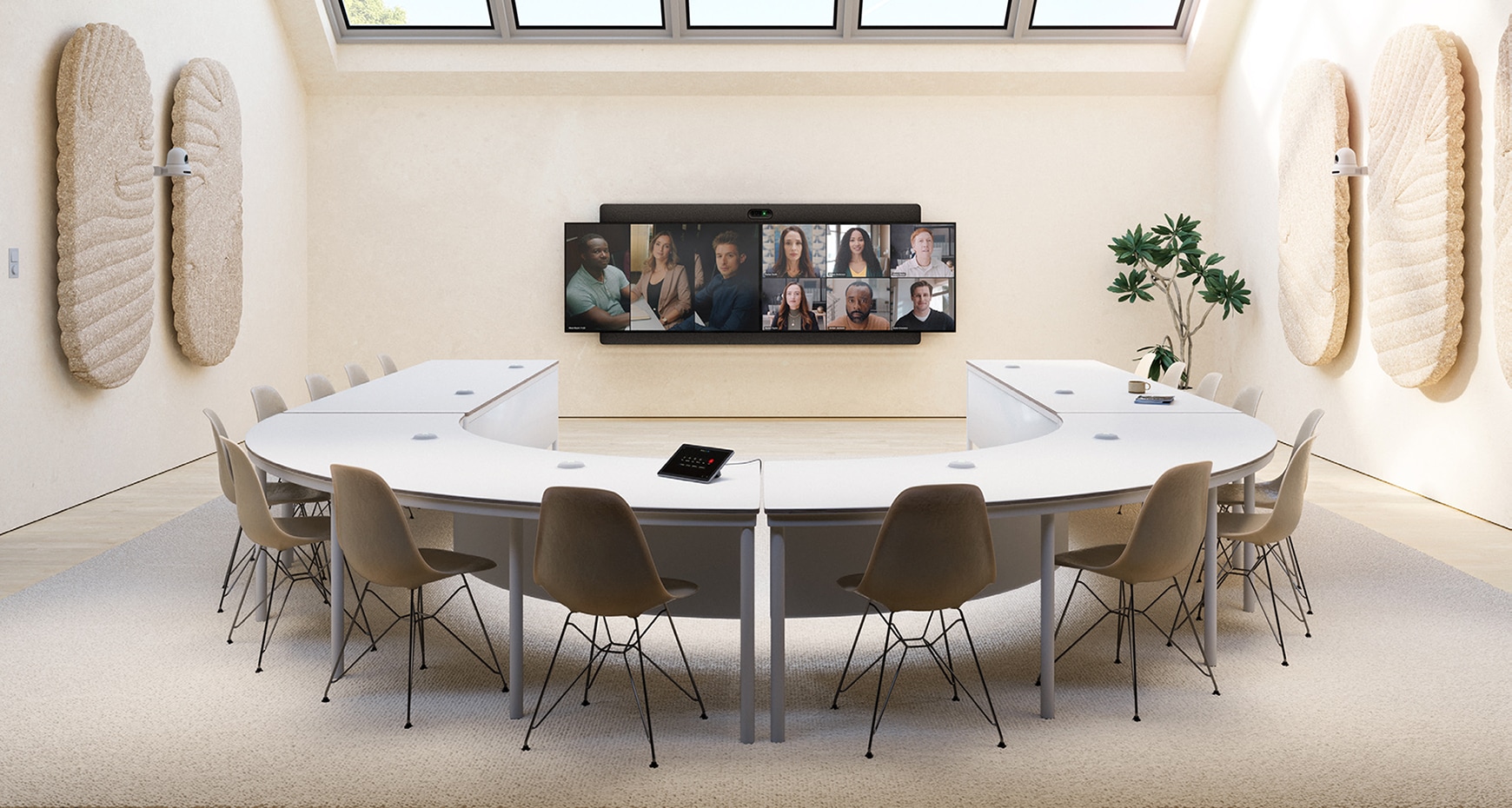

The Cisco Room Kit EQX with wall mount and augmented with cross-view running the native Microsoft Teams Rooms experience.

Figure 1.

The Cisco Room Kit EQX with wall mount and augmented with cross-view running the native Microsoft Teams Rooms experience.

The Cisco Room Kit EQX wall-mount model deployed with external PTZ 4K cameras for a cinematic cross-view experience

Figure 2.

The Cisco Room Kit EQX wall-mount model deployed with external PTZ 4K cameras for a cinematic cross-view experience.

It uses a quad-lens conferencing camera system and powerful image processing for extended camera reach, impeccable image quality, and AI people framing to provide the best view from your conference rooms, auditoriums, or training rooms. Its 83-degree-field-ofview main image sensor works seamlessly together with three, 50-degree-field-of-view tele-lenses to keep everyone perfectly framed around the table, from a hybrid event audience, or any predefined meeting zone area. Better still, it’s a room device that supports advanced multi-camera scenarios to offer extended speaker tracking, intelligent presenter and audience views, and cinematic cross-view to create natural, true-to-life collaboration.

This is augmented with a unique spatial audio experience, powered by an advanced, multi-channel sound system, that intelligently follows where the remote active speaker is displayed on the screens. Combined with leading AI noise removal and smart audio processing, the Room Kit EQX supports supreme quality acoustic experiences for in-room and remote participants alike.

Equip any medium and large meeting room for hybrid work

The Room Kit EQX seamlessly and securely connects with your external displays, conferencing microphones, speakers, control panels, and other room accessories to help elevate the room experience. Users can easily connect the system with up to four video and content sources via HDMI and USB-C or connect a laptop via single-cable USB passthrough to enable effortless switching to BYOD mode.

The solution seamlessly connects with analog, USB and networked audio peripherals, including the Cisco Table Microphone Pro to provide multi-directional, intelligent voice capture in collaboration spaces with different sizes, shapes, and layouts. In addition, the Room Kit EQX offers audio APIs for advanced room configurations, and the flexibility to integrate your third-party, digital microphones with the video device via AES67 audio interoperability.

A room with a screen and tablesDescription automatically generated

Figure 3.

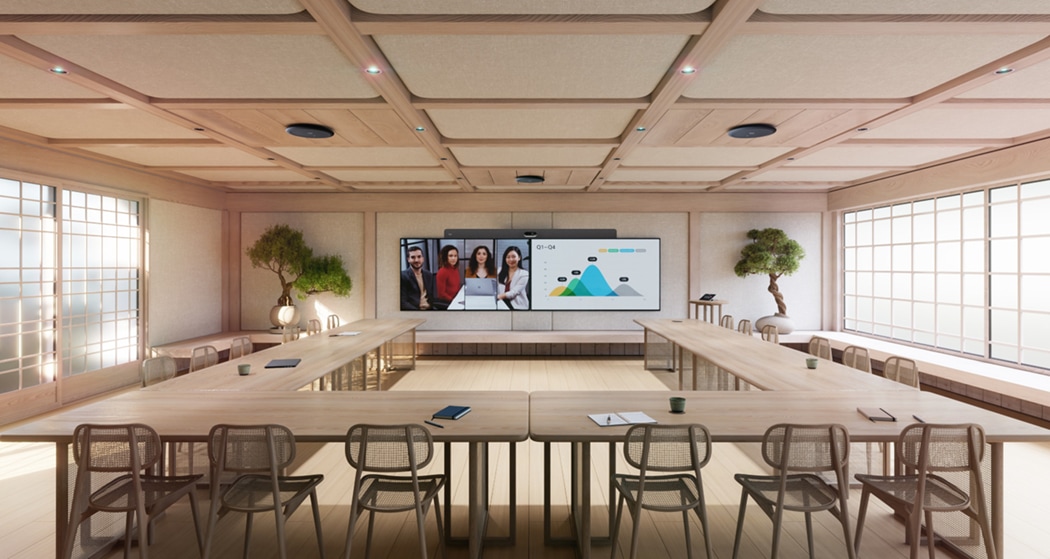

The Room Kit EQX wall-mount model deployed in a training space.

It provides flexible wall-mount, wall-stand, and floorstand options to fit any meeting space and collaboration use case, while featuring a main module to provide mounting and bracket for all your AV components, screens, and cabling for streamlined room installation and a clean, unobtrusive setup. This not only helps you remove the need for overly complex configuration, redundant screens and AV components, and costly maintenance but also allows to deploy high-quality, standardized conferencing hardware without the complexity.

Get unrivalled video interoperability

Cisco Room Kit EQX is a dedicated, flexible room appliance running the native Cisco Rooms or Microsoft Teams Rooms on Android experience with a single solution and powered by a secure platform architecture. It is the most advanced video system designed for medium and large-sized spaces, uniquely delivering these native experiences.

When configured for Cisco Rooms, it powers the native Webex experience for the richest meeting and workspace experience combined with advanced third party interoperability with Microsoft Teams, Zoom and Google Meet.

In case you configure and onboard the device for Microsoft Teams Rooms, it offers a set of differentiated camera and audio intelligence capabilities, advanced collaboration AI, and rich wired and wireless content sharing. It is unique in providing the option to combine Microsoft Teams with the power of full-featured Webex Meetings and Events.

Related image, diagram or screenshot

Figure 4.

A Room Kit EQX room deployment displayed in the unified Control Hub device and workspace management dashboard.

Keep your devices and spaces under control

With Control Hub, your IT team can fully manage, monitor, troubleshoot, and analyze your deployment using a single, intuitive admin dashboard. It offers an at-a-glance view of video devices and Cisco or third party peripherals, usage and occupancy metrics, device health, integrations, and workspace conditions.

Bulk configurations, automatic software upgrades, multi-tenant management, cloud APIs, and device sensor-driven insights are all centrally accessible and can be augmented with the broader Cisco ecosystem to support your broader workspace management and network security and monitoring efforts.

The solution comes with the award-winning Cisco Room Navigator touch device so that your users can easily access conference controls, device settings, room booking, and third-party workspace experience apps. The control panel includes rich built-in sensors enabling augmented intelligence in Control Hub around real-time and historic device usage, room occupancy, and environmental conditions.

Product features and benefits

Table 1.           Specifications

Benefit

Feature

AI-infused, cinematic video meetings

  Supreme-quality, immersive video conferencing system optimized for medium and large workspaces, including conference rooms, boardrooms, trainings rooms, and auditoriums
  Integrated device bundle featuring the Codec EQ with an AI chipset, a quad-lens conferencing camera system, flexible mounting options, premium frame design, and optional room peripherals
  Integrated 80 MP, multi-lens camera system with intelligent speaker tracking and camera framing techniques, combined with sophisticated camera AI for optimized group, speaker and participant views
  Spatial, room-filling sound powered by a 6-element, multi-channel loudspeaker system, dedicated bass module and amplifier
  Platform independence to run the native Cisco Rooms experience or Microsoft Teams Rooms with single-button meeting join and advanced intelligence features
  Advanced third-party video interoperability with Microsoft Teams, Google Meet and Zoom on Cisco Rooms, and advanced video integration with Webex and Zoom on Microsoft Teams Rooms
  Supporting multi-camera scenarios with optional PTZ and conferencing cameras for extended speaker view, cross-view and intelligent presenter tracking
  Embedded AI noise removal and noise-cancelling Cisco microphone options to enable distraction-free meetings for remote participants
  A variety of content sharing options via cable (HDMI, USB-C) or wirelessly (Webex, Miracast, Apple AirPlay, and Teams Casting)
  Meeting zones to create virtual meeting barriers in the workspace to just capture and frame meeting participants in glass-walled and open spaces
  Uses ultrasound technology to automatically wake up the device when someone walks into the room, and recognizes them through their mobile device

Flexible design

  Flexible mounting options (wall-mount, wall-stand, floor stand to deploy as a free-standing unit) to support different room characteristics, room layouts, and use cases
  Main module with purpose-built bracket for AV components and cabling for a clutter-free setup
  The Codec EQ, the audio system, other peripherals and wiring are all hidden behind the screens and AV housing to remove distracting tech components from the workspace
  Immersive video conferencing system, mounting and design bundled into a high-quality, singlevendor hardware solution
  Standardized product design and simplified architecture to help take the complexity out of installation, configuration and maintenance
  Features seamless integration with 65” to 75” external displays and limited support for 75” to 85” screens, with adjustable VESA mounting to keep the screens perfectly aligned
  Clean, premium design with durable and consciously chosen materials for a sustainable and elegant meeting room product

Smart integrations

  Automatic screen/display integration through HDMI CEC, connects with dual external displays between 65” and 75” (and certain 75” to 85” screens) in the main module, and a third display.
  Provides tested and validated quality, performance and security with Cisco Collaboration Device Verified displays, cameras, microphones and other room accessories.
  Supports 4x content and camera sources over HDMI and USB-C
  Connect your laptop with the video system via a single USB-C to use the camera, microphones, and speakers of the device for an instant BYOD experience
  Connects with Cisco and third-party conferencing microphones, including the latest generation of Cisco IP microphones.
  Connects with Cisco and third-party cameras for multi-camera, cinematic meetings, extended speaker view, presenter tracking, and multi-camera cross-view
  Supports Wi-Fi and Bluetooth ®* (Not available on Non Radio Version)
  Comes with the Cisco Room Navigator for Table touch panel to control the video conference, control room peripherals, and run third-party workspace apps
  Supports connectivity with Cisco Room Navigator for Wall to add a room booking, scheduling, and room availability display to any meeting room

Centralized management

  Unified management, provisioning, monitoring, troubleshooting, analytics, and workspace insights in Control Hub
  Secure OS purpose-built for collaboration
  Flexibility to register on-premises or in the Webex Cloud
  Hardware is optimized to run on a cloud platform for great experiences in shared rooms and spaces with easy access to hosted conferences
  Offers macros and UI extensions for custom room experiences
  Smooth integration with the rest of the Cisco ecosystem (Cisco Meraki, Cisco Spaces, Cisco ThousandEyes)

A machine with a light on itDescription automatically generated with medium confidence

Figure 5.

The wall-mount, wall-stand and floor-stand models of Room Kit EQX.

Product specifications

Table 2.           Product specifications

Specification

Description

Platform compatibility

  RoomOS 11.9.2 and later (for native Webex meetings and video interoperability for Microsoft Teams, Zoom, and Google Meet)
  Microsoft Teams Rooms (also featuring native Webex meetings when registered in Control Hub)

Available solutions

  Cisco Room Kit EQX Wall Mount Version (available in First Light and Carbon Black)
  Cisco Room Kit EQX Floor Stand Version (available in Carbon Black)
  Cisco Room Kit EQX Wall Stand Version (available in Carbon Black)

Default components in Cisco Room Kit EQX

  Integrated video conferencing system including:

      Cisco Codec EQ (radio or non-radio options)

      Cisco Quad Camera (integrated version)

      Cisco Natural Audio Module IV (amplifier)

      6 x loudspeakers

      1 x bass unit

  Cisco Room Navigator (Table Stand, First Light)
  Mounting unit (wall-mount option by default)
  Power adapters
  Ethernet cable (for Room Navigator, 12 m)
  Other internal cabling between the default components

Optional hardware components

  Cisco PTZ 4K Camera
  Cisco Precision 60 Camera
  Cisco Room Navigator (Table Stand)
  Cisco Room Navigator (Wall Mount)
  Cisco Table Microphone
  Cisco Ceiling Microphone
  Cisco Table Microphone Pro
  Cisco Active Optical USB-C Cable, 9m/29.5ft
  Cisco Multi-head Cable 4K (9 m or 2 m; HDMI/USB-C/MicroDP to HDMI)
  HDMI presentation cable (8 m/26.2 ft)
  Other cable and peripheral options (see Ordering information)

Camera overview

  4x CMOS image sensors with machine intelligent switching and up to 20 MP resolution per lens
  The camera generates frames from the 4 sensors simultaneously to provide a single HD output at 1080p
  Support up to 60 fps
  1/1.7 CMOS
  7.6x overall zoom (1.9x optical zoom and 4x digital zoom)
  f/2.0 aperture
  83° horizontal field of view on the main wide-angle lens
  50° horizontal field of view on the 3x tele-lenses
  Automatic group framing (audio + face detect)
  Speaker tracking
  Frames camera mode: intelligent people framing for equitable views
  5056 x 3888 pixel resolution
  Auto focus, brightness, and white balance
  Focus distance 1 m to infinity

Bandwidth

  Up to 20 Mbps bandwidth rate for video content
  Minimum bandwidth:

      720p30 from 768 kbps

      720p60 from 1152 kbps

      1080p30 from 1472 kbps

      1080p60 from 2560 kbps

  1920 x 1080 at 60 fps from 2560 kbps

Firewall traversal

  Cisco Expressway technology
  H.460.18, H.460.19 firewall traversal

Video standards

  H.264, H.265, H.263, AV1

Video inputs

  1x USB-C input supports formats up to maximum 3840 x 2160 at 30 fps. USB-C port has charging capability with a maximum of 15W power output
  3x HDMI 1.4b inputs support formats up to maximum 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps; support for HDCP 1.4 on 1x HDMI input
  Extended Display Identification Data (EDID)
  Consumer Electronics Control (CEC) 2.0

Video outputs

  3x HDMI 2.0 outputs support formats up to 3840 x 2160 at 60 fps to connect with external displays (displays are not included in the Room Kit EQX bundle)
  2 out of 3 HDMI outputs are meant for the screens mounted on the main module
  Consumer Electronics Control (CEC) 2.0

Encode and decode

  Main video: 1920 x 1080 at 60 fps
  Main video in Webex Meetings (when bandwidth is set at 20 Mbps): rendering up to 4x 1080p video streams decoding a total of 4K pixels
  Presentation channel: 3840 x 2160 at 15 fps

Audio standards

  Audio codecs: G.711, G.722, G.722.1, G.729, AAC-LD, Opus, and LPCM
  Audio interop: AES67

Audio features

  High-quality 20kHz full-band audio
  Spatial Audio
  Prepared for inductive loop (line out)
  Acoustic Echo Cancellation (AEC)
  Active Lip Synchronization
  AI-Powered Noise Removal
  Automatic Gain Control (AGC)
  Adjustable gain on all external connectors
  Full Duplex
  Self-Hear testing
  Ultrasound Technology
  8-element microphone array for accurate speaker tracking

Audio customization with AV Integrator License

  Flexible mixing of physical and software defined audio I/O
  Eight assignable equalizer curves with six parametric sections
  Macro scriptable VUmeters for assessing audio levels pre or post AEC
  Connection with up to 8 Cisco IP microphone units or third-party microphones via AES67 (requires PoE compatible switch eg. CBS250, CBS350, and C1200)

Audio inputs

  3x mini Jack analog audio input
  3x HDMI inputs (one used by the integrated camera system)
  1x USB-C audio input
  4x PoE++ Ethernet for audio over IP
  Connectivity with up to eight Cisco IP microphone units or third-party digital microphones via AES67. Connecting more than three IP microphones requires the Room Kit EQ AV Integrator license (under “L-ROOM-PAK”).
  1x USB-A audio input for connecting a DSP or a USB microphone

Audio outputs

  1x analog line out mini-jack (stereo)
  3x HDMI audio out
  1x USB-A audio out for connecting a DSP or a USB audio device
  1x USB-C audio out for BYOD experience
  4x PoE++ Ethernet for audio over IP
  Connectivity with third-party audio systems via AES67

Loudspeakers

  High-quality, multi-channel loudspeaker system with six coaxial speakers and a compact folded bass horn
  Supports directional audio experience that follows where the active remove speaker displayed on the screens
  Dedicated bass module, and amplifier for a rich, room-filling sound
  Max output level: 105 dBSPL
  High-quality 20kHz full-band audio
  Frequency response: 45Hz to 20kHz

Camera modes

  Group view: Automatically detects meeting participants and provides ideal group framing for the best view
  Speaker view: Uses a dedicated, built-in microphone array to detect and provide a prominent view for the active speaker
  Frames: Captures a condensed view of in-room participants and frames them individually or in smaller groups for more equitable meetings, on Webex and when using third-party meetings

Video stream layouts

  Supporting available Webex video stream layouts and meeting features, including focus, grid, prominent, stack, and overlay. For more information, please consult the Webex Help Center.
  People Focus helps create an optimized view of every participant in
  Webex meetings via smart cropping to remove excess real estate

Speaker tracking

  8-element built-in microphone array for accurate speaker tracking
  For an optimal speaker-tracking experience for people joining remotely, it is recommended that the furthest in-room participant is located within less than 9 meters from the video device. Please note that the best overview (automatic group framing) camera mode can support an extended distance from the camera system.
  Extended reach speaker view: allows for an extended camera reach by zooming on the active speaker and providing an optimal view in very long conference rooms. Requires the combined deployment of the Room Kit EQX, the Cisco PTZ 4K Camera, and Cisco Table Microphone Pro units for the extended, directional voice capture.
  Cross-view: allows to capture in-room conversations across the table by providing a clear, front-facing view of participants when they turn away from the front-of-room camera system. Requires the combines deployment of the Room Kit EQX, two Cisco PTZ 4K Cameras, and Cisco Table Microphone Pro units.

Presenter tracking

  Requires connection with the Cisco PTZ 4K Camera or the Precision 60 Camera
  AI-powered face and upper-body detection capability
  Camera automatically follows the local presenter within a defined zone and helps ensure an optimized view
  Cinematic presenter and audience view: AI-powered, intelligent framing and dynamic switching can be enabled with a combination of Room Kit EQX and the PTZ 4K Camera for more inclusive presentations and training sessions

Content stream

  H.239 (H.323) dual stream
  Binary Floor Control Protocol (BFCP) (SIP) dual stream
  Support resolutions up to 3840 x 2160 at 15 fps and 1920 x 1080 at 60 fps

Cisco Natural Audio Module IV (Amplifier)

  The Cisco Natural Audio Module IV is a 16-channel audio power amplifier integrated with the system (out of which 8 channels are in use)
  1x 12V power input and 1x 12V power output. 1x amplifier power input (24VDC, 11.25A)
  1x Ethernet for audio streaming from the codec, and for control and software upgrades, 1000BASE-T
  16x speaker outputs available for the six (6) loudspeakers and one (1) subwoofer of the Room Kit EQX
  Bridged differential output on 3.5mm Euroblock connectors, max 25W/8ohm at 0.1% THD per channel; < 0.1% THD at all levels below clipping; 106 dB SNR; Max 200W total output power
  4x analog line inputs (Differential input on 3.5mm Euroblock connectors; Max 24dBu input level; 106 dB SNR)
  3x fan outputs (for Room Kit EQX fan control)
  Factory reset pinhole, microUSB for maintenance

Wireless sharing

  Webex App (up to 3840 x 2160 at 7.5 fps, including up to 1920 x 1080 at 30 fps)
  Miracast (1920 x 1080 at 60 fps) – Not available on non-radio version.
  Apple AirPlay wireless sharing:

      Bluetooth®* discovery (not on non-radio version) and Bonjour service discovery

      Screen mirroring up to 1920 x 1080 at 60 fps.

      Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps.

      Video streaming - up to 3840 x 2160 at 30 fps

  Microsoft Teams Cast (up to 1920 x 1080 at 15 fps) - Available only on Microsoft Teams Rooms

MultiSite features

  Adaptive SIP/H.323 ** MultiSite (embedded multipoint):

      3-way resolution up to 1080p30 plus content up to 4Kp15 (optional upgrade) -

      4 way resolution up to 720p30 plus content up to 4Kp15

      5-way resolution up to 720p30 plus content up to 4Kp15

  Full individual audio and video transcoding
  H.323 (Cisco proprietary)/SIP/VoIP in the same conference/SIP/VoIP in the same conference
  Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160 at 15 fps
  Best Impression (automatic continuous presence layouts)
  Encryption and dual stream from any site

Protocols

  H.323
  SIP
  Webex
  WebRTC

Embedded encryption

  H.323 (Cisco proprietary) and SIP point-to-point
  Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
  Automatic key generation and exchange

IP network features

  DNS lookup for service configuration
  Differentiated services (Quality of Service [QoS])
  IP-adaptive bandwidth management (including flow control)
  Automatic gatekeeper discovery
  Dynamic playout and lip-sync buffering
  H.245 Dual-Tone Multi-Frequency (DTMF) tones in H.323
  RFC 4733 DTMF tones in SIP
  Date and time support using Network Time Protocol (NTP)
  Uniform Resource Identifier (URI) dialing
  IPv4 Dynamic Host Configuration Protocol (DHCP)
  IPv6 (both static and stateless address auto-configuration)
  HTTP(S) proxy support (for signaling, not media)
  Inspecting Transport Layer Security (TLS) proxy supported
  Cisco Discovery Protocol (CDP)
  802.1X network authentication
  802.1Q Virtual LAN
  802.1p [QoS and Class of Service (CoS)]
  Cisco Media Assure and ClearPath, including packet loss-based downspeeding

Call control

  Native registration on Cisco Unified Communications Manager (CUCM)
  Requires CUCM version 12.5 or later with device pack for Room Kit EQ/EQX
  Native registration with Cisco Expressway
  Webex
  Third-party H.323 Gatekeepers and standards-based SIP proxies

IPv6 network support

  Single call stack support for both H.323 and SIP
  Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
  Support for both static and automatic IP configuration (stateless address auto configuration)

Security features

  Secure management using HTTPS and SSH protocols
  End-to-end encryption for calls and meetings on Webex
  Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
  WPA3 and WPA3-Enterprise with CCMP128 Wi-Fi ® security
  Password protection to access administration available on Room Navigator controller
  Network settings protection

Certificate management

  The device comes with a manufacturer installed certificate (MIC) signed by Cisco’s manufacturing CA which can be used for Certificate Authority Proxy Function (CAPF) for secure onboarding to Cisco UCM
  Option for users to install certificates with matching private keys for services such as IEEE802.1x, Wi-Fi, HTTPS server and SIP-TLS
  Support for all regular certificate types and key sizes. The device comes with a pre-installed list of CAs (Certificate Authorities) that is vetted by Cisco and updated regularly. You can add or remove certificates from this list if desired. The CA list is used for outbound HTTPS and other TLS connections

Network interfaces (Codec EQ)

  Ethernet (RJ-45) 10/100/1000 for LAN
  4x PoE++ (802.3.bt) Ethernet (RJ-45) 10/100/1000 with a total power budget of 90W for

      Camera control

      Room Navigator touch controller

      Audio amplifier

      AV over IP room peripherals (1x PoE++ port available for Cisco IP microphones that can be expanded with an optional Cisco Catalyst C1200 or other PoE compatible switch)

  Wi-Fi 802.11a/b/g/n/ac/ax 2.4 GHz and 5 GHz also supported for LAN - not available in nonradio versions; Wi-Fi 6E 6GHz TriBand support coming soon
  2x2 Multiple Input and Multiple Output (MIMO)
  Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 to 5875 MHz. Using a Wi-Fi connection is a flexible option; however, an Ethernet connection is always preferred for high performance.

Other interfaces

  4x USB 3.0 ports, 1.5A charging capability per port for external USB microphones, DSP, keyboard, headset, and future integrations
  Micro USB port
  Factory reset pinhole
  Bluetooth ® 5.2 and Bluetooth ® Low Energy *

USB-C Passthrough

  Ability to provide camera, microphone, and speakers over one USB-C cable to a connected computer
  USB-C passthrough and content sharing with the same cable
  USB-C support up to 3840 x 2160 at 30 fps (computer must support Alt-mode Display Port)

Sensors

  Presence sensor powered by ultrasound technology embedded into the video device
  Environmental sensors measuring temperature, humidity, air quality and other room conditions included in the Room Navigator control panel (please consult the Cisco Room Navigator datasheet for more information)

Power supply

  Input Rating Power, 100-240 VAC, 50-60 Hz
  Quad Camera must be used with power supply FSP FSP070-AHAN2. Included in the solution.
  Amplifier must be used with power supply FSP model FSP270-RAAN3. Included in the solution.

Power Consumption

Sum of the power consumption of Codec EQ, Quad Camera, Room Navigator and the audio system in Room Kit EQX:

  In Call: 150.9 W
  Idle: 68.8 W
  Half wake: 67.9 W
  Standby: 61.5 W
  Configurable for office hours mode, forcing the device into standby mode outside of the preset office hours and to half-wake mode at the beginning of the working hours

Operating temperature and humidity

  0°C to 35°C (32°F to 95°F) ambient temperature
  10% to 90% Relative Humidity (RH)

Storage and transport temperature

  -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)

Screen compatibility

  Compatible with screens from 65” to 75” in the main module, and supports a third extra screen
  Certain 75” to 85” display models are compatible with the system when meeting specific requirements. For more information, please consult the Room Kit EQX Room Preparation Guide.
  HDMI interface CEC 2.0
  Recommended minimum resolution of 3840 x 2160 at 60 fps
  2 x VESA Mounts, 400 vertical and 400-600 horizontal adjustment
  Up to 42 kg weight per screen with floor stand configuration
  Up to 50 kg weight per screen with wall-mount and wall-stand configuration
  Screens require their own power outlet
  Max thickness of screens: 75mm (3 in). Please note the thickness of the displays can exceed this limit but requires the screens to be mounted lower to avoid blocking the camera field of view.
  Thicker screens may interfere with the camera FOV

Language support

  Arabic, Czech, Danish, German, US English, UK English, Catalonian, Spanish, Latin-American Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Brazilian Portuguese, Portuguese, Russian, Swedish, Turkish, Chinese (Simplified), Traditional Chinese, Ukrainian

Standards and regulatory compliance

  Directive 2014/53/EU (Radio Equipment Directive) for the radio versions
  Directive 2014/30/EU (EMC Directive) for the non-radio versions
  Directive 2014/35/EU (Low-Voltage Directive) for the non-radio versions
  Directive 2011/65/EU (RoHS)
  Directive 2012/19/EU (WEEE)
  NRTL approved (product safety)
  FCC CFR 47 Part 15B (EMC) – Class A
  FCC CFR 47 Part 15C (RF)
  FCC CFR 47 Part 15E (RF)
  FCC listed (radio equipment)

Please check the Product Approval Status Database at https://www.ciscofax.com/ for approval documents per country.

Sustainability

  Circular design principles applied for product architecture, materials, and packaging
  Reduced foam in the boxes and 100% recyclable packaging design and a reduced amount of single-use plastics
  100% Post-Consumer Recycled (PCR) plastic originating from end-of-life devices and old electronics used in the front speaker grille
  The video system is modular and upgradeable. It’s manufactured with more sustainable, consciously chosen materials and is designed for easy repair, refurbishing, and recycling to extend the lifecycle of the product.
  Using built-in presence sensors and environmental sensors in the touch panel, it can provide real-time and historic occupancy metrics to control and optimize the workspace
  Cisco’s takeback and reuse program enables you to return your end-of-use devices for free, via a simple, secure, and sustainable process.
  Learn more about how Cisco supports the Circular Economy.
* The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Cisco Systems, Inc., is under license. Other trademarks and trade names are those of their respective owners.

Product dimensions

Table 3.           Product dimensions

Configuration

Dimensions

Wall-mount version (without screens)

  Height: 1230mm (48.4 in)
  Length, 2800mm (110 in)
  Width,138mm (5.4 in)
  Weight 120 kg (without screens)

A drawing of a machineDescription automatically generated

Floor-stand version (without screens)

  Height: 1910mm (75.2 in)
  Length: 2800mm (110 in)
  Width: 924mm (36.4 in)
  Weight 172 kg (without screens)

A drawing of a machineDescription automatically generated

Wall-stand version (without screens)

  Height: 1890mm (74.4 in)
  Length: 2800mm (110 in)
  Width: 152mm (6 in)
  Weight 135 kg (without screens)

A drawing of a machineDescription automatically generated

Wall-mount version with screens

Product dimensions may vary based on the display manufacturer/model used with the system.

Approximate dimensions when connected with 75” screens

A drawing of a rectangular object with a usb portDescription automatically generated

Approximate dimensions when connected with 65” screens

A drawing of a rectangular objectDescription automatically generated

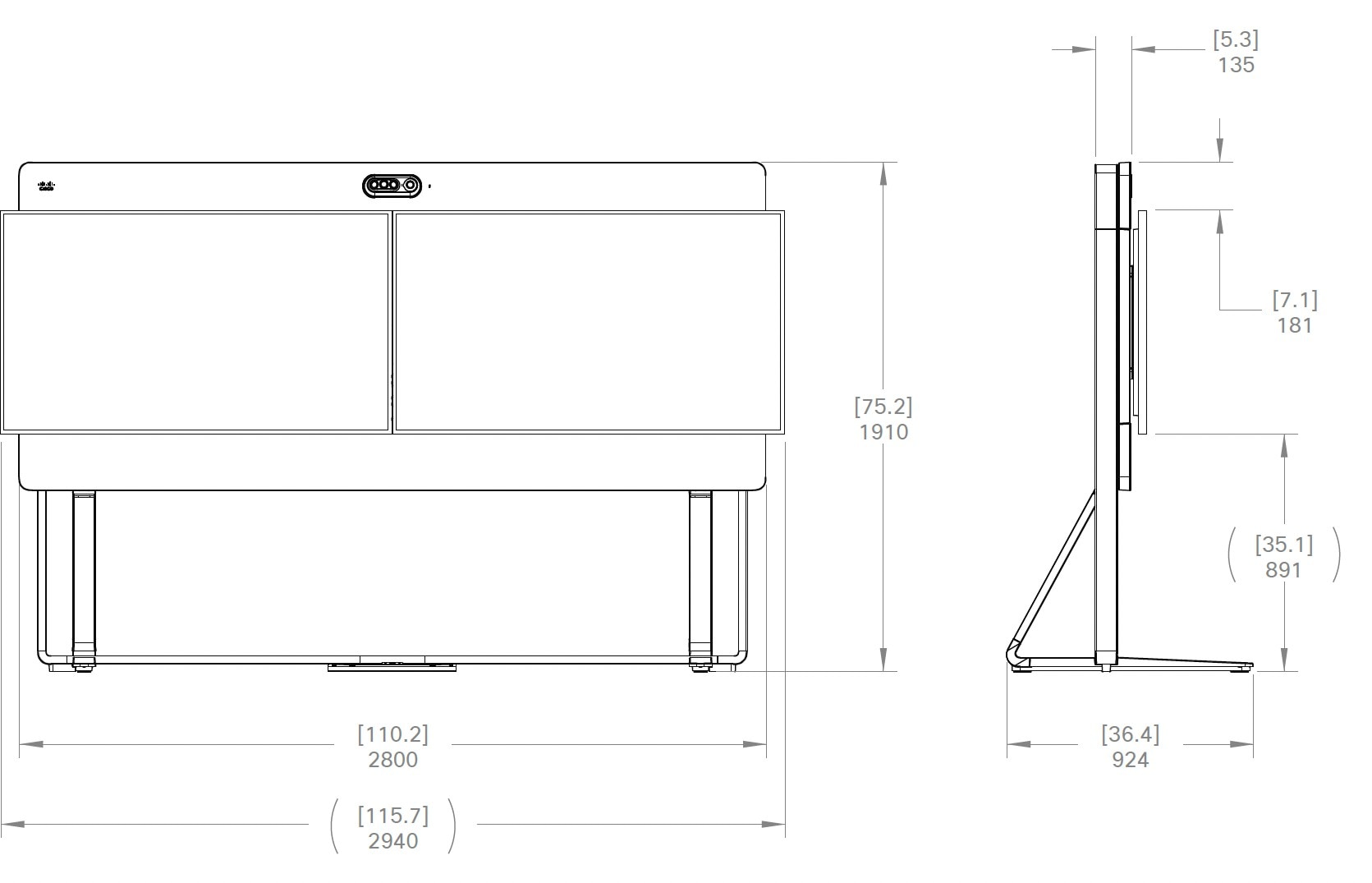

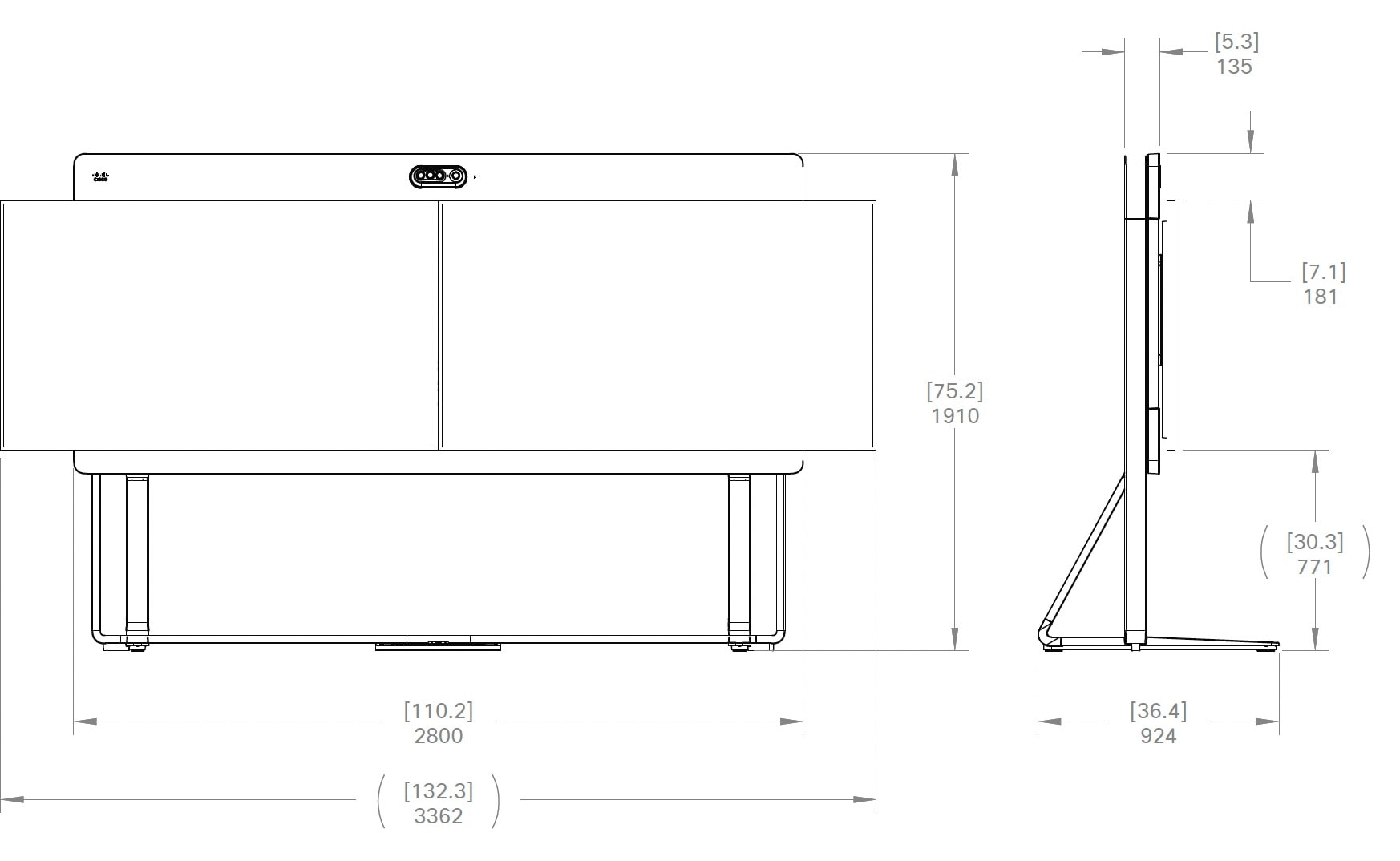

Floor-stand version with screens

Product dimensions may vary based on the display manufacturer/model used with the system.

Approximate dimensions when connected with 75” screens

A drawing of a cabinetDescription automatically generated

Approximate dimensions when connected with 65” screens

A drawing of a counter topDescription automatically generated

Wall-stand version with screens

Product dimensions may vary based on the display manufacturer/model used with the system.

Approximate dimensions when connected with 75” screens

A drawing of a rectangular objectDescription automatically generated

Approximate dimensions when connected with 65” screens

A drawing of a drawerDescription automatically generated

Packaging dimensions

Wall Mount package:

Box dimensions: 1650mm (66 in) x 1250mm (48 in) x 1000mm (40 in)



Wall Stand package:

Box dimensions: 1652x659x219mm

Weight 28kg



Floor stand package 1 (floor stand kit):

Box dimensions: 1652x971x226mm

Weight: 45Kg

Floor stand package 2 (rear panels):

Box dimensions: 1446x1089x320mm

Weight: 20kgs

Feature availability matrix

Table 4.           Feature availability matrix for Cisco Room Kit EQX

Feature

Cisco Rooms

Microsoft Teams Rooms (With Registration to Control Hub)

Microsoft Teams Rooms

Native Microsoft Teams Rooms meeting experience

No

Yes

Yes

Native Webex meeting experience

Yes

Yes, via One-Button-to-Push meeting join

No

Microsoft Teams Meetings with VIMT (CVI) or WebRTC/Direct Guest Join

Yes

N/A

N/A

Google Meet interop (WebRTC)

Yes

No

No

Zoom Meetings interop

Yes, feature-rich SIP meetings

Yes, Zoom CRC and WebRTC-based meetings

Yes, WebRTC- based meetings

Standards-based video interop (SIP/H.323 dialing)

Yes

Yes

No

Content share resolution

In active meeting: up to 3840 x 2160 at 15 fps



Out of active meeting: up to 3840 x 2160 at 60 fps

In active meeting: up to 1920 x 1080 at 15 fps



Out of active meeting: up to 3840 x 2160 at 60 fps

In active meeting: up to 1920 x 1080 at 15 fps



Out active meeting: up to 3840 x 2160 at 60 fps

Simultaneous content sources for local sharing (outside video meeting)

3

3

3

Wireless sharing options

Webex App, Miracast, Apple AirPlay

Microsoft Teams Sharing, Miracast

Microsoft Teams Sharing, Miracast

Multi-camera support

Yes

Yes

Yes

Multi-screen support for live video and content

Yes, with up to 3x screens

Yes, with up to 2x screens

Yes, with up to 2x screens

External PTZ camera connection for presenter tracking

Yes

Yes

Yes

USB Passthrough

Yes

Yes

Yes

People Focus intelligent layout composition

Yes, in Webex meetings

In native Webex meetings only

No

Frames camera mode for individual participant views

Yes

Yes

Yes

AI noise removal

Yes

Yes

Yes

Deployment options

On premises, cloud, hybrid

Cloud only

Cloud only

Enterprise calling

Webex Calling/UCM

Teams Calling

Teams Calling

Cloud device management

Control Hub

Teams Admin Center and Control Hub

Teams Admin Center

Room booking

Hybrid Calendar + Room Navigator touch panel

Microsoft Teams Calendar + Room Navigator touch panel as Teams Panel

Microsoft Teams Calendar + Room Navigator touch panel as Teams Panel

Conference controls

Hybrid Calendar + Room Navigator touch panel

Microsoft Teams Calendar + Room Navigator touch panel as MTR Touch Console

Microsoft Teams Calendar+ Room Navigator touch panel as MTR Touch Console

Third-party apps

Yes, native web apps and embedded apps in Webex Meetings.

Yes, via Webviews

No

Digital signage

Yes

Yes

No

Custom controls with Macros and User Interface extensions

Yes

Yes

No

Customized branding (logos, wallpaper)

Yes

No

No

Workplace analytics in Control Hub with APIs

Yes

Yes

No

Multi-tenant device management, bulk configuration and automated software upgrades

Yes

Yes

No

Network-level diagnostics and observability

Yes (with Cisco ThousandEyes integration)

Yes (with Cisco ThousandEyes integration)

No

Ordering information

To place an order, contact your local Cisco representative and refer to the table below.

Table 5.           Ordering information

Product name

Part number

Compliance model number

Cisco Room Kit EQX

  Cisco Room Kit EQX, First Light

CS-KIT-EQX-K9

TTC60-34

  Cisco Room Kit EQX, Carbon Black

CS-KIT-EQX-C-K9

TTC60-34

  Cisco Room Kit EQX, No Radio, First Light

CS-KIT-EQX-NR-K9

TTC60-34

  Cisco Room Kit EQX, No Radio, Carbon Black

CS-KIT-EQX-C-NR-K9

TTC60-34

Cisco Room Kit EQX – TAA

  Cisco Room Kit EQX, TAA, First Light

CS-KIT-EQX-K9++

TTC60-34

  Cisco Room Kit EQX, TAA, Carbon Black

CS-KIT-EQX-C-K9++

TTC60-34

  Cisco Room Kit EQX, No Radio, TAA, First Light

CS-KIT-EQX-NR-K9++

TTC60-34

  Cisco Room Kit EQX, No Radio, TAA, Carbon Black

CS-KIT-EQX-CNRK9++

TTC60-34

Cisco Room Kit EQX – No Codec

  Cisco Room Kit EQX, No Codec, Carbon Black *

CS-EQX-NOCODEC-C

TTC60-34

Cisco Room Kit EQX - Customized

  Cisco Room Kit EQX, Customized Version, First Light

CS-KIT-EQX-K9--

TTC60-34

  Cisco Room Kit EQX, Customized Version, Carbon Black

CS-KIT-EQX-C-K9--

TTC60-34

  Cisco Room Kit EQX, No Radio, Customized Version, First Light

CS-KIT-EQX-NR-K9--

TTC60-34

  Cisco Room Kit EQX, No Radio, Customized Version, Carbon Black

CS-KIT-EQX-C-NR-K9--

TTC60-34

Mounting options

  Cisco Room Kit EQX Wall Mount, First Light

Included in the main product PID



  Cisco Room Kit EQX Wall Mount, Carbon Black

CS-KIT-EQX-WMK-C



  Cisco Room Kit EQX Wall Stand, Carbon Black

CS-KIT-EQX-WSK-C



  Cisco Room Kit EQX Floor Stand, Carbon Black

CS-KIT-EQX-FSK-C



Options

Cisco Room Navigator table-stand touch controller

CS-T10-TS-L-K9

TTC5-15

Cisco Room Navigator wall-mount touch controller

CS-T10-WM-L-K9

TTC5-15

Cisco PTZ 4K Camera

CS-CAM-PTZ4K or
CS-CAM-PTZ4K-IND

EVI-X200C

Mounting bracket for PTZ 4K Camera

CS-PTZ4K-BRKT



Ceiling-mount bracket for PTZ 4K Camera

CS-PTZ4K-CLNGMNT



Cisco Precision 60 Camera

CTS-CAM-P60=

TTC8-07

Power supply for Precision 60 Camera

PSU-12VDC-70W-GR=



Cisco Table Microphone with 4-pin mini jack connector, 7.5 meters cable

CS-MIC-TABLE-J



Cisco Table Microphone extension cable for the 4-pin mini jack cables, 9 meters

CAB-MIC-EXT-J



Cisco Ceiling Microphone

CTS-MIC-CLNG-G2



Shielded cable for Cisco Ceiling Microphone (non- plenum rated)

CAB-ETHRSHLD-10M



Cisco Table Microphone Pro

CS-MIC-ARRAY-T

TTC5-17

Cisco Multi-head Cable 9 meters
(4K, USB- C, HDMI, miniDP)

CAB-HDMI-MUL4K-9M



Active Optical Cable, USB-C 3.1, 9 meters

CAB-USBC-AC-9M



USB-C – USB-C cable, 1.8 meters long, USB charging

CAB-USBC-1.8M



Cisco Multi-head Cable 2.5 meters (4K, USB-C, HDMI, miniDP)

CAB-HDMI-MUL4K-2M



Presentation cable 8 m/26 ft GREY HDMI 1.4b (W/ REPEATER)

CAB-PRES-2HDMI-GR



HDMI 2.0 cable 1.5 m/5 ft, gray

CAB-2HDMI-1.5M-GR



HDMI 2.0 cable 3 m/10 ft, gray

CAB-2HDMI-3M-GR



PoE switch Catalyst 1200

C1200-8FP-2G-OPT



Software options – ordered separately

Remote Monitoring

L-ROOM-RM (L-TP-RM)



MultiSite (embedded multipoint)

L-KITEQ-MS (L-ROOM-PAK)



AV integrator pack

L-KITEQ-AV (L-ROOM-PAK)



Spare Parts

Cisco PTZ 4K Camera

CS-CAM-PTZ4K= or CS-CAM-PTZ4K-IND=

EVI-X200C

Cisco Codec EQ Spare

CS-CODEC-EQ=

TTC6-15

Cisco Codec EQ No Radio Spare

CS-CODEC-EQ-NR=

TTC6-15

Cisco Room Navigator table-stand touch controller

CS-T10-TS-L-K9=

TTC5-15

Cisco Room Navigator wall-mount touch controller

CS-T10-WM-L-K9=

TTC5-15

Power supply 12VDC 70W.

PSU-12VDC-70W-GR=



Cisco Table Microphone mini jack

CS-MIC-TABLE-J=



Extension cable for Table Mic (9m/29ft) with Jack plug

CAB-MIC-EXT-J=



Cisco Table Microphone Pro

CS-MIC-ARRAY-T=



Top speaker for Room Panorama and Room Kit EQX

CS-PANO-SPKR=



Power supply 12VDC 70W.

CAB-HDMI-MUL4K-2M



Cisco Codec EQ unit Spare

CS-CODEC-EQ=



Cisco Codec EQ unit No Radio Spare

CS-CODEC-EQ-NR=



Bass unit for Room Panorama and Room Kit EQX

CS-PANO-BASS=



Room Kit EQX 2 fan pack

CS-EQX-FAN=



Room Kit EQX antenna kit (includes 3x antennae + cables)

CS-EQX-ANT=



Room Kit EQX center module

CS-EQX-CENTER-MOD=



Room Kit EQX side module

CS-EQX-SIDE-MOD=



Room Kit EQX front frame module -Carbon Black

CS-EQX-FRAME-C=



Room Kit EQX front frame module – First Light

CS-EQX-FRAME=



Room Kit EQX VESA bracket for screens between 65” and 75”

CS-EQX-VESA=



Cisco Room Kit EQX Wall Mount Carbon Black

CS-KIT-EQX-WMK-C=



Cisco Room Kit EQX Floor Stand Carbon Black

CS-KIT-EQX-FSK-C=



Cisco Room Kit EQX Wall Stand Carbon Black

CS-KIT-EQX-WSK-C=



Spare Parts

Cisco Room Kit EQX Screw set

CS-EQX-SCRW=



Power supply - AC/DC, 12V, 120W

PSU-12VDC-120W=



Power supply - AC/DC, 24V, 270W

PSU-24VDC-270W=



Power strip 1x C14 Inlet, 4x Outlet F

CS-PWR-STRIP4=



Power Jumper, C13 to C14, 10A, 3m

PWR-CAB-INT-3.0M=



Power Jumper, C13 to C14, 10A, 0.22m

PWR-CAB-INT-0.22M=



CAB (16,4 feet/5m) GREY ETHERNET

CAB-ETH-5M-GR=



1.5m GREY HDMI 2.0

CAB-2HDMI-1.5M-GR=



CAB 1.5m GREY ETHERNET

CAB-ETH-1.5M-GR=



12 meter round grey Ethernet cable for Cisco Devices

CAB-CAT5E-12M=



Room Kit EQX Complete set of Speaker Cables

CAB-EQX-SPKR=



Internal Power cable Room Kit EQX - Amp to camera

PWR-CAB-INT-1.45M=



CABASY, HDMI, 2.06m, GREY

CAB-2HDMI-2.06M=



CABASY, HDMI, 4m, Grey

CAB-2HDMI-4M-GR=



Cisco Multi-head Cable 9 meters (4K, USB-C, HDMI, miniDP)

CAB-HDMI-MUL4K-9M=



Presentation cable 8m/26ft GREY HDMI 1.4b (W/ REPEATER)

CAB-PRES-2HDMI-GR=



Active Optical Cable, USB-C 3.1, 9m

CAB-USBC-AC-9M=



* Limited regional availability

Read more about all spare parts and cables orderable with the Room Kit EQX here.

Warranty information

Cisco Room Kit EQX has a 90-day limited liability warranty.

Cisco environmental sustainability

Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.

Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:

Table 6.           Cisco Environmental Sustainability Information

Sustainability topic

Reference

General

Information on product-material-content laws and regulations

Materials

Information on electronic waste laws and regulations, including our products, batteries and packaging

WEEE Compliance

Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice. For more information about these services, visit: https://www.cisco.com/go/collaborationservices.

Cisco Service and Support

Cisco and our partners provide a broad portfolio of smart, personalized services and support that can help you realize the full business value of your Cisco collaboration investment by increasing business agility and network availability. This portfolio of services accelerates business innovation by harnessing the network as a powerful business platform.

Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments.
Learn more.

For more information

     Learn more about the Cisco Room Kit EQX.

     Read the Room Kit EQX Room Preparation Guidelines.

     Access all Room Kit EQX support documentation.







Our experts recommend

Learn more
