The Cisco® Catalyst® 4500 Series provides scalable, nonblocking Layer 2-4 switching with secure, flexible, nonstop communications, enabling business resilience for enterprises, small and medium-sized businesses (SMBs), and Metro Ethernet customers deploying business-critical applications.
Catalyst 4500 has a centralized forwarding architecture that enables collaboration, virtualization and operational manageablity through simplified operations. With forward and backward compatibility spanning multiple generations, the new Catalyst 4500 E-Series provides exceptional investment protection and deployment flexibility to meet the evolving needs of organizations of all sizes. Catalyst 4500 E-Series platform has 10G uplinks and PoEP support as standard enabling the customers to future proof their network.
The Cisco Catalyst 4500 Series includes two series of chassis: the Catalyst 4500 E-Series and classic Catalyst 4500 Series chassis. Catalyst 4500 E-Series chassis (Figure 1) are extremely flexible and support both 6 Gbps and 24 Gbps per line card slot. The classic Catalyst 4500 Series chassis supports 6 Gbps per line card slot. There are four models of Catalyst 4500 E-Series and classic Catalyst 4500 chassis: 10-slot, 7-slot, 6-slot, and 3-slot. Integrated resiliency in the Catalyst 4500-E and classic Catalyst 4500 Series include 1+1 supervisor engine redundancy (10-slot and 7-slot only), redundant fans, software-based fault tolerance, and 1+1 power supply redundancy. Integrated resiliency in both hardware and software minimizes network downtime, helping to ensure workforce productivity, profitability, and customer success.

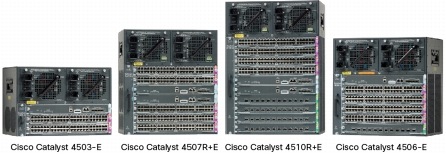

Figure 1. Cisco Catalyst 4500 E-Series
The Cisco Catalyst 4500 Series extends control to the network edge with intelligent network services, including sophisticated quality of service (QoS),, predictable performance, advanced security, comprehensive management, and integrated resiliency. Scalability of these intelligent network services is made possible with dedicated, specialized resources known as ternary content addressable memory (TCAM). Ample TCAM resources (up to 384,000 entries) enable "high feature capacity," which provides wire-speed routing/switching performance independent of provisioning of services such as QoS and security.
Cisco Catalyst 4500 E-Series Chassis
The Cisco Catalyst 4500 E-Series offers four chassis options and eight supervisor engine options (Table 1). It provides a common architecture that can scale up to 388 ports. The Cisco Catalyst WS-C4507R-E and WS-C4510R-E offer high availability by supporting 1+1 redundant supervisor engines with subsecond failover time and full-image In Service Software Upgrades (ISSUs). Non stop forwarding with Stateful Switchover (NSF/SSO) and ISSU ensure continuous packet forwarding during Supervisor engine switchover to ensure high availability for collaboration applications and VoIP. Using the same line cards as the widely deployed Catalyst 4000 Series Switches and classic Catalyst 4500 Series Switches, the Catalyst 4500-E Series furthers Cisco's commitment to affordable enterprise and branch scalability.
Table 1. Cisco Catalyst 4500 E-Series Chassis Features
Feature
Cisco Catalyst WS-C4503-E Chassis
Cisco Catalyst WS-C4506-E Chassis
Cisco Catalyst WS-C4507R-E Chassis
Cisco Catalyst WS-C4510R-E Chassis
Total Number of Slots
3
6
7
10
Line Card Slots
2
5
5
8
Supervisor Engine Slots
1*
1*
2**
2***
Dedicated Supervisor Engine Slot Numbers
1
1
3 and 4
5 and 6
Supervisor Engine Redundancy
No
No
Yes (Supervisor II-Plus, II-Plus-10GE, IV, V, V-10GE, 6-E, 6L-E)
Yes (Supervisor V, V-10GE, and 6-E)
Supervisor Engines Supported
Supervisor 6-E
Supervisor 6L-E
Supervisor V-10GE
Supervisor V
Supervisor IV
Supervisor II-Plus-10GE
Supervisor II-Plus
Supervisor II-Plus-TS
Supervisor 6-E
Supervisor 6L-E
Supervisor V-10GE
Supervisor V
Supervisor IV
Supervisor II-Plus-10GE
Supervisor II-Plus
Supervisor 6-E
Supervisor 6L-E
Supervisor V-10GE
Supervisor V
Supervisor IV
Supervisor II-Plus-10GE
Supervisor II-Plus
Supervisor 6-E
Supervisor V-10GE
Supervisor V
Bandwidth per Line Card Slot Using Supervisor 6-E
Up top 24 Gbps on all slots****
Up to 24 Gbps on all slots
Up to 24 Gbps on all slots
Up to 24 Gbps on slots 1-4 and 7; 6 Gbps only on slots 8-10
Number of Power Supply Bays
2
2
2
2
AC Input Power
Yes
Yes
Yes
Yes
DC Input Power
Yes
Yes
Yes
Yes
Integrated Power over Ethernet
Yes
Yes
Yes
Yes
Minimum Number of Power Supplies
1
1
1
1
Power Supplies Supported
• 1000W AC
• 1400W AC
• 1300W ACV
• 2800W ACV
• 4200W ACV
• 6000W ACV
• 1400W DC (triple input)
• 1400W-DC-P
• External AC power shelf
• 1000W AC
• 1400W AC
• 1300W ACV
• 2800W ACV
• 4200W ACV
• 6000W ACV
• 1400W DC (triple input)
• 1400W-DC-P
• External AC power shelf
• 1000W AC
• 1400W AC
• 1300W ACV
• 2800W ACV
• 4200W ACV
• 6000W ACV
• 1400W DC (triple input)
• 1400W-DC-P
• External AC power shelf
• 1400W AC*****
• 2800W ACV*****
• 4200W ACV*****
• 6000W ACV
• 1400W DC (triple input)
• 1400W-DC-P
• External AC Power Shelf
Number of Fan-Tray Bays
1
1
1
1
Location of 19-inch Rack Mount
Front
Front
Front
Front
Location of 23-inch Rack Mount
Front (option)
Front (option)
Front (option)
Front (option)
* Slot 1 is reserved for supervisor engine only; slots 2 and higher are reserved for line cards.
** Slots 3 and 4 are reserved for supervisor engines only in Cisco Catalyst 4507R-E; slots 1-2 and 5-7 are reserved for line cards.
*** Slots 5 and 6 are reserved for supervisor engines only in Cisco Catalyst 4510R-E; slots 1-4 and 7-10 are reserved for line cards; slots 8-10 support only classic line cards.
**** Classic Catalyst 4000 or 4500 Series chassis operate at 6 Gbps per slot.
***** The 1400W AC, 6000W ACV, 4200W ACV, and 2800W ACV power supplies are required to support a fully loaded Cisco Catalyst 4510R. The 1000W AC and 1300W AC power supplies can be deployed in the Catalyst 4510R; however, power management is required.
Configuration Alternatives
The Cisco Catalyst 4500 Series offers a powerful and flexible network solution that can be built with eight supervisor engine alternatives. Each provides a high-performance, centralized, shared-memory switch fabric, protecting your line card investment by supporting the addition of optional higher-layer engines (Table 2).
Table 2. a. Cisco Catalyst 4500-E Series Supervisor Engine Support and Performance
Feature
Catalyst 4500 Supervisor II-Plus-TS
Catalyst 4500 Supervisor II-Plus
Catalyst 4500 Supervisor II-Plus-10GE
Catalyst 4500 Supervisor IV
Catalyst 4500 Supervisor V
Catalyst 4500 Series Supervisor V-10GE
Catalyst 4500 Series Supervisor 6L-E
Catalyst 4500 Series Supervisor 6-E
Cisco Catalyst WS-C4503-E Chassis
64 Gbps
48 mpps
28 Gbps
21 mpps
72 Gbps
54 mpps
28 Gbps
21 mpps
28 Gbps
21 mpps
72 Gbps
54 mpps
136 Gbps
116 mpps
136 Gbps
116 mpps
Cisco Catalyst WS-C4506-E Chassis
Not supported
64 Gbps
48 mpps
108 Gbps
81 mpps
64 Gbps
48 mpps
64 Gbps
48 mpps
108 Gbps
81 mpps
280 Gbps
225 mpps
280 Gbps
225 mpps
Cisco Catalyst WS-C4507R-E Chassis
Not supported
64 Gbps
48 mpps
108 Gbps
81 mpps
64 Gbps
48 mpps
68 Gbps
51 mpps
108 Gbps
81 mpps
280 Gbps
225 mpps
280 Gbps
225 mpps
Cisco Catalyst WS-C4510R-E Chassis
Not supported
Not supported
Not supported
Not supported
96 Gbps
72 mpps
136 Gbps
102 mpps
Not supported
320 Gbps
250 mpps
b. Cisco Catalyst 4500 Series Supervisor Engine Support and Performance
Feature
Catalyst 4500 Supervisor II-Plus-TS
Catalyst 4500 Supervisor II-Plus
Catalyst 4500 Supervisor II-Plus-10GE
Catalyst 4500 Supervisor IV
Catalyst 4500 Supervisor V
Catalyst 4500 Series Supervisor V-10GE
Catalyst 4500 Series Supervisor 6L-E
Catalyst 4500 Series Supervisor 6-E
Cisco Catalyst WS-C4503 Chassis
64 Gbps
48 mpps
28 Gbps
21 mpps
72 Gbps
54 mpps
28 Gbps
21 mpps
28 Gbps
21 mpps
72 Gbps
54 mpps
64 Gbps
48 mpps
64 Gbps
48 mpps
Cisco Catalyst WS-C4506 Chassis
Not supported
64 Gbps
48 mpps
108 Gbps
81 mpps
64 Gbps
48 mpps
64 Gbps
48 mpps
108 Gbps
81 mpps
100 Gbps
75 mpps
100 Gbps
75 mpps
Cisco Catalyst WS-C4507R Chassis
Not supported
64 Gbps
48 mpps
108 Gbps
81 mpps
64 Gbps
48 mpps
68 Gbps
51 mpps
108 Gbps
81 mpps
100 Gbps
75 mpps
100 Gbps
75 mpps
Cisco Catalyst WS-C4510R Chassis
Not supported
Not supported
Not supported
Not supported
96 Gbps
72 mpps
136 Gbps
102 mpps
Not supported
136 Gbps
102 mpps
The Cisco Catalyst 4500 Series has flexible interface types and port densities that allow network configurations to be mixed and matched to meet the specific needs of campus networks (Table 3).
Table 3. Cisco Catalyst 4500 Series Port Densities
Cisco Catalyst 4500 Series Switching Modules
Number of Interfaces Supported per Line Card
Cisco Catalyst 4503-E
Cisco Catalyst 4506-E
Cisco Catalyst 4507R-E
Cisco Catalyst 4510R-E
Switched 10/100 Fast Ethernet (RJ-45)
24, 32, or 48
96
240
240
384
Switched 10/100 Fast Ethernet (RJ-45) with IEEE 802.3af Power over Ethernet (PoE)
24 or 48
96
240
240
384
Switched 10/100 Fast Ethernet (RJ-21) with or without IEEE 802.3af PoE
48
96
240
240
384
Switched 100 FX Fast Ethernet (MT-RJ)
24 or 48
96
240
240
384
Switched 100 LX-10 (MT-RJ) or 100 BX-D (LC) Fast Ethernet
48
96
240
240
384
Switched 1000BASE-X (fiber)
2, 6, 18, or 48
104
244
244
388
Switched 10/100/1000BASE-T Gigabit Ethernet
24 or 48
108
240
240
384
Switched 10/100/1000BASE-T Gigabit Ethernet with IEEE 802.3af PoE
24 or 48
108
240
240
384
Switched 10 Gigabit Ethernet
6
14
32
34
34
Configuration Flexibility and Modular Superiority
Cisco Catalyst 4500 Series line cards can be mixed and matched to suit numerous LAN access, server connectivity, SMB, or branch-office deployments. The Cisco Catalyst 4500 Series supports the following line cards, listed in Table 4 by part number:
Table 4. Catalyst 4500 E-Series Line Cards and Modules
Cisco WS-C4503, WS-C4506, WS-C4507R, and WS-C4510R
Supervisor Engine V
Supervisor Engine V-10GE
Supervisor Engine 6-E
Metro Supervisor Engine 6-E
Cisco IOS Software Release 12.2(18)EW
Cisco IOS Software Release 12.2(25)EW
Cisco IOS Software Release 12.2(40)SG
Cisco IOS Software Release 12.2(46)XO
Table 6. Comparison Between Classic Catalyst 4500 Series and 4500 E-Series Chassis
Feature
Catalyst 4500 Classic Chassis
Catalyst 4500 E-Series Chassis
Bandwidth per slot maximum
6 Gbps
24 Gbps per slot with future scalability
Maximum PoE per line card slot
830W
1440W
Line card support
Classic line cards only
E-Series and classic line cards
Supervisor engine support
Same as E-Series chassis
Same as classic chassis
Power supply support
Same as E-Series chassis
Same as classic chassis
Fan tray support
Different from E-Series chassis
Different from classic chassis
Standard Network Protocols
• Ethernet
– IEEE 802.3, 10BASE-T
• Fast Ethernet
– IEEE 802.3u, 100BASE-TX
– IEEE 802.3, 100BASE-FX
• Gigabit Ethernet
– IEEE 802.3z
– IEEE 802.3x
– IEEE 802.3ab
• 1000BASE-X (GBIC)
– 1000BASE-SX
– 1000BASE-LX/LH
– 1000BASE-ZX
• VLAN trunking and tagging
– IEEE 802.1Q
– IEEE 802.3ad
• Spanning Tree Protocol
– IEEE 802.1D
– IEEE 802.1w
– IEEE 802.1s
• Security
– IEEE 802.1x
• Power over Ethernet (PoE)
– IEEE 802.3af
Network Management
Cisco Network Assistant
The Cisco Network Assistant application manages standalone devices from anywhere on your intranet. Using its GUI, you can perform multiple configuration tasks without using command-line interface (CLI) commands. You can apply actions to multiple devices and ports at the same time for VLAN and quality-of-service (QoS) settings, inventory and statistics reports, link and device monitoring, software upgrades, and many other networking features.
Cisco Network Assistant simplifies device management by offering an intuitive GUI, alternative modes for configuring network devices, two levels of access, and comprehensive online help. It features two modes of display: device view and topology view. In the device view, the Catalyst 4500 Series administrator may configure the switch, configure ports on the switch, or configure groups of ports. In the topology view, the administrator may configure VLAN settings, configure EtherChannels, and view a variety of reports on system and network status.
Resource Manager Essentials
CiscoWorks Resource Manager Essentials (RME), a component of CiscoWorks LAN Management Solution (LMS), provides the following benefits to the Cisco Catalyst 4500 Series:
• Builds and maintains an up-to-date hardware and software inventory
• Maintains an active archive and simplifies deployment of configuration changes to multiple devices
• Simplifies and accelerates software-image analysis and automates deployment
• Records and displays comprehensive reports of software, hardware, and configuration changes
• Highlights critical devices and their ability to respond
• Isolates network error conditions and suggests probable causes
• Network-topology discovery and display services
• VLAN provisioning and logical display representation
• Traffic monitoring and performance assessment
• End-station tracking with search utilities
• CiscoView graphical device management
• Network-topology integrity checking
• Cisco Discovery Protocol
• Cisco Virtual Trunking Protocol (VTP)
• Simple Network Management Protocol (SNMP) Version 1 (RFCs 1155-1157)
• SNMP Version 2c
• Cisco Workgroup MIB
• Ethernet MIB (RFC 1643)
• Ethernet Repeater MIB (RFC 1516)
• SNMP MIB II (RFC 1213)
• Remote Monitoring (RMON) (RFC 1757)
• RMON II (RFC 2021)
• Interface table (RFC 1573)
• Bridge MIB (RFC 1493)
• Switched Port Analyzer (SPAN)
• Enhanced Switched Port Analyzer (ESPAN)
• Port snooping and connection steering
• Standard Cisco IOS Software security capabilities: passwords and TACACS+
• Telnet, Trivial File Transfer Protocol (TFTP), and BOOTP for management access
Physical Specifications
Table 7. Physical Specifications of Cisco Catalyst 4500 Series Chassis
Specification
WS-C4503-E and WS-C4503
WS-C4506-E and WS-C4506
WS-C4507R-E and WS-C4507R
WS-C4510R-E and WS-C4510R
Dimensions (H x W x D)
12.25 x 17.31 x 12.50 in. (31.12 x 43.97 x 31.70 cm)
17.38 x 17.31 x 12.50 in. (44.13 x 43.97 x 31.70 cm)
19.19 x 17.31 x 12.50 in. (48.74 x 43.97 x 31.70 cm
24.35 x 17.31 x 12.50 in. (61.84 x 43.97 x 31.70 cm)
Rack Units (RU)
7 RU
10 RU
11 RU
14 RU
Chassis Weight (with fan tray)
32.25 lb (14.63 kg)
40.50 lb (18.37 kg)
44.50 lb (20.19 kg)
54.50 lb (24.73 kg)
Mounting
19- and 23-in. rack compatible (19-in. rack and cable guide hardware included)
19- and 23-in. rack compatible (19-in. rack and cable guide hardware included)
19- and 23-in. rack compatible (19-in. rack and cable guide hardware included)
19- and 23-in. rack compatible (19-in. rack and cable guide hardware included)
Power Supply Indicators and Interfaces
• Fan cooling: Integrated in hot-insertion/hot-extraction unit
• Good: Green
• Fail: Red (faulty)
• SNMP MIB supported
Table 8. Cisco Catalyst 4500-E and Classic 4500 Series Power Supply Specifications (Data Only)
Power Supply
1000W AC
1400W AC
1400W DC Triple Input
Integrated PoE
No (data only)
No (data Only)
No (data only)
Input Current (rated)
12A at 100 VAC, 5A at 240 VAC
16A at 100 VAC, 7A at 240 VAC
2x -48 VDC at 15A
1x -48 VDC at 12.5A
Output Current (data)
• 12V at 83.4A
• 3.3V at 12.2A
• 12V at 113.4A
• 3.3V at 12.2A
• 12V at 1360W
• 3.3V at 40W
Output Power Redundant Mode (data)
1000W + 40W
1360W + 40W
1400W + 40W
Output Power Combined Mode (data)
1667W
2473W
-
Heat Dissipation
943 Btus per hour
1048 Btus per hour
1048 Btus per hour
Holdup Time
20 ms
20 ms
20 ms
Hot Swappable
Yes
Yes
Yes
Table 9. Cisco Catalyst 4500-E and Classic 4500 Series Power Supply Specifications (Data and PoE)
Power Supply
1300W AC
2800W AC
4200W AC
6000 AC
1400W DC with PEM
2500W AC-Power Shelf
Integrated PoE
Yes (up to 800W)
Yes (up to 1400W)
Yes (up to 3855W)
Yes (up to 4800W)
Up to 7500W (minus the power consumed for data) when connected directly to a DC power plant or 2 external AC power shelves
2500W per power supply; 5000W per shelf (minus the power consumed for data)
IEEE 802.3af-Compliant PoE
Yes
Yes
Yes
Yes
Yes
Yes
Input Current (rated)
• 16A at 100 VAC
• 7A at 240 VAC
16A at 200 VAC
• 2x 12A at 100VAC
Or
• 2x 12A at 200VAC
• 2x 12A at 100VAC
Or
• 2x 16A at 200VAC
• 31A at -60 VDC (data only)
• 180A at -48 VDC (PoE)
15A at 200 VAC
Output Current (data)
• 12V at 84.7A
• 3.3V at 12.5A
• 12V at 113.3A
• 3.3V at 12.1A
• 12V at 115.3A
• 3.3V at 12.5A
• 12V at 186.9A
• 3.3V at 12.5A
• 12V at 120A
• 3.3V at 10A
-52 VDC at 50A (total output per supply)
Output Current (PoE)
-50V at 16.7A
-50V at 28A
-50V at 77.1A (200V)
-50V at 38A (100V)
-50V at 100.0A (200V)
-50V at 38.5A (120V)
140A at -48/-60 VDC
-52 VDC at 50A (total output per supply)
Output Power Redundant Mode (data)
1000W + 40W
1360W + 40W
1383W + 40W
2200W + 40W
1360W + 40W
Up to 1400W (through DC supply)
Output Power Redundant Mode (PoE)
800W maximum per power supply
1400W maximum per power supply
• 3700W (220V)
• 1850W (110V)
• 4800W (220V)
• 1850W (110V)
Up to 7500W (minus the power consumed for data)
2500W per supply (minus the power consumed for data)
Output Power Combined Mode (data)
1667W
2473W
2766W
4400W
-
-
Output Power Combined Mode (PoE)
1333W
2333W
6700W (220V)
3360W (110V)
8700W (220V)
3360W (110V)
3800W (100V)
-
Heat Dissipation
1568 Btus per hour
2387 Btus per hour
3580 BTU/hr
2720 BTU/hr
Data only: 1591 Btus per hour
Data and voice: 2905 Btus per hour
1210 Btus per hour, per power supply
Holdup Time
20 ms
20 ms
20 ms
20 ms
4 ms
20 ms
Number of 802.3af Class 2 Power Devices Supported with 1 Power Supply (1+1)
106
186
• 384 power devices (200V)
• 245 power devices (100V)
• 384 power devices (200V)
• 245 power devices (100V)
384
384
Number of 802.3af Class 0 and 3 Power Devices Supported with 1 Power Supply (1+1)
48
84
• 223 power devices (200V)
• 111 power devices (100V)
• 289 power devices (200V)
• 111 power devices (100V)
384
384
Hot Swappable
Yes
Yes
Yes
Yes
Yes
Yes
Additional notes for Table 8 and 9:
• Output power is per power supply, unless otherwise stated.
• Heat dissipation numbers represent the power-conversion losses of the power supply in operation.
• The number of power devices supported will depend on customer configuration.
Fan Trays
Each Cisco Catalyst 4500-E Series and classic Catalyst 4500 Series chassis uses a single fan tray for cooling. All fan trays are composed of independent fans. If one fan fails, the system will continue to operate without a significant degradation in cooling. The system will detect and notify the user (through LED, command-line interface [CLI], and SNMP) that a fan has failed and the tray needs to be replaced. Catalyst 4500-E Series fans cannot be interchanged with classic Catalyst 4500 Series fans. The classic Catalyst 4500 Series chassis needs an E-Series fan tray in order to support the Metro Supervisor Engine 6-E.
The Cisco Catalyst 4500 and 4500-E Series redundancy scheme uses removable fabric-redundancy modules on the passive backplane to switch traffic to the active supervisor engine. There is one fabric-redundancy module per line card. Fabric-redundancy modules and redundant clocks ship standard with every Cisco Catalyst 4507R-E, 4507R, 4510R-E, and 4510R chassis. Fabric-redundancy modules cannot be interchanged between the Catalyst 4500-E and classic Catalyst 4500 chassis. Spare fabric-redundancy modules and clock modules are available for serviceability.
Environmental Conditions
The Cisco Catalyst 4500 and 4500-E Series require the following conditions:
• Operating temperature: 32 to 104ºF (0 to 40ºC)
• Storage temperature: -40 to 167ºF (-40 to 75ºC)
• Relative humidity: 10 to 90 percent, noncondensing
• Operating altitude: -60 to 2000 meters (m)
Regulatory Standards Compliance
Table 10 lists the regulatory standards compliance of the Cisco Catalyst 4500 and 4500-ESeries.
Table 10. Regulatory Standards Compliance
Specification
Standard
Regulatory Compliance
CE Marking
Safety
• UL 60950
• CAN/CSA-C22.2 No. 60950
• EN 60950
• IEC 60950
• TS 001
• AS/NZS 3260
EMC
• FCC Part 15 (CFR 47) Class A
• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZS 3548 Class A
• VCCI Class A
• EN 55022
• EN 55024
• EN 61000-6-1
• EN 50082-1
• EN 61000-3-2
• EN 61000-3-3
• ETS 300 386
Industry EMC, Safety, and Environmental Standards
• NEBS Level 3
• ETS 300 019 Storage Class 1.1
• ETS 300 019 Transportation Class 2.3
• ETS 300 019 Stationary Use Class 3.1
• ETS 300 386
Telecom (E1)
• CTR 12/13
• CTR 4
• ACA TS016
Telecom (T1)
• FCC Part 68
• Canada CS-03
• JATE Green Book
Ordering Information
Table 11 lists the ordering information for chassis, power supplies, supervisor engines, and memory that are commonly used with the Cisco Catalyst 4500 Series.
Table 11. Ordering Information
Product Number
Description
WS-C4503-E
Cisco Catalyst E-Series 4503 switch (3-slot chassis), fan, no power supply
WS-C4506-E
Cisco Catalyst E-Series 4506 switch (6-slot chassis), fan, no power supply
WS-C4507R-E
Cisco Catalyst E-Series 4507R switch (7-slot chassis), fan, no power supply, redundant supervisor capable
WS-C4510R-E
Cisco Catalyst E-Series 4510R switch (10-slot chassis), fan, no power supply; redundant supervisor capable
WS-C4503
Cisco Catalyst 4503 classic switch (3-slot chassis), fan, no power supply
WS-C4506
Cisco Catalyst 4506 classic switch (6-slot chassis), fan, no power supply
WS-C4507R
Cisco Catalyst 4507R classic switch (7-slot chassis), fan, no power supply, supports redundant supervisor engines
WS-C4510R
Cisco Catalyst 4510R classic switch (10-slot chassis), fan, no power supply; supports redundant supervisor engines
PWR-C45-1000AC
Cisco Catalyst 4500 Series 1000W AC power supply (data only)
PWR-C45-1400AC
Cisco Catalyst 4500 Series 1400W AC power supply (data only)
PWR-C45-1300ACV
Cisco Catalyst 4500 Series 1300W AC power supply (with integrated PoE)
PWR-C45-2800ACV
Cisco Catalyst 4500 Series 2800W AC power supply (with integrated PoE)
PWR-C45-4200ACV
Cisco Catalyst 4500 Series 4200W AC power supply (with integrated PoE)
PWR-C45-1400DC-P
Cisco Catalyst 4500 Series 1400W DC power supply with integrated power entry module (PEM)
PWR-C45-1400DC
Cisco Catalyst 4500 Series triple input 1400W DC power supply (data only)
WS-P4502-1PSU
Catalyst 4500 Series auxiliary power shelf (2-slot), including 1 PWR-4502
PWR-4502
Catalyst 4500 Series auxiliary power-shelf redundant power supply
PWR-4502
Cisco Catalyst 4500 Series Supervisor Engine II-Plus
WS-X4013+
Cisco Catalyst 4500 Series Supervisor Engine II-Plus-TS, twelve 10/100/1000 PoE (RJ-45) and eight 1000-X SFP ports included on supervisor-engine faceplate
WS-X4013+TS
Cisco Catalyst 4500 Series Supervisor Engine II-Plus-10GE
WS-X4013+10GE
Cisco Catalyst 4500 Supervisor Engine IV
WS-X4515
Cisco Catalyst 4000/4500 Supervisor Engine V
WS-X4516
Cisco Catalyst 4500 Series Supervisor Engine V-10GE
WS-X45-Sup6-E
Cisco Catalyst 4500 Series Supervisor Engine 6-E
ME-X45-Sup6-E
Cisco Metro 4500 Supervisor Engine 6-E
MEM-C4K-FLD64M
Compact Flash memory, 64-MB option
MEM-C4K-FLD128M
Compact Flash memory, 128-MB option
MEM-X45-512MB-E
Cisco Catalyst 4500 Series Supervisor Engine 6-E, 512-MB option
Cisco offers Cisco Technical Support Services to help ensure that your Cisco products operate efficiently, remain highly available, and benefit from current system software to assist you in effectively managing your network service while controlling operational costs.
Cisco Technical Support Services provide significant benefits that go beyond what is offered under the Cisco warranty policy.
Services available under a Cisco SMARTnet® service contract that are not covered under a warranty include the following:
• Latest software updates
• Rapid replacement of hardware in next-day, 4-hour, or 2-hour dispatch options
• Ongoing technical support through Cisco Technical Assistance Center (TAC)
Tables 12 and 13 list the components and competitive differentiators of Cisco Technical Support Services.
Table 12. Technical Support Services-Components
Service Feature Overview
Benefits
Software Support
Offers maintenance and minor and major updates for licensed feature set. Downloading new maintenance releases, patches, or updates of Cisco IOS Software helps to enhance and extend the useful life of Cisco devices. Through major software updates it is possible to extend the life of equipment and maximize application technology investments by:
• Increasing the performance of current functions
• Adding new capability that, in many cases, requires no additional hardware investment
• Enhancing network and application availability, reliability, and stability
TAC Support
With more than 1000 highly trained customer support engineers, 390 CCIE® certifications, and access to 13,000 research and development engineers, Cisco TAC complements your in-house staff with a high level of knowledge in voice, video, and data communications networking technology. Its sophisticated call-routing system quickly routes calls to the correct technology personnel. The Cisco TAC is available 24 hours a day, 365 days a year.
Cisco.com
This award-winning Website provides 24-hour access to an extensive collection of online product and technology information, interactive network-management and troubleshooting tools, and knowledge-transfer resources that can help customers reduce costs by increasing staff self-sufficiency and productivity.
Advance Hardware Replacement
Advance replacement and onsite field-engineer options supply fast access to replacement hardware and field resources for installing hardware, minimizing the risk of potential network downtime.
Table 13. Technical Support Services-Competitive Differentiators
Feature
Benefits
Worldwide Virtual Lab
• TAC Training
• Boot Camps
• Tech Calls
This extensive lab of Cisco equipment and Cisco IOS Software releases provides an invaluable engineering resource and knowledge base for training, product information, and recreation and testing of selected network issues to help decrease time to resolution.
Tech Forums
Cisco is committed to providing customers the latest in technology support. These TAC training programs assist customers in case avoidance as well as provide knowledge transfer of Cisco networking expertise.
Cisco Live
A powerful suite of Internet-enabled tools with firewall-friendly features; these secure, encrypted Java applets can turn a simple phone call into an interactive collaboration session, allowing a customer and Cisco TAC support engineer to work together more effectively.
Global Logistics
Delivers award-winning, worldwide hardware-replacement support with 650 depots, covering 120 countries, at a US$2.3 billion investment in inventory, using 10,000 onsite field engineers.
Cisco IOS Software
Employs 100 discrete technologies with more than 2000 features. 400 new features are added each year. Cisco IOS Software is installed in more than 10 million devices and is running on more than 10,000 networks worldwide. It operates on the world's largest IPv6 and VoIP networks and in all major service provider networks worldwide.
Cisco and Partner Services: Essential to Campus Success
Cisco and our certified partners can help you prepare your network and teams as you adopt new technologies to transform your business. We can help you establish a secure, resilient architecture and successfully integrate Cisco Unified Communications and mobility technologies. Planning and design services align technology with business goals and can increase the accuracy, speed, and efficiency of deployment. Technical services help maintain operational health, strengthen software application functionality, solve performance issues, and lower expenses. Optimization services are designed to continually improve performance and help your team succeed with new technologies. For more information, visit http://www.cisco.com/go/services.
