Configuring MARS for the Cisco ASA Adaptive Security Appliances, Versions 8.1.x and 8.2.x with NetFlow


Revised: October 14, 2008, OL-16778-01

Contents

This chapter describes how to add the Cisco ASA, Versions 8.1.x or 8.2.x to the Local Controller as reporting devices, and how to configure NetFlow Security Event Logging (NSEL) between the Cisco ASA 5580, Version 8.1.x or 8.2.x and the MARS Local Controller.

Configuration procedures for firewall syslog monitoring and for adding other versions of the Cisco ASA to MARS are described in, "Configuring Cisco Firewall Devices."

This chapter contains the following sections:

Information About Configuring the Cisco ASA Version 8.1.x with NSEL

Adding the Cisco ASA, Version 8.1.X or 8.2.X Device to MARS

Configuring NSEL for MARS on the Cisco ASA 5580

Additional References

Information About Configuring the Cisco ASA Version 8.1.x with NSEL

NetFlow Security Event Logging (NSEL) is an efficient logging method for high-speed environments. Before Cisco ASA Release 8.1, Cisco ASA events were exported exclusively through system log (syslog) messages and SNMP traps. NSEL can transmit much of the same syslog information in a less CPU-intensive, more secure, and more bandwidth-efficient way. NSEL is an adaptation of NetFlow version 9.

To implement NSEL, the MARS Local Controller is configured as a NetFlow collector on the Cisco ASA 5580. When the Cisco ASA is configured in multi-mode, each context can report to its own MARS Appliance—if the contexts are on separate networks. The MARS Local Controller can use the Cisco ASA NSEL information as follows:

Create topology-aware sessionization of NetFlow events with non-NetFlow events

Perform rule correlation and incident firing from NetFlow events

Retrieve collected NetFlow data with queries and non-scheduled reports

View incoming Netflow events with the Real-time Event Viewer

Configure drop rules against incoming NetFlow events

Use NetFlow-derived events in Scheduled reports results (For example, Top N reports)


Note Syslog-based anomaly detection is still supported for all versions of the Cisco ASA.


For information on NetFlow anomaly detection on MARS, see the, User Guide for Cisco Security MARS Local and Global Controllers, Release 6.x, Understanding NetFlow Anomaly Detection on MARS.

For detailed information on NSEL, configuring the Cisco ASA Security Appliance, and descriptions of how NSEL and SYSLOG events compare, see the following publications:

All Cisco ASA 5500 Series Adaptive Security Appliances documentation:
http://www.cisco.com/en/US/products/ps6120/tsd_products_support_series_home.html

Cisco ASA 5580 Adaptive Security Appliance Command Reference (8.1, 8.2)
http://www.cisco.com/en/US/docs/security/asa/asa81/command/ref/refgd.html

http://www.cisco.com/en/US/docs/security/asa/asa82/command/reference/cmd_ref.html

Monitoring the Cisco ASA Security Appliance (8.1, 8.2):
http://www.cisco.com/en/US/docs/security/asa/asa81/config/guide/monitor.html#wp1099818

http://www.cisco.com/en/US/docs/security/asa/asa82/configuration/guide/monitor_syslog.html

Cisco ASA 5580 Implementation Note for NetFlow Collectors (8.1 and 8.2):
http://www.cisco.com/en/US/docs/security/asa/asa81/netflow/netflow.html

http://www.cisco.com/en/US/docs/security/asa/asa82/netflow/netflow.html

Taskflow for Configuring NSEL on MARS

The taskflow for configuring the Cisco ASA, Version 8.1.x and 8.2.x with MARS NetFlow Security Event Logging is as follows:

1. Identify the Cisco ASA contexts and modules on which to enable NSEL.

2. Disable syslog reporting to MARS on those devices.

3. Enable NSEL on each Cisco ASA reporting device and direct the NetFlow data to the MARS Appliance responsible for that network segment.

4. Verify that all the Cisco ASA reporting devices are defined in the MARS web interface.

5. Enable NetFlow processing in the MARS web interface.

6. Configure Networks for Traffic Anomaly Detection in the MARS web interface (if necessary)

7. Allow MARS to study traffic for a week to develop a usage baseline before it begins to generate incidents based on detected anomalies.

Adding the Cisco ASA, Version 8.1.X or 8.2.X Device to MARS

Prerequisites

The following prequisites are required for MARS-ASA interoperability:

MARS is permitted administrative access to ASA

MARS is configured as a NetFlow collector for the ASA.

MARS is configured with the same NTP server as the Cisco ASA

For details on configuring the Cisco ASA, Version 8.1.x for MARS, See the Cisco ASA 5580 Adaptive Security Appliance Command Line Configuration Guide, Version 8.1, Appendix F, section Configuring NSEL for MARS on the ASA 5580 at the following URL:

http://www.cisco.com/en/US/docs/security/asa/asa81/config/guide/csmars.html

For details on configuring the Cisco ASA, Version 8.2.x for MARS, See the Cisco ASA 5500 Series Configuration Guide using the CLI, 8.2 at the following URL:

http://www.cisco.com/en/US/docs/security/asa/asa82/configuration/guide/ref_csmars.html

Procedures for configuring administrative access on the Cisco ASA, Version 7.x and 8.0.x are also described in this guide, in the chapter, "Configuring Cisco Firewall Devices."

See also, Related Documents.

SUMMARY STEPS

1. Navigate to Admin > System Setup > Security and Monitor Devices.

2. Select Cisco ASA, Version 8.1 or Cisco ASA, Version 8.2 from the Device Type drop-down list.

3. Complete the configuration fields on the device configuration page.

4. Click Submit.

5. Click Activate.

DETAILED STEPS


Step 1 Navigate to Admin > System Setup > Security and Monitor Devices.
The Security and Monitoring Information page appears.

Step 2 Click Add.
The Device Configuration page appears.

Step 3 Select Cisco ASA 8.1 or Cisco ASA 8.2 from the Device Type drop-down list.
The ASA 8.1 Configuration page appears, as shown in Figure 20-1.

Figure 20-1 Add the Cisco ASA, Version 8.1.X to MARS
(Admin > Security and Monitor Devices > Add > Device Type> ASA 8.1)

Step 4 Complete the configuration fields as described in Table 20-1.

Table 20-1 Cisco ASA, Version 8.1.x and 8.2.x Configuration Fields

ASA 8.x Device Configuration Field
Description

Device Name

Name of the Cisco ASA device.

MARS maps this name to the reporting IP address. This name is used in topology maps, queries, and in the Security and Monitoring Device list. For devices that support the discovery operation, such as routers and firewalls, MARS renames this field's value to match the name discovered in the device configuration, which typically uses the hostname.domain format. For devices that cannot be discovered, such as Windows and Linux hosts and host applications, MARS uses the value specified in this field.

Access IP

ASA Administrative IP address—allows MARS to discover settings of the ASA.

The Access IP address must be reachable from MARS.

Reporting IP

The IP address of the interface that sends NetFlow data.

The Reporting IP is seen in MARS as the sender IP in an ASA syslog or netflow packet. The Reporting IP address does not have to be reachable from MARS or be the IP address of the ASA admin context (because separate NetFlow collectors can be configured from each context).

Access Type

If you entered an address in the Access IP field, select TELNET, SSH, or FTP from the Access Type list, and continue with the procedure that matches your selection:

To configure Telnet access for devices in MARS:

In the Login field, enter the username of the administrative account to use when accessing the reporting device.


Note The username filed is optional for a telnet connection. It is required only when AAA is configured for the telnet access.


In the Password field, enter the password associated with the username specified in the Login field.

Enter the Cisco ASA enable password in the Enable Password field.

To configure SSH access for Cisco ASA in MARS:

From the list box to the right of the Access Type list, select 3DES, DES, or BlowFish as the encryption cipher for SSH sessions between the MARS Appliance and the reporting device.

In the Login field, enter the username of the administrative account to use when accessing the reporting device.

In the Password field, enter the password associated with the username specified in the Login field.

If this device supports an enable mode, enter that password in the Enable Password field.

To configure FTP access for devices in MARS:

In the Login field, enter the username of the FTP server account to use when accessing the configuration file of the reporting device.

In the Password field, enter the password associated with the username specified in the Login field.

In the Config Path field, enter the path to the reporting device's configuration file residing on the FTP server.

This path begins at the root of the FTP server's published folder, not at the root directory of server.

In the File Name field, enter the name of the reporting device's configuration file residing on the FTP server.

Login

See Access Type.

Password

See Access Type.

Enable Password

See Access Type.

Config Path

See Access Type, "To configure FTP access."

File Name

See Access Type, "To configure FTP access."

SNMP RO Community

Optional. To enable MARS to retrieve MIB objects for this reporting device, enter the device's read-only community string in the SNMP RO Community field.

Before you can specify the SNMP RO string, you must define an Access IP address. MARS uses the SNMP RO string to read MIBs related to the Cisco ASA's CPU usage, network usage, device anomaly data and to discover device and network settings.

Monitor Resource Usage

Optional. To enable MARS to monitor this device for anomalous resource usage, select Yes from the Monitor Resource Usage list.

MARS monitors the ASA for anomalous consumption of resources, such as memory and CPU. If anomalies are detected, MARS generates an incident. Resource utilization statistics are also used to generate reports.

Secure Syslog Setting:
Client Authentication (not relevant to NSEL)

Optional. The Cisco ASA 8.0 and 8.1 can be configured to send secure syslogs, that is, syslogs over an SSL connection.

No—No client authentication is necessary.

Yes—Perform the following tasks:

Click Add Client Certificate.

Copy and paste the certificate into the Update Client Certificate pop-up window that appears.

Click Accept.


Note NSEL is transported by UDP.



Step 5 Do one of the following:

Click Discover to let MARS contact the device and conduct a topology and module configuration discovery. Information about the security modules is presented on the Security and Monitoring Information page.

To edit discovered contexts, continue with Edit Discovered Security Contexts.

Click Next to commit your changes and manually configure Cisco ASA modules.

For the Cisco ASA, you can add one or more security contexts or Advanced Inspection and Prevention (AIP) modules. The following sections in this guide describe how to manually add or edit Cisco ASA modules:

Defining a CSC SSM in MARS

Add Security Contexts Manually

Edit Discovered Security Contexts

Step 6 Click Submit.

End of the procedure, "Adding the Cisco ASA, Version 8.1.X or 8.2.X Device to MARS"


What to Do Next

To enable NSEL on the MARS Appliance, go to the procedure, "Enabling NSEL Processing on the MARS Appliance"

Enabling NSEL Processing on the MARS Appliance

This procedure is valid only for the Cisco ASA, Version 8.1.x and 8.2.x

SUMMARY STEPS

1. Navigate to Admin > System Setup > NetFlow Config Info.

2. Complete the configuration fields on the Netflow Configuration Page.

3. Click Submit.

4. Navigate to Admin > System Setup > Networks for Traffic Anomaly Detection.

5. Configure the Networks for Traffic Anomaly Detection Page

6. Click Submit.

7. Click Activate.

DETAILED STEPS

Before enabling NetFlow on MARS, you must enable NetFlow Security Event Logging on the Cisco ASA with MARS as the NetFlow collector. See-Configuring NSEL for MARS on the Cisco ASA 5580 later in this document.


Step 1 Navigate to Admin > System Setup > NetFlow Config Info. The NetFlow configuration page appears, as shown in Figure 20-2.

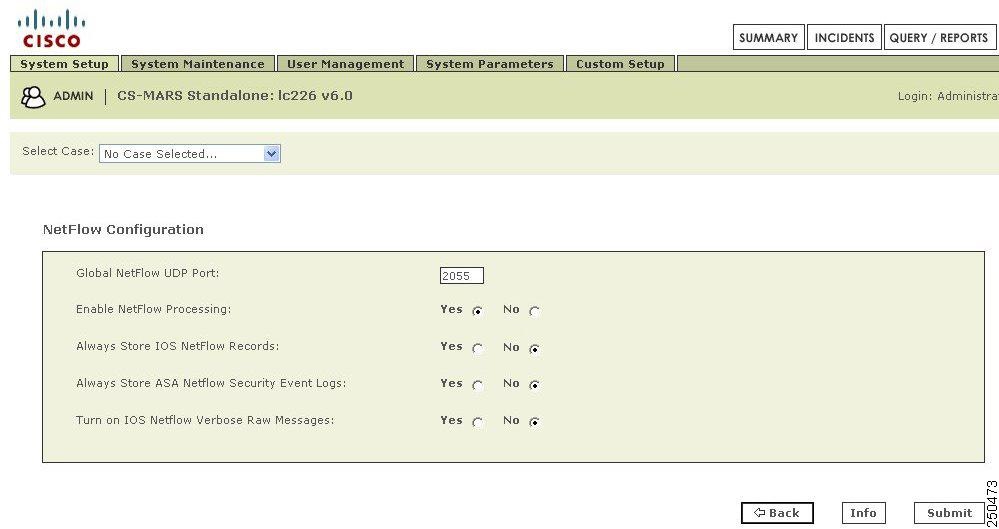

Figure 20-2 NetFlow Configuration Page (Admin > System Setup > NetFlow Config Info)

Step 2 Type the Cisco ASA NetFlow Security Event Logging port in the Global NetFlow UDP Port field.
The default is 2055.


Note This value must match the value configured with the ip flow-export destination command on the ASA. Verify that you have enabled traffic on this port on all intermediate network devices between the ASA and MARS.


Step 3 Configure Enable NetFlow Processing.

Yes—Configures MARS to process the NetFlow logs.

No—Disables the processing of NetFlow data into the MARS.

Step 4 Configure Always Store ASA Netflow Security Event Logs.

Yes —Enables MARS to use Cisco ASA Netflow Security Event Logs to do the following:

Topology-aware sessionization of NetFlow events with non-NetFlow events

Rule correlation and incident firing from NetFlow events

Retreival of NetFlow reported data using queries and non-scheduled reports

View incoming Netflow events with the Real-time Event Viewer

Configure drop rules against incoming NetFlow events

Use NetFlow-derived events in Scheduled reports results (For example, Top N reports)

No (default)—Configures MARS to store only anomalies. MARS detects anomalies by using two dynamically generated watermarks comparing the previous data against current data. When the data breaches the first watermark, MARS starts to save that data. When the data rises above the second watermark, MARS creates an incident.

No limits the use of Cisco ASA Netflow Security Event Logs to the following:

View incoming Netflow events with the Real-time Event Viewer

Configure drop rules against incoming NetFlow events

Use NetFlow-derived events in Scheduled reports results (for stored incident data)

Step 5 Click Submit.

If you wish to restrict traffic anomaly processing to specific networks go to Step 6, otherwise go to Step 9. To restrict logging, configure drop rules as needed.

Step 6 Navigate to Admin > System Setup > Networks for Traffic Anomaly Detection.
The Configure Networks page appears, as shown in Figure 20-3.

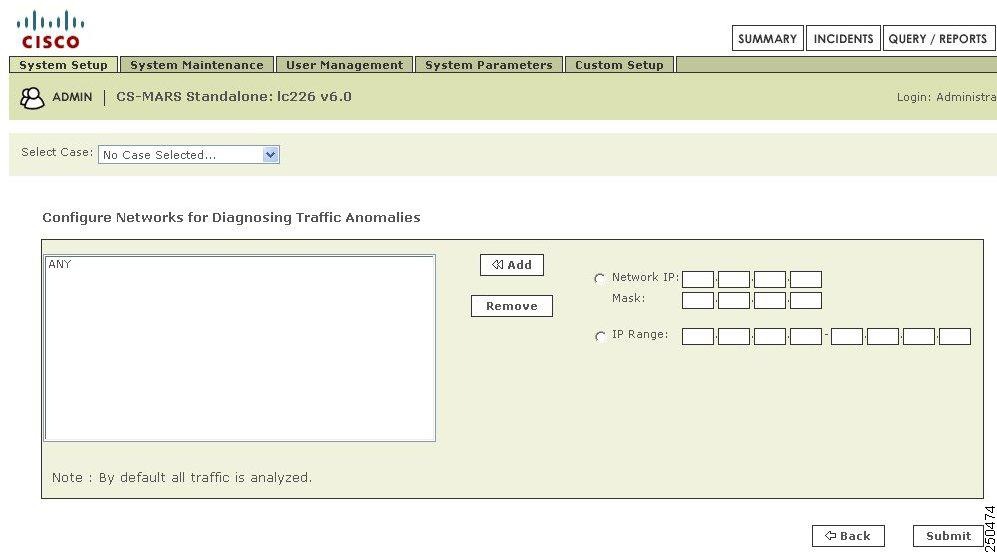

Figure 20-3 Networks for Traffic Anomaly Detection Page
(Admin > System Setup > Networks for Traffic Anomaly Detection)

Step 7 In the Configure Networks for Diagnosing Traffic Anomalies window, enter the addresses of networks you want to monitor and use the << Add button to add them.

Specifying one or more networks causes MARS to generate NetFlow-based incidents that occur only on the specified networks. The default is to examine all data from all networks for anomalies. If the Local Controller is monitoring a specific zone (as defined by the Global Controller-Local Controller relationship), then this field should include only those networks for which this Local Controller is responsible. This interface restricts traffic anomaly processing for Cisco ASA NetFlow and Cisco IOS NetFlow.


Note To reduce the memory usage and increase performance of the appliance, you can configure MARS to profile hosts belonging to a set of valid networks.


Step 8 Click Submit to save your changes.

Step 9 To enable NetFlow processing by the MARS Appliance, click Activate.

Before MARS can start detecting anomalies based on NetFlow data, it must first develop a baseline for network behavior. It takes a full week, including the weekend, for MARS to develop a baseline. After a baseline is created, MARS can generate incidents based on NetFlow's anomaly detection.

Step 10 Verify NetFlow configuration by observing raw messages from the Cisco ASA with the MARS real-time event viewer.

End of Procedure, "Configuring NSEL for MARS on the Cisco ASA 5580."


What to Do Next

To enable NSEL on a Cisco ASA, Version 8.1.x, go to the procedure, "Configuring NSEL for MARS on the Cisco ASA 5580."

Configuring NSEL for MARS on the Cisco ASA 5580

For detailed information on configuring the Cisco ASA Security Appliance, see the section, Related Documents, later in this chapter.


Note The Cisco ASA interface to MARS in the following examples is configured as "cs-mars" with the Cisco ASA name command.


SUMMARY STEPS

1. configure terminal

2. ntp server

3. clear configure flow-export.

4. flow-export enable.

5. flow-export destination

6. flow-export template timeout-rate

7. logging flow-export-syslogs disable

8. logging trap 6

9. logging host

10. logging enable

11. exit

12. show running-config logging

13. show running-config flow-export

DETAILED STEPS


ASA Command
Explanation

Step 1

configure terminal

Example:
asa# configure terminal

Enters Cisco ASA global configuration mode from privileged EXEC mode.

Step 2

ntp server ip_address [key key_id] [source interface_name] [prefer]

Example:
asa(config)# ntp server 171.68.10.80 key 1 source inside prefer

Configure an NTP server to ensure accurate time stamps. This enables better correlation by MARS because it ensures the time on both the ASA and MARS are the same.

Step 3

clear configure flow-export [destination]

Example:
asa(config)# clear configure flow-export 192.168.1.1

Clear the flow-export configurations associated with NetFlow data only for the specified IP adddress —in this example, previous configurations associated with the MARS IP address 192.168.1.1.

Step 4

flow-export enable

Example:
asa(config)# flow-export enable

Enable export of NetFlow security event log messages.

When flow-export is enabled, the template records are sent to all configured NetFlow collectors. When disabled, any pending, cached NetFlow records are deleted from all collectors.

Step 5

flow-export destination interface-name ipv4-address | hostname udp-port

Example:
asa(config)# flow-export destination inside cs-mars 2055

Configure the Cisco ASA to export the flow cache entries to a destination system (MARS).

The example configures the Cisco ASA interface on which the MARS appliance can be reached, the name associated with the IP address of the MARS appliance, and the UDP port on which MARS is listening for NetFlow traffic

Step 6

flow-export template timeout-rate minutes

Example:
asa(config)# flow-export template timeout-rate 1

Set the interval at which the template information is sent to NetFlow collectors. Use 1 minute for MARS.

Step 7

logging flow-export-syslogs {enable | disable}

Example:
asa(config)# logging flow-export-syslogs disable

Disable the redundant system log messages.

The syslog messages report the same events as the NetFlow security event logging.

Step 8

logging trap [logging_list | level]

Example:
asa(config)# logging trap informational

Set the logging trap level to informational. You can also specify "6".

Step 9

logging host interface_name syslog_ip

Example:
asa(config)# logging host cs-mars

Define MARS as a syslog server.

The example sets the logging host to the user-defined IP address of the CS-MARS appliance using the name command on the ASA.



Step 10

logging enable

Example:
asa(config)# clear configure flow-export cs-mars_ip

Enable logging to CS-MARS

Step 11

exit

Example:
asa(config)# exit

Log out of global configuration mode into Priveleged Exec mode.

Step 12

show running-config [all] logging [level | disabled]

Example:
asa# show running-config logging

Display the status of the system logs, for example:

ASA81-Single# show running-config logging
logging enable
logging monitor debugging
logging host outside 10.2.3.58
logging host outside 10.2.4.101
logging host outside 10.2.4.113
no logging message 106015
no logging message 313001
no logging message 313008
no logging message 106023
no logging message 710003
no logging message 106100
no logging message 302015
no logging message 302014
no logging message 302013
no logging message 302018
no logging message 302017
no logging message 302016
no logging message 302021
no logging message 302020

Step 13

show running-config flow-export [destination | enable | template]

Example:
asa# show running-config flow-export

Display the status of the flow exports, for example:

ASA81-Single# show running-config flow-export
flow-export destination outside 10.2.3.226 2055
flow-export destination outside 10.2.3.42 2055
flow-export template timeout-rate 1
flow-export enable

Additional References

The following sections provide references related to configuring the Cisco ASA Adaptive Security Appliances.

Related Documents

Related Topic
Document Title

Understanding NetFlow Anomaly Detection on MARS

User Guide for Cisco Security MARS Local and Global Controllers, Release 6.x:

http://www.cisco.com/en/US/docs/security/security_management/cs-mars/6.0/user/guide/combo/cfgOver.html#wp872012

All Cisco ASA 5500 Series Adaptive Security Appliances documentation

Cisco ASA 5500 Series Adaptive Security Appliancs Support Documentation

http://www.cisco.com/en/US/products/ps6120/tsd_products_support_series_home.html

Cisco ASA 5580 command line interface explanations.

Cisco ASA 5580 Adaptive Security Appliance Command Reference (8.1, 8.2)

http://www.cisco.com/en/US/docs/security/asa/asa81/command/ref/refgd.html

http://www.cisco.com/en/US/docs/security/asa/asa82/command/reference/cmd_ref.html

Information on Syslog, SNMP, and NetFlow monitoring for the Cisco ASA.

Monitoring the Cisco ASA Security Appliance (8.1, 8.2):
http://www.cisco.com/en/US/docs/security/asa/asa81/config/guide/monitor.html#wp1099818

http://www.cisco.com/en/US/docs/security/asa/asa82/configuration/guide/monitor_syslog.html

Configuring NetFlow (NSEL) Collectors for the Cisco ASA 5580

Cisco ASA 5580 Implementation Note for NetFlow Collectors
(8.1, 8.2):
http://www.cisco.com/en/US/docs/security/asa/asa81/netflow/netflow.html

http://www.cisco.com/en/US/docs/security/asa/asa82/netflow/netflow.html
