Ultra Cloud Core - User Plane Function, Release 2026.03.0
Ultra Cloud Core - User Plane Function, Release 2026.03.0
This Release Notes identifies changes and issues related to the release of 5G User Plane Function (UPF).
The key highlights of this release include:
● Enhanced application performance and network efficiency: This release introduces SCONE protocol support in the UPF, enabling network-aware throughput optimization for QUIC-based applications by providing explicit rate signals to endpoints.
● Strengthened management-plane security: StarOS now supports TLS-secured TACACS+ communication, facilitating encrypted AAA traffic and certificate-based trust validation between nodes and servers.
● Improved visibility and granular troubleshooting: The addition of stats profile to monitor per-QCI packet drop counters enables precise monitoring of traffic-specific packet loss across various consolidated categories, supporting better management of VoLTE and QoS-sensitive services.
For more information on UPF, see the Related resources section.
The following table provides EoL milestones for Cisco UCC UPF software:
Table 1. EoL milestone information for UCC UPF, Release 2026.03.0
| Milestone |
Date |
| First Customer Ship (FCS) |
23-July-2026 |
| End of Life (EoL) |
23-July-2026 |
| End of Software Maintenance (EoSM) |
21-Jan-2028 |
| End of Vulnerability and Security Support (EoVSS) |
21-Jan-2028 |
| Last Date of Support (LDoS) |
31-Jan-2029 |
These milestones and the intervals between them are defined in the Cisco Ultra Cloud Core (UCC) Software Release Lifecycle Product Bulletin available on cisco.com.
This section provides a brief description of the new software features introduced in this release.
Table 2. New software features for UCC UPF, Release 2026.03.0
| Product impact |
Feature |
Description |
| Software Reliability |
SCONE (Standard Communication with Network Elements) Support in UPF |
This release introduces support for the SCONE protocol in the UPF, enabling network-aware throughput optimization for QUIC-based applications. SCONE allows the UPF to provide explicit throughput advice to SCONE-capable endpoints by updating a rate signal in QUIC SCONE packets, helping applications adapt to network-enforced bandwidth policies without excessive congestion probing. |
| Software Reliability |
StarOS now supports TLS-secured TACACS+ communication, enabling encrypted AAA traffic and certificate-based trust validation between StarOS nodes and TACACS+ servers. This enhancement strengthens management-plane security while maintaining compatibility with existing TACACS+ deployments. TLS support must be enabled on both the StarOS node and the TACACS+ server to establish secure communication. |
|
| Ease of Use |
This feature adds the support for per-QCI packet drop statistics in the UPF. To support this capability, this feature introduces configurable stats profiles, enhanced show commands, and reporting of packet drops across various consolidated drop categories. It enables improved visibility and troubleshooting of traffic-specific packet loss, including VoLTE and other QoS-sensitive services. |
This section provides a brief description of the behavior changes introduced in this release.
Table 3. Behavior changes for UCC UPF, Release 2026.03.0
| Description |
Behavior changes |
| Handling the limit of pending DNS records |
Previous Behavior: When the UPF stores pending DNS records, it can free the records only when it receives the DNS Response for the DNS Request. When the UPF receives session idle timeout and tries to free the DNS session, it triggers EDR generation with cause ACS_DNS_EDR_TRANSACTION_COMPLETE_EVENT. As the amount of data stored in pending DNS record is very large, it causes the UPF to store the DNS-related field values beyond the allocated space and also writing some corrupted data. It is resulting in a system restart. New Behavior: This issue is fixed by introducing a CLI command in max-pending-dns-records <number-of-records>, under the Active Charging Services configuration mode. With this CLI, UPF stores limited number of DNS records in the system. When the configured threshold is reached, UPF clears the old DNS record (FIFO order). While purging the old record, UPF generates EDRs. It triggers EDR generation with cause ACS_DNS_EDR_TRANSACTION_COMPLETE_EVENT, without restart. |
This table lists the resolved issues in this specific software release.
Note: This software release may contain resolved bugs first identified in other releases. To see additional information, click the bug ID to access the Cisco Bug Search Tool. To search for a documented Cisco product issue, type in the browser: <bug_number> site:cisco.com
Table 4. Resolved issues for UCC UPF, Release 2026.03.0
| Bug ID |
Description |
| Bulkstat CLI getting stuck with performance driven schema. |
|
| sessctl restart at Function: sessctrl_handle_mgr_notify_server_list_ipaddr_status_update(). |
|
| Fatal Signal 6 Aborted uplane populate EDR field nssai sessmgr. |
|
| UPF Sends HTTP 302 Redirect After QER Gate Status Set to CLOSED. |
|
| Repeated nonfatal bulkstat signature snap. |
This table lists the open issues in this specific software release.
Note: This software release may contain open bugs first identified in other releases. To see additional information, click the bug ID to access the Cisco Bug Search Tool. To search for a documented Cisco product issue, type in the browser: <bug_number> site:cisco.com
Table 5. Open issues for UCC UPF, Release 2026.03.0
| Bug ID |
Description |
| The Sessmgr restart observed on UPF, memory allocation failed. |
|
| QCI stats-profile does not increment for NAT Processing Failure drops. |
|
| QCI stats-profile SGACL drops categorized in Others bucket instead of dedicated SGACL Packet Drops |
|
| UPF stats-profile ACL Drop counters not incrementing for QCI-specific drop statistics. |
There are no known issues that may occur during the upgrade of the UPF image.
Compatibility
This section lists compatibility information of the Cisco UCC software products that are verified to work with this version of the UCC UPF software.
Table 6. Compatibility information for UCC UPF, Release 2026.03.0
| Product |
Supported Release |
| ADC Plugin |
2.74.17.2815 |
| RCM |
2026.03.0 |
| Ultra Cloud Core SMI |
2025.03.1.10 |
| Ultra Cloud SMF and cnSGWc |
2026.03.0 |
This section provides information about the release packages associated with UCC UPF software.
Table 7. Software packages for UCC UPF, Release 2026.03.0
| Software Package |
Description |
Release |
| companion-vpc-2026.03.0.zip.SPA.tar.gz |
Contains files pertaining to VPC, including SNMP MIBs, RADIUS dictionaries, ORBEM clients, etc. These files pertain to both trusted and non-trusted build variants. The VPC companion package also includes the release signature file, a verification script, the x.509 certificate, and a README file containing information on how to use the script to validate the certificate. |
2026.03.0 (21.28.m45.101106) |
| qvpc-si-2026.03.0.bin.SPA.tar.gz |
The UPF release signature package. This package contains the VPC-SI deployment software for the UPF as well as the release signature, certificate, and verification information. Files within this package are nested under a top-level folder pertaining to the corresponding StarOS build. |
2026.03.0 (21.28.m45.101106) |
| qvpc-si-2026.03.0.qcow2.zip.SPA.tar.gz |
The UPF release signature package. This package contains the VPC-SI deployment software for the UPF as well as the release signature, certificate, and verification information. Files within this package are nested under a top-level folder pertaining to the corresponding StarOS build. |
2026.03.0 (21.28.m45.101106) |
| NED Package |
The NETCONF NED package. This package includes all the yang files that are used for NF configuration. Note that NSO is used for the NED file creation. |
ncs-6.4.8.2-cisco-staros-cli-5.59 |
| NSO |
6.4.8 |
Use this link to download the NED package associated with the software.
StarOS version numbering system
The output of the show version command displays detailed information about the version of StarOS currently running on the ASR 5500 or Cisco Virtualized Packet Core platform.

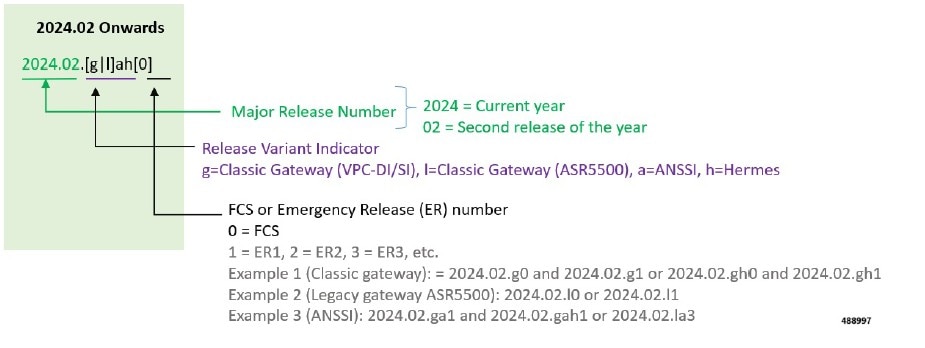

Note: Starting 2024.01.0 release (January 2024), Cisco is transitioning to a new release versioning scheme. The release version is based on the current year and product. Refer to the figure for more details.
During the transition phase, some file names will reflect the new versioning whereas others will refer to the 21.28.x- based naming convention. With the next release, StarOS-related packages will be completely migrated to the new versioning scheme.
For any clarification, contact your Cisco account representative.

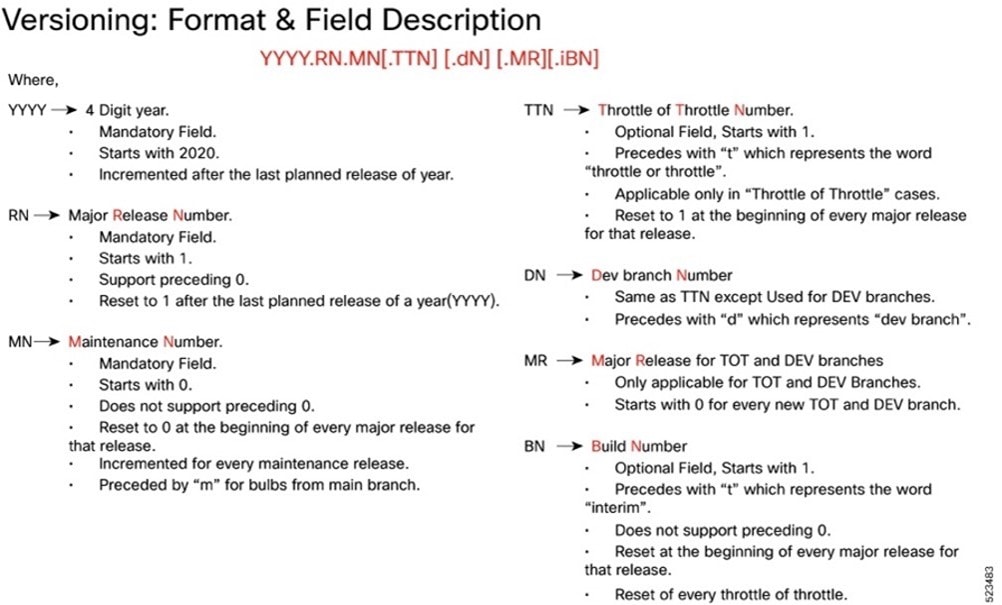

Cloud native product version numbering system
The show helm list command displays detailed information about the version of the cloud native product currently deployed.
The appropriate version number field increments after a version has been released. The new version numbering format is a contiguous sequential number that represents incremental changes between releases. This format facilitates identifying the changes between releases when using Bug Search Tool to research software releases.
Software integrity version
To verify the integrity of the software image you have from Cisco, you can validate the SHA512 checksum information against the checksum identified by Cisco for the software.

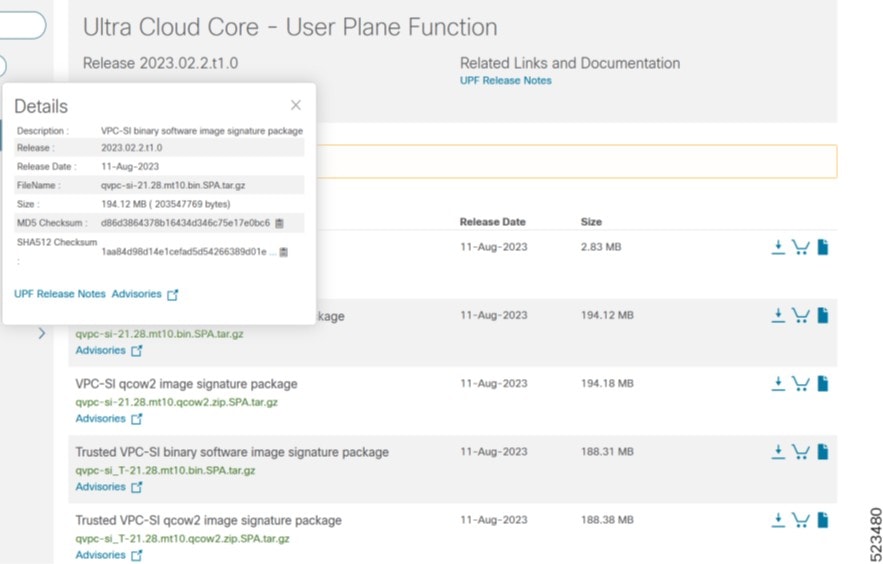

Image checksum information is available through Cisco.com Software Download Details. To find the checksum, hover the mouse pointer over the software image you have downloaded.
At the bottom you find the SHA512 checksum, if you do not see the whole checksum you can expand it by pressing the "..." at the end.
To validate the information, calculate a SHA512 checksum using the information in the following table and verify that it matches the one provided on the software download page.
To calculate a SHA512 checksum on your local desktop, see this table.
Table 8. SHA512 checksum calculation commands by operating system
| Operating System |
SHA512 checksum calculation command examples |
| Microsoft Windows |
Open a command line window and type the following command: > certutil.exe -hashfile <filename.extension> SHA512 |
| Apple MAC |
Open a terminal window and type the following command: $ shasum -a 512 <filename.extension> |
| Linux |
Open a terminal window and type the following command: $ sha512sum <filename.extension> OR $ shasum -a 512 <filename.extension> |
| Note: <filename> is the name of the file. <extension> is the file type extension (for example, .zip or .tgz). |
|
If the SHA512 checksum matches, you can be sure that no one has tampered with the software image or the image has not been corrupted during download.
If the SHA512 checksum does not match, we advise you not to attempt upgrading any systems with the corrupted software image. Download the software again and verify the SHA512 checksum again. If there is a constant mismatch, please open a case with the Cisco Technical Assistance Center.
Certificate validation
UPF software images are signed via x509 certificates. Please view the .README file packaged with the software for information and instructions on how to validate the certificates.
