Ultra Cloud Core - Subscriber Microservices Infrastructure, Release 2026.02.1.07
Ultra Cloud Core - Subscriber Microservices Infrastructure, Release 2026.02.1.07
This Release Notes identifies changes and issues related to the release of Ultra Cloud Clore (UCC) Subscriber Management Infrastructure (SMI).
The key highlights of this release include:
· Critical updates
o ConfD engine upgrade (7.7 to 8.6): This major upgrade introduces stricter configuration validation.
o Kubernetes version upgrade: Support for upgrading Kubernetes from 1.34.3 to 1.35 is now available.
· Operational efficiency
o Automated firmware and network management:
§ SMC firmware automation: Automate BMC, BIOS, and NIC upgrades via the Redfish API.
§ Common interface naming: Standardize network interface naming (for example, enc1, enc2) across UCS and SMC hardware for consistent configurations.
o Simplified certificate and credential management:
§ CNI cluster issuer support: Automated certificate management via Cisco’s private ACME server.
§ Password rotation: Rotate initial-boot default passwords via sync command without redeploying nodes.
o Workload stability: The new Reloader addon automatically restarts workloads when ConfigMaps or Secrets change, ensuring applications always use the latest configurations.
· Platform security and reliability
o Enhanced access control: New 'nologin' user option for service accounts (for example, Prometheus) to perform automated tasks without SSH access.
o Performance guardrails:
§ Added count capacity to FindAllNotify to prevent system overload.
§ Enforced equal CPU allocation for UPF "quarter flavor" deployments to prevent session manager imbalances.
For more information on SMI, see the Related resources section.
Release lifecycle milestones
This table provides EoL milestones for Cisco UCC SMI software:
Table 1. EoL milestone information for UCC SMI, Release 2026.02.1.07
| Milestone |
Date |
| First Customer Ship (FCS) |
23-Apr-2026 |
| End of Life (EoL) |
23-Apr-2026 |
| End of Software Maintenance (EoSM) |
22-Oct-2027 |
| End of Vulnerability and Security Support (EoVSS) |
22-Oct-2027 |
| Last Date of Support (LDoS) |
31-Oct-2028 |
These milestones and the intervals between them are defined in the Cisco Ultra Cloud Core (UCC) Software Release Lifecycle Product Bulletin available on cisco.com.
This section provides a brief description of the new software features introduced in this release.
Table 2. New software features for UCC SMI, Release 2026.02.1.07
| Product impact |
Feature |
Description₹ |
| Ease of Use |
'nologin' user option |
You can now create users in the OpsCenter with a nologin shell. This is a security feature that allows a user account to be used for automated tasks (like Prometheus scraping) while explicitly preventing that account from logging into the system via SSH. |
| Ease of Setup |
Default user password rotation |
You can now rotate the initial-boot default user password on existing nodes using a sync command, without needing to redeploy the node or regenerate cloud-init configurations. |
| Software Reliability |
Reloader addon |
This controller automatically monitors Kubernetes ConfigMaps and Secrets. When these change, it triggers a rolling restart of the associated workloads. This ensures applications (like Vault or MinIO) always use the latest configuration without requiring manual intervention. |
| Ease of Setup |
SMC firmware upgrade support |
Users can now automate firmware upgrades (BMC, BIOS, NIC) for Supermicro servers directly through the SMI cluster deployer using the Redfish API. |
| Software Reliability |
FindAllNotify count capacity |
An optional Count field has been added to the FindAllNotify filter. This allows users to limit the number of notifications sent during a request, preventing system overload when a large volume of records matches a query. |
| Ease of Setup |
Common interface naming |
To simplify managing different hardware environments (like UCS vs. SMC), you can now enable a common naming convention (e.g., enc1, enc2) for network interfaces. This makes network configurations consistent across different hardware platforms. NOTE: This functionality is currently supported only in fresh deployments. |
| Ease of Setup |
Cluster issuer support |
Cert-manager is now configurable to use Cisco’s private ACME server. This allows for automated certificate management for Cisco Network Insight (CNI), removing the need for manual cluster issuer creation. |
| Software Reliability |
Equal CPU allocation |
For UPF deployments using the "quarter flavor," the system now ensures equal CPU distribution across all instances. This prevents session manager imbalances that could lead to call loss during recovery. |
| Upgrade |
Kubernetes version upgrade |
With this release, you can upgrade the Kubernetes version from 1.34.3 to 1.35. |
| Upgrade |
Confd upgrade |
This release includes an upgrade of ConfD configuration engine from version 7.7 to 8.6. Please be aware that this version enforces stricter configuration validation rules. Users with long-lived clusters should review their existing configurations for deprecated leaves (such as check-port) prior to upgrading to ensure a smooth transition. Refer to the Known issues section for more details. |
| Upgrade |
Adopt gateway API for scalable ingress |
To keep pace with evolving Kubernetes standards, CNDP is migrating to NGINX Gateway Fabric (NGF). This transition replaces our legacy Ingress implementation with the Gateway API. This migration modernizes our ingress traffic management, providing a more robust, standardized, and extensible architecture. |
There are no behavior changes introduced in this release.
This table lists the resolved issues in this specific software release.
Note: This software release may contain bug fixes first introduced in other releases. To see additional information, click the bug ID to access the Cisco Bug Search Tool. To search for a documented Cisco product issue, type in the browser: <bug_number> site:cisco.com
Table 3. Resolved issues for UCC SMI, Release 2026.02.1.i05
| Bug ID |
Description |
| bm-alerts does not work on ipv6 |
There are no open bugs in this specific software release.
This section provides the important guidelines in this specific software release.
· For dual stack cluster deployments, it is strongly recommended to explicitly configure both node-ipv6 and ssh-ipv6. If you enable node-ipv6 on an existing deployment where it was not previously set up, be sure to redeploy the clusters to apply the changes.
· To install the inception server in Ubuntu 22, the prerequisite is to add the following highlighted part in /etc/docker/daemon.json file.
ubuntu@pyats-inception:~$ cat /etc/docker/daemon.json
{
"default-address-pools": [{
"base": "172.50.0.0/16",
"size": 24
},
{
"base": "fd01::/80",
"size": 96
}],
"log-driver": "journald",
"live-restore": true,
"userland-proxy": false,
"icc": false,
"ipv6": true,
"fixed-cidr-v6": "fd00::/80"
}
When installing the Inception server on Red Hat Enterprise Linux (RHEL), ensure that the Jinja2 Python package is installed as a prerequisite. You can do this by running the following command:
python3 -m pip install Jinja2
NOTE: Secure boot remains disabled in this release due to the UCS bug (CSCwt30472).
Cluster manager upgrade failure due to legacy configuration
Issue description:
Upgrading to Cluster Manager 2026.02.1.07 may fail if the existing cluster configuration contains both the deprecated check-port and the newer check-ports leaves within the same virtual-ips entry. During the upgrade, the transition to ConfD 8.6+ triggers a CDB validation check that rejects this mixed configuration, causing the confd container to enter a CrashLoopBackOff state.
Impact:
The Cluster Manager will remain unhealthy, and the upgrade process will not complete until the invalid configuration is removed.
Resolution:
Before initiating the upgrade to 2026.02.1.07, inspect your cluster configuration for the presence of both check-port and check-ports under virtual-ips.
Step 1. Identify the conflict:
virtual-ips <name>
check-port <value> <-- Deprecated
check-ports [ <value> ]
Step 2. Remove the check-port entry, retaining only the check-ports configuration:
virtual-ips <name>
check-ports [ <value> ]
Recovery steps (If upgrade has already failed):
If the upgrade has already been initiated and confd is in a crash loop:
Step 1. Roll back or downgrade the Cluster Manager to the previous 2026.01.x release to restore service.
Step 2. Run the synchronization command:
clusters <cluster-name> actions sync run sync-phase cluster-manager debug true
Step 3. Remove the deprecated check-port configuration as noted earlier.
Step 4. Retry the upgrade to 2026.02.1.07.
Step 5. Run the synchronization command again after the upgrade completes.
This section lists compatibility information of the Cisco UCC software products that are verified to work with this version of the UCC SMI software.
Table 4. Compatibility information for UCC SMI, Release 2026.02.1.07
| Product |
Supported Release |
| Cisco UCS M8 |
4.3(6.250053) 6.0(1.250130) |
| Cisco UCS C220 M7 |
4.3(3.240022) 4.3(5.250001) |
| Cisco UCS C220 M6 |
4.3(3.240022) 4.3(5.250001) |
| Cisco UCS C220 M5 |
4.3(2.260007) |
This section provides information about the release packages associated with SMI.
Table 5. Software packages for UCC SMI, Release 2026.02.1.07
| Software Package |
Description |
Release |
| smi-install-disk.24.04.0-20260408.iso.SPA.tgz |
The application-level POD ISO image signature package for use with bare metal deployments. This package contains the base ISO image as well as the release signature, certificate, and verification information. |
24.04.0-20260408 |
| smi-install-disk.24.04.0-20260408.qcow2.SPA.tgz |
The application-level POD QCOW image signature package for use with bare metal deployments. This package contains the QCOW image as well as the release signature, certificate, and verification information. |
24.04.0-20260408 |
| cee-2026.02.1.07.SPA.tgz |
The SMI Common Execution Environment (CEE) offline release signature package. This package contains the CEE deployment package as well as the release signature, certificate, and verification information. |
2026.02.1.07 |
| cluster-deployer-2026.02.1.07.SPA.tgz |
The SMI Deployer image signature package for use with bare metal deployments. This package contains the Deployer image as well as the release signature, certificate, and verification information. |
2026.02.1.07 |
| NED package |
The NETCONF NED package. This package includes all the yang files that are used for configuration. |
ncs-6.4.8.2-cisco-cee-nc-1.1. 2026.02.1.07.tar.gz ncs-6.4.8.2-cisco-smi-nc-1.1. 2026.02.1.07.tar.gz ncs-6.1.14-cisco-cee-nc-1.1.2026.02.1.07.tar.gz ncs-6.1.14-cisco-smi-nc-1.1.2026.02.1.07.tar.gz |
| NSO |
|
6.4.8.2 6.1.14 |

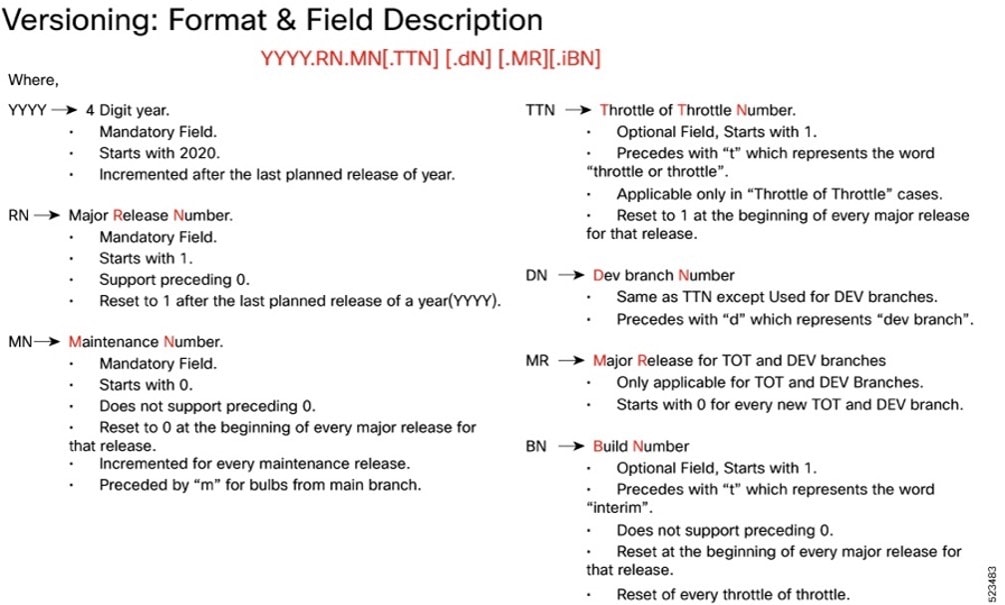

Cloud native product version numbering system
The show helm list command displays detailed information about the version of the cloud native product currently deployed.
The appropriate version number field increments after a version has been released. The new version numbering format is a contiguous sequential number that represents incremental changes between releases. This format facilitates identifying the changes between releases when using Bug Search Tool to research software releases.
Software integrity version
To verify the integrity of the software image you have from Cisco, you can validate the SHA512 checksum information against the checksum identified by Cisco for the software.

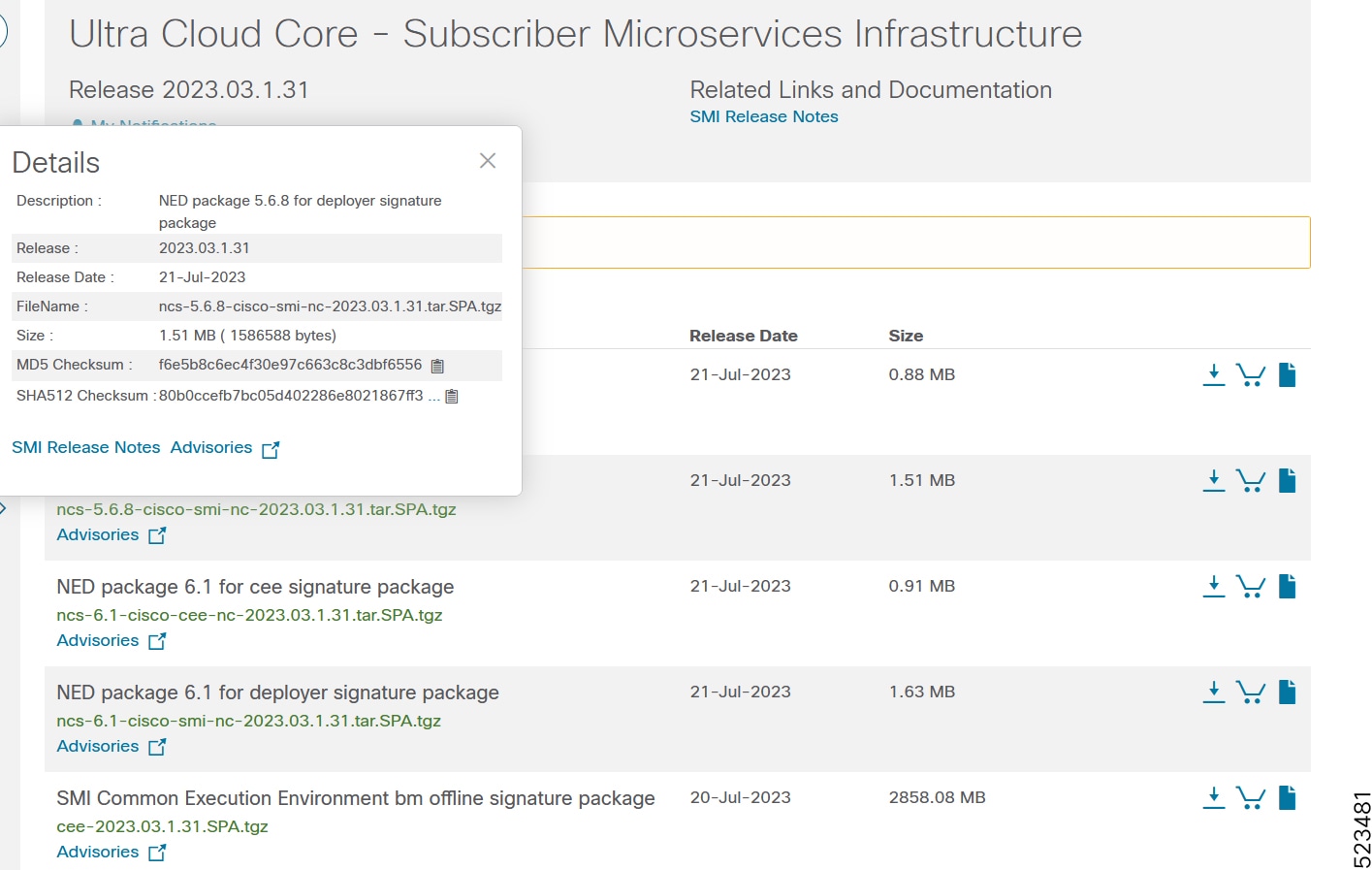

Image checksum information is available through Cisco.com Software Download Details. To find the checksum, hover the mouse pointer over the software image you have downloaded.
At the bottom you find the SHA512 checksum, if you do not see the whole checksum you can expand it by pressing the "..." at the end.
To validate the information, calculate a SHA512 checksum using the information in the following table and verify that it matches the one provided on the software download page.
To calculate a SHA512 checksum on your local desktop, see this table.
Table 6. Checksum calculations per operating system
| Operating System |
SHA512 checksum calculation command examples |
| Microsoft Windows |
Open a command line window and type the following command: > certutil.exe -hashfile <filename.extension> SHA512 |
| Apple MAC |
Open a terminal window and type the following command: $ shasum -a 512 <filename.extension> |
| Linux |
Open a terminal window and type the following command: $ sha512sum <filename.extension> OR $ shasum -a 512 <filename.extension> |
| Note: <filename> is the name of the file. <extension> is the file type extension (for example, .zip or .tgz). |
|
If the SHA512 checksum matches, you can be sure that no one has tampered with the software image or the image has not been corrupted during download.
If the SHA512 checksum does not match, we advise you to not attempt upgrading any systems with the corrupted software image. Download the software again and verify the SHA512 checksum again. If there is a constant mismatch, please open a case with the Cisco Technical Assistance Center.
Certificate validation
SMI software images are signed via x509 certificates. Please view the .README file packaged with the software for information and instructions on how to validate the certificates.
This table provides key resources and links to the support information and essential documentation for SMI.
Table 7. Related resources and additional information
| Resource |
Link |
| SMI documentation |
|
| Service request and additional information |
