Recommendations and Limitations
With the number of devices connecting to the internet increasing rapidly, a simple and easy way to implement a security mechanism is recommended for large-scale deployments. One such solution is Easy PSK feature. This feature bundles several pre-shared keys (PSKs) onto an SSID and performs client group authentication and authorization on the PSKs. Easy PSK feature eliminates the need for client preregistration, and automatically adds a client to a group and applies the requisite policies. This feature also provides the means to limit peer-to-peer communication among the clients of a group.
PSK grouping on an SSID is useful for different deployment scenarios such as multidwelling units, university halls, hospitality centers, and hospitals where a single SSID offers efficient use of airtime and roaming capabilities across the access infrastructure while segregating clients as if they were on a private SSID.
Recommendations and Limitations
● This feature supports only Local Mode, Central Authentication, and Central Switching
● When used with iPSK peer-to-peer blocking, this feature blocks traffic between the clients sharing the same VLAN, but not the same passphrases
● This feature is supported only on the following controllers:
● Cisco Catalyst 9800-CL Cloud Wireless Controller
● Cisco Catalyst 9800-L Wireless Controller
● Cisco Catalyst 9800-40 Wireless Controller
● Cisco Catalyst 9800-80 Wireless Controller
● CW 9800-M, H1, H2 Wireless Controllers
● This feature is not supported in Cisco Embedded Wireless Controller (EWC)
● This feature is not supported in fabric mode
● This feature is not supported with WPA3

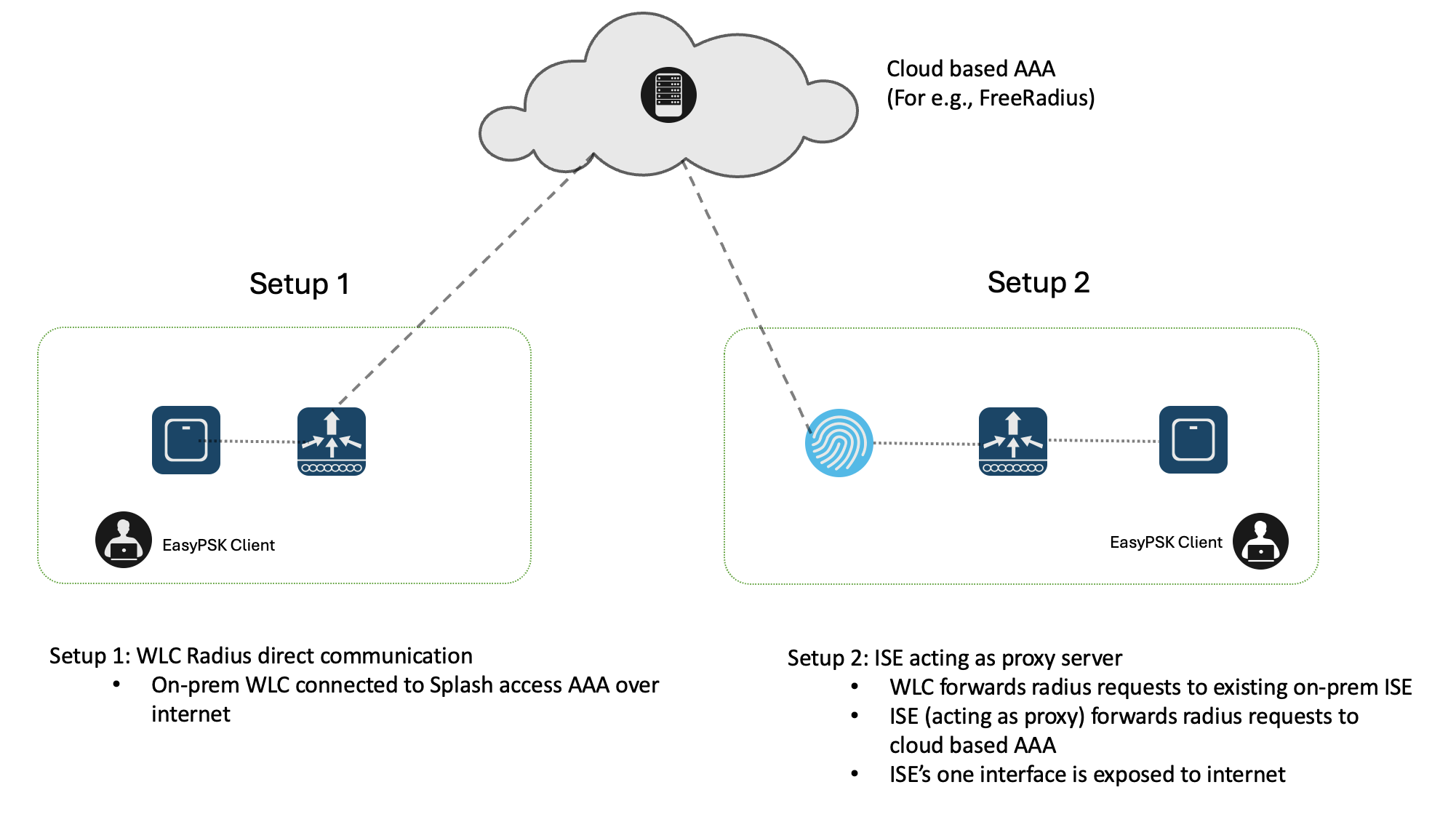

The 9800 WLC can be setup in two distinct ways:
1. WLC integrated with AAA directly
2. WLC integrated with ISE as proxy
Note: In the example below, it is assumed that the PSK computation is handled by the radius server with all the AAA related configuration in place, and therefore only the WLC-related configurations are highlighted.
Step 1: Configure AAA server details by entering the IP address and setting up a radius server group
Step 2: Configure a named authorization list for the servers that are a part of the RADIUS server group

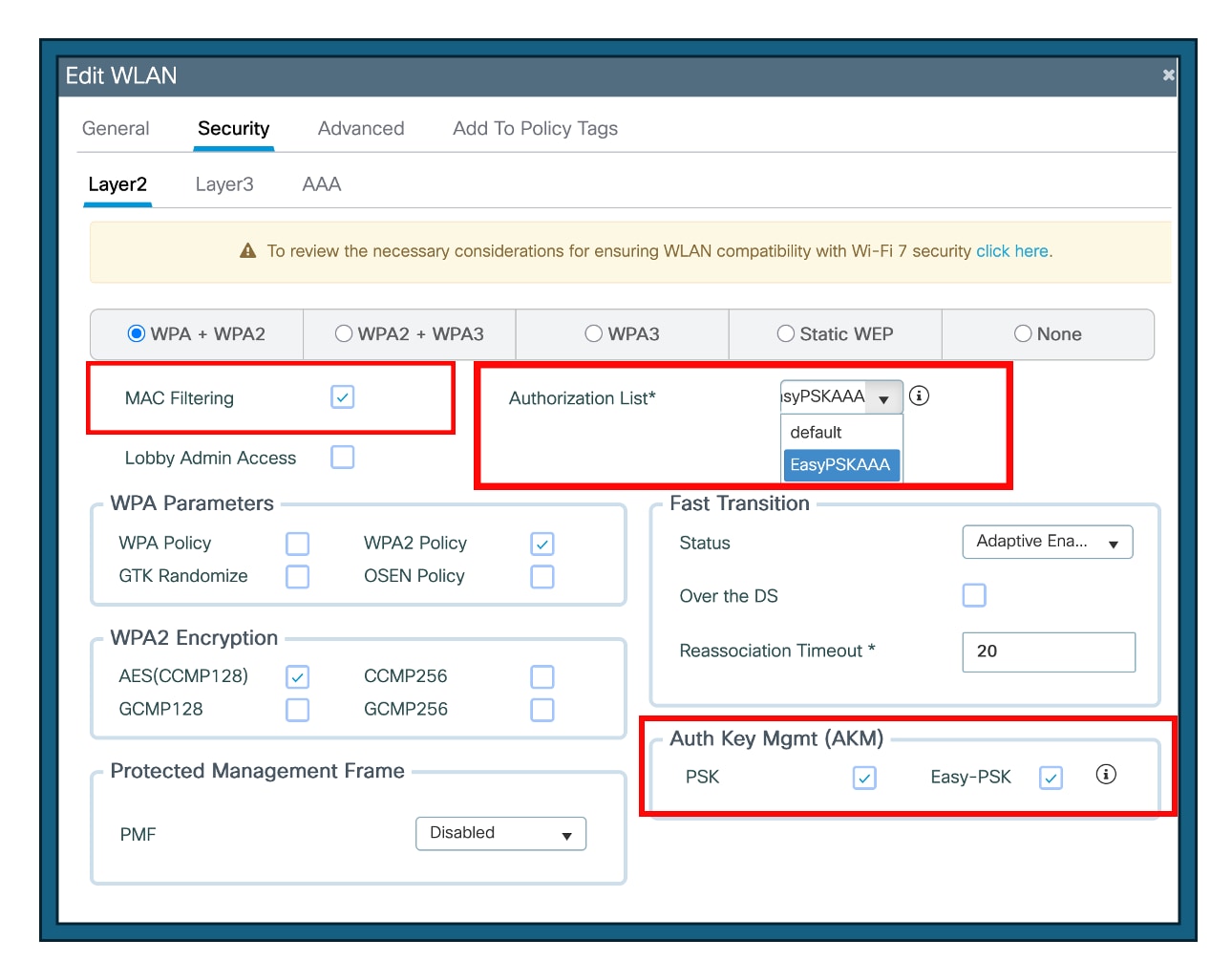

Step 3: Configure the SSID with Easy PSK enabled along with Mac-filtering.
Step 4: Set the authorization list to the named AAA server
Step 5: Check the PSK and Easy-PSK check box
Step 6: Click Update and Apply to Device
Step 7: Select ‘Allow AAA Override’ for the respective policy profile under Advanced option
Try Connecting a client by entering the PSK:
The below commands may be used for troubleshooting:
· show wireless client upn
· show wireless client <mac> | sec Private
· show wireless client upn <group name>

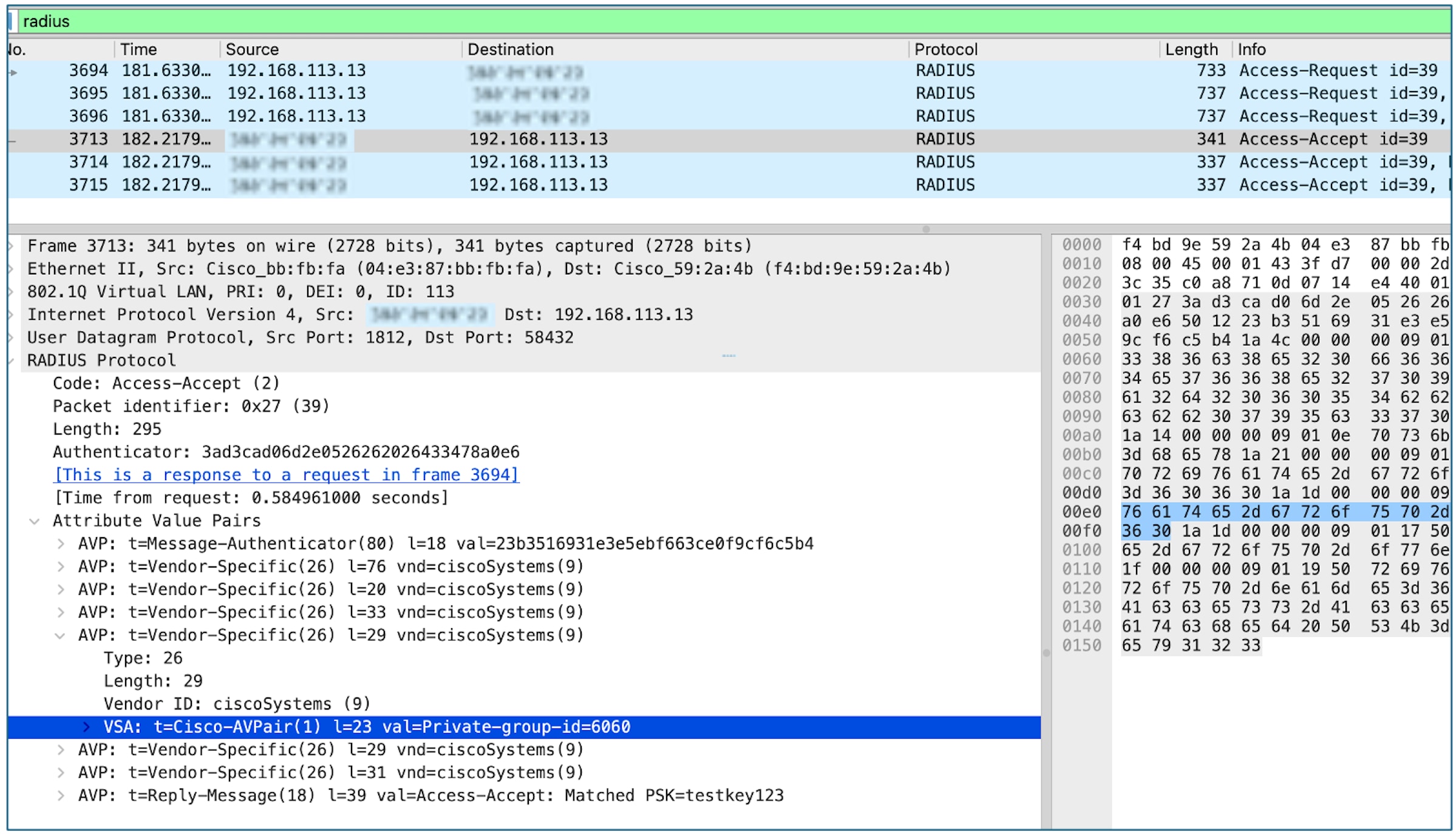

The “Private Network” information will be made up of 3 new Radius Vendor Specific Attributes (VSA):
private-group-id
private-group-name
private-group-owner
