Chapter: Hardware Features

Hardware Features
Access point views, ports, and connectors
- Connectors and ports on the AP

Hardware Features

This chapter describes the hardware features of and contains the following sections:

Access point views, ports, and connectors

Cisco Wireless 9172I Wi-Fi 7 Access Point has multiple options that you can use to power the AP. For information about connectors and ports for the AP models, see Connectors and ports on the AP.

Connectors and ports on the AP

The following figures show the available ports on the AP:

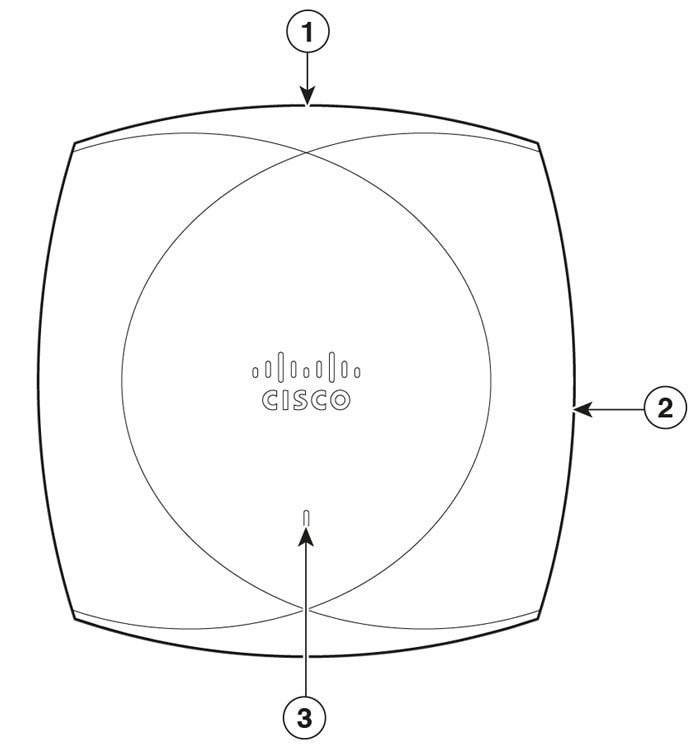

CW9172I Face View


1	Kensington lock slot
2	USB 2.0 port
3	Status LED For information on the LEDs status, see LED Status Indications.

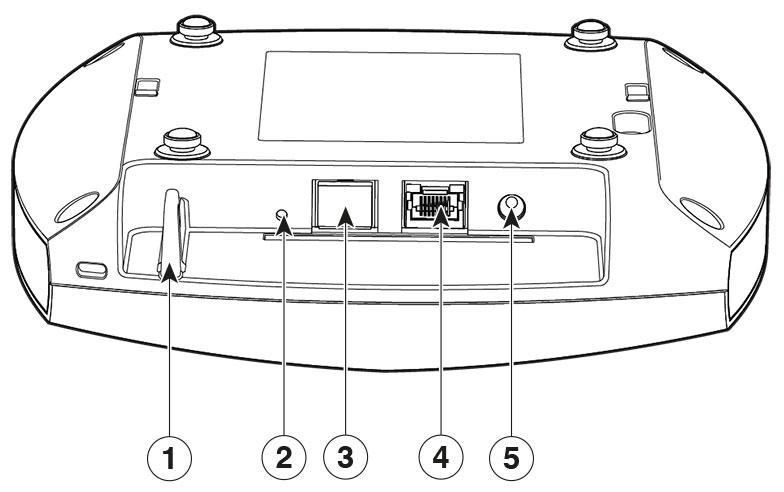

CW9172I Top View


1	Security hasp for padlocking AP to mounting bracket	4	Ethernet port 0
2	Reset button For information about how to use the Reset button, see the Using the Mode Button section	5	DC power jack
3	RJ-45 console port Default baud rate is 115200.
