Viewing and Responding to Alarms
The MGX 8850 switch displays alarm information on the PXM45 and AXSM cards, and it stores information on these cards inside the switch. This chapter describes how to interpret the alarm LEDs on the switch and how to obtain alarm reports through the CLI.
Viewing and Responding to Alarms Using Physical Switch Controls
The PXM45and AXSM cards have LEDs for viewing alarm status and switches for responding to alarms. The following sections describe these controls.
PXM45 Card Controls

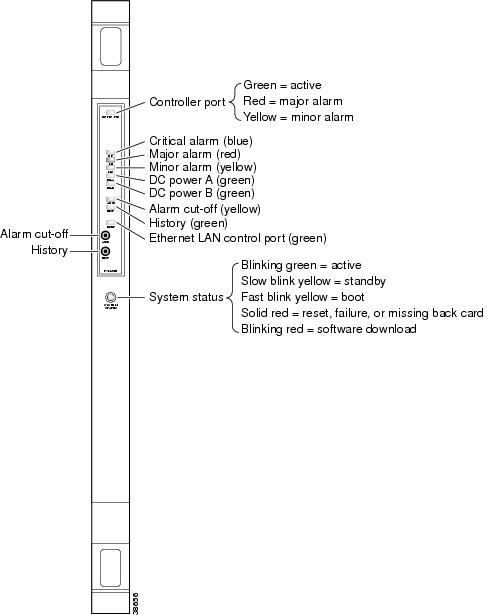

Figure 8-1 shows the LEDs and switches available on the front of the PXM45 card. Table 8-1 describes these controls.
Note
Although there are LEDs for critical, major, and minor alarms on the PXM45, only one of these LEDs is set to on when multiple alarms are active. The switch always displays the status of the most severe alarm. Critical alarms are the most severe, and minor alarms are the least severe. For example if there were 2 major alarms and 10 minor alarms, the switch would set the major alarm LED to on.
Figure 8-1 PXM45 Front Card Controls
AXSM Card Controls

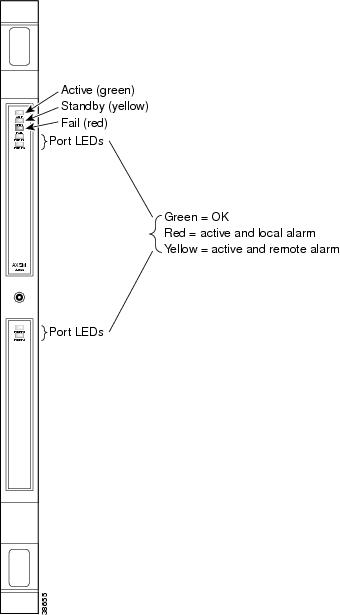

Figure 8-2 shows the LEDs available on the front of the AXSM card. Table 8-2 describes these LEDs.
Figure 8-2 AXSM Card Controls (MGX-AXSM-16-T3E3)
Displaying Alarm Reports in the CLI
You can use a CLI session to view the status of switch alarms. Alarms are reported in the following categories:
•
•
•
•
•
•
•
This section describes how to display the different types of alarm reports.
Note
Displaying Node Alarms
A node alarm report displays a summary report of all alarms on the node. To display node alarms, enter the following command:
pop20two.7.PXM.a > dspndalmsThe following is an example of the node alarm report.
pop20one.7.PXM.a > dspndalmsNode Alarm SummaryAlarm Type Critical Major Minor---------- -------- ------- -------Clock Alarms 0 0 0Switching Alarms 0 0 0Environment Alarms 0 0 0Card Alarms 0 0 0Typically, you would start investigating alarms by displaying the node alarms. Once you have identified the area that is producing the alarms, you would enter additional commands to display detailed information on those alarms. The following sections describe how to display these detailed reports.
Displaying Card Alarms
A card alarm report can display the alarm status of all the cards within the node or the alarm status of a single card. To display card alarms, enter the following command:
pop20two.7.PXM.a > dspcdalms [slot]Replace slot with the number of the card for which you want to display alarms. If you omit the slot number, the switch displays the alarms for all cards in the node as shown in the following example:
pop20one.7.PXM.a > dspcdalmsCard Alarm SummarySlot Critical Major Minor---- -------- ------- -------1 0 0 02 0 0 03 0 0 04 0 0 05 0 0 06 0 0 07 0 0 08 0 0 09 0 0 010 0 0 011 0 0 012 0 0 013 0 0 014 0 0 0Use dspcdalms <slot> to see more detail.The next example shows a card alarm report for an AXSM card in slot 1:
pop20one.7.PXM.a > dspcdalms 1Card Alarm SummaryAlarm Type Critical Major Minor---------- -------- ------- -------Hardware Alarm 0 0 0Card State Alarm 0 0 0Disk Alarm 0 0 0Line Alarm 0 0 0Port Alarm 0 0 0Feeder Alarm 0 0 0Channel Alarm 0 0 0Displaying Clock Alarms
The MGX 8850 switch monitors the quality of its clock sources. If the timing for a clock source strays beyond the tolerance thresholds, an alarm is reported. To view the clock alarms, enter the following command:
pop20two.7.PXM.a > dspclkalarmsThe following is an example clock alarm report:
pop20two.7.PXM.a > dspclkalarmspop20two System Rev: 02.00 Sep. 02, 2000 23:39:22 GMTMGX8850 Shelf Alarm: NONEClock Manager Alarm Summary----------------------------Critical Major Minor000 000 000Displaying Environment Alarms
An environmental alarm report displays the alarm status and operating statistics for the switch power supplies and cooling fans. To display the environmental alarm report, enter the following command:
pop20two.7.PXM.a > dspenvalmsThe following is an example environmental alarm report:
pop20two.7.PXM.a > dspenvalmspop20two System Rev: 02.00 Sep. 02, 2000 23:40:57 GMTMGX8850 Shelf Alarm: NONEENVIRONMENTAL ALARM STATE INFO ^Notification DisabledAlarm Type Unit Threshold DataType Value State---------------- ---- -------------- -------- ---------- -------------Temperature <= 50 Celsius 29 NormalPower Supply A1 none None none MissingPower Supply A2 none None none MissingPower Supply A3 none None none MissingDC Voltage A 42 to 54 VoltsDC 0 NormalPower Supply B1 none None none MissingPower Supply B2 none None none MissingPower Supply B3 none None none MissingDC Voltage B 42 to 54 VoltsDC 0 NormalTop Fan Tray 1 >= 2000 RPM 3642 NormalTop Fan Tray 2 >= 2000 RPM 3618 NormalTop Fan Tray 3 >= 2000 RPM 3714 NormalTop Fan Tray 4 >= 2000 RPM 3642 NormalTop Fan Tray 5 >= 2000 RPM 3474 NormalType <CR> to continue, Q<CR> to stop:pop20two System Rev: 02.00 Sep. 02, 2000 23:40:57 GMTMGX8850 Shelf Alarm: NONEENVIRONMENTAL ALARM STATE INFO ^Notification DisabledAlarm Type Unit Threshold DataType Value State---------------- ---- -------------- -------- ---------- -------------Top Fan Tray 6 >= 2000 RPM 3654 NormalTop Fan Tray 7 >= 2000 RPM 3576 NormalTop Fan Tray 8 >= 2000 RPM 3468 NormalTop Fan Tray 9 >= 2000 RPM 3492 NormalBottom Fan Tray 1 >= 2000 RPM 0 MissingBottom Fan Tray 2 >= 2000 RPM 0 MissingBottom Fan Tray 3 >= 2000 RPM 0 MissingBottom Fan Tray 4 >= 2000 RPM 0 MissingBottom Fan Tray 5 >= 2000 RPM 0 MissingBottom Fan Tray 6 >= 2000 RPM 0 MissingBottom Fan Tray 7 >= 2000 RPM 0 MissingBottom Fan Tray 8 >= 2000 RPM 0 MissingBottom Fan Tray 9 >= 2000 RPM 0 Missing+5V Input 4.850^ to 5.150^ VoltsDC 5.036 Informational+3.3V Input 3.200^ to 3.400^ VoltsDC 3.298 InformationalType <CR> to continue, Q<CR> to stop:pop20two System Rev: 02.00 Sep. 02, 2000 23:40:57 GMTMGX8850 Shelf Alarm: NONEENVIRONMENTAL ALARM STATE INFO ^Notification DisabledAlarm Type Unit Threshold DataType Value State---------------- ---- -------------- -------- ---------- -------------+2.5V Input 2.425^ to 2.575^ VoltsDC 2.479 InformationalCalibration VDC 0x7e^ to 0x82^ Other 0x80 InformationalDisplaying Switching Alarms
Switching alarms identify problems with the switching components within the MGX 8850 switch. To display a report of all switching alarms, enter the following command:
pop20two.7.PXM.a > dspswalmsThe following is a sample report showing no switching alarms.
pop20two.7.PXM.a > dspswalmsNode Switching Alarm SummaryCard Crossbar Critical 0 Major 0 Minor 0Crossbar Fabric Critical 0 Major 0 Minor 0Humvee Alarm Critical 0 Major 0 Minor 0Displaying Xbar Alarms
To display a report for xbar alarms, enter the following command:
pop20two.7.PXM.a > dspxbaralmThe following is a sample xbar alarm report.
pop20two.7.PXM.a > dspxbaralmpop20two System Rev: 02.00 Sep. 02, 2000 23:47:19 GMTMGX8850 Shelf Alarm: NONESlot Plane Severity---- ----- --------7 0 Minor7 1 Minor7 2 Minor8 0 None8 1 None8 2 NoneWhen the MGX 8850 reports xbar alarms, you can use the following troubleshooting commands to collect more information:
•
•
•
•
•
•
For more information on these commands, refer to the MGX 8850 Command Reference.
Displaying Log File Information
Log files record switch events such as operator login and command entry. To view the contents of the current log, enter the following command:
pop20two.7.PXM.a > dsplog [-sl <slot>] [-mod CLI]To limit the log display to the events for a single slot, use the -sl option and replace slot with the appropriate slot number.
To limit the log display to CLI events, use the -mod option with the CLI keyword.
To display a list of archived log files, enter the following command:
pop20two.7.PXM.a > dsplogsThe log files are stored in the C:/LOG directory.
