Cisco C9610R switch chassis specifications

This section provides information about the physical and environmental specifications of the Cisco C9610R chassis.

Physical specifications of the chassis

Item

Specification

Dimensions (H x W x D)

31.47 x 17.4 x 26.1 inches (79.93 x 44.20 x 66.29 cms)

Rack units (RU1)

18 RU

Weight (Chassis with eight 3000W power supplies and four fan trays)

266.0 lbs 120.7 kg

1 The chassis height is measured in rack units (RU or just U), where 1 RU or 1 U equals 1.75 in (44.45 mm).
Environmental specifications of the chassis

Item

Specification

Ambient temperature and altitude for normal operations2

23° to 104°F (-5 to +40ºC), up to 6,000 feet (1,800 m). Maximum allowable operating temperature de-rated 1°C/1,000 feet from 6,000 to 10,000 feet.

Transportation and storage temperature and altitude

-40° to 158°F (-40° to 70°C), up to 10,000 feet (3,000 m)

Thermal transition

Hot to cold—at a maximum rate of 86°F (30°C) per hour

Cold to hot—at maximum rate of 204.8°F (96°C) per hour

Humidity (RH), ambient (noncondensing)

Operating—10% to 90% non-condensing

Nonoperating—10% to 95% non-condensing

Altitude (operating and nonoperating)

-197 to 10,000 feet (-60 to 3,000 m)

Sound power level (LwAD)

LwAD—82 dBA

Airflow

Chassis: front to back (when facing the front of the chassis)

Power supply: front to back (forward air flow)

Shock

Operating—5G 11ms (half-sine)

Nonoperating and storage—15G 11ms (half-sine)

Sine vibration
  • Operating—0.2Grms (5Hz-500Hz)
  • Nonoperating and storage(FRUs)—0.8Grms (5Hz-500Hz) Grms is the root mean square (RMS) acceleration value derived from a sine vibration test. Sine vibration is a type of vibration testing where the test item is subjected to a controlled, single-frequency sinusoidal vibration.

Random vibration for FRUs/system (operating—0.33Grms)

Spectral break point frequencies

Acceleration spectral density

Slope

2.5–5 Hz

(0.001 g²/Hz)

6 db/ octave

5–100 Hz

-24 db/ octave

100–200 Hz

Random vibration for FRUs (nonoperating and transportation—1.05Grms)

Spectral break point frequencies

Acceleration spectral density

Slope

2.5–5 Hz

(0.01 g²/Hz)

6 db/ octave

5–100 Hz

100–200 Hz

-24 db/ octave

Random vibration for system (nonoperating and transportation—1.04Grms)

Frequency (Hz)

PSD (G²/Hz)

-

3

0.0005

4

0.008

100

0.008

300

0.0002
2 Minimum ambient temperature for cold startup is 32ºF or 0ºC

Power supply specifications

These sections describe the 2000W AC, 2000W DC, and 3000W AC power supply specifications and the supported AC power cords.

2000W AC-input power supply specifications

This section describes the specifications of C9600-PWR-2KWAC.

2000W AC-input power supply specifications
Specification Description

AC-input type

Wide-ranging input with power factor correction.

 Note
Power factor correction is a standard feature on AC-input power supplies. Power factor correction reduces the reactive component in the source AC current, allowing higher power factors and lower harmonic current components.

AC-input voltage

Low-line (115 VAC nominal)—90 VAC (min) to 140 VAC (max)

High-line (230 VAC nominal)—180 VAC (min) to 264 VAC (max)

AC-input current

12A at 115 VAC

10A at 230 VAC

AC-input frequency

50/60Hz nominal (47 to 63Hz full range)

Branch circuit requirement

Each chassis power supply should have its own dedicated, fused-branch circuit:

  • North America—15 A.
  • International—Circuits sized to local and national codes.
  • All AC power supply inputs are fully isolated.
    • Source AC can be out-of-phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.
    • For high-line operation, the power supply operates with the line conductor wired to a source AC phase, and the neutral conductor wired either to a neutral, single-phase power system, or to another source AC phase as long as the net input voltage is in the range of 180 to 264 VAC.

Power supply output

  • 100 to 120 VAC operation
    • 12V output—1050W
  • 200 to 240 VAC operation
    • 12V output—2000W

Output holdup time

20 ms minimum with 1200W output

kVA rating (kilovolt-amperes is the measure of apparent power in electrical systems, indicating the total power output.) 3

2 kVA maximum (total output power)

Heat dissipation (in British Thermal Units [BTU])

683 BTU per hour

Weight

2.60 lb (1.18 kg)
3 The kVA rating listed for the power supply should be used as the sizing criteria for both UPS outputs as well as standard circuits and transformers to power a switch

AC power cords for 2000W AC power supply units

This table lists the specifications for the AC power cords that are available for the 2000W AC-input power supply. The table also includes references to power cord illustrations.

 Note

All 2000W AC power supply power cord:

  • Lengths range from 9.84 to 14 feet (3.0 to 4.293 meters); with most cord lengths between 13 and 14 feet (4.013 and 4.293 meters)
  • Have an IEC60320/C15 appliance connector at one end.
    IEC60320/C15 appliance connector


AC power cords for 2000W AC PSUs

Locale

Part number

Cordset rating

Length in meters

AC source plug type

Argentina

CAB-TA-AR

125 VAC, 12 A

2.5 m
CAB-TA-AR= (Argentina)

Australia

CAB-TA-AP

125 VAC, 12 A

2.5 m
CAB-TA-AP= (Australia)

Brazil

CAB-ACBZ-12A

125 VAC, 12 A

2.5 m
CAB-ACBZ-12A= (Brazil)

China

CAB-TA-CN

250 VAC, 10 A

2.5 m
CAB-TA-CN= (China)

Denmark

CAB-TA-DN

250 VAC, 10 A

2.5 m
CAB-TA-DN= (Denmark)

Europe

CAB-TA-EU

250 VAC, 10 A

2.5 m
CAB-TA-EU= (Europe)

India

CAB-TA-IN

250 VAC, 10 A

2.5 m
CAB-TA-IN= (India)

Israel

CAB-TA-IS

250 VAC, 16 A

2.5 m
CAB-TA-IS= (Israel)

Italy

CAB-TA-IT

250 VAC, 10 A

2.5 m
CAB-TA-IT= (Italy)

Japan

CAB-C15-CBN-JP

250 VAC, 12 A

3.05 m
CAB-C15-CBN-JP=(Japan)

Japan

CAB-TA-250V-JP

250 VAC, 15 A

2.5 m
CAB-TA-250V-JP= (Japan)

Japan

CAB-TA-JP

125 VAC, 12 A

2.5 m
CAB-TA-JP= (Japan)

North America

CAB-AC-2KW-CBL

250 VAC, 13 A

4.25 m
CAB-AC-2KW-CBL= (North America)

North America

CAB-TA-NA

 125 VAC, 15 A

2.5 m
CAB-TA-NA= (North America)

Switzerland

CAB-TA-SW

250 VAC, 10 A

2.5 m
CAB-TA-SW= (Switzerland)

United Kingdom

CAB-TA-UK

250 VAC, 10 A

2.5 m
CAB-TA-UK= (United Kingdom)

Cabinet jumper power cord; supported in all countries except Japan

CAB-C15-CBN

250 VAC, 13 A

1.22 m
CAB-C15-CBN=

2000W DC-input power supply specifications

This table lists the specifications for C9600-PWR-2KWDC.

2000W DC-input power supply specifications
Specification Description

DC-input voltage

-40 to -60 VDC, with extended range to -72 VDC

DC-input current

Maximum: 60A

Power supply output capacity

For 12 VDC output—2000W

Output holdup time

5ms with 1200W output

Heat dissipation (in British Thermal Units [BTU])

750 BTU per hour

Weight

2.82 lb (1.28 kg)

DC power cords for 2000W DC power supply units

When you order the DC power supply units, you have the option to order the DC power cord (part number 71-100992-01). The length of all 2000W DC power supply cords range from 9.84 to 14 feet (3.0 to 4.293 meters); with most cord lengths between 13 and 14 feet (4.013 and 4.293 meters)

2000W DC power supply cord

1

Appliance connector (C10-638974-000)

5

6 AWG ultra flex cable or equivalent (red in color)

2

Plug housing (C10-638978)

6

Label

3

Socket contact

7

2x shrink wrap

4

6 AWG ultra flex cable or equivalent (black in color)

-

-

These power cords have a C10-638974-000 appliance connector at one end.

C10-638974-000 appliance connector

3000W AC-input power supply specifications

This table lists specifications for C9600-PWR-3KWAC.

3000W AC-input power supply specifications
Specification Description

AC-input type

Wide-ranging input with power factor correction.

 Note
Power factor correction is a standard feature on AC-input power supplies. Power factor correction reduces the reactive component in the source AC current, allowing higher power factors and lower harmonic current components.

AC-input voltage

Low-line (115 VAC nominal)—90 VAC (min) to 140 VAC (max)

High-line (230 VAC nominal)—180 VAC (min) to 264 VAC (max)

AC-input current

16A at 115 VAC

16A at 230 VAC

AC-input frequency

50/60Hz nominal (47 to 63Hz full range)

Branch circuit requirement

Each chassis power supply should have its own dedicated, fused-branch circuit:

  • North America—20 A.
  • International—Circuits sized to local and national codes.
  • All AC power supply inputs are fully isolated.
    • Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.
    • For high-line operation, the power supply operates with the line conductor wired to a source AC phase, and the neutral conductor wired either to a neutral, single-phase power system, or to another source AC phase as long as the net input voltage is in the range of 180 to 264 VAC.

Power supply output

  • 90 to 140 VAC operation
    • 12V output—1500W
  • 180 to 264 VAC operation
    • 12V output—3000W

Output holdup time

20 ms minimum with 1800W output at high line input

kVA rating (kilovolt-amperes is the measure of apparent power in electrical systems, indicating the total power output.) 4

3 kVA maximum (total output power)

Heat dissipation (in British Thermal Units [BTU])

655 BTU per hour

Weight

3.09 lb (1.48 kg)

4 The kVA rating listed for the power supply should be used as the sizing criteria for both UPS outputs as well as standard circuits and transformers to power a switch

AC power cords for 3000W AC power supply units

This table lists the specifications for the AC power cords that are available for the 3000W AC-input power supply. The table also includes references to power cord illustrations.

AC power cords for 3000W AC PSUs

Locale

Part number

Cordset rating

Length

AC source plug type

Australia

CAB-9K16A-AUS

 250 VAC,16 A

4.26 m
CAB-9K16A-AUS= (Australia)

China

CAB-9K16A-CH

250 VAC, 16 A

4.27 m
CAB-9K16A-CH= (China)

Europe

CAB-9K16A-EU

250 VAC, 16 A

2.5 m
CAB-9K16A-EU= (Europe)

India

CAB-C19-C20-IND

250 VAC, 16 A

2.74 m
CAB-C19-C20-IND= (India)

International

CAB-I309-C19-INTL

250 VAC, 16 A

3.96 m
CAB-I309-C19-INTL= (International

International

CAB-9K16A-INT

250 VAC, 16 A

4.14 m
CAB-9K16A-INT= (International)

North America and Japan

CAB-9K20A-NA

125 VAC, 20 A,

 4.26 m
CAB-9K20A-NA= (North America and Japan)

Switzerland

CAB-9K16A-SW

250 VAC, 16 A

2.5 m
CAB-9K16A-SW= (Switzerland)

US and Japan

CAB-9K16A-US2

250 VAC, 20 A

4.26 m
CAB-9K16A-US2= (US/Japan)

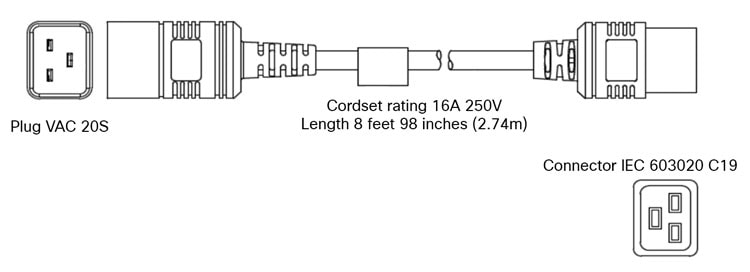

Cabinet jumper power cord

CAB-C19-CBN

250 VAC, 16 A

2.74 m
CAB-C19-CBN=(Cabinet Jumper Power Cord)

Power and heat values

These tables provide the power and heat dissipation data. Unless otherwise noted, the information in the tables is measured under fully loaded conditions (with transceivers installed).

Fan tray power requirements and heat dissipation

PID

AC-input power in Watts

DC-output in Watts

Current @ 90V

Current @ 120V

Current @ 180V

Current @ 240V

Heat Diss. in BTU / hr.

C9610-FAN

1111

1000

12.4

9.3

6.2

4.7

3791
Line card power requirements and heat dissipation

PID

AC-input power in Watts

DC-output in Watts

(Power requested)

Current @ 90V

Current @ 120V

Current @ 180V

Current @ 240V

Heat Diss. in BTU / hr.

C9610-LC-40YL4CD

466

420

5.2

3.9

2.6

1.95

1590

C9610-LC-32CD

495

450

5.6

4.2

2.8

2.1

1689

C9600-LC-40YL4CD

466

420

5.2

3.9

2.6

1.95

1590

C9600-LC-48TX

350

315

3.9

3.0

2.0

1.5

1195

C9600X-LC-32CD

495

450

5.6

4.2

2.8

2.1

1689

C9600X-LC-56YL4C

495

450

5.6

4.2

2.8

2.1

1689
Supervisor module power requirements and heat dissipation

PID

AC-input power in Watts

DC-output in Watts

(Power requested)

Current @ 90V

Current @ 120V

Current @ 180V

Current @ 240V

Heat Diss. in BTU / hr.

C9610-SUP-3

2444

2200

27.15

20.37

13.58

10.18

8339

C9610-SUP-3XL

2444

2200

27.15

20.37

13.58

10.18

8339

Weight specifications

The total weight of a fully configured chassis will depend on the type of chassis, the number of modules, and power supplies installed. Use the corresponding weights in the tables to arrive at the total chassis weight for your hardware configuration.

Weight measurement for the chassis

PID (add = for spare)

Weight (Chassis without fan trays and power supply units)

C9610R=

184.0 lbs (83.5kg)

Weight measurements for the supervisor module

PID (add = for spare)

Weight

C9610-SUP-3

31.1 lb (14.1 kg)

C9610-SUP-3XL

31.1 lb (14.1 kg)

Weight measurements for line cards

PID (add = for spare)

Weight

C9610-LC-32CD

13.45 lb (6.1 kg)

C9610-LC-40YL4CD

13.89 lb (6.3kg)

C9600-LC-40YL4CD

8.27 lb (3.75 kg)

C9600-LC-48TX

8.88 lb (4.03 kg)

C9600X-LC-32CD

8.71 lb (3.95 kg)

C9600X-LC-56YL4C

9.14 lbs (4.15 kg)

Weight measurements for power supply modules

PID (add = for spare)

Weight

C9600-PWR-2KWAC

2.60 lb (1.18 kg)

C9600-PWR-2KWDC

2.82 lb (1.28 kg)

C9600-PWR-3KWAC

3.09 lb (1.48 kg)

Weight measurements for the fan tray

PID (add = for spare)

Weight

C9610-FAN=

13.98 lbs (6.34 kg)

Blank covers

PID (add = for spare)

Weight

C9610-ADPT-BLANK=

(Cisco C9610 series blank for line card adapter)

3.78 lb (1.7153 kg)

C9610-LC-BLANK=

(Cisco C9610 series blank for line card slot)

4.54 lb (2.06 kg)

C9606-PWR-BLANK=

(Cisco C9610 series blank for chassis power supply slot)

0.18 lb (0.08 kg)

C9610-SSD-BLANK=

(Cisco C9610 series blank for SSD)

0.20 lb (0.0913 kg)

C9610-SUP-BLANK=

(Cisco C9610 series blank for supervisor module slot)

6.08 lb (2.76 kg)
