Adding 8 Gigabytes of Memory to a Cisco Nexus 9000 Series Switch

Adding 8 Gigabytes of Memory to a Cisco Nexus 9000 Series Switch

Before you begin:

Before removing the switches access panel, make sure that the power to the switch has been turned off.

Follow ESD procedures, which include wearing an ESD wrist strap and placing antistatic foam or antistatic padding where you will place the DIMM while working with it.

NOTE: The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product.

About this task:

To upgrade the switch from NX-OS Mode to ACI-Mode an additional 8-Gigabyte DIMM must be installed in addition to the standard 16-Gigabyte DIMM already installed.

Step 1

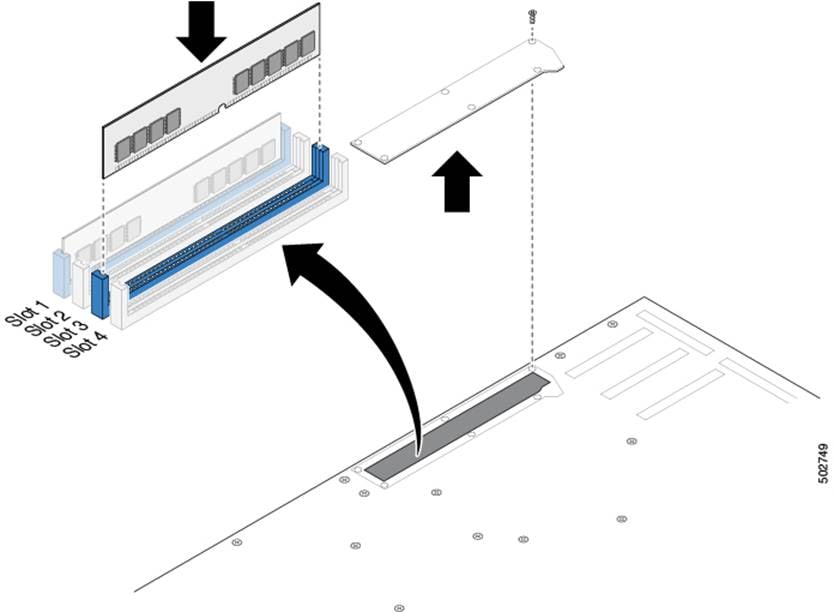

Remove the screws and the DIMM access panel on the bottom of the chassis (see the following figure).

Step 2

Align the DIMM card to DIMM slot 3 inside the chassis, and push the DIMM card into the slot until it is fully inserted (see the following figure).

Step 3

Replace the DIMM access panel and secure it with the screws. Tighten the screws to 5.0 in-lb (0.55 N-m), do not exceed 6.0 in-Lb (0.67 N-m).
