Secure Firewall 1210/20 Threat Defense Getting Started: Firewall Management Center at a Central Headquarters

PDF

Configure the DHCP server

Updated: February 5, 2026

Overview

Enable the DHCP server if you want clients to use DHCP to obtain IP addresses from the firewall.

Enable the DHCP server if you want clients to use DHCP to obtain IP addresses from the firewall.

Procedure

1.

Choose Devices > Device Management, and click Edit (edit icon) for the device.
2.

Choose DHCP > DHCP Server.

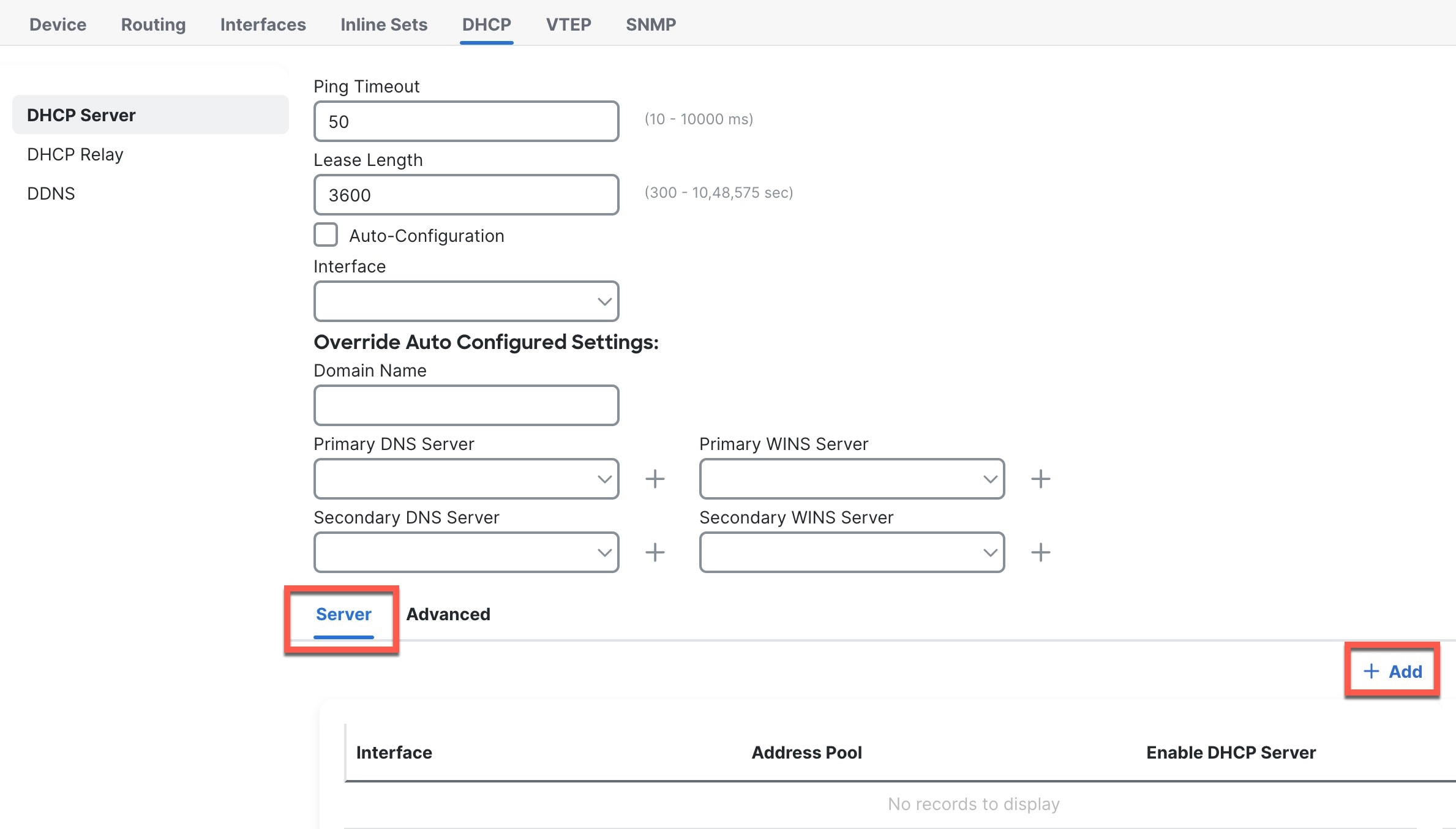

Figure 1. DHCP Server
DHCP Server
3.

In the Server area, click Add and configure the following options.

Figure 2. Add Server
Add Server

  • Interface—Choose the interface name from the drop-down list.

  • Address Pool—Set the range of IP addresses. The IP addresses must be on the same subnet as the selected interface and cannot include the IP address of the interface itself.

  • Enable DHCP Server—Enable the DHCP server on the selected interface.

4.

Click OK.

5.

Click Save.
