Power Cord Specifications

Supported Power Cords and Plugs

Each power supply has a separate power cord. Standard power cords or jumper power cords are available for connection to the appliance. The jumper power cords, for use in racks, are available as an optional alternative to the standard power cords.


Noteblank.gif Only the approved power cords or jumper power cords provided with the appliance are supported.

Table B-1 lists the power cords for the appliance power supplies.



Table B-1 Supported Power Cords for the Appliance

Description
Length
Feet/Meters
Amperage and
Voltage
Plug
Connector

CAB-AC-250V/13A
Power Cord (North America)

See Figure B-1

6.6 ft/2.0 m

13A/250VAC

NEMA L6-20

Molded Twistlock

IEC 60320-C13

CAB-N5K6A-NA
AC Type A Power Cord (North America)

See Figure B-2

8.2 ft/2.5 m

13A/250VAC

NEMA 6-15

IEC 60320-C13

CAB-9K12A-NA
AC Type A Power Cord (North America)

See Figure B-3

8.2 ft/2.5 m

13A/125VAC

NEMA 5-15

IEC 60320-C15

SFS-250V-10A-AR
AC power cord (Argentina)

See Figure B-4

8.2 ft/2.5 m

10A/250VAC

IRAM 2073

IEC 60320-C13

CAB-9K10A-AU
AC power cord (Australia)

See Figure B-5

8.2 ft/2.5 m

10A/250VAC

A.S 3112-2000

IEC 60320-C15

SFS-250V-10A-CN
Power cord (China)

See Figure B-6

8.2 ft/2.5 m

10A/250VAC

CCC GB2009.1
GB1002

IEC 60320-C13

CAB-9K10A-EU
Power cord (Europe)

See Figure B-7

8.2 ft/2.5 m

10A/250VAC

M 2511

IEC 60320-C15

SFS-250V-10A-ID
AC Power Cord (India, South Africa, and United Arab Emirates)

See Figure B-8

8.2 ft/2.5 m

16A/250VAC

EL-208

IEC 60320-C13

SFS-250V-10A-IS
AC Power Cord (Israel)

See Figure B-9

8.2 ft/2.5 m

10A/250VAC

SI-32

IEC 60320-C13

CAB-9K10A-IT
AC Power Cord (Italy)

See Figure B-10

8.2 ft/2.5 m

10A/250VAC

CEI 23-16/VII

IEC 60320-C15

CAB-9K10A-SW
AC Power Cord (Switzerland)

See Figure B-11

8.2 ft/2.5 m

10A/250VAC

MP232

IEC 60320-C15

CAB-9K10A-UK
Power Cord (United Kingdom)

See Figure B-12

8.2 ft/2.5 m

10A/250VAC

(13A fuse)

BS 1363A/
SS 145

IEC 60320-C15

CAB-C13-CBN
2.2-ft Cabinet Jumper Power Cord

See Figure B-13

2.2 ft/0.68 m

10A/250VAC

SS10A

C13

HS10S

C14

CAB-C13-C14-2M
6.6-ft Cabinet Jumper Power Cord

See Figure B-14

6.6 ft/2.0 m

10A/250VAC

SS10A

C13

HS10S

C14

CAB-C13-C14-AC
9.8-ft Cabinet Jumper Power Cord

See Figure B-15

9.8 ft/3.0 m

10A/250VAC

SS10A

C13

HS10S

C14

CAB-250V-10A-BR
AC Power Cord (Brazil)

See Figure B-16

7.0 ft/2.1 m

10A/250VAC

NBR 14136

IEC 60320-C13

CAB-JPN-3PIN
AC Type A Power Cord (Japan)

See Figure B-17

7.9 ft/2.4 m

10A/250VAC

NEMA5-15P/
JIS C8303

IEC 60320-C13

CAB-C13-C14-2M-JP
AC Cabinet Jumper Power Cord (Japan)

See Figure B-18

6.6 ft/2.0 m

10A/250VAC

EN 60320-2-2/E (C14G)

IEC 60320-C13

AC Power Cord Illustrations

This section includes the AC power cord illustrations. See Figure B-1 through Figure B-18.

Figure B-1 CAB-AC-250V/13A (North America)



418196.eps



1

Plug: NEMA L6-20 (Molded Twistlock)
3

Cord set rating: 13A, 250V

2

Connector: IEC 60320-C13


–

Figure B-2 CAB-N5K6A-NA (North America)






1

Plug: NEMA6-15P

3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C13


–

Figure B-3 CAB-9K12A-NA (North America)



412859.eps



1

Plug: NEMA5-15P

3

Cord set rating: 13A, 250V

2

Connector: IEC 60320-C15


–

Figure B-4 SFS-250V-10A-AR (Argentina)



412900.eps



1

Plug: IRAM 2073

3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C13


–

Figure B-5 CAB-9K10A-AU (Australia)



412900.eps
1

Plug: A.S. 3112-2000

3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C15


–

Figure B-6 SFS-250V-10A-CN (China)



418198.eps



1

Plug: CCEE GB2009

3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C13


–

Figure B-7 CAB-9K10A-EU (Europe)

412858.eps



1

Plug: CEE 7/7 (M2511)
3

Cord set rating: 10A/16A, 250V

2

Connector: IEC 60320-C15


–

Figure B-8 SFS-250V-10A-ID (India, South Africa, and United Arab Emirates)



412988.eps



1

Plug: IS 6538-1971

3

Cord set rating: 16A, 250V

2

Connector: IEC 60320-C13


–

Figure B-9 SFS-250V-10A-IS (Israel)



412954.eps



1

Plug: SI-32
3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C13


–

Figure B-10 CAB-9K10A-IT (Italy)



412901.eps



1

Plug: CEI 23-16/VII (I/3G)
3

Cord set rating: 10A, 250V

2

Connector: C15M (EN 60320-C15)



–

Figure B-11 CAB-9K10A-SW (Switzerland)



412925.eps



1

Plug: MP232-R (SEV 1011)
3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C15


–

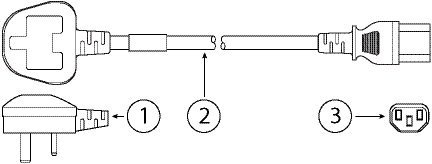

Figure B-12 CAB-9K10A-UK (United Kingdom)



418199.eps



1

Plug: BS1363A/SS145
3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C15


–

Figure B-13 CAB-C13-CBN, Jumper Power Cord (0.68 m)






1

Plug: SS10A
3

Cord set rating: 10A, 250V

2

Connector: HS10A


–

Figure B-14 CAB-C13-C14-2M, Jumper Power Cord (2 m)






1

Plug: SS10A
3

Cord set rating: 10A, 250V

2

Connector: HS10A


–

Figure B-15 CAB-C13-C14-AC, Jumper Power Cord (3 m)






1

Plug: SS10A
3

Cord set rating: 10A, 250V

2

Connector: HS10A


–

Figure B-16 CAB-250V-10A-BR (Brazil)



412991.eps



1

Plug: NBR 14136
3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C13


–

Figure B-17 CAB-JPN-3PIN (Japan)



418197.eps



1

Plug: NEMA5-15P/JIS 8303

3

Cord set rating: 12A, 125V

2

Connector: IEC 60320-C13


–

Figure B-18 CAB-C13-C14-2M-JP (Japan)



416979.eps
1

Plug: EN 60320-2-2/E
3

Cord set rating: 10A, 250V

2

Connector: IEC 60320-C13


–
