Installing the Cisco ONS 15454 Deep Door Kit

Product Number: 15454-DOOR-KIT

This document describes how to install the deep door kit for the Cisco ONS 15454. A door is pre-installed on the ONS 15454 but the 15454-DOOR-KIT provides a deeper door and additional extended fiber clips.

The deep door kit includes the following components. The numbers in parentheses represent the part number and quantity (if greater than one).

•Deep door (800-25281-XX)

•Gray fiber clips (52-0620-XX) (5)

•White fiber clips (52-0621-XX) (5)

•Deeper bracket, right side (700-18765-XX)

•Deeper bracket, left side (700-18766-XX)

•Screws (48-0007-XX) (12)

This document contains the following sections:

•Installing the Deep Door

•Using the Fiber Clips

•Related Documentation

•Obtaining Documentation and Submitting a Service Request

Use this document in conjunction with the Cisco ONS 15454 Procedure Guide and the Cisco ONS 15454 Reference Manual.

Installing the Deep Door

Caution Always use an electrostatic discharge (ESD) wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.

Remove the Existing Door

Step 1 Open the front door lock. The ONS 15454 comes with a pinned hex key for locking and unlocking the front door. Turn the key counterclockwise to unlock the door.

Step 2 Press the door button to release the latch and swing the door open.

Step 3 To remove the door ground strap (available in Release 3.3 and later), perform the following:

a. To detach the ground strap from the front door, loosen the #6 kep nut (49-0600-XX) using an open-end wrench. Detach the end of the ground strap terminal lug (72-3622-XX) from the male stud on the inside of the door.

b. To detach the other end of the ground strap from inside the chassis, loosen the #6 kep nut (49-0600-XX) on the terminal lug using an open-end wrench. Remove the terminal lug.

Step 4 Lift the door from its hinges at the top left corner of the door.

Remove the Existing Brackets and Install the Deeper Brackets

If the ONS 15454 shelf does not already have the appropriate deeper brackets (700-18765-XX and 700-18766-XX) installed, unscrew the mounting screws on the fiber reels and remove the fiber reels (Figure 1). Remove the existing brackets and install the deeper brackets in the same location. See the Cisco ONS 15454 Procedure Guide for more installation information.

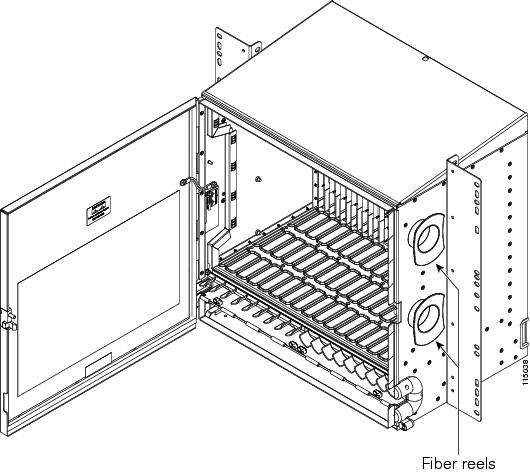

Figure 1 Fiber Reels

Install the Door

Step 1 Insert the front door into the hinges on the shelf assembly (Figure 2).

Figure 2 Cisco ONS 15454 Deep Door

.

Step 2 Attach one of the door ground strap's terminal lugs to the male stud on the inside of the door. Attach and tighten the Kepnut using the open-end wrench (Figure 3).

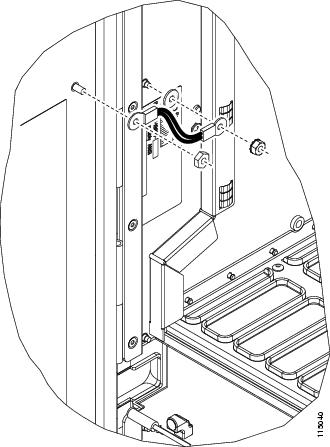

Figure 3 Installing the Door Ground Strap

Step 3 Attach the other end of the ground strap to the male stud on the inside of the chassis. Use an open-end wrench to tighten the Kepnut on the terminal lug.

Note To avoid interference with the traffic (line) card, make sure the ground strap is in a flat position when the door is open. To move the ground strap into a flat position, rotate the terminal lug counterclockwise before tightening the Kepnut.

Figure 4 shows the shelf assembly with the front door and ground strap installed.

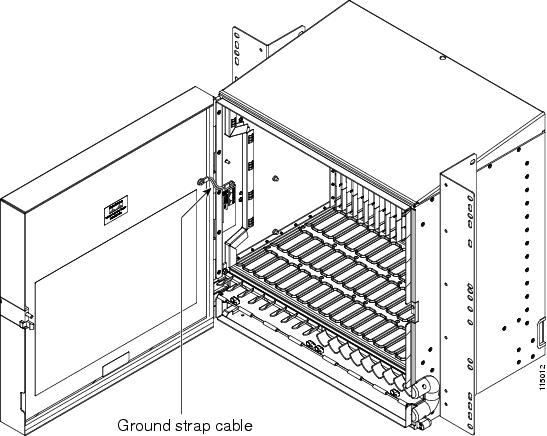

Figure 4 Shelf Assembly with Door Ground Strap Installed

Step 4 Swing the door closed.

Note The ONS 15454 comes with a pinned hex key tool for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it.

Using the Fiber Clips

Refer to the Installing the Standard, Extended, and Adjustable Fiber Clips on the Cisco ONS 15454 (78-16550-xx) document for information about using the different fiber clip types available for the Cisco ONS 15454.

Related Documentation

•Cisco ONS 15454 Procedure Guide

•Cisco ONS 15454 Reference Manual

•Cisco ONS 15454 Troubleshooting Guide
