Configuring IGMP Snooping

This chapter describes IGMP Snooping and procedures to configure IGMP Snooping.

Understanding IGMP Snooping

As networks increase in size, multicast routing becomes critically important as a means to determine which segments require multicast traffic and which do not. IP multicasting enables IP traffic to be propagated from one source to a number of destinations, or from many sources to many destinations. Rather than sending one packet to each destination, one packet is sent to the multicast group identified by a single IP destination group address.

Internet Group Management Protocol (IGMP) snooping restricts flooding of multicast traffic by sending multicast traffic only to the interfaces that are subscribed to a particular multicast group.

The Carrier Packet Transport (CPT) system can use IGMP snooping to constrain the flooding of multicast traffic by dynamically configuring Layer 2 interfaces so that multicast traffic is forwarded to only those interfaces associated with IP multicast devices. As the name implies, IGMP snooping requires the CPT system to snoop on the IGMP transmissions between the host and the router and to keep track of multicast groups and member ports. When the CPT system receives an IGMP report from a host for a particular multicast group, the CPT system adds the host port number to the forwarding table entry; when it receives an IGMP Leave Group message from a host, it removes the host port from the table entry. It also periodically deletes entries if it does not receive IGMP membership reports from the multicast clients.


Note

For more information on IP multicast and IGMP, see RFC 1112, RFC 2236, and RFC 3376.

The CPT system forwards periodic general queries received from the multicast router in the bridge domain where IGMP snooping is enabled. All hosts interested in this multicast group send join requests and are added to the forwarding table entry. The CPT system creates one entry per bridge domain in the IGMP snooping IP multicast forwarding table for each group from which it receives an IGMP join request.

The IP multicast groups learned through IGMP snooping are dynamic.

If a port interface, EFP, and bridge domain state changes, the IGMP snooping-learned multicast groups from this port, EFP, and bridge domain in the bridge domain are deleted.

IGMP Versions

The CPT system supports IGMP version 1, IGMP version 2, and IGMP version 3 on a bridge domain level. The CPT system does snooping using L2 multicast address and not L3 IP address.


Note
The CPT system supports IGMPv3 snooping based only on the destination multicast MAC address and not on the the source IP address or on proxy reports.

An IGMPv3 CPT system provides Basic IGMPv3 Snooping Support (BISS), which includes support for the snooping features on IGMPv1 and IGMPv2 switches and for IGMPv3 membership report messages. BISS constrains the flooding of multicast traffic when the network includes IGMPv3 hosts. It constrains traffic to approximately the same set of ports as the IGMP snooping feature on IGMPv1 or IGMPv2 hosts.

Joining a Multicast Group

When a host connected to the CPT system wants to join an IP multicast group and it is an IGMP version 2 or version 3 client, it sends an unsolicited IGMP join message, specifying the IP multicast group to join. Alternatively, when the CPT system receives a general query from the router, it forwards the query to all the EFPs in the bridge domain. IGMP hosts wanting to join the multicast group respond by sending a join message to the CPT system. The CPT system CPU creates a multicast forwarding-table entry for the group if it is not already present. The CPU also adds the interface where the join message was received to the forwarding-table entry. The host associated with that interface receives multicast traffic for that multicast group. See Figure 1.

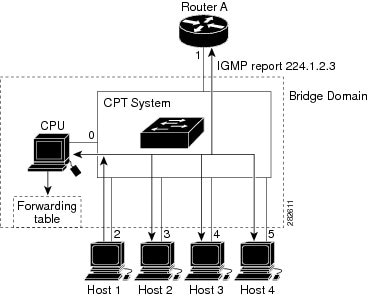

Figure 1. Initial IGMP Join Message

Router A sends a general query to the CPT system, which forwards the query to ports 2 through 5, which have EFPs configured in the same bridge domain. Host 1 wants to join multicast group 224.1.2.3 and multicasts an IGMP membership report (IGMP join message) to the group. The CPT system CPU uses the information in the IGMP report to set up a forwarding-table entry as shown in Table 1, which includes the port numbers connected to Host 1 and the router.
Table 1 IGMP Snooping Forwarding Table
Destination Address Type of Packet Ports
224.1.2.3 IGMP 1, 2

The CPT system hardware can distinguish IGMP information packets from other packets for the multicast group. The information in the table enables the switching engine to send frames addressed to the 224.1.2.3 multicast IP address, which are not IGMP packets, to the router and to the host that has joined the group.

If another host (for example, Host 4) sends an unsolicited IGMP join message for the same group (Figure 2) the CPU receives that message and adds the port number of Host 4 to the forwarding table as shown in Table 2. Note that because the forwarding table directs IGMP messages only to the CPU, the message is not flooded to other ports on the CPT system. Any known multicast traffic is forwarded to the group and not to the CPU.

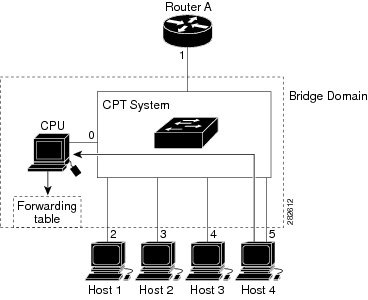

Figure 2. Second Host Joining a Multicast Group

Table 2 Updated IGMP Snooping Forwarding Table
Destination Address Type of Packet Ports
224.1.2.3 IGMP 1, 2, 5

IGMP Snooping Configuration Guidelines and Restrictions

  • On a CPT system, IGMP snooping can be configured at the bridge domain level.

  • IGMP immediate-leave and IGMP report-suppression commands can be configured at the bridge domain level.

  • Static multicast router can be configured at the EFP level.

  • It is mandatory to untag the packets before they enter the bridge domain. This is achieved using the rewrite pop configuration at the EFP level.

  • Following configuration restrictions are applicable while configuring the IGMP snooping on the CPT system:

    • For a single tagged packet, the tag is removed using the rewrite ingress tag pop 1 symmetric command at the EFP level.

    • For a double tagged packet, the tag is removed using the rewrite ingress tag pop 2 symmetric command at the EFP level.

    • For an untagged packet, a rewrite operation is not required.

NTP-J64 Configuring IGMP Snooping Using Cisco IOS Commands

Purpose This procedure configures IGMP snooping using Cisco IOS commands.
Tools/Equipment None
Prerequisite Procedures None
Required/As Needed As needed
Onsite/Remote Remote
Security Level None
Procedure
    Step 1   Complete DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands.
    Step 2   Complete the following tasks as necessary:
    Step 3   (Optional) Complete the DLP-J230 Viewing IGMP Configuration Using Cisco IOS Commands.

    Stop. You have completed this procedure.

    DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands

    Purpose This procedure enables or disables IGMP snooping using Cisco IOS commands.
    Tools/Equipment None
    Prerequisite Procedures None
    Required/As Needed As needed
    Onsite/Remote Remote
    Security Level None
    Procedure
       Command or ActionPurpose
      Step 1enable


      Example:Router> enable

      Enables privileged EXEC mode.

      • Enter your password if prompted.


      Step 2configure terminal


      Example:Router# configure terminal

      Enters global configuration mode.


      Step 3bridge domain bridge-domain value


      Example:Router(config)# bridge-domain 22
      Enters the bridge-domain.

      • Enter the value of the bridge-domain.


      Step 4 [no] ip igmp snooping


      Example:Router(config-bdomain)# ip igmp snooping

      Enables IGMP snooping on the bridge-domain. The no form of the command disables IGMP snooping.


      Step 5end

      Example:Router(config-bdomain)# end

      Returns to the privileged EXEC mode.


      Step 6copy running-config startup-config


      Example:copy running-config startup-config

      (Optional) Saves your entries in the configuration file.



      Examples:

      The following example shows how to enable IGMP snooping on untagged Ethernet traffic on the bridge domain and how to configure the source and host ports:

      ! Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

! Configuration on port 1
Router(config)# interface gi 36/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation untagged
Router(config-if-srv)# bridge-domain 30

! Configuration on port 2
Router(config)# interface gi 36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation untagged
Router(config-if-srv)# bridge-domain 30

! Configuration on port 3
Router(config)# interface gi 36/10
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation untagged
Router(config-if-srv)# bridge-domain

      The following example shows how to enable IGMP snooping on single and double tagged Ethernet traffic on the bridge domain and how to configure the source and host ports:

      ! Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

! Configuration on port 1
Router(config)# interface gi 36/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 50 second-dot1q 10
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 2
Router(config)# interface gi 36/2
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 200
Router(config-if-srv)# rewrite ingress pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 3
Router(config)# interface gi 36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 100
Router(config-if-srv)# rewrite ingress pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

      The following example shows how to enable IGMP snooping on double tagged Ethernet traffic on the bridge domain and how to configure the source and host ports::


! Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

! Configuration on port 1
Router(config)# interface gi 36/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10 second-dot1q 20
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 2
Router(config)# interface gi 36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 100 second-dot1q 20
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 3
Router(config)# interface gi 36/6
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 101 second-dot1q 20
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

      Leaving a Multicast Group

      The router sends periodic multicast general queries, and the CPT system forwards these queries through all ports in the bridge domain. Interested hosts respond to the queries. If at least one host in the bridge domain wants to receive multicast traffic, the router continues forwarding the multicast traffic to the bridge domain. The CPT system forwards multicast group traffic only to those hosts listed in the forwarding table for that IP multicast group maintained by IGMP snooping.

      When hosts want to leave a multicast group, they can leave without sending a message, or they can send a leave message. When the CPT system receives a leave message from a host, it sends a group-specific query to learn if any other devices connected to that interface are interested in traffic for the specific multicast group. The CPT system then updates the forwarding table for that MAC group so that only those hosts interested in receiving multicast traffic for the group are listed in the forwarding table. If the router receives no reports from a bridge domain, it removes the group for the bridge domain from its IGMP cache.

      Immediate Leave

      The Immediate Leave feature is only supported on IGMP version 2 hosts. The CPT system uses IGMP Snooping Immediate Leave feature to remove an interface from the forwarding table, which sends a leave message without the CPT system sending group-specific queries to the interface. The VLAN interface is pruned from the multicast tree for the multicast group specified in the original leave message. The Immediate Leave feature ensures optimal bandwidth management for all hosts on a switched network, even when multiple multicast groups are simultaneously in use.


      Note

      You should only use the Immediate Leave feature on bridge domains where a single host is connected to each port. If this feature is enabled on bridge domains where more than one host is connected to a port, some hosts might get dropped.

      DLP-J218 Enabling or Disabling IGMP Immediate Leave Using Cisco IOS Commands

      When you enable the IGMP Immediate Leave feature, the CPT system immediately removes a port when it detects an IGMP version 2 leave message on that port. You should use the Immediate Leave feature only when there is a single receiver present on every port in the bridge domain.


      Note

      The Immediate Leave feature is supported only on IGMP version 2 hosts.

      Purpose This procedure enables or disables IGMP Immediate Leave feature using Cisco IOS commands.
      Tools/Equipment None
      Prerequisite Procedures DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands
      Required/As Needed As needed
      Onsite/Remote Remote
      Security Level None
      Procedure
         Command or ActionPurpose
        Step 1enable


        Example:Router> enable

        Enables privileged EXEC mode.

        • Enter your password if prompted.


        Step 2configure terminal


        Example:Router# configure terminal

        Enters global configuration mode.


        Step 3bridge domain bridge-domain value


        Example:Router(config)# bridge-domain 22
        Enters the bridge domain configuration mode.

        • Enter the value of the bridge-domain.


        Step 4[no] ip igmp snooping immediate-leave


        Example:Router(config-bdomain)# ip igmp snooping immediate-leave

        Enables the IGMP Immediate Leave feature on the bridge domain. The no form of the command disables IGMP snooping immediate-leave.


        Step 5end

        Example:Router(config-bdomain)# end

        Returns to the privileged EXEC mode.


        Step 6copy running-config startup-config


        Example:copy running-config startup-config

        (Optional) Saves your entries in the configuration file.



        Examples:

        To disable the IGMP Immediate Leave feature on a bridge domain, use the no ip igmp snooping immediate-leave global configuration command.

        The following example shows how to enable IGMP Immediate Leave feature for bridge-domain130:

        Router# configure terminal
Router(config)# bridge-domain 130
Router(config-bdomain)# ip igmp snooping immediate-leave
Router(config-bdomain)# end

        IGMP Report Suppression


        Note

        IGMP report suppression is supported only when the multicast query has IGMPv1 and IGMPv2 reports. This feature is not supported when the query includes IGMPv3 reports.

        The CPT system uses IGMP report suppression to forward only one IGMP report per multicast router query, to multicast devices. When IGMP router suppression is enabled (the default), the CPT system sends the first IGMP report from all hosts for a group, to all the multicast routers. The CPT system does not send the remaining IGMP reports for the group to the multicast routers. This feature prevents duplicate reports from being sent to the multicast devices.

        If the multicast router query includes requests only for IGMPv1 and IGMPv2 reports, the CPT system forwards only the first IGMPv1 or IGMPv2 report from all hosts for a group to all the multicast routers.

        If the multicast router query also includes requests for IGMPv3 reports, the CPT system forwards all IGMPv1, IGMPv2, and IGMPv3 reports for a group to the multicast devices.

        If you disable IGMP report suppression, all IGMP reports are forwarded to the multicast routers.

        DLP-J219 Disabling IGMP Report Suppression Using Cisco IOS Commands


        Note

        IGMP report suppression is supported only when the multicast query has IGMPv1 and IGMPv2 reports. This feature is not supported when the query includes IGMPv3 reports.

        IGMP report suppression is enabled by default. When it is enabled, the CPT system forwards only one IGMP report per multicast router query. When report suppression is disabled, all IGMP reports are forwarded to the multicast routers. To re-enable IGMP report suppression, use the ip igmp snooping report-suppression command in the bridge domain configuration mode.

        Purpose This procedure disables IGMP report suppression using Cisco IOS commands.
        Tools/Equipment None
        Prerequisite Procedures DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands
        Required/As Needed As needed
        Onsite/Remote Remote
        Security Level None
        Procedure
           Command or ActionPurpose
          Step 1enable


          Example:Router> enable

          Enables privileged EXEC mode.

          • Enter your password if prompted.


          Step 2configure terminal


          Example:Router# configure terminal

          Enters global configuration mode.


          Step 3bridge domain bridge-domain value


          Example:Router(config)# bridge-domain 22
          Enters the bridge domain configuration mode.

          • Enter the value of the bridge domain.


          Step 4 no ip igmp snooping report-suppression


          Example:Router(config-bdomain)# no ip igmp snooping report-suppression

          Disables IGMP report suppression.


          Step 5end

          Example:Router(config-bdomain)# end

          Returns to the privileged EXEC mode.


          Step 6copy running-config startup-config


          Example:copy running-config startup-config

          (Optional) Saves your entries in the configuration file.



          Examples:

          The following example shows how to re-enable IGMP report suppression for bridge-domain 130:

          Router# configure terminal
Router(config-bdomain)# bridge-domain 130
Router(config-bdomain)# ip igmp snooping report-suppression
Router(config-bdomain)# end

          DLP-J220 Configuring a Static Multicast Router Port Using Cisco IOS Commands

          To add a static connection to a multicast router port, use the ip igmp snooping mrouter EFP configuration command on the CPT system. To remove a static multicast router port from the bridge domain, use the no ip igmp snooping mrouter configuration command.


          Note

          Static connections to multicast routers are supported only at the EFP.

          Purpose This procedure enables a static connection to a multicast router using Cisco IOS commands.
          Tools/Equipment None
          Prerequisite Procedures DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands
          Required/As Needed As needed
          Onsite/Remote Remote
          Security Level None
          Procedure
             Command or ActionPurpose
            Step 1enable


            Example:Router> enable

            Enables privileged EXEC mode.

            • Enter your password if prompted.


            Step 2configure terminal


            Example:Router# configure terminal

            Enters global configuration mode.


            Step 3interface type number


            Example:Router(config)# interface TengigabitEthernet 4/1
            Specifies the type and location of the interface to configure, where:

            • type—Specifies the type of interface.

            • number—Specifies the location of the interface.

            The interface can be a physical interface or a port channel. The port-channel range is 1 to 128.


            Step 4service instance id ethernet


            Example:Router(config-if)# service instance 10 ethernet

            Configures an Ethernet service instance on an interface.


            Step 5encapsulation dot1q id


            Example:Router(config-if)# encapsulation dot1q 10

            Defines the encapsulation format as IEEE 802.1Q (dot1q) and specifies the identifier. The identifier indicates the CVLAN with which the packet is received on the interface.

            • Enter the value of the identifier.


            Step 6rewrite ingress tag pop 1 symmetric


            Example:Router(config-if-srv)# rewrite ingress tag pop 1 symmetric

            Specifies the rewrite operation.


            Step 7bridge domain bridge-domain value


            Example:Router(config-if-srv)# bridge-domain 22
            Specifies the multicast router bridge domain ID. The bridge domain ID range is from 1 to 16384

            • Enter the value of the bridge domain.


            Step 8[no] ip igmp snooping mrouter


            Example:Router(config-if-srv)# ip igmp snooping mrouter

            Adds a static connection to the multicast router. The no form of the command removes the static multicast router port from the bridge domain.


            Step 9end

            Example:Router(config-if-srv)# end

            Returns to the privileged EXEC mode.



            Examples:

            The following example shows how to enable a static connection to a multicast router:

            Router(config)# interface TenGigabitEthernet4/2
Router(config-if)# service instance 20 ethernet
Router(config-if-srv)# encapsulation dot1q 10
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 20
Router(config-if-srv)# ip igmp snooping mrouter

            The following example shows how to disable a static connection to a multicast router:

            Router(config)# interface TenGigabitEthernet4/2
Router(config-if)# service instance 20 ethernet
Router(config-if-srv)# no ip igmp snooping mrouter


            Note

            To add a static multicast router port to the EFP using CTC, see Step 6.e of NTP-J68 Configuring IGMP Snooping Using CTC.

            DLP-J230 Viewing IGMP Configuration Using Cisco IOS Commands

            Purpose This procedure explains how to view IGMP configuration using Cisco IOS commands.
            Tools/Equipment None
            Prerequisite Procedures None
            Required/As Needed As needed
            Onsite/Remote Remote
            Security Level None
            Procedure
               Command or ActionPurpose
              Step 1enable


              Example:Router> enable

              Enables privileged EXEC mode.

              • Enter your password if prompted.


              Step 2show ip igmp snooping [groups [count | vlan bridge-domain ID [ ip-address | count |dynamic [count] | user [count] ]]] | mrouter [vlan bridge-domain ID] querier | vlan bridge-domain ID]


              Example:Router# show ip igmp snooping                		Displays the IGMP snooping information.

              • groups—(Optional) Displays group information.

              • count—(Optional) Displays the number of multicast groups learned by IGMP snooping.

              • vlan bridge-domain ID—(Optional) Specifies a bridge domain.

                • bridge-domain ID— Bridge domain ID. Valid values are from 1 to 16384.

              • ip-address—(Optional) Displays information about the specified group.

              • count—(Optional) Displays the group count inside a bridge domain.

              • dynamic—(Optional) Displays dynamic entries learned through IGMP snooping.

              • count—(Optional) Displays the number of dynamic entries.

              • user—(Optional) Displays only the user-configured multicast entries.

              • count—(Optional) Displays the number of user-configured multicast entries.

              • mrouter—(Optional) Displays information about dynamically learned and manually configured multicast router ports.

              • querier—(Optional) Displays IGMP querier information.


              Step 3show ip igmp snooping querier [vlan bridge-domain ID ] [detail]


              Example:Router# show ip igmp snooping querier
              Displays information about the IP address and the receiving port for the recently received IGMP query messages.

              • vlan bridge-domain ID —(Optional) Specifies a bridge domain.

                • bridge-domain ID— Bridge domain ID. Valid values are from 1 to 16384.

                • detail—Specifies the configuration and operational state of the IGMP snooping querier in the bridge domain.



              Examples

              The following example displays the output of the show ip igmp snooping [vlan bridge-domain ID ] command.

              Router# show ip igmp sn vlan 2
              Global IGMP Snooping configuration:
-------------------------------------------
IGMP snooping Oper State     : Enabled
IGMPv3 snooping (minimal)    : Enabled
Report suppression           : Enabled
TCN solicit query            : Disabled
Robustness variable          : 2
Last member query count      : 2
Last member query interval   : 1000
Check TTL=1                  : No
Check Router-Alert-Option    : No

Vlan 2
-----------------------
IGMP snooping Admin State           : Enabled
IGMP snooping Oper State            : Enabled
IGMPv2 immediate leave              : Disabled
Report suppression                  : Enabled
Robustness variable                 : 2
Last member query count             : 2
Last member query interval          : 1000
Check TTL=1                         : Yes
Check Router-Alert-Option           : Yes
Query Interval                      : 0
Max Response Time                   : 10000

              The following example displays the output of the show ip igmp snooping groups command.

              Router# show ip igmp snooping groups
              Flags: I -- IGMP snooping, S -- Static, P -- PIM snooping, A -- ASM mode

Vlan      Group/source             Type        Version     Port List
-----------------------------------------------------------------------
2         224.1.1.1                I           v2          Te7/4 Te5/2 Gi41/1 Gi41/44 Gi51/1 Gi51/44 Te4/2

              The following example displays the output of the show ip igmp snooping groups vlan command.

              Router# show ip igmp snooping groups vlan 2
              Flags: I -- IGMP snooping, S -- Static, P -- PIM snooping, A -- ASM mode

Vlan      Group/source             Type        Version     Port List
-----------------------------------------------------------------------
2         224.1.1.1                I           v2          Te7/4 Te5/2 Gi41/1 Gi41/44 Gi51/1 Gi51/44 Te4/2

              The following example displays the output of the show ip igmp snooping groups vlan bridge-domain ID [ip_address] command.

              Router# show ip igmp snooping groups vlan 2 224.1.1.1
              Flags: I -- IGMP snooping, S -- Static, P -- PIM snooping, A -- ASM mode

Vlan      Group/source             Type        Version     Port List
-----------------------------------------------------------------------
2         224.1.1.1                I           v2          Te7/4 Te5/2 Gi41/1 Gi41/44 Gi51/1 Gi51/44 Te4/2

              The following example displays the output of the show ip igmp snooping mrouter command.

              Router# show ip igmp snooping mrouter
              Vlan    ports
----    -----
   2    Te4/4(dynamic)

              The following example displays the output of the show ip igmp snooping mrouter vlan 2 command.

              Router# show ip igmp snooping mrouter
              Vlan    ports
----    -----
   2    Te4/4(dynamic)

              The following example shows the output of the show ip igmp snooping querier command.

              Router# show ip igmp snooping querier
              Vlan      IP Address               IGMP Version   Port
-------------------------------------------------------------
2         10.10.10.1               v2            Te4/4

              The following example shows the output of the show ip igmp snooping querier [vlan bridge-domain ID ] command.

              Router# show ip igmp snooping querier vlan 2
              IP address               : 10.10.10.1
IGMP version             : v2
Port                     : Te4/4
Max response time        : 10s

              NTP-J68 Configuring IGMP Snooping Using CTC

              Purpose This procedure explains how to configure IGMP Snooping, Immediate Leave, Report Suppression, and IGMP Static Router Port using CTC.
              Tools/Equipment None
              Prerequisite Procedures Create an Ethernet Virtual Private LAN EVC circuit with the following conditions:

              • Type of VLAN Tagging:

                • Double Tagged

                • Single Tagged

                • Untagged

              • Rewrite Operation:

                • POP 1 for Single Tagged

                • POP 2 for Double Tagged

                • N/A for Untagged

              To create an EVC circuit, see DLP-J2 Create an EVC Circuit Using CTC.
              Required/As Needed As needed
              Onsite/Remote Remote
              Security Level None
              Procedure
                Step 1   Complete the NTP-J22 Log into CTC procedure at a node where you want to configure IGMP snooping.
                Step 2   In node view, click the Layer2+ tab.
                Step 3   Click Carrier Ethernet.
                Step 4   From the list of Ethernet Virtual Circuits (EVCs), select an Ethernet Virtual Private LAN EVC circuit to configure IGMP snooping.
                Step 5   Click Edit. The Edit Circuit dialog box appears.
                Step 6   In the IGMP Snooping tab, specify the settings for the bridge domain.
                1. Select a bridge domain from the list.
                2. Check the IGMP Snooping check box to enable IGMP snooping on this bridge domain.
                3. Check the Immediate Leave check box. When you enable IGMP immediate leave, IGMP snooping immediately removes a port when it detects a leave message on that port.
                4. Check the Report Suppression check box. When you enable report suppression, the bridge domain forwards only one IGMP report for each multicast query.
                5. Check the IGMP Static Router Port check box to add a static router to the EFP.
                  Note

                  To disable IGMP Snooping, Immediate Leave, Report Suppression, or IGMP Static Router Port, uncheck the checkbox against each one of them.

                6. Click Apply.
                Step 7   To view the IGMP configuration, refer to the procedure explained in DLP-J56 Open the Cisco IOS Configuration Mode and View the Feature Configuration Details Using CTC.

                IGMP Proxy Reporting

                IGMP supports proxy reporting for IGMPv1 and IGMPv2 messages to handle group-specific queries. These queries are not sent downstream, but the CPT system does respond to them directly. When the CPT system receives a group-specific query, the CPT system terminates the query and sends an IGMP proxy report if there is a receiver for the group. There is no proxy reporting for IGMPv3 messages. For IGMPv3, a group-specific query or a group source-specific query is flooded to all VLAN member ports. The database for the IGMPv3 membership report is built based on the reports received.

                Host reports responding to a specific query can be suppressed by the report suppression feature. Report suppression is supported for IGMPv1, IGMPv2 and IGMPv3 messages. With report suppression enabled (by default), when the CPT system receives a general query, the CPT system starts a suppression cycle for reports from all hosts to each group or channel. Only the first report to the discovered multicast routers are forwarded; the rest of the reports are suppressed. For IGMPv1 and IGMPv2, the time of suppression is the report response time indicated in the general query message. For IGMPv3, suppression occurs for the entire general query interval.

                Note
                • Source-based filtering for IGMP version 3 reports is not supported in hardware. The states are maintained only in software and used for explicit host tracking and statistics collection. The source-only entries are deleted every 5 minutes and relearned to ensure that they are still valid.
                • Turning off explicit host tracking disables fast-leave processing and proxy reporting.

                L2 Address Aliasing Issue

                The IGMP snooping forwarding table is based on L2 address. Since multiple IP addresses can map to the same L2 address, an L2 address aliasing can occur. For example, IP addresses 225.1.1.1 and 226.1.1.1 map to the same MAC address 01005E010101 which results in L2 address aliasing.

                IGMP Snooping Interaction with LAG

                A link aggregation (LAG) interface can be added to a bridge domain, which has IGMP snooping enabled.

                The following example shows how to configure the source port, which is part of the LAG interface that is a member of the bridge domain that has IGMP snooping enabled.

                Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

Configuration on port 1
Router(config)# interface  port-channel 10
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30
Router(config)# interface ten 6/1
Router(config-if)# channel-group 10
Router(config)# interface ten 6/2
Router(config-if)# channel-group 10

Configuration port 2
Router(config)# interface gi36/2
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 20 second-dot1q 30
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

Configuration on port 3
Router(config)# interface gi36/3
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation  dot1q 40
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

                The following example shows how to configure the receiver port, which is part of the LAG interface that is a member of the bridge domain that has IGMP snooping enabled.

                Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

Configuration on port 1
Router(config)# interface ten 6/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10 second-dot1q 30
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

Configuration port 2
Router(config)# interface port-channel 10
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

Router(config)# interface gi36/1
Router(config-if)# channel-group 10

Router(config)# interface gi36/2
Router(config-if)# channel-group 10

Configuration on port 3
Router(config)# interface gi36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation  dot1q 40
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

                High Availability

                The multicast group tables are synchronized between the active and standby fabric cards. If an active fabric reloads, then the standby fabric card becomes active. Since, the multicast group tables are already synchronized, there is no traffic loss, unless the source or the receiver is not present on the card that reloaded.


                Note

                The IGMP snooping feature does not interact with REP.

                IGMP Statistics and Counters

                An entry in a counter contains multicasting statistical information for the IGMP snooping capable CPT system. The equivalent IOS command to retrieve statistical information is show ip igmp snooping counters.

                This information can be stored in the following counters:

                • Tx General Queries—Number of general queries transmitted through an interface.

                • Tx Group Specific Queries—Total group specific queries transmitted through an interface.

                • Tx Reports—Total membership reports transmitted through an interface.

                • Tx Leaves—Total leave messages transmitted through an interface.

                • Rx General Queries—Total general queries received at an interface.

                • Rx Group Specific Queries—Total group specific queries received at an interface.

                • Rx Reports—Total membership reports received at an interface.

                • Rx Leaves—Total leave messages received at an interface.

                • Rx Valid Packets—Total valid IGMP packets received at an interface.

                • Rx Invalid Packets—Total number of invalid IGMP packets that are received at an interface.

                The following example shows the statistical information using the show ip igmp snooping counters command.

                Router> show ip igmp snooping counters
                packet queue maximum size:               20000
packet queue current size:               0
packet queue peak size:                  0
packet queue drop count:                 0
----
Vlan   1
----

Counters of group "IGMP snooping  counters                           " overall there are 15   counters
 Type                                              | Value      | Ovr | Und
---------------------------------------------------+------------+-----+----
RX processed Query Count                           | 0          |     |
RX processed Group Specific Query                  | 0          |     |
RX processed Join                                  | 787120     |     |
RX processed Leave                                 | 0          |     |
RX processed Total Valid Packets                   | 782        |     |
RX processed Other Packets                         | 0          |     |
RX Packets dropped for sanity errors               | 0          |     |
RX Packets dropped for checksum errors             | 0          |     |
RX Packets dropped for header length errors        | 0          |     |
RX Packets dropped for other errors                | 0          |     |
RX processed Topology change notification          | 0          |     |
TX processed Query Count                           | 0          |     |
TX processed Group Specific Query                  | 0          |     |
TX processed Join                                  | 0          |     |
TX processed Leave                                 | 0          |     |

Counters of group "IGMP snooping  V3 counters                        " overall there are 18   counters
RX processed V3 AllOW NEW                          | 0          |     |
RX processed V3 BLOCK OLD                          | 0          |     |
 Type                                              | Value      | Ovr | Und
---------------------------------------------------+------------+-----+----
RX processed V3 MODE IS INCLUDE                    | 0          |     |
RX processed V3 MODE IS EXCLUDE                    | 0          |     |
RX processed V3 CHANGE TO INCLUDE                  | 0          |     |
RX processed V3 CHANGE TO EXCLUDE                  | 0          |     |
RX processed V3 Query                              | 782        |     |
RX processed V3 Group Specific Query               | 0          |     |
RX processed V3 GSS Query                          | 0          |     |
TX processed V3 ALLOW NEW                          | 0          |     |
TX processed V3 BLOCK OLD                          | 0          |     |
TX processed V3 MODE IS INCLUDE                    | 0          |     |
TX processed V3 MODE IS EXCLUDE                    | 0          |     |
TX processed V3 CHANGE TO INCLUDE                  | 0          |     |
TX processed V3 CHANGE TO EXCLUDE                  | 0          |     |
TX processed V3 Query                              | 0          |     |
TX processed V3 Group Specific Query               | 0          |     |
TX processed V3 GSS Query                          | 0          |     |

                Alarms

                The MCAST-MAC-TABLE-FULL condition is raised from IGMP snooping at the card level. The CPT system supports a maximum of 2000 multicast groups. The MCAST-MAC-TABLE-FULL condition is raised when the multicast table is full and a new join request is received. This table is cleared when at least one entry gets cleared from the multicast table after the alarm is raised.

                Configuring IGMP Snooping

                Configuring IGMP Snooping

                This chapter describes IGMP Snooping and procedures to configure IGMP Snooping.

                Understanding IGMP Snooping

                As networks increase in size, multicast routing becomes critically important as a means to determine which segments require multicast traffic and which do not. IP multicasting enables IP traffic to be propagated from one source to a number of destinations, or from many sources to many destinations. Rather than sending one packet to each destination, one packet is sent to the multicast group identified by a single IP destination group address.

                Internet Group Management Protocol (IGMP) snooping restricts flooding of multicast traffic by sending multicast traffic only to the interfaces that are subscribed to a particular multicast group.

                The Carrier Packet Transport (CPT) system can use IGMP snooping to constrain the flooding of multicast traffic by dynamically configuring Layer 2 interfaces so that multicast traffic is forwarded to only those interfaces associated with IP multicast devices. As the name implies, IGMP snooping requires the CPT system to snoop on the IGMP transmissions between the host and the router and to keep track of multicast groups and member ports. When the CPT system receives an IGMP report from a host for a particular multicast group, the CPT system adds the host port number to the forwarding table entry; when it receives an IGMP Leave Group message from a host, it removes the host port from the table entry. It also periodically deletes entries if it does not receive IGMP membership reports from the multicast clients.


                Note

                For more information on IP multicast and IGMP, see RFC 1112, RFC 2236, and RFC 3376.

                The CPT system forwards periodic general queries received from the multicast router in the bridge domain where IGMP snooping is enabled. All hosts interested in this multicast group send join requests and are added to the forwarding table entry. The CPT system creates one entry per bridge domain in the IGMP snooping IP multicast forwarding table for each group from which it receives an IGMP join request.

                The IP multicast groups learned through IGMP snooping are dynamic.

                If a port interface, EFP, and bridge domain state changes, the IGMP snooping-learned multicast groups from this port, EFP, and bridge domain in the bridge domain are deleted.

                IGMP Versions

                The CPT system supports IGMP version 1, IGMP version 2, and IGMP version 3 on a bridge domain level. The CPT system does snooping using L2 multicast address and not L3 IP address.


                Note
                The CPT system supports IGMPv3 snooping based only on the destination multicast MAC address and not on the the source IP address or on proxy reports.

                An IGMPv3 CPT system provides Basic IGMPv3 Snooping Support (BISS), which includes support for the snooping features on IGMPv1 and IGMPv2 switches and for IGMPv3 membership report messages. BISS constrains the flooding of multicast traffic when the network includes IGMPv3 hosts. It constrains traffic to approximately the same set of ports as the IGMP snooping feature on IGMPv1 or IGMPv2 hosts.

                Joining a Multicast Group

                When a host connected to the CPT system wants to join an IP multicast group and it is an IGMP version 2 or version 3 client, it sends an unsolicited IGMP join message, specifying the IP multicast group to join. Alternatively, when the CPT system receives a general query from the router, it forwards the query to all the EFPs in the bridge domain. IGMP hosts wanting to join the multicast group respond by sending a join message to the CPT system. The CPT system CPU creates a multicast forwarding-table entry for the group if it is not already present. The CPU also adds the interface where the join message was received to the forwarding-table entry. The host associated with that interface receives multicast traffic for that multicast group. See Figure 1.

                Figure 1. Initial IGMP Join Message

                Router A sends a general query to the CPT system, which forwards the query to ports 2 through 5, which have EFPs configured in the same bridge domain. Host 1 wants to join multicast group 224.1.2.3 and multicasts an IGMP membership report (IGMP join message) to the group. The CPT system CPU uses the information in the IGMP report to set up a forwarding-table entry as shown in Table 1, which includes the port numbers connected to Host 1 and the router.
                Table 1 IGMP Snooping Forwarding Table
                Destination Address Type of Packet Ports
                224.1.2.3 IGMP 1, 2

                The CPT system hardware can distinguish IGMP information packets from other packets for the multicast group. The information in the table enables the switching engine to send frames addressed to the 224.1.2.3 multicast IP address, which are not IGMP packets, to the router and to the host that has joined the group.

                If another host (for example, Host 4) sends an unsolicited IGMP join message for the same group (Figure 2) the CPU receives that message and adds the port number of Host 4 to the forwarding table as shown in Table 2. Note that because the forwarding table directs IGMP messages only to the CPU, the message is not flooded to other ports on the CPT system. Any known multicast traffic is forwarded to the group and not to the CPU.
                Figure 2. Second Host Joining a Multicast Group

                Table 2 Updated IGMP Snooping Forwarding Table
                Destination Address Type of Packet Ports
                224.1.2.3 IGMP 1, 2, 5

                IGMP Snooping Configuration Guidelines and Restrictions

                • On a CPT system, IGMP snooping can be configured at the bridge domain level.

                • IGMP immediate-leave and IGMP report-suppression commands can be configured at the bridge domain level.

                • Static multicast router can be configured at the EFP level.

                • It is mandatory to untag the packets before they enter the bridge domain. This is achieved using the rewrite pop configuration at the EFP level.

                • Following configuration restrictions are applicable while configuring the IGMP snooping on the CPT system:

                  • For a single tagged packet, the tag is removed using the rewrite ingress tag pop 1 symmetric command at the EFP level.

                  • For a double tagged packet, the tag is removed using the rewrite ingress tag pop 2 symmetric command at the EFP level.

                  • For an untagged packet, a rewrite operation is not required.

                NTP-J64 Configuring IGMP Snooping Using Cisco IOS Commands

                Purpose This procedure configures IGMP snooping using Cisco IOS commands.
                Tools/Equipment None
                Prerequisite Procedures None
                Required/As Needed As needed
                Onsite/Remote Remote
                Security Level None
                Procedure
                  Step 1   Complete DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands.
                  Step 2   Complete the following tasks as necessary:
                  Step 3   (Optional) Complete the DLP-J230 Viewing IGMP Configuration Using Cisco IOS Commands.

                  Stop. You have completed this procedure.

                  DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands

                  Purpose This procedure enables or disables IGMP snooping using Cisco IOS commands.
                  Tools/Equipment None
                  Prerequisite Procedures None
                  Required/As Needed As needed
                  Onsite/Remote Remote
                  Security Level None
                  Procedure
                     Command or ActionPurpose
                    Step 1enable


                    Example:Router> enable

                    Enables privileged EXEC mode.

                    • Enter your password if prompted.


                    Step 2configure terminal


                    Example:Router# configure terminal

                    Enters global configuration mode.


                    Step 3bridge domain bridge-domain value


                    Example:Router(config)# bridge-domain 22
                    Enters the bridge-domain.

                    • Enter the value of the bridge-domain.


                    Step 4 [no] ip igmp snooping


                    Example:Router(config-bdomain)# ip igmp snooping

                    Enables IGMP snooping on the bridge-domain. The no form of the command disables IGMP snooping.


                    Step 5end

                    Example:Router(config-bdomain)# end

                    Returns to the privileged EXEC mode.


                    Step 6copy running-config startup-config


                    Example:copy running-config startup-config

                    (Optional) Saves your entries in the configuration file.



                    Examples:

                    The following example shows how to enable IGMP snooping on untagged Ethernet traffic on the bridge domain and how to configure the source and host ports:

                    ! Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

! Configuration on port 1
Router(config)# interface gi 36/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation untagged
Router(config-if-srv)# bridge-domain 30

! Configuration on port 2
Router(config)# interface gi 36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation untagged
Router(config-if-srv)# bridge-domain 30

! Configuration on port 3
Router(config)# interface gi 36/10
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation untagged
Router(config-if-srv)# bridge-domain

                    The following example shows how to enable IGMP snooping on single and double tagged Ethernet traffic on the bridge domain and how to configure the source and host ports:

                    ! Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

! Configuration on port 1
Router(config)# interface gi 36/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 50 second-dot1q 10
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 2
Router(config)# interface gi 36/2
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 200
Router(config-if-srv)# rewrite ingress pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 3
Router(config)# interface gi 36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 100
Router(config-if-srv)# rewrite ingress pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

                    The following example shows how to enable IGMP snooping on double tagged Ethernet traffic on the bridge domain and how to configure the source and host ports::


! Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

! Configuration on port 1
Router(config)# interface gi 36/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10 second-dot1q 20
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 2
Router(config)# interface gi 36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 100 second-dot1q 20
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

! Configuration on port 3
Router(config)# interface gi 36/6
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 101 second-dot1q 20
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

                    Leaving a Multicast Group

                    The router sends periodic multicast general queries, and the CPT system forwards these queries through all ports in the bridge domain. Interested hosts respond to the queries. If at least one host in the bridge domain wants to receive multicast traffic, the router continues forwarding the multicast traffic to the bridge domain. The CPT system forwards multicast group traffic only to those hosts listed in the forwarding table for that IP multicast group maintained by IGMP snooping.

                    When hosts want to leave a multicast group, they can leave without sending a message, or they can send a leave message. When the CPT system receives a leave message from a host, it sends a group-specific query to learn if any other devices connected to that interface are interested in traffic for the specific multicast group. The CPT system then updates the forwarding table for that MAC group so that only those hosts interested in receiving multicast traffic for the group are listed in the forwarding table. If the router receives no reports from a bridge domain, it removes the group for the bridge domain from its IGMP cache.

                    Immediate Leave

                    The Immediate Leave feature is only supported on IGMP version 2 hosts. The CPT system uses IGMP Snooping Immediate Leave feature to remove an interface from the forwarding table, which sends a leave message without the CPT system sending group-specific queries to the interface. The VLAN interface is pruned from the multicast tree for the multicast group specified in the original leave message. The Immediate Leave feature ensures optimal bandwidth management for all hosts on a switched network, even when multiple multicast groups are simultaneously in use.


                    Note

                    You should only use the Immediate Leave feature on bridge domains where a single host is connected to each port. If this feature is enabled on bridge domains where more than one host is connected to a port, some hosts might get dropped.

                    DLP-J218 Enabling or Disabling IGMP Immediate Leave Using Cisco IOS Commands

                    When you enable the IGMP Immediate Leave feature, the CPT system immediately removes a port when it detects an IGMP version 2 leave message on that port. You should use the Immediate Leave feature only when there is a single receiver present on every port in the bridge domain.


                    Note

                    The Immediate Leave feature is supported only on IGMP version 2 hosts.

                    Purpose This procedure enables or disables IGMP Immediate Leave feature using Cisco IOS commands.
                    Tools/Equipment None
                    Prerequisite Procedures DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands
                    Required/As Needed As needed
                    Onsite/Remote Remote
                    Security Level None
                    Procedure
                       Command or ActionPurpose
                      Step 1enable


                      Example:Router> enable

                      Enables privileged EXEC mode.

                      • Enter your password if prompted.


                      Step 2configure terminal


                      Example:Router# configure terminal

                      Enters global configuration mode.


                      Step 3bridge domain bridge-domain value


                      Example:Router(config)# bridge-domain 22
                      Enters the bridge domain configuration mode.

                      • Enter the value of the bridge-domain.


                      Step 4[no] ip igmp snooping immediate-leave


                      Example:Router(config-bdomain)# ip igmp snooping immediate-leave

                      Enables the IGMP Immediate Leave feature on the bridge domain. The no form of the command disables IGMP snooping immediate-leave.


                      Step 5end

                      Example:Router(config-bdomain)# end

                      Returns to the privileged EXEC mode.


                      Step 6copy running-config startup-config


                      Example:copy running-config startup-config

                      (Optional) Saves your entries in the configuration file.



                      Examples:

                      To disable the IGMP Immediate Leave feature on a bridge domain, use the no ip igmp snooping immediate-leave global configuration command.

                      The following example shows how to enable IGMP Immediate Leave feature for bridge-domain130:

                      Router# configure terminal
Router(config)# bridge-domain 130
Router(config-bdomain)# ip igmp snooping immediate-leave
Router(config-bdomain)# end

                      IGMP Report Suppression


                      Note

                      IGMP report suppression is supported only when the multicast query has IGMPv1 and IGMPv2 reports. This feature is not supported when the query includes IGMPv3 reports.

                      The CPT system uses IGMP report suppression to forward only one IGMP report per multicast router query, to multicast devices. When IGMP router suppression is enabled (the default), the CPT system sends the first IGMP report from all hosts for a group, to all the multicast routers. The CPT system does not send the remaining IGMP reports for the group to the multicast routers. This feature prevents duplicate reports from being sent to the multicast devices.

                      If the multicast router query includes requests only for IGMPv1 and IGMPv2 reports, the CPT system forwards only the first IGMPv1 or IGMPv2 report from all hosts for a group to all the multicast routers.

                      If the multicast router query also includes requests for IGMPv3 reports, the CPT system forwards all IGMPv1, IGMPv2, and IGMPv3 reports for a group to the multicast devices.

                      If you disable IGMP report suppression, all IGMP reports are forwarded to the multicast routers.

                      DLP-J219 Disabling IGMP Report Suppression Using Cisco IOS Commands


                      Note

                      IGMP report suppression is supported only when the multicast query has IGMPv1 and IGMPv2 reports. This feature is not supported when the query includes IGMPv3 reports.

                      IGMP report suppression is enabled by default. When it is enabled, the CPT system forwards only one IGMP report per multicast router query. When report suppression is disabled, all IGMP reports are forwarded to the multicast routers. To re-enable IGMP report suppression, use the ip igmp snooping report-suppression command in the bridge domain configuration mode.

                      Purpose This procedure disables IGMP report suppression using Cisco IOS commands.
                      Tools/Equipment None
                      Prerequisite Procedures DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands
                      Required/As Needed As needed
                      Onsite/Remote Remote
                      Security Level None
                      Procedure
                         Command or ActionPurpose
                        Step 1enable


                        Example:Router> enable

                        Enables privileged EXEC mode.

                        • Enter your password if prompted.


                        Step 2configure terminal


                        Example:Router# configure terminal

                        Enters global configuration mode.


                        Step 3bridge domain bridge-domain value


                        Example:Router(config)# bridge-domain 22
                        Enters the bridge domain configuration mode.

                        • Enter the value of the bridge domain.


                        Step 4 no ip igmp snooping report-suppression


                        Example:Router(config-bdomain)# no ip igmp snooping report-suppression

                        Disables IGMP report suppression.


                        Step 5end

                        Example:Router(config-bdomain)# end

                        Returns to the privileged EXEC mode.


                        Step 6copy running-config startup-config


                        Example:copy running-config startup-config

                        (Optional) Saves your entries in the configuration file.



                        Examples:

                        The following example shows how to re-enable IGMP report suppression for bridge-domain 130:

                        Router# configure terminal
Router(config-bdomain)# bridge-domain 130
Router(config-bdomain)# ip igmp snooping report-suppression
Router(config-bdomain)# end

                        DLP-J220 Configuring a Static Multicast Router Port Using Cisco IOS Commands

                        To add a static connection to a multicast router port, use the ip igmp snooping mrouter EFP configuration command on the CPT system. To remove a static multicast router port from the bridge domain, use the no ip igmp snooping mrouter configuration command.


                        Note

                        Static connections to multicast routers are supported only at the EFP.

                        Purpose This procedure enables a static connection to a multicast router using Cisco IOS commands.
                        Tools/Equipment None
                        Prerequisite Procedures DLP-J217 Enabling or Disabling IGMP Snooping Using Cisco IOS Commands
                        Required/As Needed As needed
                        Onsite/Remote Remote
                        Security Level None
                        Procedure
                           Command or ActionPurpose
                          Step 1enable


                          Example:Router> enable

                          Enables privileged EXEC mode.

                          • Enter your password if prompted.


                          Step 2configure terminal


                          Example:Router# configure terminal

                          Enters global configuration mode.


                          Step 3interface type number


                          Example:Router(config)# interface TengigabitEthernet 4/1
                          Specifies the type and location of the interface to configure, where:

                          • type—Specifies the type of interface.

                          • number—Specifies the location of the interface.

                          The interface can be a physical interface or a port channel. The port-channel range is 1 to 128.


                          Step 4service instance id ethernet


                          Example:Router(config-if)# service instance 10 ethernet

                          Configures an Ethernet service instance on an interface.


                          Step 5encapsulation dot1q id


                          Example:Router(config-if)# encapsulation dot1q 10

                          Defines the encapsulation format as IEEE 802.1Q (dot1q) and specifies the identifier. The identifier indicates the CVLAN with which the packet is received on the interface.

                          • Enter the value of the identifier.


                          Step 6rewrite ingress tag pop 1 symmetric


                          Example:Router(config-if-srv)# rewrite ingress tag pop 1 symmetric

                          Specifies the rewrite operation.


                          Step 7bridge domain bridge-domain value


                          Example:Router(config-if-srv)# bridge-domain 22
                          Specifies the multicast router bridge domain ID. The bridge domain ID range is from 1 to 16384

                          • Enter the value of the bridge domain.


                          Step 8[no] ip igmp snooping mrouter


                          Example:Router(config-if-srv)# ip igmp snooping mrouter

                          Adds a static connection to the multicast router. The no form of the command removes the static multicast router port from the bridge domain.


                          Step 9end

                          Example:Router(config-if-srv)# end

                          Returns to the privileged EXEC mode.



                          Examples:

                          The following example shows how to enable a static connection to a multicast router:

                          Router(config)# interface TenGigabitEthernet4/2
Router(config-if)# service instance 20 ethernet
Router(config-if-srv)# encapsulation dot1q 10
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 20
Router(config-if-srv)# ip igmp snooping mrouter

                          The following example shows how to disable a static connection to a multicast router:

                          Router(config)# interface TenGigabitEthernet4/2
Router(config-if)# service instance 20 ethernet
Router(config-if-srv)# no ip igmp snooping mrouter


                          Note

                          To add a static multicast router port to the EFP using CTC, see Step 6.e of NTP-J68 Configuring IGMP Snooping Using CTC.

                          DLP-J230 Viewing IGMP Configuration Using Cisco IOS Commands

                          Purpose This procedure explains how to view IGMP configuration using Cisco IOS commands.
                          Tools/Equipment None
                          Prerequisite Procedures None
                          Required/As Needed As needed
                          Onsite/Remote Remote
                          Security Level None
                          Procedure
                             Command or ActionPurpose
                            Step 1enable


                            Example:Router> enable

                            Enables privileged EXEC mode.

                            • Enter your password if prompted.


                            Step 2show ip igmp snooping [groups [count | vlan bridge-domain ID [ ip-address | count |dynamic [count] | user [count] ]]] | mrouter [vlan bridge-domain ID] querier | vlan bridge-domain ID]


                            Example:Router# show ip igmp snooping                              		Displays the IGMP snooping information.

                            • groups—(Optional) Displays group information.

                            • count—(Optional) Displays the number of multicast groups learned by IGMP snooping.

                            • vlan bridge-domain ID—(Optional) Specifies a bridge domain.

                              • bridge-domain ID— Bridge domain ID. Valid values are from 1 to 16384.

                            • ip-address—(Optional) Displays information about the specified group.

                            • count—(Optional) Displays the group count inside a bridge domain.

                            • dynamic—(Optional) Displays dynamic entries learned through IGMP snooping.

                            • count—(Optional) Displays the number of dynamic entries.

                            • user—(Optional) Displays only the user-configured multicast entries.

                            • count—(Optional) Displays the number of user-configured multicast entries.

                            • mrouter—(Optional) Displays information about dynamically learned and manually configured multicast router ports.

                            • querier—(Optional) Displays IGMP querier information.


                            Step 3show ip igmp snooping querier [vlan bridge-domain ID ] [detail]


                            Example:Router# show ip igmp snooping querier
                            Displays information about the IP address and the receiving port for the recently received IGMP query messages.

                            • vlan bridge-domain ID —(Optional) Specifies a bridge domain.

                              • bridge-domain ID— Bridge domain ID. Valid values are from 1 to 16384.

                              • detail—Specifies the configuration and operational state of the IGMP snooping querier in the bridge domain.



                            Examples

                            The following example displays the output of the show ip igmp snooping [vlan bridge-domain ID ] command.

                            Router# show ip igmp sn vlan 2
                            Global IGMP Snooping configuration:
-------------------------------------------
IGMP snooping Oper State     : Enabled
IGMPv3 snooping (minimal)    : Enabled
Report suppression           : Enabled
TCN solicit query            : Disabled
Robustness variable          : 2
Last member query count      : 2
Last member query interval   : 1000
Check TTL=1                  : No
Check Router-Alert-Option    : No

Vlan 2
-----------------------
IGMP snooping Admin State           : Enabled
IGMP snooping Oper State            : Enabled
IGMPv2 immediate leave              : Disabled
Report suppression                  : Enabled
Robustness variable                 : 2
Last member query count             : 2
Last member query interval          : 1000
Check TTL=1                         : Yes
Check Router-Alert-Option           : Yes
Query Interval                      : 0
Max Response Time                   : 10000

                            The following example displays the output of the show ip igmp snooping groups command.

                            Router# show ip igmp snooping groups
                            Flags: I -- IGMP snooping, S -- Static, P -- PIM snooping, A -- ASM mode

Vlan      Group/source             Type        Version     Port List
-----------------------------------------------------------------------
2         224.1.1.1                I           v2          Te7/4 Te5/2 Gi41/1 Gi41/44 Gi51/1 Gi51/44 Te4/2

                            The following example displays the output of the show ip igmp snooping groups vlan command.

                            Router# show ip igmp snooping groups vlan 2
                            Flags: I -- IGMP snooping, S -- Static, P -- PIM snooping, A -- ASM mode

Vlan      Group/source             Type        Version     Port List
-----------------------------------------------------------------------
2         224.1.1.1                I           v2          Te7/4 Te5/2 Gi41/1 Gi41/44 Gi51/1 Gi51/44 Te4/2

                            The following example displays the output of the show ip igmp snooping groups vlan bridge-domain ID [ip_address] command.

                            Router# show ip igmp snooping groups vlan 2 224.1.1.1
                            Flags: I -- IGMP snooping, S -- Static, P -- PIM snooping, A -- ASM mode

Vlan      Group/source             Type        Version     Port List
-----------------------------------------------------------------------
2         224.1.1.1                I           v2          Te7/4 Te5/2 Gi41/1 Gi41/44 Gi51/1 Gi51/44 Te4/2

                            The following example displays the output of the show ip igmp snooping mrouter command.

                            Router# show ip igmp snooping mrouter
                            Vlan    ports
----    -----
   2    Te4/4(dynamic)

                            The following example displays the output of the show ip igmp snooping mrouter vlan 2 command.

                            Router# show ip igmp snooping mrouter
                            Vlan    ports
----    -----
   2    Te4/4(dynamic)

                            The following example shows the output of the show ip igmp snooping querier command.

                            Router# show ip igmp snooping querier
                            Vlan      IP Address               IGMP Version   Port
-------------------------------------------------------------
2         10.10.10.1               v2            Te4/4

                            The following example shows the output of the show ip igmp snooping querier [vlan bridge-domain ID ] command.

                            Router# show ip igmp snooping querier vlan 2
                            IP address               : 10.10.10.1
IGMP version             : v2
Port                     : Te4/4
Max response time        : 10s

                            NTP-J68 Configuring IGMP Snooping Using CTC

                            Purpose This procedure explains how to configure IGMP Snooping, Immediate Leave, Report Suppression, and IGMP Static Router Port using CTC.
                            Tools/Equipment None
                            Prerequisite Procedures Create an Ethernet Virtual Private LAN EVC circuit with the following conditions:

                            • Type of VLAN Tagging:

                              • Double Tagged

                              • Single Tagged

                              • Untagged

                            • Rewrite Operation:

                              • POP 1 for Single Tagged

                              • POP 2 for Double Tagged

                              • N/A for Untagged

                            To create an EVC circuit, see DLP-J2 Create an EVC Circuit Using CTC.
                            Required/As Needed As needed
                            Onsite/Remote Remote
                            Security Level None
                            Procedure
                              Step 1   Complete the NTP-J22 Log into CTC procedure at a node where you want to configure IGMP snooping.
                              Step 2   In node view, click the Layer2+ tab.
                              Step 3   Click Carrier Ethernet.
                              Step 4   From the list of Ethernet Virtual Circuits (EVCs), select an Ethernet Virtual Private LAN EVC circuit to configure IGMP snooping.
                              Step 5   Click Edit. The Edit Circuit dialog box appears.
                              Step 6   In the IGMP Snooping tab, specify the settings for the bridge domain.
                              1. Select a bridge domain from the list.
                              2. Check the IGMP Snooping check box to enable IGMP snooping on this bridge domain.
                              3. Check the Immediate Leave check box. When you enable IGMP immediate leave, IGMP snooping immediately removes a port when it detects a leave message on that port.
                              4. Check the Report Suppression check box. When you enable report suppression, the bridge domain forwards only one IGMP report for each multicast query.
                              5. Check the IGMP Static Router Port check box to add a static router to the EFP.
                                Note

                                To disable IGMP Snooping, Immediate Leave, Report Suppression, or IGMP Static Router Port, uncheck the checkbox against each one of them.

                              6. Click Apply.
                              Step 7   To view the IGMP configuration, refer to the procedure explained in DLP-J56 Open the Cisco IOS Configuration Mode and View the Feature Configuration Details Using CTC.

                              IGMP Proxy Reporting

                              IGMP supports proxy reporting for IGMPv1 and IGMPv2 messages to handle group-specific queries. These queries are not sent downstream, but the CPT system does respond to them directly. When the CPT system receives a group-specific query, the CPT system terminates the query and sends an IGMP proxy report if there is a receiver for the group. There is no proxy reporting for IGMPv3 messages. For IGMPv3, a group-specific query or a group source-specific query is flooded to all VLAN member ports. The database for the IGMPv3 membership report is built based on the reports received.

                              Host reports responding to a specific query can be suppressed by the report suppression feature. Report suppression is supported for IGMPv1, IGMPv2 and IGMPv3 messages. With report suppression enabled (by default), when the CPT system receives a general query, the CPT system starts a suppression cycle for reports from all hosts to each group or channel. Only the first report to the discovered multicast routers are forwarded; the rest of the reports are suppressed. For IGMPv1 and IGMPv2, the time of suppression is the report response time indicated in the general query message. For IGMPv3, suppression occurs for the entire general query interval.

                              Note
                              • Source-based filtering for IGMP version 3 reports is not supported in hardware. The states are maintained only in software and used for explicit host tracking and statistics collection. The source-only entries are deleted every 5 minutes and relearned to ensure that they are still valid.
                              • Turning off explicit host tracking disables fast-leave processing and proxy reporting.

                              L2 Address Aliasing Issue

                              The IGMP snooping forwarding table is based on L2 address. Since multiple IP addresses can map to the same L2 address, an L2 address aliasing can occur. For example, IP addresses 225.1.1.1 and 226.1.1.1 map to the same MAC address 01005E010101 which results in L2 address aliasing.

                              IGMP Snooping Interaction with LAG

                              A link aggregation (LAG) interface can be added to a bridge domain, which has IGMP snooping enabled.

                              The following example shows how to configure the source port, which is part of the LAG interface that is a member of the bridge domain that has IGMP snooping enabled.

                              Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

Configuration on port 1
Router(config)# interface  port-channel 10
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30
Router(config)# interface ten 6/1
Router(config-if)# channel-group 10
Router(config)# interface ten 6/2
Router(config-if)# channel-group 10

Configuration port 2
Router(config)# interface gi36/2
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 20 second-dot1q 30
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

Configuration on port 3
Router(config)# interface gi36/3
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation  dot1q 40
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

                              The following example shows how to configure the receiver port, which is part of the LAG interface that is a member of the bridge domain that has IGMP snooping enabled.

                              Configuration on the bridge-domain
Router(config)# bridge-domain 30
Router(config-bdomain)# ip igmp snooping

Configuration on port 1
Router(config)# interface ten 6/1
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10 second-dot1q 30
Router(config-if-srv)# rewrite ingress pop 2 symmetric
Router(config-if-srv)# bridge-domain 30

Configuration port 2
Router(config)# interface port-channel 10
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation dot1q 10
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

Router(config)# interface gi36/1
Router(config-if)# channel-group 10

Router(config)# interface gi36/2
Router(config-if)# channel-group 10

Configuration on port 3
Router(config)# interface gi36/5
Router(config-if)# service instance 10 ethernet
Router(config-if-srv)# encapsulation  dot1q 40
Router(config-if-srv)# rewrite ingress tag pop 1 symmetric
Router(config-if-srv)# bridge-domain 30

                              High Availability

                              The multicast group tables are synchronized between the active and standby fabric cards. If an active fabric reloads, then the standby fabric card becomes active. Since, the multicast group tables are already synchronized, there is no traffic loss, unless the source or the receiver is not present on the card that reloaded.


                              Note

                              The IGMP snooping feature does not interact with REP.

                              IGMP Statistics and Counters

                              An entry in a counter contains multicasting statistical information for the IGMP snooping capable CPT system. The equivalent IOS command to retrieve statistical information is show ip igmp snooping counters.

                              This information can be stored in the following counters:

                              • Tx General Queries—Number of general queries transmitted through an interface.

                              • Tx Group Specific Queries—Total group specific queries transmitted through an interface.

                              • Tx Reports—Total membership reports transmitted through an interface.

                              • Tx Leaves—Total leave messages transmitted through an interface.

                              • Rx General Queries—Total general queries received at an interface.

                              • Rx Group Specific Queries—Total group specific queries received at an interface.

                              • Rx Reports—Total membership reports received at an interface.

                              • Rx Leaves—Total leave messages received at an interface.

                              • Rx Valid Packets—Total valid IGMP packets received at an interface.

                              • Rx Invalid Packets—Total number of invalid IGMP packets that are received at an interface.

                              The following example shows the statistical information using the show ip igmp snooping counters command.

                              Router> show ip igmp snooping counters
                              packet queue maximum size:               20000
packet queue current size:               0
packet queue peak size:                  0
packet queue drop count:                 0
----
Vlan   1
----

Counters of group "IGMP snooping  counters                           " overall there are 15   counters
 Type                                              | Value      | Ovr | Und
---------------------------------------------------+------------+-----+----
RX processed Query Count                           | 0          |     |
RX processed Group Specific Query                  | 0          |     |
RX processed Join                                  | 787120     |     |
RX processed Leave                                 | 0          |     |
RX processed Total Valid Packets                   | 782        |     |
RX processed Other Packets                         | 0          |     |
RX Packets dropped for sanity errors               | 0          |     |
RX Packets dropped for checksum errors             | 0          |     |
RX Packets dropped for header length errors        | 0          |     |
RX Packets dropped for other errors                | 0          |     |
RX processed Topology change notification          | 0          |     |
TX processed Query Count                           | 0          |     |
TX processed Group Specific Query                  | 0          |     |
TX processed Join                                  | 0          |     |
TX processed Leave                                 | 0          |     |

Counters of group "IGMP snooping  V3 counters                        " overall there are 18   counters
RX processed V3 AllOW NEW                          | 0          |     |
RX processed V3 BLOCK OLD                          | 0          |     |
 Type                                              | Value      | Ovr | Und
---------------------------------------------------+------------+-----+----
RX processed V3 MODE IS INCLUDE                    | 0          |     |
RX processed V3 MODE IS EXCLUDE                    | 0          |     |
RX processed V3 CHANGE TO INCLUDE                  | 0          |     |
RX processed V3 CHANGE TO EXCLUDE                  | 0          |     |
RX processed V3 Query                              | 782        |     |
RX processed V3 Group Specific Query               | 0          |     |
RX processed V3 GSS Query                          | 0          |     |
TX processed V3 ALLOW NEW                          | 0          |     |
TX processed V3 BLOCK OLD                          | 0          |     |
TX processed V3 MODE IS INCLUDE                    | 0          |     |
TX processed V3 MODE IS EXCLUDE                    | 0          |     |
TX processed V3 CHANGE TO INCLUDE                  | 0          |     |
TX processed V3 CHANGE TO EXCLUDE                  | 0          |     |
TX processed V3 Query                              | 0          |     |
TX processed V3 Group Specific Query               | 0          |     |
TX processed V3 GSS Query                          | 0          |     |

                              Alarms

                              The MCAST-MAC-TABLE-FULL condition is raised from IGMP snooping at the card level. The CPT system supports a maximum of 2000 multicast groups. The MCAST-MAC-TABLE-FULL condition is raised when the multicast table is full and a new join request is received. This table is cleared when at least one entry gets cleared from the multicast table after the alarm is raised.
