MPLS VPN - Interautonomous System Support

Contents

MPLS VPN - Interautonomous System Support

Last Updated: October 9, 2012

An autonomous system is a single network or group of networks that is controlled by a common system administration group and that uses a single, clearly defined routing protocol. The MPLS VPN - Interautonomous System Support feature allows an Multiprotocol Label Switching (MPLS) Virtual Private Network (VPN) to span service providers and autonomous systems.

This document explains how to enable Autonomous System Boundary Routers (ASBRs) to use exterior Border Gateway Protocol (eBGP) to exchange IPv4 Network Layer Reachability Information (NLRI) in the form of VPN-IPv4 addresses.

As VPNs grow, their requirements expand. In some cases, VPNs need to reside on different autonomous systems in different geographic areas. Also, some VPNs need to extend across multiple service providers (overlapping VPNs). Regardless of the complexity and location of the VPNs, the connection between autonomous systems must be seamless to the customer. The MPLS VPN - Interautonomous System Support feature provides this functionality.

Finding Feature Information in This Module

Your Cisco IOS software release may not support all of the features documented in this module. To reach links to specific feature documentation in this module and to see a list of the releases in which each feature is supported, use the Feature Information for MPLS VPN - Interautonomous System Support.

Finding Support Information for Platforms and Cisco IOS and Catalyst OS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn . An account on Cisco.com is not required.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Prerequisites for MPLS VPN - Interautonomous System Support

Before you configure eBGP routing between autonomous systems or subautonomous systems in an MPLS VPN, ensure that you have properly configured all MPLS VPN routing instances and sessions. The configuration tasks outlined in the How to Configure MPLS VPN - Interautonomous System Support build from those configuration tasks.

Perform (as appropriate to the existing network configuration) the following tasks as described in the the Configuring MPLS VPNs feature module.

  • Define VPN routing instances
  • Configure BGP routing sessions in the service provider (P) network
  • Configure provider edge (PE) to PE routing sessions in the service provider (P) network
  • Configure BGP PE to customer edge (CE) routing sessions

A VPN-IPv4 eBGP session must be configured between directly connected ASBRs.

This feature is supported on the Cisco IOS 12000 series line cards listed in the table below.

Table 1 Cisco I2000 Series Line Card Support Added for Cisco IOS Releases

Type

Line Cards

Cisco IOS Release Added

Packet over SONET (POS)

4-Port OC-3 POS

1-Port OC-12 POS

8-Port OC-3 POS

16-Port OC-3 POS

4-Port OC-12 POS

1-Port OC-48 POS

4-Port OC-3 POS ISE

8-Port OC-3 POS ISE

16-Port OC-3 POS ISE

4-Port OC-12 POS ISE

1-Port OC-48 POS ISE

12.0(16)ST

12.0(17)ST

12.0(22)S

Electrical Interface

6-Port DS3

12-Port DS3

6-Port E3

12-Port E3

12.0(21ST

12.0(22)S

Ethernet

3-Port GbE

1-Port 10-GbE Modular GbE/FE

12.0(23)S

12.0(24)S

ATM

4-Port OC-3 ATM

1-Port OC12 ATM

4-Port OC-12 ATM

8-Port OC-3 ATM

12.0(16)ST

12.0(17)ST

12.0(23)S

Channelized Interface

2-Port CHOC-3

6-Port Ch T3 (DS1)

1-Port CHOC-12 (DS3)

1-Port CHOC-12 (OC-3)

4-Port CHOC-12 ISE

1-Port CHOC-48 ISE

12.0(22)S

Restrictions for MPLS VPN - Interautonomous System Support

Note the following restrictions to the MPLS VPN - Interautonomous System Support feature:

  • A VPN-IPv4 eBGP session must be configured between directly connected ASBRs.
  • For networks configured with eBGP multihop, a label switched path (LSP) must be established between nonadjacent routers (RFC 3107).
  • PPP encapsulation on the ASBRs is not supported with this feature.

Information About MPLS VPN - Interautonomous System Support

MPLS VPN Interautonomous System Benefits

An MPLS VPN Inter-AS provides the following benefits:

  • Allows a VPN to cross more than one service provider backbone--Service providers running separate autonomous systems can jointly offer MPLS VPN services to the same end customer. A VPN can begin at one customer site and traverse different VPN service provider backbones before arriving at another site of the same customer. Before the release of this feature, MPLS VPN could only traverse a single BGP autonomous system service provider backbone. The MPLS VPN - Interautonomous System Support feature allows multiple autonomous systems to form a continuous (and seamless) network between customer sites of a service provider.
  • Allows a VPN to exist in different areas--A service provider can create a VPN in different geographic areas. Having all VPN traffic flow through one point (between the areas) allows for better rate control of network traffic between the areas.
  • Allows confederations to optimize internal Border Gateway Protocol (iBGP) meshing--iBGP meshing in an autonomous system is more organized and manageable. You can divide an autonomous system into multiple, separate subautonomous systems and then classify them into a single confederation (even though the entire VPN backbone appears as a single autonomous system). This capability allows a service provider to offer MPLS VPNs across the confederation because it supports the exchange of labeled VPN-IPv4 NLRI between the subautonomous systems that form the confederation.

Interautonomous System Communication with ASBRs

Separate autonomous systems from different service providers can communicate by exchanging IPv4 NLRI in the form of VPN-IPv4 addresses. The ASBRs use eBGP to exchange that information. Then an Interior Gateway Protocol (IGP) distributes the network layer information for VPN-IPv4 prefixes throughout each VPN and each autonomous system. Routing information uses the following protocols:

  • Within an autonomous system, routing information is shared using an IGP.
  • Between autonomous systems, routing information is shared using an eBGP. An eBGP allows a service provider to set up an interdomain routing system that guarantees the loop-free exchange of routing information between separate autonomous systems.

The primary function of an eBGP is to exchange network reachability information between autonomous systems, including information about the list of autonomous system routes. The autonomous systems use EGBP border edge routers to distribute the routes, which include label switching information. Each border edge router rewrites the next hop and MPLS labels. See the How Information Is Exchanged in an MPLS VPN Inter-AS with ASBRs section for more information.

Interautonomous System Configurations Supported in an MPLS VPN

Interautonomous system configurations supported in an MPLS VPN can include:

  • Interprovider VPN--MPLS VPNs that include two or more autonomous systems, connected by separate border edge routers. The autonomous systems exchange routes using eBGP. No IGP or routing information is exchanged between the autonomous systems.
  • BGP confederations--MPLS VPNs that divide a single autonomous system into multiple subautonomous systems, and classify them as a single, designated confederation. The network recognizes the confederation as a single autonomous system. The peers in the different autonomous systems communicate over eBGP sessions; however, they can exchange route information as if they were iBGP peers.

How Information Is Exchanged in an MPLS VPN Inter-AS with ASBRs

This section contains the following topics about how information is exchanged in an MPLS VPN Inter-AS with ASBRs exchanging VPN-IPv4 addresses:

Information Sent in an MPLS VPN Inter-AS with ASBRs

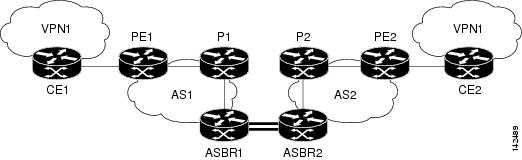

The figure below illustrates one MPLS VPN consisting of two separate autonomous systems. Each autonomous system operates under different administrative control and runs a different IGP. Service providers exchange routing information through eBGP border edge routers (ASBR1, ASBR2).

Figure 1 eBGP Connection Between Two MPLS VPN Interautonomous Systems with ASBRs Exchanging VPN-IPv4 Addresses


The table below describes the process to transmit information in an Inter-As configuration with ASBRs exchanging VPN-IPv4 addresses.

Table 2 Information Transmission Process in an Inter-AS with ASBRs Exchanging VPN-IPv4 AddressesMPLS VPN - Interautonomous System Support

Inter-AS Component

Process Competed During Information Transmission

Provider edge router: PE-1

Assigns a label for a route before distributing that route.

The PE router uses the multiprotocol extensions of BGP to transmit label mapping information. The PE router distributes the route as a VPN-IPv4 address. The address label and the VPN identifier are encoded as part of the NLRI.

Route reflectors: RR-1 and RR-2

Reflects VPN-IPv4 internal routes within the autonomous system. The autonomous systems' border edge routers (ASBR1 and ASBR2) advertise the VPN-IPv4 external routes.

eBGP border edge router: ASBR1

Redistributes the route to the next autonomous system (ASBR2).

ASBR1 specifies its own address as the value of the eBGP next-hop attribute and assigns a new label. The address ensures the following:

  • That the next-hop router is always reachable in the service provider (P) backbone network.
  • That the label assigned by the distributing router is properly interpreted. (The label associated with a route must be assigned by the corresponding next-hop router.)

eBGP border edge router: ASBR2

Redistributes the route in one of the following ways, depending on its configuration:

  • If the iBGP neighbors are configured with the neighbor next-hop-self command, ASBR2 changes the next-hop address of updates received from the eBGP peer, then forwards it.
  • If the iBGP neighbors are not configured with the neighbor next-hop-self command, the next-hop address does not get changed. ASBR2 must propagate a host route for the eBGP peer through the IGP. To propagate the eBGP VPN-IPv4 neighbor host route, use the redistribute connected subnets command. The eBGP VPN-IPv4 neighbor host route is automatically installed in the routing table when the neighbor comes up. This is essential to establish the label-switched path between PE routers in different autonomous systems

VPN Routing Information Exchange in an MPLS VPN Inter-AS with ASBRs

Autonomous systems exchange VPN routing information (routes and labels) to establish connections. To control connections between autonomous systems, the PE routers and eBGP border edge routers maintain a Label Forwarding Information Base (LFIB).

The LFIB manages the labels and routes that the PE routers and eBGP border edge routers receive during the exchange of VPN information.

The figure below illustrates the exchange of VPN route and label information between autonomous systems. The autonomous systems use the following guidelines to exchange VPN routing information:

  • Routing information:
    • The destination network (N)
    • The next-hop field associated with the distributing router
    • A local MPLS label (L)
  • An RD1: route distinguisher is part of a destination network address. It makes the VPN-IPv4 route globally unique in the VPN service provider environment.
  • The ASBRs are configured to change the next hop (next-hop-self) when sending VPN-IPv4 NLRIs to the iBGP neighbors. Therefore, the ASBRs must allocate a new label when they forward the NLRI to the iBGP neighbors.
Figure 2 Exchanging Routes and Labels Between MPLS VPN Inter-AS Systems with ASBRs Exchanging VPN-IPv4 Addresses


The figure below illustrates the exchange of VPN route and label information between autonomous systems. The only difference is that ASBR2 is configured with the redistribute connected command, which propagates the host routes to all PEs. The redistribute connected command is necessary because ASBR2 is not configured to change the next-hop address.

Figure 3 Exchanging Routes and Labels with the redistributed connected Command in an MPLS VPN Inter-AS with ASBRs Exchanging VPN-IPv4 Addresses


Packet Forwarding Between MPLS VPN Interautonomous Systems with ASBRs

The figure below illustrates how packets are forwarded between autonomous systems in an interprovider network using the following packet forwarding method.

Packets are forwarded to their destination by means of MPLS. Packets use the routing information stored in the LFIB of each PE router and eBGP border edge router.

The service provider VPN backbone uses dynamic label switching to forward labels.

Each autonomous system uses standard multilevel labeling to forward packets between the edges of the autonomous system routers (for example, from CE-5 to PE-3). Between autonomous systems, only a single level of labeling is used, corresponding to the advertised route.

A data packet carries two levels of labels when traversing the VPN backbone:

  • The first label (IGP route label) directs the packet to the correct PE router or eBGP border edge router. (For example, the IGP label of ASBR2 points to the ASBR2 border edge router.)
  • The second label (VPN route label) directs the packet to the appropriate PE router or eBGP border edge router.
Figure 4 Packet Forwarding Between MPLS VPN Interautonomous Systems with ASBRs Exchanging VPN-IPv4 Addresses


The figure below shows the same packet forwarding method, except the eBGP router (ASBR1) forwards the packet without reassigning it a new label.

Figure 5 Forwarding Packets Without a New Label Assignment Between MPLS VPN Interautonomous Systems with ASBRs Exchanging VPN-IPv4 Addresses


Confederation Configuration for MPLS VPN Inter-AS with ASBRs

A confederation is multiple subautonomous systems grouped together. A confederation reduces the total number of peer devices in an autonomous system. A confederation divides an autonomous system into subautonomous systems and assigns a confederation identifier to the autonomous systems. A VPN can span service providers running in separate autonomous systems or in multiple subautonomous systems that form a confederation.

In a confederation, each subautonomous system is fully meshed with other subautonomous systems. The subautonomous systems communicate using an IGP, such as Open Shortest Path First (OSPF) or Intermediate System-to-Intermediate System (IS-IS). Each subautonomous system also has an eBGP connection to the other subautonomous systems. The confederation eBGP (CeBGP) border edge routers forward next-hop-self addresses between the specified subautonomous systems. The next-hop-self address forces the BGP to use a specified address as the next hop rather than letting the protocol choose the next hop.

You can configure a confederation with separate subautonomous systems in either of two ways:

  • You can configure a router to forward next-hop-self addresses between only the CeBGP border edge routers (both directions). The subautonomous systems (iBGP peers) at the subautonomous system border do not forward the next-hop-self address. Each subautonomous system runs as a single IGP domain. However, the CeBGP border edge router addresses are known in the IGP domains.
  • You can configure a router to forward next-hop-self addresses between the CeBGP border edge routers (both directions) and within the iBGP peers at the subautonomous system border. Each subautonomous system runs as a single IGP domain but also forwards next-hop-self addresses between the PE routers in the domain. The CeBGP border edge router addresses are known in the IGP domains.

Note
The second and third figures above illustrate how two autonomous systems exchange routes and forward packets. Subautonomous systems in a confederation use a similar method of exchanging routes and forwarding packets.

The figure below illustrates a typical MPLS VPN confederation configuration. In this confederation configuration:

  • The two CeBGP border edge routers exchange VPN-IPv4 addresses with labels between the two subautonomous systems.
  • The distributing router changes the next-hop addresses and labels and uses a next-hop-self address.

IGP-1 and IGP-2 know the addresses of CeBGP-1 and CeBGP-2.

Figure 6 eBGP Connection Between Two Subautonomous Systems in a Confederation


In this confederation configuration:

  • CeBGP border edge routers function as neighboring peers between the subautonomous systems. The subautonomous systems use eBGP to exchange route information.
  • Each CeBGP border edge router (CeBGP-1, CeBGP-2) assigns a label for the route before distributing the route to the next subautonomous system. The CeBGP border edge router distributes the route as a VPN-IPv4 address by using the multiprotocol extensions of BGP. The label and the VPN identifier are encoded as part of the NLRI.
  • Each PE and CeBGP border edge router assigns its own label to each VPN-IPv4 address prefix before redistributing the routes. The CeBGP border edge routers exchange VPN-IPv4 addresses with the labels. The next-hop-self address is included in the label (as the value of the eBGP next-hop attribute). Within the subautonomous systems, the CeBGP border edge router address is distributed throughout the iBGP neighbors, and the two CeBGP border edge routers are known to both confederations.

Load Sharing with MPLS VPN Inter-AS ASBRs

Before the MPLS VPN - Interautonomous System Support feature, if multiple paths existed across ASBRs, BGP executed the best path algorithm and marked only one of the paths as the best path. This path was added to the routing table and became the only path that was used for forwarding traffic between ASBRs.

The MPLS VPN--Multipath Support for Inter-AS VPNs feature extends the functionality of BGP so that it can pick one path as the best path and mark the other legitimate paths between ASBRs as multipath. This allows the load sharing of traffic among the different multipaths and the best path to reach the destination. No Routing Information Base (RIB) or Cisco Express Forwarding entries are associated with the VPN-IPv4 prefixes.

The MPLS VPN--Multipath Support for Inter-AS VPNs feature applies to ASBRs that do not have a VPN routing and forwarding (VRF) instance configuration. BGP installs a number of learned VPN-IPv4 prefixes into the MPLS forwarding table (LFIB). VPN-IPv4 entries in the LFIB consist of the Route Distinguisher (RD) and the IPv4 prefix and are called VPNv4 entries.

The maximum-paths command is used to set the number of parallel (equal-cost) routes that BGP installs in the routing table to configure multipath load sharing. The number of paths that can be configured is determined by the version of Cisco IOS software. The following list shows the limits:

  • Cisco IOS Release 12.0S-based software: 8 paths
  • Cisco IOS Release 12.3T-based software: 16 paths
  • Cisco IOS Release 12.2S-based software: 32 paths

The MPLS VPN--Multipath Support for Inter-AS VPNs feature requires that you configure the maximum-paths number-of-paths command in address family configuration mode.


Note
The maximum-paths command cannot be configured with the maximum-paths eibgp command for the same BGP routing process.

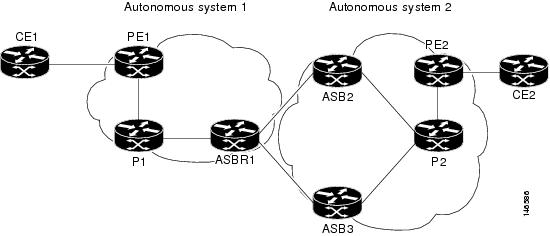

The figure below shows an example of VPNv4 load balancing for ASBRs in an Inter-AS network. In this example, ASBR1 load balances the traffic from the CE router CE1 to CE2 using the two available links--ASBR2 and ASBR3.

Figure 7 Example of VPNv4 Load Balancing for ASBRs in an Inter-AS Network


When you configure an ASBR for VPNv4 load balancing, you must configure the next-hop-self command for the iBGP peers. Without this command, the next hop that is propagated to the iBGP peer is the ASBR2 address or the ASBR3 address, depending on which one BGP selects as the best path. Configuring the next-hop-self command provides direct VPNv4 forwarding entries in the MPLS forwarding table for the VPNv4 prefixes learned from the remote ASBRs. VPNv4 forwarding entries are not created if you do not configure the next-hop-self command.


Note
If the number of forwarding entries in the MPLS forwarding table on the system or on a line card is a concern for your network, we recommend that you do not enable VPNv4 multipath on ASBRs.

How to Configure MPLS VPN - Interautonomous System Support

Perform the following tasks to configure MPLS VPN Inter-AS with ASBRs exchanging VPN-IPv4 addresses:

Configuring an eBGP ASBR to Exchange MPLS VPN-IPv4 Addresses

Perform one of the following tasks to configure an eBGP ASBR to exchange MPLS VPN-IPv4 routes with another autonomous system:

Configuring Peering with Directly Connected Interfaces Between ASBRs

Perform this task to configure peering with directly connected interfaces between ASBRs so that the ASBRs can distribute BGP routes with MPLS labels.

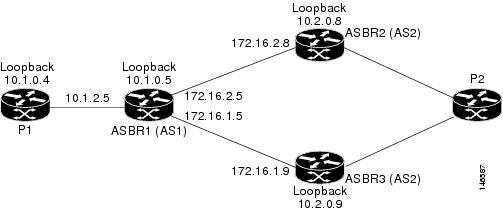

The figure below shows the configuration for the peering with directly connected interfaces between ASBRs. This configuration is used as the example in the tasks that follow.

Figure 8 Configuration for Peering with Directly Connected Interfaces Between ASBRs



Note
When eBGP sessions come up, BGP automatically generates the mpls bgp forwarding command on the connecting interface.

Note
Issue the redistribute connected subnets command in the IGP configuration portion of the router to propagate host routes for VPN-IPv4 eBGP neighbors to other routers and provider edge routers. Alternatively, you can specify the next-hop-self address when you configure iBGP neighbors.
SUMMARY STEPS

1.    enable

2.    configure terminal

3.    router bgp as-number

4.    no bgp default route-target filter

5.    address-family vpnv4 [unicast]

6.    neighbor {ip-address | peer-group-name} remote-as as-number

7.    neighbor {ip-address | peer-group-name} activate

8.    exit-address-family

9.    end


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
router bgp as-number


Example:

Router(config)# router bgp 100



Configures a BGP routing process and places the router in router configuration mode.

  • The as-number argument indicates the number of an autonomous system that identifies the router to other BGP routers and tags the routing information passed along. Valid numbers are from 0 to 65535. Private autonomous system numbers that can be used in internal networks range from 64512 to 65535.

In this instance an eBGP routing process is configured.


Step 4
no bgp default route-target filter


Example:

Router(config-router)# no bgp default route-target filter



Disables BGP route-target community filtering.

All received BGP VPN-IPv4 routes are accepted by the router. Accepting VPN-IPv4 routes is the desired behavior for a router configured as an ASBR.


Step 5
address-family vpnv4 [unicast]


Example:

Router(config-router)# address-family vpnv4



Enters address family configuration mode.

  • The unicast keyword specifies a unicast prefix.

This command configures a routing session to carry VPN-IPv4 addresses across the VPN backbone. Each address is globally unique by the addition of an 8-byte RD.


Step 6
neighbor {ip-address | peer-group-name} remote-as as-number


Example:

Router(config-router-af)# neighbor 10.0.0.1 remote-as 200



Adds an entry to the BGP or multiprotocol BGP neighbor table.

  • The ip-address argument specifies the IP address of the neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.
  • The as-number argument specifies the autonomous system to which the neighbor belongs.

The address of the eBGP neighbor or the eBGP peer group is identified to the specified autonomous system.


Step 7
neighbor {ip-address | peer-group-name} activate


Example:

Router(config-router-af)# neighbor 10.0.0.1 activate



Enables the exchange of information with a BGP neighbor.

  • The ip-address argument specifies the IP address of the neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.

These commands activate the advertisement of the VPNv4 address family to a neighboring eBGP router or an eBGP peer group.


Step 8
exit-address-family


Example:

Router(config-router-af)# exit-address-family



Exits from the address family configuration mode.


Step 9
end


Example:

Router(config)# end



Exits to privileged EXEC mode.



Configuring Peering of the Loopback Interface of Directly Connected ASBRs

This functionality is provided with the release of the MPLS VPN - Interautonomous System Support feature on Cisco IOS Release 12.0(29)S and later releases. An eBGP session configured between loopbacks of directly connected ASBRs allows load sharing between loopback addresses.

Perform the following tasks in this section to configure peering of loopback interfaces of directly connected ASBRs:

The figure below shows the loopback configuration for directly connected ASBR1 and ASBR2 routers. This configuration is used as the example in the tasks that follow.

Figure 9 Loopback Interface Configuration for Directly Connected ASBR1 and ASBR2 Routers


Configuring Loopback Interface Addresses for Directly Connected ASBRs

Perform the following task to configure loopback interface addresses for directly connected ASBRs.


Note
Loopback addresses need to be configured for each directly connected ASBR. That is, configure a loopback address for ASBR1 and for ASBR2 (see the figure above).
SUMMARY STEPS

1.    enable

2.    configure terminal

3.    interface loopback interface number

4.    ip address ip-address mask [secondary]

5.    end


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
interface loopback interface number


Example:

Router(config)# interface loopback 0



Configures a software-only virtual interface that emulates an interface that is always up.

  • The interface-number argument is the number of the loopback interface that you want to create or configure. There is no limit on the number of loopback interfaces that you can create.

Step 4
ip address ip-address mask [secondary]


Example:

Router(config-if)# ip address 10.10.10.10 255.255.255.255



Sets a primary or secondary IP address for an interface.

  • The ip-address argument is the IP address.
  • The mask argument is the mask for the associated IP subnet.
  • The secondary keyword specifies that the configured address is a secondary IP address. If this keyword is omitted, the configured address is the primary IP address.

Step 5
end


Example:

Router(config-if)# end



Exits to privileged EXEC mode.


Examples

The following example shows the configuration of a loopback address for ASBR1:

configure terminal
interface loopback 0
 ip address 10.10.10.10 255.255.255.255

The following example shows the configuration of a loopback address for ASBR2:

configure terminal
interface loopback 0
 ip address 10.20.20.20 255.255.255.255
Configuring Static Routes to the eBGP Neighbor Loopback

Perform the following task to configure /32 static routes to the eBGP neighbor loopback.

A /32 static route is established with the following commands:

Router(config)# ip route X.X.X.X 255.255.255.255 Ethernet 1/0 Y.Y.Y.Y
Router(config)# ip route X.X.X.X 255.255.255.255 Ethernet 1/0 Z.Z.Z.Z

Where X.X.X.X is the neighboring loopback address and Ethernet 1/0 and Ethernet 0/0 are the links connecting the peering routers. Y.Y.Y.Y and Z.Z.Z.Z are the respective next-hop addresses on the interfaces.


Note
You need to configure /32 static routes on each of the directly connected ASBRs.
SUMMARY STEPS

1.    enable

2.    configure terminal

3.   ip route prefix mask {ip-address | interface-type ip-address interface-number [ip-address]} [distance] [name] [permanent] [tag tag]

4.    end


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
ip route prefix mask {ip-address | interface-type ip-address interface-number [ip-address]} [distance] [name] [permanent] [tag tag]


Example:

Router(config)# ip route 10.20.20.20 255.255.255.255 Ethernet 1/0 192.168.0.1



Establishes static routes.

  • The prefix argument is the IP route prefix for the destination.
  • The mask argument is the prefix mask for the destination.
  • The ip-address argument is the IP address of the next hop that you can use to reach the specified network.
  • The interface-type and interface-number arguments are the network interface type and interface number.
  • The distance argument is an administrative distance.
  • The name argument applies a name to the specified route.
  • The permanent keyword specifies that the route is not to be removed, even if the interface shuts down.
  • The tag tag keyword-argument pair names a tag value that can be used as a "match" value for controlling redistribution through the use of route maps.

Step 4
end


Example:

Router(config)# end



Exits to privileged EXEC mode.


Examples

The following example shows the configuration of a /32 static route from the ASBR1 router to the loopback address of the ASBR2 router:

configure terminal
ip route 10.20.20.20 255.255.255.255 e1/0 192.168.0.1
ip route 10.20.20.20 255.255.255.255 e0/0 192.168.2.1

The following example shows the configuration of a /32 static route from the ASBR2 router to the loopback address of the ASBR1 router:

configure terminal
ip route vrf vpn1 10.10.10.10 255.255.255.255 Ethernet 1/0 192.168.0.2
ip route vrf vpn1 10.10.10.10 255.255.255.255 Ethernet 0/0 192.168.2.2
Configuring Forwarding on the Directly Connected Interfaces

Perform this task to configure forwarding on the directly connected interfaces.

This task is required for sessions between loopbacks. In the Configuring Static Routes to the eBGP Neighbor Loopback task, Ethernet 1/0 and Ethernet 0/0 are the connecting interfaces.

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    interface interface-type slot/port

4.    ip address ip-address mask [secondary]

5.    mpls bgp forwarding

6.    exit

7.    Repeat Steps 3, 4, and 5 for another connecting interface (Ethernet 0/0).

8.    end


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
interface interface-type slot/port


Example:

Router(config)# interface ethernet 1/0



Configures an interface type and enters interface configuration mode.

  • The interface-type argument is the type of interface to be configured.
  • The slot argument is the slot number. Refer to the appropriate hardware manual for slot and port information.
  • The /port keyword and argument are the port number. Refer to the appropriate hardware manual for slot and port information.

Step 4
ip address ip-address mask [secondary]


Example:

Router(config-if)# ip address 192.168.0.2 255.255.255.255



Sets a primary or secondary IP address for an interface.

  • The ip-address argument is the IP address.
  • The mask argument is the mask for the associated IP subnet.
  • The secondary keyword specifies that the configured address is a secondary IP address. If this keyword is omitted, the configured address is the primary IP address.

Step 5
mpls bgp forwarding


Example:

Router(config-if)# mpls bgp forwarding



Configures BGP to enable MPLS forwarding on connecting interfaces.


Step 6
exit


Example:

Router(config-if)# exit



Exits to global configuration mode.


Step 7
Repeat Steps 3, 4, and 5 for another connecting interface (Ethernet 0/0).

Step 8
end


Example:

Router(config)# end



Exits to privileged EXEC mode.


Examples

The following example shows the configuration of BGP MPLS forwarding on the interfaces connecting the ASBR1 router with the ASBR2 router:

configure terminal
interface ethernet 1/0
 ip address 192.168.0.2 255.255.255.0
 mpls bgp forwarding
 exit
!
interface ethernet 0/0
 ip address 192.168.2.2 255.255.255.0
 mpls bgp forwarding
 exit

The following example shows the configuration of BGP MPLS forwarding on the interfaces connecting the ASBR2 router with the ASBR1 router:

configure terminal
interface ethernet 1/0
 ip address 192.168.0.1 255.255.255.0
 mpls bgp forwarding
 exit
!
interface ethernet 0/0
 ip address 192.168.2.1 255.255.255.0
 mpls bgp forwarding
 exit
Configuring an eBGP Session Between the Loopbacks

Perform the following tasks to configure an eBGP session between the loopbacks.


Note
You need to configure an EGBP session between loopbacks on each directly connected ASBR.
SUMMARY STEPS

1.    enable

2.    configure terminal

3.    router bgp as-number

4.    no bgp default route-target filter

5.    neighbor {ip-address | peer-group-name} remote-as as-number

6.    neighbor {ip-address | peer-group-name} disable-connected-check

7.    neighbor {ip-address | ipv6-address | peer-group-name} update-source interface-type interface-number

8.    address-family vpnv4 [unicast]

9.    neighbor {ip-address | peer-group-name | ipv6-address} activate

10.    neighbor {ip-address | peer-group-name} send-community [both | standard | extended]

11.    end

12.    show mpls forwarding-table [network {mask | length} | labels label [label] | interface interface | next-hop address | lsp-tunnel [tunnel-id]] [vrf vrf-name] [detail]


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
router bgp as-number


Example:

Router(config)# router bgp 200



Configures the BGP routing process.

  • The as-number indicates the number of an autonomous system that identifies the router to other BGP routers and tags the routing information passed along.

Step 4
no bgp default route-target filter


Example:

Router(config-router)# no bgp default route-target filter



Disables BGP route-target filtering. All received BGP VPN-IPv4 routes are accepted by the router.


Step 5
neighbor {ip-address | peer-group-name} remote-as as-number


Example:

Router(config-router)# neighbor 10.20.20.20 remote-as 100



Adds an entry to the BGP or multiprotocol BGP neighbor table.

  • The ip-address argument is the IP address of the neighbor.
  • The peer-group-name argument is the name of a BGP peer group.
  • The as-number argument is the autonomous system to which the neighbor belongs.

Step 6
neighbor {ip-address | peer-group-name} disable-connected-check


Example:

Router(config-router)# neighbor 10.20.20.20 disable-connected-check



Allows peering between loopbacks.

  • The ip-address argument is the IP address of the neighbor.
  • The peer-group-name argument is the name of a BGP peer group.

Step 7
neighbor {ip-address | ipv6-address | peer-group-name} update-source interface-type interface-number


Example:

Router(config-router)# neighbor 10.20.20.20 update-source loopback 0



Allows BGP sessions in Cisco IOS releases to use any operational interface for TCP connections.

  • The ip-address argument is the IPv4 address of the BGP-speaking neighbor.
  • The ipv6-address argument is the IPv6 address of the BGP-speaking neighbor.

This argument must be in the form documented in RFC 2373, where the address is specified in hexadecimal using 16-bit values between colons.

  • The peer-group-name argument is the name of a BGP peer group.
  • The interface-type argument is the interface type.
  • The interface-number argument is the interface number.

Step 8
address-family vpnv4 [unicast]


Example:

Router(config-router)# address-family vpnv4



Enters address family configuration mode for configuring routing protocols such as BGP, Routing Information Protocol (RIP), and static routing.

  • The vpnv4 keyword configures sessions that carry customer VPN-IPv4 prefixes, each of which has been made globally unique by the addition of an 8-byte route distinguisher.
  • The unicast keyword specifies unicast prefixes.

Step 9
neighbor {ip-address | peer-group-name | ipv6-address} activate


Example:

Router(config-router-af)# neighbor 10.20.20.20 activate



Enables the exchange of information with a BGP neighbor.

  • The ip-address argument is the IP address of the neighboring router.
  • The peer-group-name argument is the name of a BGP peer group.
  • The ipv6-address argument is the IPv6 address of the BGP-speaking neighbor.

This argument must be in the form documented in RFC 2373, where the address is specified in hexadecimal using 16-bit values between colons.


Step 10
neighbor {ip-address | peer-group-name} send-community [both | standard | extended]


Example:

Router(config-router-af)# neighbor 10.20.20.20 send-community extended



Specifies that a communities attribute should be sent to a BGP neighbor.

  • The ip-address argument is the IP address of the neighboring router.
  • The peer-group-nameargument is the name of a BGP peer group.
  • The both keyword specifies that both standard and extended communities will be sent.
  • The standard keyword specifies that only standard communities will be sent.
  • The extended keyword specifies that only extended communities will be sent.

Step 11
end


Example:

Router(config-router-af)# end



Exits to privileged EXEC mode.


Step 12
show mpls forwarding-table [network {mask | length} | labels label [label] | interface interface | next-hop address | lsp-tunnel [tunnel-id]] [vrf vrf-name] [detail]


Example:

Router# show mpls forwarding-table



Displays the contents of the MPLS LFIB.

Use this command to verify that load balancing occurs between loopbacks. You need to ensure that the MPLS LFIB entry for the neighbor route lists the available paths and interfaces.


Examples

The following example shows the configuration for VPNv4 sessions on the ASBR1 router:

configure terminal
router bgp 200
 bgp log-neighbor-changes
 neighbor 10.20.20.20 remote-as 100
 neighbor 10.20.20.20 disable-connected-check
 neighbor 10.20.20.20 update-source loopback 0
!
 address-family vpnv4
 neighbor 10.20.20.20 activate
 neighbor 10.20.20.20 send-community extended
 end

The following example shows the configuration for VPNv4 sessions on the ASBR2:

configure terminal
router bgp 100
 bgp log-neighbor-changes
 neighbor 10.10.10.10 remote-as 200
 neighbor 10.10.10.10 disable-connected-check
 neighbor 10.10.10.10 update-source Loopback 0
!
 address-family vpnv4
 neighbor 10.10.10.10 activate
 neighbor 10.10.10.10 send-community extended
 end

Configuring eBGP Routing to Exchange MPLS VPN Routes Between Subautonomous Systems in a Confederation

Perform this task to configure eBGP routing to exchange MPLS VPN routes between subautonomous systems in a confederation.


Note
To ensure that the host routes for VPN-IPv4 eBGP neighbors are propagated (by means of the IGP) to the other routers and provider edge routers, specify the redistribute connected command in the IGP configuration portion of the CeBGP router. If you are using OSPF, make sure that the OSPF process is not enabled on the CeBGP interface where the "redistribute connected" subnet exists.

Note
In this confederation, subautonomous system IGP domains must know the addresses of CeBGP-1 and CeBGP-2. If you do not specify a next-hop-self address as part of the router configuration, ensure that the addresses of all PE routers in the subautonomous system are distributed throughout the network, not just the addresses of CeBGP-1 and CeBGP-2.
SUMMARY STEPS

1.    enable

2.    configure terminal

3.    router bgp sub-autonomous-system

4.    bgp confederation identifier as-number

5.    bgp confederation peers sub-autonomous-system

6.    no bgp default route-target filter

7.    address-family vpnv4 [unicast]

8.    neighbor peer-group-name remote-as as-number

9.    neighbor peer-group-name next-hop-self

10.    neighbor peer-group-name activate

11.    exit-address-family

12.    end


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
router bgp sub-autonomous-system


Example:

Router(config)# router bgp 2



Enters router configuration mode, creates an eBGP routing process, and assigns it an autonomous system number. The subautonomous system number is passed along to identify the router to eBGP routers in other subautonomous systems.


Step 4
bgp confederation identifier as-number


Example:

Router(config-router)# bgp confederation identifier 100



Defines an eBGP confederation by specifying a confederation identifier associated with each subautonomous system. The subautonomous systems appear as a single autonomous system.


Step 5
bgp confederation peers sub-autonomous-system


Example:

Router(config-router)# bgp confederation peers 1



Specifies the subautonomous systems that belong to the confederation (identifies neighbors of other subautonomous systems within the confederation as special eBGP peers).


Step 6
no bgp default route-target filter


Example:

Router(config-router)# no bgp default route-target filter



Disables BGP route-target community filtering. All received BGP VPN-IPv4 routes are accepted by the router.


Step 7
address-family vpnv4 [unicast]


Example:

Router(config-router)# address-family vpnv4



Enters address family configuration mode and configures a routing session to carry VPNv4 addresses across the VPN backbone. Each address has been made globally unique by the addition of an 8-byte route distinguisher (RD).

  • The unicast keyword specifies a unicast prefix.

Step 8
neighbor peer-group-name remote-as as-number


Example:

Router(config-router-af)# neighbor R remote-as 1



Specifies a neighboring eBGP peer group. This eBGP peer group is identified to the specified subautonomous system.


Step 9
neighbor peer-group-name next-hop-self


Example:

Router(config-router-af)# neighbor R next-hop-self



Advertises the router as the next hop for the specified neighbor. If you specify a next-hop-self address as part of the router configuration, you do not need to use the redistribute connected command.


Step 10
neighbor peer-group-name activate


Example:

Router(config-router-af)# neighbor R activate



Activates the advertisement of the VPNv4 address family to a neighboring PE router in the specified subautonomous system.


Step 11
exit-address-family


Example:

Router(config-router-af)# exit-address-family



Exits address family configuration mode.


Step 12
end


Example:

Router(config)# end



Exits to privileged EXEC mode.



Verifying Inter-AS for ASBRs Exchanging MPLS VPN-IPv4 Addresses

Perform this task to verify that Inter-AS for ASBRs Exchanging MPLS VPN-IPv4 addresses operates as you expected.

SUMMARY STEPS

1.    enable

2.    show ip bgp vpnv4 all

3.    show ip bgp vpnv4 all labels

4.    show mpls forwarding-table

5.    exit


DETAILED STEPS
Step 1   enable

Use this command to enable privileged EXEC mode. Enter your password if required. For example:



Example:
Router> enable
Router#
Step 2   show ip bgp vpnv4 all

Use this command to verify that all VPNv4 information in the BGP table on the ASBR is as you expected. For example:



Example:
Router# show ip bgp vpnv4 all

BGP table version is 99, local router ID is 172.16.10.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin coeds: i - IGP, e - EGP, ? incomplete
  Network          Next Hop       Metric  LocPrf  Weight Path
Route Distinguisher 100:1
*> 10.1.1.0/24     10.1.1.1           50     100       0 200 ?
* i                10.1.1.5          100     100       0 200 ?
Route Distinguisher 100:2
* 192.168.1.0/24   10.1.1.1          100     100       0 200 ?
*>i                10.1.1.5           50     100       0 200 ?
* 172.16.1.0/24     10.1.1.1          100     100       0 200 ?
+>i                10.1.1.5           50     100       0 200 ?
Route Distinguisher 200:1
*>i172.16.1.0/24    10.1.1.2           50     100       0 200 ?
*> 10.2.1.0/24      0.0.0.0.           0           32768 ?
Route Distinguisher 200:2
*>i172.16.1.0/24   10.1.1.5           50     100       0 200 ?
*>i172.16.1.0/24   10.1.1.5           50     100       0 200 ?
*> 10.2.1.0/24      0.0.0.0            0           32768 ?
Step 3   show ip bgp vpnv4 all labels

Use this command to display information about all VPNv4 labels. For example:



Example:
Router# show ip bgp vpnv4 all labels
      Network           Next Hop        In label/Out label
Route Distinguisher 100:1
      10.1.1.0/24       172.16.10.3       20/29
Route Distinguisher 100:2
      10.1.1.0/24       172.16.10.3       21/35
      10.2.1.0/24       172.16.10.3       24/36
Route Distinguisher 200:1
      10.30.1.0/24       10.1.1.2         23/164
Route Distinguisher 200:2
      10.31.1.0/24       10.1.1.2         27/165
Step 4   show mpls forwarding-table

Use this command to display the contents of the MPLS LFIB (such as VPNv4 prefix/length and BGP next-hop destination for the route) and see how the VPN-IPv4 LFIB entries appear. For example:



Example:
Router# show mpls forwarding-table
Local Outgoing      Prefix            Bytes tag Outgoing       Next Hop
tag   tag or VC     or Tunnel Id      switched  interface
33    33            10.120.4.0/24     0         Hs0/0         point2point
35    27            100:12:10.200.0.1/32 \
                                      0         Hs0/0         point2point

In this example, the Prefix field appears as a VPN-IPv4 RD, plus the prefix. If the value is longer than the width of the Prefix column (as illustrated in the last line of the example), the output automatically wraps onto the next line in the forwarding table, preserving column alignment.

Step 5   exit

Use this command to exit to user EXEC mode. For example:



Example:
Router# exit
Router>

Configuring eBGP Multipath Load Sharing for MPLS VPN Inter-AS ASBRs

Perform this task to configure eBGP multipath load sharing for MPLS VPN Inter-AS ASBRs exchanging VPN-IPv4 routes. This allows for more efficient use of the LSPs in an interautonomous system network because you can set up the load sharing of traffic among the different multipaths and the best path to reach the destination.


Note

The following restrictions apply to configuring multipath load sharing for MPLS VPN Inter-AS ASBRS exchanging VPN-IPv4 routes:

  • Per packet load balancing is not supported for this feature. Load balancing for this features works on the IP source and destination hash or on the bottom label in the label stack, depending on the platform and depth of the MPLS label stack.
  • If MPLS scalability is an issue for you, we recommend that you do not enable VPNv4 multipath on ASBRs.

The figure below shows an eBGP multipath configuration for three VPN-IPv4 ASBRs. The links from ASBR1 to ASBR2 and ASBR3 have an eBGP VPN-IPv4 session configured. In the figure below, eBGP multipath load sharing is configured on ASBR1. You configure the number of sessions from ASBR1 to ASBR2 and ASBR3 with the maximum-paths command in address family configuration mode.

Figure 10 eBGP Multipath Configuration for Three VPN-IPv4 ASBRs


The configurations in the figure above is used as an example for this task and for the task in the Verifying eBGP Multipath Load Sharing for MPLS VPN Inter-AS ASBRs.

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    router bgp as-number

4.    no bgp default route-target filter

5.    neighbor {ip-address | peer-group-name} remote-as as-number

6.    neighbor {ip-address | peer-group-name} update-source interface-type interface-number

7.    neighbor {ip-address | peer-group-name} next-hop-self

8.    neighbor {ip-address | peer-group-name} remote-as as-number

9.    Repeat Step 8 for each BGP neighbor.

10.    address-family vpnv4 [unicast]

11.    neighbor {ip-address | peer-group-name} activate

12.    neighbor {ip-address | peer-group-name} next-hop-self

13.    neighbor {ip-address | peer-group-name} send-community [both | standard | extended]

14.    neighbor {ip-address | peer-group-name | ipv6-address} activate

15.    neighbor {ip-address | peer-group-name} send-community [both | standard | extended]

16.    Repeat Steps 14 and 15 for each BGP neighbor.

17.    maximum-paths number-paths

18.    exit-address-family

19.    end


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
router bgp as-number


Example:

Router(config)# router bgp 1



Configures an eBGP routing process and places the router in router configuration mode.

  • The as-number argument indicates the number of an autonomous system that identifies the router to other BGP routers and tags the routing information passed along. Valid numbers are from 0 to 65535. Private autonomous system numbers that can be used in internal networks range from 64512 to 65535.

Step 4
no bgp default route-target filter


Example:

Router(config-router)# no bgp default route-target filter



Disables BGP route-target community filtering.

All received VPN-IPv4 routes are accepted by the configured router. Accepting VPN-IPv4 routes is the desired behavior for a router configured as an ASBR.


Step 5
neighbor {ip-address | peer-group-name} remote-as as-number


Example:

Router(config-router)# neighbor 10.1.0.4 remote-as 1



Adds an entry to the BGP or multiprotocol BGP neighbor table.

  • The ip-address argument specifies the IP address of the neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.
  • The as-number argument specifies the autonomous system to which the neighbor belongs.

Step 6
neighbor {ip-address | peer-group-name} update-source interface-type interface-number


Example:

Router(config-router)# neighbor 10.1.0.4 update-source loopback 0



Allows BGP sessions to use any operational interface for TCP connections.

  • The ip-address argument specifies the IP address of the neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.
  • The interface-typeinterface-number arguments specify the type and number for the operational interface.

This example shows how to set up BGP TCP connections for the specified neighbor with the IP address of the loopback interface rather than the best local address.


Step 7
neighbor {ip-address | peer-group-name} next-hop-self


Example:

Router(config-router)# neighbor 10.1.0.4 next-hop-self



Configures the router as the next hop for a BGP neighbor or peer group.

  • The ip-address argument specifies the IP address of the BGP neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.

Step 8
neighbor {ip-address | peer-group-name} remote-as as-number


Example:

Router(config-router)# neighbor 172.16.1.9 remote-as 2



Adds an entry to the BGP or multiprotocol BGP neighbor table.

  • The ip-address argument specifies the IP address of the neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.
  • The as-number argument specifies the autonomous system to which the neighbor belongs.

Step 9
Repeat Step 8 for each BGP neighbor.

--


Step 10
address-family vpnv4 [unicast]


Example:

Router(config-router)# address-family vpnv4



Enters address family configuration mode.

  • The unicast keyword specifies a unicast prefix.

This command configures a routing session to carry VPN-IPv4 addresses across the VPN backbone. Each address is globally unique by the addition of an 8-byte RD.


Step 11
neighbor {ip-address | peer-group-name} activate


Example:

Router(config-router-af)# neighbor 10.1.0.4 activate



Enables the exchange of information with a neighboring router.

  • The ip-address argument specifies the IP address of the neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.

Step 12
neighbor {ip-address | peer-group-name} next-hop-self


Example:

Router(config-router-af)# neighbor 10.1.0.4 next-hop-self



Configures the router as the next hop for a BGP neighbor or peer group.

  • The ip-address argument specifies the IP address of the BGP neighbor.
  • The peer-group-name argument specifies the name of a BGP peer group.

Step 13
neighbor {ip-address | peer-group-name} send-community [both | standard | extended]


Example:

Router(config-router-af)# neighbor 10.1.0.4 send-community extended



Specifies that a communities attribute should be sent to a BGP neighbor.

  • The ip-address argument is the IP address of the neighboring router.
  • The peer-group-name argument is the name of a BGP peer group.
  • The both keyword specifies that both standard and extended communities will be sent.
  • The standard keyword specifies that only standard communities will be sent.
  • The extended keyword specifies that only extended communities will be sent.

Step 14
neighbor {ip-address | peer-group-name | ipv6-address} activate


Example:

Router(config-router-af)# neighbor 172.16.1.9 activate



Enables the exchange of information with a BGP neighbor.

  • The ip-address argument is the IP address of the neighboring router.
  • The peer-group-name argument is the name of a BGP peer group.
  • The ipv6-address argument is the IPv6 address of the BGP-speaking neighbor.

This argument must be in the form documented in RFC 2373, where the address is specified in hexadecimal using 16-bit values between colons.


Step 15
neighbor {ip-address | peer-group-name} send-community [both | standard | extended]


Example:

Router(config-router-af)# neighbor 172.16.1.9 send-community extended



Specifies that a communities attribute should be sent to a BGP neighbor.

  • The ip-address argument is the IP address of the neighboring router.
  • The peer-group-name argument is the name of a BGP peer group.
  • The both keyword specifies that both standard and extended communities will be sent.
  • The standard keyword specifies that only standard communities will be sent.
  • The extended keyword specifies that only extended communities will be sent.

Step 16
Repeat Steps 14 and 15 for each BGP neighbor.

Step 17
maximum-paths number-paths


Example:

Router(config-router-af)# maximum-paths 2



Configures the maximum number of parallel routes that an IP routing protocol will install into the routing table.

  • The number-paths argument specifies the number of routes to install to the routing table.
  • See the Load Sharing with MPLS VPN Inter-AS ASBRs for information on the number of parallel routes allowed by a specific Cisco IOS release.

Step 18
exit-address-family


Example:

Router(config-router-af)# exit-address-family



Exits from address family configuration mode.


Step 19
end


Example:

Router(config-router)# end



(Optional) Exits to privileged EXEC mode.



Examples

The following example shows the configuration for eBGP multipath for VPNv4 sessions on the ASBR1 router:

configure terminal
router bgp 1
 no bgp default route-target filter
 neighbor 10.1.0.4 remote-as 1
 neighbor 10.1.0.4 update-source Loopback 0
 neighbor 10.1.0.4 next-hop-self
 neighbor 172.16.1.9 remote-as 2
 neighbor 172.16.2.8 remote-as 2
!
 address-family vpnv4
 neighbor 10.1.0.4 activate
 neighbor 10.1.0.4 next-hop-self
 neighbor 10.1.0.4 send-community extended
 neighbor 172.16.1.9 activate
 neighbor 172.16.1.9 send-community extended
 neighbor 172.16.2.8 activate
 neighbor 172.16.2.8 send-community extended
 maximum-paths 2
 exit-address-family
 end

Verifying eBGP Multipath Load Sharing for MPLS VPN Inter-AS ASBRs

Perform the following task to verify that eBGP multipath load sharing for MPLS VPN Inter-AS ASBRs is operating as you expect.

The configurations in the figure above are used as an example for the task that follows.

SUMMARY STEPS

1.    enable

2.    show ip bgp vpnv4 all [summary]

3.    show ip bgp vpnv4 all

4.    show ip bgp vpnv4 [network]

5.    show mpls forwarding-table

6.    exit


DETAILED STEPS
Step 1   enable

Use this command to enable privileged EXEC mode. Enter your password if required. For example:



Example:
Router> enable
Router#
Step 2   show ip bgp vpnv4 all [summary]

Use this command to verify that all peers are up. for example:



Example:
Router# show ip bgp vpnv4 all summary
Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.1.0.4        4     1      87      86        5    0    0 01:24:56        2
172.16.1.9      4     2      88      88        5    0    0 01:25:49        2
172.16.2.8      4     2      88      88        5    0    0 01:25:49        2

The output shows that all peers expected to be up are up and sending and receiving messages.

Step 3   show ip bgp vpnv4 all

Use this command to verify that BGP has paths from both remote ASBRs. For example:



Example:
Router# show ip bgp vpnv4 all
   Network          Next Hop            Metric LocPrf Weight Path
.
.
Route Distinguisher: 1:105
*>i192.168.0.1/32   10.1.0.3                11    100      0 ?
*> 192.168.0.2/32   172.16.2.8                             0 2 ?
*                   172.16.1.9                             0 2 ?
*>i192.168.1.0      10.1.0.3                 0    100      0 ?
*> 192.168.2.0      172.16.2.8                             0 2 ?
*                   172.16.1.9                             0 2 ?

The bold entries in the output confirm that BGP has a path to ASBR2 (172.16.2.8) and to ASBR3 (172.16.1.9).

Step 4   show ip bgp vpnv4 [network]

Use this command to verify that paths are marked as multipath. For example:



Example:
Router# show ip bgp vpnv4 192.168.2.0
BGP routing table entry for 1:105:192.168.2.0/24, version 3
Paths: (2 available, best #1, no table)
  Advertised to update-groups:
     2          3
  2
    172.16.2.8 from 172.16.2.8 (10.2.0.8)
      Origin incomplete, localpref 100, valid, external, multipath
, best
      Extended Community: RT:1:100 OSPF DOMAIN ID:0x0005:0x0000000A0200
        OSPF RT:0.0.0.0:2:0 OSPF ROUTER ID:192.168.2.2:512,
      mpls labels in/out 21/25
  2
    172.16.1.9 from 172.16.1.9 (10.2.0.9)
      Origin incomplete, localpref 100, valid, external, multipath
      Extended Community: RT:1:100 OSPF DOMAIN ID:0x0005:0x0000000A0200
        OSPF RT:0.0.0.0:2:0 OSPF ROUTER ID:192.168.2.2:512,
      mpls labels in/out 21/25

In the output, the "multipath" and "mpls labels in/out 21/25" are in bold text for example purposes only.

Step 5   show mpls forwarding-table

Use this command to verify that MPLS forwarding is properly set up and counters are increasing when traffic is present. For example:



Example:
Router# show mpls forwarding-table
Local  Outgoing      Prefix            Bytes Label   Outgoing   Next Hop
Label  Label or VC   or Tunnel Id      Switched      interface
.
.
16     Pop Label     172.16.1.9/32     0             Et1/0      172.16.1.9
17     Pop Label     172.16.2.8/32     0             Et2/0      172.16.2.8
18     Pop Label     10.1.1.0/24       0             Et0/0      10.1.2.4
19     16            10.1.0.3/32       0             Et0/0      10.1.2.4
20     Pop Label     10.1.0.4/32       0             Et0/0      10.1.2.4
21     25            1:105:192.168.2.0/24   \
                                       26658         Et1/0      172.16.1.9
       25            1:105:192.168.2.0/24   \
                                       1180          Et2/0      172.16.2.8
22     24            1:105:192.168.0.2/32   \
                                       15740         Et1/0      172.16.1.9
       24            1:105:192.168.0.2/32   \
                                       0             Et2/0      172.16.2.8
23     19            1:105:192.168.0.1/32   \
                                       15638         Et0/0      10.1.2.4
24     20            1:105:192.168.1.0/24   \
                                       32740         Et0/0      10.1.2.4
Step 6   exit

Use this command to exit to user EXEC mode. For example:



Example:
Router# exit
Router>

Configuration Examples for MPLS VPN - Interautonomous System Support

Configuring Inter-AS with ASBRs Exchanging VPN-IPv4 Addresses Example

The network topology in the figure below shows two autonomous systems, which are configured as follows:

  • Autonomous system 1 (AS1) contains PE1, P1, ASBR1. The IGP is OSPF.
  • Autonomous system 2 (AS2) contains PE2, P2, ASBR2. The IGP is IS-IS.
  • CE1 and CE2 belong to the same VPN, which is called VPN1.
  • The P routers are route reflectors.
  • ASBR1 is configured with the redistribute connected subnets command.
  • ASBR2 is configured with the neighbor next-hop-self command.
Figure 11 Configuring Two Autonomous Systems


Configuration for Autonomous System 1 CE1 Example for Two Autonomous Systems

The following example shows how to configure the CE1 router in VPN1 in a topology with two autonomous systems (see the figure above):

!
hostname CE1
!
interface Loopback 1
 ip address 192.168.0.1 255.255.255.255
!
interface Ethernet 1/0
 description Link to PE1
 ip address 192.168.1.1 255.255.255.0
!
router ospf 1
 log-adjacency-changes
 network 192.168.0.0 0.0.255.255 area 0
!
 end

Configuration for Autonomous System 1 PE1 Example for Two Autonomous Systems

The following example shows how to configure the PE1 router in autonomous system 1 in a topology with two autonomous systems (see the figure above):

!
hostname PE1
!
ip cef
!
ip vrf VPN1
 rd 1:105
 route-target export 1:100
 route-target import 1:100
!
interface Loopback 0
 ip address 10.1.0.3 255.255.255.255
!
interface Ethernet 0/0
 description Link to CE1
 ip vrf forwarding VPN1
 ip address 192.168.1.2 255.255.255.0
!
interface Ethernet 1/0
 description Link to P1
 ip address 10.1.1.3 255.255.255.0
 mpls ip
!
router ospf 10 vrf VPN1
 log-adjacency-changes
 redistribute bgp 1 metric 100 subnets
 network 192.168.0.0 0.0.255.255 area 0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor 10.1.0.4 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor 10.1.0.4 activate
 exit-address-family
 !
 address-family ipv4 vrf VPN1
 redistribute ospf 10 vrf VPN1
 no auto-summary
 no synchronization
 exit-address-family
!
end

Configuration for Autonomous System 1 P1 Example for Two Autonomous Systems

The following example shows how to configure the P1 router in autonomous system 1 in a topology with two autonomous systems (see the figure above):

!
hostname P1
!
ip cef
!
interface Loopback 0
 ip address 10.1.0.4 255.255.255.255
!
interface Ethernet 0/0
 description Link to PE1
 ip address 10.1.1.4 255.255.255.0
 mpls ip
!
interface Ethernet 1/0
 description Link to ASBR1
 ip address 10.1.2.4 255.255.255.0
 mpls ip
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
no synchronization
 bgp log-neighbor-changes
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor R route-reflector-client
 neighbor 10.1.0.3 peer-group R
 neighbor 10.1.0.5 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R route-reflector-client
 neighbor 10.1.0.3 activate
 neighbor 10.1.0.5 activate
 exit-address-family
!
end

Configuration for Autonomous System 1 ASBR1 Example for Two Autonomous Systems

The following example shows how to configure ASBR1 in autonomous system 1 in a topology with two autonomous systems (see the figure above):

hostname ASBR1
!
ip cef
!
interface Loopback 0
 ip address 10.1.0.5 255.255.255.255
!
interface Ethernet 0/0
 description Link to P1
 ip address 10.1.2.5 255.255.255.0
 mpls ip
!
interface Ethernet 1/0
 description Link to ASBR2
 ip address 172.16.0.1 255.255.255.255
 mpls bgp forwarding
!
router ospf 1
 log-adjacency-changes
 redistribute connected subnets
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor 10.1.0.4 peer-group R
 neighbor 172.16.0.2 remote-as 2
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R next-hop-self
 neighbor 10.1.0.4 activate
 neighbor 172.16.0.2 activate
 neighbor 172.16.0.2 send-community extended
 exit-address-family
!
end

Configuration for Autonomous System 2 ASBR2 Example for Two Autonomous Systems

The following example shows how to configure ASBR2 in autonomous system 2 in a topology with two autonomous systems (see the figure above):

!
hostname ASBR2
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.8 255.255.255.255
 ip router isis
!
interface Ethernet 0/0
 description Link to ASBR1
 ip address 172.16.0.2 255.255.255.255
 mpls bgp forwarding
!
interface Serial 2/0
 description Link to P2
 ip address 10.2.2.8 255.255.255.0
 ip router isis
 mpls ip
 no fair-queue
 serial restart-delay 0
!
router isis
 net 49.0002.0000.0000.0003.00
!
router bgp 2
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.0.1 remote-as 1
 no auto-summary
!
 address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.0.1 activate
 neighbor 172.16.0.1 send-community extended
 exit-address-family
!
end

Configuration for Autonomous System 2 P2 Example for Two Autonomous Systems

The following example shows how to configure the P2 router in autonomous system 2 in a topology with two autonomous systems (see the figure above):

!
hostname P2
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.7 255.255.255.255
 ip router isis
!
interface Ethernet 1/0
 description Link to PE2
 ip address 10.2.1.7 255.255.255.0
 ip router isis
 mpls ip
!
interface Serial 2/0
 description Link to ASBR2
 ip address 10.2.2.7 255.255.255.0
 ip router isis
 mpls ip
 no fair-queue
 serial restart-delay 0
!
router isis
 net 49.0002.0000.0000.0008.00
!
router bgp 2
 no synchronization
 bgp log-neighbor-changes
 neighbor R peer-group
 neighbor R remote-as 2
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor R route-reflector-client
 neighbor 10.2.0.6 peer-group R
 neighbor 10.2.0.8 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R route-reflector-client
 neighbor 10.2.0.6 activate
 neighbor 10.2.0.8 activate
 exit-address-family
!
end

Configuration for Autonomous System 2 PE2 Example for Two Autonomous Systems

The following example shows how to configure the PE2 router in autonomous system 2 in a topology with two autonomous systems (see the figure above):

!
hostname PE2
!
ip cef
!
ip vrf VPN1
 rd 1:105
 route-target export 1:100
 route-target import 1:100
!
interface Loopback 0
 ip address 10.2.0.6 255.255.255.255
 ip router isis
!
interface Ethernet 0/0
 description Link to P2
 ip address 10.2.1.6 255.255.255.0
 ip router isis
 mpls ip
!
interface Serial 2/0
 description Link to CE2
 ip vrf forwarding VPN1
 ip address 192.168.2.2 255.255.255.0
 no fair-queue
 serial restart-delay 0
!
router ospf 10 vrf VPN1
 log-adjacency-changes
 redistribute bgp 2 subnets
 network 192.168.0.0 0.0.255.255 area 0
!
router isis
 net 49.0002.0000.0000.0009.00
!
router bgp 2
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 no auto-summary
 !
address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 exit-address-family
 !
 address-family ipv4 vrf VPN1
 redistribute connected
 redistribute ospf 10 vrf VPN1
 no auto-summary
 no synchronization
 exit-address-family
!
end

Configuration for Autonomous System 2 CE2 Example for Two Autonomous Systems

The following example shows how to configure the CE2 router in autonomous system 2 in a topology with two autonomous systems (see the figure above):

!
hostname CE2
!
interface Loopback 0
 ip address 192.168.0.2 255.255.255.255
!
interface Serial 2/0
 description Link to PE2
 ip address 192.168.2.1 255.255.255.0
 no fair-queue
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 192.168.0.0 0.0.255.255 area 0
!
end

Configuring Inter-AS with ASBRs in a Confederation Example

The network topology in the figure below shows a single Internet service provider (ISP), which is partitioning the backbone with confederations. The autonomous system number of the provider is 100. The two autonomous systems run their own IGPs and are configured as follows:

  • Autonomous system 1 (AS1) contains PE1, P1, ASBR1. The IGP is OSPF.
  • Autonomous system 2 (AS2) contains PE2, P2, ASBR2. The IGP is IS-IS.
  • CE1 and CE2 belong to the same VPN, which is called VPN1.
  • The P routers are route reflectors.
  • ASBR1 is configured with the redistribute connected subnets command.
  • ASBR2 is configured with the neighbor next-hop-self command.
Figure 12 Configuring Two Autonomous Systems in a Confederation


Inter-AS Confederation Configuration for Autonomous System 1 CE1 Example

The following example shows how to configure CE1 in VPN1 in an Inter-AS confederation (see the figure above):

!
hostname CE1
!
interface Loopback 1
 ip address 192.168.0.1 255.255.255.255
!
interface Ethernet 1/0
 description Link to PE1
 ip address 192.168.1.1 255.255.255.0
!
router ospf 1
 log-adjacency-changes
 network 192.168.0.0 0.0.255.255 area 0
!
end

Inter-AS Confederation Configuration for Autonomous System 1 PE1 Example

The following example shows how to configure PE1 in autonomous system 1 in an Inter-AS confederation (see the figure above):

hostname PE1
!
ip cef
!
ip vrf VPN1
 rd 1:105
 route-target export 1:100
 route-target import 1:100
!
interface Loopback 0
 ip address 10.1.0.3 255.255.255.255
!
interface Ethernet 0/0
 description Link to CE1
 ip vrf forwarding VPN1
 ip address 192.168.1.2 255.255.255.0
!
interface Ethernet 1/0
 description Link to P1
 ip address 10.1.1.3 255.255.255.0
 mpls ip
!
router ospf 10 vrf VPN1
 log-adjacency-changes
 redistribute bgp 1 metric 100 subnets
 network 192.168.0.0 0.0.255.255 area 0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 bgp confederation identifier 100
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor 10.1.0.4 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor 10.1.0.4 activate
 exit-address-family
 !
 address-family ipv4 vrf VPN1
 redistribute ospf 10 vrf VPN1
 no auto-summary
 no synchronization
 exit-address-family
!
end

Inter-AS Confederation Configuration for Autonomous System 1 P1 Example

The following example shows how to configure P1 in autonomous system 1 in a confederation topology (see the figure above):

!
hostname P1
!
ip cef
!
interface Loopback 0
 ip address 10.1.0.4 255.255.255.255
!
interface Ethernet 0/0
 description Link to PE1
 ip address 10.1.1.4 255.255.255.0
 mpls ip
!
interface Ethernet 1/0
 description Link to ASBR1
 ip address 10.1.2.4 255.255.255.0
 mpls ip
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 bgp confederation identifier 100
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor R route-reflector-client
 neighbor 10.1.0.3 peer-group R
 neighbor 10.1.0.5 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R route-reflector-client
 neighbor 10.1.0.3 activate
 neighbor 10.1.0.5 activate
 exit-address-family
!
end

Inter-AS Confederation Configuration for Autonomous System 1 ASBR1 Example

The following example shows how to configure ASBR1 in autonomous system 1 in a confederation topology (see the figure above):

!
hostname ASBR1
!
ip cef
!
interface Loopback 0
 ip address 10.1.0.5 255.255.255.255
!
interface Ethernet 0/0
 description Link to P1
 ip address 10.1.2.5 255.255.255.0
 mpls ip
!
interface Ethernet 1/0
 description Link to ASBR2
 ip address 172.16.0.1 255.255.255.255
 mpls bgp forwarding
!
router ospf 1
 log-adjacency-changes
 redistribute connected subnets
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 bgp confederation identifier 100
 bgp confederation peers 2
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor 10.1.0.4 peer-group R
 neighbor 172.16.0.2 remote-as 2
 neighbor 172.16.0.2 next-hop-self
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R next-hop-self
 neighbor 10.1.0.4 activate
 neighbor 172.16.0.2 activate
 neighbor 172.16.0.2 send-community extended
 neighbor 172.16.0.2 next-hop-self
 exit-address-family
!
end

Inter-AS Confederation Configuration for Autonomous System 2 ASBR2 Example

The following example shows how to configure ASBR2 in autonomous system 2 in a confederation topology (see the figure above):

!
hostname ASBR2
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.8 255.255.255.255
 ip router isis
!
interface Ethernet 0/0
 description Link to ASBR1
 ip address 172.16.0.2 255.255.255.255
 mpls bgp forwarding
!
interface Serial 2/0
 description Link to P2
 ip address 10.2.2.8 255.255.255.0
 ip router isis
 mpls ip
no fair-queue
 serial restart-delay 0
!
router isis
 net 49.0002.0000.0000.0003.00
!
router bgp 2
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 bgp confederation identifier 100
 bgp confederation peers 1
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.0.1 remote-as 1
 neighbor 172.16.0.1 next-hop-self
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.0.1 activate
 neighbor 172.16.0.1 send-community extended
 neighbor 172.16.0.1 next-hop-self
 exit-address-family
!
end

Inter-AS Confederation Configuration for Autonomous System 2 P2 Example

The following example shows how to configure P2 in autonomous system 2 in a confederation topology (see the figure above):

!
hostname P2
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.7 255.255.255.255
 ip router isis
!
interface Ethernet 1/0
 description Link to PE2
 ip address 10.2.1.7 255.255.255.0
 ip router isis
 mpls ip
!
interface Serial 2/0
 description Link to ASBR2
 ip address 10.2.2.7 255.255.255.0
 ip router isis
 mpls ip
 no fair-queue
 serial restart-delay 0
!
router isis
 net 49.0002.0000.0000.0008.00
!
router bgp 2
 no synchronization
 bgp log-neighbor-changes
 bgp confederation identifier 100
 neighbor R peer-group
 neighbor R remote-as 2
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor R route-reflector-client
 neighbor 10.2.0.6 peer-group R
 neighbor 10.2.0.8 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R route-reflector-client
 neighbor 10.2.0.6 activate
 neighbor 10.2.0.8 activate
 exit-address-family
!
end

Inter-AS Confederation Configuration for Autonomous System 2 PE2 Example

The following example shows how to configure PE2 in autonomous system 2 in a confederation topology (see the figure above):

!
hostname PE2
!
ip cef
!
ip vrf VPN1
 rd 1:105
 route-target export 1:100
 route-target import 1:100
!
interface Loopback 0
 ip address 10.2.0.6 255.255.255.255
 ip router isis
!
interface Ethernet 0/0
 description Link to P2
 ip address 10.2.1.6 255.255.255.0
 ip router isis
 mpls ip
!
interface Serial 2/0
 description Link to CE2
 ip vrf forwarding VPN1
 ip address 192.168.2.2 255.255.255.0
 no fair-queue
 serial restart-delay 0
!
router ospf 10 vrf VPN1
 log-adjacency-changes
 redistribute bgp 2 subnets
 network 192.168.0.0 0.0.255.255 area 0
!
router isis
 net 49.0002.0000.0000.0009.00
!
router bgp 2
 no synchronization
 bgp log-neighbor-changes
 bgp confederation identifier 100
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 exit-address-family
 !
 address-family ipv4 vrf VPN1
 redistribute connected
 redistribute ospf 10 vrf VPN1
 no auto-summary
 no synchronization
 exit-address-family
!
end

Inter-AS Confederation Configuration for Autonomous System 2 CE2 Example

The following example shows how to configure CE2 in VPN1 in a confederation topology (see the figure above):

!
hostname CE2
!
interface Loopback 0
 ip address 192.168.0.2 255.255.255.255
!
interface Serial 2/0
 description Link to PE2
 ip address 192.168.2.1 255.255.255.0
 no fair-queue
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 192.168.0.0 0.0.255.255 area 0
!
end

Configuring eBGP Multipath Load Sharing for MPLS VPN Inter-AS ASBRs Example

This section includes examples that show how to configure eBGP multipath load sharing for MPLS VPN Inter-AS ASBRS that exchange VPN-IPv4 routes. These configurations support the MPLS VPN - Interautonomous System Support feature.

The network topology in the figure below shows two autonomous systems, which are configured as follows:

  • Autonomous system 1 contains PE1, P1, and ASBR1.
  • Autonomous system 2 contains PE2, P2, ASBR2, and ASBR3.
  • CE1 and CE2 belong to the same VPN, which is called VPN1.
  • The P routers are route reflectors.
  • ASBR1 and ASBR2 are configured with the neighbor next-hop-self command for the iBGP neighbors.
  • ASBR1 and ASBR2 are configured with the maximum paths commands to set up eBGP multipath load sharing.
Figure 13 Configuring eBGP Multipath Load Sharing Between MPLS Inter-AS ASBRs Exchanging VPN-IPv4 Routes


The following examples shows how to configure eBGP multipath load sharing for MPLS VPN Inter-AS ASBRs that exchange VPN-IPv4 routes. This section includes sample configurations for P1, ASBR1, ASBR2, and P2 routers.

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 1 CE1 Example

The following example shows how to configure CE1 in VPN1 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

!
hostname CE1
!
interface Loopback 1
 ip address 192.168.0.1 255.255.255.255
!
interface Ethernet 1/0
 description Link to PE1
 ip address 192.168.1.1 255.255.255.0
!
router ospf 1
 log-adjacency-changes
 network 192.168.0.0 0.0.255.255 area 0
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 1 PE1 Example

The following example shows how to configure PE1 in autonomous system 1 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

!
hostname PE1
!
ip cef
!
ip vrf V1
 rd 1:105
 route-target export 1:100
 route-target import 1:100
!
interface Loopback 0
 ip address 10.1.0.3 255.255.255.255
!
interface Ethernet 0/0
 description Link to CE1
 ip vrf forwarding V1
 ip address 192.168.1.2 255.255.255.0
!
interface Ethernet 1/0
 description Link to P1
 ip address 10.1.1.3 255.255.255.0
 mpls ip
!
router ospf 10 vrf V1
 log-adjacency-changes
 redistribute bgp 1 metric 100 subnets
 network 192.168.0.0 0.0.255.255 area 0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.1.0.4 remote-as 1
 no neighbor 10.1.0.4 transport path-mtu-discovery
 neighbor 10.1.0.4 update-source Loopback 0
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.1.0.4 activate
 neighbor 10.1.0.4 send-community extended
 exit-address-family
 !
 address-family ipv4 vrf V1
 redistribute ospf 10 vrf V1
 no auto-summary
 no synchronization
 exit-address-family
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 1 P1 Example

The following example shows how to configure P1 in autonomous system 1 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

!
hostname P1
!
ip cef
!
interface Loopback 0
 ip address 10.1.0.4 255.255.255.255
!
interface Ethernet 0/0
 description Link to PE1
 ip address 10.1.1.4 255.255.255.0
 mpls ip
!
interface Ethernet 1/0
 description Link to ASBR1
 ip address 10.1.2.4 255.255.255.0
 mpls ip
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 neighbor R peer-group
 neighbor R remote-as 1
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor R route-reflector-client
 neighbor 10.1.0.3 peer-group R
 neighbor 10.1.0.5 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R route-reflector-client
 neighbor 10.1.0.3 activate
 neighbor 10.1.0.5 activate
 exit-address-family
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 1 ASBR1 Example

The following example shows how to configure ASBR1 in autonomous system 1 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

hostname ASBR1
!
ip cef
!
interface Loopback 0
 ip address 10.1.0.5 255.255.255.255
!
interface Ethernet 0/0
 description Core link to P1
 ip address 10.1.2.5 255.255.255.0
 mpls ip
!
interface Ethernet 1/0
 description Link to ASBR2
 ip address 172.16.2.5 255.255.255.0
 mpls bgp forwarding
!
interface Serial 3/0
 description Link to ASBR3
 ip address 172.16.1.5 255.255.255.0
 mpls bgp forwarding
 serial restart-delay 0
!
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 neighbor 10.1.0.4 remote-as 1
 neighbor 172.16.1.9 remote-as 2
 neighbor 172.16.2.8 remote-as 2
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.1.0.4 activate
 neighbor 10.1.0.4 send-community extended
 neighbor 10.1.0.4 next-hop-self
 neighbor 172.16.1.9 activate
 neighbor 172.16.1.9 send-community extended
 neighbor 172.16.2.8 activate
 neighbor 172.16.2.8 send-community extended
 maximum-paths 2
 exit-address-family
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 2 ASBR2 Example

The following example shows how to configure ASBR2 in autonomous system 2 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

!
hostname ASBR2
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.8 255.255.255.255
!
interface Loopback 1
 no ip address
 shutdown
!
interface Ethernet 0/0
 description Link to ASBR1
 ip address 172.16.2.8 255.255.255.0
 mpls bgp forwarding
!
interface Serial 2/0
 description Link to P2
 ip address 10.2.2.8 255.255.255.0
 mpls ip
 no fair-queue
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 redistribute connected subnets
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 2
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.2.5 remote-as 1
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.2.5 activate
 neighbor 172.16.2.5 send-community extended
 exit-address-family
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 2 ASBR3 Example

The following example shows how to configure ASBR3 in autonomous system 2 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

!
hostname ASBR3
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.9 255.255.255.255
!
interface Ethernet 0/0
 description Link to ASBR1
 ip address 172.16.1.9 255.255.255.0
 mpls bgp forwarding
!
interface Serial 3/0
 description Link to P2
 ip address 10.2.3.9 255.255.255.0
 mpls ip
 no fair-queue
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 redistribute connected subnets
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 2
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.1.5 remote-as 1
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 neighbor 10.2.0.7 next-hop-self
 neighbor 172.16.1.5 activate
 neighbor 172.16.1.5 send-community extended
 exit-address-family
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 2 P2 Example

The following example shows how to configure P2 in autonomous system 2 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

!
hostname P2
!
ip cef
!
interface Loopback 0
 ip address 10.2.0.7 255.255.255.255
!
interface Ethernet 1/0
 description Link to PE2
 ip address 10.2.1.7 255.255.255.0
 mpls ip
!
interface Serial 2/0
 description Link to ASBR2
 ip address 10.2.2.7 255.255.255.0
 mpls ip
 no fair-queue
 serial restart-delay 0
!
interface Serial 3/0
 description Link to ASBR3
 ip address 10.2.3.7 255.255.255.0
 mpls ip
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 2
 no synchronization
 bgp log-neighbor-changes
 neighbor R peer-group
 neighbor R remote-as 2
 no neighbor R transport path-mtu-discovery
 neighbor R update-source Loopback 0
 neighbor R route-reflector-client
 neighbor 10.2.0.6 peer-group R
 neighbor 10.2.0.8 peer-group R
 neighbor 10.2.0.9 peer-group R
 no auto-summary
 !
 address-family vpnv4
 neighbor R send-community extended
 neighbor R route-reflector-client
 neighbor 10.2.0.6 activate
 neighbor 10.2.0.8 activate
 neighbor 10.2.0.9 activate
 exit-address-family
!
end
!

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 2 PE2 Example

The following example shows how to configure PE2 in autonomous system 2 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

hostname PE2
!
ip cef
!
ip vrf V1
 rd 1:105
 route-target export 1:100
 route-target import 1:100
!
interface Loopback 0
 ip address 10.2.0.6 255.255.255.255
!
interface Ethernet 0/0
 description Link to P2
 ip address 10.2.1.6 255.255.255.0
 mpls ip
!
interface Serial 2/0
 description Link to CE2
 ip vrf forwarding V1
 ip address 192.168.2.2 255.255.255.0
 no fair-queue
 serial restart-delay 0
!
router ospf 10 vrf V1
 log-adjacency-changes
 redistribute bgp 2 subnets
 network 192.168.0.0 0.0.255.255 area 0
!
router ospf 1
 log-adjacency-changes
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 2
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.2.0.7 remote-as 2
 neighbor 10.2.0.7 update-source Loopback 0
 no auto-summary
 !
 address-family vpnv4
 neighbor 10.2.0.7 activate
 neighbor 10.2.0.7 send-community extended
 exit-address-family
 !
 address-family ipv4 vrf V1
 redistribute connected
 redistribute ospf 10 vrf V1
 no auto-summary
 no synchronization
 exit-address-family
!
end

Multipath Support for Inter-AS VPNs Configuration for Autonomous System 2 CE2 Example

The following example shows how to configure CE2 in VPN1 for the MPLS VPN - Interautonomous System Support feature (see the figure above):

hostname CE2
!
interface Loopback 0
 ip address 192.168.0.2 255.255.255.255
!
interface Serial 2/0
 description Link to PE2
 ip address 192.168.2.1 255.255.255.0
 no fair-queue
 serial restart-delay 0
!
router ospf 1
 log-adjacency-changes
 network 192.168.0.0 0.0.255.255 area 0
end

Additional References

Related Documents

Related Topic

Document Title

Configuration tasks for basic MPLS VPNs

Configuring MPLS VPNs

Configuration tasks for MPLS VPN Inter-AS system exchanging IPv4 routes and MPLS labels

MPLS VPN - Inter-AS--IPv4 BGP Label Distribution

Information about monitoring MPLS VPNs with MIBs

MPLS VPN--SNMP MIB Support

Standards

Standard

Title

No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.

--

MIBs

MIB

MIBs Link

No new or modified MIBs are supported by this feature, and support for existing MIBs has not been modified by this feature.

To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

RFCs

RFC

Title

RFC 1164

Application of the Border Gateway Protocol in the Internet

RFC 1700

Assigned Numbers

RFC 1771

A Border Gateway Protocol 4

RFC 1965

Autonomous System Confederation for BGP

RFC 1966

BGP Route Reflection: An Alternative to Full Mesh iBGP

RFC 2547

BGP/MPLS VPNs

RFC 2842

Capabilities Advertisement with BGP-4

RFC 2858

Multiprotocol Extensions for BGP-4

RFC 3107

Carrying Label Information in BGP-4

Technical Assistance

Description

Link

The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies.

To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds.

Access to most tools on the Cisco Support website requires a Cisco.com user ID and password.

http://www.cisco.com/techsupport

Feature Information for MPLS VPN - Interautonomous System Support

The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Table 3 Feature Information for MPLS VPN - Interautonomous System SupportMPLS VPN - Interautonomous System Support

Feature Name

Releases

Feature Information

MPLS VPN - Interautonomous System Support

12.1(5)T

12.0(16)ST

12.0(17)ST

12.0(22)S

12.0(23)S

12.2(13)T

12.0(24)S

12.2(14)S

12.0(29)S

12.2(33)SRA

12.2(33)SXH

Cisco IOS XE Release 3.8S

The MPLS VPN - Interautonomous System Support feature allows an MPLS VPN to span service providers and autonomous systems. This feature module explains how to configure the Inter-AS using the ASBRs to exchange VPNv4 Addresses.

In 12.1(5)T, this feature was introduced.

In 12.0(16)ST, support for the Cisco 12000 series 4-Port OC-3c/STM-1c ATM line card (4-Port OC-3 ATM) and the Cisco 12000 series 4-Port OC-3c/STM-1c POS/SDH line card (4-port OC-3 POS) was added.

In 12.0(17)ST, support for the Cisco 12000 series was added (See Feature Information for MPLS VPN - Interautonomous System Support for the Cisco 12000 series line cards supported.)

In 12.0(22)S, support for the Cisco 12000 series, the Cisco 10000 series edge services routers (ESRs), and the Cisco 10720 Internet routers was added. (See Feature Information for MPLS VPN - Interautonomous System Support for the Cisco 12000 series line cards supported.)

In 12.0(23)S, support was added for the Cisco 12000 series 8-port OC-3c/STM-1c ATM line card (8-Port OC-3 ATM) and the Cisco 12000 series 3-port Gigabit Ethernet line card (3-Port GbE).

This feature was integrated into Cisco IOS Release 12.2(13)T.

In 12.0(24)S, support was added for the Cisco 12000 series 1-port 10-Gigabit Ethernet line card (1-Port 10-GbE) and the Cisco 12000 series modular Gigabit Ethernet/Fast Ethernet line card (modular GbE/FE) and this feature was implemented on Cisco IOS 12.0(24)S.

This feature was integrated into Cisco IOS Release 12.2(14)S and implemented on Cisco 7200 and Cisco 7500 series routers.

In 12.0(29)S, support was added for eBGP sessions between loopbacks of directly connected MPLS-enabled routers to provide for load sharing between neighbors.

This feature was integrated into Cisco IOS Release 12.2(33)SRA. Support was added for load balancing of Virtual Private Network (VPN) traffic for VPNv4 peering.

This feature was integrated into Cisco IOS Release 12.2(33)SXH.

In Cisco IOS XE Release 3.8S, support was added for the Cisco ISR 4400 Series Routers.

MPLS VPN - Loadbalancing support for Inter-AS and CSC VPNs

12.0(29)S

12.2(33)SRA

This feature allows MPLS VPN Inter-AS and MPLS VPN Carrier Supporting Carrier (CSC) networks to load share traffic between adjacent LSRs that are connected by multiple links. The LSRs can be a pair of ASBRs or a CSC-PE and a CSC-CE. Using directly connected loopback peering allows load sharing at the IGP level, so more than one BGP session is not needed between the LSRs. No other label distribution mechanism is needed between the adjacent LSRs than BGP.

MPLS VPN--Multipath Support for Inter-AS VPNs

12.2(33)SRA

12.2(33)SXH

This feature supports Virtual Private Network (VPN)v4 multipath for Autonomous System Border Routers (ASBRs) in the interautonomous system (Inter-AS) Multiprotocol Label Switching (MPLS) VPN environment. It allows load balancing of VPN traffic when you use the VPNv4 peering model for Inter-AS VPNs.

Glossary

autonomous system--A collection of networks under a common administration sharing a common routing strategy.

BGP --Border Gateway Protocol. An interdomain routing protocol that exchanges network reachability information with other BGP systems (which may be within the same autonomous system or between multiple autonomous systems).

CeBGP --confederation exterior Border Gateway Protocol. A BGP between routers located within different subautonomous systems of a confederation. See eBGP and iBGP .

CE router--customer edge router. A router that is part of a customer network and that interfaces to a provider edge (PE) router. CE routers do not recognize associated MPLS VPNs.

confederation --An autonomous system divided into multiple, separate subautonomous systems and classified as a single unit.

eBGP --exterior Border Gateway Protocol. A BGP between routers located within different autonomous systems. When two routers, located in different autonomous systems, are more than one hop away from one another, the eBGP session between the two routers is considered a multihop BGP.

iBGP --interior Border Gateway Protocol. A BGP between routers within the same autonomous system.

IGP --Interior Gateway Protocol. Internet protocol used to exchange routing information within a single autonomous system. Examples of common Internet IGP protocols include IGRP, OSPF, IS-IS, and RIP.

LFIB --Label Forwarding Information Base. Data structure used in MPLS to hold information about incoming and outgoing labels and associated Forwarding Equivalence Class (FEC) packets.

MPLS --Multiprotocol Label Switching. The name of the IETF working group responsible for label switching, and the name of the label switching approach it has standardized.

NLRI --Network Layer Reachability Information. The BGP sends routing update messages containing NLRI to describe a route and how to get there. In this context, an NLRI is a prefix. A BGP update message carries one or more NLRI prefixes and the attributes of a route for the NLRI prefixes; the route attributes include a BGP next hop gateway address and extended community values.

PE router--provider edge router. A router that is part of a service provider's network. It is connected to a customer edge (CE) router and all MPLS VPN processing occurs in the PE router.

RD --route distinguisher. An 8-byte value that is concatenated with an IPv4 prefix to create a unique VPN-IPv4 prefix.

VPN --Virtual Private Network. A secure MPLS-based network that shares resources on one or more physical networks (typically implemented by one or more service providers). A VPN contains geographically dispersed sites that can communicate securely over a shared backbone network.

VRF --VPN routing and forwarding instance. Routing information that defines a Virtual Private Network (VPN) site that is attached to a provider edge (PE) router. A VRF consists of an IP routing table, a derived forwarding table, a set of interfaces that use the forwarding table, and a set of rules and routing protocols that determine what goes into the forwarding table.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

© 2012 Cisco Systems, Inc. All rights reserved.

Was this Document Helpful?

FeedbackFeedback

Contact Cisco

This Document Applies to These Products
