Configuring Tenant Routed Multicast (TRM)

This chapter contains these sections:

About Tenant Routed Multicast

Tenant Routed Multicast (TRM) enables multicast forwarding on the VXLAN fabric that uses a BGP-based EVPN control plane. TRM provides multi-tenancy aware multicast forwarding between senders and receivers within the same or different subnet local or across VTEPs.

This feature brings the efficiency of multicast delivery to VXLAN overlays. It is based on the standards-based next generation control plane (ngMVPN) described in IETF RFC 6513, 6514. TRM enables the delivery of customer IP multicast traffic in a multitenant fabric, and thus in an efficient and resilient manner. The delivery of TRM improves Layer-3 overlay multicast functionality in our networks.

While BGP EVPN provides the control plane for unicast routing, ngMVPN provides scalable multicast routing functionality. It follows an “always route” approach where every edge device (VTEP) with distributed IP Anycast Gateway for unicast becomes a Designated Router (DR) for Multicast. Bridged multicast forwarding is only present on the edge-devices (VTEP) where IGMP snooping optimizes the multicast forwarding to interested receivers. Every other multicast traffic beyond local delivery is efficiently routed.

Figure 1. VXLAN EVPN TRM

With TRM enabled, multicast forwarding in the underlay is leveraged to replicate VXLAN encapsulated routed multicast traffic. A Default Multicast Distribution Tree (Default-MDT) is built per-VRF. This is an addition to the existing multicast groups for Layer-2 VNI Broadcast, Unknown Unicast, and Layer-2 multicast replication group. The individual multicast group addresses in the overlay are mapped to the respective underlay multicast address for replication and transport. The advantage of using a BGP-based approach allows the VXLAN BGP EVPN fabric with TRM to operate as fully distributed Overlay Rendezvous-Point (RP), with the RP presence on every edge-device (VTEP).

A multicast-enabled data center fabric is typically part of an overall multicast network. Multicast sources, receivers, and multicast rendezvous points, might reside inside the data center but might also be inside the campus or externally reachable via the WAN. TRM allows a seamless integration with existing multicast networks. It can leverage multicast rendezvous points external to the fabric. Furthermore, TRM allows for tenant-aware external connectivity using Layer-3 physical interfaces or subinterfaces.

About Tenant Routed Multicast Mixed Mode

Figure 2. TRM Layer 2/Layer 3 Mixed Mode

About Tenant Routed Multicast with IPv6 Overlay

Beginning with Cisco NX-OS Release 10.2(1), Tenant Routed Multicast (TRM) supports IPv6 in the overlay.

Guidelines and Limitations for TRM with IPv6 Overlay

The following are supported by TRM with IPv6 Overlay:

  • Multicast IPv4 underlay within fabric. Bidir and SSM are not supported.

  • IPv4 Underlay in the data center core for multisite.

  • IPv4 overlay only, IPv6 overlay Only, combination of IPv4 and IPv6 overlays

  • IPv6 in the underlay

  • Anycast Border Gateway with Border Leaf Role

  • vPC support on Border Gateway and Leaf

  • Virtual MCT on Leaf

  • Anycast RP (internal, external, and RP-everywhere)

  • Multisite Border Gateway is supported on Cisco Nexus 9300 -FX3, -GX, GX2, -H2R, and -H1 TORs.

  • RP-everywhere with Anycast RP is supported.

  • TRMv6 is supported only on default system routing mode.

  • MLD snooping with VxLAN VLANs with TRM

  • PIM6 SVI and MLD snooping configuration on the VLAN are not supported.

  • TRM with IPv6 Overlay is supported on Cisco Nexus 9300 -EX, -FX, - FX2, -FX3, -GX, - GX2, -H2R, -H1 TORs.

The following are not supported by TRM with IPv6 Overlay:

  • L2 TRM

  • VXLAN flood mode on L2 VLANs with L3TRM is not supported

  • L2-L3 TRM Mixed Mode

  • VXLAN Ingress Replication within a single site

  • MLD snooping with VXLAN VLANs without TRM

  • PIM6 SVI configuration without MLD snooping

  • MSDP

About Multicast Flow Path Visibility for TRM Flows

Beginning with Cisco NX-OS Release 10.3(2)F, the Multicast Flow Path Visualization (FPV) for TRM Flows feature is supported for TRM L3 mode and underlay multicast along with the already supported multicast flows. This feature enables you to export all multicast states in a Cisco Nexus 9000 Series switch. This helps to have a complete and reliable traceability of the flow path from the source to a receiver. To enable Multicast Flow Path Data Export on Cisco Nexus 9000 Series switches, use the multicast flow-path export command.

About Configuring VXLAN EVPN and TRM with IPv6 Underlay

Beginning with Cisco NX-OS Release 10.4(2)F, the support is provided for VXLAN with IPv6 Multicast in the Underlay. Hosts in the overlay can be IPv4 or IPv6. This requires IPv6 versions of the unicast routing protocols and using IPv6 multicast in the underlay (PIMv6). Any multi-destination overlay traffic (such as TRM, BUM) can use the IPv6 multicast underlay.

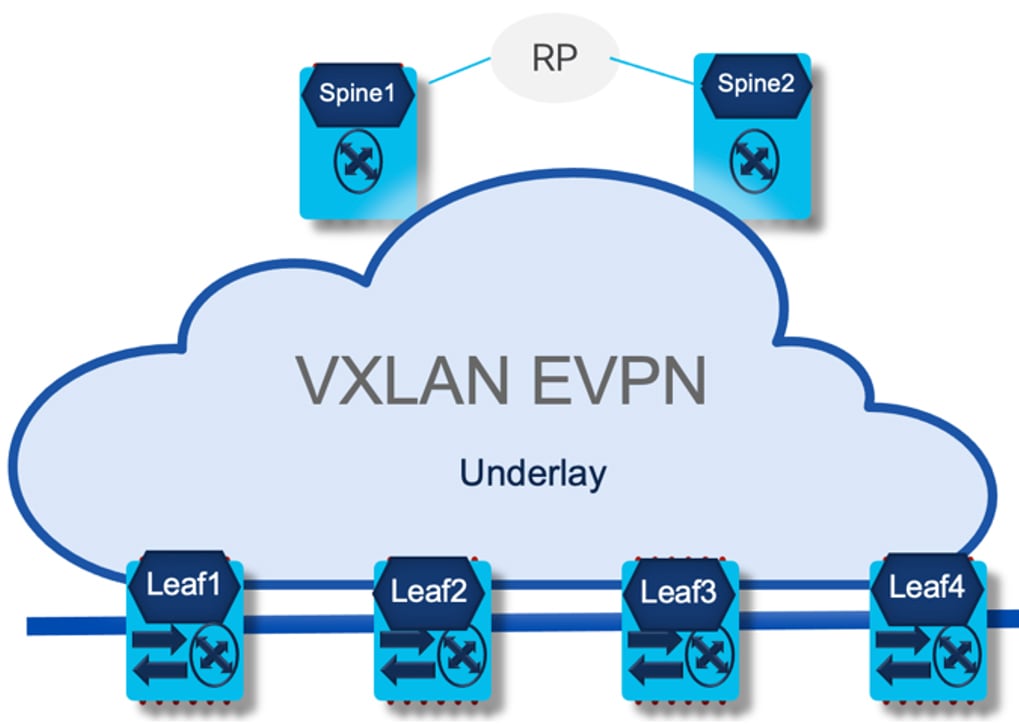

Figure 3. Topology - VXLAN EVPN with IPv6 Multicast Underlay

The above topology shows four leafs and two spines in a VXLAN EVPN fabric. The underlay is an IPv6 Multicast running PIMv6. RP is positioned in the spine with anycast RP.

Beginning with Cisco NX-OS Release 10.4(3)F, the combination of PIMv6 underlay on the fabric side and Ingress Replication (IPv6) on Data Center Interconnect (DCI) side is supported on Cisco Nexus 9300-FX/FX2/FX3/GX/GX2/H2R/H1 ToR switches and 9500 switches with X9716D-GX and X9736C-FX line cards.

Guidelines and Limitations for Tenant Routed Multicast

Tenant Routed Multicast (TRM) has the following guidelines and limitations:

  • Beginning with Cisco NX-OS Release 10.1(2), TRM Multisite with vPC BGW is supported.

  • Beginning with Cisco NX-OS Release 10.2(1q)F, VXLAN TRM is supported on Cisco Nexus N9K-C9332D-GX2B platform switches.

  • Beginning with Cisco NX-OS Release 10.2(3)F, VXLAN TRM is supported on Cisco Nexus 9364D-GX2A, and 9348D-GX2A platform switches.

  • Beginning with Cisco NX-OS Release 10.4(1)F, VXLAN TRM is supported on Cisco Nexus 9332D-H2R switches.

  • Beginning with Cisco NX-OS Release 10.4(2)F, VXLAN TRM is supported on Cisco Nexus 93400LD-H1 switches.

  • Beginning with Cisco NX-OS Release 10.4(3)F, VXLAN TRM is supported on Cisco Nexus 9364C-H1 switches.

  • With Tenant Routed Multicast enabled, FEX is not supported.

  • If VXLAN TRM feature is enabled on a VTEP, it would stop to send IGMP messages to the VXLAN fabric.

  • The Guidelines and Limitations for VXLAN also apply to TRM.

  • With TRM enabled, SVI as a core link is not supported.

  • If TRM is configured, ISSU is disruptive.

  • TRM supports IPv4 and IPv6 multicast underlay.

  • TRM supports overlay PIM ASM and PIM SSM only. PIM BiDir is not supported in the overlay.

  • RP has to be configured either internal or external to the fabric.

  • The internal RP must be configured on all TRM-enabled VTEPs including the border nodes.

  • The external RP must be external to the border nodes.

  • The RP must be configured within the VRF pointing to the external RP IP address (static RP). This ensures that unicast and multicast routing is enabled to reach the external RP in the given VRF.

  • In a Transit Routing Multicast (TRM) deployment, the RP-on-stick model can sometimes lead to traffic drops if there is flapping on the Protocol Independent Multicast (PIM) enabled interface. Use the ip pim spt-switch-graceful command on the turnaround router that leads to the RP. This command allows for a graceful switch to the Shortest Path Tree (SPT) during flapping, which can minimize traffic drops.

  • Replication of first packet is supported only on Cisco Nexus 9300 – EX, FX, FX2 family switches.

  • Beginning with Cisco NX-OS Release 10.2(3)F, Replication of first packet is supported on the Cisco Nexus 9300-FX3 platform switches.

  • TRM with Multi-Site is not supported on Cisco Nexus 9504-R platforms.

  • TRM supports multiple border nodes. Reachability to an external RP/source via multiple border leaf switches is supported with ECMP and requires symmetric unicast routing.

  • Both PIM and ip igmp snooping vxlan must be enabled on the L3 VNI's VLAN in a VXLAN vPC setup.

  • For traffic streams with an internal source and external L3 receiver using an external RP, the external L3 receiver might send PIM S,G join requests to the internal source. Doing so triggers the recreation of S,G on the fabric FHR, and it can take up to 10 minutes for this S,G to be cleared.

  • Beginning with Cisco NX-OS Release 10.3(1)F, the Real-time/flex statistics for TRM is supported on Cisco Nexus 9300-X Cloud Scale Switches.

  • TRM supports vPC fabric peering leaf’s as well as vPC/Anycast BGW.

Guidelines and Limitations for Layer 3 Tenant Routed Multicast

Layer 3 Tenant Routed Multicast (TRM) has the following configuration guidelines and limitations:

  • When upgrading from Cisco NX-OS Release 9.3(3) to Cisco NX-OS Release 9.3(6), if you do not retain configurations of the TRM enabled VRFs from Cisco NX-OS Release 9.3(3), or if you create new VRFs after the upgrade, the auto-generation of ip multicast multipath s-g-hash next-hop-based CLI, when feature ngmvpn is enabled, will not happen. You must enable the CLI manually for each TRM enabled VRF.

  • Layer 3 TRM is supported for Cisco Nexus 9200, 9300-EX, and 9300-FX/FX2/FX3/FXP and 9300-GX platform switches.

  • Beginning with Cisco NX-OS Release 10.2(3)F, Layer 3 TRM is supported on the Cisco Nexus 9300-GX2 platform switches.

  • Beginning with Cisco NX-OS Release 10.4(1)F, Layer 3 TRM is supported on the Cisco Nexus 9332D-H2R switches.

  • Beginning with Cisco NX-OS Release 10.4(2)F, Layer 3 TRM is supported on the Cisco Nexus 93400LD-H1 switches.

  • Beginning with Cisco NX-OS Release 10.4(3)F, Layer 3 TRM is supported on the Cisco Nexus 9364C-H1 switches.

  • Beginning with Cisco NX-OS Release 9.3(7), Cisco Nexus N9K-C9316D-GX, N9K-C9364C-GX, and N9K-X9716D-GX platform switches support the combination of Layer 3 TRM and EVPN Multi-Site.

  • Cisco Nexus 9300-GX platform switches do not support the combination of Layer 3 TRM and EVPN Multi-Site in Cisco NX-OS Release 9.3(5).

  • Beginning with Cisco NX-OS Release 10.2(3)F, the combination of Layer 3 TRM and EVPN Multi-Site is supported on the Cisco Nexus 9300-GX2 platform switches.

  • Beginning with Cisco NX-OS Release 10.4(1)F, the combination of Layer 3 TRM and EVPN Multi-Site is supported on the Cisco Nexus 9332D-H2R switches.

  • Beginning with Cisco NX-OS Release 10.4(2)F, the combination of Layer 3 TRM and EVPN Multi-Site is supported on the Cisco Nexus 93400LD-H1 switches.

  • Beginning with Cisco NX-OS Release 10.4(3)F, the combination of Layer 3 TRM and EVPN Multi-Site is supported on the Cisco Nexus 9364C-H1 switches.

  • Beginning with Cisco NX-OS Release 9.3(3), the Cisco Nexus 9504 and 9508 platform switches with -R/RX line cards support TRM in Layer 3 mode. This feature is supported on IPv4 overlays only. Layer 2 mode and L2/L3 mixed mode are not supported.

    The Cisco Nexus 9504 and 9508 platform switches with -R/RX line cards can function as a border leaf for Layer 3 unicast traffic. For Anycast functionality, the RP can be internal, external, or RP everywhere.

  • When configuring TRM VXLAN BGP EVPN, the following platforms are supported:

    • Cisco Nexus 9200, 9332C, 9364C, 9300-EX, and 9300-FX/FX2/FX3/FXP platform switches.

    • Cisco Nexus 9300-GX/GX2 platform switches.

    • Cisco Nexus 9300-H2R/H1 platform switches.

    • Cisco Nexus 9500 platform switches with 9700-EX line cards, 9700-FX line cards, or a combination of both line cards.

  • Layer 3 TRM and VXLAN EVPN Multi-Site are supported on the same physical switch. For more information, see Configuring VXLAN EVPN Multi-Site.

  • TRM Multi-Site functionality is not supported on Cisco Nexus 9504 platform switches with -R/RX line cards.

  • If one or both VTEPs is a Cisco Nexus 9504 or 9508 platform switch with -R/RX line cards, the packet TTL is decremented twice, once for routing to the L3 VNI on the source leaf and once for forwarding from the destination L3 VNI to the destination VLAN on the destination leaf.

  • TRM with vPC border leafs is supported only for Cisco Nexus 9200, 9300-EX, and 9300-FX/FX2/FX3/GX/GX2/H2R/H1 platform switches and Cisco Nexus 9500 platform switches with -EX/FX or -R/RX line cards. The advertise-pip and advertise virtual-rmac commands must be enabled on the border leafs to support this functionality. For configuration information, see the "Configuring VIP/PIP" section.

  • To support any Layer 3 source behind one of the vPC peers, whether physical or virtual MCT, a physical link configured as VRF-lite is required between the vPC peers. This setup is necessary to accommodate a receiver located behind the vPC peer, especially if it is the sole receiver in the fabric. This requirement applies to all scenarios where the vPC functions as a BGW, border Leaf, or an internal Leaf.

    On the receiving vPC peer, the VRF-lite link must have a superior reachability metric to the L3 source compared to any other paths (iBGP or eBGP) to be selected as the RPF towards the L3 source. In this configuration, traffic will flow directly to the receiver without traversing the EVPN fabric.

  • Well-known local scope multicast (224.0.0.0/24) is excluded from TRM and is bridged.

  • When an interface NVE is brought down on the border leaf, the internal overlay RP per VRF must be brought down.

  • Beginning with Cisco NX-OS Release 10.3(1)F, TRM support for the new L3VNI mode CLIs are provided on Cisco Nexus 9300-X Cloud Scale switches.

  • Beginning Cisco NXOS release 10.2(1)F, TRM Flow Path Visualization is supported for flows within a single VXLAN EVPN site.

  • Beginning Cisco NXOS Release 10.3(2)F, TRM Flow Path Visualization support has been extended to below traffic patterns on Cisco Nexus 9000 Series platform switches:

    • TRM Multisite DCI Multicast

    • TRM Multisite DCI IR

    • TRM Data MDT

    • TRM on Virtual MCT vPC

    • TRM using new L3VNI

    • BUM Traffic visibility is not supported.

  • Beginning with Cisco NX-OS Release 10.4(3)F, the TRM Multi-Site Anycast BGW on Cisco Nexus 9808/9804 switches with Cisco Nexus X9836DM-A and X98900CD-A line cards support the following features:

    • TRMv4

    • Ingress Replication between DCI peers across the core

    • Multicast underlay for fabric peers.

    • Only new L3VNI mode is supported. However, the traditional L3VNI mode is not supported

    TRM Multi-Site Anycast BGW on Cisco Nexus 9808/9804 switches with Cisco Nexus X9836DM-A and X98900CD-A line cards do not support the following features:

    • TRMv6

    • Data MDT

    • Multicast underlay between DCI peers across the core is not supported.

Guidelines and Limitations for Layer 2/Layer 3 Tenant Routed Multicast (Mixed Mode)

Layer 2/Layer 3 Tenant Routed Multicast (TRM) has the following configuration guidelines and limitations:

  • All TRM Layer 2/Layer 3 configured switches must be Anchor DR. This is because in TRM Layer 2/Layer 3, you can have switches configured with TRM Layer 2 mode that co-exist in the same topology. This mode is necessary if non-TRM and Layer 2 TRM mode edge devices (VTEPs) are present in the same topology.


  • Anchor DR is required to be an RP in the overlay.

  • An extra loopback is required for anchor DRs.

  • Non-TRM and Layer 2 TRM mode edge devices (VTEPs) require an IGMP snooping querier configured per multicast-enabled VLAN. Every non-TRM and Layer 2 TRM mode edge device (VTEP) requires this IGMP snooping querier configuration because in TRM multicast control-packets are not forwarded over VXLAN.

  • The IP address for the IGMP snooping querier can be re-used on non-TRM and Layer 2 TRM mode edge devices (VTEPs).

  • The IP address of the IGMP snooping querier in a VPC domain must be different on each VPC member device.

  • When interface NVE is brought down on the border leaf, the internal overlay RP per VRF should be brought down.

  • The NVE interface must be shut and unshut while configuring the ip multicast overlay-distributed-dr command.

  • Beginning with Cisco NX-OS Release 9.2(1), TRM with vPC border leafs is supported. Advertise-PIP and Advertise Virtual-Rmac need to be enabled on border leafs to support with functionality. For configuring advertise-pip and advertise virtual-rmac, see the "Configuring VIP/PIP" section.

  • Anchor DR is supported only on the following hardware platforms:

    • Cisco Nexus 9200, 9300-EX, and 9300-FX/FX2 platform switches

    • Cisco Nexus 9500 platform switches with 9700-EX line cards, 9700-FX line cards, or a combination of both line cards

  • Beginning with Cisco NX-OS Release 10.2(3)F, Anchor DR is supported on the Cisco Nexus 9300-FX3 platform switches.

  • Layer 2/Layer 3 Tenant Routed Multicast (TRM) is not supported on Cisco Nexus 9300-FX3/GX/GX2/H2R/H1 platform switches.

Guidelines and Limitations for VXLAN EVPN and TRM with IPv6 in the Multicast Underlay

VXLAN EVPN and TRM with IPv6 Multicast Underlay has the following guidelines and limitations:

  • Spine-based static RP is supported in underlay.

  • Cisco Nexus 9300-FX, FX2, FX3, GX, GX2, H2R, and H1 ToR switches are supported as the leaf VTEP.

  • Cisco Nexus X9716D-GX and X9736C-FX line cards are supported only on the spine (EoR).

  • When an EoR is deployed as a spine node with Multicast Underlay (PIMv6) Any-Source Multicast (ASM), it in mandatory to configure non-default template using one of the following commands in global configuration mode:

    • system routing template-multicast-heavy

    • system routing template-multicast-ext-heavy

  • OSPFv3, ISIS, eBGP underlay is supported.

  • PIMv6 ASM (sparse mode) is supported in underlay.

  • PIMv6 Anycast RP is supported in underlay as RP redundancy.

  • Underlay IPv6 Multicast is supported.

  • Underlay IPv6 Multicast is not supported on EOR platforms as a leaf.

  • For overlay traffic, each Cisco Nexus 9000 leaf switch is an RP. External RP is also supported.

  • EVPN TRMv4 and TRMv6 with IPv6 Multicast Underlay are supported on the Fabric.

  • Fabric Peering and Multisite are not supported with IPv6 multicast underlay.

  • The global mcast-group under NVE should not be configured as SSM range, and vice versa. If there is no explicit SSM configuration, then 232/8 is the default in data plane. hence 232.0.0.0/8 should not be configured as SSM and vice versea.

  • GPO is not supported with IPv6 multicast underlay.

  • For EVPN TRMv4 and TRMv6 with IPv6 Multicast Underlay, the TCAM region for ingress sup region must be carved to 768.

    • Check the ingress sup region using show hardware access-list tcam region command.

    • If the ingress sup region is not 768 or above, you must configure using the hardware access-list tcam region ing-sup 768 command.


      Note


      If you get an error, “Aggregate ingress TCAM allocation failure” while configuring ing-sup as 768, you must borrow the amount from other TCAM regions.


    • Reload the device after this configuration.

Rendezvous Point for Tenant Routed Multicast

With TRM enabled Internal and External RP is supported. The following table displays the first release in which RP positioning is or is not supported.

RP Internal

RP External

PIM-Based RP Everywhere

TRM L2 Mode

N/A

N/A

N/A

TRM L3 Mode

7.0(3)I7(1), 9.2(x)

7.0(3)I7(4), 9.2(3)

Supported in 7.0(3)I7(x) releases starting from 7.0(3)I7(5)

Not supported in 9.2(x)

Supported in NX-OS releases beginning with 9.3(1) for the following Nexus 9000 switches:

  • Cisco Nexus 9200 Series switches

  • Cisco Nexus 9364C platform switches

  • Cisco Nexus 9300-EX/FX/FX2 platform switches (excluding the Cisco Nexus 9300-FXP platform switch)

Supported for Cisco Nexus 9300-FX3 platform switches beginning with Cisco NX-OS Release 9.3(5)

TRM L2L3 Mode

7.0(3)I7(1), 9.2(x)

N/A

N/A

RP Internal

RP External

TRM L2 Mode

N/A

N/A

TRM L3 Mode

7.0(3)I7(1)

7.0(3)I7(4)

TRM L2L3 Mode

7.0(3)I7(1)

N/A

Configuring a Rendezvous Point Inside the VXLAN Fabric

Configure the loopback for the TRM VRFs with the following commands on all devices (VTEP). Ensure it is reachable within EVPN (advertise/redistribute).

SUMMARY STEPS

  1. configure terminal
  2. interface loopback loopback_number
  3. vrf member vxlan-number
  4. ip address ip-address
  5. ip pim sparse-mode
  6. vrf context vrf-name
  7. ip pim rp-address ip-address-of-router group-list group-range-prefix

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enters global configuration mode.

Step 2

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all TRM-enabled nodes. This enables the rendezvous point inside the fabric.

Step 3

vrf member vxlan-number

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 4

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.1/32

Specify IP address.

Step 5

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 6

vrf context vrf-name

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 7

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameter is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Configuring an External Rendezvous Point

Configure the external rendezvous point (RP) IP address within the TRM VRFs on all devices (VTEP). In addition, ensure reachability of the external RP within the VRF via the border node. With TRM enabled and an external RP in use, ensure that only one routing path is active. Routing between the TRM fabric and the external RP must be via a single border leaf (non ECMP).

SUMMARY STEPS

  1. configure terminal
  2. vrf context vrf100
  3. ip pim rp-address ip-address-of-router group-list group-range-prefix

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

vrf context vrf100

Example:

switch(config)# vrf context vrf100

Enter configuration mode.

Step 3

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameter is that of the RP. The same IP address must be on all of the edge devices (VTEPs) for a fully distributed RP.

Configuring RP Everywhere with PIM Anycast

RP Everywhere configuration with PIM Anycast solution.

For information about configuring RP Everywhere with PIM Anycast, see:

Configuring a TRM Leaf Node for RP Everywhere with PIM Anycast

Configuration of Tenant Routed Multicast (TRM) leaf node for RP Everywhere.

SUMMARY STEPS

  1. configure terminal
  2. interface loopback loopback_number
  3. vrf member vrf-name
  4. ip address ip-address
  5. ip pim sparse-mode
  6. vrf context vxlan
  7. ip pim rp-address ip-address-of-router group-list group-range-prefix

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all VXLAN VTEP devices.

Step 3

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 4

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.1/32

Specify IP address.

Step 5

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 6

vrf context vxlan

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 7

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameters is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Configuring a TRM Border Leaf Node for RP Everywhere with PIM Anycast

Configuring the TRM Border Leaf Node for RP Anywhere with PIM Anycast.

SUMMARY STEPS

  1. configure terminal
  2. ip pim evpn-border-leaf
  3. interface loopback loopback_number
  4. vrf member vrf-name
  5. ip address ip-address
  6. ip pim sparse-mode
  7. interface loopback loopback_number
  8. vrf member vxlan-number
  9. ip address ip-address
  10. ip pim sparse-mode
  11. vrf context vrf-name
  12. ip pim rp-address ip-address-of-router group-list group-range-prefix
  13. ip pim anycast-rp anycast-rp-address address-of-rp
  14. ip pim anycast-rp anycast-rp-address address-of-rp
  15. ip pim anycast-rp anycast-rp-address address-of-rp
  16. ip pim anycast-rp anycast-rp-address address-of-rp

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

ip pim evpn-border-leaf

Example:

switch(config)# ip pim evpn-border-leaf

Configure VXLAN VTEP as TRM border leaf node,

Step 3

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all VXLAN VTEP devices.

Step 4

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 5

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.1/32

Specify IP address.

Step 6

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 7

interface loopback loopback_number

Example:

switch(config)# interface loopback 12

Configure the PIM Anycast set RP loopback interface.

Step 8

vrf member vxlan-number

Example:

switch(config-if)# vrf member vxlan-number

Configure VRF name.

Step 9

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.11/32

Specify IP address.

Step 10

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 11

vrf context vrf-name

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 12

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameters is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Step 13

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.11

Configure PIM Anycast RP set.

Step 14

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.12

Configure PIM Anycast RP set.

Step 15

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.13

Configure PIM Anycast RP set.

Step 16

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.14

Configure PIM Anycast RP set.

Configuring an External Router for RP Everywhere with PIM Anycast

Use this procedure to configure an external router for RP Everywhere.

SUMMARY STEPS

  1. configure terminal
  2. interface loopback loopback_number
  3. vrf member vrf-name
  4. ip address ip-address
  5. ip pim sparse-mode
  6. interface loopback loopback_number
  7. vrf member vxlan-number
  8. ip address ip-address
  9. ip pim sparse-mode
  10. vrf context vxlan
  11. ip pim rp-address ip-address-of-router group-list group-range-prefix
  12. ip pim anycast-rp anycast-rp-address address-of-rp
  13. ip pim anycast-rp anycast-rp-address address-of-rp
  14. ip pim anycast-rp anycast-rp-address address-of-rp
  15. ip pim anycast-rp anycast-rp-address address-of-rp

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all VXLAN VTEP devices.

Step 3

vrf member vrf-name

Example:

switch(config-if)# vrf member vfr100

Configure VRF name.

Step 4

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.1/32

Specify IP address.

Step 5

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 6

interface loopback loopback_number

Example:

switch(config)# interface loopback 12

Configure the PIM Anycast set RP loopback interface.

Step 7

vrf member vxlan-number

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 8

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.13/32

Specify IP address.

Step 9

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 10

vrf context vxlan

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 11

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameters is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Step 12

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.11

Configure PIM Anycast RP set.

Step 13

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.12

Configure PIM Anycast RP set.

Step 14

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.13

Configure PIM Anycast RP set.

Step 15

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.14

Configure PIM Anycast RP set.

Configuring RP Everywhere with MSDP Peering

The following figure represents the RP Everywhere configuration with MSDP RP solution.

For information about configuring RP Everywhere with MSDP Peering, see:

Configuring a TRM Leaf Node for RP Everywhere with MSDP Peering

Configuring a TRM leaf node for RP Everywhere with MSDP peering.

SUMMARY STEPS

  1. configure terminal
  2. interface loopback loopback_number
  3. vrf member vrf-name
  4. ip address ip-address
  5. ip pim sparse-mode
  6. vrf context vrf-name
  7. ip pim rp-address ip-address-of-router group-list group-range-prefix

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all VXLAN VTEP devices.

Step 3

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 4

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.1/32

Specify IP address.

Step 5

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 6

vrf context vrf-name

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 7

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameters is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Configuring a TRM Border Leaf Node for RP Everywhere with MSDP Peering

Use this procedure to configure a TRM border leaf for RP Everywhere with PIM Anycast.

SUMMARY STEPS

  1. configure terminal
  2. feature msdp
  3. ip pim evpn-border-leaf
  4. interface loopback loopback_number
  5. vrf member vrf-name
  6. ip address ip-address
  7. ip pim sparse-mode
  8. interface loopback loopback_number
  9. vrf member vrf-name
  10. ip address ip-address
  11. ip pim sparse-mode
  12. vrf context vrf-name
  13. ip pim rp-address ip-address-of-router group-list group-range-prefix
  14. ip pim anycast-rp anycast-rp-address address-of-rp
  15. ip pim anycast-rp anycast-rp-address address-of-rp
  16. ip msdp originator-id loopback
  17. ip msdp peer ip-address connect-source loopback

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

feature msdp

Example:

switch(config)# feature msdp

Enable feature MSDP.

Step 3

ip pim evpn-border-leaf

Example:

switch(config)# ip pim evpn-border-leaf

Configure VXLAN VTEP as TRM border leaf node,

Step 4

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all VXLAN VTEP devices.

Step 5

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 6

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.1/32

Specify IP address.

Step 7

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 8

interface loopback loopback_number

Example:

switch(config)# interface loopback 12

Configure the PIM Anycast set RP loopback interface.

Step 9

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 10

ip address ip-address

Example:

switch(config-if)# ip address 209.165.200.11/32

Specify IP address.

Step 11

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 12

vrf context vrf-name

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 13

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.200.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameter is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Step 14

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.11

Configure PIM Anycast RP set.

Step 15

ip pim anycast-rp anycast-rp-address address-of-rp

Example:

switch(config-vrf)# ip pim anycast-rp 209.165.200.1 209.165.200.12

Configure PIM Anycast RP set.

Step 16

ip msdp originator-id loopback

Example:

switch(config-vrf)# ip msdp originator-id loopback12

Configure MSDP originator ID.

Step 17

ip msdp peer ip-address connect-source loopback

Example:

switch(config-vrf)# ip msdp peer 209.165.201.11 connect-source loopback12

Configure MSDP peering between border node and external RP router.

Configuring an External Router for RP Everywhere with MSDP Peering

SUMMARY STEPS

  1. configure terminal
  2. feature msdp
  3. interface loopback loopback_number
  4. vrf member vrf-name
  5. ip address ip-address
  6. ip pim sparse-mode
  7. interface loopback loopback_number
  8. vrf member vrf-name
  9. ip address ip-address
  10. ip pim sparse-mode
  11. vrf context vrf-name
  12. ip pim rp-address ip-address-of-router group-list group-range-prefix
  13. ip msdp originator-id loopback12
  14. ip msdp peer ip-address connect-source loopback12

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

feature msdp

Example:

switch(config)# feature msdp

Enable feature MSDP.

Step 3

interface loopback loopback_number

Example:

switch(config)# interface loopback 11

Configure the loopback interface on all VXLAN VTEP devices.

Step 4

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 5

ip address ip-address

Example:

switch(config-if)# ip address 209.165.201.1/32

Specify IP address.

Step 6

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 7

interface loopback loopback_number

Example:

switch(config)# interface loopback 12

Configure the PIM Anycast set RP loopback interface.

Step 8

vrf member vrf-name

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 9

ip address ip-address

Example:

switch(config-if)# ip address 209.165.201.11/32

Specify IP address.

Step 10

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on an interface.

Step 11

vrf context vrf-name

Example:

switch(config-if)# vrf context vrf100

Create a VXLAN tenant VRF.

Step 12

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.201.1 group-list 224.0.0.0/4

The value of the ip-address-of-router parameters is that of the RP. The same IP address must be on all the edge devices (VTEPs) for a fully distributed RP.

Step 13

ip msdp originator-id loopback12

Example:

switch(config-vrf)# ip msdp originator-id loopback12

Configure MSDP originator ID.

Step 14

ip msdp peer ip-address connect-source loopback12

Example:

switch(config-vrf)# ip msdp peer 209.165.200.11 connect-source loopback12

Configure MSDP peering between external RP router and all TRM border nodes.

Configuring Layer 3 Tenant Routed Multicast

This procedure enables the Tenant Routed Multicast (TRM) feature. TRM operates primarily in the Layer 3 forwarding mode for IP multicast by using BGP MVPN signaling. TRM in Layer 3 mode is the main feature and the only requirement for TRM enabled VXLAN BGP EVPN fabrics. If non-TRM capable edge devices (VTEPs) are present, the Layer 2/Layer 3 mode and Layer 2 mode have to be considered for interop.

To forward multicast between senders and receivers on the Layer 3 cloud and the VXLAN fabric on TRM vPC border leafs, the VIP/PIP configuration must be enabled. For more information, see Configuring VIP/PIP.


Note


TRM follows an always-route approach and hence decrements the Time to Live (TTL) of the transported IP multicast traffic.


Before you begin

VXLAN EVPN feature nv overlay and nv overlay evpn must be configured.

The rendezvous point (RP) must be configured.

To enable/disable TRM v4/v6, PIM v4/v6 must be enabled.

Procedure

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

feature ngmvpn

Example:

switch(config)# feature ngmvpn

Enables the Next-Generation Multicast VPN (ngMVPN) control plane. New address family commands become available in BGP.

Note



The no feature ngmvpn command will not remove MVPN configuration under BGP.

You will get a syslog message when you enable this command. The message informs you that ip multicast multipath s-g-hash next-hop-based is the recommended multipath hashing algorithm and you need enable it for the TRM enabled VRFs.

The auto-generation of ip multicast multipath s-g-hash next-hop-based command does not happen after you enable the feature ngmvpn command. You need to configure ip multicast multipath s-g-hash next-hop-based as part of the VRF configuration.

Step 3

ip igmp snooping vxlan

Example:

switch(config)# ip igmp snooping vxlan

Configure IGMP snooping for VXLAN VLANs.

Step 4

interface nve1

Example:

switch(config)# interface nve 1

Configure the NVE interface.

Step 5

member vni vni-range associate-vrf

Example:

switch(config-if-nve)# member vni 200100 associate-vrf

Configure the Layer 3 virtual network identifier. The range of vni-range is from 1 to 16,777,214.

Step 6

mcast-group ip-prefix

Example:

switch(config-if-nve-vni)# mcast-group 225.3.3.3

Builds the default multicast distribution tree for the VRF VNI (Layer 3 VNI).

The multicast group is used in the underlay (core) for all multicast routing within the associated Layer 3 VNI (VRF).

Note



We recommend that underlay multicast groups for Layer 2 VNI, default MDT, and data MDT not be shared. Use separate, non-overlapping groups.

Step 7

exit

Example:

switch(config-if-nve-vni)# exit

Exits command mode.

Step 8

exit

Example:

switch(config-if)# exit

Exits command mode.

Step 9

router bgp <as-number>

Example:

switch(config)# router bgp 100

Set autonomous system number.

Step 10

neighbor ip-addr

Example:

switch(config-router)# neighbor 1.1.1.1

Configure IP address of the neighbor.

Step 11

address-family ipv4 mvpn

Example:

switch(config-router-neighbor)# address-family ipv4 mvpn

Configure multicast VPN.

Step 12

send-community extended

Example:

switch(config-router-neighbor-af)# send-community extended

Enables ngMVPN for address family signalization. The send community extended command ensures that extended communities are exchanged for this address family.

Step 13

exit

Example:

switch(config-router-neighbor-af)# exit

Exits command mode.

Step 14

exit

Example:

switch(config-router-neighbor)# exit

Exits command mode.

Step 15

vrf context vrf_name

Example:

switch(config-router)# vrf context vrf100

Configures VRF name.

Step 16

vni number

Example:

switch(config-router)# vni 500001 l3

Specifies the VNI for the tenant VRF.

Beginning with Cisco NX-OS Release 10.3(1)F, the L3 keyword is provided to indicate that the new L3VNI configuration is enabled.

Beginning with Cisco NX-OS Release 10.4(3)F, this command with L3 option is supported on Cisco Nexus 9808/9804 switches with Cisco Nexus X9836DMA and X98900CD-A line cards.

Step 17

mvpn vri id <id>

Example:

switch(config-router)#mvpn vri 100

Generates the VRI for TRM.

Run this command under router bgp <as-number> submode.

The vri id range is from 1 to 65535.

Note



This command is mandatory on vPC leaf nodes, and value has to be same across vPC pair and unique in TRM domain. Also the value must not collide with any site-id value.

Note



This command is required on BGWs if site-id value is greater than 2 bytes, and value has to be same across all same site BGWs and unique in TRM domain. Also the value must not collide with any site-id value.

Step 18

[no] mdt [v4|v6] vxlan

Example:

switch(config-router)#mdt v4 vxlan

Enables TRM v4/v6 on the specified VRF. The TRM v4/v6 is enabled by default.

The no option disables the TRM v4/v6 on the specified VRF.

Run this command under the sub-mode of new L3VNI config.

Note


This command is applicable only to VRFs configured with new-L3VNI.

Step 19

ip multicast multipath s-g-hash next-hop-based

Example:

switch(config-vrf)# ip multicast multipath s-g-hash next-hop-based

Configures multicast multipath and initiates S, G, nexthop hashing (rather than the default of S/RP, G-based hashing) to select the RPF interface.

Step 20

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.201.1 group-list 226.0.0.0/8

The value of the ip-address-of-router parameter is that of the RP. The same IP address must be on all of the edge devices (VTEPs) for a fully distributed RP.

For overlay RP placement options, see the Configuring a Rendezvous Point for Tenant Routed Multicast section.

Step 21

address-family ipv4 unicast

Example:

switch(config-vrf)# address-family ipv4 unicast

Configures unicast address family.

Step 22

route-target both auto mvpn

Example:

switch(config-vrf-af-ipv4)# route-target both auto mvpn

Defines the BGP route target that is added as an extended community attribute to the customer multicast (C_Multicast) routes (ngMVPN route type 6 and 7).

Auto route targets are constructed by the 2-byte Autonomous System Number (ASN) and Layer 3 VNI.

Step 23

ip multicast overlay-spt-only

Example:

switch(config)# ip multicast overlay-spt-only

Gratuitously originate (S,A) route when the source is locally connected. The ip multicast overlay-spt-only command is enabled by default on all MVPN-enabled Cisco Nexus 9000 Series switches (typically leaf node).

Step 24

interfacevlan_id

Example:

switch(config)# interface vlan11

Configures the first-hop gateway (distributed anycast gateway for the Layer 2 VNI. No router PIM peering must ever happen with this interface.

Step 25

no shutdown

Example:

switch(config-if)# no shutdown

Disables an interface.

Step 26

vrf member vrf-num

Example:

switch(config-if)# vrf member vrf100

Configures VRF name.

Step 27

ipv6 address ipv6_address

Example:

switch(config-if)# ip address 11.1.1.1/24

Configures IP address.

Step 28

ipv6 pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Enables IGMP and PIM on the SVI. This is required is multicast sources and/or receivers exist in this VLAN.

Step 29

fabric forwarding mode anycast-gateway

Example:

switch(config-if)# fabric forwarding mode anycast-gateway

Configures Anycast Gateway Forwarding Mode.

Step 30

ip pim neighbor-policy route-map-name

Example:

switch(config-if)# ip pim neighbor-policy route-map1

Creates an IP PIM neighbor policy with a suitable route-map to deny any IPv4 addresses, preventing PIM from establishing PIM neighborship on the L2VNI SVI.

Note



Do not use Distributed Anycast Gateway for PIM Peerings.

Step 31

exit

Example:

switch(config-if)# exit

Exits command mode.

Step 32

interface vlan_id

Example:

switch(config)# interface vlan100

Configures Layer 3 VNI.

Step 33

no shutdown

Example:

switch(config-if)# no shutdown

Disable an interface.

Step 34

vrf member vrf100

Example:

switch(config-if)# vrf member vrf100

Configures VRF name.

Step 35

ip forward

Example:

switch(config-if)# ip forward

Enable IP forwarding on interface.

Step 36

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configures sparse-mode PIM on interface. There is no PIM peering happening in the Layer-3 VNI, but this command must be present for forwarding.

Configuring TRM on the VXLAN EVPN Spine

This procedure enables Tenant Routed Multicast (TRM) on a VXLAN EVPN spine switch.

Before you begin

The VXLAN BGP EVPN spine must be configured. See Configuring iBGP for EVPN on the Spine.

SUMMARY STEPS

  1. configure terminal
  2. route-map permitall permit 10
  3. set ip next-hop unchanged
  4. exit
  5. router bgp [autonomous system] number
  6. address-family ipv4 mvpn
  7. retain route-target all
  8. neighbor ip-address [remote-as number]
  9. address-family ipv4 mvpn
  10. disable-peer-as-check
  11. rewrite-rt-asn
  12. send-community extended
  13. route-reflector-client
  14. route-map permitall out

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

route-map permitall permit 10

Example:

switch(config)# route-map permitall permit 10

Configure the route-map.

Note



The route-map keeps the next-hop unchanged for EVPN routes

  • Required for eBGP

  • Options for iBGP

Step 3

set ip next-hop unchanged

Example:

switch(config-route-map)# set ip next-hop unchanged

Set next hop address.

Note



The route-map keeps the next-hop unchanged for EVPN routes

  • Required for eBGP

  • Options for iBGP

Step 4

exit

Example:

switch(config-route-map)# exit

Return to exec mode.

Step 5

router bgp [autonomous system] number

Example:

switch(config)# router bgp 65002

Specify BGP.

Step 6

address-family ipv4 mvpn

Example:

switch(config-router)# address-family ipv4 mvpn

Configure the address family IPv4 MVPN under the BGP.

Step 7

retain route-target all

Example:

switch(config-router-af)# retain route-target all

Configure retain route-target all under address-family IPv4 MVPN [global].

Note



Required for eBGP. Allows the spine to retain and advertise all MVPN routes when there are no local VNIs configured with matching import route targets.

Step 8

neighbor ip-address [remote-as number]

Example:

switch(config-router-af)# neighbor 100.100.100.1

Define neighbor.

Step 9

address-family ipv4 mvpn

Example:

switch(config-router-neighbor)# address-family ipv4 mvpn

Configure address family IPv4 MVPN under the BGP neighbor.

Step 10

disable-peer-as-check

Example:

switch(config-router-neighbor-af)# disable-peer-as-check

Disables checking the peer AS number during route advertisement. Configure this parameter on the spine for eBGP when all leafs are using the same AS but the spines have a different AS than leafs.

Note



Required for eBGP.

Step 11

rewrite-rt-asn

Example:

switch(config-router-neighbor-af)# rewrite-rt-asn

Normalizes the outgoing route target's AS number to match the remote AS number. Uses the BGP configured neighbors remote AS. The rewrite-rt-asn command is required if the route target auto feature is being used to configure EVPN route targets.

Step 12

send-community extended

Example:

switch(config-router-neighbor-af)# send-community extended

Configures community for BGP neighbors.

Step 13

route-reflector-client

Example:

switch(config-router-neighbor-af)# route-reflector-client

Configure route reflector.

Note



Required for iBGP with route-reflector.

Step 14

route-map permitall out

Example:

switch(config-router-neighbor-af)# route-map permitall out

Applies route-map to keep the next-hop unchanged.

Note



Required for eBGP.

Configuring Tenant Routed Multicast in Layer 2/Layer 3 Mixed Mode

This procedure enables the Tenant Routed Multicast (TRM) feature. This enables both Layer 2 and Layer 3 multicast BGP signaling. This mode is only necessary if non-TRM edge devices (VTEPs) are present in the Cisco Nexus 9000 Series switches (1st generation). Only the Cisco Nexus 9000-EX and 9000-FX switches can do Layer 2/Layer 3 mode (Anchor-DR).

To forward multicast between senders and receivers on the Layer 3 cloud and the VXLAN fabric on TRM vPC border leafs, the VIP/PIP configuration must be enabled. For more information, see Configuring VIP/PIP.

All Cisco Nexus 9300-EX and 9300-FX platform switches must be in Layer 2/Layer 3 mode.

Before you begin

VXLAN EVPN must be configured.

The rendezvous point (RP) must be configured.

Procedure

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

feature ngmvpn

Example:

switch(config)# feature ngmvpn

Enables the Next-Generation Multicast VPN (ngMVPN) control plane. New address family commands become available in BGP.

Note



The no feature ngmvpn command will not remove MVPN configuration under BGP.

Step 3

advertise evpn multicast

Example:

switch(config)# advertise evpn multicast

Advertises IMET and SMET routes into BGP EVPN towards non-TRM capable switches.

Step 4

ip igmp snooping vxlan

Example:

switch(config)# ip igmp snooping vxlan

Configure IGMP snooping for VXLAN VLANs.

Step 5

ip multicast overlay-spt-only

Example:

switch(config)# ip multicast overlay-spt-only

Gratuitously originate (S,A) route when source is locally connected. The ip multicast overlay-spt-only command is enabled by default on all MVPN-enabled Cisco Nexus 9000 Series switches (typically leaf nodes).

Step 6

ip multicast overlay-distributed-dr

Example:

switch(config)# ip multicast overlay-distributed-dr

Enables distributed anchor DR function on this VTEP.

Note



The NVE interface must be shut and unshut while configuring this command.

Step 7

interface nve1

Example:

switch(config)# interface nve 1

Configure the NVE interface.

Step 8

[no] shutdown

Example:

switch(config-if-nve)# shutdown

Shuts down the NVE interface. The no shutdown command brings up the interface.

Step 9

member vni vni-range associate-vrf

Example:

switch(config-if-nve)# member vni 200100 associate-vrf

Configure the Layer 3 virtual network identifier. The range of vni-range is from 1 to 16,777,214.

Step 10

mcast-group ip-prefix

Example:

switch(config-if-nve-vni)# mcast-group 225.3.3.3

Configures the multicast group on distributed anchor DR.

Step 11

exit

Example:

switch(config-if-nve-vni)# exit

Exits command mode.

Step 12

interface loopback loopback_number

Example:

switch(config-if-nve)# interface loopback 10

Configure the loopback interface on all distributed anchor DR devices.

Step 13

ip address ip_address

Example:

switch(config-if)# ip address 100.100.1.1/32

Configure IP address. This IP address is the same on all distributed anchor DR.

Step 14

ip router ospf process-tag area ospf-id

Example:

switch(config-if)# ip router ospf 100 area 0.0.0.0

OSPF area ID in IP address format.

Step 15

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on interface.

Step 16

interface nve1

Example:

switch(config-if)# interface nve1

Configure NVE interface.

Step 17

shutdown

Example:

switch(config-if-nve)# shutdown

Disable the interface.

Step 18

mcast-routing override source-interface loopback int-num

Example:

switch(config-if-nve)# mcast-routing override source-interface loopback 10

Enables that TRM is using a different loopback interface than the VTEPs default source-interface.

The loopback10 variable must be configured on every TRM-enabled VTEP (Anchor DR) in the underlay with the same IP address. This loopback and the respective override command are needed to serve TRM VTEPs in co-existence with non-TRM VTEPs.

Step 19

exit

Example:

switch(config-if-nve)# exit

Exits command mode.

Step 20

router bgp 100

Example:

switch(config)# router bgp 100

Set autonomous system number.

Step 21

neighbor ip-addr

Example:

switch(config-router)# neighbor 1.1.1.1

Configure IP address of the neighbor.

Step 22

address-family ipv4 mvpn

Example:

switch(config-router-neighbor)# address-family ipv4 mvpn

Configure multicast VPN.

Step 23

send-community extended

Example:

switch(config-router-neighbor-af)# send-community extended

Send community attribute.

Step 24

exit

Example:

switch(config-router-neighbor-af)# exit

Exits command mode.

Step 25

exit

Example:

switch(config-router)# exit

Exits command mode.

Step 26

vrf vrf_name vrf100

Example:

switch(config)# vrf context vrf100

Configure VRF name.

Step 27

ip pim rp-address ip-address-of-router group-list group-range-prefix

Example:

switch(config-vrf)# ip pim rp-address 209.165.201.1 group-list 226.0.0.0/8

The value of the ip-address-of-router parameter is that of the RP. The same IP address must be on all of the edge devices (VTEPs) for a fully distributed RP.

For overlay RP placement options, see the Configuring a Rendezvous Point for Tenant Routed Multicast - Internal RP section.

Step 28

address-family ipv4 unicast

Example:

switch(config-vrf)# address-family ipv4 unicast

Configure unicast address family.

Step 29

route-target both auto mvpn

Example:

switch(config-vrf-af-ipv4)# route-target both auto mvpn

Specify target for mvpn routes.

Step 30

exit

Example:

switch(config-vrf-af-ipv4)# exit

Exits command mode.

Step 31

exit

Example:

switch(config-vrf)# exit

Exits command mode.

Step 32

interface vlan_id

Example:

switch(config)# interface vlan11

Configure Layer 2 VNI.

Step 33

no shutdown

Example:

switch(config-if)# no shutdown

Disable an interface.

Step 34

vrf member vrf100

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 35

ip address ip_address

Example:

switch(config-if)# ip address 11.1.1.1/24

Configure IP address.

Step 36

ip pim sparse-mode

Example:

e
switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on the interface.

Step 37

fabric forwarding mode anycast-gateway

Example:

switch(config-if)# fabric forwarding mode anycast-gateway

Configure Anycast Gateway Forwarding Mode.

Step 38

ip pim neighbor-policy route-map-name

Example:

switch(config-if)# ip pim neighbor-policy route-map1

Creates an IP PIM neighbor policy with a suitable route-map to deny any IPv4 addresses, preventing PIM from establishing PIM neighborship on the L2VNI SVI.

Step 39

exit

Example:

switch(config-if)# exit

Exits command mode.

Step 40

interface vlan_id

Example:

switch(config)# interface vlan100

Configure Layer 3 VNI.

Step 41

no shutdown

Example:

switch(config-if)# no shutdown

Disable an interface.

Step 42

vrf member vrf100

Example:

switch(config-if)# vrf member vrf100

Configure VRF name.

Step 43

ip forward

Example:

switch(config-if)# ip forward

Enable IP forwarding on interface.

Step 44

ip pim sparse-mode

Example:

switch(config-if)# ip pim sparse-mode

Configure sparse-mode PIM on the interface.

Configuring VXLAN EVPN and TRM with IPv6 Multicast Underlay

Configuring IPv6 multicast underlay in the VXLAN fabric involves the following configurations:

Configuring L2-VNI Based Multicast Group in Underlay

Under NVE configuration on a leaf, IPv6 multicast group (IPv6) is configured for each L2-VNI (VLAN).

SUMMARY STEPS

  1. configure terminal
  2. interface nve1
  3. member vni vni
  4. mcast-group ipv6-prefix
  5. global mcast-group ipv6-multicast-group l2
  6. exit

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enters global configuration mode.

Step 2

interface nve1

Example:

switch(config)# interface nve1

Configures the NVE interface.

Step 3

member vni vni

Example:

switch(config-if-nve)# member vni 10501

Configures the Layer 2 virtual network identifier.

Step 4

mcast-group ipv6-prefix

Example:

switch(config-if-nve-vni)# mcast-group ff04::40

Builds the default multicast distribution tree for the Layer 2 VNI.

Step 5

global mcast-group ipv6-multicast-group l2

Example:

switch(config-if-nve)# global mcast-group ff04::40 l2

Configures the global multicast group for the Layer 2 VNI.

Step 6

exit

Example:

switch(config-if-nve)# exit

Exits configuration mode.

Configuring L3-VNI Based Multicast Group in Underlay

IPv6 multicast group (IPv6) is configured for each L3-VNI (VRF).

SUMMARY STEPS

  1. configure terminal
  2. interface nve1
  3. member vni vni associate-vrf
  4. mcast-group ipv6-prefix
  5. global mcast-group ipv6-multicast-group l3
  6. exit

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enters global configuration mode.

Step 2

interface nve1

Example:

switch(config)# interface nve1

Configures the NVE interface.

Step 3

member vni vni associate-vrf

Example:

switch(config-if-nve)# member vni 50001 associate-vrf

Associates L3VNI to VRF.

Step 4

mcast-group ipv6-prefix

Example:

switch(config-if-nve-vni)# mcast-group ff10:0:0:1::1

Builds the default multicast distribution tree for the Layer 3 VNI.

Step 5

global mcast-group ipv6-multicast-group l3

Example:

switch(config-if-nve)# global mcast-group ff04::40 l3

Configures the global multicast group for the Layer 3 VNI.

Step 6

exit

Example:

switch(config-if-nve)# exit

Exits configuration mode.

Enabling PIMv6 for Underlay

PIMv6 in and underlay is configured as follows:

SUMMARY STEPS

  1. configure terminal
  2. interface loopback number
  3. ipv6 address ipv6-prefix
  4. ipv6 pim sparse-mode
  5. interface nve1
  6. source-interface loopback number
  7. exit

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enters global configuration mode.

Step 2

interface loopback number

Example:

switch(config)# interface loopback 1

Configures an interface loopback.

This example configures interface loopback 1.

Step 3

ipv6 address ipv6-prefix

Example:

switch(config-if)# ipv6 address 11:0:0:1::1/128

Configures an IP address for this interface. It should be a unique IP address that helps to identify this router.

Step 4

ipv6 pim sparse-mode

Example:

switch(config-if)# ipv6 pim sparse-mode

Enables PIM6 sparse mode.

Step 5

interface nve1

Example:

switch(config-if)# interface nve1

Configures the NVE interface.

Step 6

source-interface loopback number

Example:

switch(config-if-nve)# source-interface loopback 1

Configures an source interface loopback.

Step 7

exit

Example:

switch(config-if-nve)# exit

Exits configuration mode.

Note



For the PIMv6 configuration see the Cisco Nexus 9000 Series NX-OS Multicast Routing Configuration Guide.

For the TRM configuration see the Cisco Nexus 9000 Series NX-OS VXLAN Configuration Guide.

Configuring Layer 2 Tenant Routed Multicast

This procedure enables the Tenant Routed Multicast (TRM) feature. This enables Layer 2 multicast BGP signaling.

IGMP Snooping Querier must be configured per multicast-enabled VXLAN VLAN on all Layer-2 TRM leaf switches.

Before you begin

VXLAN EVPN must be configured.

Procedure

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

feature ngmvpn

Example:

switch(config)# feature ngmvpn

Enables EVPN/MVPN feature.

Note



The no feature ngmvpn command will not remove MVPN configuration under BGP.

Step 3

advertise evpn multicast

Example:

switch(config)# advertise evpn multicast

Advertise L2 multicast capability.

Step 4

ip igmp snooping vxlan

Example:

switch(config)# ip igmp snooping vxlan

Configure IGMP snooping for VXLANs.

Step 5

vlan configuration vlan-id

Example:

switch(config)# vlan configuration 101

Enter configuration mode for VLAN 101.

Step 6

ip igmp snooping querier querier-ip-address

Example:

switch(config-vlan-config)# ip igmp snooping querier 2.2.2.2

Configure IGMP snooping querier for each multicast-enabled VXLAN VLAN.

Configuring TRM with vPC Support

This section provides steps to configure TRM with vPC support. Beginning with Cisco NX-OS Release 10.1(2), TRM Multisite with vPC BGW is supported.

SUMMARY STEPS

  1. configure terminal
  2. feature vpc
  3. feature interface-vlan
  4. feature lacp
  5. feature pim
  6. feature ospf
  7. ip pim rp-address address group-list range
  8. vpc domain domain-id
  9. peer switch
  10. peer gateway
  11. peer-keepalive destination ipaddress
  12. ip arp synchronize
  13. ipv6 nd synchronize
  14. Create vPC peer-link.
  15. system nve infra-vlans range
  16. vlan number
  17. Create the SVI.
  18. (Optional) delay restore interface-vlan seconds

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter global configuration mode.

Step 2

feature vpc

Example:

switch(config)# feature vpc

Enables vPCs on the device.

Step 3

feature interface-vlan

Example:

switch(config)# feature interface-vlan

Enables the interface VLAN feature on the device.

Step 4

feature lacp

Example:

switch(config)# feature lacp

Enables the LACP feature on the device.

Step 5

feature pim

Example:

switch(config)# feature pim

Enables the PIM feature on the device.

Step 6

feature ospf

Example:

switch(config)# feature ospf

Enables the OSPF feature on the device.

Step 7

ip pim rp-address address group-list range

Example:

switch(config)# ip pim rp-address 100.100.100.1 group-list 224.0.0/4

Defines a PIM RP address for the underlay multicast group range.

Step 8

vpc domain domain-id

Example:

switch(config)# vpc domain 1

Creates a vPC domain on the device and enters vpn-domain configuration mode for configuration purposes. There is no default. The range is from 1 to 1000.

Step 9

peer switch

Example:

switch(config-vpc-domain)# peer switch

Defines the peer switch.

Step 10

peer gateway

Example:

switch(config-vpc-domain)# peer gateway

To enable Layer 3 forwarding for packets destined to the gateway MAC address of the virtual port channel (vPC), use the peer-gateway command.

Step 11

peer-keepalive destination ipaddress

Example:

switch(config-vpc-domain)# peer-keepalive destination 172.28.230.85

Configures the IPv4 address for the remote end of the vPC peer-keepalive link.

Note



The system does not form the vPC peer link until you configure a vPC peer-keepalive link.

The management ports and VRF are the defaults.

Note



We recommend that you configure a separate VRF and use a Layer 3 port from each vPC peer device in that VRF for the vPC peer-keepalive link.

For more information about creating and configuring VRFs, see the Cisco Nexus 9000 NX-OS Series Unicast Routing Config Guide, 9.3(x).

Step 12

ip arp synchronize

Example:

switch(config-vpc-domain)# ip arp synchronize

Enables IP ARP synchronize under the vPC Domain to facilitate faster ARP table population following device reload.

Step 13

ipv6 nd synchronize

Example:

switch(config-vpc-domain)# ipv6 nd synchronize

Enables IPv6 nd synchronization under the vPC domain to facilitate faster nd table population following device reload.

Step 14

Create vPC peer-link.

Example:

switch(config)# interface port-channel 1
switch(config)# switchport
switch(config)# switchport mode trunk
switch(config)# switchport trunk allowed vlan 1,10,100-200
switch(config)# mtu 9216
switch(config)# vpc peer-link
switch(config)# no shut

switch(config)# interface Ethernet 1/1, 1/21
switch(config)# switchport
switch(config)# mtu 9216
switch(config)# channel-group 1 mode active
switch(config)# no shutdown

Creates the vPC peer-link port-channel interface and adds two member interfaces to it.

Step 15

system nve infra-vlans range

Example:

switch(config)# system nve infra-vlans 10

Defines a non-VXLAN enabled VLAN as a backup routed path.

Step 16

vlan number

Example:

switch(config)# vlan 10

Creates the VLAN to be used as an infra-VLAN.

Step 17

Create the SVI.

Example:

switch(config)# interface vlan 10
switch(config)# ip address 10.10.10.1/30
switch(config)# ip router ospf process UNDERLAY area 0
switch(config)# ip pim sparse-mode
switch(config)# no ip redirects
switch(config)# mtu 9216
switch(config)# no shutdown

Creates the SVI used for the backup routed path over the vPC peer-link.

Step 18

(Optional) delay restore interface-vlan seconds

Example:

switch(config-vpc-domain)# delay restore interface-vlan 45
(Optional)

Enables the delay restore timer for SVIs. We recommend tuning this value when the SVI/VNI scale is high. For example, when the SCI count is 1000, we recommend that you set the delay restore for interface-vlan to 45 seconds.

Configuring TRM with vPC Support (Cisco Nexus 9504-R and 9508-R)

SUMMARY STEPS

  1. configure terminal
  2. feature vpc
  3. feature interface-vlan
  4. feature lacp
  5. feature pim
  6. feature ospf
  7. ip pim rp-address address group-list range
  8. vpc domain domain-id
  9. hardware access-list tcam region mac-ifacl
  10. hardware access-list tcam region vxlan 10
  11. reload
  12. peer switch
  13. peer gateway
  14. peer-keepalive destination ipaddress
  15. ip arp synchronize
  16. ipv6 nd synchronize
  17. Create vPC peer-link.
  18. system nve infra-vlans range
  19. vlan number
  20. Create the SVI.
  21. (Optional) delay restore interface-vlan seconds

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter global configuration mode.

Step 2

feature vpc

Example:

switch(config)# feature vpc

Enables vPCs on the device.

Step 3

feature interface-vlan

Example:

switch(config)# feature interface-vlan

Enables the interface VLAN feature on the device.

Step 4

feature lacp

Example:

switch(config)# feature lacp

Enables the LACP feature on the device.

Step 5

feature pim

Example:

switch(config)# feature pim

Enables the PIM feature on the device.

Step 6

feature ospf

Example:

switch(config)# feature ospf

Enables the OSPF feature on the device.

Step 7

ip pim rp-address address group-list range

Example:

switch(config)# ip pim rp-address 100.100.100.1 group-list 224.0.0/4

Defines a PIM RP address for the underlay multicast group range.

Step 8

vpc domain domain-id

Example:

switch(config)# vpc domain 1

Creates a vPC domain on the device and enters vpn-domain configuration mode for configuration purposes. There is no default. The range is 1–1000.

Step 9

hardware access-list tcam region mac-ifacl

Example:

switch(config)# hardware access-list tcam region mac-ifacl 0

Carves the TCAM region for the ACL database.

Note



This TCAM carving command is required to enable TRM forwarding for N9K-X9636C-RX line cards only. With no TCAM region carved for mac-ifacl , the TCAM resources are used for TRM instead.

Step 10

hardware access-list tcam region vxlan 10

Example:

switch(config)# hardware access-list tcam region vxlan 10

Assigns the the TCAM region for use by a VXLAN.

Note



This TCAM carving command is required to enable TRM forwarding for N9K-X9636C-RX line cards only.

Step 11

reload

Example:

switch(config)# reload

Reloads the switch config for the TCAM assignments to become active.

Step 12

peer switch

Example:

switch(config-vpc-domain)# peer switch

Defines the peer switch.

Step 13

peer gateway

Example:

switch(config-vpc-domain)# peer gateway

To enable Layer 3 forwarding for packets that are destined to the gateway MAC address of the virtual port channel (vPC), use the peer-gateway command.

Step 14

peer-keepalive destination ipaddress

Example:

switch(config-vpc-domain)# peer-keepalive destination 172.28.230.85

Configures the IPv4 address for the remote end of the vPC peer-keepalive link.

Note



The system does not form the vPC peer link until you configure a vPC peer-keepalive link.

The management ports and VRF are the defaults.

Note



We recommend that you configure a separate VRF and use a Layer 3 port from each vPC peer device in that VRF for the vPC peer-keepalive link.

For more information about creating and configuring VRFs, see the Cisco Nexus 9000 NX-OS Series Unicast Routing Config Guide, 9.3(x).

Step 15

ip arp synchronize

Example:

switch(config-vpc-domain)# ip arp synchronize

Enables IP ARP synchronize under the vPC Domain to facilitate faster ARP table population following device reload.

Step 16

ipv6 nd synchronize

Example:

switch(config-vpc-domain)# ipv6 nd synchronize

Enables IPv6 and synchronization under the vPC domain to facilitate faster and table population following device reload.

Step 17

Create vPC peer-link.

Example:

switch(config)# interface port-channel 1
switch(config)# switchport
switch(config)# switchport mode trunk
switch(config)# switchport trunk allowed vlan 1,10,100-200
switch(config)# mtu 9216
switch(config)# vpc peer-link
switch(config)# no shut

switch(config)# interface Ethernet 1/1, 1/21
switch(config)# switchport
switch(config)# mtu 9216
switch(config)# channel-group 1 mode active
switch(config)# no shutdown

Creates the vPC peer-link port-channel interface and adds two member interfaces to it.

Step 18

system nve infra-vlans range

Example:

switch(config)# system nve infra-vlans 10

Defines a non-VXLAN enabled VLAN as a backup routed path.

Step 19

vlan number

Example:

switch(config)# vlan 10

Creates the VLAN to be used as an infra-VLAN.

Step 20

Create the SVI.

Example:

switch(config)# interface vlan 10
switch(config)# ip address 10.10.10.1/30
switch(config)# ip router ospf process UNDERLAY area 0
switch(config)# ip pim sparse-mode
switch(config)# no ip redirects
switch(config)# mtu 9216
switch(config)# no shutdown

Creates the SVI used for the backup routed path over the vPC peer-link.

Step 21

(Optional) delay restore interface-vlan seconds

Example:

switch(config-vpc-domain)# delay restore interface-vlan 45
(Optional)

Enables the delay restore timer for SVIs. We recommend tuning this value when the SVI/VNI scale is high. For example, when the SCI count is 1000, we recommend that you set the delay restore for interface-vlan to 45 seconds.

Flex Stats for TRM

Beginning with Cisco NX-OS Release 10.3(1)F, the Real-time/flex statistics for TRM is supported for Overlay routes on Cisco Nexus 9300-X Cloud Scale Switches. Flex Stats is not supported for Underlay Routes


Note


VXLAN NVE VNI ingress and egress, NVE per-peer ingress and tunnel tx stats won't be supported.


In a VXLAN TRM setup, if you want mroute statistics for overlay mroutes you must configure the hardware profile multicast flex-stats-enable command in the default template. For more information on configuration, see Configuring Flex Stats for TRM.

The following CLIs will not be supported after the flex stats CLI is enabled:

  • sh nve vni <vni_id>/<all> counters
  • sh nve peers <peer-ip> interface nve 1 counters
  • sh int tunnel <Tunnel interface number> counters

Configuring Flex Stats for TRM

This procedure enables/disables the flex stats counters in a VXLAN TRM setup.

SUMMARY STEPS

  1. configure terminal
  2. [no] hardware profile multicast flex-stats-enable

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enter configuration mode.

Step 2

[no] hardware profile multicast flex-stats-enable

Example:

switch(config)# hardware profile multicast flex-stats-enable

Enables the flex stats on TRM.

The no option disables the flex stats on TRM.

Note



To reflect the changes done during configuration, ensure that the switch is reloaded.

Configuring TRM Data MDT

About TRM Data MDT

Tenant Routed Multicast (TRM) enables multicast forwarding on the VXLAN fabric that uses a BGP-based EVPN control plane. TRM provides multi-tenancy aware multicast forwarding between senders and receivers within the same or different subnet local to the VTEP or across VTEPs.

Existing TRM solution enables multicast forwarding using default Multicast Distribution Tree (default MDT). With default MDT, nodes (PEs) will always receive traffic in the underlay irrespective of whether they have interested receiver on the overlay.

The solution described in this document enables optimized multicast forwarding using S-PMSI (data MDT). With S-PMSI, source traffic will be encapsulated in a selective multicast tunnel. Only the leafs that have interested receivers will join the selective multicast distribution tree.

Switchover to Data MDT can be immediate or based on the traffic bandwidth (threshold based configuration).

Guidelines and Limitations for TRM Data MDT

TRM Data MDT has the following guidelines and limitations:

  • Beginning with Cisco NX-OS Release 10.3(2)F, TRM Data MDT is supported on Cisco Nexus 9300 EX/FX/FX2/FX3/GX/GX2 switches, and 9500 switches with 9700-EX/FX/GX line cards.

  • Beginning with Cisco NX-OS Release 10.4(1)F, TRM Data MDT is supported on Cisco Nexus 9332D-H2R switches.

  • Beginning with Cisco NX-OS Release 10.4(2)F, TRM Data MDT is supported on Cisco Nexus 93400LD-H1 switches.

  • Beginning with Cisco NX-OS Release 10.4(3)F, TRM Data MDT is supported on Cisco Nexus 9364C-H1 switches.

  • Data MDT in fabric is supported only with DCI IR for a given VRF. Data MDT in fabric is not supported with DCI Multicast for a given VRF on the site BGW.

  • Data MDT configuration is VRF specific and configured under L3 VRF.

  • The following TRM Data MDT features are supported:

    • ASM and SSM group ranges are supported for Data MDT. PIM-Bider Underlay is not supported for Data MDT.

    • Data MDT supports IPv4 and IPv6 overlay multicast traffic.

    • Data MDT will be supported by vPC, VMCT leaf’s as well as vPC/Anycast BGW. Also, L2, L3 orphan/external network can be connected to vPC nodes.

    • Data MDT config per L3 VRF.

    • Data MDT origination (immediate and threshold based).

    • Data MDT encap route programming delay of 3 seconds. User-defined delays are currently not supported.

  • L2, L2 -L3 mixed mode will not be supported.

  • New L3VNI mode is supported.

  • Ensure that the total number of underlay groups (L2 BUM, default MDT, and data MDT groups) is 512.

Configuring TRM Data MDT

Follow this procedure to configure TRM Data MDT:

Before you begin

To enable switching to data MDT group based on real-time flow rate, the following command is needed:

hardware profile multicast flex-stats-enable


Note


This command requires switch reloading.


SUMMARY STEPS

  1. configure terminal
  2. vrf context vrf-name
  3. address-family {ipv4 | ipv6} unicast
  4. [ no] mdt data vxlan <group-range-1> [threshold] [route-map <value> <policy-name_1> ] [seq <sequence-number>]

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enters global configuration mode.

Step 2

vrf context vrf-name

Example:

switch(config)# vrf context vrf1

Configures the VRF.

Step 3

address-family {ipv4 | ipv6} unicast

Example:

For IPv4
switch(config-vrf)# address-family ipv4 unicast
For IPv6
switch(config-vrf)# address-family ipv6 unicast

Configures the IPv4 or IPv6 unicast address family.

Step 4

[ no] mdt data vxlan <group-range-1> [threshold] [route-map <value> <policy-name_1> ] [seq <sequence-number>]

Example:

switch(config-vrf-af)# mdt data vxlan 224.7.8.0/24 route-map map1 10​

Data MDT can be enabled/disabled per address family. Cisco Nexus supports overlapping group ranges between VRF as well as within the VRF between the address families.

  • Threshold & route-maps are optional. The traffic threshold is the traffic of the source and is measured in kbps. When the threshold is exceeded, the traffic takes 3 seconds to switch over to data MDT.

  • Group-range is part of the command key. More than one group range can be configured per address family.

  • BUM & default MDT group should not overlap with data MDT group.

  • Data MDT can have overlapping config range.

Verifying TRM Data MDT Configuration

To display the TRM Data MDT configuration information, enter one of the following commands:

Command Purpose
show nve vni { <vni-id> | all } mdt [{ local | remote | peer-sync }] [{ <cs> <cg>} | { <cs6> <cg6>}] Displays customer source (CS), customer group (CG) to data source (DS), data group (DG) mapping information.
show nve vrf [x] mdt [local | remote | peer-sync] [y] [z] Displays CS, CG allocations under VRF.
show bgp ipv4 mvpn route-type 3 detail Displays BGP S-PMSI route information for IPv4 overlay route.
show bgp ipv6 mvpn route-type 3 detail Displays BGP S-PMSI route information for IPv6 overlay route.
show fabric multicast [ipv4 | ipv6] spmsi-ad-route [Source Address] [Group address] vrf <vrf_name>

Displays fabric multicast SPMSI-AD IPV4/IPv6 information for a given tenant VRF.

show ip mroute detail vrf <vrf_name> Displays IP multicast route information for default VRF.
show l2route spmsi {all | topology <vlan>} Displays CS-CG to DS-DG mapping information at L2RIB (Encap route programming).
show forwarding distribution multicast vxlan mdt-db Displays MFDM/MFIB data MDT db.

show nve resource multicast

Displays the resource usage of data MDT and any failed allocations.

Configuring IGMP Snooping

Overview of IGMP Snooping Over VXLAN

By default, multicast traffic over VXLAN is flooded in the VNI/VLAN like any broadcast and unknown unicast traffic. With IGMP snooping enabled, each VTEP can snoop IGMP reports and only forward multicast traffic towards interested receivers.

The configuration of IGMP snooping is the same in VXLAN as in the configuration of IGMP snooping in a regular VLAN domain. For more information on IGMP snooping, see the Configuring IGMP Snooping section in the Cisco Nexus 9000 Series NX-OS Multicast Routing Configuration Guide, Release 7.x.

Guidelines and Limitations for IGMP Snooping Over VXLAN

See the following guidelines and limitations for IGMP snooping over VXLAN:

  • IGMP snooping over VXLAN is not supported on VLANs with FEX member ports.

  • IGMP snooping over VXLAN is supported with both IR and multicast underlay.

  • IGMP snooping over VXLAN is supported in BGP EVPN topologies, not flood and learn topologies.

Configuring IGMP Snooping Over VXLAN

SUMMARY STEPS

  1. switch# configure terminal
  2. switch(config)#ip igmp snooping vxlan
  3. switch(config)#ip igmp snooping disable-nve-static-router-port

DETAILED STEPS

  Command or Action Purpose

Step 1

switch# configure terminal

Enters global configuration mode.

Step 2

switch(config)#ip igmp snooping vxlan

Enables IGMP snooping for VXLAN VLANs. You have to explicitly configure this command to enable snooping for VXLAN VLANs.

Step 3

switch(config)#ip igmp snooping disable-nve-static-router-port

Configures IGMP snooping over VXLAN to not include NVE as static mrouter port using this global CLI command. IGMP snooping over VXLAN has the NVE interface as mrouter port by default.

Verifying VXLAN EVPN and TRM with IPv6 Multicast Underlay

Use the following show command to verify the status of the IPv6 Multicast Underlay configuration:
switch(config)# show run interface nve 1

!Command: show running-config interface nve1
!Running configuration last done at: Wed Jul  5 10:03:58 2023
!Time: Wed Jul  5 10:04:01 2023
version 10.3(99x) Bios:version 01.08

interface nve1
  no shutdown
  host-reachability protocol bgp
  source-interface loopback1
  member vni 10501
    mcast-group ff04::40
  member vni 50001 associate-vrf
    mcast-group ff10:0:0:1::1
Use the following show commands to verify the PIMv6 ASM configuration:
switch(config)# show ipv6 mroute
IPv6 Multicast Routing Table for VRF "default"

(*, ff04::40/128), uptime: 05:20:19, nve pim6 ipv6
  Incoming interface: Ethernet1/36, RPF nbr: fe80::23a:9cff:fe23:8367
  Outgoing interface list: (count: 1)
    nve1, uptime: 05:20:19, nve


(172:172:16:1::1/128, ff04::40/128), uptime: 05:20:19, nve m6rib pim6 ipv6
  Incoming interface: loopback1, RPF nbr: 172:172:16:1::1
  Outgoing interface list: (count: 2)
    Ethernet1/36, uptime: 01:47:03, pim6
    Ethernet1/27, uptime: 04:14:20, pim6


(*, ff10:0:0:1::10/128), uptime: 05:20:18, nve ipv6 pim6
  Incoming interface: Ethernet1/36, RPF nbr: fe80::23a:9cff:fe23:8367
  Outgoing interface list: (count: 1)
    nve1, uptime: 05:20:18, nve


(172:172:16:1::1/128, ff10:0:0:1::10/128), uptime: 05:20:18, nve m6rib ipv6 pim6
  Incoming interface: loopback1, RPF nbr: 172:172:16:1::1
  Outgoing interface list: (count: 2)
    Ethernet1/36, uptime: 04:04:35, pim6
    Ethernet1/27, uptime: 04:13:35, pim6
switch(config)# show ipv6 pim neighbor
PIM Neighbor Status for VRF "default"
Neighbor                     Interface            Uptime    Expires   DR       Bidir-  BFD     ECMP Redirect
                                                                      Priority Capable State   Capable
fe80::23a:9cff:fe28:5e07     Ethernet1/27         20:23:38  00:01:44  1        yes     n/a     no
   Secondary addresses:
    27:50:1:1::2
switch(config)# show ipv6 pim rp
PIM RP Status Information for VRF "default"
BSR disabled
BSR RP Candidate policy: route-map1
BSR RP policy: route-map1

RP: 101:101:101:101::101, (0),
 uptime: 21:30:43   priority: 255,
 RP-source: (local),
 group ranges:
 ff00::/8
The following example provides the output for leaf switch BGP neighbor-1:
switch(config-if)# show ipv6 bgp neighbors

BGP neighbor is 33:52:1:1::2, remote AS 200, ebgp link, Peer index 3
  BGP version 4, remote router ID 172.17.1.1
  Neighbor previous state = OpenConfirm
  BGP state = Established, up for 00:00:16
  Neighbor vrf: default
  Peer is directly attached, interface Ethernet1/33
  Enable logging neighbor events
  Last read 0.926823, hold time = 3, keepalive interval is 1 seconds
  Last written 0.926319, keepalive timer expiry due 0.073338
  Received 23 messages, 0 notifications, 0 bytes in queue
  Sent 67 messages, 0 notifications, 0(0) bytes in queue
  Enhanced error processing: On
    0 discarded attributes
  Connections established 1, dropped 0
  Last update recd 00:00:15, Last update sent  = 00:00:15
   Last reset by us 00:08:45, due to session closed
  Last error length sent: 0
  Reset error value sent: 0
  Reset error sent major: 104 minor: 0
  Notification data sent:
  Last reset by peer never, due to No error
  Last error length received: 0
  Reset error value received 0
  Reset error received major: 0 minor: 0
  Notification data received:

  Neighbor capabilities:
  Dynamic capability: advertised (mp, refresh, gr) received (mp, refresh, gr)
  Dynamic capability (old): advertised received
  Route refresh capability (new): advertised received
  Route refresh capability (old): advertised received
  4-Byte AS capability: advertised received
  Address family IPv6 Unicast: advertised received
  Graceful Restart capability: advertised received

  Graceful Restart Parameters:
  Address families advertised to peer:
    IPv6 Unicast
  Address families received from peer:
    IPv6 Unicast
  Forwarding state preserved by peer for:
  Restart time advertised to peer: 400 seconds
  Stale time for routes advertised by peer: 300 seconds
  Restart time advertised by peer: 120 seconds
  Extended Next Hop Encoding Capability: advertised received
  Receive IPv6 next hop encoding Capability for AF:
    IPv4 Unicast  VPNv4 Unicast

  Message statistics:
                              Sent               Rcvd
  Opens:                        46                  1
  Notifications:                 0                  0
  Updates:                       2                  2
  Keepalives:                   18                 18
  Route Refresh:                 0                  0
  Capability:                    2                  2
  Total:                        67                 23
  Total bytes:                 521                538
  Bytes in queue:                0                  0

  For address family: IPv6 Unicast
  BGP table version 10, neighbor version 10
  3 accepted prefixes (3 paths), consuming 864 bytes of memory
  0 received prefixes treated as withdrawn
  2 sent prefixes (2 paths)
  Inbound soft reconfiguration allowed(always)
  Allow my ASN 3 times
  Last End-of-RIB received 00:00:01 after session start
  Last End-of-RIB sent 00:00:01 after session start
  First convergence 00:00:01 after session start with 2 routes sent

  Local host: 33:52:1:1::1, Local port: 179
  Foreign host: 33:52:1:1::2, Foreign port: 17226
  fd = 112
The following example provides the output for leaf switch BGP neighbor-2:
switch(config-if)# show bgp l2vpn evpn neighbors 172:17:1:1::1

BGP neighbor is 172:17:1:1::1, remote AS 200, ebgp link, Peer index 5
  BGP version 4, remote router ID 172.17.1.1
  Neighbor previous state = OpenConfirm
  BGP state = Established, up for 00:01:33
  Neighbor vrf: default
  Using loopback0 as update source for this peer
  Using iod 65 (loopback0) as update source
  Enable logging neighbor events
  External BGP peer might be up to 5 hops away
  Last read 0.933565, hold time = 3, keepalive interval is 1 seconds
  Last written 0.915927, keepalive timer expiry due 0.083742
  Received 105 messages, 0 notifications, 0 bytes in queue
  Sent 105 messages, 0 notifications, 0(0) bytes in queue
  Enhanced error processing: On
    0 discarded attributes
  Connections established 1, dropped 0
  Last update recd 00:01:32, Last update sent  = 00:01:32
   Last reset by us never, due to No error
  Last error length sent: 0
  Reset error value sent: 0
  Reset error sent major: 0 minor: 0
  Notification data sent:
  Last reset by peer never, due to No error
  Last error length received: 0
  Reset error value received 0
  Reset error received major: 0 minor: 0
  Notification data received:

  Neighbor capabilities:
  Dynamic capability: advertised (mp, refresh, gr) received (mp, refresh, gr)
  Dynamic capability (old): advertised received
  Route refresh capability (new): advertised received
  Route refresh capability (old): advertised received
  4-Byte AS capability: advertised received
  Address family IPv4 MVPN: advertised received
  Address family IPv6 MVPN: advertised received
  Address family L2VPN EVPN: advertised received
  Graceful Restart capability: advertised received

  Graceful Restart Parameters:
  Address families advertised to peer:
    IPv4 MVPN  IPv6 MVPN  L2VPN EVPN
  Address families received from peer:
    IPv4 MVPN  IPv6 MVPN  L2VPN EVPN
  Forwarding state preserved by peer for:
  Restart time advertised to peer: 400 seconds
  Stale time for routes advertised by peer: 300 seconds
  Restart time advertised by peer: 120 seconds
  Extended Next Hop Encoding Capability: advertised received
  Receive IPv6 next hop encoding Capability for AF:
    IPv4 Unicast  VPNv4 Unicast

  Message statistics:
                              Sent               Rcvd
  Opens:                         1                  1
  Notifications:                 0                  0
  Updates:                       6                  3
  Keepalives:                   95                 95
  Route Refresh:                 0                  0
  Capability:                    6                  6
  Total:                       105                105
  Total bytes:                2551               2047
  Bytes in queue:                0                  0

  For address family: IPv4 MVPN
  BGP table version 3, neighbor version 3
  0 accepted prefixes (0 paths), consuming 0 bytes of memory
  0 received prefixes treated as withdrawn
  0 sent prefixes (0 paths)
  Community attribute sent to this neighbor
  Extended community attribute sent to this neighbor
  Allow my ASN 3 times
  Outbound route-map configured is RN_NextHop_Unchanged, handle obtained
  Last End-of-RIB received 00:00:01 after session start
  Last End-of-RIB sent 00:00:01 after session start
  First convergence 00:00:01 after session start with 0 routes sent

  For address family: IPv6 MVPN
  BGP table version 3, neighbor version 3
  0 accepted prefixes (0 paths), consuming 0 bytes of memory
  0 received prefixes treated as withdrawn
  0 sent prefixes (0 paths)
  Community attribute sent to this neighbor
  Extended community attribute sent to this neighbor
  Allow my ASN 3 times
  Outbound route-map configured is RN_NextHop_Unchanged, handle obtained
  Last End-of-RIB received 00:00:01 after session start
  Last End-of-RIB sent 00:00:01 after session start
  First convergence 00:00:01 after session start with 0 routes sent

  For address family: L2VPN EVPN
  BGP table version 7, neighbor version 7
  0 accepted prefixes (0 paths), consuming 0 bytes of memory
  0 received prefixes treated as withdrawn
  4 sent prefixes (4 paths)
  Community attribute sent to this neighbor
  Extended community attribute sent to this neighbor
  Allow my ASN 3 times
  Advertise GW IP is enabled
  Outbound route-map configured is RN_NextHop_Unchanged, handle obtained
  Last End-of-RIB received 00:00:01 after session start
  Last End-of-RIB sent 00:00:01 after session start
  First convergence 00:00:01 after session start with 4 routes sent

  Local host: 172:16:1:2::1, Local port: 21132
  Foreign host: 172:17:1:1::1, Foreign port: 179
  fd = 113

Example Configuration for VXLAN EVPN and TRM with IPv6 Multicast Underlay

In the following examples, the sample configuration for the leaf, spine, and RP are shown:

  • Leaf - Sample configuration of IPv6 multicast underlay:

    • NVE Configuration
      interface nve1
        no shutdown
        host-reachability protocol bgp
        source-interface loopback1
        member vni 10501
          mcast-group ff04::40
        member vni 50001 associate-vrf
          mcast-group ff10:0:0:1::1

    • PIMv6 Configuration
      feature pim6

      ipv6 pim rp-address 101:101:101:101::101 group-list ff00::/8

      interface loopback1
        ipv6 address 172:172:16:1::1/128
        ipv6 pim sparse-mode

      interface Ethernet1/27
        ipv6 address 27:50:1:1::1/64
        ospfv3 hello-interval 1
        ipv6 router ospfv3 v6u area 0.0.0.0
        ipv6 pim sparse-mode
        no shutdown

    • BGP Configuration
      router bgp 100
          router-id 172.16.1.1
          address-family ipv4 unicast
            maximum-paths 64
            maximum-paths ibgp 64
          address-family ipv6 unicast
            maximum-paths 64
            maximum-paths ibgp 64
          address-family ipv4 mvpn
          address-family l2vpn evpn
          neighbor 172:17:1:1::1
            remote-as 100
            update-source loopback0
            address-family ipv4 mvpn
              send-community
              send-community extended
            address-family ipv6 mvpn
              send-community
              send-community extended
            address-family l2vpn evpn
              send-community
           neighbor 172:17:2:2::1
             remote-as 100
             update-source loopback0
             address-family ipv4 mvpn
               send-community
               send-community extended
             address-family ipv6 mvpn
               send-community
               send-community extended
             address-family l2vpn evpn
               send-community
               send-community extended
           vrf VRF1
             reconnect-interval 1
             address-family ipv4 unicast
               network 150.1.1.1/32
               advertise l2vpn evpn
               redistribute hmm route-map hmmAdv

      evpn
        vni 10501 l2
          rd auto
          route-target import auto
          route-target export auto
      vrf context VRF1
        vni 50001
      rd auto
      address-family ipv4 unicast
         route-target both auto
         route-target both auto mvpn
         route-target both auto evpn
      address-family ipv6 unicast
         route-target both auto
         route-target both auto mvpn
         route-target both auto evpn

      Note: Incase of vPC leafs, you need to configure identical “mvpn vri id” on both the vPC nodes. For example:

      router bgp 100
        mvpn vri id 2001


      Note


      MVPN VRI ID must be unique within the network or setup. That is, if the network has three different sets of vPC pairs, each pair must have a different VRI ID.


  • Spine - sample configuration of IPv6 multicast underlay:

    • NVE Configuration
      nv overlay evpn
    • PIMv6 Configuration
      feature pim6

      ipv6 pim rp-address 101:101:101:101::101 group-list ff00::/8
      ipv6 pim anycast-rp 101:101:101:101::101 102:102:102:102::102
      ipv6 pim anycast-rp 101:101:101:101::101 103:103:103:103::103

      interface loopback101
        ipv6 address 101:101:101:101::101/128
        ipv6 router ospfv3 v6u area 0.0.0.0
        ipv6 pim sparse-mode

      interface loopback102
        ipv6 address 102:102:102:102::102/128
        ipv6 router ospfv3 v6u area 0.0.0.0
        ipv6 pim sparse-mode

      interface Ethernet1/50/1
        ipv6 address 27:50:1:1::2/64
        ipv6 pim sparse-mode
        no shutdown

    • BGP Configuration
      feature bgp

      router bgp 100
              router-id 172.16.40.1
               address-family ipv4 mvpn
              address-family ipv6 mvpn
              address-family l2vpn evpn
              neighbor 172:16:1:1::1
                remote-as 100
                update-source loopback0
                address-family ipv4 mvpn
                  send-community
                  send-community extended
                   route-reflector-client
                address-family ipv6 mvpn
                 send-community
                  send-community extended
                   route-reflector-client
                address-family l2vpn evpn
                send-community
                  send-community extended
                   route-reflector-client
