    Introduction

    This document describes the basic configuration of SNMPv2c and SNMPv3 on Catalyst 9000 Switches.

    Prerequisites

    Requirements

    Cisco recommends that you have knowledge of these topics:

    • SNMP protocol(Simple Network Management Protocol).
    • Familiarity with Catalyst 9000 Series Switches.
    • Familiarity with SNMP Object Identifier (OID).

    Components Used

    The information in this document is based on these software and hardware versions:

    • C9200
    • C9300
    • C9400
    • C9500
    • C9600
    • Cisco IOS® XE &17.X software

    The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

    Prerequisites for SNMP

    Both SNMPv1 and SNMPv2C use a community-based form of security. The community of managers able to access the agent’s MIB is defined by an IP address access control list and password.

    SNMPv2C includes a bulk retrieval function and more detailed error message reporting to management stations. The bulk retrieval function retrieves tables and large quantities of information, minimizing the number of round-trips required. The SNMPv2C improved error-handling includes expanded error codes that distinguish different kinds of error conditions; these conditions are reported through a single error code in SNMPv1. Error return codes in SNMPv2C report the error type.

    SNMPv3 provides for both security models and security levels. A security model is an authentication strategy set up for a user and the group within which the user resides. A security level is the permitted level of security within a security model. A combination of the security level and the security model determine which security method is used when handling an SNMP packet. Available security models are SNMPv1, SNMPv2C, and SNMPv3.

    This table identifies characteristics and compares different combinations of security models and levels:

    Model Level Authentication Encryption Result
    SNMPv1 noAuthNoPriv Community string No Uses a community string match for authentication.
    SNMPv2C noAuthNoPriv Community string No Uses a community string match for authentication.
    SNMPv3 noAuthNoPriv Username No Uses a username match for authentication.
    SNMPv3 authNoPriv Message Digest 5 (MD5) or Secure Hash Algorithm (SHA) No Provides authentication based on the HMAC-MD5 or HMAC-SHA algorithms.
    SNMPv3 authPriv MD5 or SHA Data Encryption Standard (DES) or Advanced Encryption Standard (AES)

    Provides authentication based on the HMAC-MD5 or HMAC-SHA algorithms.

    Allows specifying the User-based Security Model (USM) with these encryption algorithms:

    • DES 56-bit encryption in addition to authentication based on the CBC-DES (DES-56) standard.

    • 3DES 168-bit encryption

    • AES 128-bit, 192-bit, or 256-bit encryption

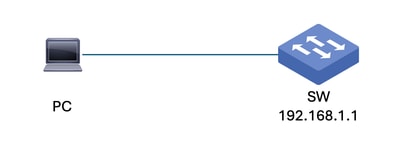

    Network Diagram

    Switch connection

    SNMPv2c

    Config

    Switch(config)#snmp-server community cisco RW        >Read-only access with this community string
    Switch(config)#snmp-server community cisco RO        >Read-write access with this community string

     Verify

    Switch#show snmp community
    Community name: cisco
    Community Index: cisco
    Community SecurityName: cisco
    storage-type: nonvolatile active


    ~ % snmpwalk -v2c -c cisco 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (111410969) 12 days, 21:28:29.69

    SNMPv3

    noAuthNoPriv

    Config

    Switch(config)#snmp-server group noAuthNoPrivGroup v3 noauth
    Switch(config)#snmp-server user testuser1 noAuthNoPrivGroup v3

     Verify

    Switch#show snmp user
    User name: testuser1
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: None
    Privacy Protocol: None
    Group-name: noAuthNoPrivGroup


    ~ % snmpwalk -v3 -u testuser1 -l noAuthNoPriv 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (111425887) 12 days, 21:30:58.87

    authNoPriv

    auth-SHA

    Config

    Switch(config)#snmp-server group AuthNoPrivGroup v3 auth
    Switch(config)#snmp-server user testuser2 AuthNoPrivGroup v3 auth sha Password123

     Verify

    Switch#show snmp user
    User name: testuser2
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: SHA
    Privacy Protocol: None
    Group-name: AuthNoPrivGroup


    ~ % snmpwalk -v3 -u testuser3 -l authNoPriv -a MD5 -A Password123 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (111447478) 12 days, 21:34:34.78

    auth-MD5

    Config

    Switch(config)#snmp-server group AuthNoPrivGroup v3 auth
    Switch(config)#snmp-server user testuser3 AuthNoPrivGroup v3 auth md5 Password123

     Verify

    Switch#show snmp user
    User name: testuser3
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: MD5
    Privacy Protocol: None
    Group-name: AuthNoPrivGroup


    ~ % snmpwalk -v3 -u testuser3 -l authNoPriv -a MD5 -A Password123 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (111455526) 12 days, 21:35:55.26

    authPriv

    auth-SHA + priv-DES

    Config

    Switch(config)#snmp-server group AuthPrivGroup v3 priv
    Switch(config)#snmp-server user testuser4 AuthPrivGroup v3 auth sha Password123 priv des Password123

     Verify

    Switch#show snmp user
    User name: testuser4
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: SHA
    Privacy Protocol: DES
    Group-name: AuthPrivGroup


    ~ % snmpwalk -v3 -u testuser4 -l authPriv -a SHA -A Password123 -x DES -X Password123 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (111472744) 12 days, 21:38:47.44

    auth-SHA + priv-AES

    Config

    Switch(config)#snmp-server group AuthPrivGroup v3 priv
    Switch(config)#snmp-server user testuser5 AuthPrivGroup v3 auth sha Password123 priv aes 128 Password123

     Verify

    Switch#show snmp user
    User name: testuser5
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: SHA
    Privacy Protocol: AES128
    Group-name: AuthPrivGroup


    ~ % snmpwalk -v3 -u testuser5 -l authPriv -a SHA -A Password123 -x AES -X Password123 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (111476608) 12 days, 21:39:26.08

    auth-MD5 + priv-DES

    Config

    Switch(config)#snmp-server group AuthPrivGroup v3 priv
    Switch(config)#snmp-server user testuser6 AuthPrivGroup v3 auth md5 Password123 priv des Password123

     Verify

    Switch#show snmp user
    User name: testuser6
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: MD5
    Privacy Protocol: DES
    Group-name: AuthPrivGroup


    ~ % snmpwalk -v3 -u testuser6 -l authPriv -a MD5 -A Password123 -x DES -X Password123 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (76726018) 8 days, 21:07:40.18

    auth-MD5 + priv-AES

    Config

    Switch(config)#snmp-server group AuthPrivGroup v3 priv
    Switch(config)#snmp-server user testuser7 AuthPrivGroup v3 auth md5 Password123 priv aes 128 Password123

     Verify

    Switch#show snmp user
    User name: testuser7
    Engine ID: 800000090300EC1D8B0A7B80
    storage-type: nonvolatile active
    Authentication Protocol: MD5
    Privacy Protocol: AES128
    Group-name: AuthPrivGroup


    ~ % snmpwalk -v3 -u testuser7 -l authPriv -a MD5 -A Password123 -x AES -X Password123 192.168.1.1 1.3.6.1.2.1.1.3
    DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (76738170) 8 days, 21:09:41.70
