Migrate Catalyst License to Smart Licensing Using Policy
Available Languages
Introduction
This document describes what to expect after migration from an older license mechanism to the new 'Smart Licensing Using Policy' mechanism in Cisco IOS® XE 17.3.2 and future releases.
Prerequisites
Requirements
There are no specific requirements for this document.
Components Used
The information in this document is based on these hardware versions:
- Cisco Catalyst 9500
- Cisco Catalyst 9300
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
Purpose
With the releases of Cisco IOS XE 17.3.2 and 17.4.1, the smart licensing feature has been changed. There is no longer a need to register the licenses of the device with the Cisco Smart Software Manager (CSSM) nor to reserve specific licenses (SLR) from CSSM if the devices are offline. Eval licenses have also been removed. With the Smart Licensing Using Policy, all configured licenses are in use from day zero (the day the Cisco IOS XE 17.3.2 or later image is installed). After that, it is all about reporting license usage to CSSM.
In Smart Licensing Using Policy, no licenses have changed, for Catalyst 9K platforms all licenses are unenforced, and the previous configurations/topologies for registering licenses are still available. Suppose the devices have already been registered or reserved using a previous Smart License release image. In that case, the licenses automatically get converted to Smart Licensing Using Policy licenses with zero-touch once the image is upgraded to a Smart Licensing Using Policy supported image. If the devices are still using the right-to-use licenses or have Eval or Eval Expired images because smart licensing registration/reservation was not completed, there is a new topology utilizing the Cisco Smart License Utility (CSLU) application for Windows 10 (expect future availability with On-Prem satellite or other controllers such as Cisco DNAC). The CSLU sits between the devices and CSSM. It collects the usage data for all devices and provides a single point of contact to CSSM either offline or online.
Migrate Smart License Registration (SL) to Smart Licensing Using Policy
With previous smart licensing images (starting 16.9.1 for all Cat9K switches until 17.3.1), callhome was enabled by default for connection to CSSM in the cloud. This required the device (single switch, stack, or StackWise Virtual (SVL) to be connected to the CSSM through the management port or a front panel downlink/uplink port.
If the devices have already been registered, with the 'smart license transport callhome' or 'smart license transport smart', the conversion to Smart Licensing Using Policy is Zero-Touch. When the device software is upgraded to an image supporting Smart Licensing Using Policy, no configuration change is required in order to support backward compatibility. When the device boots up with the Smart Licensing Using Policy supported image, the idtoken previously used to register the licenses for the Product Instance (PI) is converted to a Trust Code in order to allow communication between the device and CSSM. All licenses are shown as in use instead of Registered and Authorized, and if any Custom Policy is available in the Smart Account, that policy also gets installed. From this point, the license usage for the device gets reported based on the reporting schedule in the policy.
After the conversion to Smart Licensing Using Policy on CSSM, the previous PI is changed from using the hostname to the UDI (PID and serial number) of each of the switches in the PI. For an HA system, the licenses used are all reported in the active switch CSSM PI. The standby and member switches (if available) also have a PI in CSSM but do not report any license usage. If the active switch in an HA system has changed during a reporting period, the license usage is now seen under the new active PI.
Show Commands on the Device with Registered Licenses before Upgrade to Smart Licensing Using Policy
In the show license commands output, notice that the licenses are Registered and Authorized as part of Smart Licensing.
Switch#show license summary
Smart Licensing is ENABLED
Registration:
Status: REGISTERED
Smart Account: BU Production Test
Virtual Account: Cat9K-FranklinDT
Export-Controlled Functionality: ALLOWED
Last Renewal Attempt: None
Next Renewal Attempt: Mar 21 11:08:58 2021 PST
License Authorization:
Status: AUTHORIZED
Last Communication Attempt: SUCCEEDED
Next Communication Attempt: Oct 22 11:09:07 2020 PST
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
C9500 Network Advantage (C9500 Network Advantage) 2 AUTHORIZED
C9500-DNA-16X-A (C9500-16X DNA Advantage) 2 AUTHORIZED
Switch#show license usage
License Authorization:
Status: AUTHORIZEDon Sep 22 11:09:07 2020 PST
C9500 Network Advantage (C9500 Network Advantage):
Description: C9500 Network Advantage
Count: 2
Version: 1.0
Status: AUTHORIZED
Export status: NOT RESTRICTED
C9500-DNA-16X-A (C9500-16X DNA Advantage):
Description: C9500-DNA-16X-A
Count: 2
Version: 1.0
Status: AUTHORIZED
Export status: NOT RESTRICTED
Switch#show license status
Smart Licensing is ENABLED
Utility:
Status: DISABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
Registration:
Status: REGISTERED
Smart Account: BU Production Test
Virtual Account: Cat9K-FranklinDT
Export-Controlled Functionality: ALLOWED
Initial Registration: SUCCEEDED on Sep 22 11:08:58 2020 PST
Last Renewal Attempt: None
Next Renewal Attempt: Mar 21 11:08:57 2021 PST
Registration Expires: Sep 22 11:04:23 2021 PST
License Authorization:
Status: AUTHORIZED on Sep 22 11:09:07 2020 PST
Last Communication Attempt: SUCCEEDED on Sep 22 11:09:07 2020 PST
Next Communication Attempt: Oct 22 11:09:06 2020 PST
Communication Deadline: Dec 21 11:04:34 2020 PST
Export Authorization Key:
Features Authorized:
<none>
Miscellaneus:
Custom Id: <empty>
Show Commands on the Device after Boot with the Smart Licensing Using Policy Supported Image
In the show license outputs, notice that the licenses are now in use instead of Registered and Authorized. Also, the registration idtoken has been automatically used as a trusted code in order to allow communication between CSSM and the device. Also, the Cisco Default policy is installed on the device.
Switch#show license summary
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
network-advantage (C9500 Network Advantage) 2 IN USE
dna-advantage (C9500-16X DNA Advantage) 2 IN USE
Switch#show license usage
License Authorization:
Status: Not Applicable
network-advantage (C9500 Network Advantage):
Description: network-advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: network-advantage
Feature Description: network-advantage
Enforcement type: NOT ENFORCED
License type: Perpetual
dna-advantage (C9500-16X DNA Advantage):
Description: C9500-16X DNA Advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: dna-advantage
Feature Description: C9500-16X DNA Advantage
Enforcement type: NOT ENFORCED
License type: Subscription
Switch#show license status
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:*
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:*
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneous:
Custom Id: <empty>
Usage Reporting:**
Last ACK received: Nov 10 08:56:48 2020 PST
Next ACK deadline: Feb 08 08:56:48 2021 PST
Reporting push interval: 30 days
Next ACK push check: <none>
Next report push: Dec 10 08:55:29 2020 PST
Last report push: Nov 10 08:55:29 2020 PST
Last report file write: <none>
Trust Code Installed:
Active: PID:C9500-16X,SN:FCW2233A5ZV
INSTALLED on Nov 10 08:54:48 2020 PST
Standby: PID:C9500-16X,SN:FCW2233A5ZY
INSTALLED on Nov 10 08:54:48 2020 PST
Switch#show license udi
UDI: PID:C9500-16X,SN:FCW2233A5ZV
HA UDI List:
Active:PID:C9500-16X,SN:FCW2233A5ZV
Standby:PID:C9500-16X,SN:FCW2233A5ZY

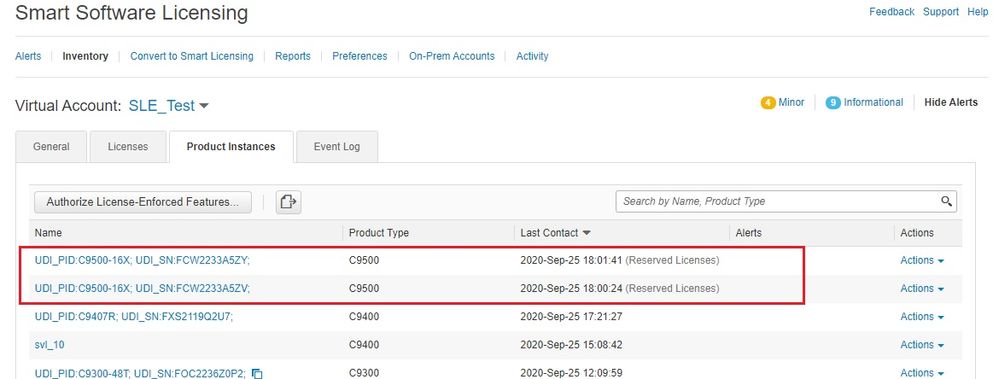

In CSSM both Active and Standby UDIs are displayed instead of the PI hostname under the Product Instances tab.
Click the active PID in order to display the license usage. Click the High Availability tab in order to display all PIDs included in the HA system.
Click the Standby switch UDI, under the Product Instance tab, in order to display information for the Standby switch. The standby switch does not display any license usage since license usage for the device is displayed under the Active switch only.
Once this conversion has occurred, license usage continues to be reported based on the installed policy.
Downgrade from Smart Licensing Using Policy to Smart License Registration Image
If for some reason, the device must be downgraded to a previous image that does not support the Smart Licensing Using Policy, do not change the configuration and install the image to downgrade too. Depending on the image the device is downgraded to, re-registration can be required on the device. Images that were released prior to the 17.3.2 or 17.4.1 development effort have no understanding of Smart Licensing Using Policy or trust code, therefore, after downgrade a re-registration is required. It is a simple matter of getting the idtoken from CSSM and with the use of the command license smart register idtoken <idtoken> all on the device.
The 16.9.6 and later, 16.12.4 and later, and 17.3.1 images have code added in order to recognize the trust code and convert it back to the registration idtoken upon image downgrade. The licenses are automatically placed back in the REGISTERED state and AUTHORIZED.
Migrate SLR to Smart Licensing Using Policy
Customers do not always want to connect the CSSM or the outside due to various reasons. For this, an offline Specific License Reservation (SLR) feature was added in order to allow the switches to be in compliance. The article describes this and the document Specific License Reservation can be used in order to learn more about it. SLR is available from the 16.9.1 release until the 17.3.1 release.
When a device that has specific license reservations installed is upgraded to a Smart Licensing Using Policy supported image, the license conversion is automatic, and nothing more needs to happen at this time. The licenses are now in use and indicate they were authorized previously with SLR. However, at a later date as indicated by the installed policy, the license usage can need to be reported as shown later in this section.
Show Commands on the Device with an Older Smart License Supported Image
Switch#show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
Status: REGISTERED - SPECIFIC LICENSE RESERVATION
Export-Controlled Functionality: ALLOWED
License Authorization:
Status: AUTHORIZED - RESERVED
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
C9500 Network Advantage (C9500 Network Advantage) 2 AUTHORIZED
C9500-DNA-16X-A (C9500-16X DNA Advantage) 2 AUTHORIZED
Switch#show license reservation
License reservation: ENABLED
Overall status:
Active: PID:C9500-16X,SN:FCW2233A5ZV
Reservation status: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
Export-Controlled Functionality: ALLOWED
Last Confirmation code: 4bfbea7f
Standby: PID:C9500-16X,SN:FCW2233A5ZY
Reservation status: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
Export-Controlled Functionality: ALLOWED
Last Confirmation code: 9394f196
Specified license reservations:
C9500 Network Advantage (C9500 Network Advantage):
Description: C9500 Network Advantage
Total reserved count: 2
Term information:
Active: PID:C9500-16X,SN:FCW2233A5ZV
License type: PERPETUAL
Term Count: 1
Standby: PID:C9500-16X,SN:FCW2233A5ZY
License type: PERPETUAL
Term Count: 1
C9500-DNA-16X-A (C9500-16X DNA Advantage):
Description: C9500-DNA-16X-A
Total reserved count: 2
Term information:
Active: PID:C9500-16X,SN:FCW2233A5ZV
License type: TERM
Start Date: 2020-MAR-17 UTC
End Date: 2021-MAR-17 UTC
Term Count: 1
Standby: PID:C9500-16X,SN:FCW2233A5ZY
License type: TERM
Start Date: 2020-MAR-17 UTC
End Date: 2021-MAR-17 UTC
Term Count: 1
Switch#show license status
Smart Licensing is ENABLED
Utility:
Status: DISABLED
License Reservation is ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
Registration:
Status: REGISTERED - SPECIFIC LICENSE RESERVATION
Export-Controlled Functionality: ALLOWED
Initial Registration: SUCCEEDED on Aug 31 11:07:39 2020 PDT
License Authorization:
Status: AUTHORIZED - RESERVED on Aug 31 10:15:01 2020 PDT
Export Authorization Key:
Features Authorized:
<none>
Show Commands on the Device after Booting with the Smart Licensing Using Policy Supported Image
The show commands display the licenses as in use and indicate they were previously authorized by Specific License Reservation. The Cisco Default policy is in use.
Switch#show license summary
License Reservation is ENABLED
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
network-advantage (C9500 Network Advantage) 2 IN USE
dna-advantage (C9500-16X DNA Advantage) 2 IN USE
Switch#show license all
Smart Licensing Status
======================
Smart Licensing is ENABLED
License Reservation is ENABLED
Export Authorization Key
Features Authorized:
<none>
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Transport Off
Miscellaneous:
Custom Id: <empty>
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Usage Reporting:
Last ACK received: <none>
Next ACK deadline: Nov 29 10:50:05 2020 PDT
Reporting Interval: 30
Next ACK push check: <none>
Next report push: Aug 31 10:52:05 2020 PDT
Last report push: <none>
Last report file write: <none>
Trust Code Installed: <none>
License Usage
=============
network-advantage (C9500 Network Advantage):
Description: network-advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: network-advantage
Feature Description: network-advantage
Enforcement type: NOT ENFORCED
License type: Perpetual
Reservation:
Reservation status: SPECIFIC INSTALLED
Total reserved count: 2
dna-advantage (C9500-16X DNA Advantage):
Description: C9500-16X DNA Advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: dna-advantage
Feature Description: C9500-16X DNA Advantage
Enforcement type: NOT ENFORCED
License type: Subscription
Reservation:
Reservation status: SPECIFIC INSTALLED
Total reserved count: 2
Product Information
===================
UDI: PID:C9500-16X,SN:FCW2233A5ZV
HA UDI List:
Active:PID:C9500-16X,SN:FCW2233A5ZV
Standby:PID:C9500-16X,SN:FCW2233A5ZY
Agent Version
=============
Smart Agent for Licensing: 5.0.5_rel/42
License Authorizations
======================
Overall status:
Active: PID:C9500-16X,SN:FCW2233A5ZV
Status: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
Last Confirmation code: 4bfbea7f
Standby: PID:C9500-16X,SN:FCW2233A5ZY
Status: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
Last Confirmation code: 9394f196
Specified license reservations:
C9500 Network Advantage (C9500 Network Advantage):
Description: C9500 Network Advantage
Total reserved count: 2
Enforcement type: NOT ENFORCED
Term information:
Active: PID:C9500-16X,SN:FCW2233A5ZV
Authorization type: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
License type: PERPETUAL
Term Count: 1
Standby: PID:C9500-16X,SN:FCW2233A5ZY
Authorization type: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
License type: PERPETUAL
Term Count: 1
C9500-DNA-16X-A (C9500-16X DNA Advantage):
Description: C9500-DNA-16X-A
Total reserved count: 2
Enforcement type: NOT ENFORCED
Term information:
Active: PID:C9500-16X,SN:FCW2233A5ZV
Authorization type: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
License type: PERPETUAL
Term Count: 1
Standby: PID:C9500-16X,SN:FCW2233A5ZY
Authorization type: SPECIFIC INSTALLED on Aug 31 10:15:01 2020 PDT
License type: PERPETUAL
Term Count: 1
Purchased Licenses:
No Purchase Information Available
Derived Licenses:
Entitlement Tag: regid.2017-03.com.cisco.advantagek9-Nyquist-C9500,1.0_f1563759-2e03-4a4c-bec5-5feec525a12c
Entitlement Tag: regid.2017-07.com.cisco.C9500-DNA-16X-A,1.0_ef3574d1-156b-486a-864f-9f779ff3ee49
Switch#show license status
Utility:
Status: DISABLED
License Reservation is ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Transport Off
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneus:
Custom Id: <empty>
Usage Reporting:
Last ACK received: <none>
Next ACK deadline: Nov 29 10:50:05 2020 PDT
Reporting Interval: 30
Next ACK push check: <none>
Next report push: Aug 31 10:52:05 2020 PDT
Last report push: <none>
Last report file write: <none>
Trust Code Installed: <none>
In CSSM, the PIs have not changed and indicate Reserved Licenses since there has been no usage reported to this point. Usage reporting is not required until the policy indicates or Syslog messages are received.
Reporting Usage at a Later Date when Required Based on Policy
At a later date, the device can be required to report usage if Cisco DNA licenses are in use. This can still be done in offline mode as well. However, for an HA system, only one report file is required for the full device. Use the command license smart save usage CLI in order to create the report file to be used in CSSM. Then copy the file to a place accessible by CSSM.
Switch#license smart save usage unreported file flash:RUM-usage-20200925.txt
Switch#copy flash:RUM-usage-20200925.txt tftp://172.27.18.5//auto/tftp-sjc-users2/byodis/
Address or name of remote host [172.27.18.5]?
Destination filename [/auto/tftp-sjc-users2/byodis/RUM-usage-20200925.txt]?
!!
15128 bytes copied in 0.161 secs (93963 bytes/sec)
Now open CSSM, and click the Report tab in the Reports window. Now, click the Usage Data Files tab and then click the Upload Usage Data button in order to upload the usage report file. It asks for the Virtual Account to install, so ensure to choose the correct one. Wait for the report to finish processing (click the Usage Data Files tab in order to refresh the screen and see if it has been completed). If the reporting is successful, the status indicates No errors and a Download ACK file is available to download and install on the device indicating that the usage was received and reported successfully.
Copy this download file to the device or someplace accessible by the device and use the command license smart import in order to import the ACK file to the device.
Switch#license smart import tftp://172.27.18.5//auto/tftp-sjc-users2/byodis/ACK_RUM-usage-20200925.txt
Import Data Successfull
The output of show license status indicates that the ACK was recorded at the correct time.
Switch#show license status
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
License Reservation is ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Off
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneus:
Custom Id: <empty>
Usage Reporting:
Last ACK received: Sep 25 10:12:15 2020 PST
Next ACK deadline: Dec 24 10:12:15 2020 PST
Reporting push interval: 30 days
Next ACK push check: Sep 25 07:55:35 2020 PST
Next report push: Sep 25 10:12:46 2020 PST
Last report push: Sep 25 07:54:33 2020 PST
Last report file write: <none>
Trust Code Installed: <none>
In CSSM, the PIs no longer show Reserved Licenses and license usage is only seen in the Active PI.
Downgrade from Smart Licensing Using Policy to Specific License Reservation Supported Image
If an image is downgraded to a version that does not support Smart Licensing Using Policy but does support SLR, all that is needed is to perform the downgrade on the image. The licenses stay as reserved and authorized - nothing else is required.
Migrate Eval or Eval Expired to Smart Licensing Using Policy
Starting with the 16.9.1 release until the 17.3.1 release, if the licenses were not registered or released, they are by default Eval licenses. After 90 days they become Eval Expired licenses. Both indicate the licenses were OUT OF COMPLIANCE. Since all licenses are unenforced, no feature functionality is lost on the device.
Smart Licensing Using Policy no longer has evaluation states for licenses. Therefore, if any devices have Eval or Eval Expired licenses when the devices are upgraded to a Smart Licensing Using Policy supported image, all those licenses are seen as in use and the Cisco default policy is applied. The licenses are no longer displayed as UNAUTHORIZED or OUT OF COMPLIANCE.
Show Commands for Smart Licenses in Eval/Eval Expired Mode
Switch#show license summary
Smart Licensing is ENABLED
Registration:
Status: UNREGISTERED
Export-Controlled Functionality: NOT ALLOWED
License Authorization:
Status: EVAL MODE
Evaluation Period Remaining: 89 days, 21 hours, 37 minutes, 30 seconds
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
(C9500 Network Advantage) 2 EVAL MODE
(C9500-16X DNA Advantage) 2 EVAL MODE
Switch#show license usage
License Authorization:
Status: EVAL MODE
Evaluation Period Remaining: 89 days, 21 hours, 37 minutes, 21 seconds
(C9500 Network Advantage):
Description:
Count: 2
Version: 1.0
Status: EVAL MODE
Export status: NOT RESTRICTED
(C9500-16X DNA Advantage):
Description:
Count: 2
Version: 1.0
Status: EVAL MODE
Export status: NOT RESTRICTED
Switch#show license status
Smart Licensing is ENABLED
Utility:
Status: DISABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
Registration:
Status: UNREGISTERED
Export-Controlled Functionality: NOT ALLOWED
License Authorization:
Status: EVAL MODE
Evaluation Period Remaining: 89 days, 21 hours, 37 minutes, 15 seconds
Export Authorization Key:
Features Authorized:
<none>
Miscellaneus:
Custom Id: <empty>
Show Commands for Smart License Smart Licensing Using Policy after the Upgrade but Usage Not Reported Yet
Switch#show license summary
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
network-advantage (C9500 Network Advantage) 2 IN USE
dna-advantage (C9500-16X DNA Advantage) 2 IN USE
Switch#show license usage
License Authorization:
Status: Not Applicable
network-advantage (C9500 Network Advantage):
Description: network-advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: network-advantage
Feature Description: network-advantage
Enforcement type: NOT ENFORCED
License type: Perpetual
dna-advantage (C9500-16X DNA Advantage):
Description: C9500-16X DNA Advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: dna-advantage
Feature Description: C9500-16X DNA Advantage
Enforcement type: NOT ENFORCED
License type: Subscription
Switch#show license status
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Transport Off
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneous:
Custom Id: <empty>
Usage Reporting:
Last ACK received: <none>
Next ACK deadline: Feb 08 08:27:59 2021 PST
Reporting push interval: 30 days
Next ACK push check: <none>
Next report push: Nov 10 08:29:59 2020 PST
Last report push: <none>
Last report file write: <none>
Trust Code Installed: <none>
Show Commands for Smart Licensing Using Policy after Connecting to CSLU and Reporting Usage
As the Policy in the show license status output indicates, subscription licenses (dna-advantage and dna-essentials) are required to report in 90 days. Any of the various supported usage reporting topologies can be used. See the Smart Licensing Using Policy configuration guide. Also, some links are provided at the end of this article for helpful videos and documentation. The example here is using the CSLU PUSH model with explicit configuration to the CSLU server that is installed on a Windows 10 machine (laptop, server, VM). The CSLU download, installation guide, and user guide can be found at https://software.cisco.com/download/home/286285506/type/286327971/release/1.0.0-2.
Switch#show running-config all | include cslu
license smart transport cslu
Switch#
Switch#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#license smart url cslu http://10.24.74.180:8182/cslu/v1/pi_
Switch(config)#^Z
Switch#
Switch#write memory
Building configuration...
[OK]
Switch#show running-config all | include cslu
license smart url cslu http://10.24.74.180:8182/cslu/v1/pi
license smart transport cslu
Switch#
To force the license usage to be reported use the "license smart sync" command.
Switch#license smart sync all
Switch#
*Sep 22 10:48:36.050 PST: %SMART_LIC-5-COMM_RESTORED: Communications with Cisco Smart License Utility (CSLU) restored
Note: Use the "all" option for HA device. Use "local" option for standalone switch
Switch#show license summary
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
network-advantage (C9500 Network Advantage) 2 IN USE
dna-advantage (C9500-16X DNA Advantage) 2 IN USE
Switch#show license usage
License Authorization:
Status: Not Applicable
network-advantage (C9500 Network Advantage):
Description: network-advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: network-advantage
Feature Description: network-advantage
Enforcement type: NOT ENFORCED
License type: Perpetual
dna-advantage (C9500-16X DNA Advantage):
Description: C9500-16X DNA Advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: dna-advantage
Feature Description: C9500-16X DNA Advantage
Enforcement type: NOT ENFORCED
License type: Subscription
Switch#show license status
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: cslu
Cslu address: http://10.24.74.180:8182/cslu/v1/pi
Proxy:
Not Configured
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneous:
Custom Id: <empty>
Usage Reporting:
Last ACK received: Nov 10 08:56:48 2020 PST
Next ACK deadline: Feb 08 08:56:48 2021 PST
Reporting push interval: 30 days
Next ACK push check: <none>
Next report push: Dec 10 08:55:29 2020 PST
Last report push: Nov 10 08:55:29 2020 PST
Last report file write: <none>
Trust Code Installed: <none>
Downgrade from Smart Licensing Using Policy Image to Image Supporting Eval or Eval Licenses
If an image downgrade is required to an image that does not support SL Using Policy, the licenses revert back to Eval or Eval expired. The original Evaluation Period Remaining is maintained. Since all Cat9K licenses are unenforced, no functionality is lost.
Migrate RTU License to Smart Licensing Using Policy
Right-to-Use (RTU) Licensing was an initial licensing scheme for C9300, C9400, and C9500 up through release 16.8.1a. Smart licensing was not available until 16.9.1.
All licenses are still the same but use older license right-to-use commands for configuration and show commands. Once the image is upgraded to a Smart Licensing Using Policy-supported images, the licenses are in use, the same as is seen with Eval/Eval mode. If there are any Cisco DNA licenses in use, the Cisco Default policy requires usage reporting in 90 days. Any of the different topologies supported for reporting usage with Smart Licensing Using Policy image can be used.
Show Commands on the Device with RTU Licensing
Switch#show license right-to-use summary
License Name Type Period left
------------------------------------------------
network-essentials Permanent Lifetime
dna-essentials Subscription CSSM Managed
------------------------------------------------
License Level In Use: network-essentials+dna-essentials Subscription
License Level on Reboot: network-essentials+dna-essentials Subscription
Switch#show license right-to-use
Slot# License Name Type Period left
----------------------------------------------------
1 network-essentials Permanent Lifetime
1 dna-essentials Subscription CSSM Managed
----------------------------------------------------
License Level on Reboot: network-essentials+dna-essentials Subscription
Slot# License Name Type Period left
----------------------------------------------------
2 network-essentials Permanent Lifetime
2 dna-essentials Subscription CSSM Managed
----------------------------------------------------
License Level on Reboot: network-essentials+dna-essentials Subscription
Slot# License Name Type Period left
----------------------------------------------------
3 network-essentials Permanent Lifetime
3 dna-essentials Subscription CSSM Managed
----------------------------------------------------
License Level on Reboot: network-essentials+dna-essentials Subscription
Switch#show license right-to-use usage
Slot# License Name Type usage-duration(y:m:d) In-Use EULA
----------------------------------------------------------------------------
1 network-essentials Permanent 00:00:00 yes yes
1 network-essentials Evaluation 00:00:00 no no
1 network-essentials Subscription 00:00:00 no no
1 network-advantage Permanent 00:00:00 no no
1 network-advantage Evaluation 00:00:00 no no
1 network-advantage Subscription 00:00:00 no no
1 dna-essentials Evaluation 00:00:00 no no
1 dna-essentials Subscription 00:00:00 yes yes
1 dna-advantage Evaluation 00:00:00 no no
1 dna-advantage Subscription 00:00:00 no no
----------------------------------------------------------------------------
Slot# License Name Type usage-duration(y:m:d) In-Use EULA
----------------------------------------------------------------------------
2 network-essentials Permanent 00:00:00 yes yes
2 network-essentials Evaluation 00:00:00 no no
2 network-essentials Subscription 00:00:00 no no
2 network-advantage Permanent 00:00:00 no no
2 network-advantage Evaluation 00:00:00 no no
2 network-advantage Subscription 00:00:00 no no
2 dna-essentials Evaluation 00:00:00 no no
2 dna-essentials Subscription 00:00:00 yes yes
2 dna-advantage Evaluation 00:00:00 no no
2 dna-advantage Subscription 00:00:00 no no
----------------------------------------------------------------------------
Slot# License Name Type usage-duration(y:m:d) In-Use EULA
----------------------------------------------------------------------------
3 network-essentials Permanent 00:00:00 yes yes
3 network-essentials Evaluation 00:00:00 no no
3 network-essentials Subscription 00:00:00 no no
3 network-advantage Permanent 00:00:00 no no
3 network-advantage Evaluation 00:00:00 no no
3 network-advantage Subscription 00:00:00 no no
3 dna-essentials Evaluation 00:00:00 no no
3 dna-essentials Subscription 00:00:00 yes yes
3 dna-advantage Evaluation 00:00:00 no no
3 dna-advantage Subscription 00:00:00 no no
Show Commands on the Device after Upgrading from RTU to Smart Licensing Using Policy Supported Image
Switch#show license summary
License Usage:
License Entitlement Tag Count Status
-----------------------------------------------------------------------------
network-advantage (C9300-24 Network Advan...) 2 IN USE
dna-advantage (C9300-24 DNA Advantage) 2 IN USE
network-advantage (C9300-48 Network Advan...) 1 IN USE
dna-advantage (C9300-48 DNA Advantage) 1 IN USE
Switch#show license usage
License Authorization:
Status: Not Applicable
network-advantage (C9300-24 Network Advantage):
Description: C9300-24 Network Advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: network-advantage
Feature Description: C9300-24 Network Advantage
Enforcement type: NOT ENFORCED
License type: Perpetual
dna-advantage (C9300-24 DNA Advantage):
Description: C9300-24 DNA Advantage
Count: 2
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: dna-advantage
Feature Description: C9300-24 DNA Advantage
Enforcement type: NOT ENFORCED
License type: Subscription
network-advantage (C9300-48 Network Advantage):
Description: C9300-48 Network Advantage
Count: 1
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: network-advantage
Feature Description: C9300-48 Network Advantage
Enforcement type: NOT ENFORCED
License type: Perpetual
dna-advantage (C9300-48 DNA Advantage):
Description: C9300-48 DNA Advantage
Count: 1
Version: 1.0
Status: IN USE
Export status: NOT RESTRICTED
Feature Name: dna-advantage
Feature Description: C9300-48 DNA Advantage
Enforcement type: NOT ENFORCED
License type: Subscription
Switch#show license status
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Transport Off
Policy:
Policy in use: Merged from multiple sources.
Reporting ACK required: yes (CISCO default)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 365 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 90 (CISCO default)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 90 (CISCO default)
Reporting frequency (days): 90 (CISCO default)
Report on change (days): 90 (CISCO default)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneous:
Custom Id: <empty>
Usage Reporting:
Last ACK received: <none>
Next ACK deadline: Feb 08 08:27:59 2021 PST
Reporting push interval: 20 days
Next ACK push check: <none>
Next report push: Nov 10 08:29:59 2020 PST
Last report push: <none>
Last report file write: <none>
Trust Code Installed: <none>
These show commands were performed after an upgrade to a Smart Licensing Using Policy-supported image but have not reported usage to CSSM yet. Licenses are all converted to Smart Licensing Using Policy showing IN USE and using the Cisco default policy. If using a subscription license, usage reporting is required in 90 days. After that, Syslog messages are sent from CSSM. However, no feature functionality is lost since all C9K licenses are unenforced.
When required to report, any of the topologies described in the Smart Licensing Using Policy configuration guide can be used. The license show command outputs are similar to those described in this document . Depending on the topology used, some output can differ.
Downgrade from Smart Licensing Using Policy Image to Image Supporting RTU Licenses
If the Cisco IOS XE image needs to be downgraded back to an image prior to 16.9.1, the licenses and feature functionality are preserved. However, any smart licensing configurations are not known and are not saved.
Downgrade from Smart Licensing Using Policy Image to Image Supporting Smart License
If a device is migrated from an image that supports RTU to a Smart Licensing Using Policy supported image and is later downgraded to an image that supports smart licensing prior to 17.3.2 and 17.4.1, the licenses on those devices require registration or specific license reservation operation to be performed.
Smart Licensing Using Policy Custom Policies
It is possible that the company can have negotiated a custom policy with Cisco. If that is the case, Cisco installs that policy into the Smart Account. There can be only one custom policy per Smart Account and it is applied to all Virtual Accounts within that Smart Account. In order to tell if a custom policy is in effect in CSSM, open the Reports view and click the Reporting Policy tab. There can be more than one version, however, only the latest version is available to install.
If there is a custom policy installed in the Smart Account, it is installed when the license usage report is performed. The new custom policy can be seen using the exec command show license status. Instead of Cisco Default, the custom policy is displayed. Depending on what was defined in the custom policy, a mix of custom and default values can be seen. Any fields not defined in the custom policy continue to have the Cisco default values.
If the offline topology or CSLU offline with CSSM topology is used, then the custom policy can be downloaded from CSSM to the file/location accessible by the device. The custom policy can then be installed on the device with the exec command license smart import <device:path/file>.
Switch#show license status
Utility:
Status: DISABLED
Smart Licensing Using Policy:
Status: ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Transport Off
Policy:
Policy in use: Installed On Nov 09 09:09:36 2020 PST
Policy name: Custom Policy
Reporting ACK required: yes (Customer Policy)
Unenforced/Non-Export Perpetual Attributes:
First report requirement (days): 60 (Customer Policy)
Reporting frequency (days): 60 (Customer Policy)
Report on change (days): 60 (Customer Policy)
Unenforced/Non-Export Subscription Attributes:
First report requirement (days): 30 (Customer Policy)
Reporting frequency (days): 30 (Customer Policy)
Report on change (days): 30 (Customer Policy)
Enforced (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Export (Perpetual/Subscription) License Attributes:
First report requirement (days): 0 (CISCO default)
Reporting frequency (days): 0 (CISCO default)
Report on change (days): 0 (CISCO default)
Miscellaneous:
Custom Id: <empty>
Usage Reporting:
Last ACK received: Nov 09 09:09:36 2020 PST
Next ACK deadline: Dec 09 09:09:36 2020 PST
Reporting push interval: 30 days
Next ACK push check: Oct 29 14:39:50 2020 PST
Next report push: Nov 09 09:10:07 2020 PST
Last report push: Oct 29 14:35:51 2020 PST
Last report file write: <none>
Trust Code Installed:
Active: PID:C9300-24UX,SN:FCW2303D16Y
INSTALLED on Oct 29 14:35:12 2020 PST
Standby: PID:C9300-24U,SN:FHH2043P09E
INSTALLED on Oct 29 14:35:13 2020 PST
Member: PID:C9300-48T,SN:FCW2139L056
INSTALLED on Oct 29 14:35:13 2020 PST
Related Information
- Release Notes: RN-9200, RN-9300, RN-9400, RN-9500, RN-9600
- Configuration Guides: Cat9200-CG, Cat9300-CG, Cat9400-CG, Cat9500-CG, Cat9600-CG
- Command References: Cat9200-CR, Cat9300-CR, Cat9400-CR, Cat9500-CR, Cat9600-CR
- CSLU for Windows 10 download (includes User Guide and Installer Guide): https://software.cisco.com/download/home/286285506/type/286327971/release/1.0.0-2
- Technical Support & Documentation - Cisco Systems
Revision History
| Revision | Publish Date | Comments |
|---|---|---|
3.0 |
09-Mar-2022 |
Updated ALT Text. |
2.0 |
01-Dec-2021 |
Updated the reporting action when SLR changed to SLUP offline mode. |
1.0 |
10-Dec-2020 |
Initial Release |
FeedbackContact Cisco
- Open a Support Case
- (Requires a Cisco Service Contract)
