This article aims to show you how to configure the time and date format on your Cisco IP Phone 8800 Series.
Applicable Devices | Firmware Version
Configure Time and Date Format
Step 1. On your IP Phone, press the Applications button.
Step 2. Using the Navigation cluster button, navigate to Device
administration and press the Select softkey.
Step 3. Navigate to Date/Time and press the Select softkey.

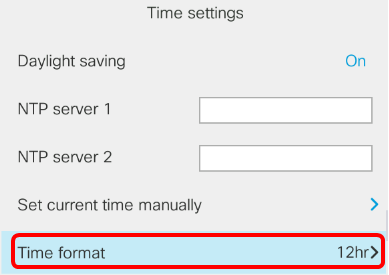

Step 4. Navigate to Time format and press the right arrow on the Navigation cluster button to select either the 12hr or 24hr format.
- 12hr — Sets the time to a 12-hour format starting from 12:00 midnight until 11:59 AM and 12:00 PM until
- 24hr — Sets the time to a 24-hour format starting from 00:00 (12 midnight) until 23:59 (11:59 PM).
Note: In this example, the 12hr format is chosen.
Step 5. Press the Navigation cluster down button to navigate to Date format.
Step 6. Press the Navigation cluster right button to select either the day/month or month/day
format and then press the Set softkey.
- day/month — Sets the day of the month to come first before the month.
- month/day — Sets the month to come first before the day of the month.
Note: In this example, the month/day format is chosen.
Step 7. Press the Back button to go back to the Standby mode. The date and time
should now appear on the proper format that you have set.
You should now have successfully configured the time and date format on your Cisco IP Phone 8800 Series.
