Provision Users and Groups to Secure Access via OKTA

Introduction

This document describes how to provision user groups from OKTA to Cisco Secure Access.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• Cisco Secure Access
• OKTA



Components Used

This document is not restricted to specific software and hardware versions.

• Cisco Secure Access Dashboard
• OKTA



The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background Information

Cisco Secure Access supports the provisioning of users and groups from OKTA.

This provisioning enables Secure Access to maintain a directory of users authorized to:

• Enroll in Zero Trust Access (ZTA).
• Connect to VPNaaS.
• Apply identity-based policies to Umbrella Roaming users.

Configure

Configure Cisco Secure Access

In order to begin the provisioning process, you must first configure the directory integration within the Cisco Secure Access dashboard. This step generates the necessary credentials and configuration parameters required to establish a secure connection with OKTA.

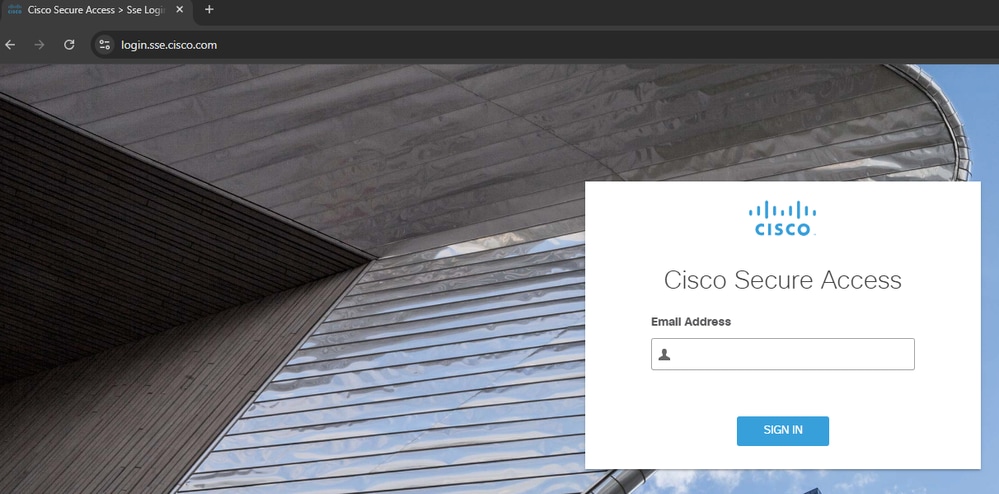

1. Sign in to the Cisco Secure Access Dashboard.

   Sign in to CSA

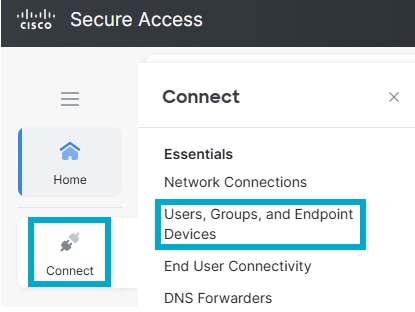

2. Navigate to Connect > Users, Groups and Endpoint Devices.

   Users and Groups




3. Click Configuration management.

   Configuration Management

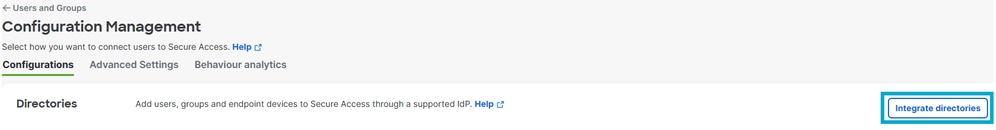

4. Click Integrate Directory.

   Integrate Directory

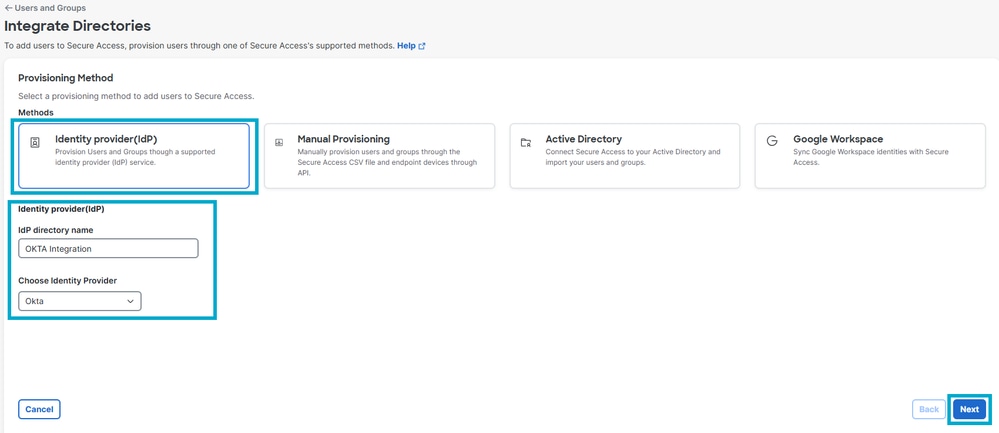

5. Under Provision Method click Identity Provider.
   • IdP directory name: OKTA Integration.
   • Choose Identity Provider: OKTA.
   • Click Next.

Directory Configuration

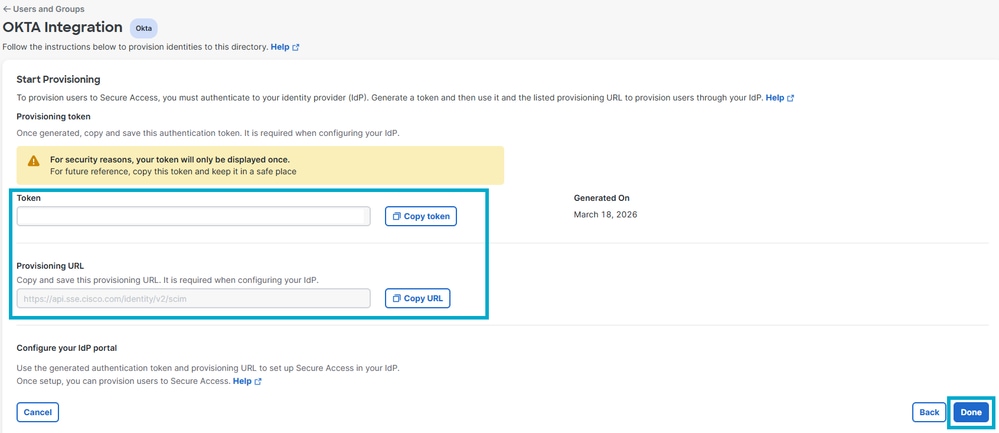

6. Click Generate Token. Save the generated token and the provisioning URL, then click Done.

   Generate Token




Configure Provisioning in OKTA

Once you have generated your credentials in the Cisco Secure Access dashboard, you must configure the provisioning settings within your OKTA tenant to enable the synchronization of users and groups.

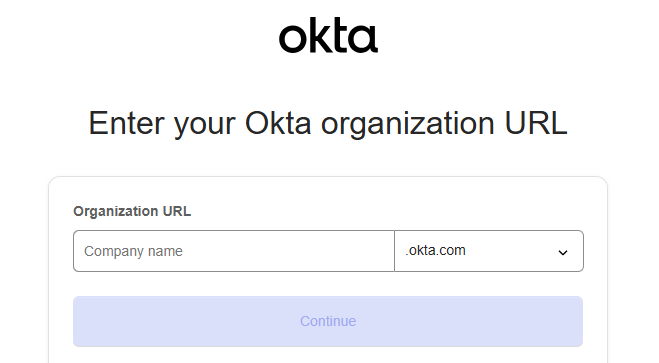

1. Sign in to OKTA.

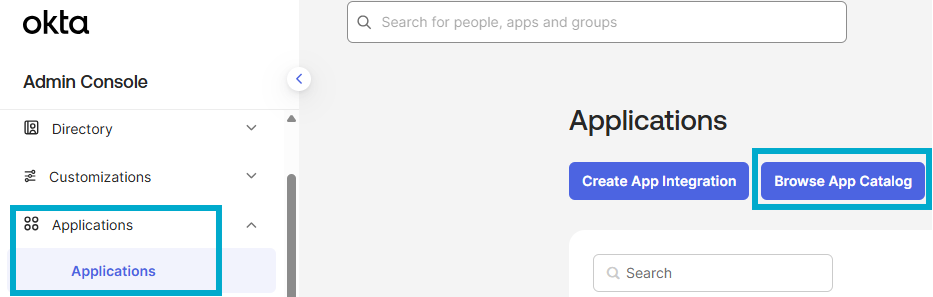

2. Navigate to Applications > Browser App Catalog.

   Browse App Catalog

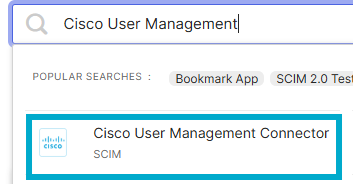

3. Select Cisco User Management Connector app.

   Cisco App

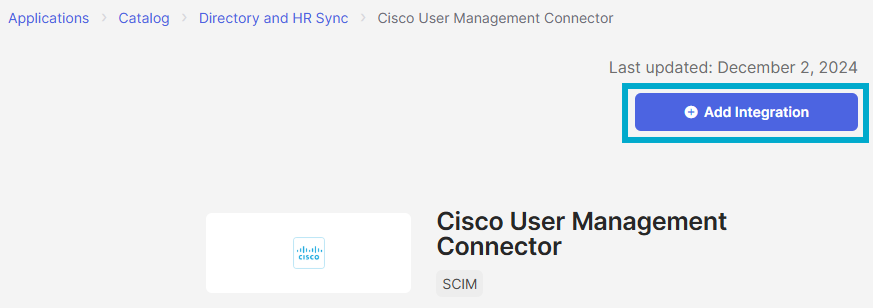

4. Click Add Integration.

   Add Integration

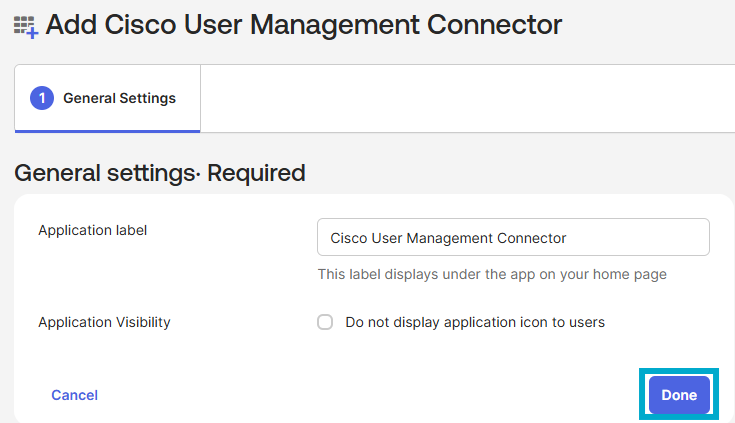

5. Click Done.

   Add App

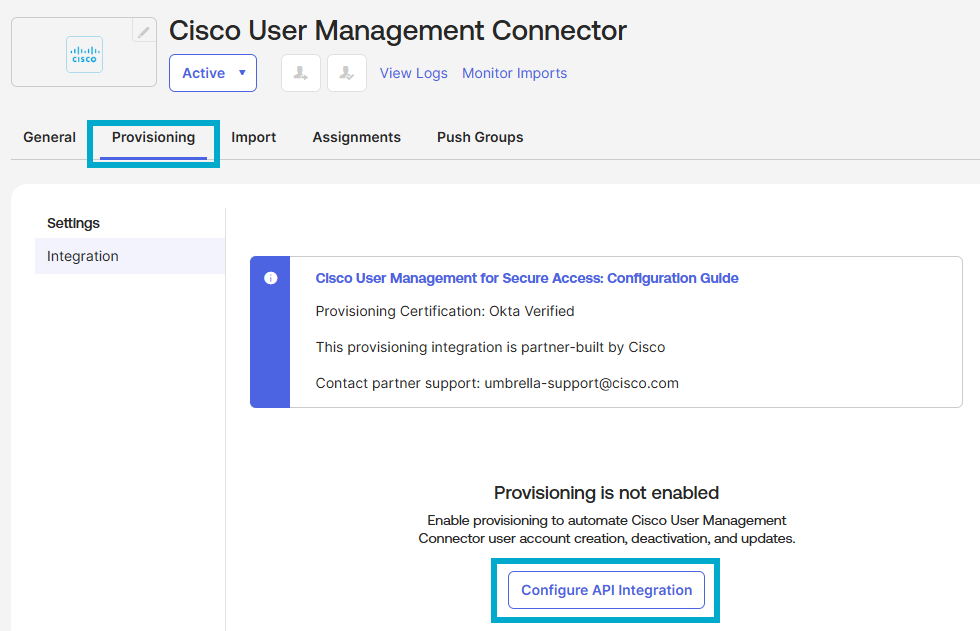

6. Click Provisioning > Configure API Integration.

   Configure API Integration

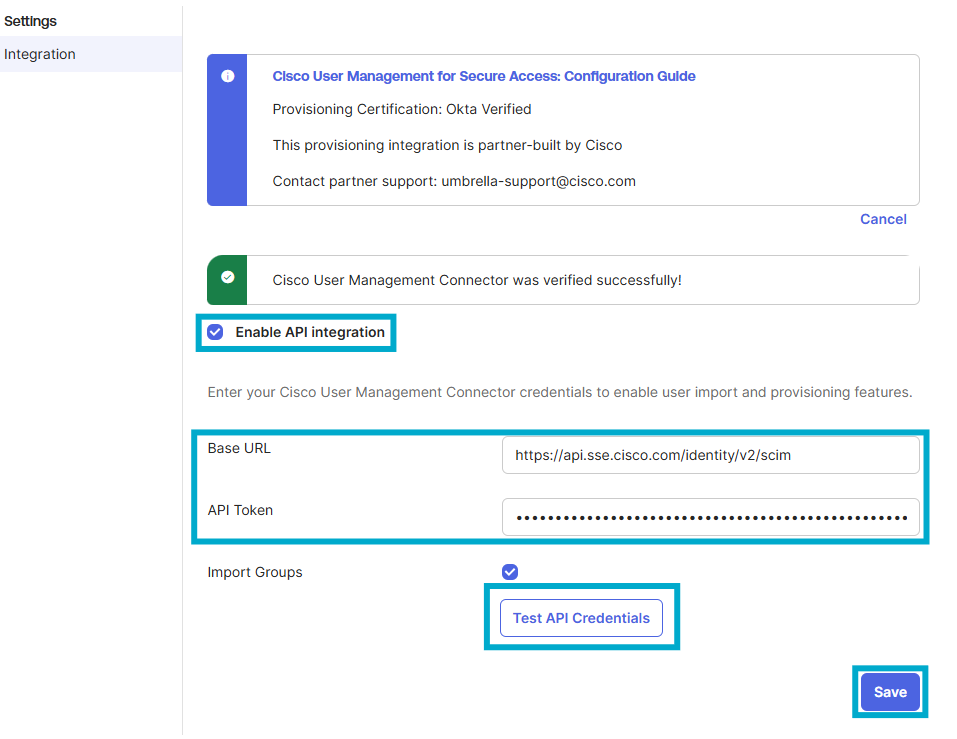

7. Click Enable API Integration and enter the Based URL and API Tokensaved from step #6 of the Secure Access Configuration. Click Test API Credentials and then Save.

   API Test

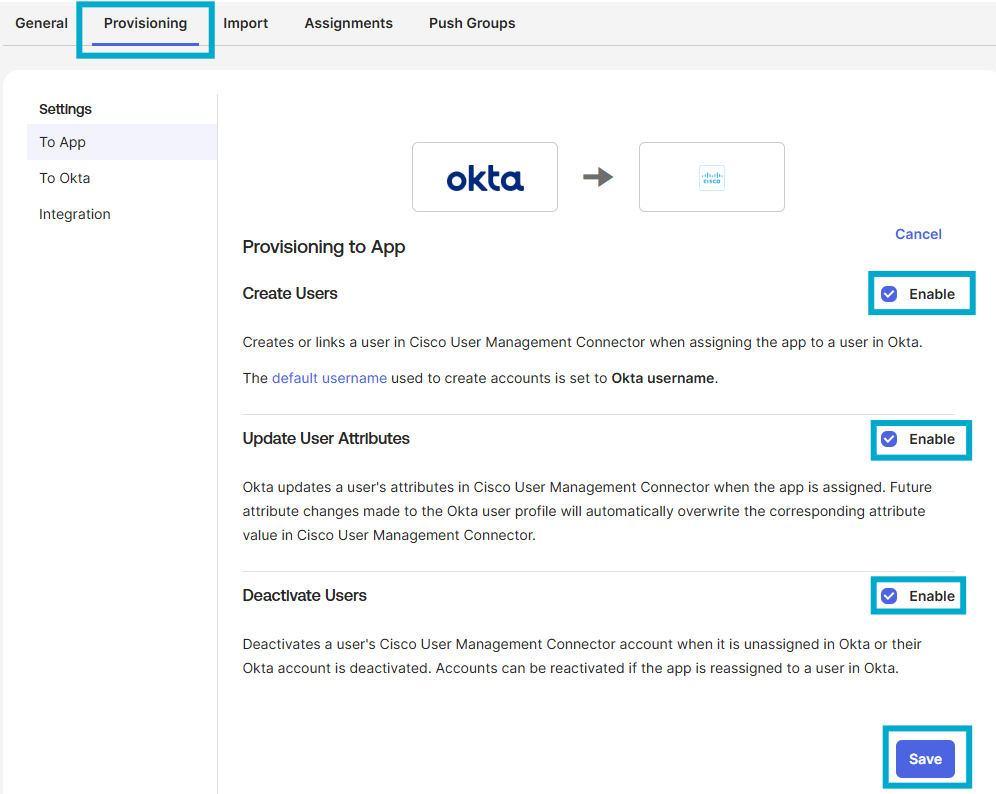

8. Navigate to Provisioning > To App. Enable the options Create Users, Update User Attributes and Deactivate Users, click Save.

   Provision to App





   Note: Verify that you select these attributes for synchronization to Secure Access. Secure Access only lists the Display name and Username attributes for users, not the Given name and Family name attributes: Username, Given name, Family, name, Display name, Email

   (Optional) Add an objectGUID Attribute and Create the User Profile Mapping. If you need to import the objectGUID attribute for users, add a new attribute and map the attributes in the profile mapping.

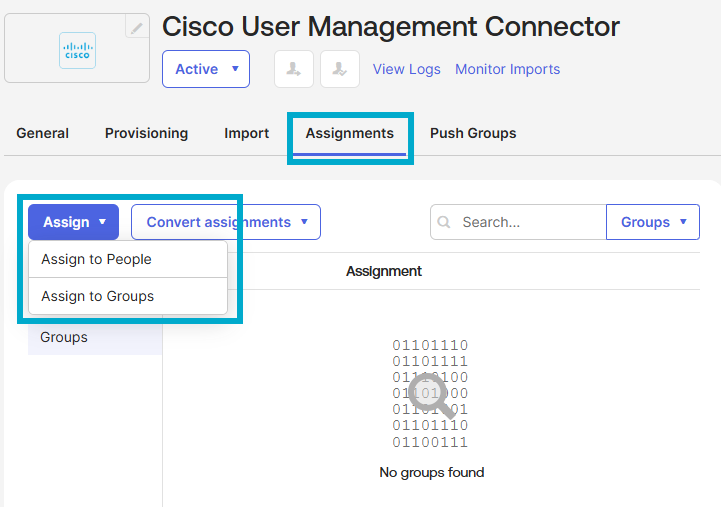

9. In order to add people/groups, click Assignments > Assign > Assign to People/Assign to Groups.

   Assignment

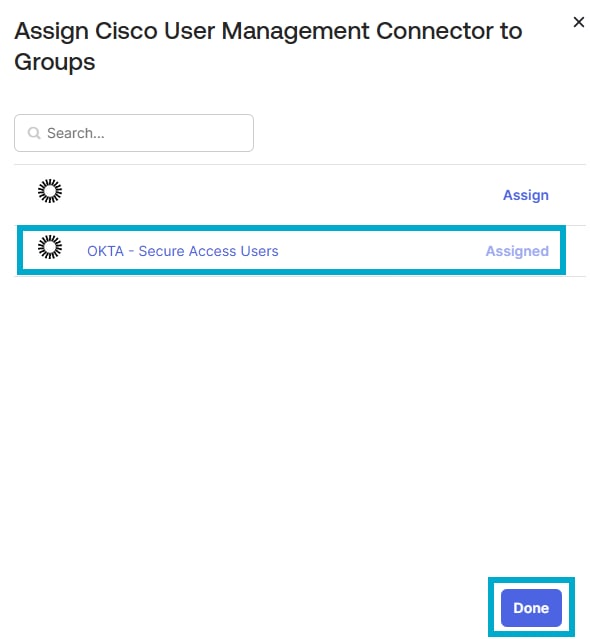

10. Select the groups/people you want to provision to Secure Access and click Assign and then Done.

    Assign Groups



     

Verify

Verity in Cisco Secure Access

• Navigate to Connect > Users, Groups and Endpoint Devices.

Users and Groups in CSA

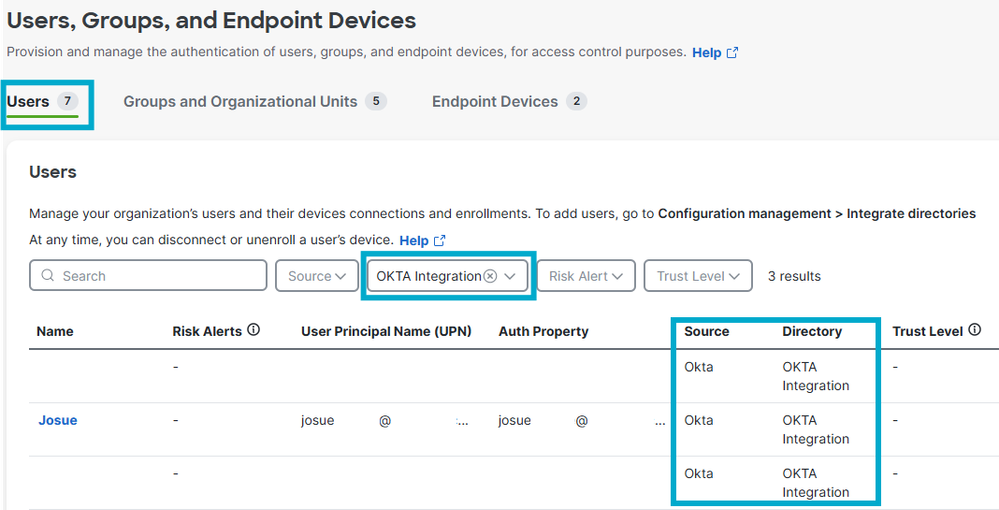

• Click Users.

  Verify Users in CSA



Verity in OKTA

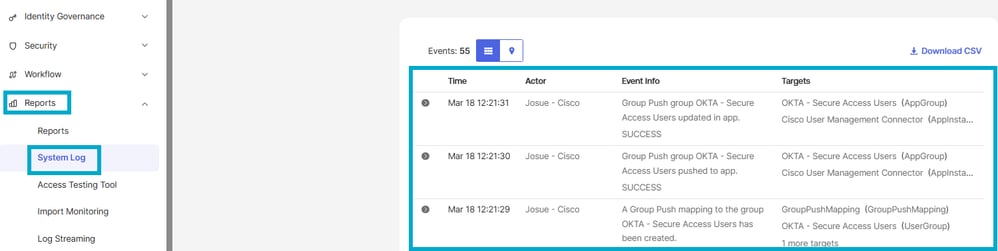

• Navigate to Reports > System Log.

OKTA Logs
