Configure Secure Access with Secure Firewall Threat Defense for Private Access with Policy Based Routing

Introduction

This document describes how to configure Secure Access with FTD via IPsec for Secure Private Access with Policy Based Routing.

Prerequisites

Requirements

• Cisco Secure Access knowledge
• Cisco Secure Access dashboard/tenant
• Secure Firewall Threat Defense and Firewall Management Center knowledge
• IPsec knowledge
• Policy Based Routing knowledge

Components Used

• Secure Firewall Running 7.7.10 code
• Cloud-Delivered Firewall Management Center. Configuration also applies for typical virtual FMC
• Cisco Secure Access dashboard

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background Information

Network tunnels in Secure Access can be used for two primary purposes: Secure Internet Access and Secure Private Access.

For Secure Private Access, organizations can leverage Zero Trust Access (ZTA) and/or VPN as a Service (VPNaaS) to connect users to private resources such as internal applications or data centers. IPsec tunnels play a key role in this architecture by securely encrypting network traffic between users and private resources, ensuring that sensitive data remains protected as it traverses untrusted networks. By integrating IPsec tunnels with ZTA or VPNaaS, organizations can provide seamless and secure access to internal resources while maintaining robust security controls and visibility.

This document describes how to configure Secure Access with Secure Firewall Threat Defense (FTD) via IPsec for Secure Private Access.
Additionally, this guide provides steps for configuring Policy Based Routing.

While this document covers the configuration of IPsec tunnels for Secure Private Access, the setup of Zero Trust Access (ZTA) or VPN as a Service (VPNaaS) for accessing private applications is outside the scope of this guide.

Configure

Secure Access Configuration

Network Tunnel Group Configuration

1. Navigate to the admin panel of Secure Access.

2. Add a Network Tunnel Group.

• Click on Connect > Network Connections
  • Under Network Tunnel Groups click on > Add

3. General Settings Configuration.

• Configure the Tunnel Group Name, Region and Device Type
  • Click Next

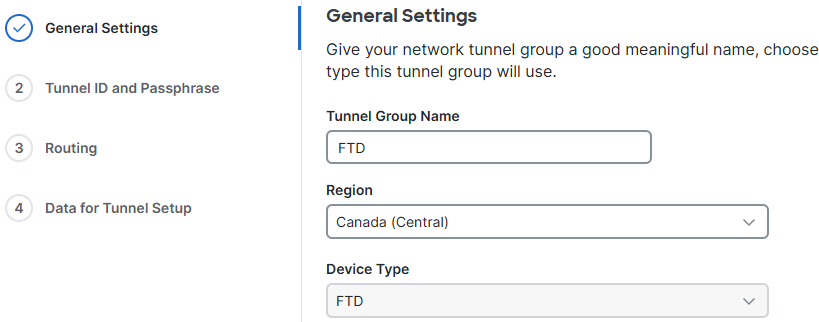

    General Settings



4. Configure Tunnel ID and Passphrase.

• Configure the Tunnel IDand Passphrase. This ID is important, as it is required for the FTD configuration

• Click on Next

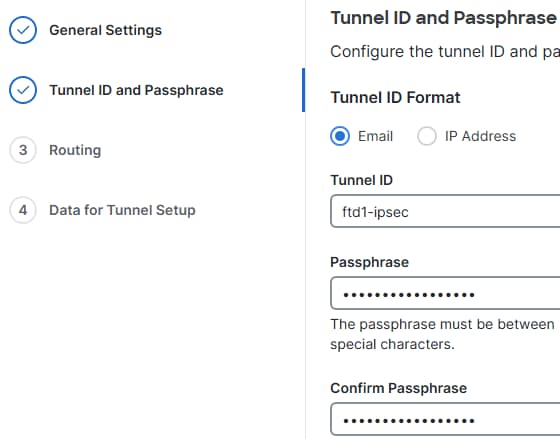

  ID and PSK

5. Configure Static Routing.

Secure Access Routing

Policy Based Routing

Add the network(s) protected by the FTD that you want remote users to access via ZTA and/or VPNaaS, and click on Save.

• Click on Routing> Static routing
  • Add the IP address ranges or hosts that you have configured on your network and want to pass the traffic through Secure Access, and clickAdd
  • Click onSave

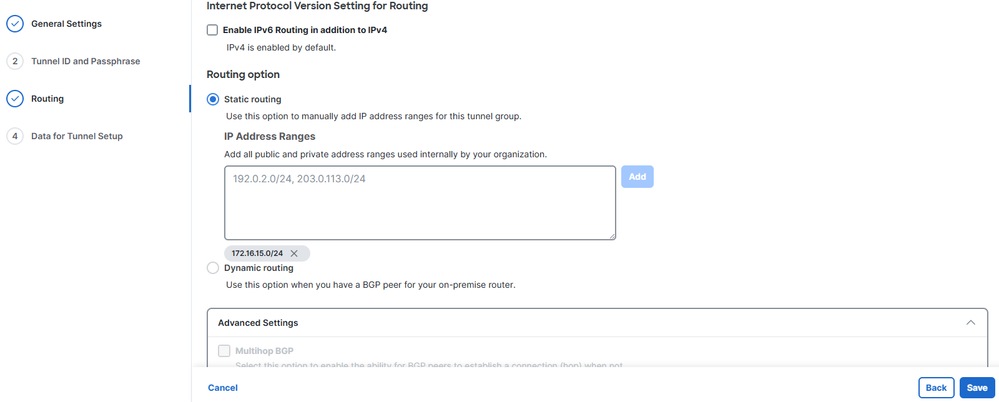

    CSA Static Routing


Save Network Tunnel Group Configuration

Download and save the tunnel setup data, as it is needed for the FTD configuration.

• Click on Download CSV
• Click on Done

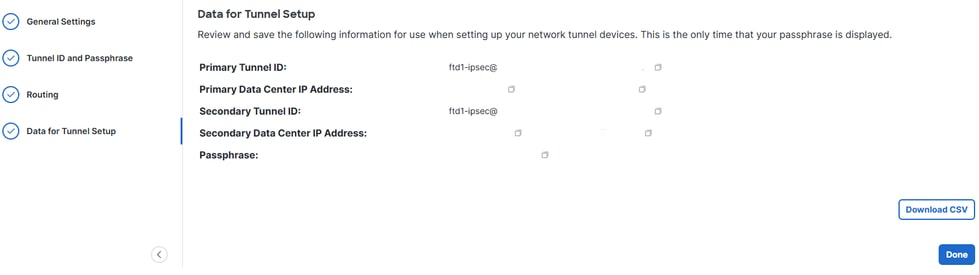

NTG Data

Create a Private Resource

Private resources are internal applications, networks, or subnets hosted in your data center or private cloud environment. These resources are not publicly accessible and are protected behind your organization’s infrastructure.

By defining them as Private Resources in Secure Access, you can enable controlled access through solutions like Zero Trust Access (ZTA) or VPN as a Service (VPNaaS). This ensures users can securely connect to internal systems based on identity, device posture, and access policies, without exposing the resources directly to the internet.

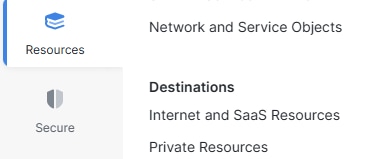

Navigate to Resources > Private Resources> click on Add.

PR

• Specify the Private Resource Name, Internally reachable address, Protocol, Port/Ranges. Specify ports and protocols, and add additional private resources as needed
• Select the desired Connection Method based on your need, example Zero-trust connections and/or VPN Connections, according to your requirements
• Click on Save

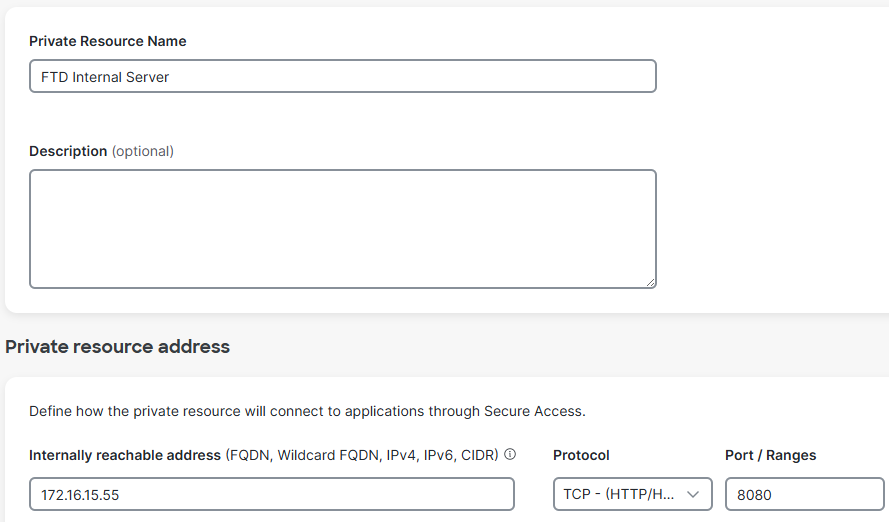

  Private Resource

Create an Access Policy Rule

Private access rules define how users can securely connect to internal resources and applications that are not publicly accessible.

These rules enforce security by controlling who can access specific private resources based on factors such as user identity, group membership, device posture, location, or other policy conditions. This ensures that sensitive internal systems remain protected from general public access while still being securely available to authorized users through ZTA or VPNaaS.

Navigate to Secure>Access Policy

ACP

• Click on Add Rule
  • Click on Private Access

    Add ACP

• Click on Rule Name and give it a name
• Click on Action, select Allowto permit this traffic
• Click onFromand specify the users who are grated permission
• Click on Toand specify the access those users have based on this rule
• Click on Next, and then Savein the next page

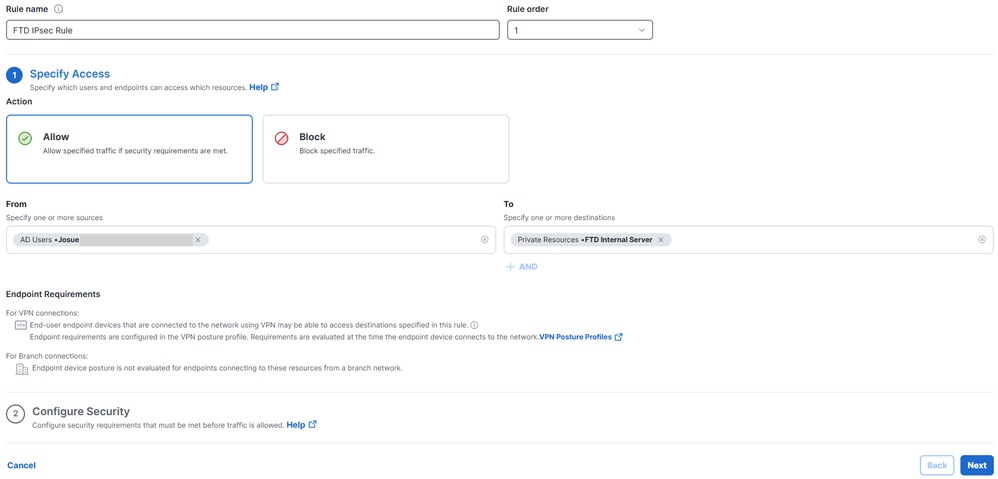

ACP configSecure Firewall Threat Defense (FTD) Configuration

Virtual Tunnel Interfaces Configuration

A Virtual Tunnel Interface (VTI) on FTD is a logical Layer 3 interface used to configure route-based IPsec VPN tunnels.

1. Navigate to Devices> Device Management.

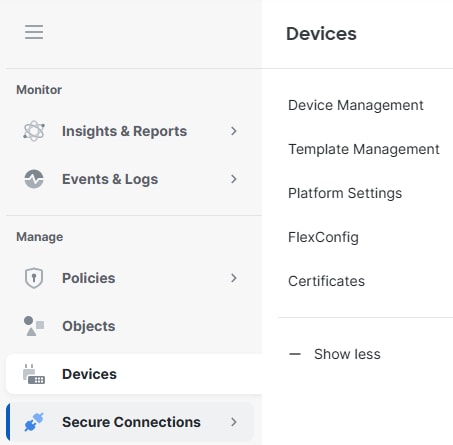

FTD Devices

• Click on the FTD Device, Interfaces
  • Click on Add Interfaces
  • Click on Virtual Tunnel Interface
  • Create two Virtual Tunnel Interfaces, one for the Primary Secure Access Hub and another one for the Secondary Secure Access Hub

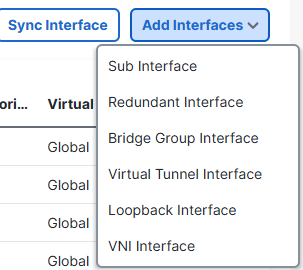

    Add VTIs


Virtual Tunnel Interface 1:

• Give it a name, click on Enable
• Select or create a Security Zone
• Click on Tunnel ID and give it a value.
• Click on Tunnel Source and specify the WAN Interface the tunnel is going to be establish from
• Click on IPsec Tunnel Mode, selectIPv4
• Click on IP Address and configure the IP address for the VTI
• Click onOK

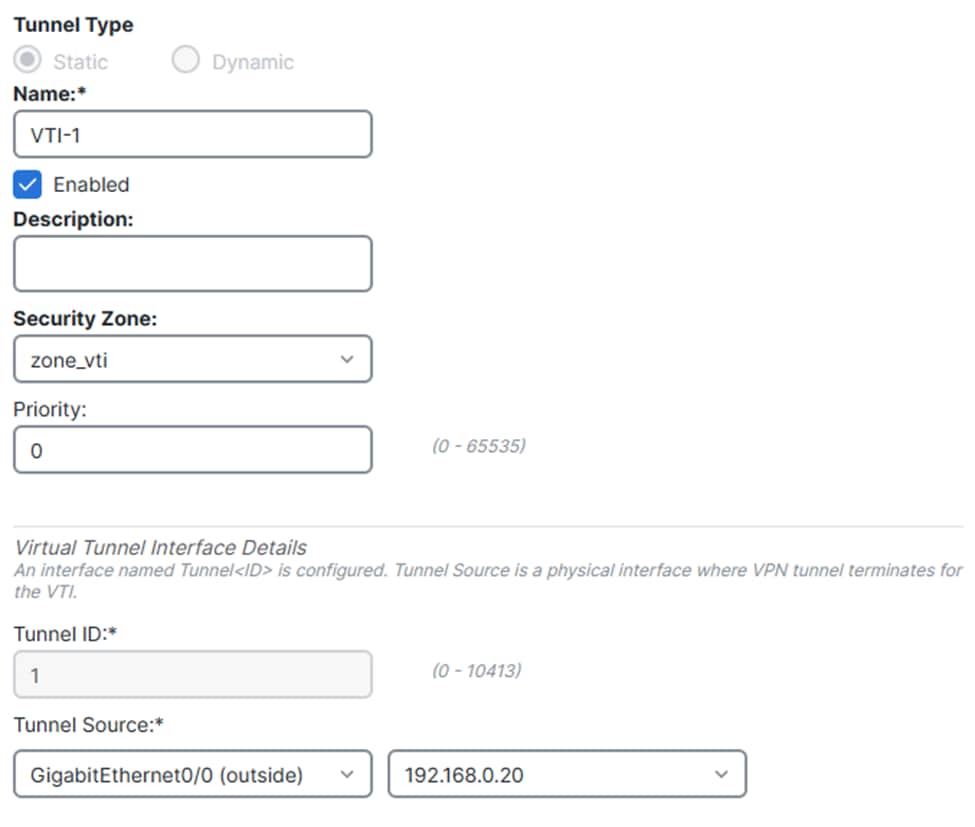

  VTI1.1

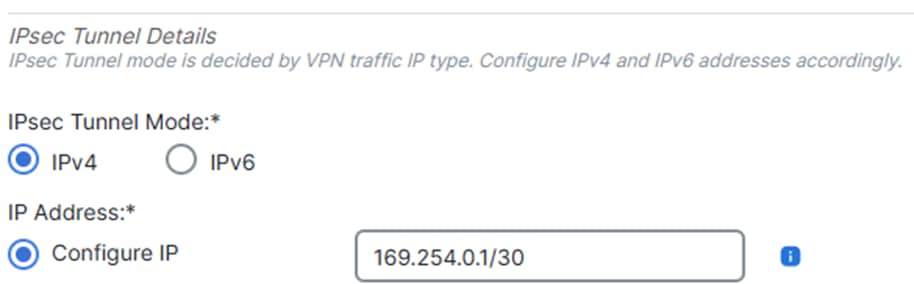

  VTI1.2



Virtual Tunnel Interface 2:

• Give it a name, click on Enable
• Select or create a Security Zone
• Click on Tunnel ID and give it a value
• Click on Tunnel Source and specify the WAN Interface the tunnel is going to be establish from
• Click on IPsec Tunnel Mode, selectIPv4
• Click on IP Address and configure the IP address for the VTI
• Click onOK

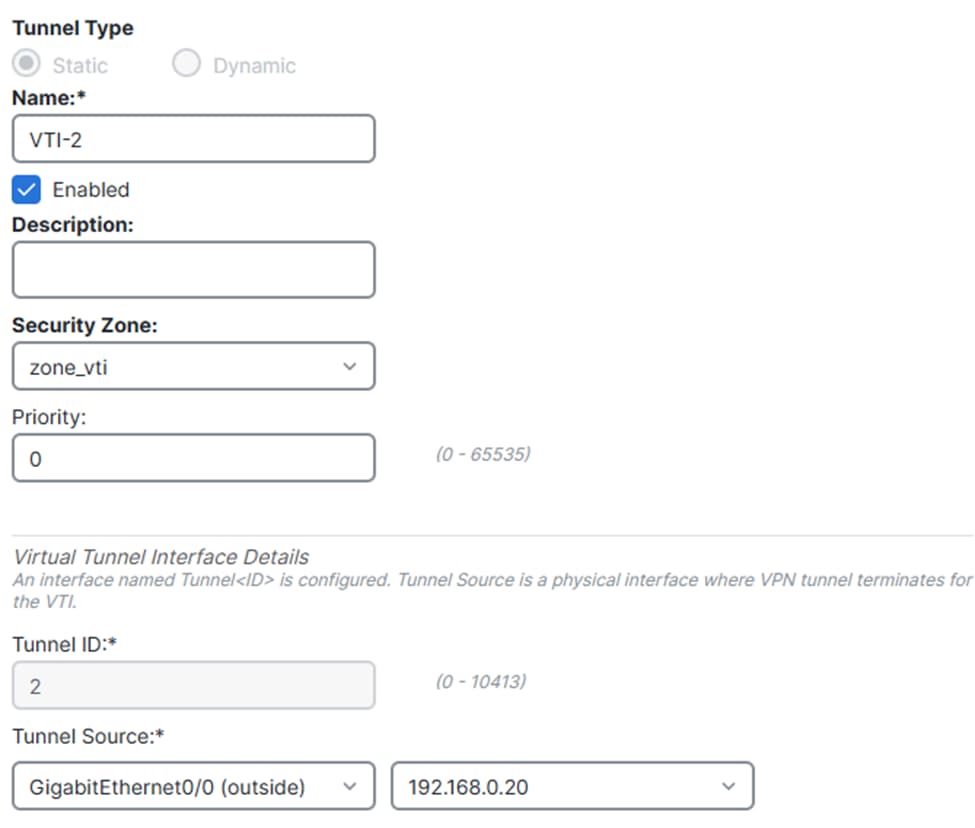

  VTI2.1

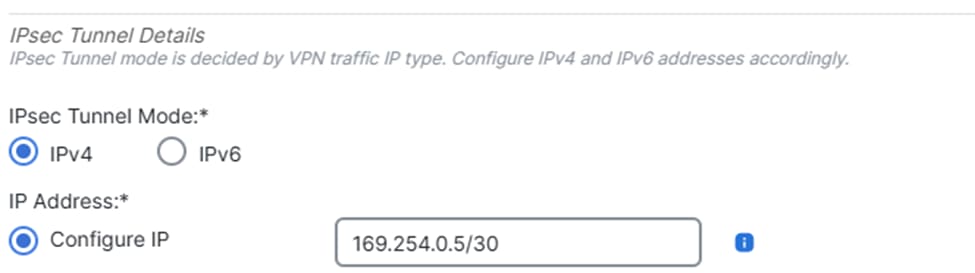

  VTI2.2


• Click on Save.

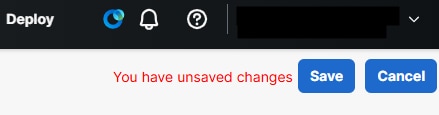

Save VTI Changes

IPsec Tunnel Configuration

Navigate to your cdFMC dashboard.

• Click on Secure Connection> Site-to-Site VPN & SD-WAN




S2S

• Click onAdd
  • Click on Route-Based VPN
  • Click on Peer to Peer

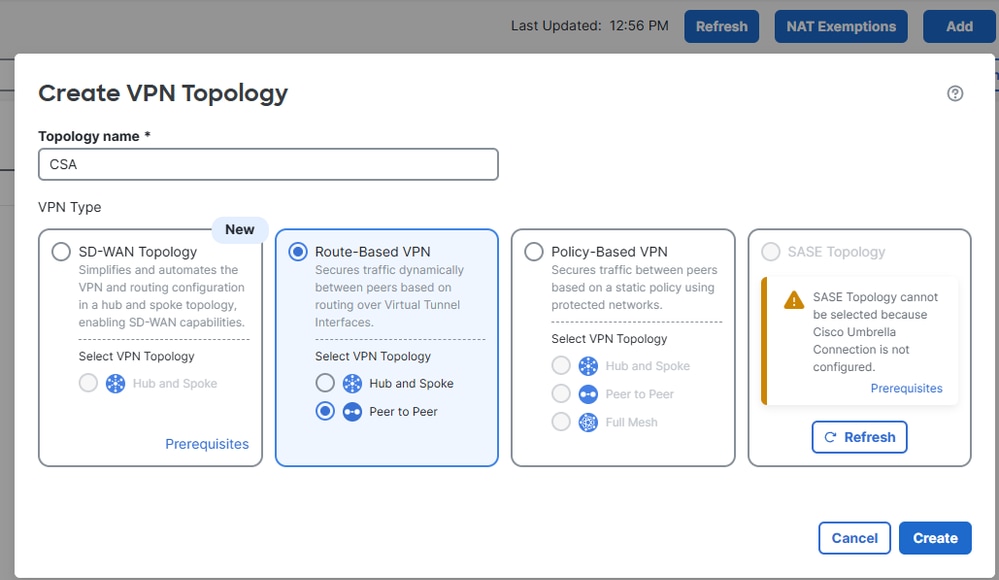

    Add VPN
• From step 5 of the Secure Access configuration, obtain the tunnel IDs and IP addresses for the primary and secondary data centers
• Click onEndpoints
  • Under Node A, click onDeviceand select Extranet
  • Click on Device Nameand give it a name
  • Click on Enpoint IP Addresses and enter the Secure Access Primary and Secondary IP Addresses separated by a comma (from "Save Network Tunnel Group Configuration" under the Secure Access
    Configuration)

  • Under Node B, click on Device and select your FTD device
  • Click on Virtual Tunnel Interface and select the first VTI interface created in the previous step
  • Click on Send Local Identity to Peers option and select Email ID, enter the primary tunnel ID (from "Save Network Tunnel Group Configuration" under the Secure Access Configuration)
  • Click on Add Backup VTI
  • Click on Virtual Tunnel Interface and select the second VTI interface created in the previous step
  • Click onSend Local Identity to Peersoption and select Email ID, enter the secondary tunnel ID (from "Save Network Tunnel Group Configuration" under the Secure Access Configuration)
  • Click on Save

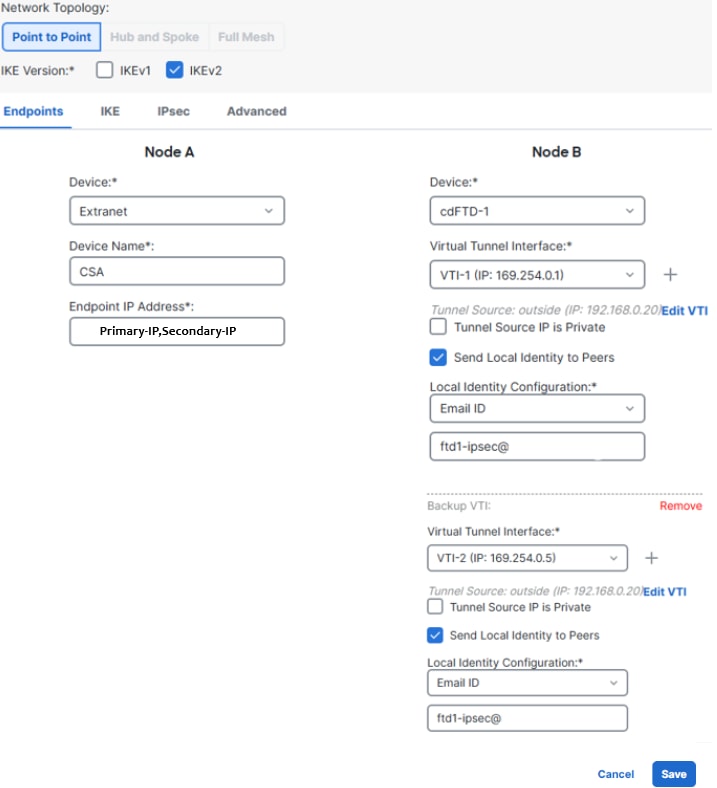

    FTD VTI configuration


• Click onIKE
  • Click on IKEv2 Settings > Policies
  • Select the Umbrella-AES-GCM-256 option
  • Click on OK

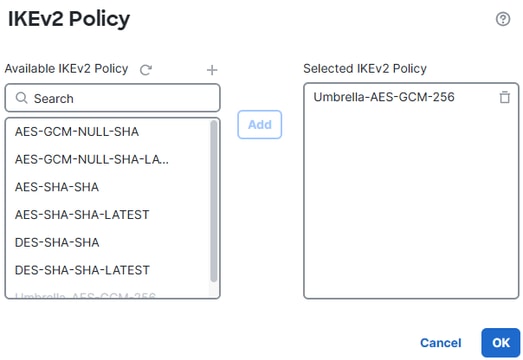

    IKEv2 Policy

• Click on Authentication Type and selectPre Shared Manual Key, enter the PSK configured in Secure Access (passphrase)
  IKE
• Click on IPSEC
  • Click on IKEv2 Proposals
  • Select Umbrella-AES-GCM-256
  • Click on OK
    IPsec

    Save IKEv2 Proposals




FTD Routing Configuration

Policy-Based Routing (PBR) allows you to control traffic forwarding based on criteria beyond just the destination IP address. Instead of relying solely on the routing table, PBR can route traffic based on source, application, protocol, ports, or other defined policies.

This enables organizations to steer specific or high-priority traffic over preferred links (such as a high-bandwidth or direct internet link), optimize performance, and securely break out selected applications without sending all traffic through a VPN tunnel.

Policy-Based Routing

• Navigate toObjects
  • Click on Access List
  • Click on Extended
  • Click onAdd Extended Access List

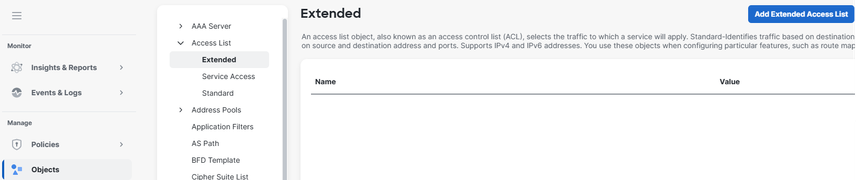

    Add ACL

    Create an extended access control list (ACL) that matches your source network protected by the FTD (for example, 172.16.15.0/24) to be sent through the tunnel. For the destination, add the networks used by ZTA (CGNAT range) and the network used by your VPNaaS ( check Virtual Private Network IP Pool).

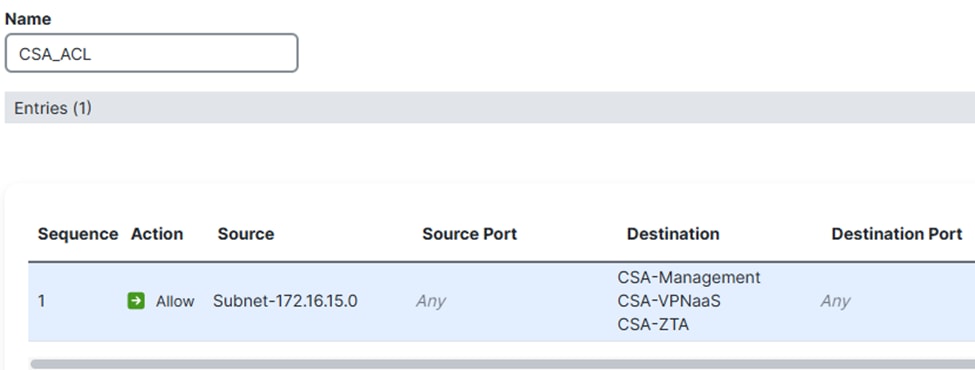

    ACL

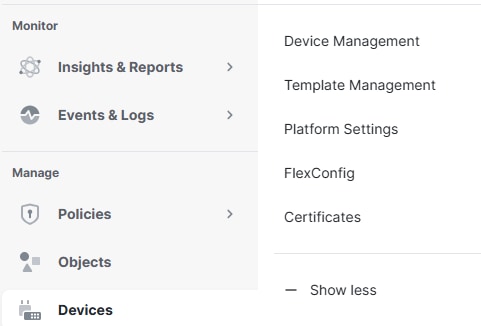

  • Click on Devices> Device Management
    Device

• Click on the FTD
  • Click onRouting
  • Click on Policy Based Routing
  • Click on Add

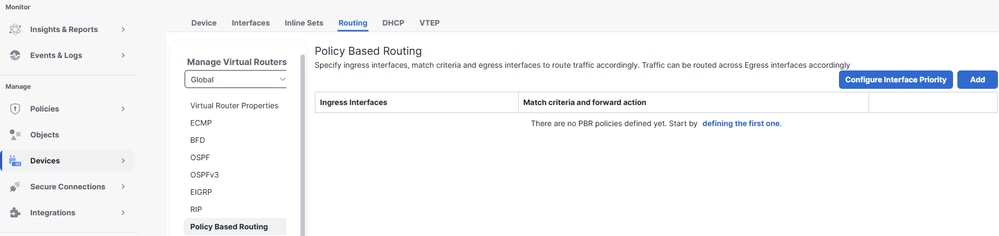

    Add PBR

• Click on Ingress Interface and select the ingress interface where traffic from internal networks enters
• Under Match Criteria and Egress Interface click on Add

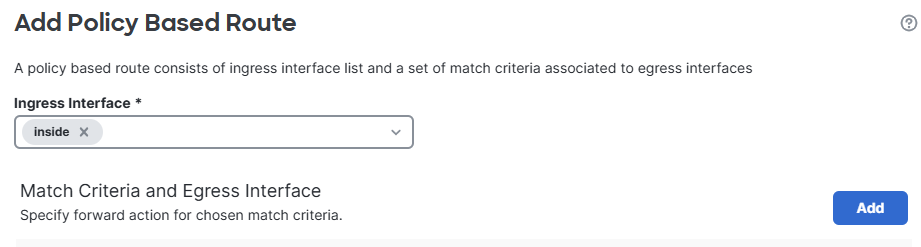

  Ingress Interface

• Click on Match ACL and select the the extended ACL created earlier
• Click on Send To and select IP Address
• Click on IPv4 Addresses and set as next hops the IP addresses within the VTI interface subnets configured earlier in the FTD (169.254.0.2 and 169.254.0.6)
• Click on Save

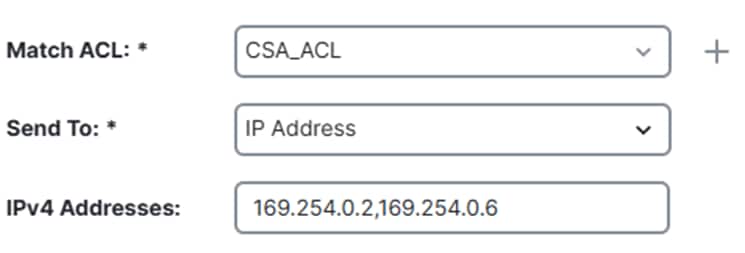

Policy Based Config

Save PBR

Make sure you select the Send To > IP Address option, and not the Egress Interface option.

Access Policy Configuration

To allow traffic on an Cisco Firepower Threat Defense (FTD) and enable access to private resources, traffic must first pass through the initial stage of access control known as Prefiltering.

Prefiltering is processed before deeper inspection occurs and is designed to be simple and fast. It evaluates traffic using basic outer-header criteria (such as source and destination IP addresses and ports) to quickly allow, block, or bypass traffic. When traffic is allowed at this stage, it can skip more resource-intensive inspections like deep packet inspection or intrusion policies, improving performance while still maintaining security control.

• Navigate to Policies> Prefilter

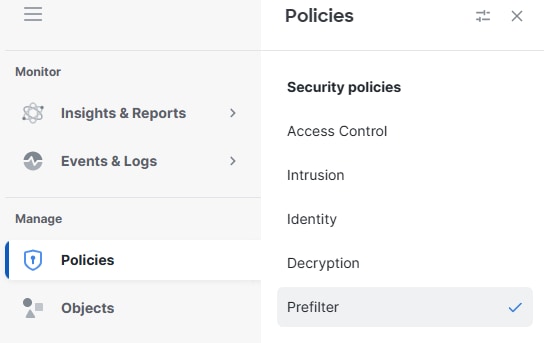

  Prefilter



• Click on edit the Prefilter poilcy being used by your Access Policy

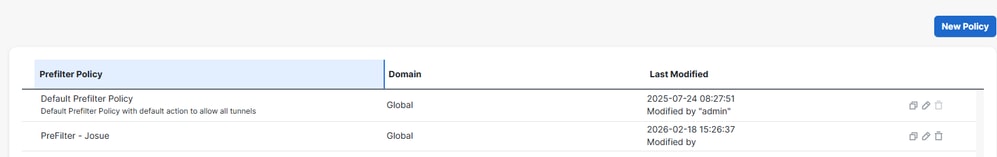

  click on prefilter




• Click on Add Tunnel Rule

  • Add and permit the traffic from the VPNaaS network and/or the ZTA Subnet to your Private Resources
  • Click onSave

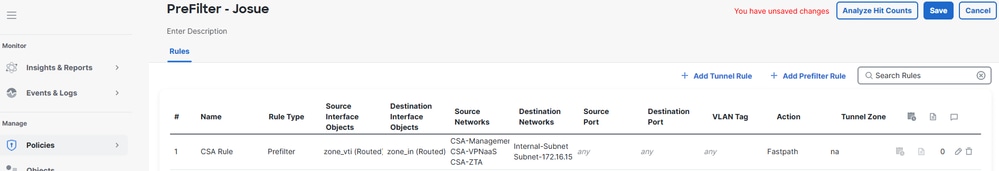

    Save Rule





At this point, once the configuration on the FTD has been completed and verified, you can proceed with the deployment. After deployment, the IPsec tunnels come up successfully, confirming that secure connectivity to the private resources is established.

Verify

Verify in FTD

Tunnel Status in FTD

You can view the tunnel’s current status, including whether it is up or down. This helps verify that the IPsec tunnel is properly established.

• Click on Secure Connections.
• Click on Site-to-Site VPN & SD-WAN.
• Click on the Topology Name.

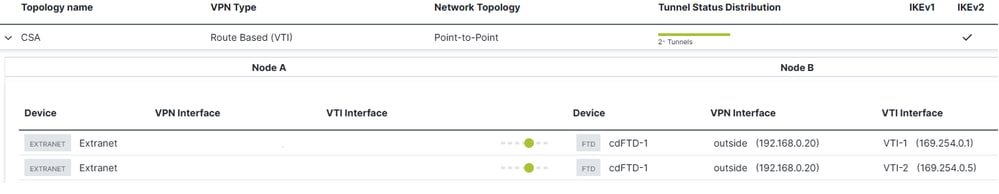

FTD Tunnel Status

Verify in Secure Access

Tunnel Status in Secure Access

You can view the tunnel’s current status, including whether it is Disconnected, Warnning or Connected. This helps verify that the IPsec tunnel is properly established.

• Click on Connect > Network Connections
• Click on Network Tunnel Groups

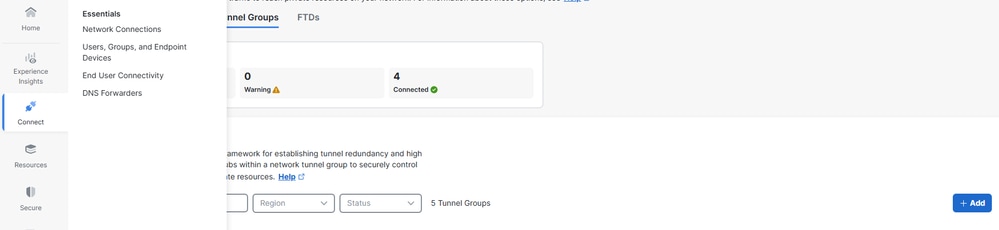

Check NTG

• Click on the Network Tunnel Group

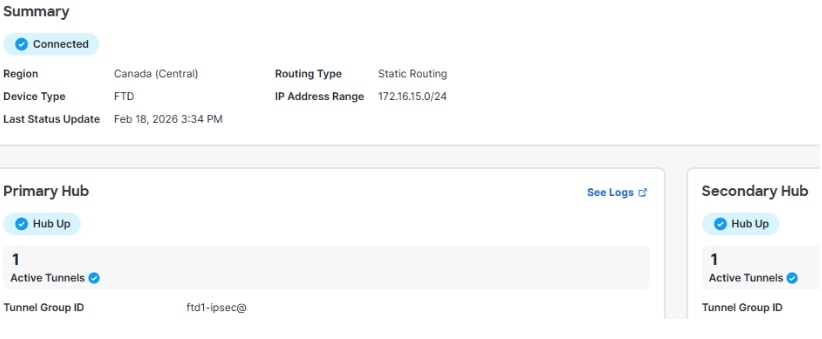

CSA Tunnel Status

Events in Secure Access

You can view Tunnel events and confirm if the status of the IPsec tunnels is up and stable.

Click on Monitor > Network Connectivity.

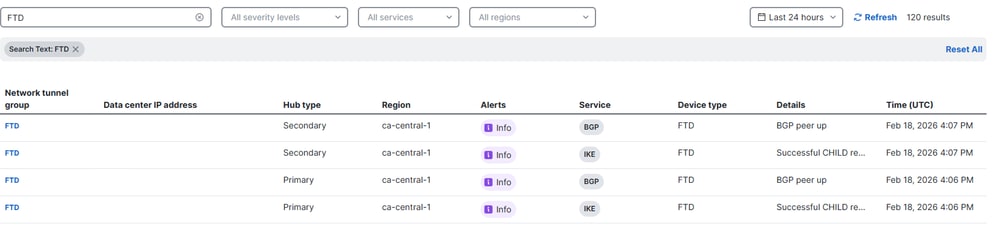

Monitor Conn LogsConn Logs
Navigate to on Monitor > Activity Search.

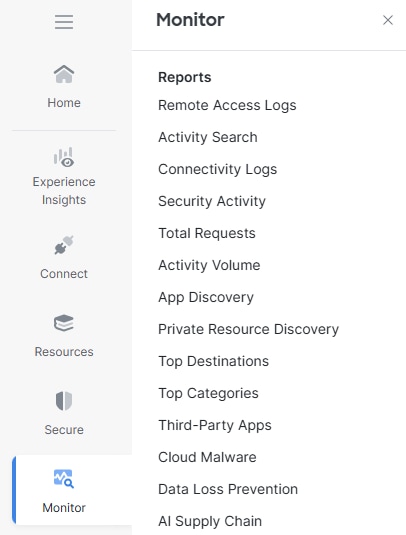

Monitor Conn Logs
On any of the related events, click on View Full Details.

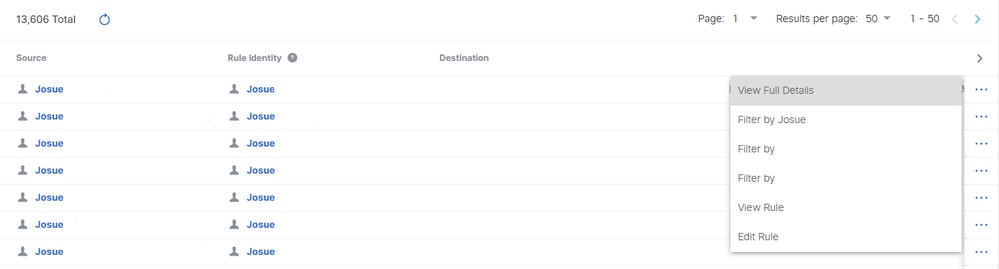

Full Details

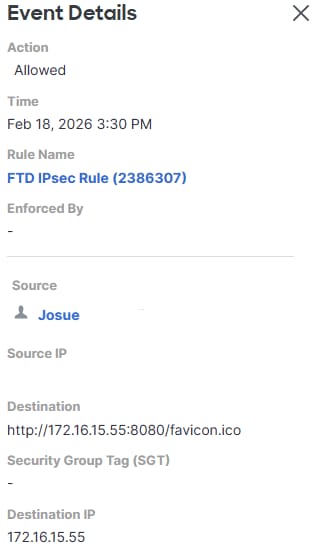

Activity Search
