Embedded Maps Reports not showing up in the dashboard

Available Languages

Updated:September 29, 2026

Document ID:SPLK048062

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Applicability

Splunk Enterprise

Description

When adding embedded map reports to a dashboard, the page loads the base map with the embed code, but none of the data/overlays appear. It returns a 401 unauthorized error.
It works with authenticated users but it defeats the purpose of having the embedded reports on an external page.

Investigation

Map visualizations use postprocess searches to filter results based on the displayed map bounds. However, after transitioning down to Search V2 APIs in newer versions of Splunk for security reasons, postprocess searches are blocked if run in an embedded context. This is causing those 401 errors.

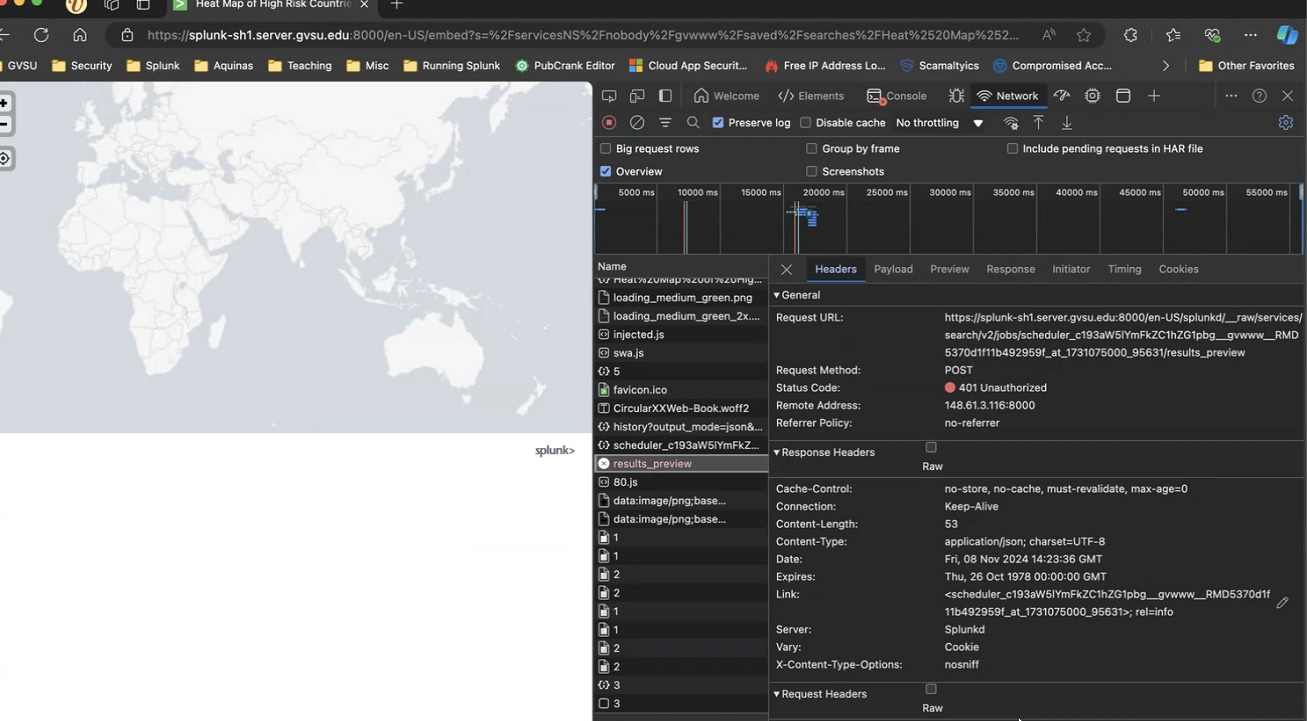

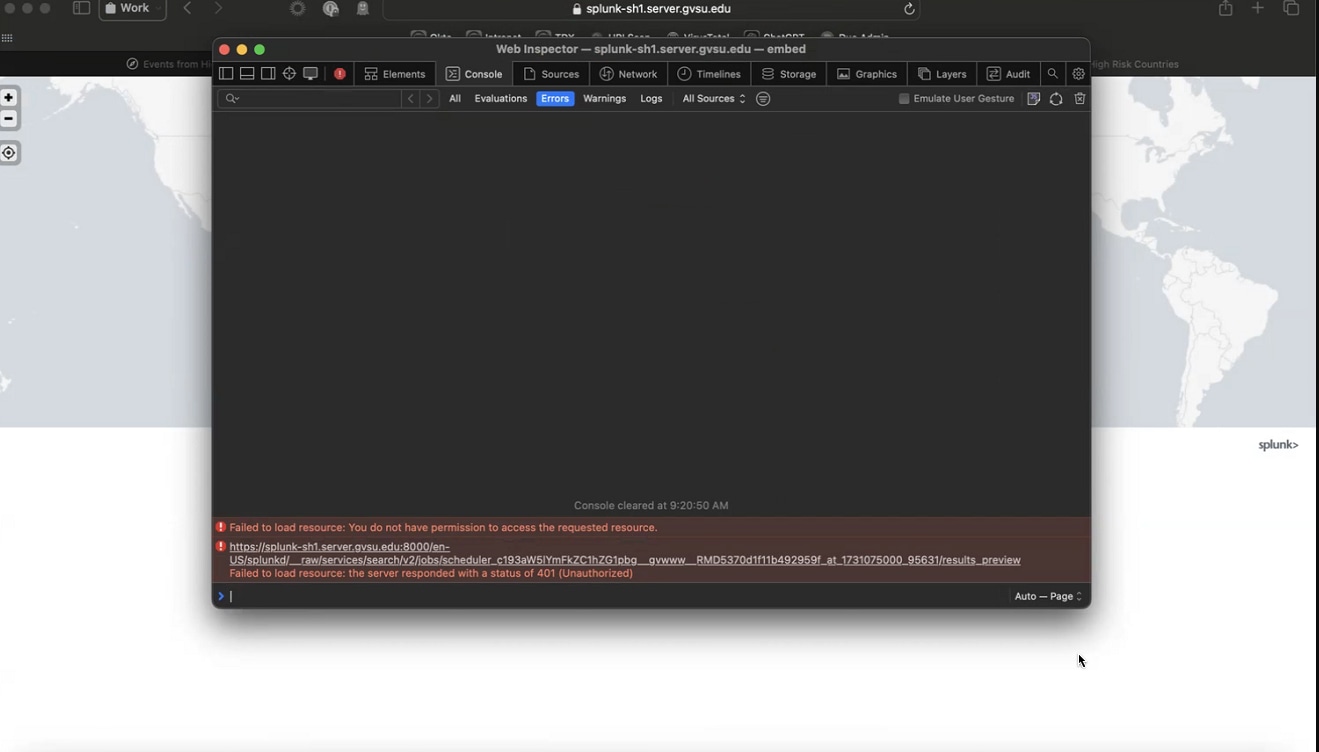

The following map view shows no data, notice the errors from the dev tools from the browser:

Network tab:
