Field Notice: FN74305 - Cisco Network Convergence Systems 2000 Series Multirate Muxponder Line Cards May Report Non-Impacting EQPT-DEGRADE Alarm - Software Upgrade Recommended

Available Languages

Updated:June 10, 2026
Document ID:FN74305

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Low
Impact Rating:
Low
First Published:
2026-Jun-10
Last Published:
2026-Jun-10
Revision:
1.0
Cisco Bug IDs:

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Products Affected


Affected Product Name Description Comments
NCS2K-MR-MXP-K9= 10/40/100G MR Muxponder - Encryption enabled Affected Part Num - 800-40707-04-A0 Affected HW Revision - Rev.K0
NCS2K-MR-MXP-LIC 10/40/100G MR Muxponder - Licensable for Encryption Affected Part Num - 800-40707-05-A0 Affected HW Revision - Rev.J0
NCS2K-MR-MXP-LIC= 10/40/100G MR Muxponder - Licensable for Encryption Affected Part Num - 800-40707-05-A0 Affected HW Revision - Rev.J0




Defect Information


Defect IDHeadline
CSCwq38713MR-MXP with Equipment Degrade EQPT-DEGRADE alarm

Problem Description


Cisco Network Convergence System (NCS) 2000 Series Multirate Muxponder line cards may report an EQPT-DEGRADE (equipment degrade) alarm when running Cisco NCS 2000 Series Software releases earlier than Release 11.1.4 or 25.1.1. This alarm may occur without any underlying hardware issues. It does not impact the functionality of the line card or of the Cisco NCS 2000 Series system.


Background


The EQPT-DEGRADE alarm is triggered because Cisco NCS 2000 Series Software releases older than Release 11.1.4 or 25.1.1 in their respective trains do not recognize a new component on line cards that were manufactured with hardware revisions CLI showing K0 & J0, although that component has been qualified and approved by Cisco Engineering.

The following Multirate Muxponder line cards and hardware revisions are affected by this issue:

  • NCS2K-MR-MXP-K9= line cards with hardware revision K0 (HW Part# is 800-40707-05 and the Version ID (05)
  • NCS2K-MR-MXP-LIC line cards with hardware revision J0 (HW Part# is 800-40707-05 and the Version ID (05)

Problem Symptom

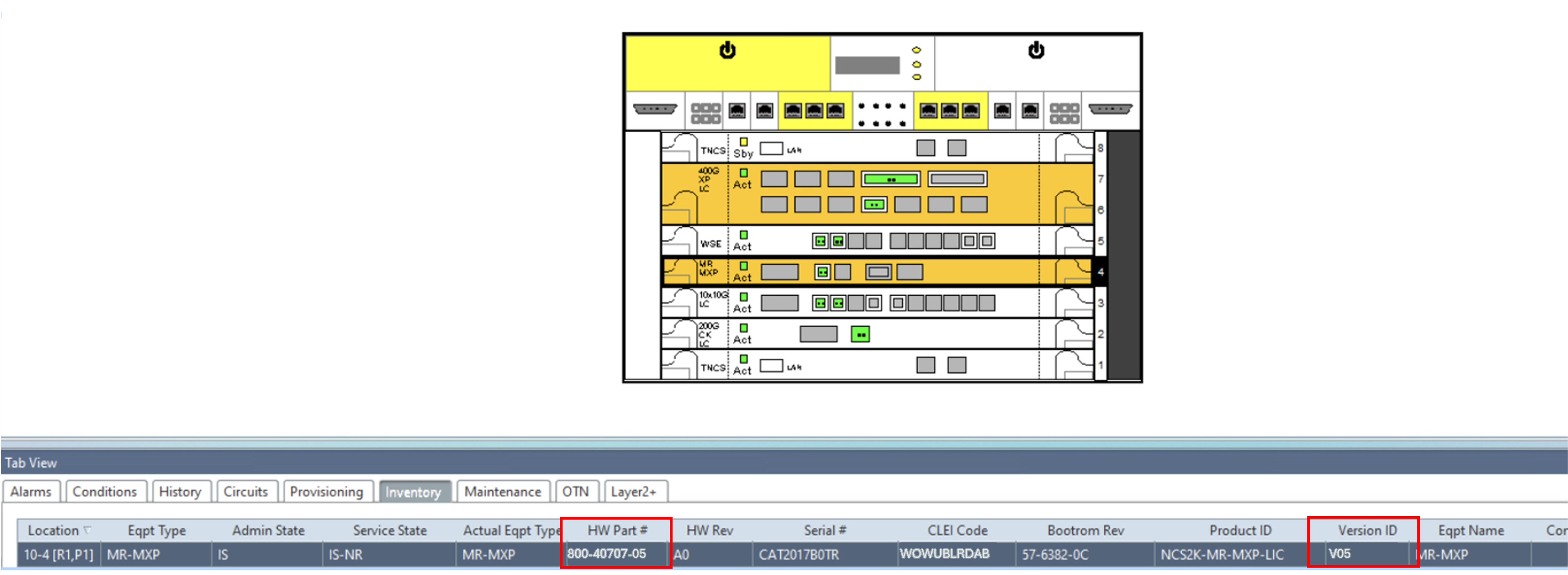

To verify the hardware revision, use the Inventory tab in Shelf View using the Cisco Transport Controller (CTC) application, or use TL1 commands directly on the device, as shown in the following image:

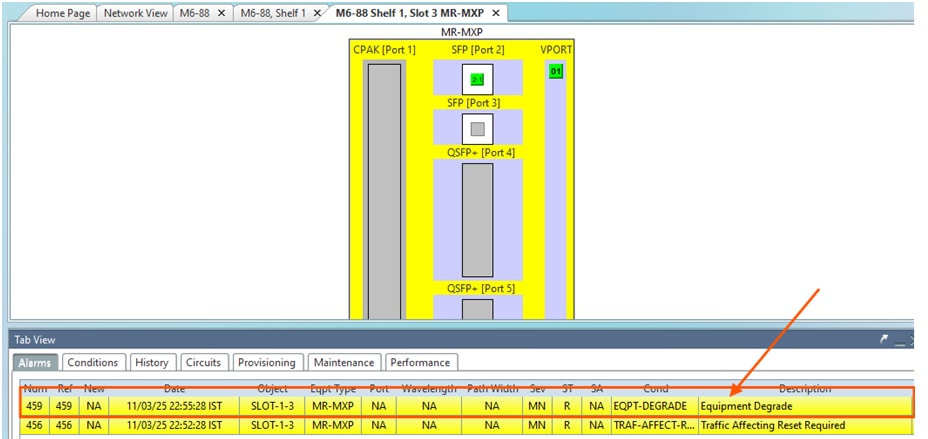

The following images from CTC Application show a sample EQPT-DEGRADE alarm from an affected Multirate Muxponder line card:

Refer to the HW Part # and Version ID columns in the following screenshot. In software releases older than Cisco NCS 2000 Series Software Release 11.1.4 or 25.1.1, an EQPT DEGRADE alarm is observed if the Multirate Muxponder line card hardware part is 800-40707-05 and the Version ID is (05).

A sample TL1 commands output collected from the device is shown below:

<<<<<< HWREV will be shown as K0 or J0

No service impact or degradation is associated with this alarm under the conditions described.


Workaround/Solution


If the affected Multirate Muxponder line cards are running Cisco NCS 2000 Series Software releases older than Release 11.1.4 or 25.1.1, the EQPT-DEGRADE alarm can be safely ignored. No functional impact is observed.

This issue is resolved in Cisco NCS 2000 Series Software releases 11.1.4, 25.1.1, and later. Upgrading to one of these releases will prevent the alarm from being raised.


How to Identify Affected Products


For a product to be affected by this issue, both of the following conditions must be true:

Condition 1: Cisco NCS 2000 Series Multirate Muxponder line cards that are manufactured after August 2025 have a hardware part (HW Part#) of 800-40707-05 and the Version ID (05).

Condition 2: EQPT-DEGRADE (Equipment Degrade) alarm is seen when running Cisco NCS 2000 Series Software releases older than Release 11.1.4 or 25.1.1.


Revision History


VersionDescriptionSectionDate
1.0Initial Release—2026-JUN-10
