Field Notice: FN74290 - A Few Cisco Network Convergence System 2000 Series Shelf Virtualization Orchestrator Line Cards Might Experience Unpredictable Results, Become Unreachable, or Both When Upgraded to Software Release 25.1.1 - Hardware Upgrade Available

Available Languages

Updated:March 4, 2026
Document ID:FN74290

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Medium
Impact Rating:
Medium
First Published:
2026-Mar-04
Last Published:
2026-Mar-04
Revision:
1.0
Cisco Bug IDs:

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Products Affected


Affected Product Name Description Comments
NCS2K-SVO-K9= Shelf Virtualization Orchestrator - LC, Full




Defect Information


Defect IDHeadline
CSCwo26580Change the Product keys from XR to SVO-LC specific product

Problem Description


A few Cisco Network Convergence System (NCS) 2000 Series Shelf Virtualization Orchestrator (SVO) Line Cards might experience unpredictable results, become unreachable, or both when upgraded to software Release 25.1.1. Before upgrading to Release 25.1.1 or later, customers are required to replace Cisco NCS 2000 Series SVO Line Cards with the new hardware version.

Cisco NCS 2000 Series SVO Line Cards that are running on Release 12.3.1 can continue to operate until the customer decides to upgrade to a new release.


Background


To enhance security and product segmentation, a new set of specific Cisco NCS 2000 Series SVO Line Card keys has been created, and as a result, a new hardware version of the line card has also been created. The product keys are used to validate software integrity and establish a secure trust root chain. Therefore, the upgrade cannot happen in the field but requires a full card replacement.


Problem Symptom


Cisco NCS 2000 Series SVO Line Cards that are running on releases earlier than 25.1.1 will continue to operate.

Before upgrading to software Release 25.1.1 or later, it is mandatory to replace the Cisco NCS 2000 SVO Line Cards with the new hardware version.

In-field software upgrades will not be directly supported, but a specific procedure for the line cards will be provided. Running software Release 25.1.1 or later from the SVO web UI 12.3.1 may lead to unpredictable results, such as losing the node management or physically removing the card from the chassis.




Workaround/Solution


Cisco recommends replacing Cisco NCS 2000 Series SVO Line Cards with a hardware version lower than 06 before upgrading to software Release 25.1.1 or later. To determine if a serial number is affected, see the Serial Number Validation section of this field notice.


How to Identify Affected Products


Cisco NCS 2000 Series devices that are running Release 12.3.1 have an SVO line card installed. The use of an SVO line card was mandatory with Release 12.3.1.

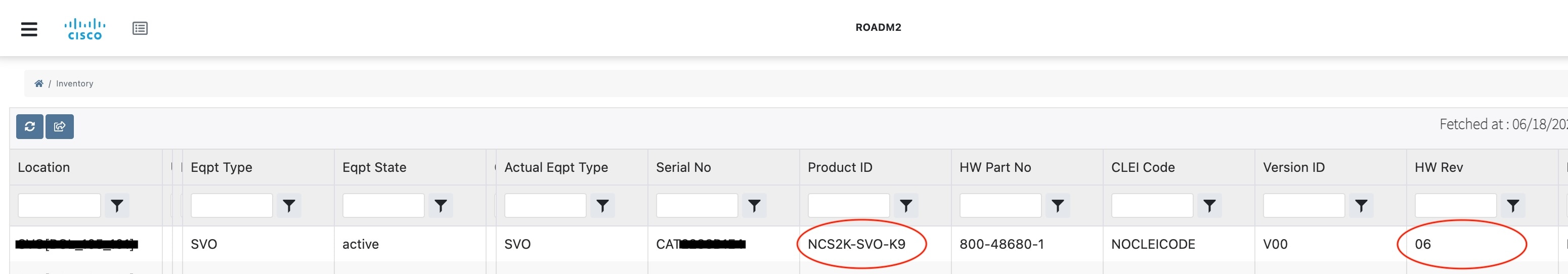

The graphical user interface is provided through the SVO web UI. To view line card's hardware version details, click Inventory in the top right of the page. Line cards with a hardware version lower than 06 are affected and must be replaced before upgrading to software Release 25.1.1.




Additional Information


Starting with Release 25.1.1, the application that is running on top of the SVO line card will be renamed Cisco Optical Site Manager. When the card replacement and software upgrade are complete, the graphical user interface will show the new name.


Serial Number Validation


The Cisco Support Assistant (CSA) can help verify whether a device is impacted by the issue that is described in this Field Notice. To check the device, either enter the serial number in the CSA on the right side of this page or click the following URL: Cisco Support Assistant

Upgrade Program Information


Support Case Manager (SCM) must be used for ordering replacement parts for this Field Notice. To open SCM in a new tab, click the following link:
https://mycase.cloudapps.cisco.com/fieldnotice?fn=FN74290

SCM will validate eligibility and ensure that a request for a particular serial number has not already been submitted. If there is already a request, SCM will indicate that an RMA has already been submitted and NOT eligible for replacement.

Provide the following information:

  1. Affected serial numbers. Note that a serial number entitlement check may be performed.
  2. One ship-to address per request.
  3. Service Request number (SR#). This is not required, but if one exists, enter it for better tracking purposes.

Order entry supports up to 50 serial numbers per request. For more than 50, submit additional requests.

For questions about order status, see the Field Notice Affected Hardware Replacement FAQ.

Revision History


VersionDescriptionSectionDate
1.0Initial Release—2026-MAR-04

For More Information

For further assistance or for more information about this field notice, contact the Cisco Technical Assistance Center (TAC) using one of the following methods:

Receive Email Notification About New Field Notices

To receive email updates about Field Notices (reliability and safety issues), Security Advisories (network security issues), and end-of-life announcements for specific Cisco products, set up a profile in My Notifications.
