How ACI Faults Are Generated and How to Selectively Prevent Faults from Being Generated
Available Languages
Contents
Introduction
This document explains the high level process of Application Centric Infrastructure (ACI) fault generation and how to prevent a specific fault from being generated. The document demonstrates this with two examples.
How a Fault Gets Generated and How to Selectively Prevent Faults from Being Generated
High Level Mechanism
- Each fault is a Managed Object (MO) of class faultInst (or faultDelegate). This fault MO is generated by another MO, usually its parent, because some rules are violated.
- Each MO in the tree that can generate faults has an attribute monPolDn which points to another MO which is a monitoring policy object. This object allows the property to be modified and the trigger to generate faults. There are multiple classes of the monitoring policy object, such as:
- monInfraPol - deals with infra policy (VMM manager, access port policy, physical ports, and so on) - Located in Fabric > Access Policies > Monitoring policies
- monFabricPol - deals with fabric monitoring - located in Fabric > Fabric Policies > Monitoring policies
- monEPGPol - deals with tenants monitoring > located in Tenant > Monitoring Policy menu
- Usually it will be the default monitoring object. However, by going to the specific area of the object model you can create a specific user defined monitoring policy for any of those monitoring policy classes.
- You can modify many properties of those monitoring policies. The example will show how you can prevent a given fault from being generated for all objects for which the monitoring policy is applied to. However, you can also modify the fault lifecycle timers (retention time, soaking time, and so on).
- In order to modify fault severity or prevent a fault from being generated, you need to select the monitoring object that corresponds to the class of the MO that generated this object (for example, parent of the fault).
- Then under this class, choose the fault code that you want to modify and choose an initial severity of value “squelched”.
This prevents any fault with that code from being generated by the MO that is assigned to this specific monitoring policy.
Example 1 - Fault in a Tenant
Each fault is associated with an object.
admin@apic:~> moquery -d "uni/tn-RD/ipToEpg-Ext_10.200.1.101/rstoEpg-[uni/tn-RD/ap-App_RD1/epg-EPG_RD11]/fault-F0879" Total Objects shown: 1
# fault.Inst code : F0879 ack : no cause : resolution-failed changeSet : childAction : created : 2015-01-22T00:05:00.286+01:00 descr : Failed to form relation to MO uni/tn-RD/ap-App_RD1/epg-EPG_RD11 of class fvAEPg dn : uni/tn-RD/ipToEpg-Ext_10.200.1.101/rstoEpg-[uni/tn-RD/ap-App_RD1/epg-EPG_RD11]/fault-F0879 domain : infra highestSeverity : warning lastTransition : 2015-01-22T00:05:00.286+01:00 lc : raised modTs : never occur : 1 origSeverity : warning prevSeverity : warning rn : fault-F0879 rule : dbgac-rs-to-epg-resolve-fail
The previous fault is an MO of class fault.Inst and with code F0879.
The fault is associated with an Endpoint Group (EPG) object as shown next.
This object is the distinguished name (DN) of the parent of the fault. This parent object is of class dbg.RsToEpg.
admin@apic:~> moquery -d uni/tn-RD/ipToEpg-Ext_10.200.1.101/rstoEpg-[uni/tn-RD/ap-App_RD1/epg-EPG_RD11] Total Objects shown: 1
# dbgac.RsToEpg tDn : uni/tn-RD/ap-App_RD1/epg-EPG_RD11 childAction : dn : uni/tn-RD/ipToEpg-Ext_10.200.1.101/rstoEpg-[uni/tn-RD/ap-App_RD1/epg-EPG_RD11] forceResolve : no lcOwn : local modTs : 2014-12-05T12:56:29.340+01:00 monPolDn : uni/tn-RD/monepg-RD_Monitoring rType : mo rn : rstoEpg-[uni/tn-RD/ap-App_RD1/epg-EPG_RD11] state : missing-target stateQual : none status : tCl : fvAEPg tType : mo uid : 15374
You can see that this EPG object is associated with a monPolDn object. Most objects in the tree are monitored by a monitoring object.
Here is a user defined monitoring object of class monEPGPol with dn.
uni/tn-RD/monepg-RD_Monitoring
Here is the complete object used for monitoring.
admin@apic:~> moquery -d uni/tn-RD/monepg-RD_Monitoring Total Objects shown: 1
# mon.EPGPol name : RD_Monitoring childAction : descr : dn : uni/tn-RD/monepg-RD_Monitoring lcOwn : local modTs : 2014-11-13T15:41:45.326+01:00 monPolDn : uni/tn-RD/monepg-RD_Monitoring ownerKey : ownerTag : rn : monepg-RD_Monitoring status : uid : 10673

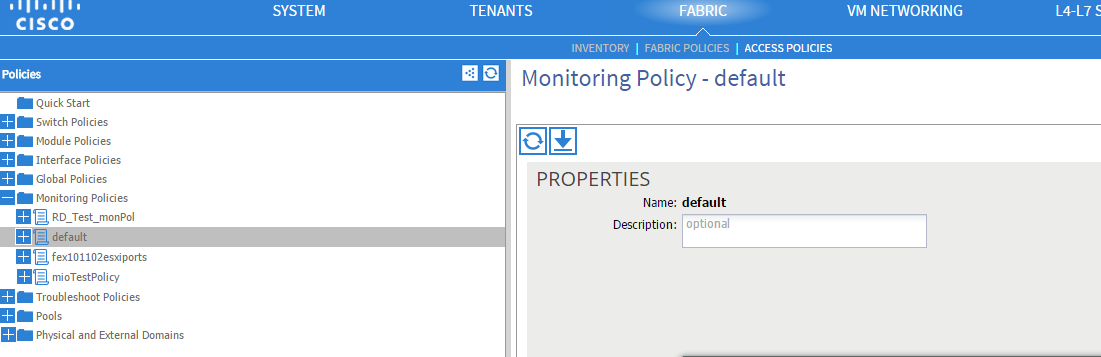

The monEPGPol object is configured under the tenant Monitoring Policy, where you can either create a new policy or modify the default one. Here is an example of the monEPGPol name RD_Monitoring.
You can choose the Fault Severity assignment policies and click the pencil (next to the Monitoring object).

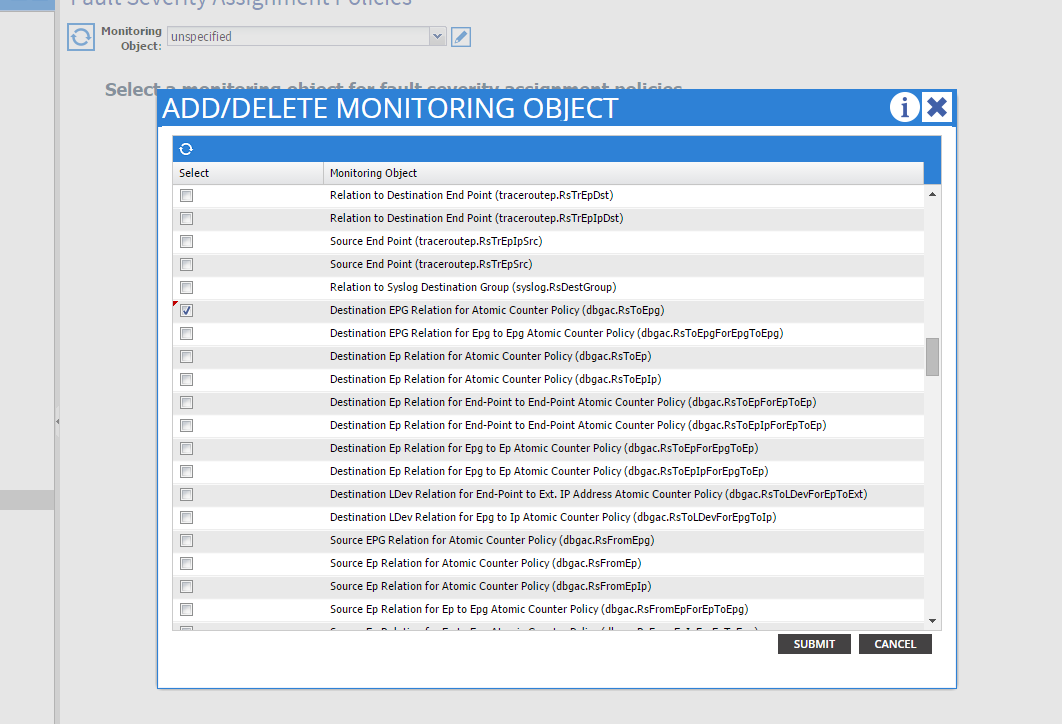

Then, if you choose in the monitoring object list of that monitoring policy, the class for which the fault was created (here dbgac.RsToEpg).

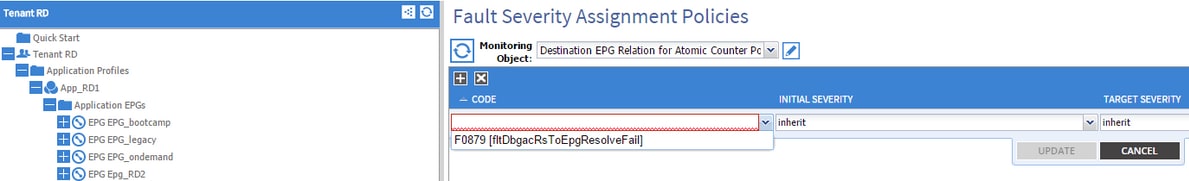

You can see all faults associated to that specific class (the only one shown here is F0789).
The fault F0789 is the code of the fault show at the beginning of the example.
You can choose this fault and if you set an initial Severity to squelched (you can leave Target Severity to inherit), it prevents such fault from being generated in the future with the presumption that they are generated by an object that has a link to the monitoring policy you just modified.
However it will not clear existing faults, but only new faults.
Example 2 - Physical Fault
In this example, the fault is generated because port 1/25 on leaf is admin up but with no SFP in it.
admin@apic:~> moquery -c faultInst -f 'fault.Inst.code == "F1678"' Total Objects shown: 2
# fault.Inst code : F1678 ack : no cause : port-failure changeSet : usage (New: epg) childAction : created : 2015-01-19T14:26:13.862+01:00 descr : TEST FAULT -- Port is down, reason:sfpAbsent(connected), used by:EPG,
lastLinkStChg:1970-01-01T01:00:00.000+01:00, operSt:down dn : topology/pod-1/node-101/sys/phys-[eth1/25]/phys/fault-F1678 domain : access highestSeverity : critical lastTransition : 2015-01-19T14:28:41.668+01:00 lc : raised modTs : never occur : 1 origSeverity : critical prevSeverity : critical rn : fault-F1678 rule : ethpm-if-port-down-infra-epg-test severity : critical status : subject : port-down type : communications uid :
This is associated with a physical port. Here is the parent MO that generated that fault.
admin@apic:~> moquery -d topology/pod-1/node-101/sys/phys-[eth1/25]/phys Total Objects shown: 1
# ethpm.PhysIf accessVlan : vlan-1 allowedVlans : backplaneMac : 50:87:89:A2:2A:C1 bundleBupId : 1 bundleIndex : unspecified cfgAccessVlan : vlan-1 cfgNativeVlan : vlan-1 childAction : currErrIndex : 4294967295 diags : none dn : topology/pod-1/node-101/sys/phys-[eth1/25]/phys encap : 3 errDisTimerRunning : no errVlanStatusHt : 0 errVlans : hwBdId : 0 intfT : phy iod : 29 lastErrors : 0 lastLinkStChg : 1970-01-01T01:00:00.000+01:00 media : 2 modTs : never monPolDn : uni/infra/moninfra-default nativeVlan : vlan-1
This is associated with the monInfraPol object configured as shown here.
admin@apic:~> moquery -c monInfraPol Total Objects shown: 4
# mon.InfraPol name : default childAction : descr : dn : uni/infra/moninfra-default lcOwn : local modTs : 2014-08-06T07:58:19.494+01:00 monPolDn : uni/infra/moninfra-default ownerKey : ownerTag : rn : moninfra-default status : uid : 0

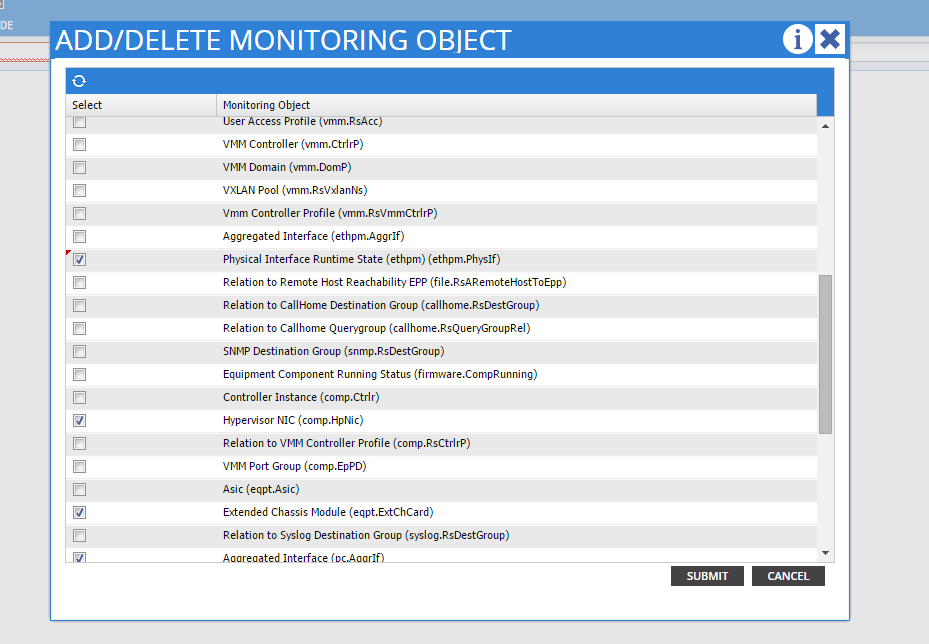

Under the Fault Severity Assignment policy, click the pencil in the work pane, next to the monitoring object drop-down list. Add a class where you modify the monitoring properties. Then choose the class of the object that generated the fault, that is, ethmPhysIf.
Choose this class and click the + icon in order to see each fault generated for that object.

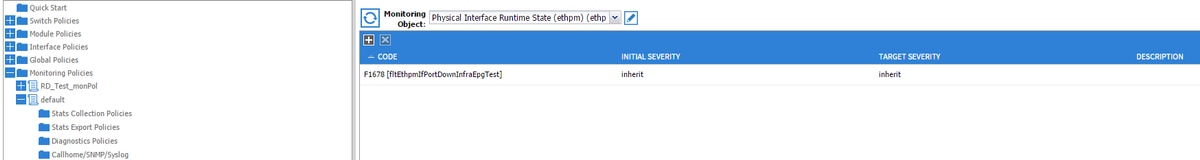

In this example, you can see fault F1678 and it its properties can be modified. Choosing Initial severity Squelched and target severity inherit prevents new faults of that code from being generated from the object that has this monitoring policy applied.
After you make the change, if you enable port 1/25 with no SFP in it it will not generate any faults!
